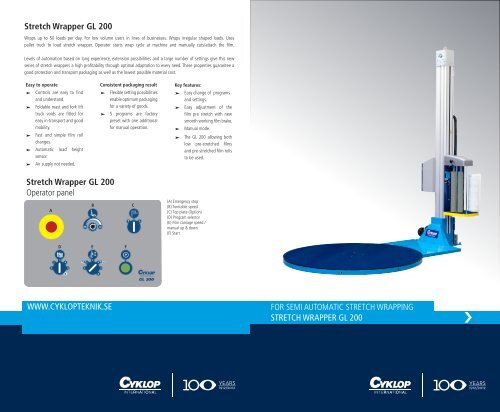

Stretch Wrapper GL 200

STRETCH WRAPPER GL 200Overview and dimensionsSTRETCH WRAPPER GL 200SpecificationAir supply not neededEasy adjustment of thefilm pre stretch with newsmooth working film brakeRidgid chassieOperator starts wrap cycle at machine. Operator manually cuts/attaches film.Machine Table diam 1675 mmTable speedMax 12 r.p.m adjustableSoft start / stopElectronically runStretch wrapping programs5 standard, 1 for manual operationBottom/top wrappings Prog 1 2 bottom 1 top Stops in topProg 2 3 bottom 2 top Stops in topProg 3 2 bottom 1 top Up/downProg 4 3 bottom 2 top Up/downProg 5 4 bottom 3 top Up/downProg 6Manual settingFilm carriage speedVariable film overlapping top and bottomPre stretch / Film tensionAdjustable, friction brakeControllerSiemens PLCPower SupplyProtection230/400 V, 3-phase, 50 HzIP54Pallet Goods Max size (length x width)Highest goods height incl palletMax load weightStretch Film Core diameterOuter diameter, maxFilm width, maxFilm thicknessC-mark (EN 60204)1200 x 1200 mm2200 mm (standard machine)1500 kg76 mm250 mm500 mm9-35 mySelected optionsLEH Turntable diam 2000 mm Extended mast Extended chassis Access ramp Galvanized chassis Top film cassetteIBKCDJFGADim (mm) A B C D E F G H I J K LStandard 2670 1675 1020 2200 50 750 60 700 2670 550 1100 900Option 2995 2000 1020 2600 50 750 60 700 3070 550 1100 1500Weight, standard: 500 kg (Weight can vary depending on options). Crated dimensions: L2900 x H1050 x W1800 mm, weight: 650 kg.GL 200 with option floor frame. The machine are lowered to thesame level as the floor.GL 200 equipped with the option top plate
