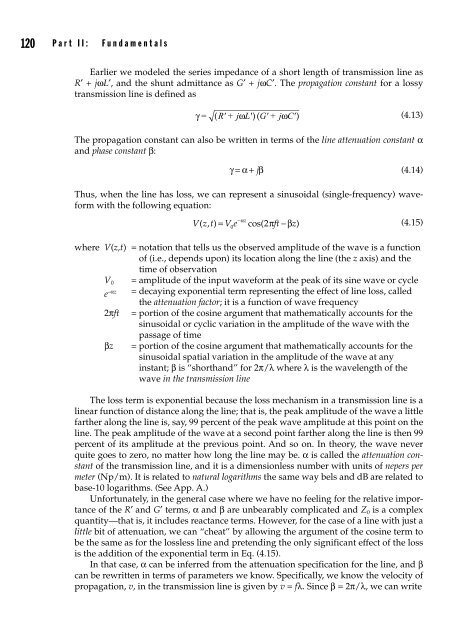

120 P a r t I I : F u n d a m e n t a l s<br />
Earlier we modeled the series impedance of a short length of transmission line as<br />
R′ + jwL′, and the shunt admittance as G′ + jwC′. The propagation constant for a lossy<br />
transmission line is defined as<br />
γ = ( R' + jωL'<br />
) ( G' + jωC'<br />
)<br />
(4.13)<br />
The propagation constant can also be written in terms of the line attenuation constant a<br />
and phase constant b:<br />
γ = α + jβ (4.14)<br />
Thus, when the line has loss, we can represent a sinusoidal (single-frequency) waveform<br />
with the following equation:<br />
−α<br />
V( z, t) = V e z cos(2 πft −βz)<br />
(4.15)<br />
0<br />
where V(z,t) = notation that tells us the observed amplitude of the wave is a function<br />
of (i.e., depends upon) its location along the line (the z axis) and the<br />
time of observation<br />
V 0 = amplitude of the input waveform at the peak of its sine wave or cycle<br />
e –az = decaying exponential term representing the effect of line loss, called<br />
the attenuation factor; it is a function of wave frequency<br />
2pft = portion of the cosine argument that mathematically accounts for the<br />
sinusoidal or cyclic variation in the amplitude of the wave with the<br />
passage of time<br />
bz = portion of the cosine argument that mathematically accounts for the<br />
sinusoidal spatial variation in the amplitude of the wave at any<br />
instant; b is “shorthand” for 2p/l where l is the wavelength of the<br />
wave in the transmission line<br />
The loss term is exponential because the loss mechanism in a transmission line is a<br />
linear function of distance along the line; that is, the peak amplitude of the wave a little<br />
farther along the line is, say, 99 percent of the peak wave amplitude at this point on the<br />
line. The peak amplitude of the wave at a second point farther along the line is then 99<br />
percent of its amplitude at the previous point. And so on. In theory, the wave never<br />
quite goes to zero, no matter how long the line may be. a is called the attenuation constant<br />
of the transmission line, and it is a dimensionless number with units of nepers per<br />
meter (Np/m). It is related to natural logarithms the same way bels and dB are related to<br />
base-10 logarithms. (See App. A.)<br />
Unfortunately, in the general case where we have no feeling for the relative importance<br />
of the R′ and G′ terms, a and b are unbearably complicated and Z 0 is a complex<br />
quantity—that is, it includes reactance terms. However, for the case of a line with just a<br />
little bit of attenuation, we can “cheat” by allowing the argument of the cosine term to<br />
be the same as for the lossless line and pretending the only significant effect of the loss<br />
is the addition of the exponential term in Eq. (4.15).<br />
In that case, a can be inferred from the attenuation specification for the line, and b<br />
can be rewritten in terms of parameters we know. Specifically, we know the velocity of<br />
propagation, v, in the transmission line is given by v = fl. Since b = 2p/l, we can write
