C h a p t e r 4 : T r a n s m i s s i o n L i n e s a n d I m p e d a n c e M a t c h i n g 115 In other words, each short section of any transmission line can be represented by a (relatively) simple RLC network. If we then use network analysis and calculus to examine the current and voltage relationships at the input of a long transmission line made up of an infinite number of infinitesimally short sections daisy-chained together, we find the transmission line exhibits an impedance at its input terminals that is independent of the length of the line. This characteristic impedance Z 0 , also sometimes called the line’s surge impedance, is a function of the four parameters previously defined, which in turn are a function of the physical geometry of the line, including conductor size, shape, and spacing, and the dielectric constant of the insulating material between the conductors. Z 0 = R' G' + + jwL' jwC' (4.1) where Z 0 = characteristic impedance of line, in ohms R′ = total series resistance per unit length of two conductors, in ohms G′ = shunt conductance between two conductors per unit length, in mhos L′ = total series inductance per unit length of two conductors, in henrys C′ = shunt capacitance per unit length between conductors, in farads j = imaginary number -1 w = angular frequency in radians per second (w = 2πf ) In the general case, Z 0 is complex; that is, it has both a resistive component and a reactance component. Most real transmission lines fall in this category. The existence of a reactance component leads to attenuation and delay across each unit length that is often frequency dependent. When that is the case, signals applied to one end of the line are said to suffer dispersion or frequency dispersion as they propagate along the line. Thus, a complex waveform consisting of multiple-frequency components will become distorted by the time it reaches the far end of the line, since the different frequencies will have experienced differing amounts of attenuation over their common path. For certain values of R′, G′, L′, and C′, the transmission is lossless and Z 0 is purely resistive or so nearly so that we can work with it as if it were. Three such cases are: • R′ = G′ = 0. In an ideal cable, the series resistance is zero and the shunt resistance is infinite, so Eq. (4.1) reduces to the following simplified form for a lossless cable: Z = 0 L' C' (4.2) • wL′ >> R′ and wC′ >> G′. Although not zero, the series resistance and shunt conductance are negligible with respect to the series inductance and shunt capacitance, respectively, at the frequencies of operation. Note, however, that R′ is a function of frequency because the effective resistance of a wire at RF is modified by a frequency-dependent phenomenon called skin effect. It is not appropriate, for instance, to blindly use the dc or ohmic value of R at RF. • R′/L′ = G′/C′ and both R′ and G′ are small, but not necessarily negligible. If this condition is met, the line is distortionless or dispersionless even though it may not be lossless.
116 P a r t I I : F u n d a m e n t a l s Because a unit length of transmission line contains capacitance and inductance, we should not be surprised to see that some of its characteristics depend on ε (permittivity) and µ (permeability). In particular, the velocity of propagation in a transmission line is or 1 L'C' = µε = (4.3) 2 v v = 1 L'C' (4.4) In the usual transmission line, µ is essentially the same as for free space, but ε will be somewhat larger than ε 0, with the result that v in the line will be less than c, the speed of propagation in free space. For lossless lines, the velocity of propagation on the line is and the wavelength of the wave in the line is c v = (4.5) ε r 0 λ = λ ε r (4.6) Example 4.1 A nearly lossless transmission line (R′ and G′ are very small) has an inductance of 3.75 nH per unit length and a capacitance of 1.5 pF per unit length. Find the characteristic impedance, Z 0 . Solution Z 0 = = L' C' –9 3.75× 10 H –12 1.5× 10 F 3 = 2.5× 10 = 50 Ω Following are equations for the characteristic impedance of various kinds of twoconductor transmission lines. (a) Parallel line: Z 0 ⎛ S ⎞ = 276 log ⎜ 2 ⎟ (4.7) ε ⎝ d ⎠
- Page 82 and 83: C h a p t e r 2 : r a d i o - W a v
- Page 84 and 85: C h a p t e r 2 : r a d i o - W a v
- Page 86 and 87: C h a p t e r 2 : r a d i o - W a v
- Page 88 and 89: C h a p t e r 2 : r a d i o - W a v
- Page 90 and 91: C h a p t e r 2 : r a d i o - W a v
- Page 92 and 93: C h a p t e r 2 : r a d i o - W a v
- Page 94 and 95: C h a p t e r 2 : r a d i o - W a v
- Page 96 and 97: C h a p t e r 2 : r a d i o - W a v
- Page 98 and 99: CHAPTER 3 Antenna Basics An antenna
- Page 100 and 101: C h a p t e r 3 : A n t e n n a B a
- Page 102 and 103: C h a p t e r 3 : A n t e n n a B a
- Page 104 and 105: C h a p t e r 3 : A n t e n n a B a
- Page 106 and 107: C h a p t e r 3 : A n t e n n a B a
- Page 108 and 109: C h a p t e r 3 : A n t e n n a B a
- Page 110 and 111: C h a p t e r 3 : A n t e n n a B a
- Page 112 and 113: C h a p t e r 3 : A n t e n n a B a
- Page 114 and 115: C h a p t e r 3 : A n t e n n a B a
- Page 116 and 117: C h a p t e r 3 : A n t e n n a B a
- Page 118 and 119: C h a p t e r 3 : A n t e n n a B a
- Page 120 and 121: C h a p t e r 3 : A n t e n n a B a
- Page 122 and 123: C h a p t e r 3 : A n t e n n a B a
- Page 124 and 125: C h a p t e r 3 : A n t e n n a B a
- Page 126 and 127: CHAPTER 4 Transmission Lines and Im
- Page 128 and 129: C h a p t e r 4 : T r a n s m i s s
- Page 130 and 131: C h a p t e r 4 : T r a n s m i s s
- Page 134 and 135: C h a p t e r 4 : T r a n s m i s s
- Page 136 and 137: C h a p t e r 4 : T r a n s m i s s
- Page 138 and 139: C h a p t e r 4 : T r a n s m i s s
- Page 140 and 141: C h a p t e r 4 : T r a n s m i s s
- Page 142 and 143: C h a p t e r 4 : T r a n s m i s s
- Page 144 and 145: C h a p t e r 4 : T r a n s m i s s
- Page 146 and 147: C h a p t e r 4 : T r a n s m i s s
- Page 148 and 149: C h a p t e r 4 : T r a n s m i s s
- Page 150 and 151: C h a p t e r 4 : T r a n s m i s s
- Page 152 and 153: C h a p t e r 4 : T r a n s m i s s
- Page 154 and 155: C h a p t e r 4 : T r a n s m i s s
- Page 156 and 157: C h a p t e r 4 : T r a n s m i s s
- Page 158 and 159: C h a p t e r 4 : T r a n s m i s s
- Page 160 and 161: C h a p t e r 4 : T r a n s m i s s
- Page 162 and 163: C h a p t e r 4 : T r a n s m i s s
- Page 164 and 165: C h a p t e r 4 : T r a n s m i s s
- Page 166 and 167: Chapter 5 Antenna Arrays and Array
- Page 168 and 169: C h a p t e r 5 : a n t e n n a A r
- Page 170 and 171: C h a p t e r 5 : a n t e n n a A r
- Page 172 and 173: C h a p t e r 5 : a n t e n n a A r
- Page 174 and 175: C h a p t e r 5 : a n t e n n a A r
- Page 176 and 177: C h a p t e r 5 : a n t e n n a A r
- Page 178 and 179: C h a p t e r 5 : a n t e n n a A r
- Page 180 and 181: C h a p t e r 5 : a n t e n n a A r

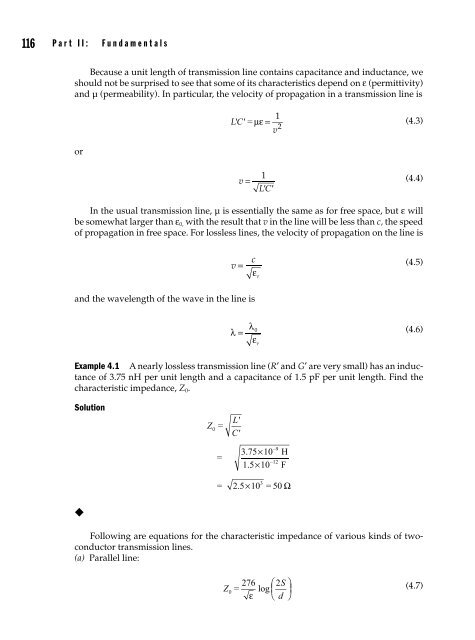

116 P a r t I I : F u n d a m e n t a l s<br />
