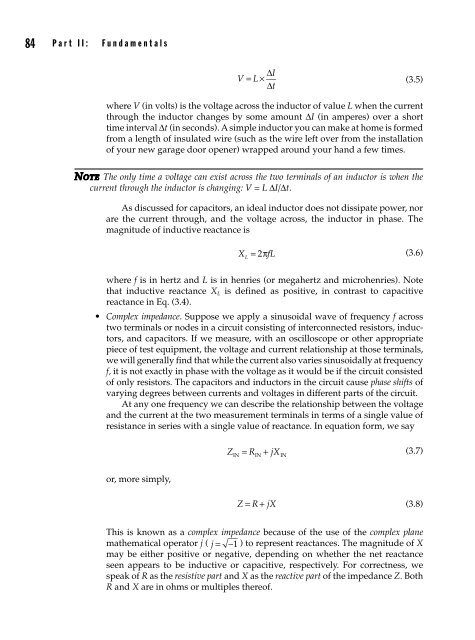

84 P a r t I I : F u n d a m e n t a l s<br />
= × ∆ I<br />
V L<br />
∆t<br />
(3.5)<br />
where V (in volts) is the voltage across the inductor of value L when the current<br />
through the inductor changes by some amount DI (in amperes) over a short<br />
time interval Dt (in seconds). A simple inductor you can make at home is formed<br />
from a length of insulated wire (such as the wire left over from the installation<br />
of your new garage door opener) wrapped around your hand a few times.<br />
Note The only time a voltage can exist across the two terminals of an inductor is when the<br />
current through the inductor is changing: V = L DI/Dt.<br />
As discussed for capacitors, an ideal inductor does not dissipate power, nor<br />
are the current through, and the voltage across, the inductor in phase. The<br />
magnitude of inductive reactance is<br />
XL = 2πfL<br />
(3.6)<br />
where f is in hertz and L is in henries (or megahertz and microhenries). Note<br />
that inductive reactance X L is defined as positive, in contrast to capacitive<br />
reactance in Eq. (3.4).<br />
• Complex impedance. Suppose we apply a sinusoidal wave of frequency f across<br />
two terminals or nodes in a circuit consisting of interconnected resistors, inductors,<br />
and capacitors. If we measure, with an oscilloscope or other appropriate<br />
piece of test equipment, the voltage and current relationship at those terminals,<br />
we will generally find that while the current also varies sinusoidally at frequency<br />
f, it is not exactly in phase with the voltage as it would be if the circuit consisted<br />
of only resistors. The capacitors and inductors in the circuit cause phase shifts of<br />
varying degrees between currents and voltages in different parts of the circuit.<br />
At any one frequency we can describe the relationship between the voltage<br />
and the current at the two measurement terminals in terms of a single value of<br />
resistance in series with a single value of reactance. In equation form, we say<br />
ZIN = RIN + jX<br />
(3.7)<br />
IN<br />
or, more simply,<br />
Z = R + jX (3.8)<br />
This is known as a complex impedance because of the use of the complex plane<br />
mathematical operator j ( j = − 1 ) to represent reactances. The magnitude of X<br />
may be either positive or negative, depending on whether the net reactance<br />
seen appears to be inductive or capacitive, respectively. For correctness, we<br />
speak of R as the resistive part and X as the reactive part of the impedance Z. Both<br />
R and X are in ohms or multiples thereof.
