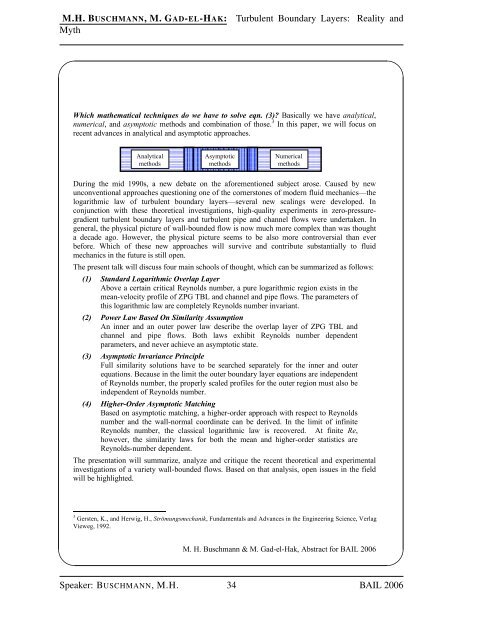

M.H. BUSCHMANN, M. GAD-EL-HAK: Turbulent Bo<strong>und</strong>ary Layers: Reality and<br />
Myth<br />
✬<br />
Which mathematical techniques do we have to solve eqn. (3)? Basically we have analytical,<br />
numerical, and asymptotic methods and combination <strong>of</strong> those. 3 In this paper, we will focus on<br />
recent advances in analytical and asymptotic approaches.<br />
During the mid 1990s, a new debate on the aforementioned subject arose. Caused by new<br />
unconventional approaches questioning one <strong>of</strong> the cornerstones <strong>of</strong> modern fluid mechanics—the<br />
logarithmic law <strong>of</strong> turbulent bo<strong>und</strong>ary layers—several new scalings were developed. In<br />
conjunction with these theoretical investigations, high-quality experiments in zero-pressuregradient<br />
turbulent bo<strong>und</strong>ary layers and turbulent pipe and channel flows were <strong>und</strong>ertaken. In<br />
general, the physical picture <strong>of</strong> wall-bo<strong>und</strong>ed flow is now much more complex than was thought<br />
a decade ago. However, the physical picture seems to be also more controversial than ever<br />
before. Which <strong>of</strong> these new approaches will survive and contribute substantially to fluid<br />
mechanics in the future is still open.<br />
The present talk will discuss four main schools <strong>of</strong> thought, which can be summarized as follows:<br />
(1) Standard Logarithmic Overlap Layer<br />
Above a certain critical Reynolds number, a pure logarithmic region exists in the<br />
mean-velocity pr<strong>of</strong>ile <strong>of</strong> ZPG TBL and channel and pipe flows. The parameters <strong>of</strong><br />
this logarithmic law are completely Reynolds number invariant.<br />
(2) Power Law Based On Similarity Assumption<br />
An inner and an outer power law describe the overlap layer <strong>of</strong> ZPG TBL and<br />
channel and pipe flows. Both laws exhibit Reynolds number dependent<br />
parameters, and never achieve an asymptotic state.<br />
(3) Asymptotic Invariance Principle<br />
Full similarity solutions have to be searched separately for the inner and outer<br />
equations. Because in the limit the outer bo<strong>und</strong>ary layer equations are independent<br />
<strong>of</strong> Reynolds number, the properly scaled pr<strong>of</strong>iles for the outer region must also be<br />
independent <strong>of</strong> Reynolds number.<br />
(4) Higher-Order Asymptotic Matching<br />
Based on asymptotic matching, a higher-order approach with respect to Reynolds<br />
number and the wall-normal coordinate can be derived. In the limit <strong>of</strong> infinite<br />
Reynolds number, the classical logarithmic law is recovered. At finite Re,<br />
however, the similarity laws for both the mean and higher-order statistics are<br />
Reynolds-number dependent.<br />
The presentation will summarize, analyze and critique the recent theoretical and experimental<br />
investigations <strong>of</strong> a variety wall-bo<strong>und</strong>ed flows. Based on that analysis, open issues in the field<br />
will be highlighted.<br />
3 Gersten, K., and Herwig, H., Strömungsmechanik, F<strong>und</strong>amentals and Advances in the Engineering Science, Verlag<br />
Vieweg, 1992.<br />
✫<br />
Analytical<br />
methods<br />
Asymptotic<br />
methods<br />
Numerical<br />
methods<br />
M. H. Buschmann & M. Gad-el-Hak, Abstract for <strong>BAIL</strong> <strong>2006</strong><br />
