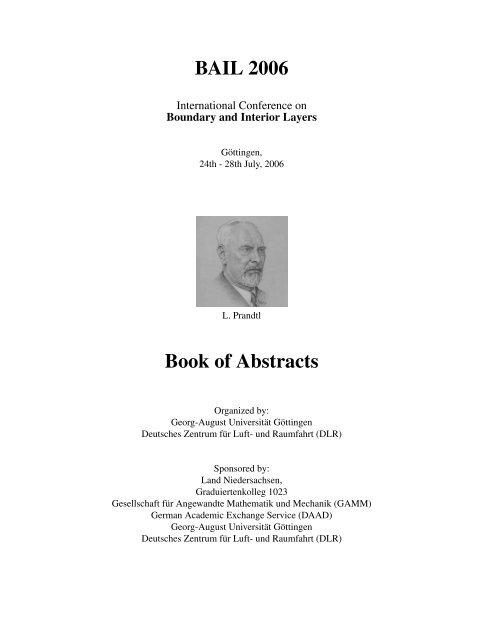

BAIL 2006 Book of Abstracts - Institut für Numerische und ...

BAIL 2006

International Conference on

Boundary and Interior Layers

Göttingen,

24th - 28th July, 2006

L. Prandtl

Book of Abstracts

Organized by:

Georg-August Universität Göttingen

Deutsches Zentrum für Luft- und Raumfahrt (DLR)

Sponsored by:

Land Niedersachsen,

Graduiertenkolleg 1023

Gesellschaft für Angewandte Mathematik und Mechanik (GAMM)

German Academic Exchange Service (DAAD)

Georg-August Universität Göttingen

Deutsches Zentrum für Luft- und Raumfahrt (DLR)

Greeting

It gives me great pleasure to welcome all participants to the BAIL 2006 conference in

Goettingen, Germany. This conference is the latest in a long line of international conferences

on Boundary and Interior Layers, that have been held in many parts of the world.

The first three conferences were held in Dublin, Ireland in 1980, 1982 and 1984. These

were followed by conferences in Novosibirsk, USSR (1986), Shanghai, China (1988),

Copper Mountain, USA (1992) and Beijing, China (1994).

After a gap of some years, an international steering committee was formed to advise on

the creation of a new series of BAIL conferences. This committee made a positive recommendation,

which has resulted in three further BAIL conferences being held, specifically:

BAIL 2002 in Perth, Australia, BAIL 2004 in Toulouse, France and this year’s BAIL 2006

in Goettingen, Germany.

It is heartening to see how well BAIL 2006 is supported. Indeed, the number of participants

appears to be growing with each successive conference in the new series. I am

delighted to thank the members of the International Steering Committee for their good

advice over the years. It is a particular pleasure also to thank the local organizers and

their teams for the hard work involved in the organization of each of these conferences.

Only someone who has organized such a conference is aware of just how much work is

involved! I believe that the success of the BAIL 2006 organizers, especially in making

this event attractive to a large number of participants, is an important milestone in the

development of this series of conferences. On behalf of all participants I thank the organizers

and, in addition, I wish everyone a productive and enjoyable meeting.

John J H Miller

Dublin, Ireland

July 2006

BAIL conferences

• BAIL 2004, Toulouse, France

• BAIL 2002 , Perth, Australia

• BAIL VII, Beijing, China (1994)

• BAIL VI, Colorado, USA (1992)

• BAIL V, Shanghai, China (1988)

• BAIL IV, Novosibirsk, USSR (1986)

• BAIL III, Dublin, Ireland (1984)

• BAIL II, Dublin, Ireland (1982)

• BAIL I, Dublin, Ireland (1980)

3 BAIL 2006

Plenary Session 1 Session 2 Session 3 Session 4 Evening

Talks

9:15-10:15 10:45-12:25 14:00 - 14:50 15:10 - 16:25 16:45-18:00

Sunday

Welcome

July 23

Reception

(17:00-20:00,

House 6)

Monday Room SL P. Huerre Applied Applied Minisymposium Minisymposium Get Together

Aerodynamics Aerodynamics Stynes, O’Riordan Stynes,O’Riordan Party

July 24 Room MPI (Room Asymptotic Asymptotic Special

(Old Town-hall,

MPI) Methods Methods Flows

19:00-20:30)

Public Talk

Prof. Gersten

Minisymposium

Hartmann, Hou-

Minisymposium

Hartmann, Hou-

Flows in Special

Geometries

Tuesday Room SL M. Stynes Heat

Transfer

Room SL

(20:00-21:30)

ston

Numerical

Methods 1

ston

Numeric. Methods

for Fluid Flows

Minisymposium

Maubach, Tselishcheva

Minisymposium

Maubach,

Tselishcheva

July 25 Room MPI (Room

MPI)

Excursion

Conference Dinner

Open

Discussion 1

Wall

functions 2

Wednesday Room SL W. Wall Numerical

Methods 2

July 26 Room MPI (Room Wall

MPI) functions 1

Minisymposium

Shishkin, Hemker

Open

Discussion 2

Minisymposium

Shishkin, Hemker

Anisotropic

Meshes 2

Thursday Room SL P. Houston Anisotropic

Meshes 1 Round Tour

July 27 Room MPI (Room Turbulence (DLR,

MPI) Modelling Math. Inst.)

End of Conference

Friday Room SL Minisymposium: Das,Sengupta

(9:15-10:30, 11:00-12:15)

5 BAIL 2006

July 28 Room MPI

Room School-Lab (SL) Room MPI

Sunday, 23 July

17:00 - 20:00 Welcome Reception

Monday, 24 July

8:00 - 9:00 Registration

9:00 - 9:15 Opening

9:15 - 10:15 Plenary Talk:

P. Huerre: Dynamics of hot jets: a numerical and theo-


retical study.

10:15 - 10:45 Coffee Break

Session: Applied Aerodynamics

Session: Asymptotic methods

P. Svacek: Numerical Approximation of Flow Induced

M. Hamouda, R. Temam: Boundary layers for the

Airfoil Vibrations (10:45-11:10)

Navier-Stokes equations: asymptotic analysis (10:45-

A. Firooz, M. Gadami: Turbulence Flow for NACA

11:10)

4412 in Unbounded Flow and Grow Effect with Diffe-

N.V. Tarasova: Full asymptotic analysis of the Navier-

rent Turbulence Models and Two Ground Conditions:

10:45 - 12:25

Stokes equations in the problems of gas flows over bodies

Fixed and Moving Ground Conditions (11:10-11:35)

with large Reynolds number (11:10-11:35)

B. Eisfeld: Computation of complex compressible

N. Neuss: Numerical approximation of boundary layers

aerodynamic flows with Reynolds stress turbulence

for rough boundaries (11:35-12:00)

model (11:35-12:00)




A.-M. Il’in, B.I. Suleimanov: The coefficients of in-

A. Nastase: Qualitative Analysis of the Navier-Stokes

10:45 - 12:25

ner asymptotic expansions for solutions of some singular

Solutions on Vicinty of their Critical Lines (12:00-12:25)

boundary value problems (12:00-12:25)

12:30 - 14:00 Lunch Break



Z.-H. Yang, Y.-Z. Li, Y. Zhu: Application of Bi-

C.H. Tai, C.-Y. Chao, J.-C. Leong, Q.S. Hong:

furcation Method to Computing Numerical Solutions of

Effects of golf ball dimple configuration on aerodyna-

Lane-Emden Equation (14:00-14:25)

mics, trajectory, and acoustics (14:00-14:25)

14:00 - 14:50


H. Tian: Uniformly Convergent Numerical Methods

W.S. Islam, V.R. Raghavan: Numerical Simulation

for Singularly Perturbed Delay Differential Equations

of High Sub-critical Reynolds Number Flow Past a Cir-

(14:25-14:50)

cular Cylinder (14:25-14:50)


Session: Special Flows

Minisyposium: M. Stynes, E. O’Riordan

B. Rasuo: On Boundary Layer Control in Two-

H. Wang: A Component-Based Eulerian-Lagrangian

Dimensional Transonic Wind Tunnels (15:10-15:35)

Formulation for Compositional Flow in Porous Media

M. Vasiliev: About unsteady Boundary Layer on a di-

G.I. Shishkin: A posteriori adapted meshes in the

approximation of singularly perturbed quasilinear

15:10 - 16:25

hedral angle (15:35-16:00)

K. Mansour: Boundary Layer Solution for Laminar

parabolic convection-diffusion equations

Flow through a Loosely Curved Pipe by using Stokes

W. Layton, I. Stanculescu: Numerical Analysis of

Expansion (16:00-16:25)

Approximate Deconvolution Models of Turbulence


16:25 - 16:45 Coffee break

Minisymposium: M. Stynes, E. O’Riordan

R.K. Dunne, E. O’Riordan, M.M. Turner:

A singular perturbation problem arising in the model-

16:45 - 18:00

ling of plasma sheats

19:00 - 21:00 Get Together Party

Old Town Hall



Tuesday, 25 July

Plenary Talk:

M. Stynes: Convection-diffusion problems, SD-

9:15 - 10:15

FEM/SUPG and a priori meshes.

10:15 - 10:45 Coffee break

Minisymposium: J.Maubach, I.V.Tselishcheva:

M. Anthonissen, I. Sedykh, J. Maubach: A con-

vergence proof of local defect correction for convection-

Session: Heat Transfer

M. Hölling, H. Herwig: Computation of turbulent


diffusion problems

J. Maubach: On the difference between left and right

natural convection at vertical walls using new wall

preconditioning for convection dominated convection-

functions (10:45-11:10)

diffusion problems

O. Shishkina, C. Wagner: Boundary and Interior

10:45 - 12:25

A. Hegarty, St. Sikwila, G.I. Shishkin: An adap-

Layers in Turbulent Thermal Convection (11:10-11:35)

tive method for the numerical solution of an elliptic

K. Morinishi: Rarefied Gas Boundary Layer Predicted

convection diffusion problem

with Continuum and Kinetic Approaches (11:35-12:00)

P. Zegeling: An Adaptive Grid Method for the Solar

Coronal Loop Model

12:30 - 14:00 Lunch Break


Minisymposium: J.Maubach, I.V.Tselishcheva:

A.I. Zadorin: Numerical method for the Blasius equa-

Session: Flows in Special Geometries

tion on an infinite interval

D. Kachuma, I. Sobey: Fast waves during transient

S. Li , L.P. Shishkina, G.I. Shishkin, Parameter-

flow in an asymmetric channel (14:00-14:25)

14:00 - 14:50

uniform method for a singularly perturbed parabolic

J. Mauss, J. Cousteix: Global Interactive Boundary

equation modelling the Black-Scholes equation in the

Layer (GIBL) for a Channel (14:25-14:50)

presence of interior and boundary layers


Session: Numer. Methods for Fluid Flows


P. Knobloch: On methods dimishing spurious oscilla-

tions in finite element solutions of convection-diffusion

Minisymposium: R. Hartmann, P. Houston

equations (15:10-15:35)

J. Mackenzie, A. Nicola: A Discontinuous Galerkin

G. Matthies, L. Tobiska: Mass conservation of finite

Moving Mesh Method for Hamilton-Jacobi Equations

element methods for coupled flow-transport problems

R. Schneider, P. Jimack: Anisotropic mesh adaption

15:10 - 16:25

(15:35-16:00)

based on a posteriori estimates and optimisation of node

M. Olshanskii: An Augmented Lagrangian Based

positions

Solver for the low-viscosity incompressible flows (16:00-

S. Perotto: Layer Capturing via Anisotropic Adaption

16:25)

16:25 - 16:45 Coffee break


Session: Numerical Methods 1

M. Bause: Apects of SUPG/PSPG and GRAD-DIV

Stabilized Finite Element Approximation of Compres-

Minisymposium: R. Hartmann, P. Houston

sible Viscous Flow (16:45-17:10)

V. Heuveline: On a new refinement strategy for adap-

F. Nataf, G. Rapin: Application of the Smith Fac-

tive hp finite element

torisation to Domain Decomposition Methods for the

16:45 - 18:00

R. Hartmann: Discontinuous Galerkin methods for

Stokes Equations (17:10-17:35)

compressible flows: higher order accuracy, error estima-

A. Cangiani, E.H. Georgoulis, M. Jensen:

tion and adaptivity

Continuous-Discontinuous Finite Element Methods for

Convection-Diffusion Problems (17:35-18:00):


Public Talk:

Gersten: Vom Kochtopf bis zum Fußballspiel: Epi-

soden zu der weltweiten Wirkung der Göttinger

20:00 - 21:30

Strömungsforscher (in german)


Wednesday, 26 July

Plenary Talk:

W. Wall: Variational Multiscale Methods for incom-

9:15 - 10:15

pressible flows.


Session: Numerical Methods 3

Session: Wall Functions 1

F. Alizard, J.-Ch. Robinet: Two-dimensional tem-

T. Knopp: Model-consistent universal wall-function for

poral modes in nonparallel flows (10:45-11:10)

RANS turbulence modelling (10:45-11:10)

Q. Ye: Numerical simulation of turbulent boundary


Th. Alrutz, T. Knopp: Near wall grid adaption for

for stagnation-flow in the spray-painting process (11:10-

wall functions (11:10-11:35)

11:35)

Z. Hammouch: Similiarity solutions of a power-law

10:45 - 12:25

A.I. Tolstykh, M.V. Lipavskii, E.N. Chigerev:

non-Newtonian laminar boundary layer flows (11:35-

Highly accurate 9th-order schemes and their applicati-

12:00)

ons to DNS of thin shear layer instability (11:35-12:00)

B. Scheichl, A. Kluwick: On Turbulent Marginal Se-

N. Parumasur, J. Banasiak, J.M. Kozakiewicz:

paration: How the Logarithmic Law of the Wall is Su-

Numerical and Asymptotic Analysis of Singularly Per-

perseded by the Half-Power Law (12:00-12:25)

turbed PDEs of Kinetic Theory (12:00-12:25)

12:30 - 14:00 Lunch Break


Session: Wall Functions 2

Open Discussion I

V.D. Liseykin, Y.V. Likhanova, D.V. Patrakhin,

I.A. Vaseva: Application of boundary layer-type func-

How to prevent spurious oscillations in boundary and

14:00 - 15:00

tions to comprehensive grid generation codes (14:00-

interior layers?

14:25)

16:00 - 22:00 Excursion + Conference Dinner



Thursday, 27 July

Plenary Talk:

P. Houston: Discontinuous Galerkin Finite Element

9:15 - 10:15

Methods for CFD: A Posteriori Error Estimation and

Adaptivity.


Session: Anisotropic Meshes 1

Session: Turbul. Modelling

H.-G. Roos: A Comparison of Stabilization Methods

Boguslawski: Sheare Stress Distribution on Sphere

for Convection-Diffusion-Reaction Problems on Layer-


Surface at Different Inflow Turbulence (10:45-11:10)

Adapted Meshes (10:45-11:10)

H. Lüdecke: Detached Eddy Simulation of Supersonic

H.-G. Roos, H. Zarin: Discontinuous Galerkin stabi-

Shear Layer Wake Flows (11:10-11:35)

lization for convection-diffusion problems (11:10-11:35)

O. Mierka, D. Kuzmin: On the implementation of

10:45 - 12:25

L. Tobiska: Using rectangular Qp elements in the SD-

turbulence models in incompressible flow solvers based

FEM for a convection-diffusion problem with a bounda-

on a finite element discretization (11:35-12:00)

ry layer (11:35-12:00)

S.A. Gaponov, G.V. Petrov, B.V. Smorodsky:

C. Clavero, J.L. Gracia, F. Lisbona: A second order

Boundary layer interaction with external disturbances

uniform convergent method for a singularly perturbed

(12:00-12:25)

parabolic system of reaction-diffusion type (12:00-12:25)

12:30 - 14:00 Lunch Break

14:00 - 14:50 Round Tours (DLR or Mathematical Institute)

14:50 - 15:10 Coffee Break


Minisymposium: G.I. Shishkin, P. Hemker

Session: Anisotropic Meshes 2

G.I. Shishkin: Grid approximation of parabolic equa-

A.E.P. Veldmann: High-order symmetry-preserving

tions with nonsmooth initial condition in the presence

discretization on strongly stretched grids (15:10-15:35)

of boundary layers of different types

Th. Apel, G. Matthies: A family of non-conforming

L.P. Shishkina, G.I. Shishkin: A difference scheme

finite elements of arbitrary order for the Stokes problem

of improved accuracy for a quasilinear singularly per-

15:10 - 16:25

on anisotropic quadrilateral meshes (15:35-16:00)

turbed elliptic convection-diffusion equation in the case

G. Lube: A stabilized finite element method with aniso-

of the third-kind boundary condition

tropic mesh refinement for the Oseen equations (16:00-

D. Branley, A. Hegarty, H. MacMullen and

16:25)

G.I. Shishkin: A Schwarz method for a convection-

diffusion problem with a corner singularity


Minisymposium: G.I. Shishkin, P. Hemker

I.V. Tselishcheva, G.I. Shishkin: Domain decom-

position method for a semilinear singularly perturbed

elliptic convection-diffusion equation with concentrated

sources

Th. Linss, M. Madden: Layer-adapted meshes for


Open Discussion 2

Anisotropic mesh generation for advection-dominated

16:45 - 18:00

problems and for incompressible flow problems

time-dependent reaction diffusion

S. Hemavathi, S.Valarmathi: A parameter-uniform

numerical method for a system of singularly perturbed

ordinary differential equations


Friday, 28 July

Minisymposium: D. Das, T.K. Sengupta

M.H. Buschmann M. Gad-El-Hak: Turbulent

Boundary Layers: Reality and Myth

L. Savic, H. Steinrück: Asymptotic Analysis of the

9:15 - 10:30

mixed convection flow past a horizontal plate near the

trailing edge



Minisymposium: D. Das, T.K. Sengupta

T.K. Sengupta, A. Kameswara Rao: Spatio-

temporal growing waves in boundary-layers by Bron-

wich contour integral method

A. Nayak, D. Das: Three-dimensional Temporal

11:00 - 12:25

Instability of Unsteady Pipe Flow

J. Hussong, N. Bleier, V.I.V. Ram: The structure

of the critical layer of a swirling annular flow in transi-

tion

12:25 - 12:40 Closing Session

12:40 - 14:00 Lunch

Contents

Greetings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Plenary Presentations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

KL. GERSTEN:

Vom Kochtopf bis zum Fußballspiel (Public Talk) . . . . . . . . . 3

P. HOUSTON:

Discontinuous Galerkin Finite Element Methods for CFD: A Posteriori

Error Estimation and Adaptivity . . . . . . . . . . . . . . 4

L. LESSHAFFT, P. HUERRE, P. SAGAUT, M. TERRACOL:

Dynamics of Hot Jets: A Numerical and Theoretical Study . . . . 5

M. STYNES:

Convection-diffusion problems, SDFEM/SUPG and a priori meshes 6

V. GRAVEMEIER, S. LENZ, W.A. WALL:

Variational Multiscale Methods for incompressible flows . . . . . 8

Minisymposia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

MS: N. Kopteva, M. Stynes, E. O’Riordan . . . . . . . . . . . . . . . . . . . . 13

R.K. DUNNE, E. O’RIORDAN, M.M. TURNER:

A singular perturbation problem arising in the modelling of plasma

sheaths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

G.I. SHISHKIN:

A posteriori adapted meshes in the approximation of singularly

perturbed quasilinear parabolic convection-diffusion equations . . 16

W. LAYTON, I. STANCULESCU:

Numerical Analysis of Approximate Deconvolution Models of

Turbulence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

H. WANG:

A Component-Based Eulerian-Lagrangian Formulation for Compositional

Flow in Porous Media . . . . . . . . . . . . . . . . . . 19

MS: P. Houston, R. Hartmann . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

R. HARTMANN:

Discontinuous Galerkin methods for compressible flows: higher

order accuracy, error estimation and adaptivity . . . . . . . . . . 22


CONTENTS

V. HEUVELINE:

On a new refinement strategy for adaptive hp finite element method 24

J.A. MACKENZIE, A. NICOLA:

A Discontinuous Galerkin Moving Mesh Method for Hamilton-

Jacobi Equations . . . . . . . . . . . . . . . . . . . . . . . . . . 25

S. PEROTTO:

Layer Capturing via Anisotropic Mesh Adaption . . . . . . . . . 27

R. SCHNEIDER, P. JIMACK:

Anisotropic mesh adaption based on a posteriori estimates and

optimisation of node positions . . . . . . . . . . . . . . . . . . . 28

MS: Debopam Das, Tapan Sengupta . . . . . . . . . . . . . . . . . . . . . . . 31

M.H. BUSCHMANN, M. GAD-EL-HAK:

Turbulent Boundary Layers: Reality and Myth . . . . . . . . . . 32

A. NAYAK, D. DAS:

Three-dimesnional Temporal Instability of Unsteady Pipe Flow . 35

J. HUSSONG, N. BLEIER, V.V. RAM:

The structure of the critical layer of a swirling annular flow in

transition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

T.K. SENGUPTA, A. KAMESWARA RAO:

Spatio-temporal growing waves in boundary-layers by Bromwich

contour integral method . . . . . . . . . . . . . . . . . . . . . . 39

L. SAVIĆ, H. STEINRÜCK:

Asymptotic Analysis of the mixed convection flow past a horizontal

plate near the trailing edge . . . . . . . . . . . . . . . . . 41

MS: G.I. Shiskin, P. Hemker . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

D. BRANLEY, A.F. HEGARTY, H. PURTILL, G.I. SHISHKIN:

A Schwarz method for a convection-diffusion problem with a corner

singularity . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

T. LINSS, N. MADDEN:

Layer-adapted meshes for time-dependent reaction-diffusion . . . 47

G.I. SHISHKIN:

Grid Approximation of Parabolic Equations with Nonsmooth Initial

Condition in the Presence of Boundary Layers of Different

Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

L.P. SHISHKINA, G.I. SHISHKIN:

A Difference Scheme of Improved Accuracy for a Quasilinear

Singularly Perturbed Elliptic Convection-Diffusion Equation in

the Case of the Third-Kind Boundary Condition . . . . . . . . . . 49

I.V. TSELISHCHEVA, G.I. SHISHKIN:

Domain Decomposition Method for a Semilinear Singularly Perturbed

Elliptic Convection-Diffusion Equation with Concentrated

Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51


CONTENTS

S. HEMAVATHI, S. VALARMATHI:

A parameter-uniform numerical method for a system of singularly

perturbed ordinary differential equations . . . . . . . . . . . . . . 53

MS: J. Maubach, I, Tselishcheva . . . . . . . . . . . . . . . . . . . . . . . . . 55

A.F. HEGARTY, S. SIKWILA, G.I. SHISKIN:

An adaptive method for the numerical solution of an elliptic convection

diffusion problem . . . . . . . . . . . . . . . . . . . . . 56

M. ANTHONISSEN, I. SEDYKH, J. MAUBACH:

A Convergence Proof of Local Defect Correction for Convection-

Diffusion Problems . . . . . . . . . . . . . . . . . . . . . . . . . 57

J. MAUBACH:

On the Difference between Left and Right Preconditioning for

Convection Dominated Convection-Diffusion Problems . . . . . . 58

S. LI, L.P. SHISHKINA, G.I. SHISHKIN:

Parameter-Uniform Method for a Singularly Perturbed Parabolic

Equation Modelling the Black-Scholes equation in the Presence

of Interior and Boundary Layers . . . . . . . . . . . . . . . . . . 59

A.I. ZADORIN:

Numerical Method for the Blasius Equation on an Infinite Interval 61

P. ZEGELING:

An Adaptive Grid Method for the Solar Coronal Loop Model . . . 63

Contributed Presentations . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

F. ALIZARD, J.-CH. ROBINET:

Two-dimensional temporal modes in nonparallel flows . . . . . . 67

TH. ALRUTZ, T. KNOPP:

Near-wall grid adaptation for wall functions . . . . . . . . . . . . 69

TH. APEL, G. MATTHIES:

A family of non-conforming finite elements of arbitrary order for

the Stokes problem on anisotropic quadrilateral meshes . . . . . . 71

M. BAUSE:

Aspects of SUPG/PSPG and GRAD-DIV Stabilized Finite Element

Approximation of Compressible Viscous Flow . . . . . . . 72

L. BOGUSLAWSKI:

Sheare Stress Distribution on Sphere Surface at Different Inflow

Turbulence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

A.CANGIANI, E.H.GEORGOULIS, M. JENSEN:

Continuous-Discontinuous Finite Element Methods for Convection-

Diffusion Problems . . . . . . . . . . . . . . . . . . . . . . . . . 75

C. CLAVERO, J.L. GRACIA, F. LISBONA:

A second order uniform convergent method for a singularly perturbed

parabolic system of reaction-diffusion type . . . . . . . . . 77


CONTENTS

B. EISFELD:

Computation of complex compressible aerodynamic flows with a

Reynolds stress turbulence model . . . . . . . . . . . . . . . . . 79

A. FIROOZ, M. GADAMI:

Turbulence Flow for NACA 4412 in Unbounded Flow and Ground

Effect with Different Turbulence Models and Two Ground Conditions:

Fixed and Moving Ground Conditions . . . . . . . . . . 81

S.A. GAPONOV, G.V. PETROV, B.V. SMORODSKY:

Boundary layer intercation with external disturbances . . . . . . . 85

Z.HAMMOUCH:

Similarity solutions of a power-law non-Newtonian laminar boundary

layer flows . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

M. HAMOUDA, R. TEMAM:

Boundary layers for the Navier-Stokes equations : asymptotic

analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

M. HÖLLING, H. HERWIG:

Computation of turbulent natural convection at vertical walls using

new wall functions . . . . . . . . . . . . . . . . . . . . . . . 91

A.-M. IL’IN, B.I. SULEIMANOV:

The coefficients of inner asymptotic expansions for solutions of

some singular boundary value problems . . . . . . . . . . . . . . 93

W.S. ISLAM, V.R. RAGHAVAN:

Numerical Simulation of High Sub-critical Reynolds Number Flow

Past a Circular Cylinder . . . . . . . . . . . . . . . . . . . . . . 96

D. KACHUMA, I. SOBEY:

Fast waves during transient flow in an asymmetric channel . . . . 98

A. KAUSHIK, K.K. SHARMA:

A Robust Numerical Approach for Singularly Perturbed Time Delayed

Parabolic Partial Differential Equations . . . . . . . . . . . 100

P. KNOBLOCH:

On methods diminishing spurious oscillations in finite element

solutions of convection-diffusion equations . . . . . . . . . . . . 102

T. KNOPP:

Model-consistent universal wall-functions for RANS turbulence

modelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

J.-S. LEU, J.-Y. JANG, Y.-C. CHOU:

Evaporating cooling of liquid film along an inclined plate coverd

with a porous layer . . . . . . . . . . . . . . . . . . . . . . . . . 106

V.D. LISEYKIN, Y.V. LIKHANOVA, D.V. PATRAKHIN, I.A. VASEVA:

Application of boundary layer-type functions to comprehensive

grid generation codes . . . . . . . . . . . . . . . . . . . . . . . . 108


CONTENTS

G. LUBE:

A stabilized finite element method with anisotropic mesh refinement

for the Oseen equations . . . . . . . . . . . . . . . . . . . . 109

H. LÜDEKE:

Detached Eddy Simulation of Supersonic Shear Layer Wake Flows 111

K. MANSOUR:

Boundary Layer Solution For laminar flow through a Loosely

curved Pipe by Using Stokes Expansion . . . . . . . . . . . . . . 113

G. MATTHIES, L. TOBISKA:

Mass conservation of finite element methods for coupled flowtransport

problems . . . . . . . . . . . . . . . . . . . . . . . . . 115

J. MAUSS, J. COUSTEIX:

Global Interactive Boundary Layer (GIBL) for a Channel . . . . . 116

O. MIERKA, D. KUZMIN:

On the implementation of turbulence models in incompressible

flow solvers based on a finite element discretization . . . . . . . . 118

K. MORINISHI:

Rarefied Gas Boundary Layer Predicted with Continuum and Kinetic

Approaches . . . . . . . . . . . . . . . . . . . . . . . . . . 120

A. NASTASE:

Qualitative Analysis of the Navier-Stokes Solutions in Vicinity of

their Critical Lines . . . . . . . . . . . . . . . . . . . . . . . . . 122

F. NATAF, G. RAPIN:

Application of the Smith Factorization to Domain Decomposition

Methods for the Stokes equations . . . . . . . . . . . . . . . . . 124

N. NEUSS:

Numerical approximation of boundary layers for rough boundaries 126

M.A. OLSHANSKII:

An Augmented Lagrangian based solver for the low-viscosity incompressible

flows . . . . . . . . . . . . . . . . . . . . . . . . . 128

N. PARUMASUR, J. BANASIAK, J.M. KOZAKIEWICZ:

Numerical and Asymptotic Analysis of Singularly Perturbed PDEs

of Kinetic Theory . . . . . . . . . . . . . . . . . . . . . . . . . . 130

B. RASUO:

On Boundary Layer Control in Two-Dimensional Transonic Wind

Tunnels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

H.-G. ROOS:

A Comparison of Stabilization Methods for Convection-Diffusion-

Reaction Problems on Layer-Adapted Meshes . . . . . . . . . . . 134

H.-G. ROOS, H. ZARIN:

Discontinuous Galerkin stabilization for convection-diffusion problems

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135


B. SCHEICHL, A. KLUWICK:

On Turbulent Marginal Separation: How the Logarithmic Law of

the Wall is Superseded by the Half-Power Law . . . . . . . . . . 136

O. SHISHKINA, C. WAGNER:

Boundary and Interior Layers in Turbulent Thermal Convection . 138

M. STYNES, L. TOBISKA:

Using rectangular Qp elements in the SDFEM for a convectiondiusion

problem with a boundary layer . . . . . . . . . . . . . . 140

P. SVÁ ˘CEK:

Numerical Approximation of Flow Induced Airfoil Vibrations . . 141

N.V. TARASOVA:

Full asymptotic analysis of the Navier-Stokes equations in the

problems of gas flows over bodies with large Reynolds number . . 143

C.H. TAI, C.-Y. CHAO, J.-C. LEONG, Q.-S. HONG:

Effects of golf ball dimple configuration on aerodynamics, trajectory,

and acoustics . . . . . . . . . . . . . . . . . . . . . . . . . 145

H. TIAN:

Uniformly Convergent Numerical Methods for Singularly Perturbed

Delay Differential Equations . . . . . . . . . . . . . . . . 147

A.I. TOLSTYKH, M.V. LIPAVSKII, E.N. CHIGEREV:

Highly accurate 9th-order schemes and their applications to DNS

of thin shear layer instability . . . . . . . . . . . . . . . . . . . . 149

M. VASILIEV:

About unsteady Boundary Layer on a dihedral angle . . . . . . . 150

A.E.P. VELDMANN:

High-order symmetry-preserving discretization on strongly stretched

grids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Z.-H. YANG, Y.-Z. LI, Y. ZHU:

Application of Bifurcation Method to Computing Numerical Solutions

of Lane-Emden Equation . . . . . . . . . . . . . . . . . . 154

Q. YE:

Numerical simulation of turbulent boundary for stagnation-flow

in the spray-painting process . . . . . . . . . . . . . . . . . . . . 156

Participants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Authors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164


Plenary Presentations

KL. GERSTEN: Vom Kochtopf bis zum Fußballspiel (Public Talk)

✬

✫

Öffentlicher Vortrag

am 25. Juli 2006 – 20:00 Uhr

im DLR_School_Lab - Bunsenstraße 10 – 37073 Göttingen

im Rahmen der International Conference Boundary and Interior Layers 2006 (BAIL 2006)

Vom Kochtopf bis zum Fußballspiel

Episoden zu den weltweiten Wirkungen der Göttinger Strömungsforschung

Professor Dipl. Math. Dr.-Ing. Dr.-Ing. E.h. Klaus Gersten

Ruhr-Universität Bochum

Im Vortrag werden unter anderem folgende Fragen erörtert:

� Als Modell für ein Herz mit defekten Herzklappen entwickelte der Arzt Dr. Liebau in den fünfziger

Jahren eine ventillose Pumpe. Weshalb funktionierte die Pumpe?

� Wie lässt sich die Bananenflanke beim Fußballspiel physikalisch erklären?

� Kann die Kraftfahrzeug-Aerodynamik von der Flugzeug-Aerodynamik lernen?

� Wie kann der Besitzer eines Automobils mit Schrägheck leicht feststellen, ob sein

Fahrzeug gute aerodynamische Eigenschaften besitzt?

� Warum sind bestimmte bei der Umströmung von Körpern auftretende Strömungsstrukturen je nach

Anwendung erwünscht (Überschallflugzeug) oder unerwünscht (Automobil)?

� Welches für die Göttinger Strömungsforschung charakteristische Konzept liegt allen bisher

genannten Fragen zugrunde?

Zur Person:

Professor Gersten, Jahrgang 1929, studierte Mathematik und Physik an der TH

Braunschweig. Als Assistent arbeitete er am Institut für Strömungsmechanik der TH

Braunschweig unter der Leitung von Professor Hermann Schlichting. Nach seiner Promotion

zum Dr.-Ing. leitete er die Abteilung Theoretische Aerodynamik und wurde anschließend

Stellvertretender Direktor des Institutes für Aerodynamik der Deutschen Forschungsanstalt

für Luftfahrt (DFL) Braunschweig. Nach seiner Habilitation für das Fach Strömungsmechanik

lehrte er dreißig Jahre als Ordentlicher Professor an der Ruhr-Universität Bochum. Während

dieser Zeit war er als Visiting Professor an der University of Rio de Janeiro, Brazil, der Nagoya

University, Japan und an der University of Arizona, Tucson, USA tätig. 1992 wurde er zum

Dr.-Ing. E.h. der Universität Essen ernannt. Er ist Mitglied der Österreichischen Akademie der

Wissenschaften in Wien. 2003 wurde Professor Gersten der Ludwig-Prandtl-Ring, die

höchste Auszeichnung im Bereich der Flugwissenschaften, von der Deutschen Gesellschaft

für Luft- und Raumfahrt Lilienthal-Oberth e.V. (DGLR) verliehen.

Kontakt:

DLR, Dr. H. J. Heinemann

0551- 709 2108, hajo.heinemann@dlr.de

Universität Göttingen, Prof. Dr. G. Lube

0551- 39 4503, lube@math.uni-goettingen.de

Speaker: GERSTEN, KL. 3 BAIL 2006

✩

✪

P. HOUSTON: Discontinuous Galerkin Finite Element Methods for CFD: A Posteriori

Error Estimation and Adaptivity

✬

✫

Discontinuous Galerkin Finite Element Methods for CFD: A Posteriori Error Estimation and

Adaptivity

Paul Houston

School of Mathematical Sciences, University of Nottingham, UK.

In recent years there has been considerable interest in the mathematical design and

practical application of nonconforming finite element methods that are based on discontinuous

piecewise polynomial approximation spaces; such approaches are referred to as

discontinuous Galerkin (DG) methods. The main advantages of these methods lie in their

conservation properties, their ability to treat a wide range of problems within the same

unified framework, and their great flexibility in the mesh-design. Indeed, DG methods can

easily handle non-matching grids and non-uniform, even anisotropic, polynomial approximation

degrees, which makes them ideally suited for application within adaptive finite

element software.

In this talk we present an overview of some recent developments concerning the a posteriori

error analysis and adaptive mesh design of h– and hp–version DG finite element

methods for the numerical approximation of second–order elliptic boundary value problems.

In particular, we consider the derivation of computable upper and lower bounds

on the error measured in terms of an appropriate (mesh–dependent) energy norm. The

proofs of the upper bounds are based on rewriting the method in a non-consistent manner

using polynomial lifting operators and employing an appropriate decomposition result

for the underlying discontinuous spaces. Applications to the numerical approximation

of second–order linear elliptic problems, including Poisson’s equation, Stokes equations,

nearly–incompressible elasticity, and the time harmonic eddy current problem, as well

as second–order quasilinear boundary value problems, which typically arise in the modelling

of non-Newtonian flows, will be considered. Numerical experiments confirming the

reliability and efficiency of the proposed a posteriori error bounds within an automatic

mesh refinement algorithm employing both local mesh subdivision and local polynomial

enrichment will be presented.

This research has been carried out in collaboration with Dominik Schötzau (University

of British Columbia), Thomas Wihler (University of Minnesota), and Ilaria Perugia

(University of Pavia).

References

[1] P. Houston, I. Perugia, and D. Schötzau. An posteriori error indicator for discontinuous

Galerkin discretizations of H(curl)–elliptic partial differential equations.

Submitted to IMA J. Numer. Anal.

[2] P. Houston, D. Schötzau, and T. Wihler. Energy norm a posteriori error estimation

for mixed discontinuous Galerkin approximations of the Stokes problem. J. Sci.

Comp., 22(1):357–380, 2005.

[3] P. Houston, D. Schötzau, and T. Wihler. An hp-adaptive mixed discontinuous

Galerkin FEM for nearly incompressible linear elasticity. Comput. Methods Appl.

Mech. Engrg., (to appear).

[4] P. Houston, D. Schötzau, and T. P. Wihler. Energy norm a posteriori error estimation

of hp-adaptive discontinuous Galerkin methods for elliptic problems. Math.

Models Methods Appl. Sci., (to appear).

1

Speaker: HOUSTON, P. 4 BAIL 2006

✩

✪

L. LESSHAFFT, P. HUERRE, P. SAGAUT, M. TERRACOL: Dynamics of Hot Jets: A

Numerical and Theoretical Study

✬

✫


DYNAMICS OF HOT JETS: A NUMERICAL AND THEORETICAL STUDY

Lutz Lesshafft 1.2 , Patrick Huerre 1 , Pierre Sagaut 3 and Marie Terracol 2

1Laboratoire d'Hydrodynamique (LadHyX), CNRS – École Polytechnique, F-91128 Palaiseau, France

2ONERA, Department of CFD and Aeroacoustics, 29 avenue de la Division Leclerc, F-92322

Châtillon, France

3Laboratoire de Modélisation en Mécanique, Université Pierre et Marie Curie, Boîte 162, 4 place

Jussieu, F-75252 Paris cedex 05, France

Since the experiments of Monkewitz, Bechert, Barsikow & Lehmann (1990), sufficiently hot circular

jets have been known to give rise to self-sustained synchronized oscillations induced by a locally

absolutely unstable region. Numerical simulations (Lesshafft, Huerre, Sagaut & Terracol 2005, 2006)

have been carried out in order to determine if such synchronized states correspond to a nonlinear

global mode of the underlying basic flow, as predicted in the context of Ginzburg-Landau amplitude

evolution equations by Couairon & Chomaz (1997, 1999), Pier, Huerre, Chomaz & Couairon (1998)

and Pier, Huerre & Chomaz (2001). In the presence of a pocket of absolute instability embedded

within a convectively unstable jet, global oscillations are generated by a steep nonlinear front located

at the upstream station of marginal absolute instability. The global frequency is given, within 10%

accuracy, by the absolute frequency at the front location. For jet flows displaying absolutely unstable

inlet conditions, global instability is observed to arise if the streamwise extent of the absolutely

unstable region is sufficiently large: While local absolute instability sets in for ambient-to-jet

temperature ratios S < 0.453, global modes only appear for S < 0.325. In agreement with theoretical

predictions, the selected frequency near the onset of global instability coincides with the absolute

frequency at the inlet, provided that the ratio of jet radius R to shear layer momentum thickness θ is

sufficiently small (R/ θ ∼ 10, thick shear layers). For thinner shear layers (R/ θ ∼ 25), the numerically

determined global frequency gradually departs from the inlet absolute frequency.

References

Couairon, A. & Chomaz, J.-M. 1997 Absolute and convective instabilities, front velocities and global

modes in nonlinear systems. Physica D 108, 236-276

Couairon, A. & Chomaz, J.-M. 1999 Fully nonlinear global modes in slowly varying flows. Phys.

Fluids 11, 3688-3703.

Lesshafft, L., Huerre, P., Sagaut, P. & Terracol, M. 2005 Global modes in hot jets, absolute /

convective instabilities and acoustic feedback. 10 pages 11th AIAA / CEAS Aeroacoustics Conference,

Monterey, USA, May 23-25, 2005.

Lesshaft, L., Huerre, P., Sagaut, P. & Terracol, M. 2006 Nonlinear global modes in hot jets. J. Fluid

Mech., in press.

Monkewitz, P. A., Bechert, D. W., Barsikow, B & Lehmann, B. 1990 Self-excited oscillations and

mixing in a heated round jet. J. Fluid Mech. 213, 611-639.

Speaker: HUERRE, P. 5 BAIL 2006

✩

✪

M. STYNES: Convection-diffusion problems, SDFEM/SUPG and a priori meshes

✬

✫

Convection-diffusion problems, SDFEM/SUPG

and a priori meshes

Martin Stynes ∗

Abstract

Linear convection-diffusion problems will be briefly described (cf. [15]). The nature and

structure of their solutions will be examined, including the main features of exponential

and characteristic/parabolic layers. Next, Shishkin meshes will be described and discussed

[4, 11, 15]; these piecewise-uniform meshes are suited to the numerical solution of convectiondiffusion

problems with boundary layers — yet they do not fully resolve these layers.

Then the Streamline Diffusion Finite Element Method (SDFEM), which is also known

as the Streamline-Upwinded Petrov-Galerkin method (SUPG), will be introduced. Since

its inception [6] in 1979, this method has been the subject of a huge number of theoretical

analyses and numerical investigations that continue to this day; see the references in [12, 13,

15]. The main body of the talk is a comprehensive survey of the application of the method

to convection-diffusion problems, including discussions of its strengths and weaknesses, and

presenting recent theoretical results. In particular the following topics will be addressed:

References

• stability and the choice of SDFEM parameter [1, 5, 12]

• quasioptimality [3, 14]

• accuracy on general meshes [9, 18]

• accuracy on Shishkin meshes [5, 10, 16, 17]

• variants of SDFEM:

(i) nonconforming spaces [7]

(ii) nonlinear shock-capturing modifications of SDFEM [2, 8]

— the references given here are only a subset of those available.

[1] J. E. Akin and T. E. Tezduyar. Calculation of the advective limit of the SUPG stabilization

parameter for linear and higher-order elements. Comput. Methods Appl. Mech. Engrg.,

193:1909–1922, 2004.

[2] E. Burman and A. Ern. Stabilized Galerkin approximation of convection-diffusion-reaction

equations: discrete maximum principle and convergence. Math. Comp., 74:1637–1652 (electronic),

2005.

[3] L. Chen and J. Xu. An optimal streamline diffusion finite element method for a singularly

perturbed problem. In Z.C Shi, Z. Chen, T. Tang, and D. Yu, editors, Recent Advances in

Adaptive Computation, volume 383 of Contemporary Mathematics, pages 236–246. American

Mathematical Society, 2005.

∗ Mathematics Department, National University of Ireland, Cork, Ireland

1

Speaker: STYNES, M. 6 BAIL 2006

✩

✪

M. STYNES: Convection-diffusion problems, SDFEM/SUPG and a priori meshes

✬

✫

[4] P.A. Farrell, A.F. Hegarty, J.J. Miller, E. O’Riordan, and G.I. Shishkin. Robust Computational

Techniques for Boundary Layers. Chapman & Hall/CRC, Boca Raton, 2000.

[5] S. Franz and T. Linß. Superconvergence analysis of Galerkin FEM and SDFEM for elliptic

problems with characteristic layers. Technical Report MATH-NM-03-2006, Institut für

Numerische Mathematik, Technische Universität Dresden, 2006.

[6] T.J.R. Hughes and A.N. Brooks. A multidimensional upwind scheme with no crosswind

diffusion. In T.J.R. Hughes, editor, Finite Element Methods for Convection Dominated

Flows, volume 34 of AMD. ASME, New York, 1979.

[7] P. Knobloch and L. Tobiska. The P mod

1

element: a new nonconforming finite element for

convection-diffusion problems. SIAM J. Numer. Anal., 41:436–456 (electronic), 2003.

[8] T. Knopp, G. Lube, and G. Rapin. Stabilized finite element methods with shock capturing

for advection-diffusion problems. Comput. Methods Appl. Mech. Engrg., 191:2997–3013,

2002.

[9] N. Kopteva. How accurate is the streamline-diffusion FEM inside characteristic (boundary

and interior) layers? Comput. Methods Appl. Mech. Engrg., 193:4875–4889, 2004.

[10] T. Linß and M. Stynes. Numerical methods on Shishkin meshes for linear convectiondiffusion

problems. Comput. Methods Appl. Mech. Engrg., 190:3527–3542, 2001.

[11] J.J.H. Miller, E. O’Riordan, and G.I. Shishkin. Solution of singularly perturbed problems

with ε-uniform numerical methods–introduction to the theory of linear problems in one and

two dimensions. World Scientific, Singapore, 1996.

[12] H.-G. Roos, M. Stynes, and L. Tobiska. Numerical methods for singularly perturbed differential

equations, volume 24 of Springer Series in Computational Mathematics. Springer-

Verlag, Berlin, 1996.

[13] H.-G. Roos, M. Stynes, and L. Tobiska. Numerical methods for singularly perturbed differential

equations. Springer Series in Computational Mathematics. Springer-Verlag, Berlin,

Second edition, (to appear).

[14] G. Sangalli. Quasi optimality of the SUPG method for the one-dimensional advectiondiffusion

problem. SIAM J. Numer. Anal., 41:1528–1542 (electronic), 2003.

[15] M. Stynes. Steady-state convection-diffusion problems. Acta Numer., 14:445–508, 2005.

[16] M. Stynes and L. Tobiska. The SDFEM for a convection-diffusion problem with a boundary

layer: optimal error analysis and enhancement of accuracy. SIAM J. Numer. Anal., 41:1620–

1642, 2003.

[17] M. Stynes and L. Tobiska. Using rectangular Qp elements in the SDFEM for a convectiondiffusion

problem with a boundary layer. Technical Report 08-2006, Faculty of Mathematics,

Otto-von-Guericke-Universität, Magdeburg, 2006.

[18] G. Zhou. How accurate is the streamline diffusion finite element method? Math. Comp.,

66:31–44, 1997.

Speaker: STYNES, M. 7 BAIL 2006

2

✩

✪

V. GRAVEMEIER, S. LENZ, W.A. WALL: Variational Multiscale Methods for incompressible

flows

✬

✫

1. Introduction

Variational Multiscale Methods for incompressible flows

V. Gravemeier, S. Lenz & W.A. Wall

Chair for Computational Mechanics

Technische Universität München

Boltzmannstr. 15, D-85747 Garching b. München

http://www.lnm.mw.tum.de

(vgravem,lenz,wall)@lnm.mw.tum.de

The numerical simulation of incompressible flows governed by the Navier-Stokes equations requires

to deal with subgrid phenomena. Particularly in turbulent flows, the scale spectra are

notably widened and need to be handled adequately to get a reasonable numerical solution.

Separating the complete scale range into subranges enables a different treatment of any of these

subranges. In this talk, we will present the general framework of a two- and a three-scale separation

of the incompressible Navier-Stokes equations based on the variational multiscale method

as proposed in [Hughes et al. (2000)] and [Collis (2001)]. In a two-scale separation, resolved

and unresolved scales are distinguished, and in a three-scale separation, large resolved scales,

small resolved scales, and unresolved scales are differentiated. After having presented the general

framework, three different approaches to numerical realizations will be addressed (i.e., a

global, a local, and a new residual-based approach). A comprehensive overview may be found

in [Gravemeier (2006b)].

2. The variational multiscale framework

A variational form of the incompressible Navier-Stokes equations reads

BNS (v,q;u,p) = (v,f) Ω ∀(v,q) ∈ Vup (1)

where Vup denotes the combined form of the weighting function spaces for velocity and pressure

in the sense that Vup := Vu × Vp.

In a three-scale separation, which will be focused on in the present abstract, the solution

functions are separated as

u = u + u ′ + û, p = p + p ′ + ˆp, (2)

where (·), (·) ′ , and ˆ (·) denote the large resolved, small resolved, and unresolved scales, respectively.

The weighting functions are separated accordingly. Due to the linearity of the weighting

functions, the variational equation (1) may now be decomposed into a system of three variational

equations reading

� � ′ ′

BNS v,q;u + u + û,p + p + ˆp = (v,f)Ω ∀(v,q) ∈ Vup (3)

� � � �

′ ′ ′ ′ ′

BNS v ,q ;u + u + û,p + p + ˆp = v ,f ∀ Ω � v ′ ,q ′� ∈ V ′ up (4)

� �

′ ′ ˆv, ˆq;u + u + û,p + p + ˆp = (ˆv,f)Ω ∀(ˆv, ˆq) ∈ ˆ Vup (5)

BNS

Furthermore, it is assumed that the direct influence of the unresolved scales on the large resolved

scales is close to zero, relying on a clear separation of the large-scale space and the space of

unresolved scales. This leads to a simplified equation system.

1

Speaker: WALL, W.A. 8 BAIL 2006

✩

✪

V. GRAVEMEIER, S. LENZ, W.A. WALL: Variational Multiscale Methods for incompressible

flows

✬

✫

It is not intended to resolve anything called unresolved a priori. Taking into account the

effect of the unresolved scales onto the small scales is the only desire. Some alternatives lend

themselves for this purpose, but the focus in this talk will be on the subgrid viscosity approach

as a usual and well-established way of taking into account the effect of unresolved scales in

the traditional LES. In the variational multiscale approach to LES, the subgrid viscosity term

directly acts only on the small resolved scales. Indirect influence on the large resolved scales,

however, is ensured due to the coupling of the large- and the small-scale equations.

3. Practical methods

At this stage, it should be pointed out that the variational multiscale method is a theoretical

framework for the separation of scales. Thus, it is essential to develop corresponding practical

implementations by incorporating the variational multiscale framework into a specific numerical

method. For such practical methods, it is crucial that the aforementioned separation of the

different scale groups is actually achieved. Implementations of the three-scale separation have

already been done within continuous Galerkin finite element methods, discontinuous Galerkin

finite element methods, finite volume methods, finite difference methods, and spectral methods.

According to the numerical treatment of the smaller of the resolved scales, a global (see,

e.g., [Gravemeier (2006a)]) and a local (see, e.g., [Gravemeier et al. (2005)]) approach may be

distinguished.

Recently [Calo (2005)], a new residual-based approach has been developed where only resolved

and unresolved scales are distinguished (i.e., a two-scale separation). This new concept

approxmiates the unresolved scales by analytical expressions. It may be considered an

advanced stabilized method which takes into account the nonlinear nature of the Navier-Stokesequations.

Our results obtained with the residual-based approach are about to be published in

[Lenz & Wall (2006)].

All three approaches (i.e., the global, the local, and the residual-based approach) will be

presented together with numerical results in this talk.

References

[Calo (2005)] Calo, V.M. 2005 Residual-based Multiscale Turbulence Modeling: Finite Volume

Simulations of Bypass Transition. PhD thesis, Department of Civil and Environmental

Engineering, Stanford University.

[Collis (2001)] Collis, S.S. 2001 Monitoring unresolved scales in multiscale turbulence modeling.

Phys. Fluids 13, 1800-1806.

[Gravemeier (2006a)] Gravemeier, V. 2006 Scale-separating operators for variational multiscale

large eddy simulation of turbulent flows. J. Comp. Phys. 212, 400-435.

[Gravemeier (2006b)] Gravemeier, V. 2006 The variational multiscale method for laminar and

turbulent flow. Arch. Comp. Meth. Engrg. , in press.

[Gravemeier et al. (2005)] Gravemeier, V., Wall, W.A. and Ramm, E. 2005 Large eddy

simulation of turbulent incompressible flows by a three-level finite element method Int. J.

Numer. Meth. Fluids 48, 1067-1099.

[Hughes et al. (2000)] Hughes, T. J. R., Mazzei, L. & Jansen, K. E. 2000 Large eddy

simulation and the variational multiscale method. Comput. Visual. Sci. 3, 47-59.

[Lenz & Wall (2006)] Lenz, S. and Wall, W.A. 2006 A residual-based variational multiscale

method and its application to turbulent channel flow. To be submitted to Theoret. Comput.

Fluid Dyn.

Speaker: WALL, W.A. 9 BAIL 2006

2

✩

✪

Minisymposia

Speaker:

N. Kopteva, M. Stynes, E. O’Riordan

Robust methods for nonlinear singularly perturbed differential equations

This minisymposium is concerned with nonlinear singularly perturbed

differential equations such as semilinear reaction-diffusion problems,

quasilinear parabolic convection-diffusion equations, flows in porous

media, and the modelling of catalytic chemical reactions and of turbulence.

The talks deal with methods that are ”robust” for such problems,

i.e., that yield accurate approximations of the solution for a broad range

of values of the singular perturbation parameter. This includes numerical

methods for which numerical experiments demonstrate robustness

for a wide range of values of the parameter, even though no theoretical

proof of convergence exists.

• Eugene O’Riordan: A singular perturbation problem arising in the modelling of

plasma sheaths

• Grigory I. Shishkin: A posteriori adapted meshes in the approximation of singularly

perturbed quasilinear parabolic convection-diffusion equations

• Iuliana Stanculescu: Numerical Analysis of Approximate Deconvolution Models

of Turbulence

• Hong Wang: An Eulerian-Langrangian Formulation for Compositional Flow in

Porous Media

R.K. DUNNE, E. O’RIORDAN, M.M. TURNER: A singular perturbation problem

arising in the modelling of plasma sheaths

✬

✫

A singular perturbation problem arising in the

modelling of plasma sheaths ∗

R. K. Dunne † , E. O’Riordan ‡ and M. M. Turner §

Abstract

Consider the interaction of a flowing plasma with a planar Langmuir probe [2]. Assume

that the plasma flows in the plane of the probe surface and that the plasma consists

solely of positive ions with density n+ and electrons with density ne. Downstream of

the probe, the ions are moving with a velocity of u = (ui, uv + uF ) and (u0, uF ) is

the flow velocity of the ions upstream of the probe. We wish to consider the influence

of the probe on the flow of the ions. Let X be the horizontal distance to the right of

the probe and Y the distance along the probe (from the tip of the probe). Assuming

a collision-less plasma and that the ions are cold, the continuity equations for the ion

density and momentum are [2]

∂n+

∂t + ∇ · (n+u) = 0

�∂u

m+n+

∂t + (u · ∇)u� = en+E

where E = (Ex, Ey) = −∇ ˜ φ is the electric field and m+ is the mass of the ions. Our

interest is in the steady state case and if uF >> uv, we disregard terms involving uv.

Hence this system is approximated with the system

∂

∂X (n+ui)

∂n+

+ uF = 0

∂Y

∂ui ∂ui e

ui + uF = EX

∂X ∂Y m+

where (if EX >> EY ) then the electric field is determined from solving Poisson’s equation

− ∂EX

∂X = ∂2 ˜ φ

∂X 2 = e(n+ − ne)

.

Since me

R.K. DUNNE, E. O’RIORDAN, M.M. TURNER: A singular perturbation problem

arising in the modelling of plasma sheaths

✬

✫

where Te is the electron temperature, k is Boltzmann’s constant, ɛ0 is the permittivity

of free space and e is the electron charge.

In a similar fashion to the scaling of the variables used in [3], we introduce the nondimensional

independent variables x, y and the non-dimensional dependent variables

n, u and φ, which are defined as follows:

n = n+

n0

u = ui

cs

φ = e ˜ φ

, x =

kTe

X

L

y = Y cs

uF L

where the ion sound speed cs and the electron Debyre length λD are defined by

c 2 s = kTe

, λ

m+

2 D = ɛ0kTe

.

n0e2 The length L is a distance sufficiently far from the probe so that the effect of the probe

on the plasma at this distance is negligible. Introduce the small parameter

ε = λD

L .

After reformulating the problem with the above transformations and formulating

suitable boundary and initial conditions we propose to examine the related mathematical

problem :

Find (u(x, y), n(x, y), φ(x, y)) which satisfy the following system of differential equations

in the domain (x, y) ∈ (0, 1) × (0, T ]

∂n ∂(nu)

+ = 0,

∂y ∂x

(x, y) ∈ [0, 1) × (0, T ]

∂u

+ u∂u = −∂φ ,

∂y ∂x ∂x

(x, y) ∈ [0, 1) × (0, T ]

ε 2 ∂2 φ

∂x 2 = eφ − n, (x, y) ∈ (0, 1) × (0, T ]

subject to the following set of boundary and initial conditions

φ(0, y) = −A, φ(1, y) = 0, y ≥ 0 φ(x, 0) = φ0(x), 0 ≤ x ≤ 1

n(x, 0) = 1, 0 ≤ x ≤ 1; ny(1, y) = −(nux)(1, y), y ≥ 0

u(x, 0) = ũ0, 0 ≤ x ≤ 1; uy(1, y) = −φx(1, y), y ≥ 0.

The parameters ũ0 and A are assumed to be known and the initial condition φ0(x) is

chosen so that ε 2 φ ′′

0(x) = e φ0(x) − 1, φ0(0) = −A, φ0(1) = 0.

Due to the presence of the singular perturbation parameter ε, layers or sheaths

appear in the solutions. The system is discretized using simple upwinding and a special

piecewise-uniform Shishkin-type mesh [1]. Numerical results are presented to display

the robustness of the numerical algorithm with respect to ε.

References

[1] P. A. Farrell, A.F. Hegarty, J. J. H. Miller, E. O’Riordan and G. I. Shishkin, Robust

Computational Techniques for Boundary Layers, Chapman and Hall/CRC Press,

Boca Raton, U.S.A., (2000).

[2] M. A. Lieberman and A. J. Lichtenberg, Principles of plasma discharges and materials

processing, Wiley and sons, (1994).

[3] H. Liu and M. Slemrod, KDV Dynamics in the plasma-sheath transition, Appl.

Math. Lett., 17 (2004) 401-419.

2

Speaker: O’RIORDAN, E. 15 BAIL 2006

✩

✪

G.I. SHISHKIN: A posteriori adapted meshes in the approximation of singularly


✬

✫

A posteriori adapted meshes in the approximation

of singularly perturbed quasilinear parabolic

convection-diffusion equations ∗

Grigory I. Shishkin

A Dirichlet problem on a segment for a quasilinear parabolic

convection-diffusion equation with a small (perturbation) parameter

ε multiplying the highest derivative is considered. For this

problem, a solution of the classical finite difference scheme on a

uniform mesh converges only under the condition h ≪ ε, where

h is the step-size of the space mesh; moreover, the order of convergence

in x is O � ε N −1� , where N + 1 is the number of nodes

in the uniform mesh with respect to x.

To improve the accuracy of the approximate solution, we apply

a posteriori sequential procedure of grid refinement in the

subdomains that are defined by the gradient of solutions of intermediate

discrete problems. The correction of the grid solutions

is performed only on these subdomains, where uniform meshes

are used. We construct a difference scheme that converges ”almost

ε-uniformly”, i.e., with an error weakly depending on the

parameter ε.

�

The convergence rate of the constructed scheme is O

where N1 + 1 and N0 + 1 are the numbers of mesh points with

respect to x and t, respectively, ν is an arbitrary number from

(0, 1]. Thus, the scheme on a posteriori adapted meshes converges

under the condition N −1 ≪ εν , which is essentially weaker

in comparison with the scheme on uniform meshes.

ε −ν N −1

1

+ N −1/2

1

∗ This research was supported in part by the Russian Foundation for Basic Research

(grant No 04-01-00578, 04–01–89007–NWO a), by the Dutch Research Organisation NWO

under grant No 047.016.008 and by the Boole Centre for Research in Informatics, National

University of Ireland, Cork.

2

+ N −1

�

0 ,

Speaker: SHISHKIN, G.I. 16 BAIL 2006

✩

✪

G.I. SHISHKIN: A posteriori adapted meshes in the approximation of singularly


✬

✫

A scheme on a posteriori adapted meshes in the case of a

linear problem is considered in [1].

References

[1] G.I. Shishkin, A posteriori adapted (to the solution gradient)

grids in the approximation of singularly perturbed

convection-diffusion equations, Vychisl. Tekhnol. (Computational

Technologies), 6 (1), 72-87 (2001) (in Russian).

Speaker: SHISHKIN, G.I. 17 BAIL 2006

3

✩

✪

W. LAYTON, I. STANCULESCU: Numerical Analysis of Approximate Deconvolution

Models of Turbulence

✬

✫

Numerical Analysis of Approximate Deconvolution Models of

Turbulence

William Layton ∗ and Iuliana Stanculescu †

Abstract

If the NSE are averaged with a local, spacial, convolution type filter the resulting

system is not closed due to the term g ∗ (uu). A deconvolution operator GN is one

which satisfies:

u = GN(g ∗ u) + O(δ 2N+2 ) (0.1)

where δ is the filter width. This yields the closure method:

g ∗ (uu) = g ∗ (GN(g ∗ u)GN(g ∗ u)) + O(δ 2N+2 ) (0.2)

We will review several solutions to the ill-possed deconvolution problem, present

an ”optimal” deconvolution procedure and present numerical analysis and numerical

experiments with it.

∗

Department of Mathematics, University of Pittsburgh, Pittsburgh, PA,15260, U.S.A.; email:

wjl@pitt.edu, www.math.pitt.edu/˜wjl

†

Department of Mathematics, University of Pittsburgh, Pittsburgh, PA,15260, U.S.A.; email:

ius1@pitt.edu, www.math.pitt.edu/˜ius1

Speaker: STANCULESCU, I. 18 BAIL 2006

1

✩

✪

H. WANG: A Component-Based Eulerian-Lagrangian Formulation for Compositional

Flow in Porous Media

✬

✫

A Component-Based Eulerian-Lagrangian Formulation

for Compositional Flow in Porous Media

Hong Wang ∗

Introduction Compositional models describe the simultaneous transport of multiple components

flowing in coexisting phases in porous media [1, 4]. Because each component can transfer

between different phases, the mass of each phase or a component within a particular phase is

no longer conserved. Instead, the total mass of each component among all the phases must be

conserved, leading to strongly coupled systems of transient nonlinear advection-diffusion equations.

These equations are closely coupled to a set of constraining equations, which are strongly

nonlinear, implicit functions of phase pressure, temperature, and composition. These equations

need to be solved in all spatial cells at each iterative step of each time step via thermodynamic

flash calculation. In industrial applications, upwind methods have commonly been used to stabilize

the numerical approximations [1, 4]. However, these methods often generate excessive

numerical dispersion and serious spurious effects due to grid orientation.

Eulerian-Lagrangian methods symmetrize the transport equations and generate accurate

numerical solutions even if large time steps and coarse spatial grids are used. They have demonstrated

excellent performance in the numerical simulations of single-phase flow [3, 5] and immiscible

two phase flow [2]. However, there exist serious mathematical and numerical difficulties in

the development of Eulerian-Lagrangian methods for multiphase multicomponent compositional

flow. We present a component-based Eulerian-Lagrangian formulation for compositional flow,

which can be used by many Eulerian-Lagrangian methods.

Numerical experiments We simulate the transport of Methane, Propane, and n-Hexane,

flowing in coexisting liquid and vapor phases in a horizontal porous medium reservoir Ω =

(0, 1000) × (0, 1000) ft 2 with a thickness of 1 ft over a time period of 20 years. An injection well

is located at the upper-right corner of Ω with a volumetric injection rate of Q =15ft 3 /day. A

production well is located at the lower-left corner with a production rate of Q = −15 ft 3 /day.

The porosity φ = 0.1. The permeability is 60 md. The effect of capillary pressure is neglected.

The relative permeability k r,l =(s l ) 2 and k r,v =(1−s l ) 2 . The initial reservoir pressure is 2100

psia and the reservoir temperature is 350 o K. The composition of the resident fluid is cMethane

= 0.5, cP ropane =0.2, and cn−Hexane =0.3, which is in liquid phase at the given temperature

and pressure. The composition of the injected fluid is ¯cMethane = 0.8, ¯cP ropane =0.15, and

¯cn−Hexane =0.05, which is in vapor phase.

We use a uniform coarse spatial grid of ∆x =∆y= 25 ft. We use a time step of ∆tel =1

year for the Eulerian-Lagrangian method, and of ∆tup = 2 days for the upwind method that is

the largest possible. In Figure 1(a) we present the plots of the overall mole fraction cMethane

generated by the Eulerian-Lagrangian method at t = 5 and 20 years. In Figure 1(b) we present

the plots of the normalized molar amount n v Methane = ρv s v c v Methane /(ρ cMethane), where ρ v and

sv are density and saturation of the vapor phase and ρ is bulk molar density of the fluid mixture.

Note that nv i represents the fraction of ci in the vapor phase. Thus, nv i = 1 or 0 indicates that

component i stays in the vapor phase or liquid phase completely. 0

H. WANG: A Component-Based Eulerian-Lagrangian Formulation for Compositional

Flow in Porous Media

✬

✫

Figure 1: The ELLAM ((a)-(b)) and upwind ((c)-(d)) simulation at 5 and 20 years.

(a) The overall mole fraction of Methane (b) The molar amount of Methane in vapor

(c) The overall mole fraction of Methane (d) The molar amount of Methane in vapor

Discussion The numerical results show that the Eulerian-Lagrangian formulation generates

stable and accurate solutions (overall mole fractions) that have preserved physically reasonable

moving steep fronts, even if a large time step of ∆tel = 1 year is used. With the (largest

possible) fine time step ∆tup = 2 days, the upwind method generates qualitatively similar (but

much more diffusive) overall mole fraction. We observe a similar comparison in terms of the

normalized molar amounts in the vapor and liquid phases.

It is instructive to look at the computational efficiency. Although the Eulerian-Lagrangian

method uses more CPU time than the upwind method in solving the mass balance equations,

both simulators have to perform the same computations on the pressure system and the thermodynamic

flash calculations which consume a larger portion of the CPU time per iterative step

at each time step. These results indicate that the Eulerian-Lagrangian simulator uses less than

twice the CPU time an upwind simulator uses per time step. Therefore, the Eulerian-Lagrangian

method generates accurate and stable solutions with steeper fronts using much less CPU time.

References

[1] H. Aziz and A. Settari, Petroleum Reservoir Simulation, Applied Science Publishers, 1979.

[2] M.S. Espedal and R.E. Ewing, Characteristic Petrov-Galerkin sub-domain methods for twophase

immiscible flow, Comput. Meth. Appl. Mech. Engrg., 64, (1987) 113–135.

[3] R.E. Ewing, T.F. Russell, and M.F. Wheeler, Simulation of miscible displacement using

mixed methods and a modified method of characteristics, SPE 12241, (1983), 71–81.

[4] R. Helmig, Multiphase Flow and Transport Processes in the Subsurface, Springer Verlag,

Berlin, 1997.

[5] H. Wang, D. Liang, R.E. Ewing, S.L. Lyons, and G. Qin, An ELLAM-MFEM solution

technique for compressible fluid flows in porous media with point sources and sinks, J. Comput.

Phys., 159, (2000) 344–376.

Speaker: WANG, H. 20 BAIL 2006

✩

✪

Speaker:

P. Houston, R. Hartmann

Self-adaptive Methods for PDEs

Many processes in science and engineering are formulated in terms of

partial differential equations. Typically, for problems of practical interest,

the underlying analytical solution exhibits localised phenomena

such as boundary and interior layers and corner and edge singularities,

for example, and their numerical approximation presents a challenging

computational task. Indeed, in order to resolve such localised features,

in an accurate and efficient manner, it is essential to exploit so-called

self-adaptive methods.

Such approaches are typically based on a posteriori error estimates for

the underlying discretization method in terms of local quantities, such

as local residuals, computed from the discrete solution. Over the last

few years, there have been significant developments within this field in

terms of both rigorous a posteriori error analysis, as well as the subsequent

design of optimal meshes. In this minisymposium, a number of

recent developments, such as the design of high-order and hp-adaptive

finite element methods will be considered, as well as anisotropic mesh

adaptation and mesh movement.

• Ralf Hartmann: Discontinuous Galerkin methods for compressible flows: higher

order accuracy, error estimation and adaptivity

• Vincent Heuveline: On a new refinement strategy for adaptive hp finite element

method

• John Mackenzie: A Discontinuous Galerkin Moving Mesh Method for Hamilton-

Jacobi Equations

• Simona Perotto: Layer Capturing via Anisotropic Mesh Adaption

• Rene Schneider: Anisotropic mesh adaption based on a posteriori estimates and

optimisation of node positions

R. HARTMANN: Discontinuous Galerkin methods for compressible flows: higher order

accuracy, error estimation and adaptivity

✬

✫

Discontinuous Galerkin methods for compressible flows:

higher order accuracy, error estimation and adaptivity

Ralf Hartmann

Institute of Aerodynamics and Flow Technology, German Aerospace Center (DLR),

Lilienthalplatz 7, 38108 Braunschweig, Germany

The Discontinuous Galerkin (DG) method for the compressible Euler equations is extended

to the symmetric interior penalty (SIP)DG method for the compressible Navier-Stokes equations,

see Hartmann & Houston [2]. Shock-capturing is used to avoid overshoots near shocks, see Hartmann

[1]. The nonlinear equations are solved using a fully implicit solver. We demonstrate the

accuracy of higher order DG discretizations with respect to the approximation of aerodynamical

force coefficients and to the approximation of viscous boundary layers, see Figure 1 and

Hartmann & Houston [2].

Finally, we demonstrate the use of a posteriori error estimation and goal-oriented (also

called weighted-residual-based or adjoint-based) adaptive mesh refinement for subsonic flows,

Hartmann & Houston [3], and for supersonic compressible flows, see Figure 2 and Hartmann [1].

References

[1] R. Hartmann. Adaptive discontinuous Galerkin methods with shock-capturing for the compressible

Navier-Stokes equations. Int. J. Numer. Meth. Fluids, 2006. To appear.

[2] R. Hartmann and P. Houston. Symmetric interior penalty DG methods for the compressible

Navier–Stokes equations I: Method formulation. Int. J. Num. Anal. Model., 3(1):1–20, 2006.

[3] R. Hartmann and P. Houston. Symmetric interior penalty DG methods for the compressible

Navier–Stokes equations II: Goal–oriented a posteriori error estimation. Int. J. Num. Anal.

Model., 3(2):141–162, 2006.

Speaker: HARTMANN, R. 22 BAIL 2006

1

✩

✪

R. HARTMANN: Discontinuous Galerkin methods for compressible flows: higher order

accuracy, error estimation and adaptivity

✬

✫

c dp

0.024

0.022

0.02

0.018

0.016

0.014

0.012

0.01

0.008

0.006

reference cdp

DG(3), global refinement



10000 100000

number of elements

|c dp − 0.0222875|

0.01

0.001

0.0001

(a) (b)




10000 100000

number of elements

Figure 1: Subsonic laminar flow around the NACA0012 airfoil at M = 0.5, α = 0 and Re = 5000:

Convergence of the pressure induced drag cdp under global refinement for DG(p), p = 1,2,3: (a)

cdp versus number of elements; (b) Error in cdp (reference cdp − cdp) versus number of elements.

For more detail cf. Hartmann & Houston [2].

8

4

0

-4

-8

-4 0 4 8

8

4

0

-4

-8

-4 0 4 8

(a) (b)

Figure 2: Supersonic laminar flow around the NACA0012 airfoil at M = 1.2, α = 0 and

Re = 1000: (a) Residual-based refined mesh of 17670 elements with 282720 degrees of freedom

and |Jcdp (u) − Jcdp (uh)| = 1.9 · 10 −3 ; (b) Adjoint-based refined mesh for cdp: mesh of 10038

elements with 160608 degrees of freedom and |Jcdp (u) − Jcdp (uh)| = 1.6 · 10 −4 . For more detail

cf. Hartmann [1].

Speaker: HARTMANN, R. 23 BAIL 2006

2

✩

✪

V. HEUVELINE: On a new refinement strategy for adaptive hp finite element method

✬

✫

On a new refinement strategy for adaptive hp finite

element method

V. Heuveline

University Karlsruhe (TH)

Institute for Applied Mathematics II

vincent.heuveline@math.uni-karlsruhe.de

Abstract

We consider finite element methods with varying meshsize h as well as varying

polynomial degree p. Such methods have been proven to show exponentially fast

convergence in some classes of partial differential equations if an adequate distribution

of h− and p−refinement is chosen. In order to find hp−refinement strategies

that show up automaticaly with optimal complexity, it is a first step to establish

convergent adaptive algorithms. We develop a strategy that automatically construct

a solution adapted approximation space by combining local h− and p− refinement

and that can be proven for the 1d case to be convergent with a linear rate. This

construction is based on an a posteriori error estimate with respect to the error

in the energy norm. We then extend the proposed approach to the 2d and 3d

case. Numerical experiments as well as implementation issues are considered in

that framework.

Speaker: HEUVELINE, V. 24 BAIL 2006

1

✩

✪

J.A. MACKENZIE, A. NICOLA: A Discontinuous Galerkin Moving Mesh Method for

Hamilton-Jacobi Equations

✬

✫

A Discontinuous Galerkin Moving Mesh Method for


1 Introduction

J.A. Mackenzie and A. Nicola

Department of Mathematics

University of Strathclyde

26 Richmond St, Glasgow

G1 1XH, U.K.

jam@maths.strath.ac.uk

Abstract

In this talk we consider the adaptive numerical solution of Hamilton-Jacobi (HJ) equations

φt + H(φx1, . . .,φxd ) = 0, φ(x, 0) = φ0(x), (1)

where x = (x1, . . . , xd) ∈ IR d , t > 0. HJ equations arise in many practical areas such

as differential games, mathematical finance, image enhancement and front propagation. It

is well known that solutions of (1) are Lipschitz continuous but derivatives can become

discontinuous even if the initial data is smooth. Since generalised solutions are not unique, a

selection principle is required to pick out the physically relevant solution. For HJ equations

the most commonly used condition is the vanishing viscosity condition which requires that the

correct solution should be the vanishing viscosity limit of smooth solutions of corresponding

viscous problems. The notion of viscosity solutions was introduced by Crandall and Lions

[5], where the questions of existence, uniqueness and stability of solutions were addressed.

Crandall and Lions were also the first to study numerical approximations of (1) and

introduced the important class of monotone methods which were shown to converge to the

viscosity solution [4]. However, monotonic schemes are well known to be at most first-order

accurate.

There is a close relation between HJ equations and hyperbolic conservation laws. With

this in mind, it not surprising to find that many of the numerical methods used to solve HJ

equations are motivated by conservative finite difference or finite volume methods for conservation

laws. Methods that have been proposed include high-order essentially nonoscillatory

(ENO) schemes, weighted ENO schemes and high resolution central schemes.

An increasingly popular approach to solve hyperbolic conservation laws is the discontinuous

Galerkin (DG) finite element method [2], [3]. Recently, Hu and Shu [7] proposed a DG

method to solve HJ equations by first rewriting (1) as a system of conservation laws

(wi)t + (H(w))xi = 0, i = 1, . . .,d, w(x, 0) = ∇φ0(x), (2)

where w = ∇φ. The usual DG formulation would be obtained if w belonged to a space

of piecewise polynomials. However, we note that wi, i = 1, . . .,d are not independent due

to the restriction that w = ∇φ. In [7] a least squares procedure was used to enforce this

condition. More recently it was shown that it is possible to enforce the gradient condition

using a smaller solution space [12]. Theoretical analysis of the accuracy and stability of the

method was performed in [11].

One of the often cited advantages of DG methods is that since the numerical solution is

not continuous across inter-element boundaries then, in theory, this makes solution adaptive

strategies much easier to implement. This has lead to the development of a number of

adaptive methods based on hp-refinement strategies for hyperbolic conservation laws [1] [6].

1

Speaker: MACKENZIE, J.A. 25 BAIL 2006

✩

✪

J.A. MACKENZIE, A. NICOLA: A Discontinuous Galerkin Moving Mesh Method for


✬

✫

An alternative adaptive strategy that has worked well for time dependent problems is

to use moving meshes. A useful way to construct an adaptive moving mesh is to regard it

as the image of a uniform mesh covering a computational domain under a time-dependent

transformation that clusters mesh elements towards areas where improved spatial resolution

is required. The transformation is often found through a variational formulation where the

mapping is the minimiser of a functional involving properties of the mesh and the solution

(see e.g. [10]). To improve the stability and smooth the evolution of the moving mesh

Russell, Huang and coworkers [9] [8] found it useful to obtain the mapping as the solution of

parabolic moving mesh PDEs which are modified gradient flow equations for the minimisation

of a suitable mesh functional.

For problems where solution discontinuities exist the correct choice of an adaptivity

criterion, or monitor function, is problematic. It is not unusual to find in the literature that

many grid adaptation criteria are singular at solution discontinuities. To prevent singularities

producing degenerate meshes either some form of smoothing procedure is employed or a

regularised functional is used in the variational formulation.

The aim of this talk is to consider the use of the DG method of Hu and Shu [7] to solve

HJ equation using a moving mesh method based on the solution of MMPDEs. The governing

equation are transformed to include the effect of the movement of the mesh and this is done

in such a way that the conservation properties of the original equation are not lost. The

adaptive mesh is driven by a monitor function which is shown to be non-singular in the

presence of solution discontinuities. To produce an acceptable mesh we smooth the monitor

function before it is used to drive the adaptive procedure. Numerical examples in one and

two dimensions are presented to demonstrate the effectiveness of the adaptive procedure..

References

[1] K.S. Bey and J.T. Oden. hp-version discontinuous Galerkin methods for hyperbolic

conservation laws. Comput. Methods Appl. Mech. Engrg., 133:259–286, 1996.

[2] B. Cockburn, G.E. Karniadakis, and C.W. Shu. Discontinuous Galerkin methods: Theory,

Computation and Applications. Springer, 2000.

[3] B. Cockburn and C.W. Shu. The Runge-Kutta discontinuous Galerkin finite element

method for conservation laws V: Multidimensional systems. Journal of Computational

Physics, 141:199–224, 1998.

[4] M.G. Crandall and P.L. Lions. Two Approximations of Solutions of Hamilton-Jacobi

Equations. Mathematics of Computation, 43(167):1–19, 1984.

[5] M.J. Crandall and P.L. Lions. Viscosity Solutions of Hamilton-Jacobi Equations. Transactions

of the American Mathematical Society, 277(1):1–42, 1983.

[6] P. Houston, B. Senior, and E. Suli. hp-discontinuous Galerkin finite element methods

for hyperbolic problems: analysis and adaptivity. Int. J. Numer. Methods in Fluids,

40:153–169, 2002.

[7] C. Hu and C.W. Shu. A Discontinuous Galerkin Finite Element Method for Hamilton-

Jacobi Equations. SIAM Journal on Scientific Computing, 21(2):666–690, 1999.

[8] W. Huang. Practical aspects of formulation and solution of moving mesh partial differential

equations. Journal of Computational Physics, 171:753–775, 2001.

[9] W. Huang and R. D. Russell. Moving mesh strategy based upon a gradient flow equation

for two-dimensional problems. SIAM Journal on Scientific Computing, 20:998–1015,

1999.

[10] P. Knupp and S. Steinberg. Foundations of Grid Generation. CRC Press, Boca Raton,

1994.

[11] O. Lepsky, C. Hu, and C. W. Shu. Analysis of the discontinuous Galerkin method for

Hamilton-Jacobi equations. Appl. Numer. Math., 33:423–434, 2000.

[12] F. Li and C.W. Shu. Reinterpretation and simplified implementation of a discontinuous

Galerkin method for Hamilton-Jacobi equations. Applied Mathematics Letters, 18:1204–

1209, 2005.

Speaker: MACKENZIE, J.A. 26 BAIL 2006

✩

✪

S. PEROTTO: Layer Capturing via Anisotropic Mesh Adaption

✬

✫

Layer Capturing via Anisotropic Mesh Adaption

Simona Perotto

MOX - Dipartimento di Matematica “F. Brioschi”

Politecnico di Milano, Via Bonardi 9

I-20133 Milano, Italy

simona.perotto@mate.polimi.it

The numerical approximation of many problems in Computational Fluid Dynamics (CFD) leads

often to deal with solutions exhibiting directional features, namely great variations along certain

directions and less significant changes along the other ones. This is the case of boundary and

internal layers typical, for instance, of the advection-diffusion and Navier-Stokes equations as

well as of shocks in the case of Euler equations. In view of an efficient numerical approach to

this kind of problems, it turns out advisable to resort to a suitably oriented and deformed (i.e.,

anisotropic) computational mesh, matching the local directional features of the solution. For

a fixed solution accuracy, a considerable reduction of the number of the degrees of freedom is

shown in the presence of an anisotropic grid, besides a sharper capture of the solution features.

In this regard, we have introduced a theoretically sound anisotropic framework moving from

the spectral properties of the standard affine map between the reference and the general mesh

element [2]. As first step, we have derived suitable anisotropic interpolation error estimates for

piecewise linear finite elements. Then, in view of an anisotropic mesh adaption driven by an a

posteriori error estimator, these anisotropic estimates have been merged with the standard dualbased

approach proposed by R. Becker and R. Rannacher in [1]. Thus the final outcome of our

analysis consists of an automatic tool able to properly orient and stretch the mesh elements so

that a goal-functional of the exact solution, representing a quantity of interest, is approximated

within a user-defined tolerance [3, 4].

In this communication the leading ideas of our anisotropic framework are presented together

with some numerical results associated with the goal-oriented a posteriori analysis.

References

[1] R. Becker and R. Rannacher, “A feed-back approach to error control in finite element

methods: basic analysis and examples”, East-West J. Numer. Math., 4(4), 237–264 (1996).

[2] L. Formaggia and S. Perotto, “New anisotropic a priori error estimates”, Numer. Math.,

89, 641–667 (2001).

[3] L. Formaggia and S. Perotto, “Anisotropic error estimates for elliptic problems”, Numer.

Math., 94, 67–92 (2003).

[4] L. Formaggia, S. Micheletti and S. Perotto, “Anisotropic mesh adaptation in Computational

Fluid Dynamics: application to the advection-diffusion-reaction and the Stokes problems.”,

Appl. Numer. Math., 51 (4), 511–533 (2004).

1

Speaker: PEROTTA, S. 27 BAIL 2006

✩

✪

R. SCHNEIDER, P. JIMACK: Anisotropic mesh adaption based on a posteriori estimates

and optimisation of node positions

✬

✫

Anisotropic mesh adaption based on a posteriori estimates and

optimisation of node positions

Abstract

Introduction

René Schneider ∗ & Peter Jimack †

Efficient numerical approximation of solution features like boundary or interior layers by means

of the finite element method requires the use of layer adapted meshes. Anisotropic meshes, like

for example Shishkin meshes, allow the most efficient approximation of these highly anisotropic

solution features. However, application of this approach relies on a priori analysis on the thickness,

position and stretching direction of the layers. If it is impossible to obtain this information

a priori, as it is often the case for problems with interior layers of unknown position for example,

automatic mesh adaption based on a posteriori error estimates or error indicators is essential in

order to obtain efficient numerical approximations.

Historically the majority of work on automatic mesh adaption used locally uniform refinement,

splitting each element into smaller elements of similar shape. This procedure is clearly not

suitable to produce anisotropically refined meshes. The resulting meshes are over-refined in at

least one spatial direction, rendering the approach far less efficient than that of the anisotropic

meshes based on a priori analysis.

Automatic anisotropic mesh adaption is an area of active research, e.g. [2, 1]. Here we present

a new approach to this problem, based upon using not only an a posteriori error estimate to

guide the mesh refinement, but its sensitivities with respect to the positions of the nodes in the

mesh as well.

Outline of the approach

The underlying idea is to use techniques from mathematical optimisation to minimise the estimated

error by moving the positions of the nodes in the mesh appropriately. This basic idea is

of course not new, but the approach taken to realise it is.

A key ingredient is the utilisation of the discrete adjoint technique to evaluate the sensitivities

of an error estimate J = J(uh(s),s) with respect to the node positions s, where uh = uh(s)

denotes the solution of the discretised PDE, R(uh,s) = 0, which depends upon the node positions

s. The sensitivities

� ∂R

∂uh

DJ ∂J ∂uh ∂J

= +

Ds ∂uh ∂s ∂s

� T

∗ Chemnitz University of Technology, Germany

† School of Computing, University of Leeds, UK

= ∂J

∂s

∂R

− ΨT , (1)

∂s

Ψ = ∂J

, (2)

∂uh

Speaker: SCHNEIDER, R. 28 BAIL 2006

✩

✪

R. SCHNEIDER, P. JIMACK: Anisotropic mesh adaption based on a posteriori estimates

and optimisation of node positions

✬

✫

y

1

0.8

0.6

0.4

0.2

0

−0.2

−0.4

−0.6

−0.8

−1

initial mesh

−1 −0.5 0

x

0.5 1

y

1

0.8

0.6

0.4

0.2

0

−0.2

−0.4

−0.6

−0.8

−1

final mesh for eps=1.0e−03

−1 −0.5 0

x

0.5 1

(a) (b)

Figure 1: Initial (a) and adapted (b) meshes for model problem (3) with a boundary layer around

the square hole

are thereby evaluated according to (1), utilising the adjoint solution Ψ which is defined by (2).

This way, DJ/Ds can be evaluated without computing ∂uh/∂s first, reducing the number of

equation systems to be solved from O(dim(s)) to just two, independent of dim(s). As the

number of nodes can easily be larger than one hundred even in extremely coarse meshes (if the

domain geometry is complicated), this approach is of fundamental importance to make gradient

based optimisation methods feasible for this type of problem. Fast optimisation algorithms like

BFGS-type methods can be applied to obtain significant reductions in the error estimate J after

a few optimisation steps. The aim of this procedure is to provide a mesh with problem adapted

anisotropic elements, which may then be used as a good basis for further locally uniform adaptive

mesh refinement.

Numerical results

To demonstrate feasibility of the approach it is applied to a number of model problems. For the

purpose of this abstract we consider a reaction diffusion equation,

−∆u + 1

ε2u = 1

ε2 in Ω := (−1,1) 2 \ (−1 1

5 , 5 )2

subject to u = 0 on ΓD := � −1 ⎫

⎪⎬

�

1 2 � �

1 1 2

5 , 5 \ −5 , (3)

5

⎪⎭

∂u

∂n = 0 on ΓN := [−1,1] 2 \ (−1,1) 2 .

Figure 1 shows an initial mesh for this problem and an adapted one for ε = 10 −3 . Concentration

of the elements in the boundary layer which forms around the hole at the centre of the domain is

clearly visible, and significantly increased aspect ratios in the boundary layer may be observed.

For more detail on the approach and the example we refer to [3].

References

[1] L. Formaggia, S. Micheletti, and S. Perotto. Anisotropic mesh adaptation in computational fluid dynamics:

Application to the advection-diffusion-reaction and the Stokes problems. Applied Numerical

Mathematics, 51(4):511–533, December 2004.

[2] G. Kunert. Toward anisotropic mesh construction and error estimation in the finite element method.

Numerical Methods for Partial Differential Equations, 18(5):625–648, 2002.

[3] R. Schneider and P.K. Jimack. Toward anisotropic mesh adaption based upon sensitivity of a posteriori

estimates. School of Computing Research Report Series 2005.03, University of Leeds, http://www.

comp.leeds.ac.uk/research/pubs/reports/2005/2005_03.pdf, 2005.

Speaker: SCHNEIDER, R. 29 BAIL 2006

✩

✪

Speaker:

Debopam Das, Tapan Sengupta:

Asymptotic Methods for Laminar and Turbulent boundary Layers

The minisymposium will have contributions dealing with laminar/turbulent

flows- their morphology and structures. Specifically, results

would be presented that discuss the very concept of turbulent

boundary layers. Also, detailed flow structures arising in mixed convection

problem involving velocity and thermal boundary/ interior layers

will be a focus of another contribution. This session will also have

contributions dealing specifically with temporal and/or spatio-temporal

growth of waves in boundary/ interior layers. For example, existence

of spatio-temporal growth of waves in boundary layer is established for

the first time that is related non-orthogonal modes proposed earlier for

Couette and channel flows. The focus will be on receptivity and stability

of equilibrium steady flows as well as unsteady bi-directional pipe

flows that identifies non-axisymmetric modes.

• Matthias H. Buschman: Turbulent Boundary Layers: Reality and Myth (Key-Note

Lecture)

• Debopam Das: Three-dimensional Temporal Instability of Unsteady Pipe Flow.

• Venkatesa I. Vasanta Ram: The structure of the critical layer of a swirling annular

flow in transition.

• T.K. Sengupta: Spatio-temporal growing waves in boundary-layers by Bromwich

contour integral method

• Herbert Steinrueck: Asymptotic Analysis of the mixed convection flow past a horizontal

plate near the trailing edge.

M.H. BUSCHMANN, M. GAD-EL-HAK: Turbulent Boundary Layers: Reality and

Myth

✬

International Conference on Boundary and Interior Layers—Computational & Asymptotic Methods

(BAIL 2006)

Abstract of keynote lecture for the

Minisymposium on Asymptotic Methods for Laminar and Turbulent Boundary Layers

Turbulent Boundary Layers: Reality and Myth

Matthias H. Buschmann

Privatdozent, Institut für Strömungsmechanik, Technische Universität Dresden, Dresden, Germany

Mohamed Gad-el-Hak

Caudill Professor and Chair of Mechanical Engineering,

Virginia Commonwealth University, Richmond, VA 23284-3015, USA

Hundred years after Ludwig Prandtl’s fundamental lecture on boundary layer theory, 1 the meanvelocity

profile and the shear-stress distribution of the seemingly simplest case of wall-bounded

flow, the zero-pressure-gradient turbulent boundary layer (ZPG TBL), still appears to be terra

incognita. Even less is known about confined and semi-confined flows undergoing pressure

gradients, such as pipe and channel flows and wall-bounded flows approaching pressure-driven

separation. The problem is of course related to the lack of analytical solutions to the

instantaneous, nonlinear Navier–Stokes equations that govern the stochastic dependent variables

of almost all turbulent flows. What little we know about turbulence comes from experiments and

heuristic modeling, not first-principles solutions. (Direct numerical simulations provide firstprinciples

integration of the instantaneous Navier–Stokes equations, but are at present limited to

modest Reynolds numbers and simple geometries.)

Consider a two-dimensional, isothermal, incompressible, steady flow over a body of length L.

The fluid may have constant density ρ and constant dynamic viscosity µ. Assuming that the

characteristic velocity is U, we write the Reynolds number as

Re= !UL µ (1)

It was Prandtl’s genius that discovered that, at sufficiently high Reynolds number, a thin shear

layer exists close to the body. The thickness of this layer δ is much smaller than L. Due to the

strong streamwise velocity gradient normal to the wall, even a small viscosity such as that for air

or water can cause considerable viscous shear stress, ! = µ "u "y . Originally Prandtl called this

layer therefore Reibungsschicht, which literally translates to friction layer.

Introducing the transformation

! ! ! ! ! $

( x,y

,u ,v , p ) ! & L x,Re

%

" 1

2 L y,U u,Re " 1

'

2 2

U v,#U p)

(

1 Prandtl, L., “Über Flüssigkeitsbewegung bei sehr kleiner Reibung,” Proc. Third Int. Math. Cong., pp. 484–491,

Heidelberg, Germany, 1904.

✫

M. H. Buschmann & M. Gad-el-Hak, Abstract for BAIL 2006

Speaker: BUSCHMANN, M.H. 32 BAIL 2006

(2)

✩

✪


Myth

✬

✫

into the Navier-Stokes equations and taking the limit Re → ∞, leads to Prandtl’s boundary layer

equations

The boundary conditions are

uu x + vu y = ! p x + u yy ;

y = 0 :

u = v = 0 and

0 = p y ;

y ! " :

The task is now to find physically appropriate solution for eqn. (3).

ux + v = 0 (3)

y

u ! U e x ( ) (4)

What goals do we have when solving eqn. (3)? One of the main objectives is to find self-similar

solutions. Boundary layers are self-similar when normalization can be found so that data of

different physical realizations (e.g., experiments in different wind tunnels, profiles at different

downstream positions within one experiment) can be collapsed within one single curve.

Examples are the mean velocity profiles of the Blasius’ laminar zero-pressure-gradient boundary

layer and the fully-developed turbulent flow in pipes.

y

u( x, y )

u( x, y )

x 1

3 x

x 2

Which physical problems do we face when solving eqn. (3)? We neither know if for a certain

type of wall-bounded flow a transformation as searched for in the first question exists in general,

nor do we know what the transformation parameters are. The physically appropriate

transformation is a non-dimensionalization that is much more than simply changing the

coordinates. The crucial issue is top choose the scaling based on the physics of the problem. At a

minimum, the scale basis has to satisfy two criteria. It should consist of characteristic

parameters and represent problem-intrinsic scales. The foundation of dimensional analysis is the

Π-theorem formulated by Buckingham. 2

f ( x 1 ,x 2 ,...xn ) 0

Here xi denote the n variables of the system having m dimensions and Δi are the non-dimensional

similarity parameters of the problem.

2 Buckingham, E., “On physically similar systems: illustrations of the use of dimensional equations,” Phys. Rev., 2.

Ser., vol. 4, pp. 1119–1126, 1914.

u( x, y )

Π-theorem

y

!

Find proper

scaling parameters

Δ and U

= ( 1 2 n m)

u( x, y)

U

F ! , ! ,... ! " = 0



✩

✪


Myth

✬

Which mathematical techniques do we have to solve eqn. (3)? Basically we have analytical,

numerical, and asymptotic methods and combination of those. 3 In this paper, we will focus on

recent advances in analytical and asymptotic approaches.

During the mid 1990s, a new debate on the aforementioned subject arose. Caused by new

unconventional approaches questioning one of the cornerstones of modern fluid mechanics—the

logarithmic law of turbulent boundary layers—several new scalings were developed. In

conjunction with these theoretical investigations, high-quality experiments in zero-pressuregradient

turbulent boundary layers and turbulent pipe and channel flows were undertaken. In

general, the physical picture of wall-bounded flow is now much more complex than was thought

a decade ago. However, the physical picture seems to be also more controversial than ever

before. Which of these new approaches will survive and contribute substantially to fluid

mechanics in the future is still open.

The present talk will discuss four main schools of thought, which can be summarized as follows:

(1) Standard Logarithmic Overlap Layer

Above a certain critical Reynolds number, a pure logarithmic region exists in the

mean-velocity profile of ZPG TBL and channel and pipe flows. The parameters of

this logarithmic law are completely Reynolds number invariant.

(2) Power Law Based On Similarity Assumption

An inner and an outer power law describe the overlap layer of ZPG TBL and

channel and pipe flows. Both laws exhibit Reynolds number dependent

parameters, and never achieve an asymptotic state.

(3) Asymptotic Invariance Principle

Full similarity solutions have to be searched separately for the inner and outer

equations. Because in the limit the outer boundary layer equations are independent

of Reynolds number, the properly scaled profiles for the outer region must also be

independent of Reynolds number.

(4) Higher-Order Asymptotic Matching

Based on asymptotic matching, a higher-order approach with respect to Reynolds

number and the wall-normal coordinate can be derived. In the limit of infinite

Reynolds number, the classical logarithmic law is recovered. At finite Re,

however, the similarity laws for both the mean and higher-order statistics are

Reynolds-number dependent.

The presentation will summarize, analyze and critique the recent theoretical and experimental

investigations of a variety wall-bounded flows. Based on that analysis, open issues in the field

will be highlighted.

3 Gersten, K., and Herwig, H., Strömungsmechanik, Fundamentals and Advances in the Engineering Science, Verlag

Vieweg, 1992.

✫

Analytical

methods

Asymptotic

methods

Numerical

methods



✩

✪

A. NAYAK, D. DAS: Three-dimesnional Temporal Instability of Unsteady Pipe Flow

✬

✫

Three-dimensional Temporal Instability of Unsteady Pipe Flow

By

Avinash Nayak and Debopam Das

Department of Aerospace Engineering

Indian Institute of Technology Kanpur, India

Introduction:

In this paper we present temporal three-dimensional linear stability analysis of unsteady

bi-directional laminar flow in a duct. For a known but arbitrary volume flow rate, analytical

solution of one-dimensional unsteady flow through a pipe has been obtained by Das & Arakeri

(1998, 2000). Generalized form of this solution and the solution for unsteady flow through

annular space between two concentric pipes has been obtained by Nayak (2005). Prior to this

study, solutions that are available in the literature were for known pressure gradient (Womersley

1955) and Uchida 1956). Das (1998) and Das & Arakeri (1998) have observed the transitional

nature of this flow in a pipe and channel where the velocity profiles are inflectional and have

reverse flow near wall. In their experiments, for flows with average volume flow rate varying like

a trapezoidal function with time, shows that both axisymmetric and non-axisymmetric mode of

disturbance grows. In this paper through linear stability analysis of three dimensional disturbances

some of the observed experimental facts are explained such as growth of helical modes for certain

cases.

Linear stability analysis:

The disturbance stream-function is assumed as

{ u , v,

w,

p}

= { u(

r)

, v(

r ) , w(

r ) , p(

r ) } exp[

iα

( z − ct)

+ inθ

] . (1)

Here, u, v and w are radial, azimuthal and axial perturbation velocity components respectively and

p is the fluctuating pressure. The disturbance quantities are substituted in perturbed Navier-Stokes

equations in cylindrical coordinates and the governing equations after simplifications are,

2

1 ⎡1+

n

⎤ 2in

1 ⎡ iv 2 3 3 3 ⎤

u′

′ + u′

− ⎢ + α + iα

Re( W − c)

− −

2

⎥u

v 2 2 ⎢u

+ u′

′

− u′

′ + u′

− u

2 3 4

r

⎥

⎣ r

⎦ r α ⎣ r r r r ⎦

2

in ⎡1

2 3 3 ⎤ ⎡n

2

⎤⎧

1 ⎡ 1 1 ⎤ in ⎡1

1 ⎤⎫

−

Re( )

2 ⎢ v′

′

− v′

′ + v′

− v

2 3 4 ⎥ + ⎢ + α + iα

W − c

2

⎥⎨

+

2 ⎢u′

′ + u′

− u 2 ⎥ 2 ⎢ v′

− v 2 ⎥⎬

α ⎣r

r r r ⎦ ⎣ r

⎦⎩α

⎣ r r ⎦ α ⎣r

r ⎦⎭

2 ⎡ 2n

⎤⎧

1 ⎡ 1 ⎤ in ⎡1

⎤⎫

i i

+ ⎢−

+ iα

ReW

′

− Re ′ ′ − Re ′

= 0 − − − − − −(

1)

3

⎥⎨

+

2 ⎢u′

+ u⎥

2 ⎢ v⎥⎬

u W uW

⎣ r

⎦⎩α

⎣ r ⎦ α ⎣r

⎦⎭

α α

2

1 ⎡1+

n 2

v′′

+ v′

−⎢

+ α + iα

Re

2

r ⎣ r

2

in⎡n

2

+ ⎢ + α + iαRe

2

r ⎣r

( W −c)

2

⎤ 2in

in ⎡1

2 1 1 ⎤ n ⎡ 1 1 1 ⎤

⎥v

+ u − 2 2 ⎢ u ′′′ + u′′

− u′

+ u +

2 3 4 ⎥ 2 ⎢ v′

− v′

+ v

2 3 4 ⎥

⎦ r α ⎣r

r r r ⎦ α ⎣r

r r ⎦

⎤⎧

1 ⎡ 1 ⎤ in ⎡1

⎤⎫

n ⎛1

⎞

⎥⎨

⎜ ⎟

2 ⎢

+

⎥ 2 ⎢ ⎥⎬

⎦⎩α

⎣ r ⎦ α ⎣r

⎦⎭

α ⎝r

⎠

( W −c)

u′

u + v + Re u W′

= 0−

−−

−−

−−(

2)

These equations are solved using the finite difference technique and it is written in the form

of ⎧u

⎫

( [ ] [ ] )

. The complex eigenvalues c , are obtained for a particular value of α and

A − c B = 0

⎨ ⎬

⎩ v ⎭

Re, using MATLAB. In these two sets of equations u has the highest 4 th derivative while has

v

rd

the highest 3 derivative. Thus 7 boundary conditions are required to solve these two coupled

equations. Following are the boundary conditions given for different values of n .

n

0

R=0

(center-line)

R=1

(at wall)

u = 0

u = 0

v = 0

v = 0

u ′ = 0

u ′ = 0

1

u + iv = 0 u ′ = 0 v ′ = 0

−1

lim ∝ n

u r

R=0

(center-line)

Speaker: DAS, D. 35 BAIL 2006

r→0

✩

✪

A. NAYAK, D. DAS: Three-dimesnional Temporal Instability of Unsteady Pipe Flow

✬

✫

2

>2

R=1

(at wall)

R=0

(center-line)

R=1

(at wall)

R=0

(center-line)

R=1

(at wall)

u = 0 v = 0 u ′ = 0

u = 0 v = 0 u ′ + iv′

= 0 3 u ′′ + 2iv

′′ = 0

u = 0 v = 0 u ′ = 0

u = 0 v = 0 u ′ = 0 v ′ = 0

u = 0 v = 0 u ′ = 0

Table. 1 Boundary conditions for perturbation at wall and the centerline

For n=0, the two equations decouple to give a fourth order equation in u and a second order

n−1

equation in v . For n=1, the seventh condition is u ∝ r when limr → 0 (Batchelor & Gill

1962).

4.4 Results and Discussions

We have considered a case (case2 of Das & Arakeri 1998) in which a perceptible wave was

observed through flow visualization at time t= t . During this period the piston has stopped after a

p

( 2

trapezoidal motion and the profile considered for analysis is at time

1

t t2

t p t

4

− + = ) where, t2

is

the time when piston has stopped. The neutral stability curves are shown in figure 1. It is observed

that critical Reynolds number for n=1 mode is minimum (=398). Figure 2 shows the

corresponding flow visualization picture of Das & Arakeri (1998). The position of vortex wave at

0

90 phases between top and bottom portion of pipe is visible in figure 2. Hence the helical mode

with n=1 is most unstable in this case. As the neutral curve for n=0 mode is close to n=1 mode for

some cases n=0 mode might be most unstable mode. Symmetric modes has been observed as most

unstable in other cases experimentally (Das & Arakeri 1998 case 3 ). The stability analysis will be

shown in the final paper for these cases, but the neutral curves (figure1) itself indicate the

possibility of growth of such axisymmetric modes. The calculated wave length is λ

≈ 3.

22

δ

matches with the wavelength observed in experiment, the value of which is approximately 3.0.

alpha (α)

8

7

6

5

4

3

2

Neutral Stability Curve for n 0, 1 & 2

n=0

n=1

n=2

1

200 300 400 500 600 700 800 900 1000 1100 1200

Reynolds number (Re)

Fig.1 Neutral Stability Curve for different n Fig. 2 Flow viz. picture of Das & Arakeri (case2)

REFERENCES

1. Batchelor, G. K. & Gill, A. E. 1962. J. Fluid Mech. 14, 529.

2. Das, D. 1998 Ph.D Thesis, Department of Mechanical Engg, Indian Institute of Science, Bangalore.

3. Das, D. & Arakeri, J. H. 1998. J. Fluid Mech. 374, 251-283.

4. Das, D. & Arakeri, J. H. 2000 Unsteady Jl. Applied Mech. 67, 274-281.

5. Nayak, A. 2005 MTech report Dept of Aerospace Engg, Indian Institute of Technology, Kanpur.

6. Uchida, S. 1956 Z. Angrew. Math. Phys. 7, 403-422.

7. Weinbaum, S. & Parker, K. 1975. J. Fluid Mech. 69, 729-752.

Speaker: DAS, D. 36 BAIL 2006

✩

✪

J. HUSSONG, N. BLEIER, V.V. RAM: The structure of the critical layer of a swirling

annular flow in transition

✬

✫

The structure of the critical layer of a swirling annular

flow in transition

J. Hussong, N. Bleier and V. Vasanta Ram

Ruhr-Universität Bochum, D-44780 Bochum, Germany

Subject of our paper falls under the heading of transition of the swirling flow

in an annulus. Two transition mechanisms with some fundamental differences,

which we call the Taylor and the Tollmien-Schlichting mechanisms, are generally

in competition with each other in this flow. The salient difference referred to

is the presence of a critical layer in the Tollmien-Schlichting mechanism. In

contrast, such a critical layer is absent in the Taylor mechanism. The focus of

attention in our work is the modification swirl causes to the structure of this

critical layer in annular flow.

The characteristic feature of the critical layer is that the propagation velocity

of the disturbance wave is the same as the local velocity in the basic flow.

Mathematically, this results in the equations for the propagation of small amplitude

disturbances exhibiting a turning point, i.e. the coefficient of a crucial

term in the governing differential equations crossing a zero value (see eg. [5],

[6], [2], [3], [7]). For this reason viscous effects gain importance in the critical

layer which may be regarded as an internal layer in the flow. The viscous effects

have to be taken properly into account in the critical layer in order to arrive at

the stability characteristics of the flow of interest undergoing transition.

Our basic flow is the fully developed flow with swirl in the uniform annular

gap between concentric circular cylinders. In the flow in this geometrical configuration,

swirl comes into existence when the axial pressure gradient driving

the flow acts in conjunction with a rotation of a cylinder about its own axis.

We restrict our attention for the present to the case when the outer cylinder is

set in rotation at an angular velocity Ωa and the inner cylinder is pulled axially

at a translational velocity Vwi. Both of these flow boundary conditions tend to

raise the critical Reynolds number of the flow. The geometrical and flow pa-

rameters in our problem are, in a self-explanatory notation: the transverse curvature

parameter ɛR = Ra−Ri

Uref x (Ra−Ri)

, the Reynolds number Re = Ra+Ri 2 ν with

Uref x = (Ra−Ri)2 � �

� dPG

Uref �,

ϕ

8µ dx the swirl parameter Sa = Uref x with Uref ϕ = ΩaRa and

the translational wall velocity parameter Twi = Vwi

Uref x .

We have approached the transition problem in this flow configuration by

conducting a modal analysis of the dynamics of the propagation of disturbances

in the basic flow in question, starting from small amplitude disturbances for

which the governing equations may be linearised. The dispersion relationship

for this linearized problem may formally be written as

F(ɛR, Re, Sa, Twi, λx, nϕ, ω) = 0,

Speaker: RAM, V.V. 37 BAIL 2006

✩

✪

J. HUSSONG, N. BLEIER, V.V. RAM: The structure of the critical layer of a swirling

annular flow in transition

✬

✫

where ω is the frequency, λx the disturbance wave number in the axial direction

and nϕ the corresponding quantity in azimuthal direction which has to be an

integer. nϕ = 0 represents an axisymmetric disturbance whereas nϕ �= 0 corresponds

to helical disturbances. We have solved the linearised equations for

the disturbance numerically by the spectral collocation method using Matlab

over a range of parameters ɛR, Sa and Twi to determine the dependence of the

critical Reynolds number on the parameters Sa and Twi from which the wave

velocity and the location of the critical layer at this Reynolds number have been

obtained. A sample of the computational results is presented in Fig. 1.

c = omega / lambda x

0.3

0.29

0.28

0.27

0.26

0 0.1 0.2

S

a

0.3 0.4

c = omega / lambda x

0.3

0.28

0.26

0.24

0.22

0 0.1 0.2

T

wi

0.3 0.4

Figure 1: wave velocity for Twi = 0.1 (left) and Sa = 0.1 (right)

An asymptotic analysis of the critical layer, conducted along the same lines

as for the corresponding case in planar flow (see eg. [1], [4]), brings out the following

points as the outstanding features of the critical layer under the influence

of swirl:

• Swirl exerts no influence on the scale of thickness of the critical layer

through its axisymmetric disturbance mode, nϕ = 0

• For the nonaxisymmetric modes, nϕ �= 0, the thickness of the critical

layer retains the same scale as in the case of classical planar flow , viz.

1 − O(λxRe) 3 , as long as the product of the transverse curvature and swirl

1 − parameters, ɛRSa, remains small to within O(Re 3 )

Results obtained from this asymptotic analysis of the critical layer are set

against the computational results outlined above.

References

[1] Drazin, Reid, Hydrodynamic stability, Cambridge Univ. Pr., 1982.

[2] Hinch, E. J., Perturbation Methods, Cambridge Univ. Pr., 1992.

[3] Holmes, M. H., Introduction to Perturbation Methods, 20 in the Series Texts in Applied

mathematics, Springer, 1995.

[4] Maslowe, S. A., Critical layers in shear flows. In Annual Review of Fluid Mechanics, 18,

1986, 405-432.

[5] Nayfeh, A. H., Perturbation Methods, John Wiley, 1973.

[6] O Malley Jr., R. E., Introduction to Singular Perturbations, 14 in the Series Applied Mathematics

and Mechanics, Academic Press, 1974.

[7] Verhulst, F., Methods and Applications of Singular Perturbations, 50 in the Series Texts

in Applied mathematics, Springer, 2000.

2

Speaker: RAM, V.V. 38 BAIL 2006

✩

✪

T.K. SENGUPTA, A. KAMESWARA RAO: Spatio-temporal growing waves in

boundary-layers by Bromwich contour integral method

✬

✫

��Ô�ÖØÑ�ÒØÓ��ÖÓ×Ô��Ò��Ò��Ö�Ò�ÁÁÌÃ�ÒÔÙÖÍÈ ËÔ�Ø�ÓØ�ÑÔÓÖ�Ð�ÖÓÛ�Ò�Û�Ú�×�Ò�ÓÙÒ��ÖÝÐ�Ý�Ö×�Ý�ÖÓÑÛ�� ÌÃË�Ò�ÙÔØ��Ò��Ã�Ñ�×Û�Ö�Ê�Ó ÓÒØÓÙÖ�ÒØ��Ö�ÐÑ�Ø�Ó�

ÔÐ�Ý×Ô�Ø��Ð�ÖÓÛØ��Ú�ÒÛ��ÒØ��×�×ÔÓ×��×�×Ô��Ø�Ñ��Ô�Ò��ÒØÔÖÓ�Ð�Ñ ÁØ�×Û�ÐÐ�ÒÓÛÒØ��ØÙÒ×Ø��Ð�Þ�ÖÓÔÖ�××ÙÖ��Ö��ÒØ�ÓÙÒ��ÖÝÐ�Ý�Ö��× ÁÒ��

�℄�ÓÖ×ÓÑ��ÒØ�ÖÒ�ÐÓÛ×�Ø��×Ó�Ø�Ò��ÒÓÒ��ØÙÖ��Ø��ØÛ��Ð�Ø��ÓÛ ��×ÔÐ�Ý×Ð�Ò��Ö×Ø��Ð�ØÝ�ÝÒÓÖÑ�ÐÑÓ��Ò�ÐÝ×�×ØÖ�Ò×�Ø�ÓÒÓÙÖ×�Ù�ØÓ×Ù Ô�ÖÔÓ×�Ø�ÓÒÓ�ÒÓÒÒÓÖÑ�Ð��Ý�Ò�ÑÓ��×Ø��Ø�Ò��×ÔÐ�ÝÚ�ÖÝ��ØÖ�Ò×��ÒØ �Ò�Ö�Ý�ÖÓÛØ��℄ÁÒØ��ÔÖ�×�ÒØÛÓÖ�Û�×�ÓÛ�Ý�ÖÓÑÛ��ÓÒØÓÙÖ�ÒØ��Ö�Ð Ñ�Ø�Ó�Ó�ÓÑÔÐ�Ø�×Ô�Ø�ÓØ�ÑÔÓÖ�Ð�ÔÔÖÓ��℄Ø��Ø×Ù�ØÖ�Ò×��ÒØ�ÖÓÛØ� Ó��Ò�Ö�Ý�Ð×ÓØ��×ÔÐ��ÓÖ�ØÔÐ�Ø��ÓÙÒ��ÖÝÐ�Ý�ÖÛ��Ò�ÐÐØ��ÒÓÖÑ�Ð ÑÓ��×��×ÔÐ�Ý×Ô�Ø��Ð×Ø��Ð�ØÝ Ø��×ØÙÖ��Ò�×ØÖ��Ñ�ÙÒØ�ÓÒ�Ý �Ø��Ý��ÖÑÓÒ�×ÓÙÖ��ØØ��Û�ÐÐ�Ø��ÖÙÐ�Ö�Ö�ÕÙ�ÒÝ¬Á�Û�Ö�ÔÖ�×�ÒØ Ï��ÒÚ�×Ø��Ø�Ø��Ö�×ÔÓÒ×�Ó��Þ�ÖÓÔÖ�××ÙÖ��Ö��ÒØ�ÓÙÒ��ÖÝÐ�Ý�Ö�Ü

Û��Ö��Ö�Ò��Ø�Ø��ÖÓÑÛ��ÓÒØÓÙÖ×�ÓÐÐÓÛ��Ò�Ú�ÐÙ�Ø�Ò�Ø��ÓÚ��Ò Ø��Ö�Ð�ÒØ��ÓÑÔÐ�Ü«�Ò�¬ÔÐ�Ò�¬�ÔÔ��Ö�Ò�Ú��Ø��Û�ÐÐ�ÓÙÒ��ÖÝ �Ü�Ý�Ø��Ö�«�¬�Ý��«Ü ¬Ø�«�¬

Ì��ÔÓ×��ÔÖÓ�Ð�Ñ�××ÓÐÚ��ÝÐ�Ò��Ö�Þ�Ò�Ø��Æ�Ú��ÖËØÓ��×�ÕÙ�Ø�ÓÒ�ÒØ�� ℄�Ò��×ÓÒ�Ó�Ø��Ð��ÒØÛ�Ý×Ó�ØÖ��Ø�Ò��ÙÐÐ×Ô�Ø�ÓØ�ÑÔÓÖ�ÐÔÖÓ�Ð�Ñ× ×Ô�ØÖ�ÐÔÐ�Ò�×�Ò��ÜÔÖ�××�Ò��Ø�×Ø��ÇÖÖËÓÑÑ�Ö��Ð��ÕÙ�Ø�ÓÒ��Ú�Ò�Ý ÓÒ��Ø�ÓÒ�℄Ì��Ñ�Ø��Ñ�Ø��Ð��×�×Ó��ÖÓÑÛ��ÓÒØÓÙÖ�ÒØ��Ö�Ð�×��Ú�Ò�Ò

×Ô�Ø��ÐÒÓÖÑ�ÐÑÓ��×��Ú��Ò�Ú�ÐÙ�Ø��Ý�Ö��×��Ö�Ø��Ò�ÕÙ��ÑÔÐÓÝ�Ò� Ñ�ÒØØ��Ò�××À�Ö��Ð�×�Ù×�ÓÙÒ��ÖÝÐ�Ý�Ö�×ÓÒ×��Ö��Û�Ó×��Ü�×Ø�Ò� Û��Ö�ÍÝ�×Ø��Ñ��ÒÓÛ�Ò�Ø��Ê�ÝÒÓÐ�×ÒÙÑ��Ö�×��×��ÓÒ��×ÔÐ�� Í ¬�«� «� Í��«Ê��Ú «� «��

�ÒÌ��Ð� Ø��Ò�ÙØÖ�ÐÙÖÚ��Ò�Ø��ÓØ��Ö×�ØÓÖÖ�×ÔÓÒ��Ò�ØÓ¬��ÒØ�¬��×� ��ÑÔ��ÓÒ�×�ØÓÖÖ�×ÔÓÒ��Ò�ØÓ¬��ÒØ�¬��×�Ò� �ÒÌ��Ð� ÓÑÔÓÙÒ�Ñ�ØÖ�ÜÑ�Ø�Ó��℄�ÓÖÊ�� ÓÖØ��×�Ô�Ö�Ñ�Ø�ÖÓÑ��Ò�Ø�ÓÒ×�Ü�×Ø�Ò�×Ô�Ø��ÐÑÓ��×�Ö��ÐÐ �Ò�¬��Ò��Ò��Ú�Ò

��Õ�Ò�� ××ÓÐÚ��ÐÓÒ�Ø��ÖÓÑÛ��ÓÒØÓÙÖ×�� ¬Ö��¬�� ×Ù�Ø��Ø��Ù×�Ð�ØÝÔÖ�Ò�ÔÐ��×ÒÓØ �«Ö��«�� Ö��ÐÓÛ

Ö�ÓÒ×ØÖÙØØ��×ØÙÖ��Ò�¬�Ð��Ò�Õ ÑÓ��×�××Ø��Ð�Ø��ÓÒØÓÙÖ�ÒØ��Ö�ÐÖ�×ÙÐØ×�Ò¬�ÙÖ�×�ÓÛ��ÐÓ�Ð×ÓÐÙØ�ÓÒ� Ú�ÓÐ�Ø��Ò�Û�Ú�×ØÖ�Ú�Ð�ÒØ��ÓÖÖ�Ø��Ö�Ø�ÓÒÇ�Ø��Ò��×�Ö�Ù×��ØÓ �Ò¬�ÙÖ��ÓÖØ��×�Ó�¬��Ï��Ð�Ø��Ø��Ð�×�ÓÛ×�ÐÐØ�Ö��×Ô�Ø��Ð Ø�Ñ�Ø��Ý�Ò�Û�Ú�ÓÖÖ�×ÔÓÒ�×ØÓÑÓ��Ò�Ø��Ô��ØÓÖÖ�×ÔÓÒ�×ØÓ ��Ý�Ò�Û�Ú��Ò��Ø�ÑÔÓÖ�ÐÐÝ�ÖÓÛ�Ò�Û�Ú�Ô��Ø��Ø�Ö×ÙÆ��ÒØ �Ò�Ø��Ú�ÐÓ�ØÝ¬�Ð��Ö��×ÔÐÓØØ��

Speaker: SENGUPTA, T.K. 39 BAIL 2006

✩

✪

T.K. SENGUPTA, A. KAMESWARA RAO: Spatio-temporal growing waves in

boundary-layers by Bromwich contour integral method

✬

✫

ÑÓ��Ó�Ø��Ð� �ØØ��Ø��ØÐ��ÖÐÝ��Ò�Ø��×Ø��ÑÓ��×��Ò��Ò�ÓØ��Ö×Ø��Ø�Ö�×� Ö�Ø�ÁÒ¬�ÙÖ��ÒÚ�Ö×�Ä�ÔÐ��ØÖ�Ò×�ÓÖÑÓ�Ø��Ø��××�ÓÛÒ�ÓÖØ��×��Ò�Ð Ó�Ø��×��Ò�Ð �Ù�ØÓ�ÒØ�Ö�Ø�ÓÒ×Ó�ÑÓ��×Ø��Ø×�ÓÛÙÔ�×Ø��×Ô�Ø�ÓØ�ÑÔÓÖ�ÐÔÖÓÔ��Ø�ÓÒ ÅÓ�� ×Ò�Ú�ÖÚ�×��Ð��Ù�ØÓ�Ø×�ÜØÖ�Ñ�ÐÝÐ�Ö��Ý

�Ò�Ø��Ö�ÒØ�Ö�Ø�ÓÒ×�ÑÔ��×�Þ�Ò�Ø��Ò��ØÓÔ�Ö�ÓÖÑ×Ô�Ø�ÓØ�ÑÔÓÖ�Ð�Ò�ÐÝ×�× �Ò×Ø��Ó�Ø�ÑÔÓÖ�ÐÓÖ×Ô�Ø��ÐØ��ÓÖ��× Ê��Ö�Ò�×� ÓÑÔ�Ö�×ÓÒ�ÓÖØ��×ÝÑÔØÓØ�Ô�ÖØÓ�Ø��×ÓÐÙØ�ÓÒÓÑÔÖ�×�Ò�Ó��«�Ö�ÒØÑÓ��× ÁÒØ��¬Ò�ÐÔ�Ô�ÖÛ�Û�ÐÐÔÖ�×�ÒØ�Ò�ÐÝ×�×�ÓÖØ��ÐÓ�Ð×ÓÐÙØ�ÓÒ�Ò��Ø��Ð��

�℄ÄÆÌÖ��Ø��Ò�Ø�ÐË��Ò�� ℄ÌÃË�Ò�ÙÔØ��Ø�ÐÈ�Ý×�×�ÐÙ��×� Ä�ÔÐ��ÁÒØ��Ö�Ð��Ñ�Ö��ÍÒ�ÚÈÖ�××�� ℄�Î�Ò��ÖÈÓÐÀ�Ö�ÑÑ�ÖÇÔ�Ö�Ø�ÓÒ�Ð��ÐÙÐÙ×��×��ÓÒÌÛÓ×��

0.002

u′

0

Table 1:

β0 αr αi

1) 0.0621 413 0.0696 594

0.05

2) 0.1607 670 0.0015 206

3) 0.1894 256 0.3226 357

0.15 4) 0.2728 701 0.1675 585

5) 0.3940 036 0.0104 936

t = 110.0

-0.002

0 100 200

x

300 400

0.002

0

-0.002

5 4

0 100 200

x

300 400

u′

t = 411.6

0.002

0

-0.002

5 4

0 100 200

x

300 400

u′

0.002

t = 637.7

0

-0.002

5 4

0 100 200

x

300 400

Figure 1: Streamwise disturbance velocity plotted as a function of x at different

t for β0 = 0.15,Re = 1000 at y = 0.278δ ∗

φ′

0.6

0.4

0.2

u′

3 4 5

t = 801.1

0

0 0.1 0.2

α

0.3 0.4 0.5

Figure 2: FFT of streamwise disturbance velocity plotted as a function of α

Speaker: SENGUPTA, T.K. 40 BAIL 2006

t = 801.1

✩

✪

L. SAVIĆ, H. STEINRÜCK: Asymptotic Analysis of the mixed convection flow past a

horizontal plate near the trailing edge

✬

✫

Asymptotic Analysis of the mixed convection flow past a horizontal plate

near the trailing edge


Lj. Savić and H. Steinrück

Institute of Fluid Mechanics and Heat Transfer

Vienna University of Technology

Resselgasse 3, 1040 Vienna, Austria

herbert.steinrueck@tuwien.ac.at

The flow near the trailing edge of a horizontal heated plate which is aligned under a small angle

of attack φ to the oncoming parallel flow with velocity U∞ in the limit of large Reynolds Re

and large Grashof Gr = gβ∆TL 3 /ν 2 number will be investigated (see figure 1). As usual β

and ν denote the isobaric expansion coefficient and the kinematic viscosity, respectively. The

difference between the plate temperature and the temperature of the oncoming fluid is ∆T and

L is the length of the plate. A measure for the influence of the buoyancy onto the boundary

layer flow along a horizontal plate is the buoyancy parameter K = GrRe−5/2 PSfrag replacements

as defined in [4]).

U∞ = 1, θ∞ = 0

φ

g

−1 θp = 1

0

y

Re −1/2

K

x

Figure 1: Mixed convection flow past a horizontal plate.

The starting point of the analysis are the Navier Stokes equations for an incompressible fluid

using Bousinesq’s approximation to take buoyancy forces into account and the energy equation.

Additionally to the above mentioned dimensionless parameters the Prandtl number Pr, which

is assumed to be of order one, and the angle of attack φ enter the problem.

To analyze the flow behavior near the trailing edge in the frame work of interacting boundary

layers ([1, 2] it turns out that the buoyancy parameter K and the angle of attack φ have to be of

the order Re −1/4 . Thus we define the reduced buoyancy parameter κ = K Re 1/4 and the reduced

inclination parameter λ = φK √ Re. We note that the magnitude of φ is not only dictated by

the trailing edge analysis, but it is also a consequence of the analysis of the far field (see [5]). As

we will see the inclination parameter λ will play no role in the trailing edge analysis. Only for

positive values of λ an outer potential flow field exists [5]. We remark that in case of symmetric

flow conditions (upper side of the plate heated, lower side cooled) the interaction mechanism

would allow K to be larger, namely of order Re −1/8 . However, the scope of the present paper

will be limited to the flow near the trailing edge.

2. Asymptotic structure of the solution

For the analysis of the flow field near the trailing edge the velocities, the pressure and the

temperature are decomposed into a symmetric and anti-symmetric part. To leading order for

the symmetric part the classical triple deck problem [1, 2] is obtained. For the anti-symmetric

part (difference of the flow quantities above and below the plate) a new interaction mechanism

is obtained. The difference of the displacement thicknesses between the upper and lower side

Speaker: STEINRÜCK, H. 41 BAIL 2006

1

✩

✪

L. SAVIĆ, H. STEINRÜCK: Asymptotic Analysis of the mixed convection flow past a

horizontal plate near the trailing edge

✬

✫

of the plate ∆A interacts not only via the potential flow in the upper deck but also via the

hydrostatic pressure in the main deck with the pressure ∆p in the lower deck. The interaction

law for the pressure difference between the upper and lower side can be written in the form

∆A ′ (x (3) ) + √ 3ash(x (3) �

) x (3)� 1/3

=

� � 0 1 ∆ˆp(ξ) + 2as|ξ|

−

π −∞

1/3

x (3) dξ −

− ξ

1

� ∞ As(ξ) − ash(ξ)|ξ|

π −∞

1/3

x (3) �

dξ

− ξ

Where As(x (3) ) is the displacement thickness obtained for the classical trailing edge problem

[3, 1] and x (3) is the coordinate in the lower, main and upper deck parallel to the plate. Here as

is a constant and h(.) the heayside function. It turns out that the difference pressure ∆p has a

discontinuity at the trailing edge. Thus new sub-layers (in the main and lower deck) to resolve

this discontinuity are introduced.

In the following table we give an overview of the most important layers needed for the

asymptotic analysis. We introduce the following notation according to the stretching factor as

a power of the Reynolds number: x (α) = Re α/8 x and y (β) = Re β/8 y.

α β flow region

0 0 potential flow region

0 4 boundary layer and wake

3 3 upper deck

3 4 main deck

3 5 lower deck

4 4 main deck - trailing edge

5 5 lower deck - trailing edge

Table 1: Scales of the different flow regions

The new results of the analysis will be the local behavior of the difference pressure at the

trailing edge. For both of the newly introduced sub-layers elliptic equations for the local pressure

variation can be derived and will be solved numerically. Thus on triple deck scales there will be

a flow around the trailing edge. Thus the perturbation of the classical triple deck problem by

small buoyancy effects behaves quite differently than by small angles of attack [3].

References

[1] K. Stewartson, On the flow near the trailing edge of flat plate, Mathematika, 16, 106-121

(1969).

[2] A.F. Messiter, Boundary layer flow near the trailing edge of flat plate, SIAM J. Appl. Math.,

18, 241-257, (1970).

[3] R. Chow and R. E. Melnik, Numerical Solutions of Triple-Deck Equations for Laminar

Trailing Edge Stall, Grumman Research Dept., Report RE-526J (1976).

[4] W. Schneider and M. G. Wasel, Breakdown of the boundary-layer approximation for mixed

convection flow above a horizontal plate, Int. J. Heat Transfer, 28, 2307-2313 (1985).

[5] Lj. Savić and H. Steinrück, Mixed convection flow past a horizontal plate, Theoretical and

Applied Mechanics, 32, 1-19 (2005).

Speaker: STEINRÜCK, H. 42 BAIL 2006

2

✩

✪

G.I. Shiskin, P. Hemker

Robust Methods for Problems with Layer Phenomena and Additional Singularities

Speaker:

The minisymposium will be concerned with singularly perturbed

multiscale problems having additional singularities. A complicated

geometry or unboundedness of the domain and/or the lack of sufficient

smoothness (or compatibility) of the problem data may result in

singular solutions that have their own specific scales, besides boundary/interior

layers. We intend to examine techniques for constructing

numerical methods that converge parameter-uniformly (in the maximum

norm).

The following research aspects will be also considered: (i) As a rule,

such parameter-uniformly convergent numerical methods have too low

order of uniform convergence, which restricts their applicability in

practice. With this respect, methods how to increase the accuracy of

parameter-uniformly convergent numerical methods will be considered.

(ii) When standard numerical methods, for example, domain decomposition

methods are used to find solutions of parameter-uniformly convergent

discrete approximations, the decomposition errors of the discrete

solutions and the number of iterations required to solve the discrete

problem depend on the perturbation parameter and grow when it tends

to zero. We will consider decomposition methods preserving the property

of parameter-uniform convergence. Domain decomposition and

local defect correction techniques allows us to reduce the construction

of robust numerical methods for multiscale problems to locally robust

methods for monoscale problems on the specific subdomains. Other aspects

and applications will be also under consideration. Problems for

partial differential equations with different types of boundary and interior

layers will be considered. To construct special numerical methods,

fitted meshes, which are a priori and a posteriori condensing in the layer

regions, are used.

• Deirdre Branley: A Schwarz method for a convection-diffusion problem with a

corner singularity

• Thorsten Linss: Layer-adapted meshes for time-dependent reaction-diffusion

• Grigory I. Shishkin: Grid Approximation of Parabolic Equations with Nonsmooth

Initial Condition in the Presence of Boundary Layers of Different Types

• Lidia P. Shishkina: A Difference Scheme of Improved Accuracy for a Quasilinear

Singularly Perturbed Elliptic Convection-Diffusion Equation in the Case of the

Third-Kind Boundary Condition

• Irina V. Tselishcheva: Domain Decomposition Method for a Semilinear Singularly

Perturbed Elliptic Convection-Diffusion Equation with Concentrated Sources

• S. Valarmathi: A parameter-uniform numerical method for a system of singularly

perturbed ordinary differential equations

D. BRANLEY, A.F. HEGARTY, H. PURTILL, G.I. SHISHKIN: A Schwarz method

for a convection-diffusion problem with a corner singularity

✬

✫

A Schwarz method for a convection-diffusion problem with a corner

singularity. ∗

Deirdre Branley 1 , Alan F. Hegarty 1 , Helen Purtill 1 and Grigory I. Shishkin 2 .

1 Department of Mathematics and Statistics, University of Limerick, Plassey, Limerick, Ireland.

deirdre.branley@ul.ie, alan.hegarty@ul.ie, helen.purtill@ul.ie,

2 Institute of Mathematics and Mechanics, Ural Branch of Russian Academy of Sciences

16 S. Kovalevskaya Street, Ekaterinburg 620219, Russia

shishkin@imm.uran.ru

We are concerned with two dimensional steady state convection-diffusion problems with

singular outflow boundary conditions. It is well known that, where the boundary conditions

are sufficiently smooth and compatible, such problems can be solved with uniform accuracy

with respect to the small parameter ε using a standard finite difference operator on special

piece-wise uniform meshes [1, 2]. Where the outflow boundary data are only weakly regular and

compatible, parameter-uniform solutions may also be obtained by this method [2]. However,

orders of convergence are relatively small and pointwise errors relatively large in this case.

Numerical methods for singularly perturbed problems comprising domain decomposition and

Schwarz iterative technique have been examined by a number of authors, for example in [1], [3],

[4] and [5]. In particular, MacMullen et al. [5] constructed a parameter-uniform Schwarz method

for singularly perturbed linear convection-diffusion problems in two dimensions with sufficiently

smooth and compatible boundary data. We examine experimentally the performance of such

methods extended to the class of singularly perturbed convection-diffusion problems with more

general boundary conditions described below.

We consider problems of the form

Lu ≡ ε∆uε + a(x, y).∇u = f

in a domain Ω, the unit square, with Dirichlet boundary conditions, where all components of a

are strictly positive. Such problems exhibit regular layers along the outflow boundaries, as well

as a corner boundary layer at the outflow boundary corner. We deal with outflow boundary

conditions, where the first derivatives are not compatible at the outflow boundary corner. We

implement domain decomposition methods to isolate the neighbourhood of the singularity, along

with a Schwarz iterative technique, with the aim of developing a Schwarz method to produce

parameter-uniformly accurate solutions on the whole domain in the oresence of such a singularity.

References

[1] J.J.H. Miller, E.O’Riordan, G.I. Shishkin, Fitted Numerical Methods for Singular Perturbation

Problems, World Scientific, Singapore, 1996.

[2] P.A. Farrell, A.F. Hegarty, J.J.H. Miller, E. O’Riordan, G.I. Shishkin, Robust Computational

Techniques for Boundary Layers, Chapman & Hall, CRC, Boca Raton, FL, 2000.

[3] J.J.H. Miller, E. O’Riordan, G.I. Shishkin, S. Wang, A parameter-uniform Schwarz method

for a singularly-perturbed reaction-diffusion problem with an interior layer, Appl. Num.

Math., 35 (2000), 323-337.

∗ This research was supported in part by the Irish Research Council for Science, Engineering and Technology

and by the Russian Foundation for Basic Research under grant No. 04-01-00578.

1

Speaker: BRANLEY, D. 45 BAIL 2006

✩

✪

D. BRANLEY, A.F. HEGARTY, H. PURTILL, G.I. SHISHKIN: A Schwarz method

for a convection-diffusion problem with a corner singularity

✬

✫

[4] H. MacMullen, J.J.H. Miller, E. O’Riordan, G.I. Shishkin, A second-order parameter uniform

overlapping Schwarz method for reaction-diffusion problems with boundary layers, J.

Comput. & Appl. Math., 130 (2001), 231-244.

[5] H. MacMullen, E. O’Riordan, G.I. Shishkin, The convergence of classical Schwarz methods

applied to convection-diffusion problems with regular boundary layers, Appl. Num. Math.,

43 (2002), 297-313.

Speaker: BRANLEY, D. 46 BAIL 2006

2

✩

✪

T. LINSS, N. MADDEN: Layer-adapted meshes for time-dependent reaction-diffusion

✬

✫

Layer-adapted meshes for time-dependent reaction-diffusion

Torsten Linß 1 , Niall Madden 2

1 Institut für Numerische Mathematik, Technische Universität Dresden

e-mail: torsten.linss@tu-dresden.de

2 Department of Mathematics, National University of Ireland Galway

e-mail: niall.madden@math.nuigalway.ie

ABSTRACT

We consider singularly perturbed reaction-diffusion problems of the type

ut + Lεu = f in (0, 1) × (0, T],

where Lεv := −ε 2 vxx + rv, subject to boundary conditions

and initial condition

u(0, t) = γ0(t), u(1, t) = γ1(t) in (0, T]

u(·, 0) = u 0

in (0, 1)

where 0 < ε ≪ 1, r(x) > ρ 2 > 0 for x ∈ [0, 1]. The nature of the differential equation changes when

ε → 0 giving rise to boundary layers that require special attention in the design of numerical methods,

in particular local refinement of the meshes used.

We study an inverse monotone difference scheme on arbitrary meshes. An maximum-norm error bound

is derived that allows easy classification of various layer-adapted meshes proposed in the literature.

For example, this general result implies

�u − U� ∞ ≤ C

�

τ + N −2 ln 2 N for Shishkin meshes,

τ + N −2 for Bakhvalov meshes,

where τ is the maximal time-step size and N the number of mesh points used in the space discretization.

Speaker: LINSS, T. 47 BAIL 2006

✩

✪

G.I. SHISHKIN: Grid Approximation of Parabolic Equations with Nonsmooth Initial

Condition in the Presence of Boundary Layers of Different Types

✬

✫

Grid Approximation of Parabolic Equations with Nonsmooth Initial

Condition in the Presence of Boundary Layers of Different Types ∗

Grigory I. Shishkin

Institute of Mathematics and Mechanics,

Ural Branch of Russian Academy of Sciences,

Yekaterinburg 620219, Russia


A Dirichlet problem for a singularly perturbed parabolic equation with the perturbation

vector-parameter ε, ε = (ε1, ε2), is considered on a semiaxis. The highest derivative of the

equation and also the first derivative with respect to x contain respectively the parameters

ε1 and ε2, which take arbitrary values in the half-open interval (0, 1] and the segment [−1, 1].

Depending on the parameter ε2, the type of the equation may be reaction-diffusion or convectiondiffusion.

The first order derivative of the initial function has a discontinuity of the first kind at

the point x0.

For small values of the parameter ε1, a boundary layer appears in a neighbourhood of the

lateral part of the domain boundary. Depending on the ratio between the parameters ε1 and

ε2, these layers may be regular, parabolic or hyperbolic (characteristic scales of these boundary

layers also depend on the ratio between ε1 and ε2).

In a neighbourhood of the set S γ , that is, the characteristic of the reduced equation outgoing

from the point (x0, 0), the parabolic transient layer arises.

Using the method of piecewise uniform meshes condensing in a neighbourhood of the layer,

we construct a special difference scheme that converges ε-uniformly.

Numerical methods for problems with different types of boundary layers for elliptic convectiondiffusion

equations in the case of sufficiently smooth boundary data are studied, e.g., in [1].

References

[1] G.I. Shishkin, “Grid approximation of a singularly perturbed elliptic equations with convective

terms in the presence of various boundary layers”, Comput. Maths. Math. Phys.,

45 (1), 104–119 (2005).

∗ This research was supported in part by the Russian Foundation for Basic Research (grants No. 04-01-00578,

04–01–89007–NWO a), by the Dutch Research Organisation NWO under grant No. 047.016.008 and by the Boole

Centre for Research in Informatics, National University of Ireland, Cork.

Speaker: SHISHKIN G.I. 48 BAIL 2006

1

✩

✪

L.P. SHISHKINA, G.I. SHISHKIN: A Difference Scheme of Improved Accuracy for a

Quasilinear Singularly Perturbed Elliptic Convection-Diffusion Equation in the Case of

the Third-Kind Boundary Condition

✬

✫

A Difference Scheme of Improved Accuracy for a Quasilinear

Singularly Perturbed Elliptic Convection-Diffusion Equation

in the Case of the Third Kind Boundary Condition ∗

Lidia P. Shishkina and Grigory I. Shishkin

Institute of Mathematics and Mechanics,



Lida@convex.ru and shishkin@imm.uran.ru

A boundary value problem for a quasilinear singularly perturbed elliptic convection-diffusion

equation on a strip is considered. The third kind boundary condition admitting both Dirichlet

and Neumann conditions is given on the domain boundary. For small values of the perturbation

parameter ε, a boundary layer arises in a neighbourhood of the outflow part of the boundary. For

such a problem, the base (nonlinear) difference scheme constructed by classical approximations

of the problem on piecewise uniform meshes condensing in the layer converges ε-uniformly with

an order of accuracy not higher than 1.

Our aim is for this boundary value problem to construct grid approximations that converge

ε-uniformly with an order of convergence close to two.

Using the�Richardson technique, we construct a (nonlinear) scheme that converges ε-uniformly

at the rate O N −2

1 ln 2 N1+N −2

�

2 , where N1+1 is the number of nodes in the mesh with respect

to x1 and N2+1 is the number of mesh points on a unit interval along the x2-axis. Based on the

nonlinear Richardson scheme, a linearized iterative scheme is constructed where the nonlinear

term is computed using the unknown function taken at the previous iteration. The solution of

this iterative scheme converges to the solution of the nonlinear Richardson scheme at the rate of

a geometry progression ε-uniformly with respect to the number of iterations. Thus, the number

of iterations required for solving the problem (as well as the accuracy of the resulting solution)

is independent of the parameter ε.

The use of lower and upper solutions of the linearized iterative Richardson scheme as a

stopping criterion allows us during the computational process to define a current iteration under

which the same ε-uniform accuracy of the solution is achieved as for the nonlinear Richardson

scheme. To construct the improved scheme, the technique developed in [1]–[4] for a Dirichlet

problem is applied.

References

[1] G.I. Shishkin, “The method of increasing the accuracy of solutions of difference schemes

for parabolic equations with a small parameter at the highest derivative”, USSR Comput.

Maths. Math. Phys., 24 (6), 150–157 (1984).

[2] G.I. Shishkin, ”Finite-difference approximations of singularly perturbed elliptic equations”,

Comp. Math. Math. Phys., 38 (12), 1909–1921 (1998).

[3] G.I. Shishkin and L.P. Shishkina, “A high-order Richardson method for a quasilinear singularly

perturbed elliptic reaction-diffusion equation”, Differential Equations, 41 (7), 1030–

1039 (2005).


04–01–89007–NWO a) and by the Dutch Research Organisation NWO under grant No. 047.016.008.

Speaker: SHISHKINA, L.P. 49 BAIL 2006

1

✩

✪

L.P. SHISHKINA, G.I. SHISHKIN: A Difference Scheme of Improved Accuracy for a

Quasilinear Singularly Perturbed Elliptic Convection-Diffusion Equation in the Case of

the Third-Kind Boundary Condition

✬

✫

[4] L. Shishkina and G. Shishkin, “The discrete Richardson method for semilinear parabolic singularly

perturbed convection-diffusion equations”, in: Proceedings of the 10th International

Conference “Mathematical Modelling and Analysis” 2005 and 2nd International Conference

“Computational Methods in Applied Mathematics”, R. Čiegis ed., Vilnius, “Technika”,

2005, pp. 259–264.

2


✩

✪

I.V. TSELISHCHEVA, G.I. SHISHKIN: Domain Decomposition Method for a Semilinear

Singularly Perturbed Elliptic Convection-Diffusion Equation with Concentrated

Sources

✬

✫

Domain Decomposition Method for a Semilinear Singularly Perturbed

Elliptic Convection-Diffusion Equation with Concentrated Sources ∗

Irina V. Tselishcheva and Grigory I. Shishkin

Institute of Mathematics and Mechanics, Ural Branch of Russian Academy of Sciences


tsi@imm.uran.ru, shishkin@imm.uran.ru

For singularly perturbed boundary value problems in a composed domain (in particular,

with concentrated sources) whose solution has several singularities such as boundary and interior

layers, it is of keen interest to construct a parameter-uniform numerical method based on

a domain decomposition technique so that each subdomain in the decomposition contains no

more than a single singularity. Because of the thin layers, standard numerical methods applied

to problems of this type yield unsatisfactorily large errors for small values of the singular perturbation

parameter ε. The fact that the partial differential equation is nonlinear complicates

the solution process.

We develop monotone linearized schemes based on an overlapping Schwarz method for a

semilinear singularly perturbed elliptic convection-diffusion equation on a compound strip in the

presence of concentrated sources acting inside the domain. We first study a special (base) scheme

comprising a standard finite difference operator on a piecewise-uniform fitted mesh and an

overlapping domain decomposition scheme constructed on the basis of the former that converge εuniformly

at the rates O � N −1 � � −1

and O N

1 lnN1 + N −1

2

1 ln N1 + N −1

2 + qt� , respectively. Here

N1 +1 and N2 +1 are the number of mesh points in x1 and the minimal number of mesh points

in x2 on a unit interval, q < 1 is the common ratio of a geometric progression, independent of ε,

t is the iteration count. For these nonlinear schemes we construct monotone linearized schemes

of the same ε-uniform accuracy, in which the nonlinear term is computed from the unknown

function taken at the previous iteration.

The linearized schemes are monotone, which admits to construct their upper and lower

solutions. We apply the technique of upper and lower solutions to find aposteriori the (optimal)

number of iterations T in the linearized scheme for which the accuracy of its solution is the same

(up to a constant factor) as that for the base scheme, where T = O (ln(min[N1, N2])) (see also

[1] for a reaction-diffusion problem). Thus, the number of required iterations is independent of

ε. With respect to total computational costs, the iterative method is close to a solution method

for linear problems, since the number of iterations is only weakly depending on the number of

mesh points used. The linearized iterative schemes inherit the ε-uniform rate of convergence of

the nonlinear schemes.

The decomposition schemes can be computed sequentially and in parallel (so that the suproblems

on the overlapping subdomains are solved independently of each other).

Note that schemes of the overlapping domain decomposition method were considered earlier

by the authors in [2] for linear problems and in [3, 4] for nonlinear problems.

References

[1] G.I. Shishkin and L.P. Shishkina, “A high-order Richardson method for a quasilinear singularly

perturbed elliptic reaction-diffusion equation”, Differential Equations, 41 (7), 1030–

1039 (2005).


04–01–89007–NWO a) and by the Dutch Research Organisation NWO grant No. 047.016.008.

Speaker: TSELISHCHEVA, I.V. 51 BAIL 2006

1

✩

✪

I.V. TSELISHCHEVA, G.I. SHISHKIN: Domain Decomposition Method for a Semilinear

Singularly Perturbed Elliptic Convection-Diffusion Equation with Concentrated

Sources

✬

✫

[2] G.I. Shishkin and I.V. Tselishcheva, “Parallel methods for solving singularly perturbed

boundary value problems for elliptic equations”, (in Russian) Mat. Model., 8 (3), 111–127

(1996).

[3] I.V. Tselishcheva and G.I. Shishkin, “Monotone domain decomposition schemes for a singularly

perturbed semilinear elliptic reaction-diffusion equation with Robin boundary conditions”,

in: Proceedings of the 10th International Conference “Mathematical Modelling

and Analysis” 2005 and 2nd International Conference “Computational Methods in Applied

Mathematics”, R. Čiegis ed., Vilnius, “Technika”, 2005, pp. 251–258.

[4] I.V. Tselishcheva and G.I. Shishkin, “Monotone domain decomposition schemes for a

quasilinear singularly perturbed elliptic convection-diffusion equation with a concentrated

source”, in: Grid Methods for Boundary Value Problems and Applications, Proceedings of

the VI-th All-Russian Workshop, Kazan, Kazan State University, 2005, pp. 251-255 (in

Russian).

Speaker: TSELISHCHEVA, I.V. 52 BAIL 2006

2

✩

✪

S. HEMAVATHI, S. VALARMATHI: A parameter-uniform numerical method for a

system of singularly perturbed ordinary differential equations

✬

✫

¨�©�¨�¤��¤�§ ��§ ¨�¤��¢��§ ¨�©��£�� ¤�¢ ��©�¨�§

¡£¢¥¤¦¢¥§

¡�¨�¤�©¦��¤��¨�� ¤��£¢¥¤�� ¨�¤¦¨��©¦��¢��¨��£¢�©��

��£��¢�¤��

��

��¦��

��

��¦��

��

��¥��

��

��¥��£��¥��

��

��

��

�� ¦��

��

��

��

��

��

��¥��

��

��

�

�

��

��

��£��

��£��

��

��

��

��

�

��£��£��

��

��

� ��

� �� £��

��

�

��

��

��

��

��¦� � �� ¡ �� £¢��

��

��¥¤��£¢��

�� §¦��©¨��

��

��

��£��§��

��£��§��

�

Speaker: VALARMATHI, S. 53 BAIL 2006

��

��

✩

✪

S. HEMAVATHI, S. VALARMATHI: A parameter-uniform numerical method for a

system of singularly perturbed ordinary differential equations

✬

��

��¥�� £��

��

��¦�� ¦��

��£¢��

¡��

� £©¨ � £ � ¢¤£¦¥§£

� � � � � ¨�� ¦��¦��

��

��

�

�� ¥��

��

� ��

��¥��

�� ¦��¨��

��

��

��§��

��¥��

� �� ¨�� ©��§��§��

��

��§�� §��

� � ��

��©��©��

�� ¡�� ¦��

��

��

��

��§��

��

�� §��§�� §��

�� §��

��

�� ¨��

��

��

�� ¥��

��¤��

��

��

��

�

��

��

��

��§¦��

��

✫

��¦�� ¢§¦��

��§¦��

�

Speaker: VALARMATHI, S. 54 BAIL 2006

✩

✪

J. Maubach, I, Tselishcheva

Robust Numerical Methods for Problems with Layer Phenomena and Applications

Speaker:

Numerical modeling of many processes and physical phenomena leads

to boundary value problems for PDEs having non-smooth solutions with

singularities of thin layer type. Among them are convection-dominated

convection-diffusion problems, Navier-Stokes equations and boundarylayer

equations at high Reynolds number, the drift-diffusion equations

of semiconductor device simulation, flow problems with lift, drag, transition

and interface phenomena, phenomena in plasma fluid dynamics,

mathematical models for the spreading of pollutants, combustion, shock

hydrodynamics or transport in porous media and other related problems.

The solutions of these problems contain thin boundary and interior

layers, shocks, discontinuities, shear layers, or current sheets, etc.

The singular behaviour of the solution in such local structures generally

gives rise to difficulties in the numerical solution of the problem in

question by traditional methods on uniform meshes and requires the use

of highly accurate discretization methods and adaptive grid refinement

techniques. The problem of resolving layers, which is of great practical

importance, is still not solved satisfactorily for a wide class of problems

with layer phenomena and applications, which the minisymposium is

concerned with.

• Alan Hegarty: An adaptive method for the numerical solution of an elliptic convection

diffusion problem

• Joseph Maubach: A Convergence Proof of Local Defect Correction for Convection-

Diffusion Problems

• Joseph Maubach: On the Difference between Left and Right Preconditioning for

Convection Dominated Convection-Diffusion Problems

• Lidia P. Shishkina: Parameter-Uniform Method for a Singularly Perturbed Parabolic

Equation Modelling the Black-Scholes equation in the Presence of Interior and

Boundary Layers

• Alexander I. Zadorin: Numerical Method for the Blasius Equation on an Infinite

Interval

• Paul Zegeling: An Adaptive Grid Method for the Solar Coronal Loop Model

A.F. HEGARTY, S. SIKWILA, G.I. SHISKIN: An adaptive method for the numerical

solution of an elliptic convection diffusion problem

✬

✫

An adaptive method for the numerical solution of an elliptic convection

diffusion problem ∗

Alan F. Hegarty 1 , Stephen Sikwila 1 and Grigory I. Shishkin 2 .

1 Department of Mathematics and Statistics, University of Limerick, Plassey, Limerick, Ireland.

alan.hegarty@ul.ie, stephen.sikwila@ul.ie,

2 Institute of Mathematics and Mechanics, Ural Branch of Russian Academy of Sciences



A two dimensional elliptic linear convection diffusion problem:

Pε :

�

ε∆uε + a.∇uε + d(x, y)uε = f(x, y),

uε = g,

(x, y) ∈ Ω;

(x, y) ∈ Γ,

is considered, where the diffusion parameter 0 < ε ≤ 1 is typically small. The use of special

piecewise uniform meshes appropriately condensed in the boundary layer regions together

with montone finite difference operators is well known to result in numerical methods which

are uniformly convergent with respect to ε (see e.g., [1]). Such methods depend on a priori

knowledge of the location of any boundary layers. Since such information may not be available

for more complicated problems, it is of interest to examine whether robust numerical results can

be obtained for the model problem (1), without using the a priori information.

An adaptive technique is presented, based on piecewise uniform meshes, where the location

of the transition point between the coarse and fine meshes is computed iteratively. This is an

extension of the one dimensional method presented in [2] and [3].

Numerical experiments are presented which indicate that the computational solutions obtained

are uniformly in ε convergent and also that the number of iterations required does not

increase significantly for small ε.

References

[1] P.A. Farrell, A.F. Hegarty, J.J.H. Miller, E. O’Riordan, G.I. Shishkin, Robust Computational

Techniques for Boundary Layers, Chapman & Hall, CRC, Boca Raton, FL, 2000.

[2] S. Sikwila, A.F. Hegarty and G.I. Shishkin, Novel robust adaptive techniques for the numerical

solution of convection diffusion problem, Proceedings of BAIL 2004 Conference,

Toulouse, July 2004, ONERA, 2004.

[3] S. Sikwila, Novel robust layer resolving adaptive mesh methods for convection diffusion

problems in one and two dimesnions, Ph.D. thesis, University of Limerick, 2005.

∗ This work was supported by the Russian Foundation for Basic Research under grant No. 04-01-00578.

Speaker: HEGARTY, A.F. 56 BAIL 2006

1

(1)

✩

✪

M. ANTHONISSEN, I. SEDYKH, J. MAUBACH: A Convergence Proof of Local

Defect Correction for Convection-Diffusion Problems

✬

✫

A Convergence Proof of Local Defect Correction

for Convection–Diffusion Problems

M. Anthonissen 1 , I. Sedykh 2 and J. Maubach 1

1 Department of Mathematics and Computer Science, Eindhoven University of Technology,

Eindhoven, The Netherlands

m.j.h.anthonissen@tue.nl, j.m.l.maubach@tue.nl

2 Department of Mechanics and Mathematics, Moscow State University, Moscow, Russia

Examples of partial differential equations with solutions that are rapidly varying functions

of the spatial or temporal coordinates appear e.g. in combustion, shock hydrodynamics or

transport in porous media. For boundary value problems with solutions that have one or a few

small regions with high activity, a fine grid is needed in regions with high activity, whereas a

coarser grid would suffice in the rest of the domain. Rather than using a truly nonuniform grid,

we study a method called Local Defect Correction (LDC) that is based on local uniform grid

refinement.

Several properties hold for the LDC fixed point iteration for convection-diffusion equations in

two dimensions. We study the convergence behavior of the LDC method as an iterative process

and derive an upper bound for the norm of the iteration matrix for the linear two-dimensional

convection-diffusion equation with constant coefficients on the unit square. The research results

can be extended to the case of non-constant coefficients.

Speaker: MAUBACH, J. 57 BAIL 2006

1

✩

✪

J. MAUBACH: On the Difference between Left and Right Preconditioning for Convection

Dominated Convection-Diffusion Problems

✬

✫

On the Difference between Left and Right Preconditioning for Convection

Dominated Convection–Diffusion Problems

Joseph Maubach

Department of Mathematics and Computer Science, Eindhoven University of Technology,

Eindhoven, The Netherlands

j.m.l.maubach@tue.nl

For convection dominated convection-diffusion problems in several space dimensions discretized

with finite differences on a locally fine tensor–grid, an approximate inverse operator

Gn is calculated from the linear operator An. The spectral condition numbers κ2(GnAn)

and κ2(AnGn) estimated numerically are different: κ2(GnAn) . = O(log h −1 ) and κ2(AnGn) . =

O(h −1 ). This is corroborated by a proof for the one-dimensional case for a modified approximate

inverse operator Gn.

Speaker: MAUBACH, J. 58 BAIL 2006

1

✩

✪

S. LI, L.P. SHISHKINA, G.I. SHISHKIN: Parameter-Uniform Method for a Singularly

Perturbed Parabolic Equation Modelling the Black-Scholes equation in the Presence

of Interior and Boundary Layers

✬

✫

Parameter–Uniform Method for a Singularly Perturbed Parabolic Equation

Modelling the Black–Scholes equation in the Presence of Interior and

Boundary Layers ∗

Shuiying Li 1 , Lidia P. Shishkina 2 and Grigory I. Shishkin 2

1 Department of Computational Science,

National University of Singapore,

Singapore 117543

scip1075@nus.edu.sg

2 Institute of Mathematics and Mechanics,



Lida@convex.ru and shishkin@imm.uran.ru

Solutions of regular parabolic equations with nonsmooth initial data are of limited smoothness

themselves (in a neighbourhood of the nonsmoothness of the data). When the equation

is singularly perturbed, its solution has singularities such as initial, boundary and/or interior

layers with own scales. These problems belong to the class of singularly perturbed multiscale

problems. The multiscale behaviour of solutions complicates the construction and study of

efficient patameter-uniform numerical methods.

A singularly perturbed parabolic convection-diffusion equation with the second derivative

multiplied by a singular perturbation parameter ε, which ranges in (0, 1], arises when we model

the Black-Scholes equation upon a European call option (see, e.g., [1]). There are a few singularities

in the problem, i.e., a single discontinuity of the first derivative of the initial condition

at a point x0, the unbounded growth of the initial condition at infinity and the unbounded

domain in space. The solution of this initial value problem grows exponentially without bound

as x → ∞. Thus, we deal with a singularly perturbed multiscale problem that has different

types of singularities.

In this presentation we consider a boundary value problem (in a bounded domain) for this

singularly perturbed parabolic convection-diffusion equation with an additional singularity generated

by the discontinuity of the first derivative of the initial function. For such a problem,

singularities such as a boundary and an interior layer with own specific scales arise. For small

values of the parameter ε, the interior layer due to nonsmooth initial data appears in a neighbourhood

of the characteristic of the reduced equation passing through the point (x0, 0), and

the regular boundary layer appears in a neighbourhood of the outflow boundary through which

the convective flux leaves the domain.

By using the singularity splitting method and piecewise uniform meshes condensing in the

boundary layer, we construct a special difference scheme that allows us to approximate εuniformly

the solution of the problem under consideration, as well as the first derivative of

the solution. The corresponding theoretical and numerical results are provided in the paper.

The description of the technique applied in this study can be found in [2]. Preliminary results

for a similar problem with no boundary layer were given in [3].

∗ This research was supported in part by the Russian Foundation for Basic Research (grant No 04-01-00578,

04–01–89007–NWO a) and by the Dutch Research Organization NWO under grant No 047.016.008.

1


✩

✪

S. LI, L.P. SHISHKINA, G.I. SHISHKIN: Parameter-Uniform Method for a Singularly

Perturbed Parabolic Equation Modelling the Black-Scholes equation in the Presence

of Interior and Boundary Layers

✬

✫

References

[1] J.J.H. Miller, G.I. Shishkin, “Robust numerical methods for the singularly perturbed Black-

Scholes equation”, in: Proceedings of the Conference on Applied Mathematics and Scientific

Computing, Springer, Dordrecht, 2005, pp. 95–105.

[2] G.I. Shishkin, “Grid approximation of parabolic convection-diffusion equations with piecewise

smooth initial conditions”, Doklady Akad. Nauk, 405 (1), 1–4 (2005); transl. in Doklady

Mathematics, 72 (3) (2005).

[3] Li Shuiying, D.B. Creamer, G.I. Shishkin, “Discrete approximations of a singularly perturbed

Black-Scholes equation with nonsmooth initial data”, in: An International Conference

on Boundary and Interior Layers — Computational and Asymptotic Methods BAIL

2004, ONERA, Toulouse, 5th-9th July, 2004, pp. 441-446.


2

✩

✪

A.I. ZADORIN: Numerical Method for the Blasius Equation on an Infinite Interval

✬

✫

Numerical Method for the Blasius Equation on an Infinite Interval ∗

A.I. Zadorin

Omsk Branch of Sobolev Institute of Mathematics,

Siberian Branch of Russian Academy of Sciences, Omsk, Russia

zadorin@iitam.omsk.net.ru

The Blasius equation on a semi-infinite interval is considered. This problem can be considered

as a model problem for constructing a numerical method for problems in unbounded domains.

The Blasius problem have been investigated in many papers. For example, G.I. Shishkin [1]

studied the asymptotic behavior of differential and difference solutions to get a difference scheme

with a finite number of mesh points for a sufficiently long interval. We apply the method of

separation of the set of solutions that satisfy the limit boundary condition at infinity to transform

the problem to a problem on a finite interval (see, e.g., [2, 3]). Difficulties are concerned with

the nonlinearity of the differential equation and with an unbounded coefficient multiplying the

second derivative. We propose to make a transformation of the independent variable to avoid

the last problem.

So, consider the Blasius problem

u ′′′ (x) + u(x)u ′′ (x) = 0,

u(0) = 0, u ′ (0) = 0, lim

x→∞ u′ (x) = 1.

Let u(x) = v(x) + x, w(x) = v ′ (x). Then problem (1) take the form

v ′ (x) = w(x), v(0) = 0,

w ′′ (x) + [v(x) + x]w ′ (x) = 0, w(0) = −1, lim w(x) = 0.

x→∞

To transfer the limit condition at infinity to a finite point, consider the linear problem

εu ′′ (x) + [a(x) + x]u ′ (x) = f(x),

u(0) = A, lim u(x) = 0.

x→∞

Suppose that there is a unique solution of (3), ε > 0, ∃ lim a(x), lim f(x) = 0. To avoid the

x→∞ x→∞

difficulty with unboundedness of the coefficient multiplying the first derivative, we use the new

variable t = x2 /2. Then problem (3) can be written in the form

where

εu ′′ (t) + b(t)u ′ (t) = F(t), u(0) = A, lim

t→∞ u(t) = 0, (4)

b(t) = a(√ 2t)

√ 2t + 1 + 1

2t , F(t) = f(√ 2t)/(2t).

By the next equation we can restrict the set of solutions of the differential equation (4) satisfying

the limit condition at infinity:

εu ′ (t) + g(t)u(t) = β(t), (5)

∗ Supported by the Russian Foundation for Basic Research under grant No. 04-01-00578.

Speaker: ZADORIN, A.I. 61 BAIL 2006

1

(1)

(2)

(3)

✩

✪

A.I. ZADORIN: Numerical Method for the Blasius Equation on an Infinite Interval

✬

✫

where g(t), β(t) are solutions of auxiliary singular Cauchy problems and can be found as series

in (2t) −0.5 with a given accuracy. We can use equation (5) as the exact boundary condition for

a finite interval. Then we return to the variable x and get the exact restriction of problem (3)

to a finite interval as follows:

εu ′′ (x) + [a(x) + x]u ′ (x) = f(x),

u(0) = A,

ε

L u′ (L) + g(L)u(L) = β(L).

Return to problem (2). Consider the iterative method

v ′ n(x) = wn−1(x), vn(0) = 0,

w ′′

n(x) + [vn(x) + x]w ′ n(x) = 0, wn(0) = −1, lim

x→∞ wn(x) = 0.

It is proved that method (7) has the property of convergence. At each iteration, we can transform

problem (7) to a problem for a finite interval, as it was done for a linear problem. One can use

a difference scheme to solve the problem obtained on a finite interval. Theoretical results are

confirmed by results of numerical experiments.

References

[1] G.I. Shishkin, “Grid approximation of the solution to the Blasius Equation and of its Derivatives”,

Computational Mathematics and Mathematical Physics, 41 (1), 37–54 (2001).

[2] A.A. Abramov, N.B. Konyukhova, “Transfer of admissible boundary conditions from a singular

point of linear ordinary differential equations”, Sov. J. Numer.Anal. Math. Modelling,

1, (4), 245–265 (1986).

[3] A.I. Zadorin, “The transfer of the boundary condition from the infinity for the numerical

solution of second order equations with a small parameter” (in Russian), Siberian Journal

of Numerical Mathematics, 2 (1), 21–36 (1999).

Speaker: ZADORIN, A.I. 62 BAIL 2006

2

(6)

(7)

✩

✪

P. ZEGELING: An Adaptive Grid Method for the Solar Coronal Loop Model

✬

✫

An Adaptive Grid Method for the Solar Coronal Loop Model

Paul Zegeling

Department of Mathematics, Faculty of Science, Utrecht University, Utrecht, The Netherlands

zegeling@math.uu.nl

Many interesting phenomena in plasma fluid dynamics can be described within the framework

of magnetohydrodynamics. Numerical studies in plasma flows frequently involve simulations

with highly varying spatial and temporal scales. As a consequence, numerical methods on

uniform grids are inefficient to be used, since (too) many grid points are needed to resolve the

spatial structures, such as boundary and internal layers, shocks, discontinuities, shear layers, or

current sheets. For the efficient study of these phenomena, adaptive grid methods are needed

which automatically track and spatially resolve one or more of these structures. An interesting

application within this framework can be found in and around our sun. There are several cases

for which we can expect steep boundary and internal layers (see figure 1).

The first one deals with the expulsion of the magnetic flux by eddies in a solar magnetic

field model. This model addresses the role of the magnetic field in a convecting plasma and the

distortion of the field by cellular convection patterns for various (small) values of the resistivity

(magnetic diffusion coefficient). This situation is of importance around convection cells just

below the solar photosphere. Steep boundary and internal layers are formed when the magnetic

induction reaches a steady-state configuration.

In this presentation we discuss another phenomenon that takes place a little bit farther from

the solar interior, viz., in the solar corona. It is known that the temperature gradually decreases

from the center of the sun down to values of around 10 4 degrees Kelvin at the foot of the corona

(see figure 2). From that point, however, it surprisingly increases dramatically again up to several

millions of degrees Kelvin forming a non-trivial transition zone (boundary layer) between the

photosphere and the chromosphere. Moreover, because of the extreme temperatures, the solar

corona is highly structured with closed magnetic structures which are generally known as coronal

loops. It can be derived that the temperature T and pressure distribution P in the loop as a

function of a mass-coordinate z satisfy the following PDE model:

5 P

2 T

∂T ∂P P ∂ 3

− = ɛ (T 2P

∂t ∂t T ∂z ∂T

∂z ) + EH − P 2 χ(T), (1)

where P(z,t) = P0(t) − µz, EH is a heating function, χ(T) the radiative loss function and

ɛ a small parameter representing the thermal conductivity in the loop. Near the base of the

loop there are two adjacent boundary layers where the temperature increases very quickly when

moving upward in the loop; in these thin layers the pressure in nearly constant. We will examine

the nature of this special boundary layer via the theory of significant degenerations and also in

terms of a dynamical system of the steady-state of PDE (1) in which a non-trivial saddle-center

connection occurs. A complicating factor is the fact that we also need to take into account the

so-called loop-condition:

� 1 T

L = 2MR

0 P

dz = constant, (2)

with gasconstant R, total mass in the loop M and (half) looplength L.

To support and confirm the theory, we have applied an adaptive grid technique, based on

an equidistribution principle with additional smoothing properties, to numerically simulate the

forming of the thin boundary layer.

Speaker: ZEGELING, P. 63 BAIL 2006

1

✩

✪

P. ZEGELING: An Adaptive Grid Method for the Solar Coronal Loop Model

✬

✫

Convection cells

Coronal loops

Figure 1: Convection cells and coronal loops in, and on top of, the sun in the form of magnetic

field lines.

Figure 2: The temperature distribution and the steep transition zone in the outer layers of the

sun.

References

[1] P.A. Davidson, An introduction to magneto-hydrodynamics, Cambridge Univ. Press (2001).

[2] J.W. Pakkert, P.C.H. Martens and F. Verhulst, The thermal stability of coronal loops by

nonlinear diffusion asymptotics, Astron. Astrophys., 179, 285-293 (1987).

[3] F. Verhulst and P.A. Zegeling, An asymptotic-numerical approach to the coronal loop problem,

Math. Meth. in the Appl. Sciences, 13, 431-439 (1990).

[4] N.O. Weiss, The expulsion of magnetic flux by eddies, Proc. of Roy. Soc. A, 293, 310-328

(1966).

[5] P.A. Zegeling, On resistive MHD models with adaptive moving meshes, J. of Scientific

Computing, 24, 263-284 (2005).

[6] P.A. Zegeling and R. Keppens, Adaptive method of lines for magnetohydrodynamic PDE

models, Chapter 4, 117-137, in Adaptive method of lines, Chapman & Hall/CRC Press

(2001).

Speaker: ZEGELING, P. 64 BAIL 2006

2

✩

✪

Contributed Presentations

F. ALIZARD, J.-CH. ROBINET: Two-dimensional temporal modes in nonparallel

flows

✬

✫

Two-dimensional temporal modes in nonparallel flows

F. Alizard and J.-Ch. Robinet

SINUMEF Laboratory, ENSAM-PARIS 151, Boulevard de l’Hôpital, 75013 PARIS, FRANCE

Frederic.Alizard@paris.ensam.fr,


To describe the evolution of a two-dimensional wavepacket in flow such as growing boundary

layer, the classical stability approach is based on the assumption of locally parallel or weakly non

parallel base flow. These approach was used by Gaster (1982) to characterize the spatio-temporal

dynamic of a perturbation in a boundary layer. However this approach could failed if a wave

length of any perturbation is larger than a characteristic length of the spatial inhomogeneity of

the base flow. Consequently a more general eigenvalue problem was developed by some authors

as Lin & Malik (1995), Theofilis et al. (2000) and Erhenstein & Gallaire (2005) where two spatial

directions are inhomogeneous. In this abstract we will focus on two-dimensional modes for a

convectively unstable attached boundary layer. After the description of the numerical method,

preliminary results on temporal linear stability modes depending on two space directions are

computed for a boundary layer flow along a flat plat.

2. Generalities and Basic Flow

At the conference we will be interested exclusively in computations of convective instabilities

in nonparallel flows. Two types of flows will be studied: a flat plate boundary-layer without

pressure gradient, shown as a preliminary result and a separated boundary-layer. The twodimensional

Navier-Stokes equations for incompressible fluids in the stream function-vorticity

formulation are considered:

∂ω

∂ω 1

+ u∂ω + v =

∂t ∂x ∂y Re

�

∂2ω ∂x2 + ∂2ω ∂y2 �

and ∆ψ = ω, (1)

where ω and ψ are the vorticity and the stream function respectively. System (1) is closed

by classical boundary conditions on ψ and ω (Briley (1971)). A second order finite differences

scheme was used for the vorticity transport equation as well as the poisson equation of stream

function. An A.D.I algorithm has been employed to solve the transport equation and the poisson

equation. Preliminary results, shown on part 4, are realized on an attached boundary layer at

Re=610, with a grid (450x200).

3. Linearized Perturbed Flow and Numerical Procedure

The proposed stability analysis is based on the classical perturbations technique where the

instantaneous flow (q) is the superposition of the basic flow (Q), data of this problem, and

unknown fluctuations (ˆq): q(x, y, t) =Q(x, y)+ˆq(x, y)exp(−iΩt), where Ω is the circular global

frequency of the fluctuation. The two-dimensional generalized eigenvalue problem is obtained

by the linearized Navier Stokes equations:

� �

∆2d

div(û) = 0 and − U.grad û − gradU.û − gradˆp + iΩû =0, (2)

Re

1

Speaker: ALIZARD, F. 67 BAIL 2006

✩

✪

F. ALIZARD, J.-CH. ROBINET: Two-dimensional temporal modes in nonparallel

flows

✬

✫

Figure 1: Discrete global spectrum from a convectively

instable boundary layer. The real

part of the eigenvalue is represented on the Xaxis

and the imaginary part on the Y-axis.

Figure 2: Real part of the horizontal velocity

eigenfunction of a discrete eigenvalue from the

spectrum ( Fig. 1).

with U(x, y) =[U, V ] t and û(x, y) =[û, ˆv] t . The boundary conditions on velocity disturbances

and constraints on pressure (T. N. Phillips & G. W. Roberts (1993), C. Canuto et al. (1988))

complete the eigenvalue value problem. The partial differential stability equations (2) are discretized

using an algorithm based on the collocation method based on Chebyshev Gauss-Lobatto

grid. The algebraic eigenvalue problem (A − ΩB) X = 0 is solved by the QZ algorithm.

4. Two-Dimensional Temporal Modes, results and perspectives

The figure 1 represents a global spectrum of the boundary layer. The stable discrete eigenvalues

appear in concordance with the fact a boundary layer is globally stable. These discrete values

represent spatio-temporal convective modes as it can been shown fig. 2 (structure similar to a

spatial exponential growth). At the conference, this analysis will be also applied on a separated

incompressible boundary layer which is not absolutely unstable but only convectively unstable.

References

[1] M. Gaster , “The development of a two-dimensional wavepacket in a growing boundary

layer ”, Proc. R. Soc. London, 3, 317–332 (1982).

[2] Lin R.S. and Malik M.R , “On the stability of attachment-line boundary layers. ”, J. Fluid

Mech., 3,239–255 (1995).

[3] Theofilis V. Hein S and Dallmann U , “On the origins of unsteadiness and three dimensionality

in a laminar separation bubble ”, Proc. R. Soc. London, 3,3229–3246 (2000).

[4] U. Ehrenstein and F. Gallaire , “On two dimensional temporal modes in spatially evolving

open flows: the flat-plate boundary layer ”, J. Fluid Mech., (2005).

[5] Briley WR., “A numerical study of laminar separation bubbles using the Navier-Stokes

equations.”, J. Fluid Mech., 3,713–736 (1971).

[6] Timothy N. Phillips and Gareth W.Roberts, “The Treatment of Spurious Pressure Modes in

Spectral Incompressible Flow Calculations.”, Journal of Computational Physics, 3,150–164

(1993).

[7] C. Canuto and M. Y. Hussaini and A. Quarteroni and T. A. Zang, “Spectral Methods in

Fluids Dynamics”, Springer, (1988).

Speaker: ALIZARD, F. 68 BAIL 2006

2

✩

✪

TH. ALRUTZ, T. KNOPP: Near-wall grid adaptation for wall functions

✬

✫

Near-wall grid adaptation for wall-functions

Th. Alrutz, T. Knopp

Institute of Aerodynamics and Flow Technology

DLR (German Aerospace Center)

Bunsenstr. 10, 37073 Göttingen, Germany

Thomas.Alrutz@dlr.de

A near-wall grid adaptation method for RANS turbulence modelling using wall-functions is proposed.

Universal wall functions allow a considerable acceleration of the flow solver, but their predictions

may deviate from the results with near-wall integration in flow situations which are beyond the underlying

modelling assumptions of wall-functions. In aerodynamic flows these include (i) stagnation points

(flow impingement) and subsequent transition from laminar to turbulent flow, (ii) large surface curvature

in conjunction with strong pressure gradients (as can be observed around leading edge of an airfoil), (iii)

strong adverse pressure gradients leading to separation, and (iv) regions of separated flow. Boundary

layer theory shows that the deviation from the universal wall-law becomes more significant as the walldistance

of the first node above the wall is increased. But close agreement with the universal wall-law

can be achived if the first node is close enough to the wall.

To reduce the modelling error of universal wall-functions, a near-wall grid-adaptation technique is pro-

Ýposed. �Ý

Regions of strong surface curvature, large pressure gradients and recirculating flow are detected

by a flow and geometry based sensor. Then in critical regions, the nodes of the prismatic nearwall

grid are shifted towards the wall so that a user-specified target value forÝ is ensured, where

Ù��with wall-distance of the first nodeÝ , friction velocityÙ�and viscosity�. This

approach is applied to a transonic airfoil flow with shock induced separation [5] and to a subsonic highlift

airfoil close to stall [6]. Thereby, the predictions around the leading edge (suction peak) and of the

separation point and the recirculation region can be improved significantly.

y +

100

80

60

40

20

y + (1) = 20

y + (1) = 40

y + (1) = 60

0

0 0.25 0.5 0.75 1

x/c

y +

60

40

20

y + (1) = 20

y + (1) = 40

y + (1) = 60

0

0 0.25 0.5 0.75 1

x/c

Figure 1: RAE2822 case 10 [5]: Distribution ofÝ for Menter SST model [4] without adaptation

(left) and withÝ-adaptation of the structured (prismatic) near-wall grid (right).

References

[1] T. Knopp, T. Alrutz and D. Schwamborn, “A grid and flow adaptive wall-function method for RANS

turbulence modelling”, Journal of Computational Physics (submitted).

Speaker: ALRUTZ, TH 69 BAIL 2006

1

✩

✪

TH. ALRUTZ, T. KNOPP: Near-wall grid adaptation for wall functions

✬

✫

0.006 exp.

low-Re

y + (1) = 1

y + (1) = 20

0.004

c f

0.002

0

y + (1) = 40

y + (1) = 60

c f = 0

0 0.25 0.5 0.75 1

x/c

0.006 exp.

low-Re

y + (1) = 1

y + (1) = 20

0.004

c f

0.002

0

y + (1) = 40

y + (1) = 60

c f = 0

0 0.25 0.5 0.75 1

x/c

Figure 2: RAE2822 case 10 [5]: Prediction for skin friction coefficient�for Spalart-Allmaras-Edwards

model [3] without adaptation (left) and withÝ -adaptation of the prismatic near-wall grid (right).

c p

-4.2

-3.8

-3.4

-3

exp.

low-Re

y + (1) = 12

y + (1) = 24

y + (1) = 40

y + (1) = 80

0 0.05 0.1 0.15

x/c

Ý ÆÝ Ü×�Ô� Ü×�Ô�

SA-Edwards Menter SST

low-Re 33 0.771 0.866

1 33 0.770 0.866

4 28 0.755 0.863

7 26 0.759 0.868

12 24 0.761 0.861

24 21 0.787 0.861 (0.864)

50 19 (0.771) 0.881 (0.873)

70 17 (0.788) 0.903 (0.867)

Figure 3: A-airfoil [6]: Detail of pressure coefficientÔfor SST model [4] on adapted grid (left). Right:

Prediction of the separation point without adaptation and withÝ -adaptation (values in brackets).

[2] Th. Alrutz, “Hybrid grid adaptation in TAU”, In: MEGAFLOW - Numerical flow simulation for

aircraft design, Notes on Numerical Fluid Mechanics and Multidisciplinary Design. N. Kroll and

J.K. Fassbender, Eds., (2005).

[3] J.R. Edwards and S. Chandra, “Comparison of eddy viscosity-transport turbulence models for threedimensional,

shock separated flowfields”, AIAA Journal, 34, 756–763 (1996).

[4] F.R. Menter, “Zonal two equation�/�turbulence models for aerodynamic flows”, AIAA Paper

1993-2906, (1993).

[5] P. H. Cook, M. A. McDonald and M.C.P. Firmin, “Aerofoil RAE 2822 - Pressure distributions and

boundary layer and wake measurements”, AGARD Advisory Report AR-138, A6.1-A6.77 (1979).

[6] Ch. Gleyzes, “Opération décrochage - Résultats de la 2ème campagne d’essais à F2 – Mesures de

pression et vélocimétrie laser”, RT-DERAT 55/5004 DN, ONERA, (1989).

Speaker: ALRUTZ, TH 70 BAIL 2006

2

✩

✪

TH. APEL, G. MATTHIES: A family of non-conforming finite elements of arbitrary

order for the Stokes problem on anisotropic quadrilateral meshes

✬

✫

A family of non-conforming finite elements of arbitrary order for the Stokes

problem on anisotropic quadrilateral meshes

Thomas Apel 1 and Gunar Matthies 2

1 Institut für Mathematik und Bauinformatik, Universität der Bundeswehr München

2 Fakultät für Mathematik, Ruhr-Universität Bochum,

The solution of the Stokes problem in polygonal or polyhedral domains shows in general a

singular behaviour near corners and edges of the domain. Both edge singularities and layers

are anisotropic phenomena since the solution changes only slightly in one direction while the

derivatives in the perpendicular direction(s) are large. These anisotropic behaviour can be well

approximated on anisotropic triangulations.

Let Ω ⊂ R 2 be a bounded polygonal domain. We consider the Stokes problem

−△u + ∇p = f in Ω,

div u = 0 in Ω,

u = 0 on ∂Ω,

where u and p are the velocity and the pressure, respectively, while f is a given force.

We solve this problem by using finite element methods on triangulations with special properties.

Let the domain Ω be partitioned by an admissible triangulation which consists of shape

regular and isotropic macro-cells. Each macro-cell is further refined by applying admissible

patches which are adapted to boundary layers and corner singularities, respectively. For a

detailed description of such meshes, we refer to [1].

We are interested in solving the Stokes problem by non-conforming finite element methods

of higher order. To this end, we use the families with finite element pairs of arbitrary order

which were given recently in [2]. Each pair consists of a non-conforming space of order r for

approximating the velocity and a discontinuous, piecewise polynomial pressure approximation

of order r − 1.

For the stability of finite element methods for solving the Stokes problem and its relatives, it

is necessary that the discrete spaces for the velocity and the pressure fulfil an inf-sup condition.

In order to get error estimates with constants which are independent of the aspect ratio of the

underlying mesh, it is important that on the one hand the inf-sup constant is independent of

the aspect ratio and that on the other hand the approximation error and the consistency error

can be bounded by expressions whose constants don’t depend on the aspect ratio.

Considering the families given in [2], we will show that we obtain for one family optimal

error estimates on anisotropic meshes, i.e., the constant are independent of the aspect ratio.

The other families give only error estimates with constant which depend on the aspect ratio,

i.e., the constants blow up with increasing aspect ratio.

We will show by means of numerical results how the inf-sup constant behaves on special

families of triangulation with increasing aspect ratio.

References

[1] Th. Apel, S. Nicaise, The inf-sup condition for low order elements on anisotropic meshes,

CALCOLO, 41, 89–113 (2004).

[2] G. Matthies, Inf-sup stable nonconforming finite elements of higher order on quadrilaterals

and hexahedra. Bericht Nr. 373, Fakultät für Mathematik, Ruhr-Universität Bochum

(2005).

Speaker: MATTHIES, G. 71 BAIL 2006

1

✩

✪

M. BAUSE: Aspects of SUPG/PSPG and GRAD-DIV Stabilized Finite Element

Approximation of Compressible Viscous Flow

✬

✫

Aspects of SUPG/PSPG and GRAD-DIV Stabilized

Finite Element Approximation of Compressible Viscous Flow

Markus Bause

Institut für Angewandte Mathematik, Universität Erlangen-Nürnberg

Martensstr. 3, 91058 Erlangen

bause@am.uni-erlangen.de

In this contribution various aspects of a theoretical analysis and numerical study of

SUPG/PSPG and grad-div stabilized finite element approximations (cf. [3]) of steady

and unsteady compressible isothermal viscous flow are addressed. After temporal discretization

of the time variable by means of the implicit Euler method, the equations of

compressible viscous flow are solved by an iteration between a generalized Oseen problem

for the velocity and a hyperbolic transport equation for the perturbation from the mean

density (cf. [1]). Such a splitting-type approach seems attractive for computations because

it offers a reduction to simpler problems for which highly refined numerical methods either

are known or can be built from existing discretization techniques for similar equations,

and because of the guidance that can be drawn from an existence theory based on it.

In the case of steady motions of a compressible viscous gas, decribed by the equations

∇ · (ρv) = 0 , ρv · ∇v − µ∆v − (λ + µ)∇∇ · v + ∇p = ρf ,

p = kρ , v|∂Ω = 0 ,

�

Ω ρ dx = M

the iteration for solving this system reads as: Let ρ = 1 + σ. Put v0 = 0, σ0 = 0. For

given vn, σn compute vn+1, σn+1 by

(i) solving the generalized Oseen-system

∇ · vn+1 = −∇ · (σnvn) ,

(1 + σn)vn · ∇vn+1 + 1

2 ∇ · ((1 + σn)vn)vn+1 − µ∆vn+1 + ∇πn+1 = (1 + σn)f ,

vn+1|∂Ω = 0,

�

Ω πn+1 dx = 0

(ii) and, then, solving the hyperbolic transport equation

kσn+1 + (λ + 2µ)∇ · (σn+1vn+1) = πn+1 − µ∇ · vn+1 .

For the approximation of the separated Oseen problem, SUPG/PSPG and grad-div stabilized

higher order finite techniques based on LBB-stable elements are used and analyzed.

The transport equation is discretized by SUPG stabilized finite element methods. Error

estimates are provided. Numerical results for realistic steady and unsteady benchmark

problems (driven cavity flow, flow over a backward facing step and DFG-benchmark) are

given for a large scale of Reynolds numbers.

References

[1] M. Bause, J. G. Heywood, A. Novotny and M. Padula, On some approximation schemes

for steady compressible viscous flow, J. Math. Fluid Mech., 5 (2003), pp. 201–230.

[2] M. Bause, Stabilized finite element approximation of compressible viscous flow, to appear, 2006.

[3] T. Gelhard et al., Stabilized finite element schemes with LBB-stable elements for incompressible

flow, J. Comput. Appl. Math. 177 (2005), pp. 243–267.

Speaker: BAUSE, M. 72 BAIL 2006

✩

✪

L. BOGUSLAWSKI: Sheare Stress Distribution on Sphere Surface at Different Inflow

Turbulence

✬

✫


SHEARE STRESS DISTRIBUTION ON SPHERE SURFACE AT DIFFERNT INFLOW

TURBULENCE

L. Bogusławski

Poznań University of Technology, Chair of Thermal Engineering, 60 965 Poznań, Poland;

e-mail: leon.boguslawski@put.poznan.pl

Momentum and heat transfer processes on surfaces are sensitive on intensity of turbulence of flow

above surface. Descriptions of share stress or heat transfer distributions usually assume certain level of

intensity of turbulence of free flow which overflows surface. When structure of flow is formed as

developed flow for typical channels one can assume that turbulence level and structure of turbulent

flow is repeated. In such case detailed knowledge of flow turbulence is not necessary because

Reynolds number indicated average flow similarity and similarity of turbulence by the way.

Unfortunately for most technical applications level of turbulence and its structure can vary in wide

borders. More over this level is difficult to prediction based on channel geometry especially when any

promoters of turbulence occur. Experimental data indicate that increase of turbulence intensity cause

increasing heat and momentum transfer coefficients even when average flow velocity does not change.

To estimate influence of turbulence on local distribution of shear stress a sphere was chosen as the

simplest, repeatable geometry. Flow was generated by a free round jet. Level of turbulence, in the jet

axis, change from about 0.5% near the nozzle outlet till about 20% far away from the nozzle.

Changing of the average flow velocity at the nozzle outlet it is possible to keep constant value of

velocity at different distances from the nozzle outlet. Turbulent fluctuations of a flow velocity were

measured by means of a constant temperature anemometer. The local shear stress distribution on

sphere surface was measured by used a surface sensor connected to the constant temperature

anemometer as well.

For low level of turbulence the shear stress distribution was similar to literature data. Increase of

turbulence cause increase of a local value of shear stress. The local share stress distributions and its

turbulent fluctuations for two chosen turbulence level are presented in figure 1 as an example. The

Reynolds number of average flow was the some for both cases. Increasing of inflow turbulence level

cause increasing of local, average shear stress distributions and equalizing distribution of ‘rms’ of

turbulent fluctuations on rather high level.

o

3.0

2.5

2.0

1.5

1.0

0.5

d = 0.03 m, Re = 3 10 4 , Tu = 2.5 %

0.0

0.0

0 30 60 90 120 150 180

φ

3.5

3.0

2.5

2.0

1.5

1.0

0.5

' rms / ' orms

0.0

0.0

0 30 60 90 120 150 180

Figure 1. Distribution of the local average shear stress and its turbulent fluctuations on the sphere

surface at different inflow turbulence level.

o

3.0

2.5

2.0

1.5

1.0

0.5

d = 0.03 m, Re = 3 10 4 , Tu = 12.3 %

Speaker: BOGUSLAWSKI, L. 73 BAIL 2006

φ

3.5

3.0

2.5

2.0

1.5

1.0

0.5

' ms / ' orms

✩

✪

L. BOGUSLAWSKI: Sheare Stress Distribution on Sphere Surface at Different Inflow

Turbulence

✬

✫

External turbulence of inflow jet increasing flow turbulence near sphere surface where flow

accelerate. This cause increase of local shear stress and its fluctuations. Increasing of shear stress

transfer fluctuations indicated that turbulence of external flow intensify momentum processes near the

wall of sphere. In flow deceleration zone of flow >90 o for both presented in figure 1 turbulence levels

the time average value and its fluctuations rise in this some way. Both runs near parallel. For

acceleration zone of flow near sphere ( ~60 o ) shear stress reach maximum value. In this some region

of flow the flow acceleration reduced turbulent fluctuations of momentum transfer generated by

external flow turbulence.

Distributions for different level of turbulence without average velocity change will be presented and

discussed. For such conditions only influence of turbulence are indicated.

Analysis of the power spectrum of turbulent fluctuations of shear stress on sphere surfaces for

different flow intensity at chosen locations will be presented and will be compared with the power

spectrum of inflow turbulence.

References

[1] S.Whitaker. Forced convection heat transfer correlation for flow in pipes, past flat plates, single

cylinders, single spheres and flow in packed beds and tube bundles, J. of AICHE, vol. 18, 361-

371, 1972.

[2] L. Bogusławski. Losses of heat from sphere surface at different inflow conditions (in polish),

XVI Thermodinamics Conference, Kołobrzeg , vol. 1, 135-140, 1996.

[3] L. Bogusławski. Measurements technique of stagnation point heat transfer and its

fluctuations by means of a constant temperature sensor, Proceedings of Turbulent Heat

Transfer Conference, 1-6, San Diego, May 1996.

[4] H. Giedt. Trans. ASME, 71, 375, 1949

Speaker: BOGUSLAWSKI, L. 74 BAIL 2006

✩

✪

A.CANGIANI, E.H.GEORGOULIS, M. JENSEN: Continuous-Discontinuous Finite

Element Methods for Convection-Diffusion Problems

✬

✫

Continuous-Discontinuous Finite Element Methods for

Convection-Diffusion Problems

Abstract

Andrea Cangiani, Emmanuil H. Georgoulis and Max Jensen

February 14, 2006

Standard (conforming) finite element approximations of convection-dominated convection-diffusion

problems often exhibit poor stability properties that manifest themselves as non-physical oscillations

polluting the numerical solution. Various techniques have been proposed for the stabilisation of finite

element methods (FEMs) for convection-diffusion problems, see for example, Morton [12] and Roos,

Stynes and Tobiska [14] for a complete survey. Common techniques are Petrov-Galerkin methods,

like the streamline upwind Petrov-Galerkin (SUPG) method introduced by Hughes and Brooks [8],

exponential fitting [13], ad hoc meshing, like graded meshes [15] and Shishkin type meshes [11], and

adaptive mesh refinement (see, e.g., [5] and [6]). More recently, the residual-free bubble method of

Brezzi et al [2], [1], [4] and the variational multiscale method of Hughes and co-authors [9],[10].

During the last decade, families of discontinuous Galerkin finite element methods (DGFEMs)

have been proposed for the numerical solution of convection-diffusion problems, due to many attractive

properties they exhibit. In particular, DGFEMs admit good stability properties, they offer

flexibility in the mesh design (irregular meshes are admissible) and in the imposition of boundary

conditions (Dirichlet boundary conditions are weakly imposed), and they are increasingly popular

in the context of hp-adaptive algorithms.

The above mentioned attractive features of DGFEMs come at the price of the higher number

of degrees of freedom used. For instance, for piece-wise linear approximations in d-dimensions,

DGFEMs require 2 d times more degrees of freedom than conforming FEMs and their stabilised

variants. The relative difference in the number of degrees of freedom reduces when considering

higher order local polynomial degree in the approximations; nevertheless, the conforming FEMs

always require less degrees of freedom than their DGFEM counterparts.

The issue of the number of degrees of freedom required by DGFEMs has recently been addressed

by T.J.R. Hughes and co-workers in [7], where the Multiscale Discontinuous Galerkin (MDG) finite

element method framework is introduced. MDG uses local, element-wise problems to develop a

transformation between the degrees of freedom of the discontinuous space and a related, smaller,

continuous space. The transformation enables a direct construction of the global matrix problem

in terms of the degrees of freedom of the continuous space. It is proved that the method has the

accuracy and stability of the original DGFEM. The drawback of this approach is the computational

overhead of the solution of the local element-wise problems.

We propose a numerical scheme for linear convection-diffusion problems which couples continuous

and discontinuous Galerkin finite elements (CG-DG) in a different manner. Depending on the

local variation of the solution, the scheme locally uses either the computationally less expensive

continuous finite elements or the computationally more costly but also more stable discontinuous

Galerkin discretisation. Given that good stability properties are required near features of almost

(d − 1)-dimensional character (such as boundary and/or interior layers) discontinuous Galerkin

discretisation is only used in the neighborhoods of such features, whereas standard conforming FEM

is used away from the layers. Thus, the increased overhead from the use of DGFEMs is balanced by

their minimal use, limited to the neighborhoods of layers.

This work introduces the continuous-discontinuous Galerkin (CG-DG) finite element method,

and presents the first results in the analysis of this approach. In particular, we derive an a-priori

error analysis of the CG-DG blending technique, along with numerical experiments that evaluate

the accuracy and efficiency of the CG-DG approach in practice.

Speaker: GEORGOULIS, E.H. 75 BAIL 2006

1

✩

✪

A.CANGIANI, E.H.GEORGOULIS, M. JENSEN: Continuous-Discontinuous Finite

Element Methods for Convection-Diffusion Problems

✬

✫

References

[1] Brezzi, F., Marini, D., and Süli, E. Residual-free bubbles for advection-diffusion problems:

the general error analysis. Numer. Math. 85, 1 (2000), 31–47.

[2] Brezzi, F., and Russo, A. Choosing bubbles for advection-diffusion problems. Math. Models

Methods Appl. Sci. 4, 4 (1994), 571–587.

[3] Brooks, A. N., and Hughes, T. J. R. Streamline upwind/Petrov-Galerkin formulations

for convection dominated flows with particular emphasis on the incompressible Navier-Stokes

equations. Comput. Methods Appl. Mech. Engrg. 32, 1-3 (1982), 199–259. FENOMECH ’81,

Part I (Stuttgart, 1981).

[4] Cangiani, A., and Süli, E. Enhanced RFB method. Numer. Math. 101(2) (2005), 273–308.

[5] Eriksson, K., Estep, D., Hansbo, P., and Johnson, C. Introduction to adaptive methods

for differential equations. In Acta numerica, 1995, Acta Numer. Cambridge Univ. Press,

Cambridge, 1995, pp. 105–158.

[6] Giles, M. B., and Süli, E. Adjoint methods for PDEs: a posteriori error analysis and

postprocessing by duality. In Acta numerica, 2002, vol. 11 of Acta Numer. 2002, pp. 145–236.

[7] Hughes, Thomas J. R.and Scovazzi, G., Bochev, P. B., and Buffa, A. A multiscale

discontinuous Galerkin method with the computational structure of a continuous galerkin

method. ICES Report 05-16 (2005).

[8] Hughes, T. J. R., and Brooks, A. A multidimensional upwind scheme with no crosswind

diffusion. In Finite element methods for convection dominated flows (Papers, Winter Ann.

Meeting Amer. Soc. Mech. Engrs., New York, 1979), vol. 34 of AMD. Amer. Soc. Mech. Engrs.

(ASME), New York, 1979, pp. 19–35.

[9] Hughes, T. J. R., Feijóo, G. R., Mazzei, L., and Quincy, J.-B. The variational multiscale

method—a paradigm for computational mechanics. Comput. Methods Appl. Mech. Engrg.

166, 1-2 (1998), 3–24.

[10] Hughes, T. J. R., and Stewart, J. R. A space-time formulation for multiscale phenomena.

J. Comput. Appl. Math. 74, 1-2 (1996), 217–229.

[11] Madden, N., and Stynes, M. Efficient generation of shishkin meshes in solving convectiondiffusion

problems. Preprint of the Department of Mathematics, University College, Cork,

Ireland no. 1995-2 (1995).

[12] Morton, K. W. Numerical solution of convection-diffusion problems, vol. 12 of Applied Mathematics

and Mathematical Computation. Chapman & Hall, London, 1996.

[13] O’Riordan, E., and Stynes, M. A globally uniformly convergent finite element method for

a singularly perturbed elliptic problem in two dimensions. Math. Comp. 57, 195 (1991), 47–62.

[14] Roos, H.-G., Stynes, M., and Tobiska, L. Numerical Methods for Singularly Perturbed

Differential Equations. Springer-Verlag, Berlin, 1996. Convection-diffusion and flow problems.

[15] Schwab, C., and Suri, M. The p and hp versions of the finite element method for problems

with boundary layers. Math. Comp. 65, 216 (1996), 1403–1429.

2

Speaker: GEORGOULIS, E.H. 76 BAIL 2006

✩

✪

C. CLAVERO, J.L. GRACIA, F. LISBONA: A second order uniform convergent

method for a singularly perturbed parabolic system of reaction-diffusion type

✬

✫

A second order uniform convergent method for a singularly perturbed

parabolic system of reaction–diffusion type ∗

C. Clavero, J.L. Gracia and F. Lisbona

Department of Applied Mathematics

University of Zaragoza. Spain

clavero@unizar.es, jlgracia@unizar.es, lisbona@unizar.es

Abstract

In this work we are interested in solving singularly perturbed parabolic boundary value problems

given by

⎧

⎪⎨ L�ε�u ≡

⎪⎩

∂�u

∂t + Lx,�ε�u = � f, (x, t) ∈ Q = Ω × (0, T ] = (0, 1) × (0, T ],

�u(0, t) = �g0(t), �u(1, t) = �g1(t), ∀t ∈ [0, T ],

(1)

�u(x, 0) = �0, ∀x ∈ Ω,

where

Lx,�ε ≡

�

−ε1 ∂2

∂x 2

−ε2 ∂2

∂x 2

�

� �

a11(x) a12(x)

+ A, A =

,

a21(x) a22(x)

with 0 < ε1 ≤ ε2 ≤ 1. The components of the functions �g0(t), �g1(t), the right hand side

�f(x, t) = (f1(x, t), f2(x, t)) T and the matrix A are supposed smooth enough. The positivity

condition

ai1 + ai2 ≥ αi > 0, aii > 0, i = 1, 2, aij ≤ 0 if i �= j, (2)

is satisfied by matrix A. Otherwise, we consider the transformation �v(x, t) = �u(x, t)e −α0t with

α0 > 0 sufficiently large so that (2) holds.

This problem is a simple model of the classical linear double–diffusion model for saturated

flow in fractures porous media (Barenblatt system) developed in [1]. The first equation describes

the flow in the matrix and the second one the flow in the fracture system. The coupling terms

are given by the matrix

� �

1 −1

A =

,

−1 1

which describes the interchange of fluid between the two systems. The permeabilities ε1 and ε2

in these equations could be very small and also they can have different magnitudes.

It is well known that the exact solution of these problems has a multiscale character, i.e.,

there are narrow regions (the boundary layer regions) where the solution has strong gradients

and in the rest of the domain the solution varies smoothly. Therefore, it is necessary to dispose

of efficient numerical methods (uniformly convergent methods) to approximate the solution

independently of the values of the diffusion parameters ε1 and ε2.

Recently some papers study uniform convergent numerical methods to solve singularly perturbed

elliptic linear systems on a special piecewise uniform Shishkin mesh. In the analysis of

these type of problems the three following different cases can be distinguished depending on the

relation between the singular perturbation parameters ε1 and ε2:

[i.] ε1 = ε, ε2 = 1, [ii.] ε1 = ε2 = ε [iii.] ε1, ε2 arbitrary.

∗ This research will be partially supported by the project MEC/FEDER MTM 2004-01905 and the Diputación

General de Aragón.

1

Speaker: CLAVERO, C. 77 BAIL 2006

✩

✪

C. CLAVERO, J.L. GRACIA, F. LISBONA: A second order uniform convergent

method for a singularly perturbed parabolic system of reaction-diffusion type

✬

✫

In [7] and [6] it was developed a first order uniformly convergent method in cases [ii.] and [iii.]

respectively. In [8], [4] and [5] a second order uniformly convergent scheme was obtained for

cases [i.], [ii.] and [iii.] respectively.

In [3] a decomposition of the exact solution of problem (1), into its regular and singular

components, was given. From this decomposition it follows which is the asymptotic behaviour

of each one of these components with respect to the singular perturbation parameters ε1 and ε2.

Moreover, in that work a first order in time and second order in space (except by a logarithmic

factor) uniformly convergent method was developed, using the classical Euler and central differences

discretizations respectively. In order to increase the order of uniform convergence of this

numerical scheme, here we replace the Euler scheme by the Crank-Nicolson method in the time

discretization. This method has been used in the framework of singularly perturbed problem; for

instance, in [2] to solve 1D evolutionary problems of convection–diffusion type. Some numerical

experiments will be showed, which illustrate in practice the improvement in the uniform order

of convergence of the new scheme.

Keywords: Singular perturbation, reaction-diffusion problems, uniform convergence, coupled

system, Shishkin mesh.

AMS classification: 65N12, 65N30, 65N06

References

[1] G.I. Barenblatt, I.P. Zheltov and I.N. Kochina, “Basic concepts in the theory of seepage of

homogeneous liquids in fissured rocks”, J. Appl. Math. and Mech., 24, 1286–1303 (1960).

[2] C. Clavero, J.L. Gracia and J.C. Jorge, “Second order numerical methods for one–

dimensional parabolic singularly perturbed problems with regular layers”, Numerical Methods

for Partial Differential Equations, 21 149–169 (2005).

[3] J.L. Gracia and F. Lisbona “A uniformly convergent scheme for a system of reaction–

diffusion equations”, submitted.

[4] T. Linß and N. Madden, “An improved error estimate for a numerical method for a system

of coupled singularly perturbed reaction–diffusion equations”, Comp. Meth. Appl. Math. 3

417–423 (2003).

[5] T. Linß and N. Madden, “Accurate solution of a system of coupled singularly perturbed

reaction-diffusion equations”, Computing, 73, 121–133 (2004).

[6] N. Madden and M. Stynes, “A uniformly convergent numerical method for a coupled system

of two singularly perturbed linear reaction-diffusion problems“, IMA J. Numer. Anal., 23,

627–644 (2003).

[7] S. Matthews, J.J.H. Miller, E. O’Riordan, G.I. Shishkin, A parameter robust numerical

method for a system of singularly perturbed ordinary differential equations, in: Analytical

and Numerical Methods for Convection–Dominated and Singularly Perturbed Problems

(J.J.H. Miller, G.I. Shishkin and L. Vulkov, eds.), Nova Science Publishers, New York, 2000,

219–224.

[8] S. Matthews, E. O’Riordan and G.I. Shishkin, “A nunerical method for a system of singularly

perturbed reaction–diffusion equations“, J. Comput. Appl. Math., 145, 151–166

(2002).

2

Speaker: CLAVERO, C. 78 BAIL 2006

✩

✪

B. EISFELD: Computation of complex compressible aerodynamic flows with a

Reynolds stress turbulence model

✬

✫

��

��

��

��

�

��

��

��

�

��

��

��

��

��

��

��

��

��

��

�

��

��

��

��

��

��

��

��

��

��

��

��

�

��

��

��

��

��

�

�

��

�

��

��

��

��

��

��

��

Speaker: EISFELD, B. 79 BAIL 2006

✩

✪

B. EISFELD: Computation of complex compressible aerodynamic flows with a

Reynolds stress turbulence model

✬

✫

��

��

��

��

Speaker: EISFELD, B. 80 BAIL 2006

✩

✪

A. FIROOZ, M. GADAMI: Turbulence Flow for NACA 4412 in Unbounded Flow and

Ground Effect with Different Turbulence Models and Two Ground Conditions: Fixed

and Moving Ground Conditions

✬

✫

Turbulence Flow for NACA 4412 in Unbounded Flow and Ground Effect with

Different Turbulence Models and Two Ground Conditions: Fixed and

Moving Ground Conditions

Abdolhamid Firooz, Academic board

(ahfirooz@hamoon.usb.ac.ir)

Mojgan Gadami, B.S. student

(mozhgan_gadami@yahoo.com)

Mechanical Engineering Department, University of Sistan & Baloochestan, Zahedan, Iran.

Abstarct

In this paper, the turbulence fluid flow around a

two dimensional 4412 airfoil on different angles of

attack near and far from the ground with the RANS

(Reynolds averaged Navier-stokes) equations is

calculated. Realizable K−ε turbulence model with

Enhanced wall treatment and Spalart-Allmaras model

are used (Re=2 × 10 6

). Equations are approximated

by finite volumes method, and they are solved by

segregated method. The second order upwind method

is used for the convection term, also for pressure

interpolation the PRESTO method is used, and the

relation between pressure and velocity with SIMPLEC

algorithm is calculated.

The computational domain extended 3C upstream

of the leading edge of the airfoil 5C, downstream from

the trailing edge, and 4C above the pressure surface.

Distance from below the airfoil was defined with H/C

where C is chord, and H is ground distance to the

trailing edge.

Velocity inlet boundary condition was applied

upstream with speed of (U ∞ =29.215) and outflow

boundary condition was applied downstream. The

pressure and suction side of the airfoil and above and

below's boundaries of domain were defined

independently with no slip wall boundary condition.

Moving wall with speed of (U ∞ =29.215) for above,

and fixed or moving wall for below the airfoil was

used.

An unstructured mesh arrangement with

quadrilateral elements was adopted to map the flow

domain in ground effect and unbounded flow. A

considerably fine C-type mesh was applied to achieve

sufficient resolution of the airfoil surface and boundary

layer region. Particular attention was directed to an

offset 'inner region' encompassing the airfoil, and also

C-type mesh was applied on near the airfoil at above

and bottom, which it’s domain depends on the H/C in

ground effects condition. Continuing downstream from

leading edge and continuing far from above the airfoil

H-type mesh was applied.

Distance from the wall-adjacent cells must be

determined by considering the range over which the

log-law is valid. The distance is usually measured in

the wall unit, y + (= ρu τ y / µ ). By increasing the

grid numbers and changing the type of arranging mesh,

adapting, around the airfoil a proper y + value, is

obtained, and with this value solution results have good

agreement with experimental data. Fig (1), Fig (2).

The aerodynamic characteristic of an airfoil in

ground proximity is known to be much different from

that of unbounded flow. The condition of the wind

tunnel bottom, I. e., moving or fixed relative to the

airfoil would influence the performance of the airfoil in

ground effect. The presence of boundary layer when air

is flowing over bottom of the wind tunnel would be

different from the real situation for a flying WIG.

Proper velocity in moving ground boundary

condition is considered with moving ground, and

boundary layer is considered with fixed ground, and in

the moving ground the boundary layer's effect is

omitted, and so is the proper velocity in the fix ground.

A grid independence analysis was conducted using

some meshes of varying cell number. Each mesh was

processed using the Realisable K-ε turbulence model

with Enhanced wall treatment and Spalart-Allmaras

model. Application of each mesh generally produces

accurate predictions of the lift coefficients with

comparison to the experimental data. It can be seen

that the error associated with the predicated lift

coefficient decreases with mesh refinement.

In order to validate the present numerical data the

computational results for NACA 4412 in unbounded

flow is compared with published numerical results and

experimental data. Fig (3).

Fig (4) shows Cp variation on surface of the airfoil

at four relative ground high computed (α =8). As the

Speaker: FIROOZ, A. 81 BAIL 2006

✩

✪




✬

✫

wing approaches the ground, the pressure on the

pressure side of wing gradually increases due to slowdown

of flow in region, while the pressure on the

suction side of wing gradually decreases resulting in

Lift increase that is regarded as the advantage of the

WIG vehicle.

The velocity fields around this section in ground

effect with H/C=.2 for two different ground conditions

at α =8 are shown in Fig (5) and (6). The different in

the velocity field near the wing surface due to the

bottom condition differences can not be clearly seen in

Fig (5) and (6), but a boundary layer developed on the

fix ground can be clearly seen in Fig (6), on the other

hand, for the moving ground with oncoming

undisturbed velocity as seen in Fig (6), the velocity

decreases with increasing high.

Meanwhile the difference in the Lift simulated by

the fixed and moving bottom conditions is negligible

but the Drag force simulated by the moving bottom is

to some extent larger than that of the fixed one. Also it

is concluded that on different angles of attack Lift

force of the airfoil increases as it approaches the

ground, and the Drag force decreases.

Figure (2): adapted C-grid for unbounded flow (α =5) Figure (1): C-grid for bounded flow ( α =5)

Figure (3): CL vs. angel of attack

(Experimental data ( Abbott, I.H., and von Doenhoff, A.E.,

Theory of Wing Sections, Dover, New York, 1959.)


✩

✪




✬

✫

Figure (4): Surface pressure distributions for NACA 4412 at the different ground clearance

(α =8, R=2× 10 6 )

Figure (5): Velocity vector field for NACA 4412 in ground effect

(α=8, Re=2×10 6 , H/C=.2, moving ground)

Figure (6): Velocity vector field for NACA 4412 in ground effect

6

(α =8, Re = 2 × 10 , H/C=.2, fix ground )


✩

✪




✬

✫

EFERENCES

Chawal M. D., Edwards L. C. and Franke M,

E 1990 Wind Tunnel Investigation of Wing

–in Ground Effect, Journal of Aircraft, Vol

27 ,No.4, pp.289-293

Chorin A. J., 1967 A Numerical Method for

Solving Incompressible Viscous Flow

Problems, Journal Computational Physics

Vol.2 No.2, pp,14-23

Chun H. H., Chang C. H. and Paik K. J.,1999,

Longitudinal Stability of a Wing in Ground

Effect Craft, J. of The Society of Naval

Architects of Korea, Vol.36,No.3,pp.60-70

RINA, London, U., total of 19 papers include

machines 2000, Saint Petersburg State Marine

Technical University , Russia

Sowdon A., 1995 A Simple Method to remove the

Boundary Layer on a Ground Plate, Papers of

Ship Research Institute Japan , Vol.32 Vo.2, pp.

53-78

Stinton D. 1998 The Anatomy of the Aeroplan ,

2nd Edition published Blacewell Science, pp.

86-92

Staufenbiel, D, 1996 Comment on Aerodynamic

Characteristics of a Two Dimensional Airfoil

with Ground Effect, Journal of Aircraft

Aerodynamic of Wing-In-Ground Effect Vehicles

Rheinisch-West-falische Technische

Hochschule, project Rept. 78/1, Aachen,

Germany, 1978

Steinbach, D 1996 Comment on Aerodynamic

Characteristics of a Two-Dimensional Airfoil

with Ground Effect , Journal of Aircraft,

Vol.34, No.3, pp.455-456

Thomas J. L., Paulson J,w. and Margason R, J.,

1979 Powered Low-Aspect-ratio Wing in

Ground Effect (WIG) Aerodynamic

Characteristics, NASA TM78793

Turner T. R., 1966 Endless-Belt Technique for

Ground Simulation, NASA SP-116

Speziale, C.G., Abid, R. & Anderson, E.C. 1992,

.Critical Evaluation of Two-Equation Models

for Near-Wall Turbulence., AIAA J., Vol. 30

No. 2, pp. 324-331.

Wilcox, D.C. 1988, .Reassessment of the scaledetermining

equation for advanced turbulence

models., AIAA J., Vol. 26 No. 11, pp. 1299-

1310.

Pajayakrit, P. & Kind, R.J. 2000, .Assessment and

Modification of Two-Equation Turbulence

Models., AIAA J., Vol. 38 No. 6, pp. 955-963.

Gorski, J. & Nguyen, P. 1991, .Navier-Stokes

Analysis of Turbulent Boundary Layer Wake

for Two-Dimensional Lifting

Bodies.,Eighteenth Symposium on Naval

Hydrodynamics, Ann Abor, USA, pp. 633-643.

Gersten, K. & Schlichting, H. 2000, .Boundary

Layer Theory., 8th Ed., Springer-Verlag,

Berlin, Germany.

Abbott, I.H., and von Doenhoff, A.E., Theory of

Wing Sections, Dover, New York, 1959.

Akimoto, H. and Kubo, S., 1998 Characteristics

Study of Twp-dimensional in Surface Effect by

CFD Simulation, Journal of the Society of

Naval Architects of Japan, Vol. 184,pp.a7-54

Bagley J. A., 1961 The Pressure Distribution

on Two-Dimensional Wings Near Ground,

Ministry of Aviation Aeronautical

Research Council R&M, NO,3238,40

pages

Chang R, H 2000 Numerical Simulation of

Turbulent Flow around Two-Dimensional

Wings In Ground Effect Wing Different

Ground Boundary Condition, MSc Thesis,

Dept of Naval Architecture & ocean

Engineering Pusan National University,

Korea


✩

✪

S.A. GAPONOV, G.V. PETROV, B.V. SMORODSKY: Boundary layer intercation with

external disturbances

✬

✫

BOUNDARY LAYER INTERACTION WITH EXTERNAL DISTURBANCES

S.A.Gaponov, G.V.Petrov, B.V.Smorodsky

Institute of Theoretical and Applied Mechanics SB RAS, Novosibirsk 630090,

Russia; E-mail: gaponov@itam.nsc.ru, Fax:+7(3832)342268

Generation of initial unstable eigen disturbances inside the boundary layer (BL) by external

perturbations is an actual problem nowadays in the investigation of laminar-turbulent transition.

Morkovin [1] was the first who has formulated so called BL receptivity problem. Up to now a lot of

experimental and theoretical works studying subsonic BL has been performed. The detailed review of

these efforts can be found in [2,3]. The knowledge about the supersonic BL is much shorter at the

present moment. The existing papers are devoted mainly to the investigation of external acoustic field

interaction with a supersonic BL on a smooth flat plate [4-6]. However an oncoming supersonic flow

always comprises not only acoustic but also vortical and thermal (entropy) perturbations [7]. This

paper presents results concerning irrotational external disturbances with zero damping in the direction

of the main flow. Present paper is devoted to the investigation of disturbance excitation in sub- and

supersonic BL by external vortical and thermal waves. Interaction of the acoustic waves with the BL

on the non-smooth surface has also been investigated and is reported here.Studies were conducted

both in an approaching of parallel basic flow and taken in consideration dependence of the main flow

in boundary layer on longitudinal coordinate. In the second case were used of an equation of stability

offered in [8].

For the acoustic field we distinguish two different kinds of interaction with the BL. In the first case

the incidence angle of the acoustic wave onto the BL is finite. In the second case the incidence angle is

zero. If the incidence angle is equal to zero, then in the result of the interaction the normal to the-wall

disturbance velocity at the BL outer edge is non-zero and it is an additional source of the streamwise

acoustic field. Such interaction leads to a very fast amplification of initial wave. For nonzero incidence

angles we have performed computations of the reflection coefficient. It is important to note here that

in some cases such reflectance is greater than unity. The amplitude of mass flux perturbation inside the

BL excited by an external acoustic wave is practically always an order of magnitude larger than the

initial wave amplitude in the free stream. Comparison of theoretical results with the experiment [6]

leads authors to necessary to consider the problem of diffraction of acoustic waves on a plate leading

edge. Using Fourier transformation and the equations of gas dynamics, one can show, that mass flux

fluctuations along the plate could be completely determined by means of the jump of normal-to-thewall

disturbance velocity at the plate leading edge. The normal velocity disturbance upstream of the

plate leading edge ( x < 0 ) is determined by the distribution of the mass flux. The obtained formulas

give the relations of the mass flux in the region x > 0 with its distribution at x < 0 . It was shown that

intensity of the mass flux fluctuation is reduced with distance from the leading edge and is dependent

of the orientation of the incident wave.

Tollmien-Schlichting (TS) wave excitation in the supersonic BL by a pair of acoustic waves has

been also investigated theoretically. The receptivity coefficient and the range of wave parameters

where TS-wave generation takes place have been computed. It was obtained, that at enough large

values of a Reynold's number, in narrow range of the acoustic wave numbers, the excited disturbances

practically do not differ from an own increasing disturbance. Outside of this range the TS wave is not

excited. The parameters of excited disturbances hardly differ from TS wave parameters near a neutral

point, the coincidence is observed only at essential move away from neutral area downstream

Beside in the paper investigation of the sound interaction with BL on the flat plate with roughness

is consider also. The problem of the disturbance generation by small amplitude spatially periodic wall

roughness has been formulated and solved in the linear approximation. The parameters of sound

irradiated by the model with roughness in the supersonic flow have been computed. The peculiarities

of the disturbances in the case when the angle between the wave fronts and the mean flow is close to

the Mach angle have been investigated specially. It has been shown that the amplitude of the

disturbance streamline inside the BL is greatly reduced in the near-wall sub-layer. At M = 1 mass

flux perturbations in the main part of the BL are close to zero also. Considerable reduction of the

Speaker: GAPONOV, S.A. 85 BAIL 2006

✩

✪

S.A. GAPONOV, G.V. PETROV, B.V. SMORODSKY: Boundary layer intercation with

external disturbances

✬

✫

M where M = M cos χ and

disturbance amplitude takes place for oblique roughness at = 1

χ is the angle between the roughness wave front and the plate leading edge. At the BL outer edge the

disturbance amplitude is almost zero because it is already damped inside the BL. The problem of

nonlinear interactions of the disturbances induced by sound and roughness was investigated. It has

been found that the parameter, which defines the ability to the instability wave excitation (receptivity

coefficient) is strongly dependent of the acoustics incidence angle and the roughness wave front

orientation. Computations show that even at high subsonic external flow velocities the receptivity is

strongly dependent also on the direction of sound propagation. At M > 1 the instability could be

excited by disturbances with the wavelength much smaller than TS wave wavelength. Maximal

receptivity corresponds to the case when the angle between the roughness wave front and the mean

flow is close to the Mach angle.

The paper presents results of the detailed investigation of the interaction of supersonic BL with

external vortical and thermal perturbations. The boundary conditions for the disturbance at the BL

outer edge are under special consideration. It has been found that inside the BL the streamwise

velocity and mass flux perturbations can exceed much the amplitude of the external vorticity waves.

The disturbance excitation rate is reducing with increasing Mach number. The influence of the

external thermal wave onto the flow inside the BL is considerably The results of the computations of

the intensity and the spatial dimensions of the streamwise streaky structures in the BL are in

agreement with measurements [9].

This work has been performed under the financial support of RFBR and the Russian Federation

President Council (projects 05-01-00079-a, NSh-9642003.1).

References

1. Morkovin M.V. Critical evaluation of transition from laminar to turbulent shear layer with

emphasis on hypersonically trevelling bodies. Tech. Rep. AFFDL № 68-149, 1969.

2. Kachanov Yu.S. Physical mechanisms of laminar-boundary-layer transition. Annu.Rev.Fluid

Mech., Vol.26, 1994, p.411.

3. Boyko A.V., Greek G.R., Dovgal A.V., Kozlov V.V. Turbulence origin in near-wall flows.

Novosibirsk: Science, 1999 (in Russian).

4. Gaponov S.A. On the interaction of a supersonic boundary layer with acoustic disturbances.

Thermophysics and Aeromechanics, Vol.2, №3, 1995, pp.181-188.

5. Fedorov A.V., Hohlov A.P. Excitation of unstable modes in a supersonic boundary layer by

acoustic waves. Fluid Dynamics, №4, 1991, pp.67-71 (in Russian).

6. Semionov N.V., Kosinov A.D., Maslov A.A. Experimental investigation of supersonic boundary

layer receptivity. Transitional boundary layers in aeronautics, edited by R.A.W.M.Henkes and

J.L. van Ingen. North-Holland, Amsterdam, 1996, pp.413-420.

7. Kovasznay L.S.G. Turbulence in supersonic flow. J.Aeron.Sci., Vol.20, №10, 1953, pp.657-674.

8. Petrov G.V. New parabolized system of equations of stability of a compressible boundary

layer. J. Appl.Mech. Techn. Phys. Vol.41, №1, 2000, p. 55-61.

9. Westin K.J.A., BakchinovA.A., Kozlov V.V., Alfredsson P.H. Experiments on localized

disturbances in a flat plate boundary layer. Pt 1: The receptivity and evolution of a localized free

stream disturbances. Europ. J. Mech., B. Fluids, Vol.17, №6, 1998, pp.823-846.

Speaker: GAPONOV, S.A. 86 BAIL 2006

✩

✪

Z.HAMMOUCH: Similarity solutions of a power-law non-Newtonian laminar boundary

layer flows

✬

✫

Similarity solutions of a power-law non-Newtonian laminar boundary

layer flows

Z. Hammouch

LAMFA, CNRS UMR 6140, Université de Picardie Jules Verne,

Faculté de Mathématiques et d’Informatique, 33, rue Saint-Leu 80039 Amiens, France

Abstract

A steady–state laminar boundary layer flow, governed by the Ostwald-de Waele power–law model of a non–Newtonian

fluid past a semi-infinite plate is considered. The Blasius method is used to find similarity solutions. Under appropriate

assumptions, partial differential equations are transformed into an autonomous third–order nonlinear degenerate ordinary

differential equation with boundary conditions. We establish the existence of an infinite family of unbounded global

solutions. The asymptotic behavior is also discussed. Some properties of those solutions depend on the power–law index.

Keywords: Boundary–layer; Power–law fluid; Degenerate differential equation; Global existence; Asymptotic behavior; Similarity

solutions.

MSC: 34B15; 34B40; 76D10; 76M55 .

PACS: 47.15, 47.27 Te .

Speaker: HAMMOUCH, Z. 87 BAIL 2006

1

✩

✪

M. HAMOUDA, R. TEMAM: Boundary layers for the Navier-Stokes equations :

asymptotic analysis

✬

✫

Boundary layers for the Navier-Stokes equations : asymptotic

analysis.

M. Hamouda ♯ and R. Temam ∗♯

∗ Laboratoire d’Analyse Numérique, Université de Paris–Sud, Orsay, France.

♯ The Institute for Scientific Computing and Applied Mathematics,

Indiana University, Bloomington, IN, USA.

Abstract

In this talk, we consider the asymptotic analysis of the solutions of the Navier-

Stokes problem, when the viscosity goes to zero; we consider the flow in a channel of

R 3 , in the non-characteristic boundary case. More precisely, a complete asymptotic

expansion, at all orders, is given in the linear case. For the full nonlinear Navier-Stokes

solution, we give a convergence theorem up to order 1, thus improving and simplifying

the results of [TW].

MSC : 76D05, 76D10, 35C20.

We consider the Navier-Stokes equations in a channel Ω∞ = R 2 × (0, h) with a permeable

boundary, making the boundaries z = 0, h, non-characteristic. More precisely we

have

⎧

⎪⎨

⎪⎩

which is equivalent to

⎧

⎪⎨

⎪⎩

∂u ε

∂t − ε∆uε + (u ε .∇) u ε + ∇p ε = f, in Ω∞,

div u ε = 0, in Ω∞,

u ε = (0, 0, −U), on Γ∞,

u ε is periodic in the x and y directions with periods L1, L2,

u ε | t=0 = u0,

∂v ε

∂t − ε∆vε − UD3v ε + (v ε .∇) v ε + ∇p ε = f, in Ω∞,

div v ε = 0, in Ω∞,

v ε = 0, on Γ∞,

v ε is periodic in the x and y directions with periods L1, L2,

v ε | t=0 = v0.

Here Γ∞ = ∂Ω∞ = R 2 × {0, h} and we introduce also Ω and Γ :

Ω = (0, L1) × (0, L2) × (0, h), Γ = (0, L1) × (0, L2) × {0, h}.

Speaker: HAMOUDA, M. 88 BAIL 2006

1

(0.1)

(0.2)

✩

✪



✬

✫

We assume that f and u0 are given functions as regular as necessary in the channel

Ω∞, and that U is a given constant; at the price of long technicalities, we can also consider

the case where U is nonconstant everywhere.

Theorem 0.1 For each N ≥ 1, there exists C > 0 and for all k ∈ [0, N] an explicit given

function θ k,ε such that :

�v ε N�

− ε k (v k + θ k,ε �L∞ (0,T ;L2 (Ω)) ≤ C ε N+1 , (0.3)

�v ε −

k=0

N�

k=0

ε k (v k + θ k,ε � L 2 (0,T ;H 1 (Ω)) ≤ C ε N+1/2 , (0.4)

where L 2 (Ω) = (L 2 (Ω)) 3 , H 1 (Ω) = (H 1 (Ω)) 3 , and C denotes a constant which depends

on the data (and N) but not on ε. Here v ε denotes the solution of the linearized problem

of (0.2) and v k the ones of the limit problems (ε = 0) at all orders.

The second result concerns the solution of the full nonlinear problem (0.2) :

Theorem 0.2 For v ε solution of the Navier-Stokes problem (0.2), there exist a time T∗ >

0, correctors function θ 0,ε and θ 1,ε explicitly given, and a constant κ > 0 depending on the

data but not on ε, such that :

�v ε − (v 0 + θ 0,ε ) − ε(v 1 + θ 1,ε )� L ∞ (0,T∗; L 2 (Ω)) ≤ κ ε 2 , (0.5)

�v ε − (v 0 + θ 0,ε ) − ε(v 1 + θ 1,ε )� L 2 (0,T∗; H 1 (Ω)) ≤ κ ε 3/2 . (0.6)

We recall here the limit problem which is the Euler problem and its solution v0 satisfies :

⎧

∂v

⎪⎨

⎪⎩

0

∂t − UD3v 0 + (v 0 .∇) v 0 + ∇p 0 = f, in Ω∞,

div v 0 = 0, in Ω∞,

v 0 3 = 0, on Γ0,

v 0 = 0, on Γh,

v 0 (0.7)

is periodic in the x and y, directions with periods L1, L2.

It is obvious that we can not expect a convergence result between v ε and v 0 (in H 1 (Ω) for

example) and more precisely we are leading with a boundary layer problem close to some

parts of the boundary Γ. This is the main object of our work.

At the following order v 1 is solution of

⎧

⎪⎨

⎪⎩

∂v 1

∂t − UD3v 1 + (v 1 .∇) v 0 + (v 0 .∇) v 1 + ∇p 1

= − ∂ϕ0

∂t + UD3ϕ 0 − (v 0 .∇) ϕ 0 − (ϕ 0 .∇) v 0 + ∆v 0 , in Ω∞,

div v 1 = 0, in Ω∞,

v 1 3 = 0, on Γ0,

v 1 = 0, on Γh,

v 1 is periodic in the x and y, directions with periods L1, L2.

The function ϕ 0 is a known function at this level.

2


(0.8)

✩

✪



✬

✫

References

[F] K.O. Friedrichs, The mathematical strucure of the boundary layer problem in Fluid

Dynamics (R. von Mises and K.O. Friedrichs, eds), Brown Univ., Providence, RI

(reprinted by Springer-Verlag, New York, 1971). pp. 171-174.

[Li2] J. L. Lions, Problèmes aux limites dans les équations aux dérivées partielles. Les

Presses de l’Université de Montréal, Montreal, Que., 1965. Reedited in [?].

[O] R. E. O’Malley, Singular perturbation analysis for ordinary differential equations.

Communications of the Mathematical Institute, Rijksuniversiteit Utrecht, 5. Rijksuniversiteit

Utrecht, Mathematical Institute, Utrecht, 1977.

[TW] R. Temam and X. Wang, Boundary layers associated with incompressible Navier-

Stokes equations: the noncharacteristic boundary case. J. Differential Equations 179

(2002), no. 2, 647–686.

[VL] M.I. Vishik and L.A. Lyusternik, Regular degeneration and boundary layer for linear

differential equations with small parameter, Uspekki Mat. Nauk, 12 (1957), 3-122.

3


✩

✪

M. HÖLLING, H. HERWIG: Computation of turbulent natural convection at vertical

walls using new wall functions

✬

✫

Computation of turbulent natural convection at vertical walls using new wall

functions

M. Hölling, H. Herwig

Technical Thermodynamics

Hamburg University of Technology

Denickestraße 15, 21073 Hamburg, Germany

m.hoelling@tu-harburg.de

h.herwig@tu-harburg.de

Turbulent natural convection at vertical walls has been under investigation in the last decades

but is still not sufficiently understood. The viscous sublayer, i.e. the region very close to the wall,

can be described properly, see e.g. Tsuji and Nagano [1], since there the turbulent fluctuations

are damped by the wall and the governing equations can be solved directly. But in the more

interesting region in which turbulence dominates, the flow cannot be described properly. George

and Capp [2] offer analytical temperature and velocity profiles which have become a kind of

standard for natural convection. But, it was shown by Versteegh and Nieuwstadt [3] and by

Henkes and Hoogendoorn [4] that at least the velocity profile is erroneous. We employ a different

approach presented in Hölling and Herwig [5] to describe the turbulence affected region of the

flow field.

The starting point for the analysis is a channel with a hot and a cold wall of infinite extent

as used by Versteegh and Nieuwstadt [3] for their DNS study. The governing equations then

reduce to:

0 = ∂

�

∂y

0 = ∂

∂y

∂y − v′ T ′

�

a ∂T

�

ν ∂u

∂y − u′ v ′

�

+ gβ � �

T − T0

It is found that the temperature field consists of a viscosity influenced wall layer and a fully

turbulent outer layer. The temperature profile is obtained by matching of gradients between

these layers that reveals a logarithmic profile. It is in good agreement with DNS as well as

experimental temperature profiles from various studies.

For the velocity profile a different approach is chosen; the profile is not obtained by matching

of gradients. Instead the momentum equation (2) is rewritten in such a way that the temperature

profile and the Reynolds stresses are expressed as a function of the wall distance. The Reynolds

stresses are modelled using the eddy viscosity approach. A constant turbulent Prandtl number

is assumed as can be concluded from DNS data. Then the eddy viscosity is directly linked to the

turbulent thermal diffusivity and therefore is a linear function of wall distance. Once all terms

are expressed as a function of wall distance the momentum equation can be integrated and a

velocity profile emerges. This profile is in good agreement with DNS and experimental data.

Straightforward numerical solutions without adequate near wall treatment, like with FLU-

ENT 6.2, to reproduce the DNS data of Versteegh and Nieuwstadt [3] for Ra = 5.0 · 10 6 show

that even with fine grids also in the viscous sublayer only poor agreement can be achieved.

Thus, we conclude that it would be diserable to have a new approach and improved near wall

treatment.

Therefore, we apply the new universal profiles as wall functions for CFD calculations. They

are implemented in the two dimensional CAFFA code of Ferziger and Peric [6] that uses the kω-turbulence

model and the Boussinesq-approximation. The standard k-ω model is used inspite

Speaker: HÖLLING, M. 91 BAIL 2006

1

(1)

(2)

✩

✪

M. HÖLLING, H. HERWIG: Computation of turbulent natural convection at vertical

walls using new wall functions

✬

✫

T in K

380

370

360

350

340

330

8×200

4×200

DNS

320

0 0.05

y in m

0.1

u in m/s

0.25

0.2

0.15

0.1

0.05

0

−0.05

−0.1

−0.15

−0.2

8×200

4×200

DNS

−0.25

0 0.05

y in m

0.1

Figure 1: Temperature and velocity profile of Versteegh and Nieuwstadt [3] for Ra = 5.0 · 10 6

compared to results of the modified CAFFA code using two grid sizes.

that it is inadequate for natural convection. Instead of trying to find another modification of

an existing turbulence model, the deficiences could be compensated by modifying the boundary

conditions for k and ω.

The results are again compared to the DNS data of Versteegh and Nieuwstadt [3] and good

agreement is found. Figure 1 shows the temperature and velocity profile for Ra = 5.0 · 10 6

together with the results of the modified CAFFA code. Two different grid sizes were used and

despite the very few control volumes (8 and 4 CVs) across the channel width the profiles are

matched very well. Also the wall gradients, i.e. the Nusselt number and the shear stress, are

correct within 4 %.

References

[1] T. Tsuji and Y. Nagano, “Characteristics of a turbulent natural convection boundary layer

along a vertical flat plate”, Int. J. Heat Mass Transfer 31, 1723–1734 (1989).

[2] W.K. George and S.P. Capp, “A theory for natural convection turbulent boundary layers

next to heated vertical surfaces”, Int. J. Heat Mass Transfer 22, 813–826 (1979).

[3] T.A.M. Versteegh and F.T.M. Nieuwstadt, “A direct numerical simulation of natural convection

between two infinite vertical differentially heated walls: scaling laws and wall functions”,

Int. J. Heat Mass Transfer 42, 3673–3693 (1999).

[4] R.A.W.M. Henkes and C.J. Hoogendoorn, “Numerical determination of wall functions for

the turbulent natural convection boundary layer”, Int. J. Heat Mass Transfer 33, 1087–

1097 (1990).

[5] M. Hölling and H. Herwig, “Asymptotic analysis of the near wall region of turbulent natural

convection flows”, J. Fluid Mech. 541, 383–397 (2005).

[6] J.H. Ferziger and M. Peric, “Computational methods for fluid dynamics”, 2nd ed., Springer,

Berlin (1999).

Speaker: HÖLLING, M. 92 BAIL 2006

2

✩

✪

A.-M. IL’IN, B.I. SULEIMANOV: The coefficients of inner asymptotic expansions for

solutions of some singular boundary value problems

✬

✫

��

��

��

��

ux + u 3 − tu − x = 0, (1)

uxx = u 3 − tu − x (2)

��

��

��

��

ε 2 (Ux1x1 + Ux2x2) + εbUx1 + f(x1, x2, U) = 0,

�� f(x1, x2, U) = 0 �� Uj(x1, x2). ��

�� U0(0, 0) = 0 �� f(x1, x2, U) =

x1 + x2U − U 3 + · · · . �� x2 < 0 ��

�� x2 > 0.

�� b �= 0 ��

z = x1

,

ε3/5 x2

t = ,

ε2/5 U

w = .

ε1/5 �� bwz = w3 − tw − z

��

��

�� b = 0 ��

z = x1 x2 U

, t = , v =

ε3/4 ε1/2 ε1/4 �� wzz = w3 − tw − z ��

��

��

��

�� H(x, t)

H 3 − tH − x = 0 (3)

�� x 2 + t 2 → ∞. ��

�� t ��

�� t ��

�� u(x, t) − H(x, t) → 0 �� x → ∞.

u(x, t) = as x 1/3 (1 +

∞�

cj(t)x −j/3 ), x → ∞.

j=2

�� |t| < T ��

(x, t).

�� t → −∞ �� u(x, t) ��

��

u(x, t) = |t| 1/2

�

f(s) +

�

∞�

j=1

vj(s)

t4j �

,

Speaker: IL’IN, A.M. 93 BAIL 2006

✩

✪



✬

✫

��

s = x|t| −3/2 , f 3 (s) + f(s) − s = 0.

�� t → ∞ �� u(x, t) ��

��

��

u(x, t) = t 1/2

� ∞�

g(s) + t −4j ∞�

vj(s) + t −2k �

wk(ξ)

j=1

s = x|t| −3/2 , g(s) 3 − g(s) − s = 0, w0(ξ) = −1 + tanh ξ

√ 2 , ξ = st 2

�� t > T > 0. ��

��

��

��

��

�� H(x, t) ��

�� t � 0�

�� H(x, t) ��

k=0

t > 0, x < xc(t) = 2

√ 27 t 3/2

��

t > 0, x > xc(t).

�� H(x, t) ��

�� x = xc(t).

�� t → −∞ ��

x = xc(t) �� u(x, t) =

v(s, t)|t| 1/2 �� s = x |t| −3/2 ,

∞�

v(s, t) = |t|

k=0

−5k/2 v −

k (s).

�� s = 2 √ ��

27

��

z = (s − s∗)t 5/3 , r = ( 1

√ 3 + v(s, t))t 5/6 .

��

(z − z0) = ηt −5/6 , w = r(z)t −5/6 = (v(s) + 1/ √ 3)

�� z0 �� Ai(−3 1/6 z)�

��

1. u(x, t) = as t 1/2

∞�

k=0

2. u(x, t) = as t 1/2 [− 1

√ 3 + t −5/6

�

|t| −5k/2 v +

k (s),

�

∞�

r0(z) + t −5j/6 �

rj(z) ]


j=1

✩

✪



✬

✫

��

3. u(x, t) = as t 1/2 [− 1

√ 3 +

∞�

t −5k/6 wk(ln t, η)].

��

��

��

��

��


�

k=0

✩

✪

W.S. ISLAM, V.R. RAGHAVAN: Numerical Simulation of High Sub-critical Reynolds

Number Flow Past a Circular Cylinder

✬

✫

Numerical Simulation of High Sub-critical Reynolds Number Flow

Past a Circular Cylinder

Wan Saiful Islam* and Vijay R. Raghavan**

Faculty of Mechanical Engineering

Kolej Universiti Teknologi Tun Hussein Onn

86400 Parit Raja, Malaysia

*wsaiful@kuittho.edu.my

**vijay@kuittho.edu.my

ABSTRACT

Few areas in fluid mechanics have received more attention than that of flow past a bluff body. In

particular, flow across a circular cylinder in unconfined and confined flow is a classical problem,

and has been studied experimentally, visually and numerically [1-6]. Although the geometry is

apparently simple, this problem has not yielded to closed form analytical solution except at very

low Reynolds numbers because of the complexity associated with adverse pressure gradients,

separation, eddy shedding, recirculation and reattachment. There are a very large number of

attempts reported in the literature using a variety of numerical approaches viz., finite difference,

finite element and finite volume methods. However, there is room for improvement in the

agreement with experiments that has been obtained hitherto [5,6]. A numerical solution that gives

good agreement is also likely to be useful for benchmarking existing codes and new ones that

may be written. The purpose of the present study is to find a satisfactory solution in the entire

range of sub-critical Reynolds numbers for flow over a circular cylinder.

In earlier attempts to establish benchmark solutions and to obtain agreement with published data

over a range of Reynolds numbers, various turbulence models including large eddy simulation

(LES) had been considered and both 2-D and 3-D had been tried [4-6]. The results were obtained

in the form of general appearance of the wake flow, examination of the velocity magnitudes in

the near-field and far-field, eddy frequencies, Strouhal numbers and detailed local distributions of

pressure. However, most of these authors have carried out their work in the more convenient

Speaker: ISLAM, W.S. 96 BAIL 2006

✩

✪

W.S. ISLAM, V.R. RAGHAVAN: Numerical Simulation of High Sub-critical Reynolds

Number Flow Past a Circular Cylinder

✬

✫

Reynolds number range of 40 to 1000 [2,3]. As one goes to higher Re ranges, results are seen to

deviate progressively more widely from experimental results.

In the present study simulations are performed for unsteady, two-dimensional (2-D) flow past a

circular cylinder in a confined duct with appropriate blockage ratios. At Reynolds numbers as

high as 100,000 the numerical solutions obtained agree remarkably well with experiments, not

only in the global sense in the form of CD, but also locally in terms of pressure distribution. The

paper describes how the agreement was obtained and these results might serve as a benchmark for

validating CFD codes.

REFERENCES

1. Achenbach, E., “Distribution of Local Pressure and Skin Friction Around a Circular

Cylinder in Cross-Flow up to Re = 5×10 6 ”, Journal of Fluid Mechanics, 34, 4, 625-

639, 1968.

2. Son, J.S. and Hanratty, T.J., “Numerical Solution for the Flow around a Cylinder at

Reynolds Numbers of 40, 200 and 500”, Journal of Fluid Mechanics, 35, 2, 369-386,

1969.

3. Fornberg, B., “Steady Viscous Flow Past a Circular Cylinder up to Reynolds

Number 600”, Journal of Computational Physics, 61, 297-320, 1985.

4. Chou, M.-H. and Huang, W., “Numerical Study of High-Reynolds-Number Flow

Past a Bluff Object”, International Journal for Numerical Methods in Fluids, 23, 711-

732, 1996.

5. Selvam, R.P., “Finite Element Modeling of Flow Around a Circular Cylinder using

LES”, Journal of Wind Engineering and Industrial Aerodynamics, 67&68, 129-139,

1997.

6. Breuer, M., “Numerical and Modeling Influences on Large Eddy Simulations for the

Flow Past a Circular Cylinder”, International Journal of Heat and Fluid Flow, 19,

512-521, 1998

Speaker: ISLAM, W.S. 97 BAIL 2006

✩

✪

D. KACHUMA, I. SOBEY: Fast waves during transient flow in an asymmetric channel

✬

✫

Abstract

Fast waves during transient flow in an asymmetric channel

Dick Kachuma & Ian Sobey

Oxford University Computing Laboratory

Wolfson Building, Parks Road,

Oxford UK OX1 3QD

dick.kachuma@comlab.ox.ac.uk

ian.sobey@comlab.ox.ac.uk

The use of stepped channels together with unsteady laminar flow provides a powerful mixing mechanism

that is particularly applicable to processes where the fluid contains delicate elements, for example, applications

involving mass transfer in blood or in a cell culture. In such channel flows there are parameter

regimes where the flow is described by the two-dimensional unsteady Navier–Stokes equations. Sobey

(1985) showed both experimentally and numerically that a standing wave of separated regions developed

behind a channel step during oscillatory flow and called the resulting flow a vortex wave. Included in his

experimental observations were vortex waves of extreme longitudinal extent and he conjectured that the

wave formed was, under the correct parameter conditions, virtually undamped in the streamwise direction.

We have undertaken calculations in a slightly different parameter region and find that a sequence of

two events occurs: one is the formation of a vortex wave of finite extent (typically 3-5 vortices alternating

on the two walls behind the step), the second is a subsequent rapidly propagating wave of regular but

slightly smaller vortices. The speed of propagation of this second wave is such that its resolution would

have been beyond that of the apparatus used in Sobey (1985). In describing these waves we shall refer to

the vortex wave as a V-wave and the second wave as a KH-wave. An example of the waves is illustrated

in Figure 1 where contours of a flow are shown.

V-wave KH-wave

Figure 1: Instantaneous streamlines

In order to understand the genesis of KH-waves we have undertaken a study of starting flows in

which the fluid is accelerated from rest to either steady channel flux or a flux with a small oscillatory

component. We have tested two hypotheses: one that the KH-wave results from the evolution of an

inviscid rotational core flow that is described by an evolutionary linearised Kortweg-de Vries (KdV)

equation. That this might be a plausible hypothesis comes from results by Tutty and Pedley (1994)

which show the evolution of waves in solutions of an evolutionary KdV equation that models such a core

flow. The second hypothesis is that the KH-wave results from an Orr-Sommerfeld type instability of

nearly parallel but non-Poiseuille like flow. This has lead us to study stability of a base flow

u0(y) = (1 − σy)(1 − y 2 ), −1 ≤ y ≤ 1,

where σ = 0 is Poiseuille flow and σ > 1 indicates reverse flow near one wall.

The development of KH-waves has been considered in channels with smoothly varying and sharp

corners and using different numerical methods, as well as with different numerical resolution. The paper

is divided into four sections.

Speaker: KACHUMA, D. 98 BAIL 2006

1

✩

✪

D. KACHUMA, I. SOBEY: Fast waves during transient flow in an asymmetric channel

✬

✫

(1) We describe the numerical solution of the unsteady Navier–Stokes equations and illustrate the

development of a KH-wave.

(2) We integrate velocities in time to obtain particle paths and use these to help interpret the development

of the flows.

(3) We describe solutions of an evolutionary linearised KdV equation and their interpretation.

(4) We consider solutions of an Orr-Sommerfeld equation as the extent of a reverse flow region is

varied and investigate the consequences of instability in the base flow on subsequent flow development.

The results we have indicate that it is unlikely that the KH-wave is the result of evolution of an

inviscid rotational core flow and instead, that it is more likely the result of a linear instability mechanism

described by an Orr–Sommerfeld equation but with growth rates that are orders of magnitude greater

than those for disturbances to symmetric Poiseuille flow and with instability occuring at relatively low

Reynolds number. The complexity of unsteady flows calculated from the full Navier–Stokes equations

is remarkable and it is likely that flows in other parameter regimes are dominated by entirely different

mechanisms.

References

Sobey I.J. (1985). Observation of waves during oscillatory channel flow. J. Fluid Mech., 151:395–426.

Tutty O.R. and Pedley T.J. (1994). Unsteady flow in a nonuniform channel: A model for wave generation.

Phys. Fluids, 6:199–208.

Speaker: KACHUMA, D. 99 BAIL 2006

2

✩

✪

A. KAUSHIK, K.K. SHARMA: A Robust Numerical Approach for Singularly Perturbed

Time Delayed Parabolic Partial Differential Equations

✬

✫

A Robust Numerical Approach for Singularly

Perturbed Time Delayed Parabolic Partial

Differential Equations

Aditya Kaushik † Kapil K. Sharma ‡

† Department of Mathematics, Kurukshetra University, Kurukshetra-136 119, India

‡ MAB, University Bourdauex 1, 351 Cours de Libration F-33405, Cedex Talence, France

[ † a-kaushik@lycos.com ‡ sharmal@math.u-bordeaux1.fr ]

Summary

In this paper a numerical study for a class of initial boundary value problems for

singularly perturbed unsteady parabolic partial differential equation with variable coefficients

having time delayed reaction term, is initiated on a rectangular domain. Such

problems arise in diverse area of science and engineering that take into account not just

the present state of physical systems but also its past history. These models are described

by certain class of functional differential equations often called delay differential equation

and from mathematical perspective they are singularly perturbed. In most application in

the life sciences, a delay is introduced when there are some hidden variables and processes

which are not well understood but are known to cause a time lag. The delay differential

is versatile in mathematical modeling of processes in various application field, where they

provide the best and sometimes the only realistic simulation of observed phenomena. The

singularly perturbed differential difference equation with delay arises in general in the

modeling of various real life phenomena’s, for instance, in studying heat or mass transfer

process in composite materials with small heat conduction or diffusion, in drift diffusion

model of semiconductor devices, in fluid flow problems, physiological kinetics, in various

branches of biosciences and population dynamics, control theory, chemical kinetics, etc.

Some modelers ignore the ”lag” effect and use an differential equations model as a substitute

for a delay differential equation model. Kuang [1], comments under the heading

”Small delays can have large effects” on the dangers that researchers risk if they ignore

lags which they think are small. There are inherent qualitative differences between delay

differential equations and finite systems of differential equations that make such a strategy

risky.

The concept of singular perturbation is not new, indeed, it has been a formidable tool in

the solution of some important applied mathematical problems. A singular perturbation

is a modification of partial differential equation by adding a multiple ǫ times a higher

order term. In accordance with the informal principle that the behavior of solutions is

governed primarily by the highest order terms, a solution u ǫ of the perturbed problem will

often behave analytically quite differently from a solution of the original equation, and

exhibits boundary or the transition layers in the outflow boundary reasons when the perturbation

parameter specifying the problem tends to zero [2]. Due to the presence of the

perturbation parameter and in particular time delay, the primary mathematical methods

fails to provide the desired results. Thus, the quest for some new numerical techniques

Speaker: KAUSHIK, A. 100 BAIL 2006

1

✩

✪

A. KAUSHIK, K.K. SHARMA: A Robust Numerical Approach for Singularly Perturbed

Time Delayed Parabolic Partial Differential Equations

✬

✫

to handle the difficulties occurring due to presence of these two parameters and development

of a robust numerical method to solve such type of problem, has found special

relevance. To sort out both the difficulties, a numerical method consisting of standard

finite difference operator on a uniform mesh is constructed. The first step in this direction

consists of discretizing the time variable with the backward Euler’s method with constant

time step. This produces a set of stationary singularly perturbed semidiscrete problem

which is further discretized in space using standard finite difference operator on a uniform

mesh. An extensive amount of analysis is carried out in order to establish the convergence

and stability of the method proposed. A set of numerical experiment is carried out in

support of the predicted theory and to show the effect of delay on the boundary layer

behavior of the solution for the initial boundary value problem considered which validates

computationally the theoretical results.

[1] Y. Kuang, Delay differntial equations with applications in population dynamics, Academic

Press Inc.,(1993).

[2] H. G. Roos, M. Stynes, and L. Tobiska, Numerical Methods for Singularly Perturbed

Di.erential Equa- tions. Convection-Di.usion and Flow Problems, Springer-Verlag, Berlin,

1996.

Speaker: KAUSHIK, A. 101 BAIL 2006

2

✩

✪

P. KNOBLOCH: On methods diminishing spurious oscillations in finite element

solutions of convection-diffusion equations

✬

✫

On methods diminishing spurious oscillations

in finite element solutions of convection–diffusion equations

Petr Knobloch

Charles University, Faculty of Mathematics and Physics, Department of Numerical Mathematics,

Sokolovská 83, 186 75 Praha 8, Czech Republic

e-mail: knobloch@karlin.mff.cuni.cz

We discuss the application of the finite element method to the numerical solution of the scalar

convection–diffusion equation

−ε∆u + b · ∇u = f in Ω, u = ub on Γ D , ε ∂u

∂n = g on ΓN . (1)

Here Ω is a bounded two–dimensional domain with a polygonal boundary ∂Ω, Γ D and Γ N are disjoint

and relatively open subsets of ∂Ω satisfying meas1(Γ D ) > 0 and Γ D ∪ Γ N = ∂Ω, n is the outward unit

normal vector to ∂Ω, f is a given outer source of the unknown scalar quantity u, ε > 0 is the constant

diffusivity, b is the flow velocity, and ub, g are given functions.

Despite the apparent simplicity of problem (1), its numerical solution is by no means easy if convection

is strongly dominant (i.e., if ε ≪ |b|). In this case, the solution of (1) typically possesses interior and

boundary layers whose widths are usually significantly smaller than the mesh size and hence the layers

cannot be resolved properly. In particular, it is well known that the classical Galerkin finite element

discretization of (1) is inappropriate in the convection–dominated regime since the discrete solution is

typically globally polluted by spurious oscillations. Although, during the last three decades, an extensive

research has been devoted to the development of methods which diminish spurious oscillations in

the discrete solutions of (1), the numerical solution of (1) is still a challenge when convection strongly

dominates diffusion. The broad interest in solving problem (1) is caused not only by its actual physical

meaning but also by the fact that it represents a simple model problem for convection–diffusion effects

which appear in many more complicated problems arising in applications.

Initially, stabilizations of the Galerkin discretization of (1) imitated upwind finite difference techniques.

However, like in the finite difference method, the upwind finite element discretizations remove

the unwanted oscillations but the accuracy attained is often poor since too much numerical diffusion

is introduced. According to our experiences, one of the most successful upwinding techniques is the

improved Mizukami–Hughes method, see Knobloch [9]. It is a nonlinear Petrov–Galerkin method for

conforming linear triangular finite elements P1 which satisfies the discrete maximum principle on weakly

acute meshes. In contrast with many other upwinding methods for P1 elements satisfying the discrete

maximum principle, the improved Mizukami–Hughes method adds much less numerical diffusion and

provides rather accurate solutions, cf. Knobloch [10].

One of the most efficient procedures is the streamline upwind/Petrov–Galerkin (SUPG) method developed

by Brooks and Hughes [2] which is a higher–order method possessing good stability properties

achieved by adding artificial diffusion in the streamline direction. Unfortunately, the SUPG method

does not preclude spurious oscillations localized in narrow regions along sharp layers. Although these

oscillations are usually small in magnitude, they are not permissible in many applications (e.g., chemically

reacting flows, free–convection computations, two–equations turbulence models, compressible

flow problems with shocks). Therefore, various terms introducing artificial crosswind diffusion in the

neighborhood of layers have been proposed to be added to the SUPG formulation in order to obtain a

method which is monotone or which at least reduces the local oscillations (cf. e.g. [3, 4] and the references

there). This procedure is often referred to as discontinuity capturing (or shock capturing). These

discontinuity–capturing methods can be divided into three groups according to whether the additional

artificial diffusion is isotropic, or orthogonal to streamlines, or based on edge stabilizations. We have

demonstrated for P1 finite elements in [7] that the edge stabilization methods add too much artificial

diffusion. Among the remaining two groups of methods, the best methods for P1 finite elements seem

Speaker: KNOBLOCH, P. 102 BAIL 2006

1

✩

✪

P. KNOBLOCH: On methods diminishing spurious oscillations in finite element

solutions of convection-diffusion equations

✬

✫

to be the methods of do Carmo and Galeão [5], of Almeida and Silva [1] and slight modifications of the

methods of Codina [6] and of Burman and Ern [3], see also John and Knobloch [8].

Our aim is to continue the discussion of properties of the various methods diminishing spurious

oscillations in finite element solutions of (1) mentioned above. We would like to concentrate on three

aspects:

• properties of methods of Mizukami–Hughes type satisfying the discrete maximum principle where

we mention the improved Mizukami–Hughes method of [9] for P1 finite elements and will discuss

its generalization to other types of finite elements;

• comparison of the above–mentioned discontinuity–capturing methods for higher order finite elements;

• choice of stabilization parameters where we will present a novel approach to the choice of the

SUPG stabilization parameter in outflow boundary layers.

The above described discussion will be performed for the two–dimensional case and the results obtained

in three–dimensions will be mentioned only briefly.

References

[1] R.C. Almeida, R.S. Silva, A stable Petrov–Galerkin method for convection–dominated problems,

Comput. Methods Appl. Mech. Eng. 140 (1997) 291–304.

[2] A.N. Brooks, T.J.R. Hughes, Streamline upwind/Petrov–Galerkin formulations for convection

dominated flows with particular emphasis on the incompressible Navier–Stokes equations, Comput.

Methods Appl. Mech. Eng. 32 (1982) 199–259.

[3] E. Burman, A. Ern, Nonlinear diffusion and discrete maximum principle for stabilized Galerkin

approximations of the convection–diffusion–reaction equation, Comput. Methods Appl. Mech.

Eng. 191 (2002) 3833–3855.

[4] E.G.D. do Carmo, G.B. Alvarez, A new stabilized finite element formulation for scalar convection–

diffusion problems: The streamline and approximate upwind/Petrov–Galerkin method, Comput.

Methods Appl. Mech. Eng. 192 (2003) 3379–3396.

[5] E.G.D. do Carmo, A.C. Galeão, Feedback Petrov–Galerkin methods for convection–dominated

problems, Comput. Methods Appl. Mech. Eng. 88 (1991) 1–16.

[6] R. Codina, A discontinuity–capturing crosswind–dissipation for the finite element solution of the

convection–diffusion equation, Comput. Methods Appl. Mech. Eng. 110 (1993) 325–342.

[7] V. John, P. Knobloch, A comparison of spurious oscillations at layers diminishing (SOLD) methods

for convection–diffusion equations: Part I, Preprint Nr. 156, FR 6.1 – Mathematik, Universität des

Saarlandes, Saarbrücken, 2005.

[8] V. John, P. Knobloch, On discontinuity–capturing methods for convection–diffusion equations, submitted

to the Proceedings of the conference ENUMATH 2005, Santiago de Compostela, July 18–22,

2005.

[9] P. Knobloch, Improvements of the Mizukami–Hughes method for convection–diffusion equations,

Preprint No. MATH–knm–2005/6, Faculty of Mathematics and Physics, Charles University,

Prague, 2005.

[10] Knobloch, P.: Numerical solution of convection–diffusion equations using upwinding techniques

satisfying the discrete maximum principle. Submitted to the Proceedings of the Czech–Japanese

Seminar in Applied Mathematics 2005, Kuju Training Center, Oita, Japan, September 15–18, 2005.

Speaker: KNOBLOCH, P. 103 BAIL 2006

2

✩

✪

T. KNOPP: Model-consistent universal wall-functions for RANS turbulence modelling

✬

✫

Model-consistent universal wall-functions for RANS turbulence modelling

T. Knopp

Institute of Aerodynamics and Flow Technology

DLR (German Aerospace Center)

Bunsenstr. 10, 37073 Göttingen, Germany

Tobias.Knopp@dlr.de

Ý

A model-consistent universal wall-function method for RANS turbulence modelling [1] is presented,

which gives solutions almost independent of the spacing of the first grid node above the wall (denoted by

in plus-units) and allows a considerable solver acceleration and reduction of memory consumptions.

Model-consistent wall-functions are turbulence model specific, ensuring almost grid-independent

predictions for boundary layer flows at zero pressure gradient, e.g. the flow by Wieghardt [5].

0.0035

C f

0.0025

1 2 3 4

x

Exp.

low Re

y + (1) = 1

y + (1) = 4

y + (1) = 9

y + (1) = 17

y + (1) = 23

y + (1) = 40

0.0035

C f

0.0025

1 2 3 4

x

Exp.

low Re (fine grid)

y + (1) = 1

y + (1) = 4

y + (1) = 9

y + (1) = 17

y + (1) = 23

y + (1) = 40

Figure 1: Skin friction �for equilibrium layer [5]. Almost grid-independent prediction for Spalart-

Allmaras (SA) model with Edwards modification [3] (left) and for Menter baseline�-�model [4] (right).

The underlying approximations, i.e., (i) one-dimensional boundary-layer flow and (ii) near-wall equilibrium

stress balance by neglecting the streamwise pressure gradient, are assessed by investigation of a flat

plate turbulent boundary flow with adverse pressure gradient and separation devised by [2].

p +

0.1

0.05

p + 3

= v / (rho ut ) * dp / dx

p + = 0

station 1 at x1 = 1.3




station 5 at x = 2.4 5




station 9 at x = 2.76

9

station 10 at x = 2.8

10

0

0 1 2

x

y +

10 0

10 1

10 2

Ù �Ù�Ù�vs.Ý Figure 2: Pressure gradient parameterÔ ��Ù��Ô��Ü(left) and corresponding velocity profiles

�ÝÙ��for the adverse pressure gradient flow by Kalitzin et al. [2].

u +

25

20

15

10

5

RANS station 4






RANS ZPG bou. layer

The method is then applied successfully to aerodynamic flows with separation including a transonic flow

Speaker: KNOPP, T. 104 BAIL 2006

1

✩

✪

T. KNOPP: Model-consistent universal wall-functions for RANS turbulence modelling

✬

✫

c p

-1

-0.5

0

0.5

exp.

low-Re

y + (1) = 1

y + (1) = 20

y + (1) = 40

y + (1) = 60

1

0 0.25 0.5

x/c

0.75 1

0.006

0.004

c f

0.002

0

exp.

low-Re

y + (1) = 1

y + (1) = 20

y + (1) = 40

y + (1) = 60

c f = 0

0 0.25 0.5 0.75 1

x/c

Figure 3: Distribution ofÔ(left) and�(right) for SA-Edwards model [3] for RAE2822 case 10 [6].

0.006

0.004

c f

0.002

0

0.25 0.5 0.75

x/c

exp.

low-Re

y + (1) = 1

y + (1) = 4

y + (1) = 7

y + (1) = 10

c f = 0

0.006

0.004

c f

0.002

0

0.25 0.5 0.75

x/c

exp.

low-Re

y + (1) = 1

y + (1) = 20

y + (1) = 40

y + (1) = 80

c f = 0

Figure 4: Prediction for�on grids with varying near-wall spacing for SST model [4] for A-airfoil [7].

with shock induced separation [6] and a subsonic highlift airfoil close to stall [7].

References

[1] T. Knopp, T. Alrutz and D. Schwamborn, “A grid and flow adaptive wall-function method for RANS

turbulence modelling”, Journal of Computational Physics (submitted).

[2] G. Kalitzin, G. Medic, G. Iaccarino and P. Durbin, “Near-wall behaviour of RANS turbulence models

and implications for wall functions”, Journal of Computational Physics, 204, 265-291 (2005).

[3] J.R. Edwards and S. Chandra, “Comparison of eddy viscosity-transport turbulence models for threedimensional,

shock separated flowfields”, AIAA Journal, 34, 756–763 (1996).

[4] F.R. Menter, “Zonal two equation�/�turbulence models for aerodynamic flows”, AIAA Paper

1993-2906 (1993).

[5] D. E. Coles and E. A. Hirst (Eds.), Computation of Turbulent Boundary Layers - 1968 AFOSR-IFP-

Stanford Conference, Stanford (1969).

[6] P. H. Cook, M. A. McDonald and M.C.P. Firmin, “Aerofoil RAE 2822 - Pressure distributions and

boundary layer and wake measurements”, AGARD Advisory Report AR-138, A6.1-A6.77 (1979).

[7] Ch. Gleyzes, “Opération décrochage - Résultats de la 2ème campagne d’essais à F2 – Mesures de

pression et vélocimétrie laser”, RT-DERAT 55/5004 DN, ONERA (1989).

Speaker: KNOPP, T. 105 BAIL 2006

2

✩

✪

J.-S. LEU, J.-Y. JANG, Y.-C. CHOU: Evaporating cooling of liquid film along an

inclined plate coverd with a porous layer

✬

✫

Evaporating cooling of liquid film along an inclined plate covered with a

porous layer

ABSTRACT

Jin-Sheng Leu

Department of Mechanical Engineering

Air Force Institute of Technology

Kaohsiung, Taiwan 82042

Jiin-Yuh Jang* and Yin Chou

Department of Mechanical Engineering,

National Cheng-Kung University

Tainan, Taiwan 70101

The purpose of this work is to evaluate the heat and mass enhancement of liquid film

evaporation by covering a porous layer on the plate (as shown in Fig. 1). There is an extensive

literature for liquid film evaporating flow based on simplified 1-D and 2-D mathematical models.

Wassel and Mills [1] illustrated a 1-D design methodology for a counter-current falling film

evaporative cooler. Yan and Soong [2] presented their numerical solution for convective heat and

mass transfer along an inclined heated plate with film evaporation with more rigorous treatments of

the equations governing the liquid film and liquid-gas interface. The complete two-dimensional

boundary layer model for the evaporating liquid and gas flows along an inclined plate was studied

recently by Mezaache and Daguenet [3]. Their parametric study focused on the effects of inlet

conditions such as gas velocity, liquid mass flow rate and inclined angles and their interaction with

both isothermal and heated walls. Zhao [4] studied the coupled heat and mass transfer in a stagnation

point flow of air through a heated porous bed with thin liquid film evaporation.

Until now, there seems to be no related theoretical analysis to evaluate the feasibility of

utilizing porous materials for the heat transfer enhancement of falling liquid evaporation. This has

motivated the present investigation. The present study analyzes the liquid film evaporation flow along

a vertical isothermal plate covered with a thin liquid-saturated porous layer. Liquid and gas streams

are approached by two coupled laminar boundary layers. The non-Darcian inertia and boundary effects

are included to describe the hydraulic characteristic of the liquid-saturated porous medium. Then, the

governing equations (tabulated in Table1) are discretized to a fully implicit difference representation,

in which the upwind scheme is used to model the axial convective terms, while second-order central

difference schemes are employed for the transverse convection and diffusion terms. Newton

linearization procedure is used to linearize the nonlinear terms of governing equation.The numerical

solution is obtained by utilizing a fully implicit finite difference method and examined in detail for the

effects of porosity ε, porous layer thickness δ, ambient relative humidity φ and Lewis number Le on

the average heat and mass transfer performance.

The numerical results conclude that the latent heat flux is the dominant mode for the

present study. The cases for lower ε and δ would produce higher interfacial temperature and mass

concentration, and thus enhance the �heat and mass transfer performances across the film interface. The

influence of ε on the Nusselt number (Nu) and Sherwood number(Sh) is gradually more significant

as δ is increased. An applicable range of porous layer thickness δ=0.001~0.005 is suggested for the

practical application (as shown in Fig. 2). For the effect of ambient relative humidity φ, it is observed

that a lower φ leads to a higher Nu but lower Sh. However, the influence on Nu and Sh appears to be

less significant than those of ε and δ. In addition, as the Lewis number is increased(Le>1), a larger

heat transfer rate is achieved.

* Professor, author to whom correspondence should be addressed

Tel: 886-6-2088573 Fax: 886-6-2342232

1

E-mail: jangjim@mail.ncku.edu.tw

Speaker: JANG, J.-Y. 106 BAIL 2006

✩

✪

J.-S. LEU, J.-Y. JANG, Y.-C. CHOU: Evaporating cooling of liquid film along an

inclined plate coverd with a porous layer

✬

✫

REFERRENCE

[1]. Wassel, A. T., and Mills, A. F., "Design Methodology for a Counter-current Falling Film

Evaporative Condenser". ASME J. of Heat Transfer, Vol. 109, pp.784-787, 1987.

[2] Yan, W. M., and Soong, C. Y., “Convection heat and mass transfer along an inclined heated plate

with film evaporation”, Int. J. Heat Mass Transfer, Vol.38, pp.1261-1269, 1995.

[3] Mezaache, E., and Daguenet, M., “Effects of Inlet Conditions on Film Evaporation along an

Inclined Plate”, Solar Energy, Vol. 78, pp.535-542, 2005.

[4]. Zhao, T. S., “Coupled Heat and Mass Transfer of a Stagnation Point Flow in a Heated Porous Bed

with Liquid Film Evaporation”, Int. J. Heat Mass Transfer, Vol.42, pp.861-872, 1999.

Table 1: The governing equations for liquid film

and gas steam regions

Liquid

film

region

Gas

stream

region

2

µ l ∂ u l µ l ρlC

2

0 = ρlg

cos ϕ + − u

2 l − u l

ε ∂y

K K

2

∂Tl

∂ Tl

u l = αe

∂x

2

∂y

∂u

g ∂v

g

+ = 0

∂x

∂y

2

∂u

g ∂u

g ∂ u g

u g + vg

= ν g

∂x

∂y

2

∂y

2

∂Tg

∂Tg

∂ Tg

ug

+ vg

= αg

∂x

∂y

2

∂y

2

∂ω

∂ω

∂ ω

ug

+ vg

= D

∂x

∂y

2

∂y

where the subscript “l”, “g” represents the

variables of the liquid and gas stream,

respectively. ω, ρ ,ν ,α and D are the mass

concentration, density, kinematic viscosity,

thermal diffusivity and mass diffusivity of the

gas. ε and K is the porosity and permeability of

the porous medium, C is the flow inertia

parameter.

Nu

600

500

400

300

200

δ =0.001

0.002

0.005

0.01

0.02

100

0.2 0.4 0.6

ε

0.8 1

2

liquid

film

X = 0

X

Tw

air

Y

Tl

Ti a T

porous layer

Figure 1 Schematic diagram of the physical system

Sh

35

30

25

20

15

10

= 0.001

0.002

0.005

0.01

0.02

5

0.2 0.4 0.6

ε

0.8 1

(a) (b)

Figure 2 The coupled effects of porosity ε and thickness δ on the average (a) Nusselt and

(b)Sherwood numbers with Reg =50000 and φ=70%.

Speaker: JANG, J.-Y. 107 BAIL 2006

δ

✩

✪

V.D. LISEYKIN, Y.V. LIKHANOVA, D.V. PATRAKHIN, I.A. VASEVA: Application

of boundary layer-type functions to comprehensive grid generation codes

✬

✫

Liseykin V.D., Likhanova Yu.V, Patrakhin D.V., Vaseva I.A.

Application of boundary layer-type functions to comprehensive

grid generation codes

The paper presents recent results related to the development

of algorithms and codes for generating both structured and unstructured

grids with the use of operator Beltrami [1]. Control of

grid properties is realized by monitor metrics formulated with the

use of boundary layer-type functions. Formulas for the metrics

providing generation of grids adapting to vector fields, gradients,

and/or values of physical quantities are presented. Applications

of adaptive grids to fluid dynamics and plasma related problems

are demonstrated.

The work over the paper is supported by CRDF (RU-M1-

2579) and RFBR (06-01-00205) grants.

[1] V.D. Liseikin ”A Computaional Differential Geometry Approach to

Grid Generation”, 2004, Berlin, Springer.

Speaker: LISEYKIN, V.D. 108 BAIL 2006

1

✩

✪

G. LUBE: A stabilized finite element method with anisotropic mesh refinement for the

Oseen equations

✬

✫

Int. Conference on Boundary and Interior Layers


G. Lube, G. Rapin (Eds)

c○ University of Göttingen, Germany, 2006

A stabilized finite element method

with anisotropic mesh refinement for the Oseen problem

G. Lube

Institut für Numerische und Angewandte Mathematik,

Georg-August-Universität Göttingen,

Lotzestrasse 16-18, D-37083 Göttingen, Germany

lube@math.uni-goettingen.de

Nonstationary incompressible flow problems can be split into auxiliary problems of Oseen

type. We start with a quasi-optimal error estimate of Cea-type for conforming stabilized Galerkin

methods of SUPG/PSPG-type with equal-order interpolation of velocity/pressure on general

meshes. Then we present some new results for this class of methods on hybrid meshes with

structured anisotropic mesh refinement in boundary layers. The layer meshes are supposed to

be of tensor-product type. In particular, we prove a modified inf-sup condition with a constant

independent of the viscosity and of critical parameters of the mesh. Full proofs of the main

results can be found in [1].

Some numerical tests for a laminar and a turbulent channel flow problem confirm the theoretical

results. In Fig. 1, we show some results for the three-dimensional channel flow at Reτ = 395

using an improved statististical turbulence model based on the unsteady Reynolds averaged

Navier-Stokes model (URANS), the v 2 − f model by P. Durbin, see also [3]. The results are in

good agreement with the DNS data in [2] and partly better than those reported in [3].

Achnowledgement: This paper is based on joint work with Th. Apel (Neubiberg), T.

Knopp (DLR Göttingen) and R. Gritzki (TU Dresden).

References

[1] Apel, Th., Knopp, T., Lube, G.: Stabilized finite element methods with anisotropic mesh

refinement for the Oseen problem, submitted to Appl. Num. Math. 2006

[2] Kim, J., Moin, P., Moser, R.: Turbulence statistics in fully developed channel flow at low

Reynolds number, J. Fluid Mech. 177 (1987) 133–166.

[3] Laurence, L.R., Uribe, J.C., Utyuzhnikov, S.V.: A robust formulation of the v2 − f model,

J. Flow, Turbulence and Combustion 23 (2004) 169–185.

Speaker: LUBE, G. 109 BAIL 2006

1

✩

✪

G. LUBE: A stabilized finite element method with anisotropic mesh refinement for the

Oseen equations

✬

✫

30 ParallelNS

x Laurence

25

DNS

U +

20

15

10

5

0

10 -1

x x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

x x

x x

y +

10 0

10 1

10 2

0.35 ParallelNS

x Laurence

0.3

DNS

0.25

0.2

ε +

0.15

0.1

0.05

x

x

x

x xx xxx x x x x xx x x x

x

x

x

x

x

x

y +

x

x

x

10 3

x x x x

0

0 20 40 60 80 100

k +

v 2+

6 ParallelNS

x Laurence

5

DNS

4

3

2

1

x

x

x

x

x

xx x

x

x

x

x

x

x

x

x

x

x

x

x

x

x

y +

x

x

x

x

x

x

x x x

0 x

0 100 200 300 400

2 ParallelNS

x Laurence

DNS

1.5

1

0.5

x

x x x x

x x

x x

x

x

x

x

x

x x

x

x x

x

x x x x x

x

x

x

x

x xx

0

0 100 200 300 400

Figure 1: Plot of u + ,k + ,ǫ + ,(v 2 ) + vs. y + := yuτ

ν compared to DNS-data in [2] and results in [3]

Speaker: LUBE, G. 110 BAIL 2006

2

y +

✩

✪

H. LÜDEKE: Detached Eddy Simulation of Supersonic Shear Layer Wake Flows

✬

✫

Detached Eddy Simulation of Supersonic Shear Layer Wake Flows

Heinrich Lüdeke

∗ DLR Institute of Aerodynamics

and Flow Technology

Lilienthalplatz 7, D-38108 Braunschweig

e-mail: heinrich.luedeke@dlr.de

Tel. +49 (531) 295-3315

Key words: detached-eddy simulation, axisymmetric base flow, compressible wake, turbulent

separation

One challenge of numerical investigations of unsteady super- and hypersonic flow fields is the

study of the turbulent wake at complex vehicle configurations. A recent promising approach is the

technique of detached-eddy simulation (DES) proposed by Spalart et.al. Detached-eddy simulation

is a hybrid approach for the modelling of turbulent flow fields at complex geometries. The idea

is to combine the best features of both, the Reynolds-averaged Navier-Stokes (RANS) and the

large eddy simulation (LES) approach to predict massively separated unsteady flow fields at high

Reynolds-numbers especially in the wake of Re-entry vehicles during descent. In this study the

Spalart Allmaras one equation turbulence model is used as an accurate and efficient base for DES.

The intention of the current work is an investigation of the shear flow in the wake of a blunt

cylinder at M =2.4 at high Reynolds numbers. This is used as a basic configuration for re-entry

vehicles with a blunt base. The typical time averaged flow field for this configuration is shown

in fig. 1 with pressure contours and streamlines. The large turning angle behind the base causes

separation and a region of reverse flow as visible in the wake. The point at the axis of symmetrie

where the streamwise velocity is zero is considered to be the shear layer reattachment point. In

this region the flow is forced to turn along the axis of symmetry causing a reattachment shock

to be formed. The detailed experimental data base, provided by Herrin and Dutton [1], is used

for comparison of numerically predicted and measured data. The practical applicability of the

approach is demonstrated considering as example an axisymmetric re-entry capsule.

All simulations were carried out by the hybrid structured-unstructured DLR Tau code which

is extensively validated for sub- trans- and hypersonic cases [2]. For the axisymmetric cylinderconfiguration

structured and unstructured grids have been generated at different resolution of the

turbulent wake. They are designed with a similar resolution used by Forsythe and Sqires in [3].

Especially the near wake of the cylinder is refined extensively. The results have shown good grid

convergence for the cylinder cases for all averaged quantities, namely the velocity components and

the pressure, as well as for the diagonal elements of the Reynolds stress tensor and the resolved

turbulent kinetic energy in the free shear layer.

In the wake the turbulent kinetic energy and turbulent intensities in radial and streamwise

direction, computed by extracting the standard deviation of the velocitys over the time, was successffully

compared with the measurements. Furthermore the pressure level along the base was

compared with the experimental data of Herrin and Dutton [1]

Finally simulations of the SARA capsule, a facility conceived to be a recovery orbital platform

to perform orbital flights, are carried out to give a practical demonstratin of DES modelling for

hypersonic flight [4]. To ensure turbulent wake flow the trajectory point at M =5.1, Re =20· 106 was chosen. The influence of unsteady loads, generated by the turbulent wake flow was investigated

for this vehicle. A preliminary snapshot of the vorticity contours in the wake is shown in fig. 2.

1

Speaker: LÜDEKE, H. 111 BAIL 2006

✩

✪

H. LÜDEKE: Detached Eddy Simulation of Supersonic Shear Layer Wake Flows

✬

✫

References

[1] J.L. Herrin, J.C. Dutton: Supersonic Base flow Experiments in the Near Wake of aa Cylindrical

Afterbody. AIAA Journal, Vol 32, No. 1, January 1994.

[2] A. Mack, V. Hannemann: Validation of the unstructured DLR-TAU-Code for Hypersonic

Flows, AIAA 2002-3111, 2002.

[3] J.R. Forsythe, K.A. Hoffmann, K.D. Squires: Detached-Eddy Simulation with compressibility

Corrections Applied to a Supersonic Axisymmetric Base Flow. AIAA 02-0586, 2002.

[4] Alessandro La Neve, Flávio de Azevedo Corrêa Junior: SARA Experiment Module Project:

Using Skills to Enlarge Experiences. International conference on Engineering Education,

Manchester, U.K., August 18-21, 2002

Expansion Waves

Separation Bubble

Reattachment Shock

cp: -0.18 -0.14 -0.10 -0.07 -0.03 0.01 0.05

Figure 1: Flow topology and Cp contours of

the axisymmetric cylinder wake at M∞ =2.4,

Re =1.4 · 10 6 .

vorticity: 1600 2106 2773 3650 4804 6325 8326 10960 14427 18991 25000

Figure 2: Instantanious vorticity contours in the

SARA wake at M∞ =5.1, Re =20· 10 6 .

Speaker: LÜDEKE, H. 112 BAIL 2006

2

✩

✪

K. MANSOUR: Boundary Layer Solution For laminar flow through a Loosely curved

Pipe by Using Stokes Expansion

✬

✫

Boundary Layer Solution For laminar flow through a

Loosely curved Pipe by Using Stokes Expansion

By Kamyar Mansour

Department of Aerospace Engineering and New Technologies Research Center

Amir Kabir University of Technology

Tehran, Iran, 15875-4413

mansour@aut.ac.ir

And

Flow Research and Engineering

P.O. Box # 20543 Palo Alto, CA, 94309

Keywords: Curved pipe, high Dean Number

We consider fully developed steady laminar flow through a toroidal pipe of small curvature ratios

.The solution is expanded up to 40 terms by computer in powers of Dean Number. The major

conclusion of this investigation is that the friction ratio in a loosely coiled pipe grows

asymptotically as the 1/4 power of the similarity parameter and not as the 1/2 power as previously

deduced from boundary-layer analysis. This work confirmed the results obtained by [1]. The goal

of this analysis is to provide as complete a description as possible of the flow. The analysis

yields a solution for all values of Reynolds number from zero to infinity in a continuous fashion

The paradox concerns the discrepancy between the solution obtained using the extended Stokes

series method [1] and that obtained using boundary layer techniques [2],[3],[4],[5],[6]and

experimental work of [7],[8],[9],[10]and numerical work of [11]for the ratio of the friction factors

in coiled tubes to that in straight one in steady, fully developed laminar flow. . In the ensuing

debates several papers of[12],[13].[14],[15],[16].[17],[18].[19],[20],[21],[22],[23] various

explanations and new evidence have been given; however, the paradox , the resolution of which

is important still remain as a open problem

The author in [20] raise the possibility of cause of this paradox is the use of only 24 terms to

estimate the asymptotic limit obtained by [1]. In this paper we extend the Stokes series from 24

terms used by [1] to 40 terms. We confirm the major result of the friction ratio in a loosely coiled

pipe grows asymptotically as the 1/4 power of the similarity parameter and not as the 1/2 power

and that confirm the result of [1].

What is particularly important in problems of this type is the presence of analyticity. Not every

stokes expansion, for examples that of the flow past sphere as described by the full Navier-Stokes

equation are analytic in Reynolds number. In this case, method of matched asymptotic expansions

is required and can be automated

An alternative explanation of the departure of the experiments from our curve might be that for

more tightly coiled pipes the steady laminar flow is succeeded not by turbulent flow, but by an

intermediate regime of unsteady laminar motion, with higher friction. Taylor [25] expressed the

possibility that there may exist an intermediate flow regime between the laminar and turbulent

ranges. He observed a transition from a steady laminar flow to a laminar vibrating flow as the

speed increased. The onset of turbulence accrued only at a significantly higher speed.

The effect of diameter ratios a/L on the relation between the friction factor and the Dean

number has been investigated numerically by [16] and is found to be negligibly small. They

concluded the friction factor ratio is relatively insensitive to the diameter ratios at a given Dean

number. However in 1988 [18] for corresponding curved pipe problem tried to make experiment

to match the series extension, would have to satisfy that is the flow be fully developed at high

Dean number namely bigger than 500 and laminar as well as a/L less than .03. But his result adds

another mystery to this paradox and they obtained data, which lay closer to the present method. In

Speaker: MANSOUR, K. 113 BAIL 2006

✩

✪

K. MANSOUR: Boundary Layer Solution For laminar flow through a Loosely curved

Pipe by Using Stokes Expansion

✬

✫

this paper we have shown that what proposed by [20] as the cause of the discrepancy lies in the

use of the only first 12 terms for corresponding curved problem is not correct. In this work we

increase number of terms from 12 in [1] to 20 and still the major conclusion of the discrepancy

between the solution obtained using the extended stoke series method and that obtained using

other method persist as it was the case for the rotating pipe[26].

REFERENCES

[1] Van Dyke, M. 1978 Extended stokes series: laminar flow through a loosely coiled pipe. J.Fluid

Mech.,86, 129-145

[2] Adler,M.”Flow in curved tubes” Z.Angew.Math.1934 Mech.,14,257

[3]Barua,S.N. 1963 On secondary flow in stationary curved pipes. Quart. J. Mech. Appl. Maths. 26. 61-77

[4] Mori, Y. & Nakayama, W. 1965 study on forced convective heat transfer in curved pipes (1 st report,

laminar region). Intl. J. of Heat Mass Transfer 8, 67-82

[5] Ito, H., 1969 Laminar Flow in curved pipes Z. agnew. Math. Mech. 11. 653-663

[6] Smith, F. T. 1976 Steady motion within a curved pipe. Proc. Roy. Soc. A 347, 345-370

[7] White, C. M. 1929 Streamline flow through curved pipes. Proc. Roy. Soc. A 123, 845-663.

[8] Hasson,D. 1955 “Streamline flow resistence in coils. Research 8(1) supplement p.S1

[9] Trefethen, L. 1957b Flow in rotating radial ducts: report R55GL 350 on laminar flow in rotating,

heated horizontal, and bent tubes, extended into transition and turbulent regions. Gen. Elec. Co.

Rep. 55GL350-A.

[10] Ito, H.,1959 Friction factors for turbulent flow in curved pipes.Trans.ASMEJ.BasicEngng.81,123-134

[11] Collins, W. M. &Dennis, S. C. R. 1975 The steady motion of a viscous fluid in a curved tube.

Quart. J. Mech. Appl. Maths. 28, 133-156.

[12] Dennis, S.C.R. 1980 “Calculation of the steady flow through a curved tube using a new finite

difference method. J.Fluid. Mech.,99, 449-467

[13] Dennis, S.C.R. &Ng,M.C. 1982 “Dual solution for steady laminar flow through a curved tube.Q.J.

Mech. Appl. Maths 35,305-324

[14] Nandakumar, K. & Masliyah, J. H. 1982 Bifurcation in steady laminar flow through curved tubes.J.

Fluid Mech. 119,475-490

[15] Mansour, K. 1985 Laminar flow through a slowly rotating straight pipe. J. Fluid Mech. 150, 1-24.

[16] Soh,W.Y.&Berger,S.A. 1987 “fully developed flow in a curved pipe of arbitrary

curvature ratio.Intl J. Numer.Mech. Fluids 7,733

[17] Winters,K.H. 1987 A bifurcation study of laminar flow in a curved

tube of rectangular cross-section. J. Fluid Mech. 180, 343-369

[18] Ramshankar, R. & Sreenvasan, K. R. 1988 A paradox concerning the extended Stokes series solution

for the pressure drop in coiled pipes. Phys. Fluids, 1339-1347.

[19] Van Dyke, M. 1989 some paradoxes in viscous flow theory. “Some unanswered question in fluid

mechanics “ (ed. L. M. Trefethan & R. L. Panton).Appl. Mech. Rev. 43, 153-170

[20] S. Jayanti & G.F. Hewitt. "On the paradox concerning friction factor ratio in laminar flow in coils",

Proc. R. Soc. Lond. A (1991) 432, 291-299

[21] Mansour, K. 1993 Using Stokes Expansion For Natural Convection inside a two-dimensional cavity.

Fluid Dynamics Research, 1-33

[22 ] Dennis,S.C.R. and Riley,N. 1993 ”On the fully developed flow in a curved pipe

at large Dean number” Proc. Roy. Soc. A.434, 473-478

[23] Ishigaki, H. "Analogy between laminar flows in curved pipes and orthogonal rotating pipes". J. Fluid

Mech. (1994), vol.268, pp. 133-145

[24] Dean, W.R. 1927 Note on the motion of fluid in a curved pipe. Phil.Mag. (7) 4,208-223

[25] Taylor, G.I. 1929 The criterion for turbulence in curved piped. Proc. R. Soc. Lond. A 124, 243-249.

[26] Mansour, K. 2002 Boundary layer solution using Stokes expansion for Laminar flow through a slow-

rotating pipe, Proceedings of BAIL 2002 ,An international conference on boundary and interior layers

computational & Asymptotic methods, Perth, Western Australia.

Speaker: MANSOUR, K. 114 BAIL 2006

✩

✪

G. MATTHIES, L. TOBISKA: Mass conservation of finite element methods for coupled

flow-transport problems

✬

✫

Mass conservation of finite element methods for coupled flow-transport

problems

Gunar Matthies 1 and Lutz Tobiska 2

1 Fakultät für Mathematik, Ruhr-Universität Bochum

2 Institut für Analysis und Numerik, Otto-von-Guericke-Universität Magdeburg

We consider a coupled flow-transport problem in a bounded domain Ω ⊂ R d , d = 2,3. The

system is described by the instationary, incompressible Navier–Stokes equations

and the time-dependent transport equation

ut − ν△u + (u · ∇)u + ∇p = f in Ω × (0,T],

div u = 0 in Ω × (0,T],

u = ub on ∂Ω × (0,T],

u(0) = u 0

in Ω,

ct − ε△c + u · ∇c = g in Ω × (0,T],

(cu − ε∇c) · n = cI u · n on Γ− × (0,T],

ε∇c · n = 0 on Γ+ × (0,T],

c(0) = c 0

in Ω.

Here, u and p denote the velocity and the pressure of the fluid, respectively, ν and ε are small

positive numbers, c is the concentration, cI the concentration at the inflow boundary Γ− :=

{x ∈ ∂Ω : u · n < 0}, and Γ+ := ∂Ω \ Γ−. We assume that ub is the restriction of a divergence

free function onto the boundary ∂Ω. Note that the velocity u from the Navier–Stokes equations

enters the transport equation as a convection field.

Due to incompressibility constraint, the weak solution c of (2) satisfies the global mass

conservation property

� � � �

d

cdx + cIu · ndγ + cu · ndγ = g dx. (3)

dt Ω Γ−

Γ+

Ω

It is well-known [1], that the finite element solutions satisfy in general the incompressibility

constraint and the global mass conservation property (3) only approximately.

Different discretisation methods [2, 3, 4] for the instationary, incompressible Navier–Stokes

equations and stabilised schemes for the transport problem like SDFEM will be studied numerically.

References

[1] C. Dawson, S. Sun, M. F. Wheeler, Compatible algorithms for coupled flow and transport.

Comput. Methods Appl. Mech. Engrg., 193, 2565–2580 (2004).

[2] G. Matthies, L. Tobiska, The inf-sup condition for the mapped Qk/P disc

k−1 element in arbitrary

space dimensions. Computing, 69, 119–139 (2002).

[3] G. Matthies, L. Tobiska, Inf-sup stable non-conforming finite elements of arbitrary order

on triangles. Numer. Math., 102, 293–309 (2005).

[4] G. Matthies, Inf-sup stable nonconforming finite elements of higher order on quadrilaterals

and hexahedra. Bericht Nr. 373, Fakultät für Mathematik, Ruhr-Universität Bochum

(2005).

Speaker: MATTHIES, G. 115 BAIL 2006

1

(1)

(2)

✩

✪

J. MAUSS, J. COUSTEIX: Global Interactive Boundary Layer (GIBL) for a Channel

✬

✫

Global Interactive Boundary Layer (GIBL) for a Channel

J. Mauss ♦ and J. Cousteix ♣

♦ IMFT and UPS, 118 route de Narbonne, 31062 Toulouse Cedex - France

Phone: 05 61 55 67 94 - mauss@cict.fr

♣ ONERA and SUPAERO, 2 av. É. Belin, 31055 Toulouse Cedex - France

Phone: 05 62 25 25 80 - Jean.Cousteix@onecert.fr

We consider a laminar, steady, two-dimensional flow of an incompressible Newtonian fluid

in a channel at high Reynolds number. When the walls are slightly deformed, adverse pressure

gradients are generated and separation can occur. The analysis of the flow structure has been

done essentially by Smith [4]. Later, a systematic asymptotic analysis has been performed by

Saintlos and Mauss [3]. With the Successive Complementary Expansion Method, SCEM, we

assume a uniformly valid approximation (UVA) based on generalised expansions. This method,

developed by Cousteix and Mauss [1], has been used by Dechaume et al. [2].

Navier-Stokes dimensionless equations can be written

div −→ V =0, (grad −→ V ) · −→ V = − grad Π+ 1

Re △ −→ V . (1)

The basic plane Poiseuille flow is

v (x) = u0 = y − y 2 , v (y) =0, Π=Π0 = − 2x

Re + p0 . (2)

The flow is perturbed, for instance, by indentations of the lower and upper walls such as

yl = εF (x, ε) , yu =1− εG(x, ε) , (3)

where ε is a small parameter. If we seek a solution in the form

v (x) = u0(y)+εu(x, y, ε) , v (y) = εv(x, y, ε) , Π − p0 = − 2x

the Navier-Stokes equations become

+ εp(x, y, ε) ,

Re

(4)

∂u ∂v

+ = 0 , (5a)

∂x ∂y

�

ε u ∂u

�

�

∂u ∂u du0 ∂p 1 ∂2u + v + u0 + v = − +

∂x ∂y ∂x dy ∂x Re ∂x2 + ∂2u ∂y2 �

, (5b)

�

ε u ∂v

�

�

∂v ∂v

1 ∂2v + v + u0 = −∂p +

∂x ∂y ∂x ∂y Re ∂x2 + ∂2v ∂y2 �

. (5c)

It is clear that, for high Reynolds numbers, the reduced equations are of first order leading

to a singular perturbation. In the core flow, we are looking for approximations coming from

asymptotic generalised expansions such as

u = u1(x, y, ε)+··· , v = v1(x, y, ε)+··· , p = p1(x, y, ε)+··· . (6)

Formally, neglecting terms of order O(ε, 1/Re) , for the core flow, we obtain

∂u1

∂x

+ ∂v1

∂y

∂u1 du0

u0 + v1

∂x dy

∂v1

u0

∂x

1

= 0 , (7a)

= −∂p1

∂x

= −∂p1

∂y

, (7b)

. (7c)

Speaker: MAUSS, J. 116 BAIL 2006

✩

✪

J. MAUSS, J. COUSTEIX: Global Interactive Boundary Layer (GIBL) for a Channel

✬

✫

It is very interesting to observe the singular behaviour of the solution of (7a–7c) as we

approach the boundaries. For instance, when y → 0, we have

u1 = −2p10 ln y + c10 + ··· ,

where p10 and c10 are functions of x and ε.

The generalised asymptotic expansions for the velocity are given by

v (x) = u0(y)+εu(x, y, ε)+··· , v (y) = εv(x, y, ε)+··· . (8)

Using the SCEM, the problem consists of solving the continuity equation together with the

momentum equation

∂u ∂v

+ = 0 , (9a)

∂x ∂y

�

ε u ∂u

�

∂u ∂u du0

+ v + u0 + v = −∂p1

∂x ∂y ∂x dy ∂x + ε3 ∂2u . (9b)

∂y2 But, now, we have to solve simultaneously (9a–9b) and the core equations (7a–7c). The same

form as Prandtl’s equations is recovered if we let

∂Π

U = u0 + εu , V = εv ,

∂x = −2ε3 + ε ∂p1

, (10)

∂x

leading to

U ∂U ∂U

+ V = −∂Π

∂x ∂y ∂x + ε3 ∂2U . (11)

∂y2 The boundary conditions are now U = V = 0 on the walls. As four conditions must be satisfied,

it is clear that the pressure gradient must be adjusted in order to ensure the global mass flow

conservation in the channel. Calculations have been performed with a simplified model coming

from the triple deck theory. An example is given in Fig. 1 which gives the evolution of the skinfriction

coefficient along the lower and upper walls of a channel whose lower wall is deformed.

References

Cf

upper

wall

0,0

2 Re

lower

wall

1.2

1.0

0.8

0.6

0.4

0.2

R =10 3

x/L

-5 -4 -3 -2 -1 0 1 2 3 4 5

Figure 1: Application of GIBL in a channel whose lower wall is deformed

[1] J. Cousteix and J. Mauss. Approximations of the Navier-Stokes equations for high Reynolds

number flows past a solid wall. Jour. Comp. and Appl. Math., 166(1):101–122, 2004.

[2] A. Dechaume, J. Cousteix, and J. Mauss. An interactive boundary layer model compared to

the triple deck theory. Eur. J. of Mechanics B/Fluids, 24:439–447, 2005.

[3] S. Saintlos and J. Mauss. Asymptotic modelling for separating boundary layers in a channel.

Int. J. Engng. Sci., 34(2):201–211, 1996.

[4] F.T. Smith. On the high Reynolds number theory of laminar flows. IMA J. Appl. Math.,

28(3):207–281, 1982.

Speaker: MAUSS, J. 117 BAIL 2006

2

✩

✪

O. MIERKA, D. KUZMIN: On the implementation of turbulence models in incompressible

flow solvers based on a finite element discretization

✬

✫

On the implementation of turbulence models in incompressible



O. Mierka and D. Kuzmin

Institute of Applied Mathematics (LS III), University of Dortmund

Vogelpothsweg 87, D-44227, Dortmund, Germany

omierka@math.uni-dortmund.de

kuzmin@math.uni-dortmund.de

The numerical implementation of turbulence models involves many algorithmic components

all of which may have a decisive influence on the quality of simulation results. In particular,

a positivity-preserving discretization of the troublesome convective terms and nonlinear

sources/sinks is an important prerequisite for the robustness of the numerical algorithm. This

paper presents a detailed numerical study of several eddy viscosity models implemented in the

open-source software package FeatFlow (http://www.featflow.de) using algebraic flux correction

to enforce the positivity constraint. The underlying finite element discretization and

iterative solution techniques are presented and relevant algorithmic details are revealed.

2. Algebraic flux correction schemes

The design of high-resolution finite element schemes for numerical simulation of turbulent incompressible

flows on the basis of eddy viscosity models is addressed. A robust positivity-preserving

algorithm is developed building on the algebraic flux correction paradigm for scalar transport

problems [1]. It is explained how to get rid of nonphysical oscillations in the vicinity of steep

gradients and to remove excessive artificial diffusion in regions where the solution is sufficiently

smooth. To this end, the discrete operators resulting from a standard Galerkin discretization

of convective terms are modified so as to enforce the desired matrix properies without violating

mass conservation.

3. Implementation of eddy viscosity models

The developed algebraic flux correction techniques are applied to high Reynolds number flows

that can be described by the incompressible Navier-Stokes equations coupled with an eddy

viscosity model of turbulence. A global Multilevel Pressure Schur Complement (discrete projection)

method is employed to enforce the incompressibility constraint at the discrete level [2].

The turbulent eddy viscosity is introduced in several different ways using

• the RANS approach as represented by various modifications of the k − ε model;

• Large Eddy Simulation (LES) with explicit and implicit subgrid scale modelling.

In particular, the advantages of Monotonically Integrated LES algorithms as compared to explicit

subgrid scale models of Smagorinsky type are explored. The implementation of the standard k−ε

model is based on a block-iterative algorithm featuring a positivity-preserving representation of

sink terms [2]. The main highlight of the present paper is a unified solution strategy for strongly

coupled PDE systems which result from 2D/3D finite element discretizations of RANS and

LES models on unstructured meshes. Special emphasis is laid on the near wall treatment and

Speaker: MIERKA, O. 118 BAIL 2006

1

✩

✪

O. MIERKA, D. KUZMIN: On the implementation of turbulence models in incompressible


✬

✫

implementation of initial/boundary conditions. A set of representative benchmark problems is

employed to evaluate the performance of the turbulence models under consideration as applied

to incompressible flows at high Reynolds numbers.

4. Numerical examples

The first example deals with a 3D simulation of the turbulent incompressible flow past a backward

facing step (Re = 44,000) using the standard k −ε model with logarithmic wall functions.

The numerical solutions displayed in Figure 1 are in a good agreement with those published in

the literature [3].

Figure 1: Backward facing step simulation results (Re = 44,000). Contour lines of a),b) -

turbulent kinetic energy; c),d) - turbulent eddy viscosity. a),c) - reference solution [3].

A preliminary code validation for Chien’s low-Reynolds number modification was performed

for a simple channel flow at Re = 13,750 and compared with Kim’s [4] DNS data in Figure 2.

Numerical experiments using both versions of the k −ε model as well as Large Eddy Simulation

with explicit and implicit subgrid scale modelling are currently under way. The results of an

in-depth comparative study will be reported at the Conference.

Figure 2: Channel flow simulation results (Re = 13,750) compared with reference data [4].

References

[1] D. Kuzmin and M. Möller, Algebraic flux correction I. Scalar conservation laws. In: D.

Kuzmin, R. Löhner and S. Turek (eds.) Flux-Corrected Transport: Principles, Algorithms,

and Applications. Springer, 2005, 155-206.

[2] S. Turek and D. Kuzmin, Algebraic flux correction III. Incompressible flow problems. In: D.

Kuzmin, R. Löhner and S. Turek (eds.) Flux-Corrected Transport: Principles, Algorithms,

and Applications. Springer, 2005, 251-296.

[3] F. Ilinca, J.-F. Hétu and D. Pelletier, A Unified Finite Element Algorithm for Two-Equation

Models of Turbulence. Comp. & Fluids 27-3 (1998) 291–310.

[4] J. Kim, P. Moin and R. D. Moser, Turbulence statistics in fully developed channel flow at

low Reynolds number. J. Fluid Mech. 177 (1987) 133–166.

2

Speaker: MIERKA, O. 119 BAIL 2006

✩

✪

K. MORINISHI: Rarefied Gas Boundary Layer Predicted with Continuum and Kinetic

Approaches

✬

✫

Ê�Ö�¬�� × �ÓÙÒ��ÖÝ Ä�Ý�Ö

ÈÖ�� Ø�� Û�Ø� �ÓÒØ�ÒÙÙÑ �Ò� Ã�Ò�Ø� �ÔÔÖÓ� ��×

ÃÓ�� ÅÓÖ�Ò�×��

��Ô�ÖØÑ�ÒØ Ó� Å� ��Ò� �Ð �Ò� ËÝ×Ø�Ñ �Ò��Ò��Ö�Ò�

ÃÝÓØÓ ÁÒ×Ø�ØÙØ� Ó� Ì� �ÒÓÐÓ�Ý

Å�Ø×Ù��×�� Ë��ÝÓ �Ù ÃÝÓØÓ � � �� Â�Ô�Ò

Ì�Ä� � ��

� Ñ��Ð� ÑÓÖ�Ò�×� ��Ø � �Ô

ÆÙÑ�Ö� �Ð ×�ÑÙÐ�Ø�ÓÒ Ó� ÐÓÛ ×Ô��×ÓÛ× ��ÓÙØ Ñ� ÖÓ ��Ú� �× �× ÓÒ� Ó� Ø�� Ö� �ÒØ Ò�Û

�ÖÓÒØ��Ö× Ó� ÓÑÔÙØ�Ø�ÓÒ�Ð Ù�� ÝÒ�Ñ� × �� ÁØ Ñ�Ý ÔÖÓÚ��× �××�ÒØ��Ð ÙÒ��Ö×Ø�Ò��Ò� ��ÓÙØ

Ø�� Ù�� Ú�ÓÖ �ÖÓÙÒ� Ñ� ÖÓ �Ð� ØÖÓ Ñ� ��Ò� �Ð ×Ý×Ø�Ñ× Å�ÅË Ë�Ò � Ø�� ÓÛ× ��ÓÙØ Ø��

Ñ� ÖÓ ��Ú� �× �Ù×Ø Ö�Ò�� ÖÓÑ ×Ð�Ô ØÓ ØÖ�Ò×�Ø�ÓÒ�Ð ÓÛ Ö��Ñ�× ÒÙÑ�Ö� �Ð Ñ�Ø�Ó�× ��×�� ÓÒ Ø��

�ÓÐØÞÑ�ÒÒ �ÕÙ�Ø�ÓÒ ÓÖ Ø�� Æ�Ú��Ö ËØÓ��× �ÕÙ�Ø�ÓÒ× ×Ù�� Ø ØÓ Ú�ÐÓ �ØÝ ×Ð�Ô �Ò� Ø�ÑÔ�Ö�ØÙÖ�

�ÙÑÔ �ÓÙÒ��ÖÝ ÓÒ��Ø�ÓÒ× ÑÙ×Ø �� Ù×�� Ì��× Ô�Ô�Ö ��× Ö��× Ø�� ÓÑÔ�Ö�×ÓÒ Ó� Ú�ÐÓ �ØÝ

�Ò� Ø�ÑÔ�Ö�ØÙÖ� ��×ØÖ��ÙØ�ÓÒ �Ò Ø�� Ö�Ö�¬�� × �ÓÙÒ��ÖÝ Ð�Ý�Ö ÔÖ�� Ø�� Û�Ø� ×Ù �ÒÙÑ�Ö� �Ð

Ñ�Ø�Ó�×

Ì�� Ö� Ø ×�ÑÙÐ�Ø�ÓÒ ÅÓÒØ� ��ÖÐÓ �ËÅ� Ñ�Ø�Ó� � ℄ Û�� × Û��ÐÝ ��Ò Ù×�� ÓÖ

×�ÑÙÐ�Ø�Ò� �� ×Ô�� Ö�Ö�¬�� ÓÛ× �� ÓÑ�× � ÔÓÓÖ ×�ÑÙÐ�Ø�ÓÒ ØÓÓÐ �ÓÖ Ø�� ÐÓÛ ×Ô��ÓÛ×

��ÓÙØ Ñ� ÖÓ ��Ú� �× �� Ù×� �Ù�� ×�ÑÔÐ� ×�Þ� �× Ö�ÕÙ�Ö�� ØÓ Ö��Ù � Ø�� ×Ø�Ø�×Ø� �Ð × �ØØ�Ö Ó�

Ø�� ËÅ� Ñ�Ø�Ó� ØÓ � Ð�Ú�Ð Ó� Ø�� ×Ñ�ÐÐ ��Ò��× Ó� ÓÛ ÕÙ�ÒØ�Ø��× �Ò Ø�� ÐÓÛ ×Ô��ÓÛ× � ℄

Ì�� Ñ�Ø�Ó� ��×�� ÓÒ � ��Ò�Ø� ÑÓ��Ð �ÓÐØÞÑ�ÒÒ �ÕÙ�Ø�ÓÒ � ℄ �× �Ö�� ÖÓÑ Ø�� ×Ø�Ø�×Ø� �Ð

× �ØØ�Ö �Ò� �× ��¬Ò�Ø�ÐÝ ×ÙÔ�Ö�ÓÖ ØÓ Ø�� ËÅ� Ñ�Ø�Ó� �ÓÖ Ø�� ÐÓÛ ×Ô�� ÓÛ× Ì��×� ��Ò�Ø�

Ñ�Ø�Ó�× �Ò �� ÔÔÐ�� ØÓ ×Ð�Ô �Ò� ØÖ�Ò×�Ø�ÓÒ�Ð Ö��Ñ� ÓÛ×

Ì�� Æ�Ú��Ö ËØÓ��× Ñ�Ø�Ó�× Ñ�Ý ÔÖ�� Ø ÓÛ× �Ò Ø�� ×Ð�Ô Ö��Ñ� �� Ø�� Ú�ÐÓ �ØÝ ×Ð�Ô �Ò�

Ø�ÑÔ�Ö�ØÙÖ� �ÙÑÔ �ÓÙÒ��ÖÝ ÓÒ��Ø�ÓÒ× �Ö� �ÒØÖÓ�Ù �� Ì�� ÓÒ��Ø�ÓÒ× Ñ�Ý �� ÛÖ�ØØ�Ò �×�

Ù × ÙÛ � �Ú ÃÒ

�Ú �

� Ô ÌÛ Ì × Ì Û � � Ø

� Ø





Ù

Ò �

ÃÒ

Ö � ÃÒ �

�

ÈÖ � Ô ÌÛ Û��Ö� Ò �Ò� × ��ÒÓØ� Ø�� ÒÓÖÑ�Ð �Ò� Ø�Ò��ÒØ��Ð ��Ö� Ø�ÓÒ× ØÓ Ø�� ×ÙÖ�� Ö�×Ô� Ø�Ú�ÐÝ ÃÒ �× Ø��

ÃÒÙ�×�Ò ÒÙÑ��Ö �Ò� �× Ø�� Ö�Ø�Ó Ó� ×Ô� �¬ ��Ø× Ì�� ÑÓÑ�ÒØÙÑ � ÓÑÑÓ��Ø�ÓÒ Ó�Æ ��ÒØ

� Ú �Ò� Ø�� Ò�Ö�Ý � ÓÑÑÓ��Ø�ÓÒ Ó�Æ ��ÒØ � Ø �Ö� ×�Ø ØÓ ÙÒ�ØÝ �Ò �ÐÐ Ø�� ÓÑÔÙØ�Ø�ÓÒ ÔÖ�×�ÒØ��

��Ö�

�ÐØ�ÓÙ�� ÔÔÐ� ��Ð�ØÝ Ó� Ø�� Æ�Ú��Ö ËØÓ��× Ñ�Ø�Ó�× ØÓ Ø�� ÓÛ× �Ò Ø�� ØÖ�Ò×�Ø�ÓÒ�Ð Ö��Ñ�

�× ÙÒ �ÖØ��Ò Ø�� Æ�Ú��Ö ËØÓ��× Ñ�Ø�Ó�× �Ö� ÓÑÔÙØ�Ø�Ò�ÐÐÝ ×�Ú�Ö�Ð ÓÖ��Ö× Ó� Ñ��Ò�ØÙ�� ÑÓÖ�

�Ò�ÜÔ�Ò×�Ú� Ø��Ò Ø�� Ò�Ø� Ñ�Ø�Ó�× Ì�Ù× �Ø �× ��ÖÐÝ Ñ��Ò�Ò��ÙÐ ØÓ ÓÑÔ�Ö� Ø�� ÔÖ�� Ø�ÓÒ Ó�

Ø�� Æ�Ú��Ö ËØÓ��× Ñ�Ø�Ó�× Û�Ø� Ø��Ø Ó� Ø�� Ò�Ø� Ñ�Ø�Ó�×

Ë�Ú�Ö�Ð ÒÙÑ�Ö� �Ð �ÜÔ�Ö�Ñ�ÒØ× �Ö� ÔÖ�Ð�Ñ�Ò�ÖÝ �ÖÖ�� ÓÙØ �ÓÖ ×Ù�×ÓÒ� �Ò� ×ÙÔ�Ö×ÓÒ� ÓÛ×

�Ò Ø�� ×Ð�Ô �Ò� ØÖ�Ò×�Ø�ÓÒ�Ð Ö��Ñ�× �ÓÖ �Ò �Ü�ÑÔÐ� �� ×�ÓÛ× Ø�� ÓÑÔ�Ö�×ÓÒ Ó� Ø��

Ú�ÐÓ �ØÝ ��×ØÖ��ÙØ�ÓÒ Ò��Ö � ÐÓÛ�Ö Û�ÐÐ Ó� � ÔÐ�Ò� �ÓÙ�ØØ� ÓÛ Ì�� ÃÒÙ�×�Ò ÒÙÑ��Ö ��×�� ÓÒ

Ø�� ÒÒ�Ð ��Ø �× � �Ò� Ø�� Å� �ÒÙÑ��Ö ��×�� ÓÒ Ø�� Ú�ÐÓ �ØÝ Ó� Ø�� ÙÔÔ�Ö Û�ÐÐ �× �

Ì�� Æ�Ú��Ö ËØÓ��× ÔÖ�� Ø�ÓÒ Û�ÐÐ Ó�Ò �� Û�Ø� Ø�� Ò�Ø� ÔÖ�� Ø�ÓÒ �Ò Ø�� ÙÐ� ÓÛ Ö��ÓÒ

Û��Ð� Ø�� ÔÖ�� Ø�ÓÒ ��Ú��Ø�× �ÖÓÑ Ø�� Ò�Ø� ÔÖ�� Ø�ÓÒ �Ò Ø�� ÃÒÙ�×�Ò Ð�Ý�Ö

Ì�� ×� ÓÒ� �Ü�ÑÔÐ� �× � ×ÙÔ�Ö×ÓÒ� ÓÛ ÓÚ�Ö � �Ö ÙÐ�Ö ÝÐ�Ò��Ö �Ø � �Ö�� ×ØÖ��Ñ Å� �ÒÙÑ

��Ö Ó� � �Ò� � ÃÒÙ�×�Ò ÒÙÑ��ÖÓ� � ��ÙÖ�× �Ò� ×�ÓÛ Ø�� ÓÑÔ�Ö�×ÓÒ Ó� Ø�Ò��ÒØ��Ð

Ú�ÐÓ �ØÝ ��×ØÖ��ÙØ�ÓÒ �ÐÓÒ� Ø�� ÒÓÖÑ�Ð Ð�Ò�× �ÖÓÑ Ø�� ÝÐ�Ò��Ö ×ÙÖ�� Ø � � �� Ò��

Ö�×Ô� Ø�Ú�ÐÝ Ì��Æ�Ú��Ö ËØÓ��× ÔÖ�� Ø�ÓÒ �× �Ò �ÓÓ� ��Ö��Ñ�ÒØ Û�Ø� Ø�� Ò�Ø� ÔÖ�� Ø�ÓÒ× �Ø

Speaker: MORINISHI, K. 120 BAIL 2006

Ì

Ò

�Ì Û

Ì

×

✩

✪

K. MORINISHI: Rarefied Gas Boundary Layer Predicted with Continuum and Kinetic

Approaches

✬

y

__

H

0.20

0.15

0.10

0.05

Mw=0.2 , Kn=0.1

Kinetic

DSMC

NS-Slip

0.00

0.00 0.05 0.10

u / Uw

0.15 0.20

��ÙÖ� � �ÓÑÔ�Ö�×ÓÒ Ó� Ø�� Ú�ÐÓ �ØÝ ��×ØÖ�

�ÙØ�ÓÒ �ÓÖ � ÔÐ�Ò� �ÓÙ�ØØ� ÓÛ

y

__

D

1.00

0.75

0.50

0.25

q = 90

Kinetic

DSMC

NS-Slip

0.00

0.0 0.2 0.4

u / U

0.6 0.8

��ÙÖ� � �ÓÑÔ�Ö�×ÓÒ Ó� Ø�Ò��ÒØ��Ð Ú�ÐÓ �ØÝ

��×ØÖ��ÙØ�ÓÒ �Ø � � ��

y

__

D

1.00

0.75

0.50

0.25

q = 45

Kinetic

DSMC

NS-Slip

0.00

0.0 0.2 0.4

u / U

0.6 0.8

��ÙÖ� � �ÓÑÔ�Ö�×ÓÒ Ó� Ø�Ò��ÒØ��Ð Ú�ÐÓ �ØÝ

��×ØÖ��ÙØ�ÓÒ �Ø � � ��

Kinetic

NS-Slip

2.0

2.0

��ÙÖ� �� ÓÑÔ�Ö�×ÓÒ Ó� Ø�ÑÔ�Ö�ØÙÖ� ÓÒ

ØÓÙÖ×

� � �� Û��Ð� ×ÓÑ� ��× Ö�Ô�Ò Ý �× Ó�×�ÖÚ�� Ø � � �� ÙÖ� � ÔÐÓØØ�� Ø�� Ø�ÑÔ�Ö�ØÙÖ�

ÓÒØÓÙÖ× �ÖÓÙÒ� Ø�� Ö ÙÐ�Ö ÝÐ�Ò��Ö Ì�� Ö�×ÙÐØ× Ó� Ø�� Æ�Ú��Ö ËØÓ��× �ÕÙ�Ø�ÓÒ× Û�Ø� Ø�� Ú�

ÐÓ �ØÝ ×Ð�Ô �Ò� Ø�ÑÔ�Ö�ØÙÖ� �ÙÑÔ �ÓÙÒ��ÖÝ ÓÒ��Ø�ÓÒ× Û�ÐÐ ��Ö�� Û�Ø� Ø�Ó×� Ó� Ø�� Ò�Ø� ÑÓ��Ð

�ÓÐØÞÑ�ÒÒ �ÕÙ�Ø�ÓÒ �Ò Ø�� ÖÓÒØ Ö��ÓÒ �Ò ÐÙ��Ò� Ø�� ÔÓ×�Ø�ÓÒ Ó� �ÓÛ ×�Ó � Û��Ð� ��× Ö�Ô�Ò Ý

�× Ó�×�ÖÚ�� Ò Ø�� Û�� Ì�� Ò×�ØÝ �Ò Ø�� Û�� ×ÐÓÛ�Ö Ø��Ò Ø�� Ö�� ×ØÖ��Ñ ��Ò×�ØÝ Ì��×

Ð�Ö�� Ö�Ö�� Ø�ÓÒ �«� Ø Ð��× Ø�� Æ�Ú��Ö ËØÓ��× �ÕÙ�Ø�ÓÒ× ØÓ ��Ð ØÓ ÔÖ�� Ø Ø�� Û�� ÓÛ ¬�Ð�

�ÙÐÐ ��× Ö�ÔØ�ÓÒ Ó� Ø�� ÒÙÑ�Ö� �Ð Ñ�Ø�Ó�× �Ò� �ÙÖØ��Ö ÒÙÑ�Ö� �Ð Ö�×ÙÐØ× ��ÓÙØ ×Ù�×ÓÒ� �Ò�

×ÙÔ�Ö×ÓÒ� ÓÛ× �Ò ×Ð�Ô �Ò� ØÖ�Ò×�Ø�ÓÒ�Ð Ö��Ñ�× Û�ÐÐ �� ÔÖ�×�ÒØ�� Ò Ø�� ¬Ò�Ð Ô�Ô�Ö

✫

Ê��Ö�Ò �×

� ℄ ��Ö� � � ÅÓÐ� ÙÐ�Ö ��× �ÝÒ�Ñ� × ÇÜ�ÓÖ� ÍÒ�Ú�Ö×�ØÝ ÈÖ�×× ��

� ℄ ��Ò Â �ÓÝ� Á � �Ò� �� È �ÓÑÔÙØ�Ø�ÓÒ Ó� Ê�Ö�¬�� × �ÐÓÛ× �ÖÓÙÒ� � Æ��

��Ö�Ó�Ð �Á�� ÂÓÙÖÒ�Ð � � � � � �

� ℄ ÅÓÖ�Ò�×�� Ã �Ò� Ç�Ù �� À � �ÓÑÔÙØ�Ø�ÓÒ�Ð Å�Ø�Ó� �Ò� ÁØ× �ÔÔÐ� �Ø�ÓÒ ØÓ �Ò�ÐÝ×�×

Ó� Ê�Ö�¬�� × �ÐÓÛ× ÈÖÓ �Ø� ÁÒØ�ÖÒ�Ø�ÓÒ�Ð ËÝÑÔÓ×�ÙÑ ÓÒ Ê�Ö�¬�� × �ÝÒ�Ñ� ×

ÍÒ�Ú�Ö×�ØÝ Ó�ÌÓ�ÝÓ ÈÖ�×× ��

Speaker: MORINISHI, K. 121 BAIL 2006

1.6

1.6

2.0

1.2

1.2

1.6

1.6

1.2

1.2

✩

✪

A. NASTASE: Qualitative Analysis of the Navier-Stokes Solutions in Vicinity of their

Critical Lines

✬

✫

QUALITATIVE ANALYSIS OF NAVIER-STOKES SOLUTIONS

IN VICINITY OF THEIR CRITICAL LINES

by Adriana Nastase

Aerodynamik des Fluges, RWTH-Aachen, Germany

Fax: 0049/241/809-2173, E-Mail: nastase@lafaero.rwth-aachen.de

Own developed, zonal, spectral solutions for the compressible stationary

Navier-Stokes layer (NSL) over flattened flying configurations (FCs), are here

proposed. A new spectral coordinate η was introduced in the NSL :

η = x3 − Z(x1, x2)

(0 ≤ η ≤ 1) (1)

δ(x1, x2)

and the dimensionless axial, lateral and vertical velocities uδ, vδ and wδ, the

density function R = lnρ and the absolute temperature T on the upper NSL

(which is here only considered) are expressed in the following spectral forms,

as in [1], [2], namely :

N�

ui η i

N�

vi η i

N�

wi η i

,

uδ = ue

i=1

, vδ = ve

i=1

N�

R = Rw + (Re − Rw)

i=1

ri η i

, wδ = we

i=1

N�

, T = Tw + (Te − Tw)

i=1

ti η i

. (2a-e)

Hereby ue, ve, we, Re and Te are the edge values, which can be obtained

from the outer potential flow, Rw and Tw are the given values of R and T on

the wall of the FC and ui, vi, wi, ri and ti are the unknown spectral coefficients

of the velocity’s components, which are used to fulfill the partial differential

equations (PDEs) of the NSL. The first and the second derivatives of the velocity’s

components uδ, vδ, wδ are linear functions versus the spectral coefficients

ui, vi, wi of the velocity’s components.

The impulse equations of the NSL, which are PDEs of second order, are

now considered. If the spectral forms of the velocity’s components uδ, vδ and

wδ are used, the impulse equations are reduced to three equivalent quadratical

algebraic equations (QAEs) with slightly variable coefficients, versus the spectral

coefficients ui, vi and wi, as in [1], [2]. In these equations the free terms

are proportional to the gradients of the pressure p in the direction of the axis

of coordinates O xi and, therefore, these terms have greater variations than

the other coefficients of these equations. The influence of the variation of free

terms and of one of coefficients of the linear term of the QAE over the existence

of real values of the spectral coefficients and the performing of the qualitative

analysis of the asymptotical behaviours of the three-dimensional PDEs of the

compressible NSLs in the vicinity of their singular points and lines, are treated

here by using the qualitative analysis of the equivalent QAEs.

The visualizations of asymptotical behaviours of these equivalent QAEs are

made in a here introduced ”Euclidian M-orthogonal space of the NSL’s free

spectral coefficients”, which are here treated as variables.

Further the assumption is made that all QAEs of the same type (elliptical

Speaker: NASTASE, A. 122 BAIL 2006

✩

✪

A. NASTASE: Qualitative Analysis of the Navier-Stokes Solutions in Vicinity of their

Critical Lines

✬

✫

or hyperbolical), of the same size (same space dimension M), with the same

number of positive eigenvalues, for which the free terms a are varied from

−∞ to +∞ and all the other coefficients are maintained constant, have, in the

vicinity of their singular points, qualitatively, similar asymptotical behaviours.

The visualizations of the asymptotical behaviours of elliptical and hyperbolical

QAEs with variable coefficients, are made versus their principal coordinates.

Their critical points and lines are obtained by cancelling of their great

determinants ∆i.

The visualization of elliptical QAEs with variable free coefficients is represented,

in two-dimensional cuts, in form of coaxial ellipses, which collapse, if

the free term a is equal to the critical value ac , which is located in the common

center C of the coaxial ellipses. If a < ac , the visualization of the elliptical

QAEs in two-dimensional cuts are coaxial ellipses, which all approach the critical

point a = ac , when the free term increases. If a = ac , the elliptical QAEs

collapse in this critical point (black point). If a > ac , the elliptical QAEs have

no more real solutions and the spectral velocity’s components are partially or

totally imaginary for each value of M.

The visualization of the hyperbolical QAEs in the vicinity of their critical

point (b = bc) is totally different. If their free coefficients b < bc , the

two-dimensional cuts are coaxial hyperbolas with two branches (for M = 2),

which approach their common asymptotes, if b increases. Up M ≥ 3 break

and rebreak of hyperhyperboloids occur. The two-dimensional cuts in hyperboloids

(M = 3) or hyperhyperboloids (M > 3) are coaxial hyperbolas

with two sheets or coaxial ellipses, because the hyperboloids and hyperhyperboloids

can be with one or two sheets. If b = bc , the two-dimensional cuts in

the hyperhyperboloids degenerate in their asymptotical lines. If b > bc , the

two-dimensional cuts are coaxial hyperbolas with two sheets, which are jumping

in the opposite double angles of their asymptotical lines or coaxial ellipses,

which are approaching their critical point, located in their common center.

The asymptotical behaviours of the elliptical and hyperbolical QAEs with

variable values of the coefficients of their free terms and of one of their linear

terms in the vicinity of their critical parabolas are also very different.

The elliptical QAEs (for M = 2) are visualized in form of coaxial ellipses,

which collapse in each point of their critical parabola and, inside this parabola,

there are no more real solutions. A black parabolic hole occurs.

The hyperbolic QAEs (for M = 2) degenerate in their asymptotes, in each

point of their critical parabola. By crossing of this parabola, the hyperbolas

approach their asymptotes in one of their double angles and, after jumping,

they are going away from these asymptotes.

The collapse points and lines of the elliptical QAE are useful for the determination

of the position of detachment lines and for the beginning of transition.

The saddle points and lines of the hyperbolical QAE are useful for the determination

of the position of characteristic and shock surfaces and for the

bifurcation.

REFERENCES

1. NASTASE, A., New Zonal, Spectral Solutions for the Navier-Stokes Partial Differential

Equations, Proc. of the International Conference on Boundary and

Interior Layers, ONERA Toulouse, 2004, France.

2. NASTASE, A., Zonal, Spectral Solutions for Navier-Stokes Layer and Applications,

4th European Congress on Computational Methods in Applied Sciences

and Engineering (ECCOMAS), Jyvskyl, 2004, Finland.

Speaker: NASTASE, A. 123 BAIL 2006

✩

✪

F. NATAF, G. RAPIN: Application of the Smith Factorization to Domain Decomposition

Methods for the Stokes equations

✬

✫

Application of the Smith Factorization to Domain

Decomposition Methods for the Stokes Equations

FRÉDÉRIC NATAF, GERD RAPIN

Laboratoire J. L. Lions, Université Pierre et Marie Curie, 75252 Paris Cedex 05,

France; nataf@ann.jussieu.fr

Math. Dep., NAM, University of Göttingen, D-37083, Germany;

grapin@math.uni-goettingen.de

In this talk the Smith factorization is used systematically to derive a new domain decomposition

method for the Stokes problem. In two dimensions the key idea is the

transformation of the Stokes problem into a scalar bi-harmonic problem. We show,

how a proposed domain decomposition method for the bi-harmonic problem leads to

a domain decomposition method for the Stokes equations which inherits the convergence

behavior of the scalar problem. Thus, it is sufficient to study the convergence of

the scalar algorithm. The same procedure can also be applied to the three dimensional

Stokes problem.

As transmission conditions for the resulting domain decomposition method of the

Stokes problem we obtain natural boundary conditions. Therefore it can be implemented

easily.

A Fourier analysis and some numerical experiments show very fast convergence of

the proposed algorithm. Our algorithm shows a more robust behavior than Neumann-

Neumann or FETI type methods.

The last decade has shown, that Neumann-Neumann type algorithms, FETI, and

BDDC methods are very efficient domain decomposition methods. Most of the early

theoretical and numerical work has been carried out for scalar symmetric positive definite

second order problems, see for example [8, 5]. Then, the method was extended

to different other problems, like the advection-diffusion equations [1], plate and shell

problems [12] or the Stokes equations [10, 11].

In the literature one can also find other preconditioners for the Schur complement

of the Stokes equations (cf. [11, 2]). A more complete list of domain decomposition

methods for the Stokes equations can be found in [10, 13]. Also FETI [6] and BDDC

methods [7] have been applied to the Stokes problem with success.

Our work is motivated by the fact that in some sense the domain decomposition

methods for Stokes are less optimal than the domain decompoition methods for scalar

problems. Indeed, in the case of two subdomains consisting of the two half planes it

is well known, that the Neumann-Neumann preconditioner is an exact preconditioner

for the Schur complement equation for scalar equations like the Laplace problem (cf.

[8]). A preconditioner is called exact, if the preconditioned operator simplifies to the

identity. Unfortunately, this does not hold in the vector case. It is shown in [9] that the

standard Neumann-Neumann preconditioner for the Stokes equations does not possess

this property.

Our aim in this talk is the construction of a method, which preserves this property.

Thus, one can expect a very fast convergence for such an algorithm. And indeed, the

numerical results clearly support our approach. In this talk the ideas of [4] are extended

Speaker: RAPIN, G. 124 BAIL 2006

1

✩

✪

F. NATAF, G. RAPIN: Application of the Smith Factorization to Domain Decomposition

Methods for the Stokes equations

✬

✫

in several directions. We also give some hints how this approach can be applied to the

Oseen equations. For an application to the compressible Euler equations see [3].

References

[1] Y. Achdou, P. Le Tallec, F. Nataf, and M. Vidrascu. A domain decomposition

preconditioner for an advection-diffusion problem. Comput. Methods Appl. Mech.

Engrg, 184:145–170, 2000.

[2] M. Ainsworth and S. Sherwin. Domain decomposition preconditioners for p and

hp finite element approximations of Stokes equations. Comput. Methods Appl.

Mech. Engrg., 175:243–266, 1999.

[3] V. Dolean and F. Nataf. A New Domain Decomposition Method for the Compressible

Euler Equations. M 2 AN, 2005. accepted.

[4] V. Dolean, F. Nataf, and G. Rapin. New constructions of domain decomposition

methods for systems of PDEs. C.R. Acad. Sci. Paris, Ser I, 340:693–696, 2005.

[5] Ch. Farhat and F.-X. Roux. A Method of Finite Element Tearing and Interconnecting

and its Parallel Solution Algorithm. Internat. J. Numer. Methods Engrg.,

32:1205–1227, 1991.

[6] J. Li. A Dual-Primal FETI method for incompressible Stokes equations. Numer.

Math., 102:257–275, 2005.

[7] J. Li and O. Widlund. BDDC algorithms for incompressible Stokes equations,

2006. submitted.

[8] J. Mandel. Balancing domain decomposition. Comm. on Applied Numerical

Methods, 9:233–241, 1992.

[9] F. Nataf and G. Rapin. Construction of a New Domain Decomposition Method

for the Stokes Equations, 2005. Submitted to the Proceedings of DD16.

[10] L.F. Pavarino and O.B. Widlund. Balancing neumann-neumann methods for incompressible

stokes equations. Comm. Pure Appl. Math., 55:302–335, 2002.

[11] P . Le Tallec and A. Patra. Non-overlapping domain decomposition methods for

adaptive hp approximations of the Stokes problem with discontinuous pressure

fields. Comput. Methods Appl. Mech. Engrg., 145:361–379, 1997.

[12] P. Le Tallec, J. Mandel, and M. Vidrascu. A Neumann-Neumann Domain Decomposition

Algorithm for Solving Plate and Shell Problems. SIAM J. Numer.

Anal., 35:836–867, 1998.

[13] A. Toselli and O. Widlund. Domain Decomposition Methods - Algorithms and

Theory. Springer, Berlin-Heidelberg, 2005.

Speaker: RAPIN, G. 125 BAIL 2006

2

✩

✪

N. NEUSS: Numerical approximation of boundary layers for rough boundaries

✬

✫

Numerical approximation of boundary layers

for rough boundaries

N. Neuss

April 5, 2006

In physical problems, interesting phenomena often occur at boundaries or

interfaces between different media. Often these phenomena are complicated

due to the nature of the process or due to the intricate geometry of the

interface. Therefore, they are usually described by effective boundary or

interface laws.

In this talk we will discuss some instructive cases in a quasi-periodic

setting, where the constants in those effective conditions can be calculated

from the microscopic setting.

First, we consider the Poisson problem

−∆u ε = f, x ∈ Ω ε

u ε = 0, x ∈ ∂Ω ε

where Ω ε is a domain with a boundary ∂Ω ε featuring a micro-structure of size

ε. A good approximation to u ε is given by the solution u eff to the problem

−∆u eff = f, x ∈ Ω

u eff = c(x) ∂ueff

∂n

, x ∈ ∂Ω

where Ω is an approximating domain with smooth boundary ∂Ω and the

function c : ∂Ω → R can be computed solving auxiliary problems taking into

account the fine-scale structure of ∂Ω ε , see [?].

Similarly, solving the Navier-Stokes equation in such a domain Ω ε can be

replaced by solving it on Ω with a Navier boundary condition. Related to this

is the Beavers-Joseph problem, where one can derive an effective interface

law for a rough interface between free flow and porous medium flow, see [?].

Speaker: NEUSS, N. 126 BAIL 2006

1

✩

✪

N. NEUSS: Numerical approximation of boundary layers for rough boundaries

✬

✫

Finally, the same idea can be used to obtain effective boundary conditions

for numerical approximations Ωh of arbitrary domains Ω. This allows us to

obtain good O(h 2 ) approximation errors although the domain Ωh only needs

to approximate Ω up to order O(h).

References

[1] W. Jäger, A. Mikelić, N. Neuss: Asymptotic Analysis of the Laminar

Viscous Flow Over a Porous Bed. SIAM J. Sci. Comp. 22,6, pp. 2006-

2028 (2001).

[2] N. Neuss, M. Neuss-Radu, A. Mikelić: Effective Laws for the Poisson

Equation on Domains with Curved Oscillating Boundaries. To appear in

Applicable Analysis.

Speaker: NEUSS, N. 127 BAIL 2006

2

✩

✪

M.A. OLSHANSKII: An Augmented Lagrangian based solver for the low-viscosity

incompressible flows

✬

✫

An Augmented Lagrangian based solver for the low-viscosity


Maxim A. Olshanskii ∗

We describe an effective solver for the finite element discretization of the Oseen problem

−ν∆u + (w · ∇) u + ∇p = f in Ω (1)

div u = 0 in Ω (2)

u = g on ∂Ω (3)

with a known, divergence-free vector function w. Discretization of (1)–(3) using LBB-stable

finite elements is based on the following stabilized finite element formulation

L(uh, ph; vh, qh) + �

στ (−ν∆uh + w·∇uh + ∇ph − f, w·∇vh)τ

with

τ∈Th

= (f, vh) ∀ vh ∈ Vh, qh ∈ Qh (4)

L(u, p; v, q) = ν(∇u, ∇v) + ((w · ∇) u, v) − (p, div v) + (q, div u)

and a suitable choice of the stabilization parameters στ . With certain assumptions finding FE

solution results in solving the linear system of the form

� � � � � �

A BT u f

= . (5)

B O p 0

Linear systems of the form (5) are often referred to as generalized saddle point systems. In

recent years, a great deal of effort has been invested in solving systems of this form. Most of

the work has been aimed at developing effective preconditioning techniques; see [1, 3] for an

extensive survey. In spite of these efforts, there is still considerable interest in preconditioning

techniques that are truly robust, i.e., techniques which result in convergence rates that are

largely independent of problem parameters such as mesh size and viscosity. In this paper we

describe a promising approach based on an augmented Lagrangian formulation [4]:

� A + γB T W −1 B B T

B O

� � u

p

with a positive-definite matrix W and parameter γ > 0. The system (6) has precisely the same

solution as the original one (5). Rather than treating (5), a block-triangular preconditioner is

constructed for solving (6) with a Krylov subspace iterative method.

The success of this method crucially depends on the availability of a robust multigrid solver

for the (1,1) block (submatrix) in (6); we develop such a method by building on previous work

by Schöberl [5], together with appropriate smoothers for convection-dominated flows. This

multigrid iteration will be used to define a block preconditioner for the outer iteration on the

∗ Department of Mechanics and Mathematics, Moscow State M. V. Lomonosov University, Moscow 119899,

Russia (Maxim.Olshanskii@mtu-net.ru). The work was supported in part by the Russian Foundation for Basic

Research and the Netherlands Organization for Scientific Research grants NWO-RFBR 047.016.008

Speaker: OLSHANSKII, M.A. 128 BAIL 2006

1

�

=

� f

0

�

(6)

✩

✪

M.A. OLSHANSKII: An Augmented Lagrangian based solver for the low-viscosity


✬

✫

coupled saddle point system. We will show that this approach is especially appropriate for

discretizations based on discontinuous pressure approximations, but can be used to construct

preconditioners for other discretizations using continuous pressures. As an example of finite

element (FE) method with discontinuous pressures we will use the isoP2-P0 pair. In this case,

our numerical experiments demonstrate a robust behavior of the solver with respect to h and

ν for some typical wind vector functions w in (1). Further, the isoP2-P1 finite element pair

is used for the continuous pressure-based approximation. For this case numerical experiments

show an h-independent convergence rates with mild dependence on ν, when the viscosity becomes

very small. We note that this approach does not require a sophisticated preconditioner for the

pressure Schur complement of (5) or (6).

Some spectral estimates for the preconditioned problem are shown; basic components for

building appropriate multigrid method are discussed. The role of parameter γ in (6) is addressed.

We also present a comparison with one of the best available preconditioning techniques and

coupled multigrid methods (Vanka multigrid), showing that our method is quite competitive in

terms of convergence rates, robustness, and efficiency. Finally we discuss that using SUPG type

stabilization in finite element formulation (4) is vital not only for capturing effects of unresolved

subscales in solution to (1)–(3), thus improving accuracy of the discrete solution, but also for

developing robust and effective iterative methods.

This presentation is based on the collaborative research with M.Benzi [2].

References

[1] M. Benzi, G. H. Golub and J. Liesen, Numerical solution of saddle point problems, Acta

Numerica, 14 (2005), pp. 1–137.

[2] M. Benzi, M.A. Olshanskii, An augmented lagrangian-based approach to the Oseen problem,

(submitted), available at www.mathcs.emory.edu/~molshan

[3] H. C. Elman, D. J. Silvester and A. J. Wathen, Finite Elements and Fast Iterative Solvers:

with Applications in Incompressible Fluid Dynamics, Numerical Mathematics and Scientific

Computation, Oxford University Press, Oxford, UK, 2005.

[4] M. Fortin and R. Glowinski, Augmented Lagrangian Methods: Applications to the Numerical

Solution of Boundary-Value Problems, Studies in Mathematics and its Applications,

Vol. 15, North-Holland, Amsterdam/New York/Oxford, 1983.

[5] J. Schöberl, Multigrid methods for a parameter dependent problem in primal variables,

Numer. Math., 84 (1999), pp. 97–119.

2

Speaker: OLSHANSKII, M.A. 129 BAIL 2006

✩

✪

N. PARUMASUR, J. BANASIAK, J.M. KOZAKIEWICZ: Numerical and Asymptotic

Analysis of Singularly Perturbed PDEs of Kinetic Theory

✬

✫

Numerical and Asymptotic Analysis of Singularly Perturbed PDEs of

Kinetic Theory

N. Parumasur, J. Banasiak and J.M. Kozakiewicz

University of KwaZulu-Natal, Durban, 4041, South Africa parumasurn1@ukzn.ac.za

We consider the numerical solution of various equations occurring in kinetic theory. The

numerical algorithm is applied in conjuction with a modified asymptotic procedure. Various

mathematical derivations and numerical algorithms are provided for the following singularly

perturbed models of kinetic theory

∂tu + Au + Su + 1

Cu = 0 (1)

ε

where u is the particle distribution, ∂t is the time derivative and the operators A , S , and C

describe attenuation, streaming and collisions of particles, respectively. We begin by outlining

the features of a modified asymptotic method [2, 1] which is quite useful when solving (1).

Let P be a bounded operator in the Banach space X having zero as its simple isolated

eigenvalue and the corresponding eigenspace V . Then X can be expressed as a direct sum

X = V ⊕ W, where both V and W are invariant subspaces of the operator C and C is one-to-one

from W onto itself. Let P be the spectral projection associated with the eigenvalue λ = 0 so

that

V = PX, W = QX,

where Q = I − P is the complementary projection. We use a projection method [2] to write (1)

as a system of evolution equations in subspaces V and W . Applying the projections P and Q

on both sides of (1), successively, we obtain

with the initial conditions

∂tv = P(A + S)Pv + P(A + S)Qw

ε∂tw = εQ(A + S)Qw + εQ(S + A)Pv + QCQw, (2)

v(0) = o v, w(0) = o w,

where o v = P o u, o w = Q o u. Taking into account that the projected operators PSP, PAQ and

QAP vanish for most types of linear equations we obtain the following form of (2)

∂tv = PAPv + PSQw

ε∂tw = εQSPv + εQSQw + εQAQw + QCQw (3)

v(0) = o v, w(0) = o w,

Next we apply the modified asymptotic approach to (3). We represent the solution of (3) as a

sum of the bulk and the initial layer parts:

v(t) = ¯v(t) + ˜v(τ), w(t) = ¯w(t) + ˜w(τ), (4)

where the variable τ in the initial layer part is given by τ = t/ε. The bulk solution will be

considered as a function of ρ of order zero and the function ¯w (N) will be assumed to be of the

form

¯w (N) N�

(t) = ε n Wnρ(t), (5)

Speaker: PARUMASUR, N. 130 BAIL 2006

n=0

1

✩

✪

N. PARUMASUR, J. BANASIAK, J.M. KOZAKIEWICZ: Numerical and Asymptotic

Analysis of Singularly Perturbed PDEs of Kinetic Theory

✬

✫

where the superscript N indicates the order of the approximation and W are time-independent

bounded linear operators from V to W . Substituting this expansion into the first equation in

(3) yields

N�

∂tρ = PAPρ + ε n PSQ(Wnρ). (6)

n=0

Expressing the time derivative ∂tρ in (6) in powers of ε and comparing terms of the same power

in ε yields at first order

W0 = 0, W1 = −(QCQ) −1 QSP. (7)

The operator W1 can be evaluated since QCQ is invertible on the subspace W. Using (7) in (6)

gives the equation

∂tρ = PAPρ − εPSQ(QCQ) −1 QSPρ. (8)

A similar procedure yields the initial layer terms

and the initial condition for (8)

˜v0(τ) ≡ 0, ˜v1(τ) = PSQ(QCQ) −1 e τQCQ o w,

¯v(0) = o v −εPSQ(QCQ) −1 o w . (9)

We apply the procedure to a wide range of problems of kinetic theory.

References

[1] J. Banasiak, J. Kozakiewicz, N. Parumasur, Diffusion Approximation of Linear Kinetic

Equations with Non-equilibrium Data – Computational Experiments, Transport Theory

Statist. Phys. (accepted).

[2] J. R. Mika, New asymptotic expansion algorithm for singularly perturbed evolution equations,

Math. Methods Appl. Sci. 3 (1981) 172-188.

2

Speaker: PARUMASUR, N. 131 BAIL 2006

✩

✪

B. RASUO: On Boundary Layer Control in Two-Dimensional Transonic Wind Tunnels

✬

✫

Speaker: RASUO, B. 132 BAIL 2006

✩

✪

B. RASUO: On Boundary Layer Control in Two-Dimensional Transonic Wind Tunnels

✬

✫

Speaker: RASUO, B. 133 BAIL 2006

✩

✪

H.-G. ROOS: A Comparison of Stabilization Methods for Convection-Diffusion-

Reaction Problems on Layer-Adapted Meshes

✬

✫

A Comparison of Stabilization Methods for Convection-Diffusion-Reaction

Problems on Layer-Adapted Meshes

Hans-G. Roos, TU Dresden

The use of layer adapted meshes allows to prove robust convergence results of Galerkin finite element

methods for convection-diffusion-reaction problems. However, the robust solution of the generated

discrete problems which are in general nonsymmetric is a nontrivial task.

The situation improves if one uses some stabilization. But the question is: which of all the existing

stabilization techniques is optimal?

Speaker: ROOS, H.-G. 134 BAIL 2006

✩

✪

H.-G. ROOS, H. ZARIN: Discontinuous Galerkin stabilization for convectiondiffusion

problems

✬

✫

Discontinuous Galerkin stabilization for convection–diffusion

problems

Hans–Görg Roos

Institut für Numerische Mathematik, Technische Universität Dresden,

Germany

Helena Zarin

Department of Mathematics and Informatics, University of Novi Sad,

Serbia and Montenegro

Abstract. A convection–diffusion problem with Dirichlet boundary conditions

posed on a unit square is considered. The problem is discretized using a combination

of standard Galerkin FEM and h–version of the nonsymmetric discontinuous

Galerkin FEM with interior penalties on a layer–adapted mesh. With

specially chosen penalty parameters for edges from the coarse part of the mesh,

we prove uniform convergence (in the perturbation parameter) in an associated

norm. Numerical tests support our theoretical results.

References

[1] Roos, H.–G., Zarin, H., The discontinuous Galerkin method for singularly

perturbed problems. Numerical Mathematics and Advanced Applications

(eds. M. Feistauer et al.), Proceedings of the ENUMATH Conference 2003

(Prague, August 18-22, 2003), Springer Verlag, 2004, pp. 736–745

[2] Zarin, H., Roos, H.–G., Interior penalty discontinuous approximations of

convection–diffusion problems with parabolic layers. Numerische Mathematik,

100(4), 2005, pp. 735–759

1

Speaker: ZARIN, H. 135 BAIL 2006

✩

✪

B. SCHEICHL, A. KLUWICK: On Turbulent Marginal Separation: How the Logarithmic

Law of the Wall is Superseded by the Half-Power Law

✬

✫

Abstract submitted to the Local Organization Committee of the BAIL 2006 Conference 1

On Turbulent Marginal Separation: How the Logarithmic Law of the Wall is

Superseded by the Half-Power Law ∗

B. Scheichl and A. Kluwick

Institute of Fluid Mechanics and Heat Transfer

Vienna University of Technology

Resselgasse 3/E322, A-1040 Vienna, Austria

bernhard.scheichl@tuwien.ac.at

1. The Asymptotic Theory of Marginally Separating Turbulent Boundary Layers

A novel rational theory of the incompressible nominally steady and two-dimensional turbulent

boundary layer (TBL) along a smooth and impermeable surface and exposed to an adverse

pressure gradient, which is impressed by the prescribed external potential free-stream flow, has

been developed recently by the authors. This asymptotic flow description exploits the Reynoldsaveraged

Navier–Stokes equations by taking the limit Re→∞ where Re denotes a Reynolds

number formed by using a global length and velocity scale characteristic for the external bulk

flow. In the following all quantities are non-dimensional with that global reference scales.

The so-called classical theory, see for instance [1], is capable of describing a strictly attached

TBL only as it employs the assumption of an asymptotically small streamwise velocity defect

with respect to the external flow in the fully turbulent main part of the TBL. The new theory,

however, is an extension of the classical approach insofar as it is essentially based only on the

hypothesis that the turbulent time-mean motion is governed locally by a single velocity scale. As

an important consequence, by taking a streamwise velocity deficit of O(1), which is a necessary

characteristic of flows that may even undergo marginal separation, the boundary layer thickness

ismeasuredbyasmallparameterdenotedby αwhichisseentobeindependentof Re as Re→∞.

It then can be shown that in the primary limit α→0, Re −1 = 0 the TBL is represented by a

two-tiered wake-type flow; remarkably, it thus closely resembles a turbulent free shear layer. The

description of the outer main layer is addressed in [2]. There it is demonstrated analytically and

numerically by adopting a local viscous/inviscid interaction strategy that in the primary limit

considered marginal separation is associated with the occurrence of closed reverse-flow regions

where the surface slip velocity Us, which is a quantity of O(1) in general, assumes negative

values along a streamwise distance of O(α 3/5 ). Here we add that the overall slip velocity at the

base of the whole wake region comprising both layers is written as us = Us + O(α 3/4 ), where

the perturbations reflect the effect of the inner wake having a thickness of O(α 3/2 ).

2. The Near-Wall Flow Regime for Finite Values of Re

It is the main purpose of our contribution to rigorously elucidate how high but finite values of

Re affect the near-wall flow regime in order to provide a rational basis for the calculation of the

wall shear stress, in particular immediately up- and downstream of separation and reattachment.

We note that the investigation of the latter flow situation is not only a challenge to settle an,

for the time being, unsolved problem in turbulent boundary layer theory, which has attracted

many researchers in the past, but also of basic engineering relevance, as none of the presently

adopted turbulence models are applicable when the wall shear stress changes sign.

In Figure 1 the resulting four-layer TBL structure is depicted where the case of the oncoming

firmly attached flow chosen. We start the analysis by focusing on the viscous wall layer adjacent

∗ This research is granted by the Austrian Science Fund (FWF) under project no. P 16555-N12.

Speaker: SCHEICHL, B. 136 BAIL 2006

✩

✪

B. SCHEICHL, A. KLUWICK: On Turbulent Marginal Separation: How the Logarithmic

Law of the Wall is Superseded by the Half-Power Law

✬

PSfrag replacements

✫

Abstract submitted to the Local Organization Committee of the BAIL 2006 Conference 2

y

OW

y∼ δ = O(α)

y

u∼us

IW α u∼Us

IL VWL

3/2 u = O(√y) u/uτ ∼ κ−1 lny

u

Figure 1: Asymptotic splitting and streamwise velocity

component u of the initially attached turbulent boundary

layer with thickness δ, which evolves along the surface

given by y = 0. The notations OW, IW, IL, and

VWL mark the outer and the inner wake, the intermediate

and the viscous wall layer, respectively. The

asymptotic relationships are explained in the text.

to the surface where convective terms are negligibly small and Reynolds stresses have the same

magnitude as the molecular shear stress. Let y and τw denote, respectively, the coordinate

perpendicular to the surface and the wall shear stress. As far as low-order results and the

attached case τw > 0 are concerned, the asymptotic description of the wall layer turns out to be

fully analogous to that in the classical theory. That is, sufficiently far from the positions where

τw vanishes the streamwise velocity component u is expanded in the usual manner according to

u/uτ ∼ u + 0 (y+ )+··· , sgn(τw)uτ =|τw| 1/2 = (|∂u/∂y|y=0/Re) 1/2 , y + = y|uτ|Re = O(1). (1)

Most important, the hypothesis stated above is seen to require the celebrated logarithmic

match with the fully turbulent flow regime on top of the viscous wall layer,

u + 0 ∼ A± −1 lny + + B±, A± > 0, y + →∞. (2)

Here the subscripts + and−denote the cases τw > 0 and τw < 0, respectively. Therefore, A+

equals the v. Kármán constant, and the values of B± shall refer to a perfectly smooth surface.

Note that for separated flows (τw < 0) an asymptotic behavior akin to (2) was already proposed

in [3] on semi-empirical grounds. Moreover, the velocity components u in the wall layer and the

intermediate layer of thickness τw, see Figure 1, match provided that the skin friction law

uτ/us∼ A±ɛ+O(ɛ 2 ), ɛ = 1/ln|u 3 τRe|→0, Re→∞, (3)

holds. This relationship between uτ and the aforementioned slip velocity us represents a generalization

of the well-known classical result which, in principle, is included in (3).

Let η = y/u 2 τ = O(1) be the coordinate characteristic for the intermediate layer. The match

of u with the inner wake reveals a half-power law, u/uτ = O( √ η) for η→∞. Such a behavior

is believed to hold also on top of the viscous wall layer of a separating TBL. On the other

hand, the viscous wall and the intermediate layer collapse and, in turn, (3) ceases to be valid

when us/uτ = O(1), that is, for us = O(Re −1/3 ). As a highlight of the asymptotic analysis, it is

pointed out how that merge of the near-wall layers generates a new strongly viscosity-affected

flow regime near the locations where τw = 0. There (1) is replaced by the appropriate expansion

u/up∼ u × 0 (p× ,y × )+··· , p × = (up/uτ) 3 , up = (px/Re) 1/3 , y × = yupRe = O(1). (4)

Herein the local value px = O(1) of the leading-order streamwise pressure gradient enters the

velocity scale up. Finally, then the generalized logarithmic law (2) is gradually transformed into

References

u × 0 ∼ C(p× ) � y × + D(p × ), C(p × ) > 0, D(p × )∼us/up = O(1), y × →∞. (5)

[1] G.L. Mellor, “The Large Reynolds Number, Asymptotic Theory of Turbulent Boundary Layers” J. Engn

Sci., 10, 851–873 (1972).

[2] B. Scheichl and A. Kluwick, “Turbulent Marginal Separation and the Turbulent Goldstein Problem”, AIAA

paper 2005-4936 (2005), also AIAA J. (submitted in extended form).

[3] R.L.Simpson, “AModelfortheBackflowMeanVelocityProfile”, TechnicalNote, AIAA J., 21(1), 142–143

(1983).

Speaker: SCHEICHL, B. 137 BAIL 2006

✩

✪

O. SHISHKINA, C. WAGNER: Boundary and Interior Layers in Turbulent Thermal

Convection

✬

✫

Boundary and Interior Layers in Turbulent Thermal Convection ∗


O. Shishkina & C. Wagner

DLR - Institute for Aerodynamics and Flow Technology,

Bunsenstrasse 10, 37073 Göttingen, Germany

Olga.Shishkina@dlr.de, Claus.Wagner@dlr.de

Numerous scientifical problems and industrial applications require solutions of the Rayleigh-

Bénard problem, i.e. turbulent convection of fluids heated from below and cooled from above,

with the Rayleigh number (Ra) from 10 5 up to 10 20 . For a review on this classical problem and

for the references to earlier literature we refer to the paper Ahlers, Grossmann and Lohse [1].

Since the diffusion coefficient in the Navier-Stokes equation, which is inversely proportional to

the square root of Ra, is very small, the solution - both the temperature and the velocity fields -

have very thin boundary layers near the horizontal walls. For moderate Rayleigh numbers (from

10 5 up to 10 8 ) interior layers, i.e. thermal plumes, are also observed. The boundary layers, the

thermal plumes and the turbulent background are indicated, respectively, by high, moderate and

small values of the temperature gradient norm and, hence, by large, moderate and small values

of the thermal dissipation rate. By means of direct numerical simulations (DNS) we invesigate

boundary and interior layers which take place in turbulent Rayleigh-Bénard convection.

2. Governing equations and the numerical method

The governing dimensionless equations for the Rayleigh-Bénard problem in Boussinesq approximation

can be written in cylindrical coordinates (z, r, ϕ) as follows

ut + u · ∇u + ∇p = Γ −3/2 Ra −1/2 P r 1/2 ∇ 2 u + T z, (1)

Tt + u · ∇T = Γ −3/2 Ra −1/2 P r −1/2 ∇ 2 T, (2)

∇ · u = 0, (3)

where u is the velocity vector, T the temperature, ut and Tt their time derivatives, p the

pressure. Here Ra = αgH 3 ∆T/(κν) denotes the Rayleigh number, P r = ν/κ the Prandtl

number, Γ = D/H the aspect ratio with H the height and D the diameter of the cylindrical

container. Further, α is the thermal expansion coefficient, g the gravitational acceleration, ∆T

the temperature difference between the bottom and the top plates, ν the kinematic viscosity and

κ the thermal diffusivity. The dimensionless temperature varies between +0.5 at the bottom

plate to −0.5 at the top plate. An adiabatic lateral wall is prescribed by ∂T/∂r = 0. Finally, on

the solid walls the velocity field vanishes according to the impermeability and no-slip conditions.

To investigate turbulent Rayleigh-Bénard convection in cylindrical containers of the aspect

ratios Γ = 10 and Γ = 5 for Ra from 10 5 to 10 7 and P r = 0.7 we conducted DNS. The simulations

were performed with the fourth order accurate finite volume method developed for solving (1)

– (3) in cylindrical coordinates on staggered non-equidistant grids. For the numerical method

used in the DNS we refer to [2].

∗ The work is supported by Deutsche Forschungsgemeinschaft (DFG) under the contract WA 1510-1

Speaker: SHISHKINA, O. 138 BAIL 2006

1

✩

✪

O. SHISHKINA, C. WAGNER: Boundary and Interior Layers in Turbulent Thermal

Convection

✬

✫

Ra = 10 5 Ra = 10 6 Ra = 10 7

Figure 1: Snapshots of the temperature, −0.37 ≤ T ≤ 0.37, for Γ = 10 and z = H/(2Nu).

Colour scale spreads from blue (negative values) through white (zero) to red (positive values).

3. Mesh generation

In [3] it was proven that the ratio of the area averaged (over the top or the bottom plates) to

the volume averaged thermal dissipation rate ɛθ = Γ −3/2 Ra −1/2 P r −1/2 (∇T ) 2 is greater than

or equal to the Nusselt number (Nu = Γ1/2Ra1/2P r1/2 〈uzT 〉 t,S − Γ−1 � �

∂T

∂z ≥ 1) for all Ra,

t,S

P r and Γ. It means that the largest values of ɛθ take place in the boundary layers near the

horizontal walls. To resolve these boundary layers special meshes are required.

The grid equidistribution ansatz (see for example [4]) enables to detect the boundary layers

and construct appropriate meshes for their resolution. In our solution-adapted mesh generation

algorithm we used grid equidistribution of the arc-length of the mean temperature profiles

computed on equidistant meshes. The algorithm produces meshes that lead to principally more

accurate solutions in comparison with the equidistant meshes.

4. Numerical experiments

Using the solution-adapted meshes with 110, 192 and 512 nodes in z-, r- and ϕ-directions,

respectively, we conducted the DNS of three-dimensional Rayleigh–Bénard convection in wide

cylindrical containers of the aspect ratios Γ = 10 and Γ = 5 and for moderate Rayleigh numbers

from 10 5 to 10 7 . The snapshots of the temperature field on the borders between the lower

thermal boundary layers and the bulk are presented in Fig. 1 as they were obtained in the DNS

for Γ = 10. The coherent flow patterns reveal the horizontal extension of hot and cold plumes.

Analysing spatial distribution of ɛθ for different Ra we conclude that the role of the thermal

plumes in thermal convection decreases with growing Ra. Some other physical results obtained

in the DNS of turbulent Rayleigh–Bénard convection in wide containers are discussed in [3].

References

[1] G. Ahlers, S. Grossmann & D. Lohse, “Hochpräzision im Kochtopf: Neues zur turbulenten

Wärmekonvektion”, Physik Journal, 1, 31–37 (2001).

[2] O. Shishkina & C. Wagner, “A fourth order accurate finite volume scheme for numerical

simulations of turbulent Rayleigh-Bénard convection”, C. R. Mecanique, 333, 17–28 (2005).

[3] O. Shishkina & C. Wagner, “Analysis of thermal dissipation rates in turbulent Rayleigh-

Bènard convection”, J. Fluid Mech., 546, 51–60 (2006).

[4] N. Kopteva & M. Stynes, “A robust adaptive method for a quasilinear one-dimensional

convection-diffusion problem”, SIAM J. Numer. Anal., 39, 1446–1467 (2001).

Speaker: SHISHKINA, O. 139 BAIL 2006

2

✩

✪

M. STYNES, L. TOBISKA: Using rectangular Qp elements in the SDFEM for a

convection-diusion problem with a boundary layer

✬

✫

Using rectangular Qp elements in the SDFEM for a convection-diffusion

problem with a boundary layer

Martin Stynes 1 and Lutz Tobiska 2

1 National University of Ireland, Cork, Ireland.

m.stynes@ucc.ie

2 Otto-von-Guericke Universität Magdeburg, Postfach 4120, D-39016 Magdeburg, Germany

tobiska@mathematik.uni-magdeburg.de

We consider the convection-diffusion problem

−ε∆u + b · ∇u + cu = f on Ω = (0,1) 2 , u = 0 on ∂Ω,

where the parameter ε lies in the interval (0,1], the function b(x,y) = (b1(x,y),b2(x,y)) with

b1(x,y) > β1 > 0 and b2(x,y) > β2 > 0, c(x,y) ≥ 0 on ¯ Ω, and c(x,y) − (div b(x,y))/2 ≥ c0 > 0

on ¯ Ω. We assume that the functions b, c, and f are sufficiently smooth. Layer-adapted meshes

are usually used for solving the singularly perturbed boundary value problem since its solution

typically has boundary layers at the sides x = 1 and y = 1 of Ω.

The convergence properties of the streamline diffusion finite element method (SDFEM; the

method is also known as SUPG) on a rectangular Shishkin mesh are analyzed. The trial functions

in the SDFEM are piecewise polynomials that lie in the space Qp, i.e., are tensor products

of polynomials of degree p in one variable, where p > 1. In [1, 2], for sufficiently small ε

(ε ≤ N −1/2 ln 2 N), the error bound

�u I − u N �SD ≤ C N −2 ln 2 N

has been proven in the case p = 1, where u I is the nodal interpolant of the solution u, u N is

the SDFEM solution, and � · �SD is the streamline-diffusion norm. This error bound is based on

anisotropic interpolation estimates, superconvergence of the piecewise linear nodal interpolation,

and a detailed study of the behaviour of the solution in the different parts of the domain.

The main objective is to extent the error analysis to the case p > 1 by using a nonstandard

interpolation. A detailed study of the approximation and superconvergence properties leads to

the estimate

�u I − u N �SD ≤ C N −(p+1/2) , p > 1.

Comparisons are made between this result and the corresponding result for the case p = 1, which

turns out to be exceptional [3]. Moreover, we discuss the possibilities to derive similar estimates

for �u − Pu N �SD and �u − u N �d,SD, where Pu N denote a suitable postprocessed numerical

solution and � · �d,SD a discrete version of the streamline-diffusion norm, respectively.

References

[1] M. Stynes and L. Tobiska, “Analysis of the streamine-diffusion finite element method for

a convection-diffusion problem with exponential layers”, East-West J. Numer. Math., 9,

59–76 (2001).

[2] M. Stynes and L. Tobiska, “The SDFEM for a convection-diffusion problem with a boundary

layer: Optimal error analysis and enhancement of accurary”, SIAM J. Numer. Anal., 41,

1620–1642 (2003).

[3] L. Tobiska, “Analysis of a new stabilized higher order finite element method for advectiondiffusion

equations”, Tech. Rep. 05-36, Department of Mathematics, Otto-von-Guericke

University (2005).

Speaker: TOBISKA, L. 140 BAIL 2006

1

✩

✪

P. SVÁ ˘CEK: Numerical Approximation of Flow Induced Airfoil Vibrations

✬

✫

Numerical Approximation of Flow

Induced Airfoil Vibrations

Petr Sváček

Department of Technical Mathematics, Karlovo náměstí 13,

121 35 Praha 2, CTU, Faculty of Mechanical Engineering.

The strong interaction between the aerodynamic field and the aero-elastic field

plays an important role in the design of aerospace vehicles. The fluid-structure

interaction is usually a complex nonlinear problem. The aero-elastic stability

of aerospace vehicles has a great impact on their design. In this paper we are

interested in the interaction of two dimensional incompressible viscous laminar

flow and a solid airfoil. The airfoil can rotate and oscillate in vertical direction.

The numerical simulation of such a problem is very challenging topic - it

consists of discretization and stabilization of the Navier-Stokes equations for a

high Reynolds number. Also the nonlinear discrete problem has to be treated

carefully. Moreover, the computational domain is time dependent and one has

to recompute it for each time step together with the used grid. In order to take

the grid motion into account the Arbitrary Lagrangian-Eulerian formulation of

the Navier-Stokes equation is used.

The most difficult part of the fluid-structure interaction is a fluid flow simulation.

We consider viscous laminar incompressible two dimensional flow which is fully

time dependent

D A u

Dt − ν△u + ((u − wg) · ∇) u + ∇p = 0, in Ωt,

∇ · u = 0, in Ωt

equipped with appropriate boundary conditions.

The above problem is discretized by the finite element method(FEM). Nevertheless,

the Galerkin FEM leads to unphysical solutions if the grid is not fine

enough in regions of strong gradients (e.g. boundary layer). In order to obtain

physically admissible correct solutions it is necessary to apply suitable mesh

refinement combined with a stabilization technique giving stable and accurate

schemes. In our paper we present a special version of the GLS stabilization

method for Navier-Stokes equations, see [1], [2].

Further, the computation of the force acting on the airfoil requires correct evaluation

of boundary integral of the stress tensor. A straightforward evaluation

of the stress tensor integral may lead to inaccurate results. This obstacle is

avoided with the aid of a weak formulation of the force acting on the profile.

Speaker: SVÁ ˘CEK, P. 141 BAIL 2006

1

✩

✪

P. SVÁ ˘CEK: Numerical Approximation of Flow Induced Airfoil Vibrations

✬

✫

The fluid forces acting on the profile causes its motion or deformation, which

depends on the airfoil properties. We simulate the situation, when the airfoil is

a solid body with two degrees of freedom. Its motion is obtained as the solution

of two ordinary differential equations coupled with the Navier-Stokes system.

We discuss the GLS stabilization of the FEM, evaluation of forces acting on

the profile, time discretization and the solution of the discrete problem. The

obtained results are compared with available data.

References

[1] Sváček, P., Feistauer, M. Application of a stabilized FEM to problems

of aeroelasticity. In: Feistauer, M., Dolejˇsí, V., K., N. (Eds.),Numerical

Mathematics and Advanced Applications, ENUMATH2003. Springer, Heidelberg,

pp. 796–805, 2004

[2] Sváček, P. , Feistauer, M., Horáček, J., Numerical simulation of flow

induced airfoil vibrations with large amplitudes. Journal of Fluids and

Structures(submitted), 2004.

Speaker: SVÁ ˘CEK, P. 142 BAIL 2006

✩

✪

N.V. TARASOVA: Full asymptotic analysis of the Navier-Stokes equations in the

problems of gas flows over bodies with large Reynolds number

✬

✫

Full asymptotic analysis of the Navier-Stokes equations

in the problems of gas flows over bodies

with large Reynolds number

N.V.Tarasova

Baltic State Technical University

1, 1st Krasnoarmeiskaya ul., 190005 St Petersburg, Russia

E-mail: natali_t3@professor.ru, tsrknv@bstu.spb.su

Investigation of the gas flows over bodies with large Reynolds number in most cases can be

significantly simplified when the flow area is divided into two parts: the external inviscid one

and the narrow area near the body surface well-known as viscous boundary layer. As this takes

place the Navier-Stokes equations describing such flows are splitted into the Eulier equations for

the external flow area and the Prandtl boundary layer equations. Such splitting of the problem

is obtained on the base of the matched asymptotic expansion method proposed by Van Dike for

hypersonic flow [1]. All gas parameters are written in the form of power series in the standard

small parameter ε = 1/ √ Re∞ (Re∞ is the Reynolds number in the free stream flow) and the

system of the Navier-Stokes equations reduces to the sequences of partial differential equation

systems in the external flow area and internal flow area. As a result, in a first approximation we

derive the Euler equations (in external flow area) and the Prandtl boundary layer equations.

Traditionally the model of incompressible gas flow is used both in the external flow area

and inside the boundary layer if the Mach number in the free stream M∞ is less than 0.3 and

the characteristic temperature drop is small enough, otherwise the model for compressible gas

flow is used. At the same time in practice in many problems of gas flows over bodies, such as

calculation of induced convection in heat exchanges, we have hyposonic gas flows in which the

gas temperature across the boundary layer on the body surface can be changed significantly that

leads to considerable changes of the gas density. As a result, the gas flow outside the boundary

layer can be considered as incompressible but inside the layer as essentially compressible one.

In the described case the researchers usually use the common model of the compressible gas

both inside the boundary layer and in the external inviscid flow area. However, such approach

implies the necessity to solve the compressible Euler equations in the external area that leads to

significant computational difficulties if the Mach number in the free stream flow is small enough

(in the case of hyposonic flows).

The main aim of this paper is to carry out the strict asymptotic analysis based on the method

of matched asymptotic expansions of the complete system of the Navier-Stokes equations in all

possible situations:

1) flows with the Mach number greater than 0.3 and the large temperature drop across the

boundary layer,

2) flows with the Mach number greater than 0.3 and the small temperature drop across the


3) flows with the Mach number less than 0.3 and the large temperature drop across the


4) flows with the Mach number less than 0.3 and the small temperature drop across the


and as a result to suggest the setting of the problem for the Euler equations and the boundary

layer equations including the procedure of sewing together the appropriate gas parameters.

Cases 1) and 4) are seen to give us the well-known models for the compressible and incompressible

gas flow in both areas respectively. Because of this, they have not been the major subject

of investigation in the present study. At the same time cases 2) and 3) give us some intermediate

situations which are of great interest. This problem is not trivial for example for case 3) because

Speaker: TARASOVA, N.V. 143 BAIL 2006

1

✩

✪

N.V. TARASOVA: Full asymptotic analysis of the Navier-Stokes equations in the

problems of gas flows over bodies with large Reynolds number

✬

✫

the application of the Euler equations for incompressible flow outside the boundary layer and the

classical equations of the compressible boundary layer near the body surface makes impossible

the agreement between both equation systems.

To consider the proposed problems from common positions another special dimensionless

variables for gas parameters in the Navier-Stokes equations are introduced. These new variables

are varied inside the studied flow area usually from 0 to 1 (in other words, they can vary to the

value of the order of unit). The main idea to use such special dimensionless variables is that in

this case all governing parameters that can be both small and not small are indicated explicitly

as the coefficients in the equation system. Among these parameters are M 2 ∞ and ∆T/T0 (∆T is

the temperature drop and T0 is the characteristic value of the temperature in the area).

It should be noticed that in the hyposonic flows the gravity force can affect significantly the

gas flow (in studies of free and induced convection). In term of asymptotic analysis it means

that it is necessary to take account of one more parameter, for example 1/Fr (Fr is the Frud

number) that can be both small and not small.

The full asymptotic analysis is carried out for all mentioned situations on the base of

comparison of all parameters mentioned above (M 2 ∞, ∆T/T0, 1/Fr) with the standard small

parameter ε in order of magnitude. As a result, the model for gas flow in both areas is formulated

and an attempt to construct the procedure of the agreement of the solutions in both areas is

made. It should be stressed that the equation systems derived under the assumptions 1) - 4)

differ from each other.

This model constructed for the cases 2) and 3) possibly can occupy the intermediate place

between two classical approaches when a gas is considered as incompressible or compressible one

over the whole flow field.

The equations describing hyposonic flows (M → 0) with the arbitrary values of the Reynolds

number (Re), ∆T/T0 and 1/Fr were derived in [2] from the Navier-Stokes equations on the base

of the asymptotic analysis with the Mach number (M) as a small parameter. In this work an

attempt to compare the model constructed for cases 2) and 3) with the results obtained in [2]

when considered flow with the large Reynolds number was made.

References

1. M. Van Dyke. 1962 In: Hypersonic Flow Research (Ed. F.R.Riddell). Academic Press.

2. A.I. Zhmakin, Yu.N. Makarov. 1985 Numerical modelling of hyposonic flows of viscous gas,

Dokl. AN SSSR, Mekh. Zh. i Gaza 280 (4), 827–830. [in Russian]

Speaker: TARASOVA, N.V. 144 BAIL 2006

2

✩

✪

C.H. TAI, C.-Y. CHAO, J.-C. LEONG, Q.-S. HONG: Effects of golf ball dimple

configuration on aerodynamics, trajectory, and acoustics

✬

✫

International Conference: BAIL 2006


- Computational & Asymptotic Methods -

Effects of golf ball dimple configuration on aerodynamics, trajectory, and acoustics

*Chang-Hsien Tai + Chih-Yeh Chao ++ Jik-Chang Leong + Qing-Shan Hong +

*Corresponding author

Department of Vehicle engineering, National Pingtung University of Science and Technology +

Department of Mechanical engineering, National Pingtung University of Science and Technology ++

1, Hseuh Fu Road, Neipu Hsiang, Pingtung Taiwan, R.O.C.

Fax: 886-8-7740398 E-mail: chtai@mail.npust.edu.tw

Abstract

In many reports about golf ball, including the

history of its development, have introduced the

standards on golf ball specification. However,

there is not a single well-documented solid

requirement found for the design of golf ball

surface. Not only have a lot of reports discussed

the material and structure of a golf ball, but also

most of the golf ball manufacturers improve their

products by modifying the number of layers

beneath the golf ball surface and their materials.

Even so, there are relatively very few papers

focused on the influence of different concave

surface configurations on the aerodynamic

characteristics of the golf ball. Furthermore, the

noise a golf ball generates in a tournament is very

likely to affect the emotion and hence the

performance of the golf ball player. For these

reasons, this study investigates the performance of

a golf ball based on the CFD method with the

validation using a wind tunnel.

In 1938, Goldstein [1] had proposed an

important parameter – the spin ratio. In

corporation with different Reynolds numbers, this

parameter makes the study of life and drag effects

feasible for whirling smooth bodies. In his book,

Jorgensen [2] especially emphasized that the main

objective of concaved surfaces on a golf ball is to

generate small scale turbulence. When flying, this

turbulence postpones air separation, reduces the

low pressure region trailing the golf ball, and

eventually lowers the air drag. Warring [3] used

numerical approach to perform a series of studies

related to golf ball using Excel spreadsheets. The

goal of his paper was to provide guidance for golf

ball players and manufacturers so that their golf

ball was capable of flying for a longer distance. In

the study of acoustics, Singer, et al. [4] calculated

the noise level from a source using a hybrid grid

system with the help of Lighthill’s acoustics

analytic approach. On the other hand, Montavon,

et al. [5] combined CFD method and

Computational Aeroacoustics Approach (CAA) to

simulate noise generation from a cylinder. Using

CFX-5 with LES (Large Eddy Simulation) as their

turbulence model and Ffowcs-Williams Hawkings

formulation, they had successfully shown that their

predicted sound levels agreed very well with

theoretical ones for Reynolds numbers about 1.4×

10 5 .

Figure 1 shows the flow field around a typical

golf ball (Case 1). In Case 2, additional dimples

are added onto the golf ball considered in Case 1.

The orientation of these additional dimples is

depicted in Figure 3. It is found, based on Figure 2,

that the flow field associated to Case 2 is no longer

symmetrical because of the presence of the

additional dimples. Figure 3 demonstrates the

distribution of lift and drag coefficients of Cases 1

and 2. Clearly, the addition of small dimples

increases the drag. This implies that the golf ball in

Case 2 suffers more serious drag effect at low

trajectory speeds. The lift the golf ball in Case 2

experiences at moderate Reynolds numbers

increases so greatly that it becomes greater than

that for Case 1. The life force in overall is

therefore greater for Case 2 than Case 1. Although

the drag imposed on the golf ball is always smaller

for Case 1 than for Case 2, the drag in Case 1 is

only about 38.5% less than that in Case 2.

However, the lift in Case 2 is 103% greater than

that in Case 1. This somewhat indicates the lift

effect is 2.68 times of the drag effect. The overall

performance of the golf ball for Case 2 is much

greater than that for Case 1. Therefore, the former

golf ball is capable of traveling further, as shown

in Figure 4.

Speaker: HONG, Q.-S. 145 BAIL 2006

✩

✪

C.H. TAI, C.-Y. CHAO, J.-C. LEONG, Q.-S. HONG: Effects of golf ball dimple

configuration on aerodynamics, trajectory, and acoustics

✬

✫

This thesis used structured and non-structured

grids to come out with the most appropriate grid

systems for the current golf balls simulations. Then,

numerical simulations were carried out to estimate

the aerodynamics parameters and noise levels for

various kinds of golf balls having different dimple

configurations. With the obtained aerodynamics

parameters, the flying distance and trajectory for a

golf ball were determined and visualized. The

results showed that structured grids produced more

accurate results. In terms of dimple layout, the lift

coefficient of the golf ball increased if small

dimples were added between the original large

dimples. When launched at small angles, golf balls

with deep dimples were found to have greater lift

effect than drag effect. Therefore, the golf balls

would fly further until a critical depth of 0.25 mm.

As far as noise generation was concerned, deep

dimples produced lower noise levels.

Keywords: golf ball, CFD, dimple, flying

trajectory, noise

Fig.1 The velocity vector contour on rotation of

Case1(Re=1×10 5 )

Fig.2 The velocity vector contour of

Case2(Re=1×10 5 )

International Conference: BAIL 2006


- Computational & Asymptotic Methods -

Drag coefficient

Fig.3 Life, Drag coefficient of Case1 and Case2

Height (m)

0.7

0.6

0.5

0.4

0.3

0.2

0.1

10 3 0

250

200

150

100

50

0

Case1-Drag coefficient

Case2-Drag coefficient

Case1-Lift coefficient

Case2-Lift coefficient

10 4

Reynolds number

Case1 = 215.2m

Case2 = 262.1m

50 100 150 200 250

Distance (m)

Fig.4 Flying trajectory of Case1 and Case2

Reference

[1] Goldstein, S., “Modern Developments in Fluid

Dynamics,” Vols. I and II. Oxford: Clarendon

Press, 1938.

[2] Jorgensen, T. P., “The Physics of Golf, 2nd

edition,” New York: Springer-Verlag, pp. 71-72,

1999.

[3] Warring, K. E., “The Aerodynamics of Golf Ball

Flight,” St. Mary’s College of Maryland, pp. 1-37,

2003.

[4] Singer, B. A., Lockard, D. P. and Lilley, G. M.,

“Hybrid Acoustic Predictions,” Computers and

Mathematics with Application 46, pp. 647-669,

2003.

[5] Montavon, C., Jones, I. P., Szepessy, S.,

Henriksson, R., el-Hachemi, Z., Dequand, S.,

Piccirillo, M., Tournour, M. and Tremblay, F.,

“Noise propagation from a cylinder in a cross

flow: comparison of SPL from measurements and

from a CAA method based on a generalized

acoustic analogy,” IMA Conference on

Computational Aeroacoustics, pp. 1-14, 2002.

Speaker: HONG, Q.-S. 146 BAIL 2006

10 5

0.16

0.14

0.12

0.1

0.08

0.06

0.04

0.02

Lift coefficient

✩

✪

H. TIAN: Uniformly Convergent Numerical Methods for Singularly Perturbed Delay


✬

Uniformly Convergent Numerical Methods for Singularly Perturbed Delay

Differential Equations ∗

1 Introduction

Hongjiong Tian

Department of Mathematics, Shanghai Normal University,

100 Guilin Road, Shanghai 200234, P. R. China

hjtian@shnu.edu.cn

Singularly perturbed problems form a special class of problems containing a small parameter

which may tend to zero. Singularly perturbed delay differential equations (DDEs) has arose in

many fields, such as in the study of an “optically bistable device” [1] and in a variety of models

for physiological processes or diseases [2]. Such problems include a subclass of what we frequently

thought of as “stiff” equations. We will concentrate on uniformly convergent numerical methods

for linear and nonlinear singularly perturbed delay differential equations with a fixed lag.

2 Uniformly convergent schemes

Linear problems

Consider linear singularly perturbed delay differential equations

Ly(t) ≡ εy ′ (t) + a(t)y(t) = b(t)y(t − 1) + g(t), 0 ≤ t ≤ T,

y(t) = φ(t), −1 ≤ t ≤ 0,

where ε > 0 is a small parameter, a(t) ≥ α > 0, b(t), φ(t) and g(t) are smooth functions. We

concentrate on the following difference schemes

and

L h yi ≡ εσi(ρ)D+yi + a(ti)yi+1 = b(ti)yi−m + g(ti), i ≥ 0,

y−j = φ(t−j), j = 0, 1, 2, . . . , m,

L h yi ≡ εσi(ρ)D+yi + a(ti+1)yi+1 = b(ti+1)yi+1−m + g(ti+1), i ≥ 0,

y−j = φ(t−j), j = 0, 1, 2, . . . , m,

where the step length h satisfies the constraint 1 = mh with a positive integer m, ti = ih, ρ = h

ε

and

σi(ρ) =

�

ρa(0)

1−exp(−ρa(0))

ρa(j)

1−exp(−ρa(j))

Nonlinear problems

Consider nonlinear problems of the form

exp(−ρa(0)), i = 0, 1, · · · , m − 1,

exp(−ρa(j)), i = jm, jm + 1, · · · , (j + 1)m − 1, j = 1, 2, · · · .

εy ′ (t) = f(t, y(t), y(t − 1)), 0 ≤ t ≤ T,

y(t) = φ(t), −1 ≤ t ≤ 0,

∗ The work of this author is supported in part by E-Institutes of Shanghai Municipal Education Commission

(No. E03004), Shanghai Municipal Science and Technology Commission (No.03QA14036), Science and Technology

Foundation of Shanghai Higher Education (No.03DZ21), and The Special Funds for Major Specialties of Shanghai

Education Committee.

✫

1

Speaker: TIAN, H. 147 BAIL 2006

(1)

(2)

(3)

(4)

(5)

✩

✪

H. TIAN: Uniformly Convergent Numerical Methods for Singularly Perturbed Delay


✬

✫

where we assume that −fy(t, y, z) ≥ α > 0 for all t ≥ 0 and all real y, z. We now linearize (5)

and introduce the Newton sequence {ys(t)} ∞

s=0 for the initial guess y0(t) satisfying the initial

condition y0(t) = φ(t), t ∈ [−1, 0]. This is done by defining ys+1(t), for all s ≥ 0, to be the

solution of the linear problem

�Lsys+1(t) ≡ ε dys+1(t)

dt − fy(t, ys(t), ys(t − 1))ys+1(t)

−fz(t, ys(t), ys(t − 1))ys+1(t − 1)

= f(t, ys(t), ys(t − 1)) − fy(t, ys(t), ys(t − 1))ys(t)

−fz(t, ys(t), ys(t − 1))ys(t − 1), t > 0,

ys+1(t) = φ(t), −1 ≤ t ≤ 0.

We may show that not only the convergence of this sequence is quadratic, but also its proportionality

constant is independent of s and ε. If the initial guess y0(t) is sufficiently close to y(t),

converges to y(t).

then the Newton sequence {ys(t)} ∞

s=0

3 Numerical experiments

Consider

We take initial guess as

y0(t) =

�

εy ′ (t) = −y(t) + y 2 (t − 1), t ≥ 0,

y(t) = 2, t ∈ [−1, 0].

t

− 4 − 2e ε , t ∈ [0, 1),

16 − (8 + 16 t−1

t−1

t−1

−2

ε )e− ε − 4e ε , t ∈ [1, 2).

The true solution and the numerical solution using the optimal scheme after two iterations are

plotted in Figure 1. This figure indicates that the uniformly convergent scheme works well also

for nonlinear problem.

References

y

18

16

14

12

10

8

6

4

Numerical and analytic solutions:ε y’(t)=−y(t)+y 2 (t−1),ε=10 −2

Numerical solution

True solution

2

0 0.2 0.4 0.6 0.8 1

t

1.2 1.4 1.6 1.8 2

Figure 1: Comparison between numerical and analytical solutions.

[1] M. W. Derstine, H. M. Gibbs, F. A. Hopf, D. L. Kaplan, Bifurcation gap in a hybrid optical

system, Phys. Rev., A, 26(1982)3720–3722.

[2] M. C. Mackey, L. Glass, Oscillation and chaos in physiological control systems, Science,

197(1977)287–289.

Speaker: TIAN, H. 148 BAIL 2006

2

(6)

✩

✪

A.I. TOLSTYKH, M.V. LIPAVSKII, E.N. CHIGEREV: Highly accurate 9th-order

schemes and their applications to DNS of thin shear layer instability

✬

✫

Highly accurate 9th-order schemes and their applications to

DNS of thin shear layer instability

A.I.Tolstykh , M.V.Lipavskii, E.N.Chigerev

Computing Center of Russian Academy of Sciences, Vavilova str.40, 119991 Moscow GSP-1,

Russia e-mail tol@ccas.ru

ABSTRACT

The principle of constructing arbitrary-order approximations and schemes is outlined. Its

essence is forming linear combinations of basis operators from certain types of one-parametric

operators families by fixing distinct values of the parameter. The details of the procedure first

proposed in [1] can be found in [2],[3] where the linear combinations were referred to as multioperators.

The multioperators were designed for parallel machines providing approximation

orders which are linear functions of numbers of processors involved in calculations.

In the present talk, extremely accurate ninth-order multioperators-based schemes for fluid

dynamics equations are presented, the basis operators being Compact Upwind Differencing

(CUD) ones from [4]. The schemes preserve upwinding and conservation properties of CUD

schemes; they are characterized by very small phase & amplitude errors for physically relevant

wave numbers supported by grids and damping spurious oscillations. They are capable to

resolve properly small scale phenomena using reasonable meshes and allow to perform highaccuracy

unsteady calculations for large time intervals. Their properties make them very useful,

in particular, for thin layers, DNS and LES computations.

Illustrative examples followed by direct numerical simulations of thin incompressible 2D shear

layers instability are presented. The Navier-Stokes calculations were carried out for various high

Reynolds number flows with complete resolution of turbulent scales as well as for zero molecular

viscosity. In the latter case, ninth-order dissipative mechanism was responsible for generating

small-scale vorticity. The results obtained for large time intervals show the full history of the

flow development with rolling-up,pairing,generation and decaying of turbulence.The resulting

energy and enstrophy spectra are discussed.

References

[1] A. I. Tolstykh, Multioperator high-order compact upwind methods for CFD parallel calculations,

in Parallel Computational Fluid Dynamics, Elsevier, Amsterdam, 1998, pp. 383-390.

[2] A. I. Tolstykh, On ultioperators principle for constructing arbitrary-order difference

schemes, Applied Numerical Mathematics 46 (2003),pp.411-423

[3] A. I. Tolstykh, Centered prescribed-order approximations with structured grids and resulting

finite-volume schemes, Applied Numerical Mathematics, 49(2004),pp.431-440.

[4] A. I. Tolstykh, High accuracy non-centered compact difference schemes for fluid dynamics

applications, World Scientific, Singapore, 1994.

Speaker: TOLSTYKH, A.I. 149 BAIL 2006

✩

✪

ABOUTUNSTEADYBOUNDARYLAYERONADIHEDRALANGLE

beingatrest.Letdenotethelinearangleof?.Itisassumed,thattheanglemovesin bythesuddenmotionofthedihedralangle?withtheconstantvelocityUintheuid KeldyshInstituteofAppliedMathematics,Miusskajasq.4,Moscow125047,Russia Theunsteadyowoftheviscousincompressibleuidisconsidered.Thisowiscaused vasiliev@keldysh.ru M.M.Vasiliev

investigatedrstbyStokes[2].Steadyboundarylayerontherightdihedralanglewas consideredbyLoytsjansky[3]. theangle?.Since?isinniteinthedirectionofaxis0zandtheowiscausedonlyby thedirectionoftheedge(0z)andonlyonevelocitycomponentofuidwinthisdirection isdierentfromzero.Suchowsarecalledbylayered[1].

coordinatez.Accordingtomadeassumptions,themotionequationsreducetofollowing thewallmotion,weshallassumethatallhydrodynamicfunctionsareindependentfrom Letusintroducethecylindricalcoordinates(r;#;z).Weconnectthiscoordinateswith Theunsteadylayeredowcausedbythesuddenmotionofaninniteatplateis

wheretisthetime-coordinate,s=r=p,{kinematicviscouscoecient. intersectionthewingandthefuselageofanaircraftatenoughdistancesfromtheleading andthetrailingedgesofthewing. oneequation:

Inthisworkthepowergeometrymethods[4]areusedforobtainingofself-similar Theconsideredowsimulatesroughlyaboundarylayerintheneighborhoodofthe @w @t? @2w @s2+1s@w @s+1s2@2w @#2!=0: (1)

solutionsofboundary-valueproblems.Thesemethodshavesimplealgorithms.They wereappliedsuccesifullebothtolinearandnonlinearproblemsinworks[5]{[9]and

wasobtainedintheform wherew=U(1;2).Solutionoftheequation(2)bycorrespondingboundaryconditions others. Fortheself-similarvariables1=s=pt;2=#theequation(1)is

where==andfunction1isdeterminedasaresultofthesolutionoftheboundaryvalueproblemfortheequation 12@2 @12+11+1212@1+@2 w=U1(1)cos(#); @22=0: (3) (2)

TheanalyticalsolutionoftheconsideredprobleminCartesiancoordinates(x;y;z)was obtainedonlyincase==2.Thissolutionis where 12100+11+121210?21=0; w=Uerferf; (5) (4)

=x 2pt;=y 2pt;erf'=2 p' Z0e?l2dl:

M. VASILIEV: About unsteady Boundary Layer on a dihedral angle

✬

✫

Speaker: VASIELIEV, M. 150 BAIL 2006

✩

✪

!+1. Trans.Cambr.Phil..IX,8.1851. Itischeckedthatasymptoticsofthesolutions(3)and(5)coinsidebothbyr!0and

Moscow,1998(Russian).=ElsevierScience,Amsterdam,2000. [1]Schlichting,H.,Grenzschicht-Theorie.VerlagG.Braun.Karlsruhe.1951. [2]Stokes,G.G.,Ontheeectofinternalfrictionofuidonthemotionofpendumlums. [3]Loytsjansky,L.G.,LaminarBoundaryLayer.Fizmatgiz,Moscow,1962(Russian). [4]Bruno,A.D.,Powergeometryinalgebraicanddierentialequations.Fizmatlit, References

bypowergeometry.Proc.oftheInternationalConferenceonBoundaryandInterior Layers(BAIL2002),Perth,WesternAustralia,2002,pp.251-256. oftheInternationalConferenceonBoundaryandInteriorLayers(BAIL2002),Perth, WesternAustralia,2002,pp.251-256. [5]Bruno,A.D.,Algorithmicanalysisofsingularperturbationsandboundarylayers [6]Vasiliev,M.M.,Asymptoticsofsomeviscous,heatconductinggasows//Proc.

Toulouse,France,2004,9pp. 2003,pp.93-101. //Proc.oftheInternationalConferenceonBoundaryandInteriorLayers(BAIL2004), equationsbymethodsofpowergeometry//ProcofISAAC-2001,WorldScientic,Singapore, [8]Bruno,A.D.,Shadrina,T.V.,Theaxiallysymmetricboundarylayeronaneedle [9]Vasiliev,M.M.,Ontheself-similarsolutionofsomemagnetohydrodynamicproblems [7]Vasiliev,M.M.,Abouttheobtainingself-similarsolutionsoftheNavier-Stokes

Toulouse,France,2004,6pp. //Proc.oftheInternationalConferenceonBoundaryandInteriorLayers(BAIL2004),

M. VASILIEV: About unsteady Boundary Layer on a dihedral angle

✬

✫

Speaker: VASIELIEV, M. 151 BAIL 2006

✩

✪

A.E.P. VELDMANN: High-order symmetry-preserving discretization on strongly

stretched grids

✬

✫

High-order symmetry-preserving discretization on strongly stretched grids

Arthur E.P. Veldman

Institute of Mathematics and Computing Science, University of Groningen

P.O. Box 800, 9700 AV, Groningen, The Netherlands

Many physical phenomena feature thin boundary layers, in which the solution varies much more

rapidly than elsewhere in the domain of interest. A ‘natural’ approach is to adapt a computational grid

to the variations of the solution. In this way one obtains grids with a large diversity in mesh size. Also

the size of adjacent mesh cells can be quite different, i.e. the grid shows strong stretching.

‘Traditional’ discretization methods (based on Lagrangian interpolation) focus on minimizing local

truncation error, but experience has shown that these methods prefer low grid stretching rates (e.g. [2]

and the refernces therein). The problems arise because this approach does not take into account the

properties of the discrete system matrices that arise after discretization. An alternative approach is to

develop discretization schemes with the properties of the system matrix in mind - a general name for

this philosophy is mimetic discretization. Here certain properties of the analytic operator are mimiced

in their discrete counterpart.

At RuG we have chosen to retain the symmetry properties of the operator, in our application a

combination of convection and diffusion. In particular, we discretize convection such that the discrete

version remains skew-symmetric. An almost immediate consequence is that the system matrix remains

diffusively stable (hence never can become singular) on any grid. In formula: Let the system under study

be given by

dφ

+ Lφ = 0,

dt

then the evolution of the kinetic energy � φ �H= φ∗Hφ, where H represents the local mesh size, is given

by

d

dt � φ �= −φ∗ ((HL) ∗ + HL)φ.

With skew-symmetric convection, the symmetric part (HL) ∗ + (HL) of the system matrix comes only

from diffusion, and the above assertion follows.

Another consequence is that the convective discretization does not produce unphysical numerical diffusion,

which unavoidably will interfere with the physical diffusion. This strategy has been applied e.g.

in direct numerical simulation of turbulent flow, where the small-scale balance between convection and

diffusion is quite delicate [3].

In the presentation we would like to illustrate the performance of various symmetry-preserving finitevolume

methods: second- and fourth-order central schemes (that we apply in DNS), but also higher-order

upwind schemes. It is less known that on contracting and expanding grids the traditional upwind method

produces negative diffusion [4]; a symmetry-preserving upwind version (a suitable combination of skewsymmetric

odd derivatives and symmetric even derivatives) will repair this.

For instance, the fourth-order symmetry-preserving discretization of a first-order derivative ∂φ/∂x

becomes

∂φ

∂x ≈ −φi+2 + 8φi+1 − 8φi−1 + φi−2

.

−xi+2 + 8xi+1 − 8xi−1 + xi−2

After muliplication with the denominator (as is usual in a finite-volume setting), the convective contribution

to the coefficient matrix is clearly seen to become skew symmetric.

As a main example we consider a one-dimensional convection-diffusion equation on the unit interval at

a diffusion coefficient k = 0.001. Our ‘favorite’ grid is the Shishkin grid, consisting of piecewise-uniform

grid regions with an abrupt (very large) change in mesh size (e.g. [1]). Figure 1 shows a comparison between

the individual solutions of second- and fourth-order traditional methods and symmetry-preserving

methods on an abrupt Shishkin grid and on a (smoothly stretched) exponential grid. Both grids contain

Speaker: VELDMANN, A.E.P. 152 BAIL 2006

1

✩

✪

A.E.P. VELDMANN: High-order symmetry-preserving discretization on strongly

stretched grids

✬

✫

28 grid points, with half of the grid points located in [1 − 10k, 1]). On both grids the ‘traditional’

fourth-order method suffers from an almost singular system matrix.

1.2

1

0.8

0.6

0.4

0.2

0

error=3.5e−02

2nd Lagrange

−0.2

0 0.2 0.4 0.6 0.8 1

50

0

−50

−100

error=7.4e+01

4th Lag (+ exact bc)

−150

0 0.2 0.4 0.6 0.8 1

1.2

1

0.8

0.6

0.4

0.2

0


2nd symm−pres

−0.2

0 0.2 0.4 0.6 0.8 1

1.2

1

0.8

0.6

0.4

0.2

0

4th symm−pres (+ 2nd bc)


−0.2

0 0.2 0.4 0.6 0.8 1

1.4

1.2

1

0.8

0.6

0.4

0.2


2nd Lagrange

0

0 0.2 0.4 0.6 0.8 1

200

0

−200

−400

−600

error=4.6e+02

4th Lag (+ exact bc)

−800

0 0.2 0.4 0.6 0.8 1

1.2

1

0.8

0.6

0.4

0.2

0


2nd symm−pres

−0.2

0 0.2 0.4 0.6 0.8 1

1.2

1

0.8

0.6

0.4

0.2

0

4th symm−pres (+ 2nd bc)


−0.2

0 0.2 0.4 0.6 0.8 1

Figure 1: Discrete solutions for k = 0.001 at an abrupt grid (left) and an exponential grid (right). The ’traditional’

discretization, especially the fourth-order version, has problems with the stretching of the grid.

Figure 2 shows a grid-refinement study of the second- and fourth-order traditional and symmetrypreserving

methods on both typs of grids (abrupt and exponential). The much more regular and forgiving

character of the symmetry-preserving discretization is evident.

global error

10 0

10 −5

Abrupt: d=10k

10 −2

mean mesh size

10 −1

10 0

10 −5

Exponential: d=10k

2L

2SP

4L

4SP

10 −2

mean mesh size

Figure 2: The global error as a function of the mean mesh size. Half of the grid points is located in the boundary

layer of thickness d. Four methods are shown: 2L (second-order Lagrangian), 2S (second-order symmetrypreserving),

4L (fourth-order Lagrangian with exact boundary conditions) and 4S (fourth-order symmetry-preserving

with second-order boundary treatment).

References

[1] P.A. Farrell, J.J.H. Miller, E. O’Riordan and G. I. Shishkin: A uniformly convergent finite difference

scheme for a singularly perturbed semilinear equation. SIAM J. Num. Anal. 33 (1996) 1135–1149.

[2] A.E.P. Veldman and K. Rinzema: Playing with nonuniform grids. J. Eng. Math. 26 (1992) 119–130.

[3] R.W.C.P. Verstappen and A.E.P. Veldman: Symmetry-preserving discretisation of turbulent flow. J.

Comput. Phys. 187 (2003) 343–368.

[4] G. Golub, D. Silvester and A. Wathen: Diagonal dominance and positive definiteness of upwind approximations

for advection diffusion problems. In: D.F. Griffiths and G.A. Watson (eds.) Numerical

Analysis: A R. Mitchell 75th Birthday Volume, World Scientific, Singapore (1996) 125–132.

Speaker: VELDMANN, A.E.P. 153 BAIL 2006

2

10 −1

✩

✪

Z.-H. YANG, Y.-Z. LI, Y. ZHU: Application of Bifurcation Method to Computing

Numerical Solutions of Lane-Emden Equation

✬

✫

Application of Bifurcation Method to Computing Numerical

Solutions of Lane-Emden Equation ∗

Zhong-hua Yang, Ye-zhong Li, Ying Zhu

Department of Mathematics,Shanghai Normal University

Shanghai,200234,China

Abstract

In this paper, the Lane-Emden equations of index p

� ∆u + u p = 0, (x, y) ∈ Ω

u|∂Ω = 0, (x, y) ∈ ∂Ω

where Ω is a bounded open domain in R2 , p > 0, are concerned. Equation (0.1) describes the

behavior of the density of a gas sphere in hydrostatic equilibrium in appropriate units. The

index p, which is called the polytropic index in astrophysics, is larger than 1

2 . It means that no

polytropic stellar system can be homogeneous in galactic dynamics([3],[7]).Using the Liapunov-

Schmidt method and symmetry-breaking bifurcation theory, we compute and visualize multiple

solutions of Lane-Emden equation on a bounded domain of R2 with a homogeneous Dirichlet

boundary condition, which plays an important role in stellar structure and evolution theory.

The domains we consider here include the unit square and the square cut by small square.

The critical point theory was applied to prove the existence and multiplicity of solutions

under various assumptions([2], [8]). But what distribution and structure they have and how to

compute them have attracted the attention of many mathematicians, physicists and engineers.

Due to the multiplicity, degeneracy and instability of the critical points with higher Morse index,

the computation of multiple solutions encounters essential difficulties and is truly challenging.

Since 90’s of last century, numerical works to compute numerical solutions of (0.1) appeared

in the literature. The mountain-pass algorithm, the scaling iterative algorithm ,the monotone

iteration, the direct iteration algorithm and the research extension method([4],[5],[6]) are used

to compute the solutions of (0.1). But in these algorithms “ good guess of solution” of (0.1),

which is a difficult task, is needed. Therefore only few solutions of (0.1) are computed yet.

In this paper, we try to use the bifurcation method to overcome this difficulty. Our main

idea is to embed (0.1) into nonlinear elliptic BVP with parameter λ of the form

�

F (u, λ) = ∆u + λu + up = 0, (x, y) ∈ Ω,

(0.2)

u|∂Ω = 0, (x, y) ∈ ∂Ω.

According to the bifurcation theory (0.2) has nontrivial solution branches which bifurcate from

its bifurcation points, so we can compute the solutions of (0.1) by using continuation method([1])

along these nontrivial solution branches of (0.2) until λ = 0. Many new solutions of (0.1) with

different symmetry are computed by the bifurcation method.

∗ Supported by Shanghai Development Foundation for Science and Technology (No.03QA14036), Science

Foundation of Shanghai Municipal Education Commission(05DZ07), Shanghai Leading Academic Discipline

Project(T0401).

Speaker: YANG, Z.-H. 154 BAIL 2006

1

(0.1)

✩

✪

Z.-H. YANG, Y.-Z. LI, Y. ZHU: Application of Bifurcation Method to Computing

Numerical Solutions of Lane-Emden Equation

✬

✫

On the other hand, Lyapunov-Schmidt reduction is used to get the bifurcation equation of

(0.2), from which we can easily obtain the initial guesses for computing directly the different

solutions of (0.1) with different symmetry. Therefore the bifurcation method also offers a more

effective way to computing the multiple solutions of Lane-Emden equation and other nonlinear

elliptic boundary value problem.

References

[1] E.L.,Allogower, K.Georg, Numerical continuation Methods, An Introduction, Springer Series

in Computational Mathematics(Springer, Berlin), 1990.

[2] A.Ambrosetti, P.H. Rabinowitz, Dual variational mehtods in critical point theory and application,

J.Funct. Anal., Vol.14(1973), 327-381.

[3] S.Chandrasekhar, An Introduction to the stellar structure, Dover Publication, Inc., NY,

1967.

[4] Chuanmiao Chen, Ziqing Xie, Structure of multiple solutions for nonlinear differential equations.

Science in China Ser.A Mathematics Vol.47 Supp.(2004), 172-180.

[5] Goong Chen,Jianxin Zhou, Wei-ming Ni, Algorithms and visualization for solutions of nonlinear

elliptic equations.International Journal of Bifurcation and Chaos,Vol.10,No.7(2000)

1565-1612.

[6] Y. Li, J.X. Zhou, A minimax method for finding multiple critial points and its applications

to semilinear PDEs, SIAM J.Sci. Comput., Vol.23(2002), 840-865.

[7] R. Kippenhaln, A. Weigert, Stellar Structure and Evolution, Springer-Verlag, New York,

Berlin, 1990.

[8] P.H. Rabinowitz, Minimax Methods in Critical Point Theory with Applications to Differential

Equations, CBMS Regional Conf. Series in Math.65, Amer.Math.Soc., Providence,

1986.

Speaker: YANG, Z.-H. 155 BAIL 2006

2

✩

✪

Q. YE: Numerical simulation of turbulent boundary for stagnation-flow in the spraypainting

process

✬

✫

Numerical simulation of turbulent boundary for stagnation-flow

in the spray-painting process

Q. Ye

Institut für Industrielle Fertigung und Fabrikbetrieb Universität Stuttgart

Nobelstr. 12, 70569 Stuttgart, Germany

(Abstract for submission to the BAIL 2006)

In order to optimise the painting process, which amounts to a high percentage of fixed and

flexible costs in automotive production, numerical simulations of spray painting for the

automotive industry, especially using high-speed rotary bell and electrostatically supported

methods, have been performed [1]. Previous numerical studies were mainly concerned with

the calculation of the two-phase turbulent flow of the spray jet, the modelling of the

electrostatic field including space charge and the prediction of the film thickness distribution

on the coated work piece. Less attention was paid to the near-wall turbulent flow in the

painting process, which is, however, quite important for particle deposition.

The current numerical investigation is aimed at the turbulent boundary of the stagnationairflow.

A CFD code (Fluent) based on Reynolds-averaged Navier-Stokes equations (RANS)

has to be used because of the complicated turbulent flow in the spray-painting process (Fig. 1).

A two-dimensional turbulent channel flow first is calculated using different turbulent models

with near-wall functions. The simulated results are compared with the DNS data [2] (Fig.2),

in order to obtain a suitable model for the investigation of the real near-wall flow. The

complicated three-dimensional turbulent flow is then calculated using a real geometry of the

atomizer, high-speed rotary bell, and simple target geometry, e.g., a flat plate. The influences

of the near-wall mesh resolution and the near-wall functions on the velocity distributions (Fig.

3) and the turbulent magnitudes close to the target are analysed. The computational results

provide useful information for the further study of the particle deposition in spray-painting

processes.

up

down

Figure 1: Contours of the air velocity magnitude (m/s)

Speaker: YE, Q. 156 BAIL 2006

✩

✪

Q. YE: Numerical simulation of turbulent boundary for stagnation-flow in the spraypainting

process

✬

✫

normalized k

velocity(m/s)

k-yplus

5

4.5

4

3.5

3

2.5

2

1.5

1

0.5

0

1.00E-03 1.00E-02 1.00E-01 1.00E+00

yplus

1.00E+01 1.00E+02 1.00E+03

3.5

3

2.5

2

1.5

1

0.5

velocity magnitude

0

-0.5 -0.3 -0.1 0.1 0.3 0.5

z(m)

standard-wall

DNS

enhanced-wall

Reynolds-stress

k-omega

Figure 2: Comparison of non-dimensional turbulent kinetic energy in the fully

developed turbulent channel flow between different turbulent models

enhanced -w all

non-equilibrium

Figure 3: Comparison of velocity magnitudes along the painting target at a distance of

0.1 mm to the wall for two different near-wall functions

[1] Q. Ye, J. Domnick, A. Scheibe, K. Pulli: Numerical Simulation of the Electrostatic Spraypainting

Process in the Automotive Industry. High-Performance Computing in Science

and Engineering’04, Springer-Verlag Berlin, Heidelberg, , 2004, pp. 261-275.

[2] J. Kim, P. Moin, R. Moser: Turbulence statistics in fully developed channel flow at low

Reynolds number. J. Fluid Mech. 177, pp.133-166. 1987.

Speaker: YE, Q. 157 BAIL 2006

✩

✪

Participants


Mr. Alizard Frédéric SINUMEF ENSAM Paris Paris FRANCE

Mr. Alrutz Thomas DLR - Institute of Aerodynamics and Flow Technology Goettingen Germany

Mr. Apel Thomas Universität der Bundeswehr München Institut f. Mathematik und BauinformatikNeubiberg Germany

Mr. Bause Markus Universitaet Erlangen-Nuernberg Institut fuer Angewandte Mathematik Erlangen Germany

Mr Boguslawski Poznan University of Technology Poland

Mr. Buschmann Matthias H. ILK Dresden / TU Dresden Luft-und Kältetechnik /Strömungsmechanik Dresden Germany

Mr. Clavero Carmelo UNIVERSIDAD DE ZARAGOZA CENTRO POLITÉCNICO SUPERIOR ZARAGOZA SPAIN

Mr. Das Debopam Departmnet of Aerospace Engg Indian Institute of Technology Kanpur Kanpur India

Mr Dillmann Andreas DLR - Institute of Aerodynamics and Flow Technology Goettingen Germany

Mr. Donkor Jackson CAPSTONE MINISTRIES TRANS-AFRICAN COLLEGE ACCRA GHANA

Mr. Eisfeld Bernhard DLR Braunschweig Inst. f. Aerodynamik u. Strömungstechnik Braunschweig Germany

Mr. Firooz Abdolhamid University of Sistan & Baloochestan Mechanical Engineering Department Zahedan Iran

Mr. Fynn Richard LUGANSK STATE MEDICAL UNIVERSITY LUGANSK UKRAINE

Mr. Gaponov Serguei INSTITUTE OF THEORETICAL AND APPLIED MECHANICS Novosibirsk Russia

Mr Georgoulis Emanuil University of Leicester United Kingdom

Mr Gersten Klaus Ruhr-Universitaet Bochum Bochum Germany

Mr. Gracia Jose Luis UNIVERSIDAD DE ZARAGOZA ESCUELA POLITÉCNICA DE TERUEL TERUEL SPAIN

Ms. Hammouch zakia LAMFA UMR CNRS 6140 Faculté de Mathématiques et d'Info, UPJV Amiens France

Mr. Hamouda Makram Faculty of Science of Bizerte Jarzouna Tunisia

Mr. Hartmann Ralf German Aerospace Center (DLR) Inst. of Aerodynamics & Flow Technology Braunschweig Germany

Mr. Hegarty Alan Dept of Mathematics and Statistics University of Limerick Limerick Ireland

Mr Heinemann Hans-J. DLR - Institute of Aerodynamics and Flow Technology Goettingen Germany

Mr. Hemker Pieter W CWI CWI Amsterdam Netherlands

Mr. Herwig Heinz Hamburg University of Technology Thermofluiddynamics Hamburg Germany

Mr. Heuveline Vincent Universität Karlsruhe (TH) Institut für Angewandte Mathematik II Karlsruhe Germany

Mr. Hölling Marc Hamburg Univesity of Technology Thermofluiddynamics Hamburg Germany

Mr. Houston Paul University of Nottingham School of Mathematical Sciences Nottingham England

Mr. Huerre Patrick Ecole Polytechnique Laboratoire d'Hydrodynamique (LadHyX) Palaiseau France

Mr Il'in A.M. State University Chelyabinsk Russia

Mr Jang Jiin-Yuh Department of Mechanical Engineering Air Force Inst. of Technology Kaohsiung Taiwan

Mr. Kachuma Dick Computing Laboratory Oxford University Oxford United Kingdom

Mr. Knobloch Petr Charles University Faculty of Mathematics and Physics Praha 8 Czech Republic

Mr. Knopp Tobias DLR (German Aerospace Center) Aerodynamics and Flow Technology Goettingen Germany

Mr. Kroll Norbert DLR Inst. f. Aerodynamik u. Strömungstechnik Braunschweig Germany

Mr. Linss Torsten Technische Universität Dresden Institut für Numerische Mathematik Dresden Germany

Mr. Liseykin Vladimir Institute of Computational Technologies Novosibirsk Russia

Mr Leong Jik-Chang National Pingtung University Pingtung Taiwan

Mr. Lube Gert University of Goettingen Institut for Numerical and Applied Mathe Goettingen Germany

Mr. Luedeke Heinrich DLR Aerodynamics and Flow Technology Braunschweig germany

Mr. Mackenzie John Department of Mathematics University of strathclyde Glasgow U.K

Mr. Mansour kamyar Department of Aerospace Engineering Amirkabir University of technology Tehran, 15875-4413 Iran


Mrs.Maragatha Meenakshi Ponnusamy P. Maragatha Meenakshi Government of Tamilnadu, India FIP Teacher Fellow, St.Josephs college Tiruchirappalli, Tamil Nadu, India

Mr. Matthies Gunar Ruhr-Universität Bochum Fakultät für Mathematik Bochum Deutschland

Mr. maubach joseph technical university of Eindhoven faculty of mathematics and computer scie Eindhoven netherlands

Mr Mauss J. IMFT Toulouse France

Mr. Mierka Otto Fachbereich Mathematik, LSIII Universität Dortmund Dortmund Germany

Mr. Miller John Royal College of Surgeons in Ireland INCA Dublin 2 Ireland

Mr. Morinishi Koji Dept. Mechanical & System Engineering Kyoto Institue of Technology Kyoto Japan

Mrs Nastase Adriana RWTH Aachen Aaachen Germany

Mr. Neuss Nicolas University Kiel Scientific computing Kiel Germany

Mr. Olshanskii Maxim Moscow M.V.Lomonosov State University Dept. Mech. & Math. Moscow Russia

Mr. O'Riordan Eugene Dublin City University Dublin Ireland

Mr. Parumasur Nabendra University KwaZulu-Natal Durban South Africa

Mrs Perotto Simona Politecnico di Milano Milano Italy

Mr. Rapin Gerd University Goettingen NAM Goettingen Germany

Mr. Rasuo Bosko University of Belgrade/Faculty of Mechan Aeronautical Department Belgrade, 35 Serbia + Montenegro

Mr. Roos Hans-G. TU Dresden Dresden Germany

Mr Saiful-Islam Wan Salim KUiTTHO Batu Pahat Malaysia

Mr. Scheichl Bernhard F. Vienna University of Technology Inst. of Fluid Mechanics & Heat Transfer Vienna Austria

Mr. Schneider Rene TU-Chemnitz, Fakultät für Mathematik Chemnitz Germany

Mr. Sengupta Tapan Dept. of Aerospace Engineering Indian Institute of Technology Kanpur KANPUR India

Mr. Shishkin Grigory Russian Academy of Sciences, Ural Branch Institute of Mathematics and Mechanics Ekaterinburg Russia

Mrs.Shishkina Lidia Russian Academy of Sciences, Ural Branch Institute of Mathematics and Mechanics Ekaterinburg Russia

MrsShishkina Olga DLR Aerodynamics and Flow Technology Goettingen Germany

Ms. Stanculescu Iuliana University of Pittsburgh Pittsburgh USA

Mr. Steinrück Herbert Vienna University of Technology Fluid Mechanics and Heat Transfer Vienna Austria

Ms. Stephens Meghan Maths Dept National University of Ireland, Galway Galway Ireland

Mr. Stynes Martin Department of Mathematics National University of Ireland Cork Ireland

Mr. Svacek Petr CTU in Prague, Faculty of Mech. Eng. Department of Technical Mathematics Praha 2 Czech Republic

Mrs.Tarasova Natalia Baltic State Technical University St Petersburg Russia

Mr. Tian Hongjiong Department of Mathematics Shanghai Normal University Shanghai P. R. China

Mr. Tobiska Lutz Otto-von-Guericke University Department of Mathematics Magdeburg Germany

Mr Tolstykh A.I. Comp. Center of Russian Acad. of Science Moscow Russia

Mrs.Tselishcheva Irina Russian Academy of Sciences, Ural Branch Institute of Mathematics and Mechanics Ekaterinburg Russia

Mrs.Valarmathi Sigamani Church of South India Bishop Heber College Tiruchirappalli India

Mr. Vasanta Ram Venkatesa Iyengar Ruhr University Bochum Institut fuer Thermo- und Fluiddynamik Bochum Germany

Mr Vasliiev M.M. Keldysh Inst. of Appl. Math. Moscow Russia

Mr. Veldman Arthur University of Groningen Mathematics and Computing Science Groningen The Netherlands

Mr. Wall Wolfgang A. TU München Chair for Computational Mechanics Garching Germany

Mr. Wang Hong Department of Mathematics University of South Carolina Columbia USA

Mr. Yang Zhong-hua Shanghai Normal Univ. Shanghai P.R.China

Mrs.Ye Qiaoyan Fraunhofer Institut IPA Stuttgart Germany

Mr. Zadorin Alexander Russian Academy of Sciences Institute of Mathematics SB RAS Omsk Russia

Mrs.Zarin Helena Faculty of Science and Mathematics Dept. of Mathematics and Informatics Novi Sad Serbia


Mr. Zegeling Paul Dep. of Math. Utrecht Universitz Utrecht Netherlands

Mr. Georgoulis Emanuil University of Leicester U.K.

Mr. Boguslawski Leon Poznan University of Technology Poland


Authors

Alizard, F., 67

Alrutz, Th, 69

Anthonissen, M., 57

Apel, Th., 71

Banasiak, J., 130

Bause, M., 72

Bleier, N., 37

Boguslawski, L., 73

Branley, D., 44

Buschmann, M.H., 32

Cangiani, A., 75

Chao, C.-Y., 145

Chigerev, E.N., 149

Chou, Y.-C., 106

Clavero, C., 77

Cousteix, J., 113

Das, D., 35

Dunne, R.K., 14

Eisfeld, B., 79

Firooz, A., 81

Gad-el-Hak, M., 32

Gadami, M., 81

Gaponov, S.A., 85

Georgoulis, E.H., 75

Gersten, Kl., 3

Gracia, J.L., 77

Gravemeier, V., 8

Hölling, M., 91

Hammouch, Z., 87

Hamouda, M., 88

Hartmann, R., 22

Hegarty, A.F., 44, 56

Hemavathi, S., 53

Herwig, H., 91

Heuveline, V., 24

Hong, Q.-S., 145

Houston, P., 4

Huerre, P., 5

Hussong, J., 37

Il’in, A.M., 93

Islam, W.S., 96

Jang, J.-Y., 106

Jensen, M., 75

Jimack, P., 28

Kachuma, D., 98

Kameswara Rao, A., 39

Kaushik, A., 100

Kluwick, A., 136

Knobloch, P., 102

Knopp, T., 69, 104

Kozakiewicz, J.M., 130

Kuzmin, D., 118

Lüdeke, H., 111

Lenz, S., 8

Lesshafft, L., 5

Leu, J.-S., 106

Li, S., 59

Li, Y.-Z., 154

Likhanova, Y.V., 108

Linß, T., 47

Lipavskii, M.V., 149

Lisbona, F., 77

Liseykin, V.D., 108

Lube, G., 109

Mackenzie, J.A., 25

Madden, N., 47

Mansour, K., 113

Matthies, G., 71, 115

Maubach, J., 57, 58

Mauss, J., 116

Mierka, O., 118

Morinishi, K., 120

Nastase, A., 122

Nataf, F., 124

Nayak, A., 35

Neuss, N., 126

Nicola, A., 25

O’Riordan, E., 14

Olshanskii, M.A., 128

Parumasur, N., 130

Patrakhin, D.V., 108

Perotta, S., 27

Petrov, G.V., 85

Purtill, H., 44

Raghavan, V.R., 96

Ram, V.V., 37

Rapin, G., 124

Rasuo, B., 132

Robinet, J.-Ch., 67

Roos, H.-G., 134, 135

Sagaut, P., 5

Savić, L., 41

Scheichl, B., 136

Schneider, R., 28

Sedykh, I., 57

Sengupta, T.K., 39

Sharma, K.K., 100

Shishkin, G.I., 16, 44, 48, 49, 51, 56, 59

Shishkina, L.P., 49, 59

Shishkina, O., 138

Sikwila, S., 56

Smorodsky, B.V., 85

Sobey, I., 98

Stanculescu, I., 18

Steinrück, H., 41

Stynes, M., 6

Stynes, M., 140

Svá˘cek, P., 141

Tai, C.H., 145

Tarasova, N.V., 143

Temam, R., 88

Terracol, M., 5

Tian, H., 147

Tobiska, L., 117, 140

Tolstykh, A.I., 149

Tselishcheva, I.V., 51

Turner, M.M., 14

Valarmathi, S., 53

Vaseva, I.A., 108

Vasieliev, M., 150

Veldmann, A.E.P., 152

Wagner, C., 138

Wall, W.A., 8

Wang, H., 19

Yang, Z.-H., 154

Ye, Q., 156

Zadorin, A.I., 61

Zarin, H., 135

Zegeling, P., 63

Zhu, Y., 154

BAIL 2006 Book of Abstracts - Institut für Numerische und ...

Create successful ePaper yourself

Delete template?

Save as template?
