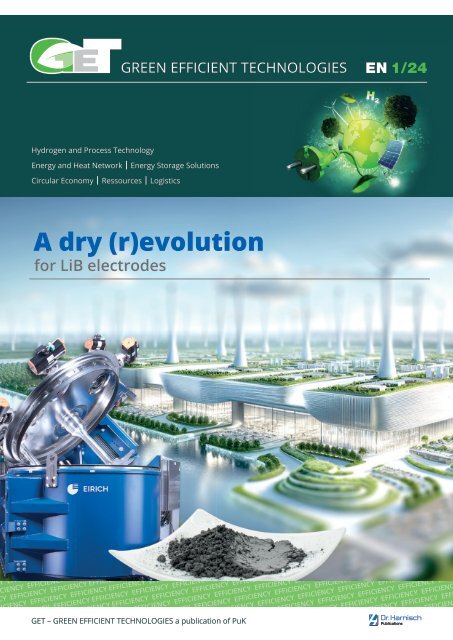

GET – GREEN EFFICIENT TECHNOLOGIES EN 1/24

GREEN EFFICIENT TECHNOLOGIES
EN 1/24
Hydrogen and Process Technology
Energy and Heat Network
Energy Storage Solutions
Circular Economy Ressources Logistics
A dry (r)evolution
for LiB electrodes
FICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIE
CY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY E
FICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFIC
CY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY
FFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFIC
NCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY
EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFF
ENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENC
EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFF
IENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENC
EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EF
CIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIEN
Y EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY E
ICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIE
CY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY
FICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIE
CY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY
NCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICI
FICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY
EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFIC
NCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENC
FICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFI
Y EFFICIENCY EFFICIENCY EFFICIENCY EFFICIENCY EFFICIEN
ENCY EFFICIENCY EFFICIENCY EFFICIENCY EFF
GET – GREEN EFFICIENT TECHNOLOGIES a publication of PuK

Hydrogen.
Fuel Cells.
Future.
8–9 OCT
2024
Messe
Stuttgart
Change happens – right here, right now.
hy-fcell is one of the leading international trade fairs
and conferences for hydrogen and fuel cell technology.
Discover innovations, expand your network and meet
industry leaders – welcome to hy-fcell 2024!
For more Information
scan the QR Code or
visit our website:
www.hy-fcell.com
Get your
ticket
now!

Editorial
#MoveTheDate!
In a few weeks, it will be that time again - Earth Overshoot Day is on 1 August. Unlike other days of remembrance or
celebration, however, there is absolutely no reason to celebrate. At most, there is the fact that since 2013 we have regularly
reached it seven months after the beginning of the year - and not at the beginning of June, as the interpolation
from 1971 to 2013 gloomily announced. On Earth Overshoot Day, like a swarm of locusts, we have eaten up as many of
our planet's resources (the only one we have, by the way) as it can produce in the entire year. In other words, from this
day onwards, we are irretrievably destroying our children's reserves of raw materials. The fact that the trend has stagnated
since 2013 is due less to our efforts to save energy than to a chain of diseases, wars and climate catastrophes.
But what can be done?
Current research offers a colourful bouquet of technical solutions to save energy and raw materials. However, due to
human inertia and economic greed, these solutions are often only implemented if they bring a directly measurable
financial benefit for the user. A certain proportion of the potential savings can only be achieved by changing the behaviour
of the world's population. This requires education and the breaking down of entrenched traditional lifestyles. The
people behind the Global Footprint Network have done a lot of work on this. This open-ended examination often leads
to surprising results that shake many a well-held dogma. On the www.overshoot.footprintnetwork.org website, the
expected effects are neatly listed on the Solutions subpage.
There is immense power of possibility in the many existing solutions (below) that are ready to be deployed at scale. With
them, we can make ourselves more resilient and #MoveTheDate of Earth Overshoot Day.
The greatest leverage with a 63-day deadline extension is probably provided by the (moderate) pricing of carbon emissions,
as the introduction of an emissions trading system, as already implemented in Europe, for example, favours all
other savings opportunities. However, this measure harbours a huge risk for European industry - if the rest of the world
does not follow suit.
18 additional days could be gained by switching to hydrogen-based drives and e-fuels, although a switch to battery-electric
mobility is likely to be more favourable on a case-by-case basis.
7 days could be gained by a 50 per cent switch from meat-based to plant-based food. If a reduction in methane emissions
is also taken into account, the effect is even greater.
However, the list of examples also reveals some surprising facts. The effectiveness of many of the things that the public
media treat as the holy grail of energy saving is completely overestimated. Heat pump heating systems only extend
the deadline by a mere two days. One day's grace period is given for 50 per cent fewer holiday flights. A reduction in
global speed limits by 20 km/h would have practically no effect at all - driving at 30 km/h in urban areas or 110 km/h on
inter-regional roads would only add a little more than 12 hours.
We have many opportunities to make better use of our planet's resources. You will find some of them on the following
pages. However, we should quickly turn the big and the right screws, because the clock is running against us.
I hope you enjoy reading and wish you success in realising your plans.
Ottmar Holz
Editor
GREEN EFFICIENT TECHNOLOGIES 2024
3

GREEN EFFICIENT TECHNOLOGIES
Contents
Cover
A dry (r)evolution for LiB electrodes
Innovations for “greener” and more cost-effective batteries
Minimizing CO 2 emissions, saving resources and cutting costs are a
triple-header of key goals in which energy storage system makers are
now targeting. And one crucial area to leverage is electrode production
- where technological transformation continues apace. Here, dry
electrodes, which promise maxi mum economic efficiency, are gaining
ground. Meanwhile where mixing technology is concerned, the streamlined
and flexible slurry production capacity of the Maschinenfabrik
Gustav Eirich makes a perfect technology partner.
Contents
Editorial
#MoveTheDate! 3
Cover story
A dry (r)evolution for LiB electrodes 6
Disctrict heating
Every joule counts 10
Great climate from the cloud 13
Industrial heat storage
Thermal storage: building block for the decarbonisation of industrial process heat 15
Energy storage
Sustainable, well-cooled energy storage systems for commerce and industry 20
Hydrogen sensor technology
Putting the pressure on hydrogen 23
Hydrogen infrastructure
Ex-enclosures from ROSE protect the hydrogen infrastructure 26
Efficient drives
Reliable pump drives for sustainable fibres 30
PFAS
Removal of PFAS from drinking water with granulated activated carbon 32
Trade fairs and events
hy-fcell with renowned exhibitors and many new features 35
Filtration and separation: trends for the process industry 37
Companies – Innovations – Products 38
Index of Advertisers 44
Brand name register 44
Impressum
Publisher
Dr. Harnisch Verlags GmbH in cooperation with
Prof. (ret.) Dr.-Ing. Eberhard Schlücker, advisor
on hydrogen and energy issues
©
2024, Dr. Harnisch Verlags GmbH
Responsible for content
Ottmar Holz
Silke Watkins
Publishing company and reader service
Dr. Harnisch Verlags GmbH
Eschenstr. 25
90441 Nuremberg, Germany
Tel 0911 2018-0
Fax 0911 2018-100
E-Mail get@harnisch.com
www.harnisch.com
Errors excepted
Reprinting and photomechanical reproduction,even
in extract form, is only possible with
the written consent of the publishers
Editors
Ottmar Holz
Silke Watkins
Advertisements/Brand name register
Silke Watkins/Matti Schneider
Technical Director
Armin König
ISSN 2752-2040
4
GREEN EFFICIENT TECHNOLOGIES 2024

Save
the
Date
industrial valves &
sealing technology
/ 2nd – 3rd April 2025
/ Globana Eventhallen
Leipzig/Schkeuditz
/ 12th – 13th November 2025
/ Jahrhunderthalle Bochum
DIAM-DDM.DE

Cover story
A dry (r)evolution for LiB electrodes
Innovations for “greener” and more cost-effective batteries
Dr. Stefan Gerl
new development. Approximately 1.5
tera watt hours increase is forecasted
for Europe alone by 2030, which
equates to ten times the production
capacities currently available. Undeniably,
energy storage systems need
to become cheaper for cells to find
buyers. This is the reality confronting
battery makers in Europe, over
and above the need to reduce their
CO 2 footprint. Converting energy
infrastructure to run on renewably
sourced power is driving up elec tricity
prices.
Charting the right course
The 5-litre ‘CleanLine C5’ laboratory mixer leverages process technology to optimal effect.
This to promote lab research and development into the next generation of batteries. The
simple scale-up to later production quantities is a major advantage of Eirich technology.
Image: Eirich
Minimizing CO 2 emissions, saving
resources and cutting costs are a
triple-header of key goals in which
energy storage system makers are
now targeting. And one crucial area
to leverage is electrode production
- where technological transformation
continues apace. Here, dry
electrodes, which promise maximum
economic efficiency, are
gaining ground. Meanwhile where
mixing technology is concerned, the
streamlined and flexible slurry production
capacity of the Maschinenfabrik
Gustav Eirich makes a perfect
technology partner.
Under the ‘Green Deal’ umbrella,
the European Union is calling for
all 27 member states to become
climate-neutral by 2050. Its ambitious
target is to reduce greenhouse gas
emissions by 55% by 2030 compared
to 1990 levels. Achieving it will require
immediate and concrete action on
the part of both industry and society!
And these are requirements that
companies making lithium-ion battery
cells for electromobility and stationary
energy storage will also have
to meet.
The growing demand for
battery cells
A new wave of 'gigafactories' is
springing up around the globe,
spearheaded by China, the USA and
Europe. France and Germany are
particular hotspots for this exciting
Despite the significant upfront costs
and capital investment required to
transport cells from overseas, there is
still a compelling case for locating cell
factories close to major consumers
like automotive OEMs or electricity
grid operators. Keeping this in mind,
producing key market components,
i.e. batteries, locally makes sense as
a way of boosting supply chain security
and resilience when faced with
Asian competitors. This applies even
more if we assume the world political
map will remain as unstable as at
present and continues to constrain
supply routes and sourcing markets.
But as an industry supplier, nothing
beats the sight of industry achieving
its goals by optimizing the process
chain or achieving technological
leaps like a switch to dry electrodes.
Whatever route manufacturers take,
Eirich technology can help maximize
economic efficiency when producing
electrodes.
Slurry making streamlined
Eirich MixSolvers have now been
deployed in the UKBIC research factory
(see article ‘Smart to electrode
slurry’ in CITplus 1-2/2022) as well
as several gigafactories in Asia. They
now set the standard when it comes
to accurate information on energy
consumption in large-scale electrode
6
GREEN EFFICIENT TECHNOLOGIES 2024

Cover story
by planetary mixers (see diagram).
And cheaper power costs aren't the
only benefit. The CO 2 emissions generated
by electrode production are
also correspondingly lower. Annual
CO 2 savings of around 5000 tons as
shown in the above example equate
to 25 kg less CO 2 per vehicle produced.
There are numerous factors why
Eirich mixing technology excels. [10]
Its positive effects include:
Fig. 1: The secret of Eirich technology: The
rotating container transports the material,
while the mixing tool with flexible rotation
direction and speed takes care of the actual
mixing process. The static scraper keeps the
container walls and base clean and guides
the material back to the whirler tool.
Image: Eirich
slurry production. Energy consumption
values for planetary mixers, twinscrew
extruders and inline dispersers
are also published at symposia and
on machine manufacturer websites.
Comparing the values elicits relatively
clear results.
The MixSolver exceedingly outperforms
all of its rivals in terms of
low electricity consumption with a
total of 0.6 GWh/a (based on average
consumption values and 8500 operating
hours per year). The worst performer,
the PD or planetary mixer, is
the most frequently used as things
stand today. Twin-screw extruders
and inline dispersers each consume
around a third of the power required
• A combination of compact batch
mixers, e.g. the MixSolver RV12,
which are efficient and flexible,
• Just-in-time production, to minimize
reject rates,
• ContiFeeder technology for continuous
coater feeding of uniform
slurry quality at all times,
• A temperature-controlled process
that generally eliminates the need
for cooling,
• Less enclosed space.
Given the challenges facing the industry
in terms of both cost-cutting and
reducing greenhouse gas emissions,
it is imperative to continue to break
new ground and ensure our electrode
production evolves.
Potential savings with
dry electrodes
When it comes to electrode production,
the slurry made with the Eirich
MixSolver is not the end of the line.
New technologies like dry electrode
production promise further potential
savings in terms of energy consumption,
CO 2 reduction, production
Fig. 3: Structured electrode mixture produced
in the Eirich mixer. Image: Eirich
costs and the use of resources. [7] All
of which explains the acceleration of
research and development work into
dry electrodes. More and more, publicly
funded research projects such as
CircuBat, DryTreac and ProLit, which
Eirich is also involved with, are currently
underway. Alongside the intensive
industrial development work
involving Tesla, AM Batteries and
Licap among others, or as recently
publicised by PowerCo and other
European OEMs. The upcoming ‘Dry
Coating Forum’ in Dresden will see a
range of innovative solutions rolled
out, including by Eirich.
Structured electrode mixtures are
required
Two processes involving differing
concepts and levels of technology
readiness (TRL) compete when it
comes to producing dry electrodes:
Fig. 2: Total consumption of electrical energy per 10 GWh factory in GWh/a (blue) in electrode
production and the resulting CO 2 emissions in tonnes/a (green) depending on the type
of mixer used.
Graphics: Eirich
• Production of an electrode mixture
with subsequent powder
application by spraying, brushing
or applying electrostatics on
the arrester with subsequent hot
calen dering. [6]
• Production of an electrode mixture
with superimposed PTFE fibrillation
to produce a mouldable,
GREEN EFFICIENT TECHNOLOGIES 2024 7

Cover story
elastically plastic mixture, processed
into a free-standing film
with a calender gap, then laminated
onto a trap. [5]
Both cases require segregation-free
structured electrode mixtures. One
way to achieve this is to coat the
particle surfaces of active materials
with conductive carbon black.
Whichever approach is chosen, a
thoroughly mixed binder is crucial.
Moreover, if PTFE is used, it must be
broken down through targeted temperature
control and high shear to
create a spider web-like structure in
the mixture, making it mould able.
The Eirich mixer handles both tasks
seamlessly and couldn't be any
easier to control.
Solvent-free zone
Dry electrode production eliminates
the need for classic coating and drying
steps. As a rule, the electrode
mixtures are processed in modified
heated multi-roll calenders. Not
all the liquids used need to be completely
eliminated, vaporized or
condensed, nor is any solvent reprocessing
needed either. The process
thus takes place free of any NMP solvent
(N-methyl-2-pyrrolidone), which
is classified as toxic, particularly to
reproduction.
Space-saving
The 50-100 meter-long drying sections
between the coater heads,
Fig. 4: Eirich guarantees successful scale-up with mixer sizes for very small quantities, from
production testing to series production on a GWh scale. All sizes can be easily converted
from slurry to dry mixes.
Image: Eirich
which are typically for wet electrolysis
and a major factor in determining
building dimensions, are not
required for this process. The huge
hot-air generation and filter/condensation
systems for supplying or disposing
of drying air to the dryers, the
cold-water generators for the condensers
and the distillation systems
for recycling the NMP separated from
the exhaust air can also all be dispensed
with. All of which paves the
way to construct a far more compact
gigafactory. [7]
A convincing end solution:
The Eirich mixer
Given the relatively low mould
speeds involved, planetary mixers
do not lend themselves to producing
structured electrode mixtures.
That’s why combinations of simple
mixing systems, like V-mixers with
intensifier bars and downstream
air jet mills, are often proposed as
alternatives [9]. However, as grinding
technology applications show,
air jet mills are excessively costly. It
is also far from easy to ensure the
safe discharge and material handling
of the generated elastic plastic
masses. For an efficient alternative,
look no further than the Eirich
mixer.
The mixing process operates
at mould speeds of up to 45 m/s
when producing structured electrode
mixtures, which differentiates
from the MixSolver slurry production
process. The short dry mixing
phase at moderate mould speeds
serves only to homogenize the
powdery binder and deagglomerate
the coarse conductive carbon
black agglomerates at this stage.
Vigorous kneading during the highly
plastic phase is required to disperse
and adjust the electrode properties.
But back to dry processing; the Eirich
mixing principle allows processing
of all consistencies, including
the soft-plastic, fibrillated mix. It is
convertible into a granulate structure
that can easily be conveyed
and dosed via targeted temperature
control. It can then be fed uniformly
into calender gaps and rolled
into a film.
8
GREEN EFFICIENT TECHNOLOGIES 2024

Cover story
Author:
Dr. Stefan Gerl
Strategic Project Director Lithium
Ion Batteries + Head of Process
Technology Department,
Gustav Eirich Machine Factory
Fig. 5: The first hybrid mixing system for wet and dry electrodes in Germany was installed for
test purposes in the Eirich technical centre in the idyllic Odenwald municipality of Hardheim.
Image: Eirich
The wet to dry changeover
Both the MixSolver and Eirich
mixer evolved from identical basic
machines. The main differences
between the two are in the motorization
of the mixing tool, the discharge
of the mix and the wear protection
concept, primarily on the mixing tool.
With the right planning and design, a
wet processing plant with MixSolvers
can be converted to an Eirich mixer
with minimal effort and used to produce
dry electrode mixtures. This
helps to future-proof those using
Eirich mixing technology, regardless
of which technology prevails in the
medium to long term.
Bibliography:
- [1] Mohsseni, A., Harper, C.: Pathways
to Reduce Energy Consumption
in Lithium-ion Battery Cell Manufacturing;
Whitepaper UKBIC case
study; www.ukbic.co.uk/newwhite-paper-published/
- [2] Haberzettl, P.; Scaling up Electrode
Slurries – From Beaker to Barrel,
Poster D1_5.23, IBPC Nov. 7/8,
2022, Brunswik
- [3] Polek, C.; Industrievortrag, Themenblock
2: Neue Technologien in
der Batteriezellproduktion, 5. In-
ZePro/Prozell Industrietag, Feb. 7,
2023
- [4] See MOFA Slurry Production
Equipment; www.siehesmart.com/
product_detail/mofa-slurrying
- [5] Yang, L., Chen-Zi, Z., Hong, Y.;
Jiang-Kui, H., Jia-Qi, H., Qiang, Z:
Dry electrode technology, the rising
star in solid-state battery industrialization;
Matter 5, pages 876–898,
March 2, 2022
- [6] Ludwig, B., Zheng, Z., Shou, W. et
al.: Solvent-Free Manufacturing of
Electrodes for Lithium-ion Batteries.
Sci Rep 6, 23150 (2016);
doi.org/10.1038/srep23150
- [7] Tesla, 2020 Annual Meeting of
Stockholders and Battery Day;
www.tesla.com/
2020shareholdermeeting
- [8] Gerl, S.: Smart zum Elektroden-Slurry.
CITplus 1-2/2022, pages
26-29. https://doi.org/10.1002/
citp.202200114
- [9] Patent WO 2005008807 A2
- [10] Gerl, S.: Wer wagt gewinnt.
PROCESS
Contact
Maschinenfabrik Gustav Eirich
GmbH & Co KG, Hardheim
Tel.: +49 6283 510
batteryexperts@eirich.de
GREEN EFFICIENT TECHNOLOGIES 2024 9

District heating
Every joule counts
Lemgo municipal utilities. At the time,
no comparable solution was available
from competitors on the market.
Heat from the wastewater of the
municipal sewage treatment plant
The district heating centre (above, centre) is part of a larger green energy network that generates
heat from a wastewater treatment plant in Lemgo, Germany. Photo: GEA/Tim Luhmann
The decarbonisation of district heating
networks appears simple at first
glance - but this is deceptive. As
practically all local authorities are
focussing on hydrogen, wood and
waste incineration, demand is likely
to outstrip supply in a flash. Clever
municipal utilities, on the other
hand, are using large heat pumps
to utilise energy sources that have
been available on site for a long
time and have so far gone unused.
In addition to the obvious utilisation
of waste heat from combined heat
and power plants, natural bodies
of water and the sewage pipes that
flow into them are also an option.
Lemgo heats with heat from water
By supplying two heat pumps, GEA
is helping the city of Lemgo on its
way to achieving climate neutrality
by 2035. Using GEA technology,
the city obtains heat from the effluent
of the sewage treatment plant,
waste heat from a large combined
heat and power (CHP) plant and from
the River Bega. The heat generated
by the large heat pumps is sufficient
to supply the historic town centre of
Lemgo with low-carbon heat as far
as possible. That is around 18 million
kilowatt hours of heat per year, which
saves 3,200 tonnes of CO 2 emissions
per year. The heat from the sewage
treatment plant’s effluent alone can
cover two thirds of the old town’s
heating requirements or twelve per
cent of the district heating network’s
total demand. The operating stra tegy
ensures that the heat pumps can
operate constantly for up to 7,500
hours per year to maximise the benefits
of the heat pumps.
GEA’s Malmö project attracts
attention
Stadtwerke Lemgo became aware
of GEA through the “Malmö” heat
pump project. Here, too, GEA technology
was used to generate heat from
the waste water of a municipal sewage
treatment plant in the Swedish
metropolis.
At an initial meeting on site in
Lemgo, GEA suggested to the customer
that the initially planned
low-pressure heat pump and
high-pressure heat pump be replaced
by a two-stage heat pump without
a lossy intermediate circuit. This
was quickly recognised by all those
involved as the much more advantageous
option in terms of energy and
economy. As a result, GEA only pursued
this customised solution for the
The recovery of heat from the waste
water of the municipal central sewage
treatment plant in Lemgo forms
an important part of the city’s district
heating production. The clean water
at the sewage treatment plant outlet
is highly suitable. The treated wastewater
has an average annual temperature
of around 13° C. Due to the
mixed water system, large quantities
of water (equal quantities of heat!)
are available. Almost 8,000 h/a provide
more than 1.5 MW of source
power. Furthermore, infrastructure
such as a combined heat and power
plant and district heating connection
are available at the sewage treatment
plant. Heat is only extracted downstream
of the treatment stages at
the outlet of the sewage treatment
plant. In this way, the highest possible
amount of heat can be achieved
with relatively little technical effort.
Crucially important: the wastewater
treatment process is also not affected
by the downstream heat extraction.
The biggest challenges for
Stadtwerke Lemgo and GEA - and
how they were overcome
During commissioning, it turned out
that the water quality of the heat
source from the sewage treatment
plant did not meet the original purity
expectations. The resulting contamination
of the evaporators meant that
the “pure water heat pump” could no
longer continue to operate. The task
now was to find a sustainable solution.
Of the options considered, joint
deliberations between Stadtwerke
Lemgo and GEA rejected the possibility
of an additional separating heat
exchanger or the conversion of the
heat pump and tube bundle evaporator
with a complex self-cleaning
10 GREEN EFFICIENT TECHNOLOGIES 2024

District heating
air heat pump. These will be connected
via direct cable to a wind turbine,
which is also in the planning
stage, in order to generate wind heat.
In addition, a wind power plant is to
contribute to hydrogen production -
further investments are planned in
a biomass boiler and a wood gasification
plant for road side wood in
order to achieve the goal of climate
neutrality.
Clever use of unusual sources
Fig. 1: The machine room with GEA heat pumps in the combined heat and power plant in
Lemgo, Germany.
Photo: GEA/Tim Luhmann
system. The decision was made in
favour of an additional filtration system,
which was then implemented.
Natural refrigerant ammonia
another plus point for environmental
protection
The fact that the GEA heat pumps are
also operated with the natural refrigerant
ammonia is another plus point
in terms of environmental protection.
Ammonia is an inorganic compound
of nitrogen and hydrogen, lighter
than air and easily soluble in water. EA
is leading the development of technology
solutions for natural refrigerants
such as ammonia to meet the environmental
targets for phasing out
the use of fluorinated gases (F-gases)
and reducing emissions to the atmosphere.
For example, the COP (coefficient
of performance) of an ammonia
heat pump operating under typical
conditions for a district heating network
or for process heat below 100
°C is 40 % higher compared to synthetic
refrigerants, which means 40
% fewer emissions, 40 % less energy
and 40 % lower costs.
Milestone achieved - but by no
means the “end of the line”
Stadtwerke Lemgo is not yet satisfied
with what it has achieved. The
next steps are already being planned
for the city’s CO 2 -neutral electricity
and heat supply: By 2028, more
than 55 per cent of the district heating
required is to be generated from
renewable sources. The Lemgo team
is relying on a large-scale solar thermal
system, another large heat storage
tank with an integrated PtH and
GEA is providing support by supplying
two large heat pumps for
the Neukölln district heating plant
(FHW). At the Weigandufer site,
seven large boilers use wood pellets,
heating oil and natural gas to generate
climate-friendly district heating
for households in the Neukölln
and Kreuzberg districts of Berlin. In
order to achieve the heat transition,
five combined heat and power plants
Background information
What exactly did GEA supply for the GEA RedAstrum stands for reliability,
Lemgo project?
low ammonia filling quantities and minimum
space consumption. Its flexibility
• A CHP heat pump
and efficiency make it suitable for a wide
GEA REDASTRUM HE, heat output range of heating purposes.
sink 785KW at 82°C flow and source
560 kW at 63°C, COPline 3.2, KM R717 The GEA RedGenium heat pump transfers
its heat output to a liquid heat
(ammonia)
• A pure water heat pump
transfer medium and delivers flow temperatures
between +55 and +80 °C for
GEA MX SP2VE6B(RP), heat output
sink 2372 KW at 82°C flow and source any industrial application where there is
1600 kW at 15°C, COPline 2.7, KM a need for process heat or where local
R717 (ammonia)
supply or district heating networks are
served.
What characterises the GEA RedAstrum
heat pump?
Thanks to the wide temperature range
available on the cold side between -10
GEA RedAstrum 2.0: This second generation
of screw compressor heat pumps lise all possible heat sources - whether
and +50 °C, the GEA RedAstrum can uti-
offers an optimised design, a new waste water, groundwater, river or lake
ammonia cascade evaporator (optional) water or a secondary refrigerant (coolant)
in the case of combined cooling and
and an extended model range. The
series is now available with seven screw heating applications. Alternatively, a
compressor types based on the successful
GEA Grasso M and GEA Grasso LT as an evaporator, with which hot ammo-
cascade heat exchanger is also available
series in a specific high-pressure design. nia gas can be fed directly from a refrigeration
system and thus waste heat can
Based on the successful GEA BluAstrum
concept with project-specific configured be utilised particularly efficiently.
and optimised heat exchangers, the
GREEN EFFICIENT TECHNOLOGIES 2024
11

District heating
power plant will soon go into operation
on the site of the Neukölln CHP
plant. The new combined heat and
power plant is ‘hydrogen-ready’. The
second GEA large heat pump forms
the centrepiece here.
Local companies are to feed
industrial waste heat into the
district heating network
Fig. 2: Higher target temperatures, an extended output range, maximum efficiency and
therefore greater sustainability at lower costs - these are the advantages offered by the
models in the GEA RedGenium heat pump series.
Photo: GEA/Cem Yücetas)
on the FHW site efficiently produce
heat and electricity using combined
heat and power (CHP). This combined
gene ration process enables a particularly
high degree of fuel utilisation.
But that's not all: one of the new
GEA large heat pumps is already
connected to the five combined
heat and power plants. It utilises
the waste heat from the charge air
cooling of the highly efficient combined
heat and power plants. This
increases the efficiency of the overall
system by around five per cent. As a
result, an additional 4,000 mega watt
hours of heat can be gene rated per
year for the neighbourhood from
waste heat that would otherwise be
lost.
Another new ‘hydrogen-ready’
combined heat and power plant
coming soon
Another new combined heat and
FHW Berlin-Neukölln is planning to
invest in the heating transition on
an ongoing basis. To this end, the
heat generation systems are being
replaced with new, environmentally
friendly systems and renewable
energy sources are being integrated
during ongoing operations. This
includes more flexible combined heat
and power plants, power-to-heat and
a second heat storage facility. This
will reduce the FHW’s CO 2 emissions
by 25,000 tonnes per year from 2025.
FHW Neukölln also wants to offer
local companies in which combustion
and heating processes take place the
opportunity to feed industrial waste
heat into the FHW district heating
system.
How the heat reaches Neukölln
households
The heat reaches the connected
households in the form of hot water
- there are around 55,000 of them in
the ‘neighbourhoods’ of Berlin-Neukölln
and Berlin-Kreuzberg. The water
releases its heat and flows back to
the FHW Neukölln in a circulation system.
Around 120 kilometres of pipes
have now been installed. Around two
to four kilometres are added every
year. The district heating network
now extends from the Landwehrkanal
in Kreuzberg via Grenzallee in
Neukölln, Reuterkiez and Körnerpark
to Tempelhofer Feld in Oderstraße.
Fig. 3: The Neukölln district heating plant relies on two GEA large heat pumps for the ‘ecological-social
energy transition’ project.
Photo: GEA/Cem Yücetas
GEA Group Aktiengesellschaft
Peter-Müller-Str. 12
40468 Düsseldorf, Germany
Tel. +49 (0)211-9136-0
Message via contact form
on the website
www.gea.com
12 GREEN EFFICIENT TECHNOLOGIES 2024

District heating
Great climate from the cloud
Photo: dataR
The electricity consumption of
German data centres rose from 11
to 18 billion kilowatt hours within
a decade by 2022 – and the trend is
still rising. Streaming services, cloud
solutions instead of local desktop
PCs and the rapid growth in digitalisation
mean that servers are still
hungry for electricity.
However, unlike most production
facilities, the electricity in data centres
is almost exclusively converted
into heat. To prevent the hardware
from overheating and being damaged,
they are permanently cooled.
Water is increasingly replacing the
previously dominant cooling medium
of air. This also changes the temperature
range of the dissipated
heat and, as a direct consequence,
the type of possible waste heat utilisation.
Air-cooled systems release
heat at a temperature of around 30
degrees Celsius. This low temperature
level is suitable, for example, for
surface heating in new buildings or
drying systems. To heat existing residential
or office buildings, the waste
heat must first be heated to almost
double this temperature using heat
pumps. The waste heat from watercooled
server cabinets, on the other
hand, can reach up to 60 degrees.
This makes it easier to feed it directly
into local heating networks, as their
previous, significantly higher flow
tempera ture level is increasingly
reduced.
Increasing profitability
Although the current Energy Efficiency
Act does not (yet) stipulate that
data centre operators are obliged to
connect to a local heating network,
the probability of this happening is
increasing from year to year. The CO 2
tax and thus the value of waste heat
also increases every year. It therefore
makes sense to look for a possible
heat sink in the surrounding area
as early as the site planning stage, as
energy and resource efficiency will
play a decisive role in the data centre
of the future.
Data centre with “Blauer Engel”
certification
The co-location data centre operator
dataR is relying on the expertise of
ENGIE Deutschland GmbH at its new
Rellingen site in the north of Hamburg.
Together with its partner Kähler
Bau, ENGIE Deutschland is developing
and building a data centre in
Rellingen with a connected load of
over six megawatts, which will meet
demanding requirements in terms
of operational reliability, efficiency
and sustainability. After completion
in March 2026, the data centre will
be certified by TÜV SÜD in accordance
with availability class VK-3 in
GREEN EFFICIENT TECHNOLOGIES 2024
13

District heating
accordance with the European standard
for data centres DIN EN 50600.
The building will also be awarded
the “Blauer Engel DE ZU-228” eco-label,
which is awarded by the German
Federal Ministry for the Environment
for particularly environmentally
friendly products and services.
Andreas Janker, Managing Director
at dataR, said at the ground-breaking
ceremony on Thursday, 7 March
2024: “We are proud that dataR is
building one of the most energy-efficient
data centres in Germany. With
ENGIE Deutschland, we have exactly
the right partner at our side to
achieve a new level of efficiency and
sustainability in our sensitive digital
infrastructure.”
dataR and ENGIE on the road to
climate neutrality
The dataR data centre covers a total
of 8,200 square metres. Of this, 2,500
square metres are accounted for by
the white space with 25 rooms in
which the servers, switches and data
storage are housed. The remaining
space is divided into the grey space
with the cooling systems, the systems
for the uninterruptible power supply
and other operating equipment, as
well as the offices. The highly complex
technical equipment, which ENGIE
Deutschland designed and whose
installation the on-site team will
coordinate and supervise during the
entire construction phase, includes
a redundant emergency power supply
(three systems of 3,500 kilovolt
amperes each), water-cooled chillers
with the natural refrigerant ammonia
and with free cooling (six systems of
850 kilowatts each) and dry cooling
units (four systems of two megawatts
each). This makes it the first data
centre in Germany to use a natural
refrigerant (Global Warming Potential
(GWP) = 0) to this extent. Another special
feature is the use of waste heat on
site: the data centre will provide several
megawatts of waste heat, which
can be used to supply heat to the
surrounding buildings. Maximilian
Busch, Head of Sales & Engineering
in the Building Technologies business
unit and respon sible for the project at
ENGIE Germany, says: “Data centres
in Europe are facing the challenging
task of becoming climate-neutral by
2030. Our project with dataR shows
that the climate-neutral data centre
is absolutely possible for any size of
data centre, even under complex conditions
– and thus sets an example for
the industry.”
Retrofitting in existing buildings
The electrical energy used to operate
the data centre is ultimately almost
completely converted into heat. This
heat is either generated directly by
the IT technology and is transferred to
cooling water transmitted to cooling
water heated up to 50°C. Or it is dissipated
indirectly via cold water and
then reaches the condensers of the
chillers at around 46°C. Theoretically,
100 percent of the heat can be transferred
to the waste heat consumers.
At the moment, Rellingen is already
planning to take around 30 percent
of the waste heat; depending on further
planning of the heating network
by the municipality, the proportion
could increase. One limitation here
may be the guaranteed availability of
waste heat as a heat source for the
heating network.
According to ENGIE, it is generally
possible to install such heat recovery
at a later date. The installation
effort depends on whether system
technolo gy has already been preequipped
for this – respective existing
data centre for connecting waste
heat users.
ENGIE has already provided proof
of feasibility: At the German Climate
Computing Centre in Hamburg, the
ENGIE Deutschland team has retrofitted
a waste heat recovery system
to preheat the outside air in a neighbouring
university building.
About ENGIE Deuschland and
the ENGIE Group
ENGIE’s mission is the transition to
climate neutrality. In Germany, the
companies of the ENGIE Group plan,
build, operate and market wind,
photovoltaic and hydropower plants
as well as pumped storage and battery
storage systems. The company
supports industrial customers, local
authorities and the housing industry
in implementing their sustainability
goals by optimising consumption
and implementing and operating
highly efficient building and energy
technology systems. With concepts
for climate-friendly heat supply,
mobility and digitalisation, ENGIE
supports the development of sustainable
neighbourhoods. The Group
trades in electricity and gas, supplies
end customers with energy, offers
multidisciplinary engineering solutions
in the fields of energy, water
and infrastructure and is one of the
leading storage operators in Germany.
In 2023, the ENGIE companies
in Germany generated sales of
2.75 billion euros with around 5,900
employees.
The French parent company ENGIE
SA is a global reference in low-carbon
energy and services and is committed
to accelerating the transition
to a carbon-neutral world by reducing
energy consumption and offering
greener solutions. In 2023, the
listed company generated sales of
around 82.6 billion euros with 97,000
employees.
ENGIE Deutschland GmbH
Aachener Straße 1044
50858 Köln, Germany
Tel.: +49 (0)2 21 4 69 05-0
info-deutschland@engie.com
www.engie-deutschland.de
14 GREEN EFFICIENT TECHNOLOGIES 2024

Industrial heat storage
Thermal storage: building block for the
decarbonisation of industrial process heat
Dr Christian Thiel, Chief Executive Officer, Energynest
Uncovered ThermalBattery made of carbon steel and the special concrete “Heatcrete”
All pictures: Energynest
in the public debate surrounding
the energy transition. Yet energyintensive
industrial sectors such as
steel, chemicals, textiles, food and
the paper industry in Europe consume
almost 2,000 terawatt hours
of energy per year for the production
of process heat. At present, however,
a substantial proportion of this
industrial heat still comes from fossil
energy sources such as natural gas.
As a result, the production of industrial
process heat is responsible for
more than 20 per cent of European
CO 2 emissions, in Germany even 25
per cent.
In Germany, around half of final
energy consumption is accounted for
by the generation of heat, with the
generation of process heat accounting
for around 23 per cent across
all sectors according to the Federal
Environ mental Agency (UBA). However,
according to German Energy
Agency (dena), the share of green
heat is only around 15 per cent.
Accordingly, process heat and process
steam still offer enormous
potential for savings and therefore
also a significant lever for reducing
CO 2 emissions.
New technologies are now
needed to achieve net-zero electricity
generation as quickly as possible
without disproportionately
increasing production costs and,
ideally, reducing overall consumption.
This is where thermal storage
solutions come in, as they can make
a significant contribution to reducing
dependence on fossil fuels and
decisively advance the integration of
renewable energies in industry.
The future of industry is characterised
by decarbonisation. In this
respect, process heat and process
steam are still being neglected in the
public debate. Yet they offer enormous
savings potential for companies.
Thermal storage solutions
can be an important building block
for sustainable, reliable and costefficient
steam and heat production
in industry.
The challenge of industrial process
heat has often been overlooked
Enormous potential for the
decarbonisation of industrial heat
Energy storage is a key aspect of the
energy transition. The reality remains
that biomass is finite, geothermal
energy is only economically available
GREEN EFFICIENT TECHNOLOGIES 2024
15

Industrial heat storage
Fig. 1: View of part of the CST system to which Energynest's ThermalBattery in Turnhout, Belgium, is connected
in small parts of Europe and the efficiency
of hydrogen from electricity
for heat generation is currently 50 per
cent at best. In addition, green hydrogen
is unlikely to be available nationwide
until it is too late and will remain
too expensive to burn in base load for
the foreseeable future. Sustainable
green solutions for energy storage,
on the other hand, are already available
today.
Thermal storage solutions should
not only be considered in the context
of achieving climate protection
targets. They also offer great
potential from a business perspective.
Decarbonisation can make
German industry as a whole more
resilient and competitive by reducing
its dependence on fossil fuels and
thus minimising geopolitical risks.
By implementing storage solutions,
comparatively inexpensive and
decentralised renewable energies
can be integrated and supply and
cost security can be guaranteed in
the long term.
Our ThermalBattery is made of
carbon steel and Heatcrete, a special
concrete developed in collaboration
with Heidelberg Materials. The thermal
storage units can be expanded on
a modular basis, depending on how
much storage is required. No moving
parts were used in the design, which
is why the storage unit has a long service
life and is relatively low-maintenance.
The service life is 30 years or
more.
The heat battery is charged by the
direct flow of hot heat transfer fluid
through embedded steel pipes from
top to bottom, whereby heat energy
is transferred to the core storage
material. In discharge mode, the flow
is reversed: Cold heat transfer fluid is
fed in at the bottom and then leaves
the battery heated to release energy
from the top side of the ThermalBattery.
This principle works just as efficiently
with water and vapour. The
thermal accumulator therefore acts
as a vapour cooler and condenser
during charging, while it functions as
a boiler and superheater during discharging.
The optimum operating range of
the ThermalBattery is between 120°
and 400°. The storage unit can be
customised for different applications,
opening up a wide range of uses in an
industrial context. For example, heat
storage units can be used for waste
heat recovery or the generation of
heat from renewable energies for
drying processes.
Full integration of renewable
energies
In view of the limited availability and
low efficiency of other renewable
energies such as biomass or hydrogen,
the expansion of solar energy
and wind power is rightly a priority.
However, it is precisely the muchcited
“dark doldrums” that make storage
systems an absolute necessity for
the energy transition. This is where
solutions such as our ThermalBattery
come into play, which already represent
a sustainable and practicable
option today.
The natural fluctuation in the
availability of renewable energy is
bridged by the ThermalBattery’s storage
options. Energy that is not immediately
required can be stored for
heat or steam generation at night or
during other peaks in demand, allowing
renewable energy to be fully integrated
into a wide range of industrial
processes. This eliminates the need
16 GREEN EFFICIENT TECHNOLOGIES 2024

Industrial heat storage
for fossil fuels completely or at least
in some processes with the help of
thermal storage.
In this context, for example, concentrated
solar thermal (CST) is a
promising technology for carbon-free
industrial process heat generation.
Parabolic mirrors heat thermal oil,
which is stored in the ThermalBattery
with minimal losses. If required, the
stored energy can be fed into a steam
generator to produce steam on
demand, which can be used in drying
processes, for example. Ideally,
the electrification of heat and steam
production can eliminate the need
for fossil fuels for sub-processes
altogether. However, without storage,
production is only limited to daytime
periods, even if steam is required
throughout the day. Thermal storage
can store excess energy for steam
production at night, enabling true
decarbonisation.
Energynest has implemented this
application in Belgium with its partner
Avery Dennison, a leading manufacturer
of self-adhesive materials.
The project comprises a concentrated
solar thermal platform with 2,240
surface mirrors and a peak solar field
yield of 2.7 GWh of thermal energy, as
well as six thermal storage modules
with a capacity of 5 MWh of thermal
energy. Solar energy is used there
to operate some of the drying ovens
in production, which are used in the
coating process for the pressure-sensitive
adhesive products manufactured
at the site. Thermal energy that
is not generated as required is stored
in the ThermalBattery and released
at night or during other peaks in
demand, thus avoiding the use of fossil
fuels and contributing to a further
reduction in emissions.
The use of thermal storage systems
at a paper manufacturer, for
example, can lead to significant
savings with an assumed storage size
of 8 MWth in combination with an
electrode steam boiler of 5 MWe. In
this scenario, Energynest calculates
that consumption could be reduced
by an average of around 11 GWh
of natural gas and 2,300 tonnes of
CO 2 per year. The total savings per
year could thus amount to up to 1.3
million euros per year, which would
lead to amortisation of the system
after four years of operation.
Significant improvement in energy
efficiency
In addition to electrification, thermal
storage systems can also realise previously
untapped potential in waste
heat. The recovery of excess heat
and its storage for later reuse as primary
energy in a type of process heat
recycling also reduces dependence
on fossil energy sources and saves
energy costs and emissions. Many
companies are already working with
heat recovery systems. Thermal storage
systems can supplement these
and enable flexible control of heat
recycling.
This process is used, for example,
by one of the world's largest fertiliser
manufacturers Yara in Porsgrunn,
Norway. The steam-based thermal
storage units – the first of their kind
in industrial use – enable Yara to
recover energy that is not generated
on demand in the form of steam and
