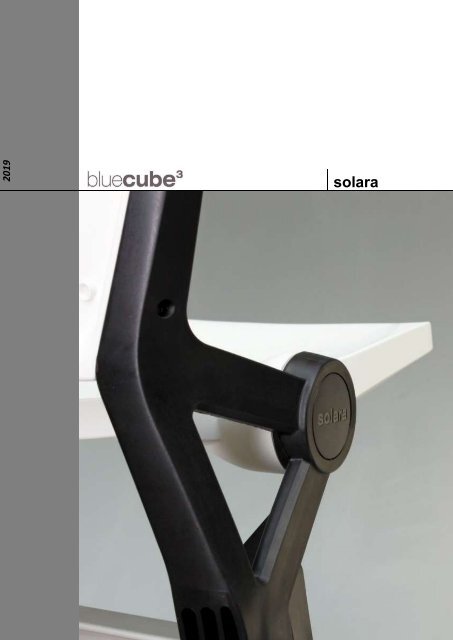

<strong>2019</strong><br />
solara
C01 Black<br />
C02 Brown<br />
C03 Neutral Grey<br />
C04 Signal Green<br />
C05 Dark Green<br />
C06 Light Blue<br />
C07 Signal Blue<br />
C08 Galaxy Blue<br />
C09 Purple<br />
C10 Burgundy<br />
C11 Cardinal Red<br />
C12 Orange<br />
C13 Gold<br />
C14 Beige<br />
C15 Off White Sand<br />
C16 White<br />
C17 Signal Yellow<br />
solara model SR 100 in white.
solara is a systems approach to stadium seating – where possible the extruded<br />
aluminium rail sections are installed continuously throughout the facility –<br />
independent seat modules can then then be installed to the rail within seconds by<br />
releasing or tightening a tamperproof screw. solara seat modules can be installed –<br />
removed and re-positioned at any position on the extruded aluminium rail – the<br />
aluminium rail is anodized to prevent cosmetic deterioration.
solara seat modules are available in two sizes -<br />
480 mm – new build layouts designed have a typical allowance of 500mm for<br />
each seat place. solara model SR100-480 can be installed with or without<br />
armrests.<br />
460 mm – where an older facility prefers not to compromise existing seat<br />
capacity after refurbishment solara model SR100-460 is the perfect solution.<br />
Strength & Durability<br />
integra seat modules - rail support structure – exceed the requirements BS EN<br />
12727 test level 4.<br />
Fire Resistance<br />
integra seat modules meet the requirements BS EN 5852 Crib 5.
solara can be fitted with front and rear<br />
mounted cup-holders – rear mounted cupholders<br />
are moulded from highly durable<br />
flexible plastic polymer to prevent vandalism.
solara seat numbers are recessed to prevent<br />
tampering - printed with UV stable inks – seat<br />
numbers are impervious to weather damage.
solara 17 standard plastic colours are tested in accordance with<br />
BS EN ISO 4892 – 2 & 2 – Xenon Arc Testing<br />
‘Methods Of Exposure To Laboratory Light Sources’
solara upholstery cushions can be used on either the seat and the backrest or<br />
alternatively on the seat only – the combination of a seat cushion and a plastic<br />
backrest is often preferred.<br />
Cushions for outdoor environments are covered in weather-proof vinyl and<br />
available to match our standard range of 17 plastic colour options.
solara independent armrests are available as an alternative to the integrated<br />
option – manufactured from die – cast aluminium - independent armrests have<br />
the functionality to be raised or lifted and are typically specified in the following<br />
situations.<br />
- On telescopic tribunes when an armrest is required – in this situation the<br />
armrest will rotate automatically into the folded position as it makes contact<br />
with the deck.<br />
- In an amenity area where the armrest is required to be lifted clear of the seat<br />
for improved egress or entry to the seat.<br />
- In a situation where a front facing armrest mounted cup-holder is required –<br />
typically the front row.<br />
Bluecube GB Ltd<br />
19 Drysdale Street<br />
London N1 6ND<br />
Tel +44 (0) 207 033 1818<br />
www.bluecube.gb.com
solara integrated armrests can be shared between seats - maximising venue<br />
capacity – alternatively each seat can be supplied with an armrest to each<br />
side - this is often preferred in VIP or club areas where space is available to<br />
decrease seating density.
solara can be fitted with a lock which can be easily positioned<br />
to prevent the seat from being used.<br />
This is usually specified on the last row in a seating / standing or<br />
combination layouts – preventing the seats from being used<br />
when the arena is in standing mode.
solara seat modules are installed onto extruded aluminium rails – rail<br />
sections are joined together into continuous lengths to ensure<br />
maximum seat capacity can be achieved – there are a large selection of<br />
fabricated steel rail support styles available including wall mounted<br />
(riser) and floor mounted tread – aluminium rail sections are<br />
connected to the supports using a cast steel clamp.
solara telescopic application<br />
- solara fold-down mechanisms can be specified as 1 of 3 options dependant on<br />
budget and chair module specification.<br />
1. manual – integrated foot bar mechanism that trips the chairs and allows for an<br />
easy fold. No spring assist with setting chairs up.<br />
2. semi-automatic with foot release – integrated foot bar mechanism that trips the<br />
chairs and allows for an easy fold. Spring assisted when raising the chairs to the<br />
upright position, and dampening on lowering the chairs to the deck – a gang of<br />
up to 12 seats can be lifted by one person.<br />
3. semi-automatic with automatic release – spring assist in setting up chairs when<br />
the platform is open. Chairs automatically fold down as the system is closing<br />
- solara fold-down (FD) mechanisms are designed to reduce the ‘folded depth’ of<br />
the seat to 837mm.<br />
- solara min folded-height (FH) is 210mm – should a smaller dimension be<br />
required this can be achieved with the integra models.
solara 100-46 100-48<br />
7/8 tip Full tip 7/8 tip Full tip<br />
SC - min spacing, seat centres<br />
chair only 460 460 480 480<br />
SCSA - min spacing, seat centres<br />
shared integrated armrest 460 460 480 480<br />
SCDA - min spacing, seat centres<br />
double integrated armrests 503 503 523 523<br />
SCFC - min spacing, seat centres,<br />
front cupholder 503 503 523 523<br />
SCWT - min spacing, seat centres<br />
with writing tablet 560 560 580 580<br />
EC - envelope ( chair only)<br />
EA - envelope ( with integrated armrest)<br />
EFC - envelope ( front cupholder)<br />
ES - envelope ( with seat down)<br />
RCUP – rear cup chair envelope<br />
SH - seat height<br />
OH - overall height<br />
300 300 300 300<br />
350 350 350 350<br />
460 460 460 460<br />
570 570 570 570<br />
340 340 340 340<br />
450 450 450 450<br />
840 840 840 840<br />
FD - folded depth on 7250 TX mech<br />
* 102 model with back pad 845mm N/A 837 N/A 837<br />
FH - folded height on 7250 TX mech<br />
N/A 210 N/A 210<br />
RH - Platform Riser Height<br />
( depends on platform ) N/A 300mm (12“) N/A 300mm (12“)<br />
Dimensional tolerances: +/- 3mm<br />
05/08/<strong>2019</strong><br />
7/8 tip full tip
Seat centres ( spacing)<br />
SC - min spacing, seat centres chair only<br />
SCSA - min spacing, seat centres shared armrest<br />
SCDA - min spacing, seat centres double armrests<br />
SCFC - min spacing, seat centres front cup holder<br />
SCWT - min spacing, seat centres scribe writing tablet<br />
SH - seat height<br />
ES - envelope (with seat down)<br />
EFC - envelope (with front cupholder)<br />
EA - envelope (with armrest)<br />
EC - envelope (chair only)<br />
RCUP – rear cupholder chair envelope<br />
Seat envelopes<br />
FH – folded height<br />
FD – folded depth<br />
RH - platform riser height<br />
OH – overall height<br />
telescopic envelopes
