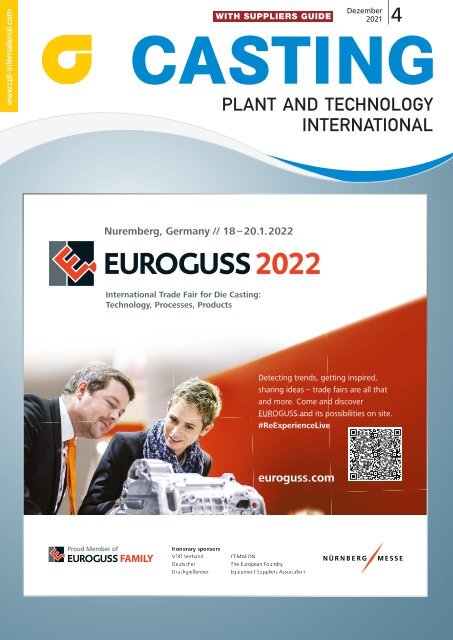

www.cpt-international.com<br />
WITH SUPPLIERS GUIDE<br />
Dezember<br />
<strong>2021</strong><br />
CASTING<br />
PLANT AND TECHNOLOGY<br />
INTERNATIONAL<br />
4<br />
Nuremberg, Germany // 18 –20.1. 2022<br />
<strong>International</strong> Trade Fair for Die Casting:<br />
Technology, Processes, Products<br />
Detecting trends, getting inspired,<br />
sharing ideas –trade fairs are all that<br />
and more. Come and discover<br />
EUROGUSS and its possibilities on site.<br />
#ReExperienceLive<br />
euroguss.com<br />
Honorary sponsors<br />
VDD Verband<br />
Deutscher<br />
Druckgießereien<br />
CEMAFON<br />
The European Foundry<br />
Equipment Suppliers Association
Welcome to<br />
the world of<br />
DieCast iQ<br />
Intelligent die casting solutions from Quaker Houghton<br />
We’re rethinking die casting, combining the ultimate<br />
choice of best-in-class die casting lubricants, process<br />
fluids and application equipment with the expertise<br />
and intelligence to solve your challenges completely.<br />
Working with you to deliver improved quality and productivity, lower<br />
total cost of ownership and exceptional environmental performance.<br />
This is DieCast iQ. Intelligent die casting solutions from Quaker Houghton.<br />
diecastiq.quakerhoughton.com
EDITORIAL<br />
Iron casting faces major<br />
challenges<br />
It is well known that it takes alot of energy to melt iron.Thisruns counter<br />
to decarbonization when carried out with fossil fuels, as in Germany for<br />
example. Those countries that have already made agood start with green<br />
electricity will have advantages.Thus the new iron foundry at truck and<br />
bus producer Scania is designedtoachieve CO 2<br />
-neutral production.<br />
Photo: BDG<br />
Martin Vogt<br />
Editor-in-chief<br />
e-mail: martin.vogt@bdguss.de<br />
More than 100 iron casters met<br />
for the Iron Melting Conference<br />
afew weeks ago in the<br />
German town of Saarbrucken –astate<br />
capital, by the way, that used to be<br />
highly reliant on coal mining and steel<br />
production. The conference mainly considered<br />
technical details, of course, such<br />
as bio-coke in cupola furnaces, operation<br />
with hydrogen, sample invoices,<br />
which solution costs how much, and<br />
whether it would perhaps be worth<br />
installing one’s own wind turbines on<br />
company grounds.<br />
Recently, however, the talk has been<br />
of climate and decarbonization. Electricity<br />
is expensive – CO 2<br />
in Germany has<br />
carried yet another price label since<br />
early <strong>2021</strong>, and the corresponding levies<br />
burden castings made in Germany. We<br />
now have our own research projects on<br />
the topic of hydrogen. The current situation<br />
is depressing: the green electricity<br />
generated here is by no means enough<br />
to cover demand. The challenges, many<br />
of which are discussed at such specialist<br />
conferences, are enormous, especially<br />
for iron casters. After all, the EU has<br />
declared that it wants to be climateneutral<br />
by 2050.<br />
Youmay see this from adifferent perspective<br />
because the conditions in your<br />
region are somewhat different. And one<br />
need not travel far from Germany to<br />
experience an alternative situation. A<br />
journey to Södertälje, in Sweden, is sufficient.<br />
There are two well-known companies<br />
in this town of about 70,000 inhabitants,<br />
southwest of Stockholm and<br />
barely an hour away by train. The Anglo-<br />
Swedish pharmaceutical group Astra-<br />
Zeneca (which recently became afamiliar<br />
name thanks to its coronavirus vaccine),<br />
and Scania which is headquartered here.<br />
The truck and bus producer also develops<br />
and manufactures its vehicles in Södertälje.<br />
And, in 2017, it decided to build a<br />
completely new iron foundry. This alone<br />
would be worth areport as iron casting<br />
faces particular challenges due to its<br />
energy consumption. But the Swedes<br />
also support the process because the special<br />
conditions in this country of forests<br />
and lakes are somewhat different from<br />
those in Germany: the foundry can produce<br />
65,000 tonnes ayear, achieved with<br />
optimized energy efficiency and reduced<br />
waste flows. And it is to be CO 2<br />
-neutral<br />
–thanks to the Swedish electricity mix.<br />
Youcan read the story about the plant in<br />
this issue.<br />
Have agood read!<br />
CASTING PLANT &TECHNOLOGY 4/<strong>2021</strong> 3
Honorary sponsors<br />
VDD Verband<br />
Deutscher<br />
Druckgießereien<br />
CEMAFON<br />
The European Foundry<br />
Equipment Suppliers Association<br />
CONTENTS<br />
FEATURES<br />
6 INTERVIEW<br />
„Innovations are called for now“<br />
We examine how the machine constructor provides<br />
technical support to asector undergoing change<br />
in an interview with Stephan Eirich, Managing<br />
Director in the fifth generation. Robert Piterek<br />
10 COMPANY<br />
Light construction for the e-bike boom<br />
50 years after its topping-out ceremony, Stihl<br />
Magnesium Druckguss profits from athriving gardening<br />
sector as well as high demand for light<br />
e-bike motors. Robert Piterek<br />
16 ADDITIVE MANUFACTURING<br />
Newly manufacturing process of atungsten<br />
alloy<br />
Anew manufacturing process for the tungsten<br />
alloys WNiFe and WNiCu was developed to enable<br />
the use of tungsten for more demanding geometries.<br />
Sandra Walz<br />
CASTING<br />
Ariane 5Rocket<br />
currently hosts 25 GF<br />
components.<br />
COMPANY<br />
The New Foundry<br />
built by Scania<br />
in Södertälje, Sweden.<br />
20 COREMAKING<br />
No Fear of Challenges<br />
For the special geometry of aductile cast iron component,<br />
Livar in Slovenia performed acore shooting<br />
simulation with Magma C+M to virtually optimize a<br />
core geometry. Pia Sonntag<br />
www.cpt-international.com<br />
November<br />
WITH SUPPLIERS GUIDE <strong>2021</strong><br />
CASTING<br />
4<br />
PLANT AND TECHNOLOGY<br />
INTERNATIONAL<br />
Nuremberg, Germany // 18 –20.1. 2022<br />
<strong>International</strong> Trade Fair for Die Casting:<br />
Technology, Processes, Products<br />
Detecting trends, getting inspired,<br />
sharing ideas –trade fairs are all that<br />
and more. Come and discover<br />
EUROGUSS and its possibilities on site.<br />
#ReExperienceLive<br />
euroguss.com<br />
Cover-Photo:<br />
NürnbergMesse GmbH<br />
Messezentrum, 9<strong>04</strong>71 Nürnberg<br />
info@nuernbergmesse.de<br />
www.nuernbergmesse.de/en<br />
ADDITIVE<br />
MANUFACTURING<br />
Such precise and<br />
curves shapes are<br />
possible with anewly<br />
manufacturing<br />
process of atungsten<br />
alloy.<br />
NürnbergMesse is one of the 15 largest exhibition companies<br />
in the world and organises trade fairs at the Nuremberg<br />
Exhibition Centre and worldwide.<br />
4
CONTENTS<br />
INTERVIEW<br />
with Stephan Eirich,<br />
Managing Director.<br />
24 CASTING<br />
Complex Casting Solutions and their<br />
orbit journeys<br />
With casting solutions for rocket engines,<br />
GF Casting Solutions is also active in the aerospace<br />
industry. Patrick Costantini<br />
26 CASTING<br />
Fastcast concept enables new casting<br />
applications and designs<br />
Engineers succeeded in building an industrial-scale<br />
levitation melting system. Tatjana Elisabeth<br />
Avendaño<br />
30 DIE CASTING<br />
Detection and control of local hotspots<br />
Modern aluminum high pressure die casting (HPDC)<br />
is faced with increasingly complex challenges.<br />
Torben Disselhoff, Sebastian Biehl<br />
34 COREMAKING<br />
Towards amore sustainable core<br />
production process<br />
The Clustreg process is reclaiming inorganicbonded<br />
foundry sand, based on amechanically<br />
adsorptive process. Vincent Haanappel, Thomas<br />
Linke, Markus Jendrock, Enno Schulte<br />
40 PROCESS<br />
Increased efficiency through foundry<br />
process restructuring<br />
The BLANK-Group has restructured the casting<br />
processes using three approaches. Manuela Schmid<br />
COMPANY<br />
New high-bay<br />
warehouse<br />
at Stihl Weinsheim.<br />
44 COMPANY<br />
Scania builds zero C0 2<br />
foundry in Sweden<br />
It features acapacity of 65,000 tons ofgood castings<br />
per year and CO 2<br />
-neutrality. Gemco Engineers<br />
PROCESS<br />
The BLANK-Group<br />
presents three<br />
approaches for<br />
process restructuring.<br />
COLUMNS<br />
3 EDITORIAL<br />
50 NEWS IN BRIEF<br />
58 SUPPLIERS GUIDE<br />
65 FAIRS AND CONGRESSES/AD INDEX<br />
66 PREVIEW/IMPRINT<br />
CASTING PLANT &TECHNOLOGY 4/<strong>2021</strong> 5
INTERVIEW<br />
Stephan Eirich<br />
is the 5th generation to head<br />
the Gustav Eirich machine factory.<br />
The 46-year-old believes<br />
in the transformation power of<br />
the foundry industry, including<br />
innovations from Eirich.<br />
Photos: Eirich
In the Evactherm<br />
process, sand<br />
preparation takes<br />
place under<br />
vacuum. Sand<br />
and additives are<br />
moistened with<br />
steam.<br />
Interview with Stephan Eirich<br />
„Innovations are called for now“<br />
Molding material plays adecisive role in the foundry sector. The long-established<br />
company Maschinenfabrik Gustav Eirich has long been delivering the machinery and<br />
technology with which the input material is used and reused inthe production of<br />
castings. We examine how the machine constructor provides technical support to a<br />
sector undergoing change in an interview with Stephan Eirich, Managing Director in<br />
the fifth generation.<br />
Mr. Eirich, your company has been an<br />
important supplier of molding sand<br />
preparation equipment for the foundry<br />
industry for decades. The sector is<br />
undergoing change. How do you perceive<br />
this?<br />
It is always remarkable where the customers<br />
who are interested in new technologies<br />
come from. The main focus<br />
here has shifted from regions like Germany<br />
and France to Turkey, China or<br />
Southeast Asia. These are very significant<br />
markets, where there is alot of<br />
activity.<br />
But the demands have also changed<br />
greatly. There are nolonger the many<br />
smaller foundries with the experts on<br />
board, but considerably larger companies<br />
that focus more strongly on the<br />
topics of sustainability, automation,<br />
Industry 4.0 or digitalization. At the<br />
same time, there is greater regulation<br />
–anexternal influencing factor that<br />
worries everyone. Another factor is the<br />
rise of e-mobility, which particularly<br />
affects the automotive casters.<br />
An investment backlog –which, to<br />
some extent, is now resolving itself<br />
again –built up due to the coronavirus<br />
pandemic. We are now seeing that the<br />
need to catch up is being counteracted<br />
with concrete projects. With regional<br />
differences, investment is now gaining<br />
pace again in, for example, the truck<br />
segment, agricultural technology, infrastructure,<br />
rail vehicle construction, or<br />
the production of manhole covers.<br />
Regarding sustainability: molding material<br />
is acirculatory material. How do<br />
you see its sustainability potentials?<br />
Sand circulation works well because it<br />
can function in aclosed system. But there<br />
is still arelatively large quantity that is<br />
removed from the material flow and disposed<br />
of at dumps. There is certainly still<br />
potential for future improvement<br />
through the use of recycling and better<br />
recycling plants. But there are also possibilities<br />
for retaining more sand in the system<br />
with existing plants, and not unnecessarily<br />
removing sand from the<br />
system due to exhaust air de-dusting.<br />
Do you have afigure for how much of<br />
the sand that is used is recycled and<br />
how much ends up at dumps?<br />
That’s difficult to say because it very<br />
much depends on the use of the core<br />
sand. One must consider what the sand/<br />
cast ratio is, the temperature load on<br />
the sand, and how great the system friction<br />
is, or the proportion of fine sand.<br />
Eirich has ahigh-end application on the<br />
market –the Qualimaster AT1. How<br />
important is this in your product range?<br />
The AT1plays acentral role for us. You<br />
can have the best mixer in the world,<br />
but it is difficult to control the sand correctly<br />
if it does not know what it is supposed<br />
to do with the next batch, or<br />
what external changes are going to<br />
bombard it during the day. What the<br />
AT1does used to be found in the classic<br />
laboratory. Most people who now use a<br />
more modern AT1from Eirich have<br />
almost completely phased out laboratory<br />
work because the AT1can measure a<br />
whole range of values such as, among<br />
others, compactability, compressive<br />
strength, shear strength, gas permeability,<br />
and springback –providing it with<br />
optimum control of the sand system.<br />
Once the sand has been prepared, alot<br />
of subsequent parameters (such as reject<br />
rates and finishing work) depend<br />
directly on the preparation.<br />
The device ensures consistent sand<br />
quality. The system remains extremely<br />
CASTING PLANT &TECHNOLOGY 4/<strong>2021</strong> 7
INTERVIEW<br />
stable –whether starting up cold on<br />
Monday morning, or with heavy rain on<br />
Friday afternoon causing humidity to<br />
increase alot. Mold changes, such as a<br />
different sand/cast ratio, are automatically<br />
laid down in the system. The molding<br />
plant then reports that it needs<br />
sand now. And the AT1then regulates<br />
the entire sand preparation process.<br />
This reduces the defect rate –which is<br />
currently the largest cost driver in<br />
foundries.<br />
Are there actually any figures about<br />
what the AT1can achieve compared to<br />
asystem without it?<br />
We don’t have these empirical data. But<br />
you could well reduce the reject rate by<br />
up to 25% if, for example, the AT1were<br />
installed in combination with an<br />
Evactherm system to replace adifferent<br />
classic system. If one previously had a<br />
reject rate of 4%, for example, it would<br />
then become 3%. Youalso save on<br />
additive, and can reduce total energy<br />
costs by 10% with such an Evactherm<br />
system. Finishing work can also be<br />
reduced by up to 50%. These are follow-up<br />
costs that are not directly<br />
related to the sand system itself. But<br />
constant sand quality leads to all these<br />
improvements.<br />
How isbusiness with the AT1?<br />
The AT1 is an aggregate that people are<br />
quite happy to retrofit, and it can considerably<br />
improve the sand system with<br />
little effort. It is, in fact, afixed element<br />
of almost every plant. We recently presented<br />
the latest design, with many<br />
additional features, at GIFA 2019 –also<br />
as astand-alone unit. So if you have a<br />
complete third-party plant, the AT1can<br />
be used as acontrol system, digitally<br />
networked with other plants.<br />
We are also thinking about collaborating<br />
with other machine suppliers in<br />
this area so that jointly determined<br />
data can beused. Sand plants, sand<br />
preparation systems and furnaces all<br />
provide data, and the reject rate<br />
depends on these three large data volumes.<br />
When we combine all of this we<br />
can see what the optimum is for the<br />
caster.<br />
This collaboration towards digitalization<br />
sounds very promising. When will<br />
it bear fruit?<br />
Up to now, we have held talks with<br />
machine construction colleagues and<br />
each of them, of course, has already<br />
developed their own solutions. But it is<br />
an interface topic. Developing such a<br />
system will undoubtedly involve collaboration<br />
between different sectors. Ultimately,<br />
joint standards are also important.<br />
Germany’s Mechanical Engineering<br />
Industry Association (VDMA) is asignificant<br />
player here, taking everyone by<br />
the hand and creating uniform standards,<br />
such as the interface standard<br />
OPC UA. There are also considerations<br />
about setting standards that are competition-independent,<br />
particularly in the<br />
foundry sector.<br />
Which producers are you working with<br />
on joint data acquisition?<br />
HWS is one example of the suppliers<br />
with whom we are currently collaborating.<br />
And afurnace producer. And this is<br />
also important because, ultimately, we<br />
all have tosurvive against competition<br />
from Asia –regardless of whether in<br />
Europe or in Asia. We have to work<br />
together, for example under the<br />
umbrella of the VDMA or on aEuropean<br />
level. We will only achieve this<br />
together with other colleagues, particularly<br />
when topics such as climate neutrality<br />
are involved.<br />
Inorganic binders have long been on<br />
offer for molding material in foundries.<br />
This, however, cannot simply be recycled<br />
without further processing. Are<br />
there opportunities here infuture?<br />
That is an important question for the<br />
topics of sustainability and sand recycling.<br />
We can easily recycle green sand.<br />
It is, after all, our core business. The situation<br />
becomes considerably more difficult<br />
as soon as one looks at core sands,<br />
particularly inorganic ones. There are<br />
currently avariety of processes, particularly<br />
thermal and mechanical. And combined<br />
ones. None of them, however,<br />
operate really efficiently or with ahigh<br />
yield. And one also needs relatively solvent<br />
customers to install such aplant<br />
nowadays. So Isee alot of potential<br />
here in future, because everything that<br />
we currently drive to the dump could<br />
remain in the system, or at least be recycled<br />
in such away that it could be<br />
re-used as construction material, for<br />
example. Eirich is also looking at this<br />
topic. We already supply various<br />
machines for recycling sands with inorganic<br />
binding agents. We are currently<br />
trying acompletely different approach,<br />
however. But it is still too early to say<br />
more about that here. We are still in a<br />
very early research phase.<br />
What is Eirich’s current market position<br />
worldwide?<br />
We have aworldwide presence with our<br />
own companies in all the important<br />
markets: from Brazil, the USA, and<br />
South Africa; to India, China and Japan.<br />
At the moment, the major industrialized<br />
nations play the greatest role, at least<br />
until the other countries have recovered<br />
from the shock of the coronavirus pandemic.<br />
We are sure that India, above all,<br />
will play agreater role. And China also<br />
remains very strong.<br />
Youmentioned automotive foundries<br />
that have been unsettled by the trend<br />
towards e-mobility. What exactly do<br />
you observe here?<br />
The major influencing factors are currently<br />
e-mobility and changes in internal<br />
combustion engines caused by downsizing<br />
–atrend that was already making<br />
its presence felt. Eight cylinders became<br />
six and then four in combination with,<br />
for example, aturbocharger –which<br />
also brought automotive casters new<br />
business with cast housings. The gears,<br />
of course, are changing with the use of<br />
stronger electric motors in vehicles.<br />
Some of them will also fall victim to<br />
downsizing. But the entire braking system,<br />
the form of the vehicle’s brakes, is<br />
also changing. They may have smaller<br />
brake calipers, smaller brake disks,<br />
because there is less need for braking<br />
due to recuperation. But there is uncertainty<br />
because nobody knows where the<br />
journey will take them in the medium<br />
term. The situation, however, may also<br />
offer opportunities for new composite<br />
STEPHAN EIRICH, MANAGING DIRECTOR OF<br />
MASCHINENFABRIK GUSTAV EIRICH<br />
Stephan Eirich –who studied machine construction at RWTH Aachen and specialized<br />
in process technology –leads the traditional company (founded in 1863) in<br />
the fifth generation. He rounded out his university education with an international<br />
MBA. The 46-year-old joined Eirich in 2006 and took over management of it<br />
in 2012 –initially for the machine factory and then for the entire group with its<br />
1100 -1200 employees. He focuses on technology, product development and<br />
machines. Ralf Rohmann co-manages the company.<br />
8
Eirich is familiar in the sector for its<br />
machine technology for molding material.<br />
But you also serve other sectors.<br />
Which ones?<br />
In addition to the foundry sector, weare<br />
mainly active in metallurgy, sinter and<br />
pellets, recycling, technical ceramics,<br />
refractory materials, chemistry (including<br />
battery development), as well as<br />
building materials and glass.<br />
The Qualimaster AT1measures compactability, compressive strength, shear strength, gas<br />
permeability, spring back and temperature and can thus control the sand system.<br />
casting materials and, of course, possibilities<br />
for casters –such as battery and<br />
motor housings.<br />
And how can Eirich support foundries<br />
during this transformation phase?<br />
Despite all the ups and downs in the<br />
foundry industry, weare confident that<br />
the sector will cope with these challenges<br />
well. But innovations are called<br />
for now. How can Igenerate decisive<br />
competitive advantages? Do Iinvest in<br />
automation or do more about digitalization<br />
to improve my reject rate and<br />
energy use? And which systems do I<br />
want to use to achieve this? And,<br />
because Idon’t know exactly what<br />
tomorrow will bring, should Iperhaps<br />
position my foundry abit more flexibly?<br />
We offer customer-specific solutions for<br />
all these questions.<br />
Let’s move on to the currently omnipresent<br />
topic of climate neutrality. The<br />
European Union should become climate-neutral<br />
by 2050, other countries<br />
will follow in the subsequent two<br />
decades. How can the sector approach<br />
this challenge?<br />
We definitely have to take this topic<br />
very seriously. Energy and resource efficiency<br />
are already matters for every<br />
foundry. They need high temperatures,<br />
they need moving mechanisms, they<br />
use materials. All this should be optimized<br />
so that foundries need as little<br />
of them as possible to produce the best<br />
possible product. We have customers<br />
who want precisely this, but at the<br />
same time they also want the cleanest<br />
workplaces with the lowest noise and<br />
odor emissions –amodern foundry for<br />
modern jobs.<br />
Our Evactherm process offers assistance<br />
here. Evactherm does not mean<br />
sand preparation under avacuum and<br />
no longer having an upstream cooler<br />
–regardless of whether aconveyor belt<br />
or mixing cooler –but having the complete<br />
preparation take place in aclosed<br />
mixing system. This means that our system<br />
first adds the additive to the sand,<br />
and then over-dampens it appropriately.<br />
This excess moisture is much better<br />
at activating the bentonite as a<br />
binding agent in the system.<br />
And you also reduce the boiling<br />
point of the water by building up a<br />
vacuum in the machine. It already starts<br />
bubbling at 70, 60 or 50 degrees,<br />
depending on how great avacuum you<br />
set up. Youcan then accurately define,<br />
via the vacuum, that the foundry sand<br />
will always leave the system at 41°C –<br />
and the damp interior atmosphere helps<br />
moisten the sand and additive components.<br />
Steam distributes water better<br />
than any other moistening method.<br />
In addition, the air is sucked out of<br />
the system and the next batch of sand<br />
inserted. Nothing gets into the exhaust<br />
system and filter, which can therefore<br />
also be designed up to 50% smaller. You<br />
also do not need the large number of<br />
old sand silos. The use of additive can be<br />
cut by20%, and energy consumption by<br />
10%. Youcan also make the machine<br />
much thinner by using servomotors.<br />
So then the logical final question is<br />
always where isyour journey taking<br />
you, what revolutionary technologies<br />
are being developed? Can you tell me<br />
something about this?<br />
We are considering the megatrends,<br />
such as e-mobility. Wherever there is a<br />
risk that aparticular business field could<br />
weaken, we examine where we could<br />
compensate for it. For some years now<br />
we have been involved in developing<br />
new products for lithium-ion batteries<br />
where, interestingly, Evactherm technology<br />
also plays amajor role. And<br />
then, in parallel, we are also weighing<br />
up getting into the hygiene industry,<br />
where our mixing technology –with all<br />
its advantages –isstill unfamiliar. We<br />
think that there are major opportunities<br />
there. And then, of course, there<br />
are all the topics regarding digitalization.<br />
All the current opportunities and<br />
possibilities of artificial intelligence are<br />
incredibly exciting. How can apreparation<br />
plant that we supply to acustomer<br />
today always move within an optimum<br />
range, as asystem, without the customer<br />
have to make use of experienced<br />
experts, which are becoming more and<br />
more difficult to find? The machine supplier<br />
should perhaps implement this<br />
knowledge in the plant. We see great<br />
opportunities here, and we also think<br />
that we have aresponsibility here to<br />
our customers. How do we exploit the<br />
huge quantity of data? They need to be<br />
intelligently analyzed and tapped to<br />
find out where the change is, or where<br />
effects can be predicted. The systems<br />
that offer real benefits similar to the<br />
AT1are growing. It has always been<br />
important for us to think outside the<br />
box when it came to developments.<br />
Thus, for example, the Evactherm process<br />
came from battery production for<br />
classic lead-acid batteries in the foundry<br />
industry. And now it is moving from<br />
there to lithium-ion batteries, in which<br />
we are researching. This technology<br />
transfer between the sectors is<br />
undoubtedly one of our company’s<br />
greatest strengths.<br />
www.eirich.de<br />
CASTING PLANT &TECHNOLOGY 4/<strong>2021</strong> 9
COMPANY<br />
50 Years of Stihl in Weinsheim<br />
The machine park in Weinsheim has grown greatly during<br />
recent years. The most efficient hot-chamber die-casting<br />
machines with clamping forces of 300 -1000 tonnes are<br />
located here.<br />
Light construction<br />
for the e-bike boom<br />
Stihl Magnesium Druckguss comes out of the recent crisis strengthened –neither the<br />
coronavirus pandemic nor the flooding innearby Prüm could change that. 50 years after<br />
its topping-out ceremony, the company profits from athriving gardening sector aswell as<br />
high demand for light e-bike motors. Inthe medium term, however, the volatile magnesium<br />
supply chain could still threaten Stihl’s booming business in magnesium die casting.<br />
by Robert Piterek, Düsseldorf<br />
Photos: Andreas Bednareck<br />
Everywhere one looks business is<br />
booming in Weinsheim and the<br />
area around the nearby small town<br />
of Prüm in the Eifel region: whether at<br />
door producer Prüm Türenwerke, the<br />
Arla dairy plant constructor, oratTesla<br />
Automation (previously Grohmann<br />
Engineering) who make equipment for<br />
automating Tesla production. The companies<br />
are growing, investing, expanding,<br />
and waking up the formerly structurally<br />
weak region from its pandemicrelated<br />
slumber of the last one-and-ahalf<br />
years.<br />
Double-digit growth<br />
Despite the fact that specialists, in particular,<br />
are gradually becoming rare in<br />
the region, the company has had a<br />
noteworthy growth spurt: Stihl Magnesium<br />
Druckguss, the largest hot-chamber<br />
die-casting foundry in Germany, and<br />
probably in Europe, is also celebrating<br />
its 50th birthday this year. The workforce<br />
here grew by more than 100<br />
between Christmas 2020 and now –<br />
to its present level of 924 employees.<br />
The parent company is the Stihl<br />
Group, based in Waiblingen, with<br />
almost 20,000 employees worldwide.<br />
During the first eight months of the<br />
year the family-run company achieved<br />
remarkable year-on-year growth of 11.7<br />
10
percent, with sales of about 3.5 billion<br />
euros. Stihl Magnesium Druckguss, the<br />
Group’s engine room for component<br />
construction, made an important contribution<br />
towards these dream figures.<br />
The machines in Weinsheim operate<br />
at full utilization capacity, and the<br />
amount of machinery is growing<br />
because Stihl products have been in<br />
greater worldwide demand than ever<br />
for some time now. Firstly, this is due to<br />
the good growth of vegetation in the<br />
last two years, which always brings<br />
more business for the manufacturer of<br />
power tools for gardening, landscaping,<br />
forestry and construction. Secondly,<br />
sales increased because of the coronavirus<br />
pandemic driving many DIY enthusiasts<br />
and horticulturalists to give their<br />
best. Another important reason for the<br />
massive growth in Weinsheim, however,<br />
is the consistently increasing jobbing<br />
work for e-bike components made of<br />
cast magnesium, namely gear and<br />
motor housings for e-drives. The segment<br />
has reported record growth due<br />
to the trend towards e-mobility and the<br />
rise of cycling activities during the coronavirus<br />
crisis. The e-bike segment,<br />
according toforecasts, isset to undergo<br />
almost double-digit growth until 2030<br />
–every year.<br />
23-year-old tool<br />
mechanic Michael<br />
Breuer repairs<br />
amold with two<br />
cavities.<br />
Millions invested in jobbing work<br />
“That is aremarkable market,” rejoices<br />
Hartmut Fischer, Managing Director of<br />
Stihl Magnesium Druckguss. 17 million<br />
euros have been invested in the promising<br />
field of jobbing work, contrary to<br />
usual practice at the family-run company.<br />
Further expansion is likely.<br />
Whereby e-bike components for a<br />
major Stuttgart-based automotive and,<br />
now, also e-bike supplier already make<br />
up more than half of the jobbing castings<br />
–and this proportion is rising. The<br />
benchmark for e-bikes is the 3 kg<br />
motor. “And they can only achieve this<br />
with magnesium,” according to Fischer.<br />
70 percent of current production in<br />
Weinsheim is for Stihl and 30 percent is<br />
jobbing castings. Jobbing work has<br />
therefore grown substantially during<br />
the last five years.<br />
Premium class in the<br />
hot-chamber segment<br />
Alot has changed at the works itself<br />
since Fischer took up his position in<br />
2015. The number of die-casting plants<br />
has risen from 20 to 26 –and another<br />
two have been ordered. Inaddition, a<br />
Multiple production is trumps: Stihl can produce up to 16 components with one shot of<br />
magnesium melt.<br />
new production logistics system was set<br />
up in 2019 with astate-of-the-art highbay<br />
warehouse. Fischer now uses<br />
machines with clamping forces of up to<br />
1,000 tonnes. “In the cold-chamber segment<br />
the top limit is currently the Tesla<br />
Giga Press with aclamping force of<br />
8,000 tonnes. In the hot-chamber segment<br />
1,000 tonne plants, two of which<br />
we are now operating, are the premium<br />
class,” Fischer compares the two<br />
die-casting technologies. The advantage<br />
is that the greater the clamping force,<br />
the more components can be produced<br />
per shot. In Weinsheim one load of<br />
magnesium melt is used to make up to<br />
16 castings.<br />
Ahigh level of automation contributes<br />
to the high efficiency of the production<br />
facilities: arobot within the<br />
fenced-in casting cells of the 1,000-<br />
tonne plants takes the casting cluster<br />
out of the machine, quenches it, and<br />
then removes the sprues and burrs<br />
using apunch press. The plant is fed<br />
magnesium ingots directly melted at<br />
the machine. In practice, the fully automated<br />
process is accompanied by<br />
hydraulic hissing sounds, the muffled<br />
thuds ofthe deburring press, and<br />
clouds of steam from the quenching of<br />
the clusters. Workers appear, when necessary,<br />
to examine the control panels or<br />
roll full component pallet cages out of<br />
the casting hall.<br />
The most varied of castings –such as<br />
crankcases and ventilator housings for<br />
brush cutters, jet sweepers and hedge<br />
trimmers –then pass through sometimes<br />
wide-ranging finishing processes<br />
involving blasting machines or five-axis<br />
machining centers. Numerous robots<br />
also work alongside the workforce,<br />
including two per processing cell to<br />
carry out work steps in parallel and save<br />
time. Modern visualization technology<br />
CASTING PLANT &TECHNOLOGY 4/<strong>2021</strong> 11
COMPANY<br />
is also used, so the metal comrades can<br />
take the components out of the pallet<br />
cages autonomously and further process<br />
them.<br />
AGVs in the die-casting works<br />
Automated guided vehicles (AGVs) are<br />
used for transport to the washing plant<br />
and todispatch. One of the three kneehigh<br />
vehicles that drive through the<br />
aisles with rubber antennae and green<br />
identification lamps is called Willy –<br />
controlled autonomously via wireless<br />
LAN. When abox in the mechanical<br />
processing area is full, the high-tech<br />
trolley receives atransport order,<br />
depending on its free capacity, that it<br />
then fulfils autonomously. Welcome to<br />
the future –even if alot of imagination<br />
is required to see Willy as an early predecessor<br />
of Star Wars’ R2D2.<br />
The autonomous Willy and his two<br />
companions should not, however,<br />
remain the tip of the digitalization iceberg<br />
at Stihl. Asystem is already operating<br />
at the works to keep an eye on the<br />
performance of the machines. “Two<br />
screens and one measurement device<br />
show us how the processes are progressing<br />
and where, specifically, we<br />
need to intervene toprevent the production<br />
of any rejects,” reports Fischer.<br />
The new MES system for evaluating the<br />
large volume of machine data acquired<br />
from the coming year onwards –which,<br />
when successfully implemented, will be<br />
introduced at many Stihl sites worldwide<br />
–will also be asignificant milestone<br />
onthe path to digitalization.<br />
Quality assurance using artificial intelligence<br />
is being considered, as is the<br />
topic ofpredictive maintenance. There<br />
is no shortage of ideas or the will to<br />
implement them atStihl.<br />
Producing magnesium castings<br />
economically<br />
But the process itself, in particular, is<br />
crucial for economical production. Time<br />
plays adecisive role here, and<br />
hot-chamber die casting is especially<br />
Automatic finishing<br />
of achainsaw component<br />
in one of the<br />
numerous machining<br />
halls containing,<br />
among other things,<br />
dry machining,<br />
cleaning, visual<br />
inspection and<br />
pre-assembly.<br />
1,000-tonne hot-chamber die-casting<br />
cell with integrated crucible, punch press,<br />
and robot handling from removal to<br />
deburring.<br />
helpful due to its short cycle times: the<br />
entire dosing unit is in the melt with<br />
this process. Although it is only possible<br />
to use material temperatures of below<br />
700°C and preferably produce small<br />
components, the melt feed is comparatively<br />
short –enabling rapid cycles. The<br />
closed circulatory system, through<br />
which the 650 °C magnesium melt is<br />
shot into the tool, offers further advantages:<br />
firstly, the almost complete<br />
absence of oxygen lowers the risk that<br />
12
must be taken into account for this<br />
light metal with its high tendency to<br />
oxidize. Secondly, fewer pores develop<br />
in the casting –animportant quality<br />
feature of hot-chamber die-casting<br />
technology. Cold-chamber machines –<br />
with their external, longer melt feed<br />
–are also suitable for larger parts and<br />
materials such as aluminum, whose<br />
melting point is about 750 °C.<br />
Aproduction area for aluminum<br />
gravity casting is also currently under<br />
construction. The site was chosen<br />
because of its competitiveness within<br />
the Stihl production alliance. Gravity<br />
casting offers considerable advantages<br />
compared to die casting because lighter<br />
and more complex structures are possible<br />
using undercuts and filigree<br />
designs, even if production is considerably<br />
more expensive given the longer<br />
cooling times required. The introduction<br />
of the new production technology<br />
in Weinheim is, however, worth the<br />
trouble because it ensures sales of the<br />
company’s particularly powerful chainsaws.<br />
Stihl at EUROGUSS<br />
In their core segment of magnesium die<br />
casting, Fischer and the developers in<br />
Weinsheim and Waiblingen approach<br />
the limits of what is technically possible<br />
to save weight, gain quality benefits or<br />
increase performance. One highlight of<br />
their work was the feather-light magnesium<br />
pistons for the Stihl MS 400 professional<br />
chainsaw that won first place<br />
in the Magnesium Die-Casting Competition<br />
at EUROGUSS in 2020. Although<br />
the pistons are difficult to cast and<br />
require higher temperatures they are<br />
produced with the work’s only coldchamber<br />
die-casting machine. The<br />
chainsaw now has amore powerful<br />
engine with the same weight of its predecessor<br />
model –animportant decision-making<br />
criterion for professionals,<br />
e.g. forestry workers.<br />
Fischer also hopes to win the competition<br />
again in early 2022 when EURO-<br />
GUSS opens its doors once more in<br />
Nuremberg –asatrade fair with faceto-face<br />
contacts. His company has<br />
entered the race with acomponent for<br />
acordless electric chainsaw that has<br />
many integrated functions and is produced<br />
with two molds per shot. In addition<br />
to representing his company at the<br />
leading European die-casting trade fair,<br />
the manager, who is also President of<br />
the Association of German Die-Casting<br />
Foundries (VDD), will speak about topics<br />
of urgent interest to the sector.<br />
Ventilator side of a<br />
chainsaw already<br />
pre-assembled in<br />
Weinsheim. The<br />
crankshaft and piston<br />
rod are then<br />
added in Waiblingen,<br />
where the<br />
engine is also put<br />
together.<br />
One of three autonomous<br />
transport<br />
robots that take<br />
components after<br />
finishing for washing,<br />
labelling, and<br />
dispatch. It is networked<br />
via wireless<br />
LAN to enable<br />
autonomous movement.<br />
CASTING PLANT &TECHNOLOGY 4/<strong>2021</strong> 13
COMPANY<br />
40 percent efficiency increase<br />
planned by 2030<br />
One of these may well be climate neutrality,<br />
which Germany wants to achieve<br />
by 2<strong>04</strong>5, the European Union by 2050.<br />
In addition to the megatrends of e-mobility<br />
and digitalization, the energyintensive<br />
foundry sector faces another<br />
challenge. Stihl Magnesium Druckguss is<br />
already climate-neutral in the areas of<br />
Scope Iand Scope II of the Greenhouse<br />
Gas Protocol, which involves the energy<br />
used (e.g. electricity, gas, oil, heating<br />
oil) as well as the company’s vehicle<br />
fleet. “We buy green electricity and<br />
compensate with certificates according<br />
to the gold standard,” Fischer describes<br />
the corporate strategy. “This costs alot,<br />
but weare doing it with the clear goal<br />
of becoming considerably more efficient<br />
during coming years because it is<br />
important that the products, if possible,<br />
do not become more expensive – or<br />
only slightly more so,” Fischer describes<br />
the discrepancy between ambitious<br />
environmental objectives and competitive<br />
business. The die-caster intends to<br />
increase efficiency by another 40 percent<br />
by 2030. An ambitious goal when<br />
one considers that conventional efficiency<br />
increases using LED lighting or<br />
waste heat recovery have already been<br />
fully utilized.<br />
The fact that almost every week a<br />
sector company declares its climate<br />
neutrality makes him skeptical.<br />
Because, particularly in the case of climate<br />
neutrality including Scope III, the<br />
input materials for production must be<br />
included in the assessment, e.g. ore for<br />
steel or bauxite for aluminum. Supply<br />
chains that he believes could hardly<br />
have reduced their CO 2<br />
footprint to<br />
zero.<br />
Climate neutrality with<br />
green magnesium<br />
But time is short: customers such as<br />
Mercedes want to receive climate-neutral<br />
products by 2037. At present, however,<br />
green magnesium is more wishful<br />
thinking than reality. While the light<br />
metal is one of the ten most common<br />
elements in the earth’s crust, itisalmost<br />
entirely supplied by China. Although<br />
Stihl has proactively assured its own<br />
supply, other magnesium-processing<br />
works currently have great difficulty<br />
with the supply chain. The German<br />
Non-Ferrous Metal Association (WVM)<br />
even fears developments similar to those<br />
affecting semiconductors. The entire<br />
supply chain must become climateneutral<br />
for companies to also achieve a<br />
An employee visually<br />
inspecting a<br />
blasted customer<br />
casting.<br />
Scope III climate balance. Companies<br />
are already starting to exert pressure on<br />
their suppliers. An exercise, however,<br />
that will have little effect on economic<br />
giants like China. “We need green magnesium,”<br />
Hartmut Fischer stresses. And<br />
in China plants are also being built to<br />
produce magnesium with significantly<br />
lower CO 2<br />
emissions. For this purpose,<br />
magnesium chloride is obtained from<br />
salt lakes, as is currently happening in<br />
Israel and the USA. The crux of the matter<br />
is that these plants do not yet operate<br />
properly. Extensive internal recycling<br />
without long transport routes,<br />
however, offers the Weinsheim die-casters<br />
potential for using magnesium with<br />
alow CO 2<br />
footprint.<br />
14
New high-bay warehouse in the<br />
brand new logistics hall, for which<br />
Stihl invested 18 million euros in<br />
2019.<br />
Stihl celebrated the<br />
construction of the<br />
new magnesium<br />
die-casting works<br />
in front of unfinished<br />
administration<br />
and production<br />
halls in 1971.<br />
The prelude to 50<br />
years of successful<br />
production.<br />
Photo: Stihl<br />
50 YEARS OF STIHL MAGNESIUM DRUCKGUSS<br />
1971: Topping-out ceremony on 10 September 1971; production of castings<br />
started in November 1971.<br />
1975: Founding of the works fire brigade and opening of ateaching workshop<br />
that has trained 500 apprentices since 2013.<br />
1979: 50millionth casting produced.<br />
1981: 10years of Stihl Magnesium Druckguss, the foundry has about 800<br />
employees.<br />
1985-2014: Expansions with administration buildings, foundry halls and<br />
orks hall.<br />
2019: Groundbreaking ceremony for the new production logistics building<br />
which, with an investment of EUR 18 m., is Stihl’s greatest single investment<br />
at the Weinsheim site.<br />
2020: Winner of the Magnesium Die-Casting Competition at EUROGUSS for<br />
developing afeather-light die-cast piston.<br />
Hartmut Fischer has been Managing Director of Stihl Magnesium Druckguss since 2015. After<br />
studying mechanical engineering in Hanover, hestarted his career at Stihl and was also active<br />
for the family-run company in Brazil. Fischer, who is also President of the Association of German<br />
Die-Casting Foundries (VDD), is married with three children.<br />
And who will pay the bill for climate<br />
neutrality? The President of the German<br />
Foundry Association (BDG), Clemens<br />
Küpper, believes that the costs for<br />
foundries will amount to 5-10percent<br />
of sales every year –considerably higher<br />
than the sector’s average profit margin.<br />
“The die-casters alone will be unable to<br />
pay that,” Fischer is convinced.<br />
The Stihl manager developed the<br />
first chainsaw with acatalytic converter<br />
for his company and is proud of the fact<br />
that corresponding emission savings are<br />
now possible entirely without this<br />
device thanks to investments in the<br />
high triple-digit millions. “We want to<br />
work sustainably and achieve CO 2<br />
neutrality,”<br />
the Stihl manager stresses as a<br />
farewell. Whatever happens, his company<br />
will be apioneer in the foundry<br />
industry because Stihl’s course towards<br />
climate neutrality has been set – as<br />
early as next year, all production sites<br />
worldwide are to be converted.<br />
www.stihl.de<br />
CASTING PLANT &TECHNOLOGY 4/<strong>2021</strong> 15
ADDITIVE MANUFACTURING<br />
Photos: Gesellschaft für Wolfram Industrie mbH<br />
Such precise and sometimes curved shapes are impossible to form from the hard heavy metal, whose extremely high melting point is between<br />
3,387 and 3,422 °C, using conventional machining or forming processing techniques.<br />
Additive manufacturing of complex components<br />
Newly manufacturing<br />
process of atungsten alloy<br />
In order to enable the use of tungsten for more demanding geometries and thus to<br />
increase the efficiency and longevity of the components, Bayerische Metallwerke GmbH,<br />
which belongs to the Traunstein-based Gesellschaft für Wolfram Industrie mbH, has<br />
developed anew manufacturing process for the tungsten alloys WNiFe and WNiCu. This<br />
is characterized by the fact that the multi-phase mixed crystal alloy is obtained in apowder<br />
form that is suitable as astarting material for 3-D printing and coating processes.<br />
By Sandra Walz, Munich<br />
16
Tungsten alloys (WNiFe /WNiCu)<br />
are used because of their corrosion<br />
resistance against molten<br />
metal and high thermal conductivity for<br />
chill-mold casting processing of aluminum.<br />
Yet, also in tool manufacture and<br />
for shielding from alpha and gamma<br />
radiation, the heavy metal with its density<br />
comparable to gold is indispensable.<br />
However, ataround 3,400 °C,<br />
tungsten has the highest melting point<br />
of all chemical elements and is therefore<br />
very difficult to work with, as well<br />
as due to its Mohs hardness of 7.5. As a<br />
result, components with more complex<br />
shapes, such as curves or conical bores,<br />
often have to be switched to hot-work<br />
tool steel, which is easier to form.<br />
“Due to its resistance to corrosion<br />
and erosion from molten metals as well<br />
as its excellent thermal conductivity,<br />
tungsten is the material of choice in the<br />
field of cast aluminum,” says Nabil<br />
Gdoura, research and development<br />
engineer at Bayerische Metallwerke<br />
GmbH, Dachau, Germany. “The very<br />
high density of 19.25 g/cm 3 in its pure<br />
form also makes itagood alternative to<br />
the harmful lead, which is still used for<br />
radiation shielding in medicine, for<br />
example.”<br />
In the case of casting molds, also<br />
known as chill-molds, used in aluminum<br />
processing, the aim is often to have<br />
long but atthe same time very thin and<br />
sometimes conically shaped cooling<br />
channels of less than 1mmindiameter<br />
in order toensure the most uniform<br />
and rapid heat dissipation possible.<br />
Otherwise, the material quality of the<br />
end product can be adversely affected<br />
by the formation of cracks. Such precise<br />
and sometimes curved shapes are<br />
impossible to model from the hard<br />
heavy metal, whose extremely high<br />
melting point is between 3,387 and<br />
3,422 °C, using conventional machining<br />
or forming processing techniques.<br />
Therefore, for these complex components<br />
for the purposes mentioned, it<br />
has so far been necessary to switch to<br />
hot-work steel, which can be brought<br />
into almost any desired shape with the<br />
help of 3-D printing techniques.<br />
Figure 1: In order to enable the use of<br />
tungsten for more demanding geometries,<br />
Bayerische Metallwerke GmbH<br />
developed anew manufacturing process<br />
for atungsten alloy and patented<br />
it in early <strong>2021</strong>.<br />
New tungsten alloy in powder<br />
form suitable for 3-D printing<br />
After completing the two-year development<br />
phase, Bayerische Metallwerke<br />
applied for apatent for their new manufacturing<br />
process for atungsten alloy<br />
product (Figure 1)and its further use at<br />
the beginning of 2020, which was<br />
finally granted in January of this year.<br />
“The special feature of our tungsten-nickel-iron<br />
alloy is that we obtain<br />
it in the form of apre-alloyed powder,”<br />
(Figure 2)explains Dr.-Ing. Hany<br />
Gobran, research and development<br />
manager at Bayerische Metallwerke and<br />
inventor ofthe manufacturing technology.<br />
“This is suitable as astarting product<br />
for 3-D printing and coating processes.”<br />
In the absence of an<br />
alternative, only amixed powder has so<br />
far been used to make tungsten usable<br />
for components with complex geometries.<br />
The main disadvantage of such<br />
mixtures, however, results from the different<br />
melting points of tungsten<br />
(around 3,400 °C) and of nickel and<br />
iron, both of which change their physical<br />
state at around 1,500 °C. Asaresult,<br />
alarge part of the two added substances<br />
evaporates in an uncontrolled<br />
manner during the melting process in<br />
the further processing process. This is<br />
because the boiling points of nickel and<br />
iron are already around 2,700 °C and<br />
3,000 °C respectively. Thanks to the<br />
pre-alloying in the process developed<br />
by Gobran, on the other hand, all three<br />
elements are combined as amultiphase<br />
material in each individual powder particle<br />
(Figure 3), so that their composition<br />
and distribution in the end product<br />
can beprecisely controlled and no loss<br />
of the binder metals has to be accepted.<br />
According to the common standardized<br />
variants, the new alloy can be produced<br />
with 80 to 98.5 %(weight) tungsten,<br />
0.1 to 15 %(weight) nickel and 0.1<br />
to 10 %(weight) iron and/or copper.<br />
This achieves adensity of the end product<br />
of 17 to 18.8 g/cm 3 ,which is desirable<br />
for applications in the aluminum<br />
Figure 2: The special feature of the new tungsten-nickel-iron alloy is that it is obtained in the form of apre-alloyed powder.<br />
This is suitable as astarting product for 3-D printing and coating processes.<br />
CASTING PLANT &TECHNOLOGY 4/<strong>2021</strong> 17
ADDITIVE MANUFACTURING<br />
behaviour and the grain size of the<br />
powder between 10 and 200 µm can<br />
also be determined (Figure 4). In this<br />
way, the alloy is individually prepared<br />
for the desired type of further processing<br />
–such as plasma coating processes<br />
or additive manufacturing.<br />
Figure 3: Thanks to the master alloy, the three elements tungsten, nickel and iron are combined<br />
as amulti-phase material in each individual powder particle, so that their composition<br />
and distribution in the end product can be precisely monitored and controlled and no loss of<br />
the binder metals has to be accepted.<br />
Anew manufacturing process<br />
enables materials to be upcycled<br />
If, for example, the hot-work steel previously<br />
used for thin and conical cooling<br />
channels in cast aluminum chill-molds is<br />
replaced by the tungsten alloy developed<br />
by Gobran, the application benefits<br />
not only from the heavy metal’s<br />
resistance to corrosion and erosion.<br />
Compared to steel, tungsten also has<br />
the advantage of much higher thermal<br />
conductivity, sothat the wear on the<br />
chill-molds can be massively reduced.<br />
Due to its higher density, the alloy<br />
product is also an alternative to poisonous<br />
lead, which is used not only for<br />
radiation shielding, but also as astabiliser<br />
–for example in the tool industry.<br />
“Another special feature of our alloy is<br />
that we can make the powder from<br />
scraps or chips,” adds Gdoura. “This is a<br />
big step forward from both an economic<br />
and environmental perspective,<br />
as it allows us to recycle and upcycle<br />
waste products from conventional processes.”<br />
www.wolfram-industrie.de<br />
Figure 4: During the comminution process as part of the manufacturing process, the flow<br />
behaviour and the grain size of the powder between 10 and 200 µm can also be determined.<br />
In this way, the alloy is individually prepared for the desired type of further processing.<br />
industry, tool manufacture and for<br />
alpha and gamma radiation shielding.<br />
“The higher the proportion of tungsten<br />
in the end product, the more resistant it<br />
is to molten aluminum and the better<br />
its thermal conductivity,” explains<br />
Gobran. “If, on the other hand, good<br />
ductility and mechanical machinability<br />
play agreater role, the proportion of<br />
tungsten in the alloy can also be<br />
reduced accordingly. The composition<br />
can therefore always be adapted to the<br />
specific application and the respective<br />
complexity of the shape.” During the<br />
comminution process as part of the<br />
manufacturing process, the flow<br />
GESELLSCHAFT FÜR WOLFRAM INDUSTRIE MBH<br />
Originally founded in 1911 in Berlin as Wolfram Drahtfabrik GmbH for the manufacturing<br />
and processing of tungsten and molybdenum by the grandfather of the<br />
current managing partner Marion Freifrau von Cetto, the company changed its<br />
name to the Gesellschaft für Wolfram Industrie mbH in 1928. The company’s<br />
headquarters were moved to Traunstein in 1943, where additional production<br />
buildings were constructed in the 1950s. After the death of the shareholder<br />
Helga Freifrau von Cetto, her daughter Marion Freifrau von Cetto took over<br />
management of the company as the owner in 1974. In 1991, the Gesellschaft für<br />
Wolfram Industrie mbH acquired the competitor Bayerische Metallwerke GmbH<br />
in Dachau that had been active in the market since 1926, and thus expanded its<br />
product range. Both companies produce exclusively in Germany. There are currently<br />
57 employees at the Dachau location and 63 in Traunstein. In August 2018,<br />
the company opened another location in Winterthur, Switzerland, with Wolfram<br />
Industrie GmbH.<br />
18
Meet us at<br />
Euroguss<br />
in Nuremberg<br />
Hall 7-2120<br />
Start your digital<br />
journey today, with the<br />
Bühler digital<br />
services.<br />
Keep on top of your die-casting<br />
operations.<br />
The Bühler Insights Die Casting Dashboard<br />
displays real-time data, customized for<br />
you. With this you are able to keep an eye<br />
on your die-casting machine, foundry and<br />
plant. Supported by the right information,<br />
your operators, production managers and<br />
technologists will be able to better improve<br />
OEE.<br />
Our experienced team helps you set-up the<br />
Dashboard according to your needs.<br />
This is how your Die Casting Dashboard could look like.<br />
Want to discuss in detail?<br />
Get in touch on die-casting@buhlergroup.com<br />
Innovations for a better world.
COREMAKING<br />
Photos and Graphics: LIVAR/EXOTHERM-IT<br />
The perfect core.<br />
Core Shooting Simulation<br />
No Fear of Challenges<br />
For the special geometry of aductile cast iron component, Livar inSlovenia performed<br />
acore shooting simulation with Magma C+M to virtually optimize acore geometry.<br />
By Pia Sonntag, Aachen, Germany<br />
Livar is with 750 employees one of<br />
the biggest foundries in Slovenia.<br />
The grey and ductile iron foundry<br />
had to deal with asomewhat unusual<br />
project. They received arequest for<br />
manufacturing aductile iron casting. In<br />
order to be able to represent the special<br />
geometry, the foundry decided to first<br />
produce acore segment and then overshoot<br />
it in asecond core box (Figure 1).<br />
In the first cores produced, the surface<br />
of the inserted sand core was not completely<br />
filled with sand (Figure 2). Manually<br />
adding extra vents and flow paths<br />
Figure 1: Core segment inserted in the core box.<br />
Figure 2: Incompletely shot core.<br />
20
Nuremberg, Germany<br />
18 –20.1. 2022<br />
<strong>International</strong> Trade Fair for Die Casting:<br />
Technology, Processes, Products<br />
Detecting trends, getting inspired, sharing ideas – trade fairs are all that<br />
and more. Come and discover EUROGUSS and its possibilities on site.<br />
#ReExperienceLive<br />
Honorary sponsors<br />
VDD Verband Deutscher<br />
Druckgießereien<br />
CEMAFON<br />
The European Foundry Equipment<br />
Suppliers Association<br />
euroguss.com
COREMAKING<br />
Figure 3: Results for air pressure and sand density.<br />
did not improve the situation. As a<br />
Magmasoft user, Livar was familiar with<br />
the possibilities of the core shooting<br />
simulation and turned to its contact in<br />
Slovenia, the company Exotherm-IT,<br />
exclusive representative of Magma.<br />
Magma C+M was implemented to investigate<br />
and solve the problem.<br />
The first simulation was performed<br />
with standard data. However, inthe critical<br />
area, the results still showed too<br />
high sand densities. Therefore, it was<br />
decided to first calibrate the sand properties<br />
and shooting parameters. For this<br />
purpose, avirtual design of experiments<br />
was defined in Magma C+M, and atotal<br />
of 36 designs with different sand properties<br />
were tested. The results were<br />
compared in the critical zone with an<br />
evaluation area. Using the main effects<br />
diagram, which shows the influence of<br />
different sand and process conditions on<br />
the core density (Figure 3), optimized<br />
sand data for Livar could be determined.<br />
After calibrating the sand properties,<br />
it was possible to identify and systematically<br />
investigate the causes of the<br />
core defect occurred. With the help of<br />
the simulation results, Livar was able to<br />
show that the air pressure differences<br />
near the critical area were too small to<br />
transport the sand to the inserted core<br />
segment. Therefore, the sand initially<br />
flowed through narrow passages above<br />
the critical area and compacted, thus<br />
stopping the further transport of the<br />
sand.<br />
In order for the sand to reliably fill<br />
the critical areas, the pressure gradient<br />
should therefore be increased by closing<br />
shoot nozzles. For this purpose,<br />
another virtual design of experiments<br />
was carried out: Shoot nozzles were<br />
automatically switched off inpairs on<br />
each half of the core box, starting with<br />
the vents farthest from the critical area<br />
(Figure 4, Table 1).<br />
Figure 4: Virtual test plan for opening and closing the shoot nozzles.<br />
Table 1: Shoot nozzles (s. Figure 4)were automatically switched off inpairs.<br />
design vents no. 1 vents no. 2 vents no. 3 vents no. 4 vents no. 5<br />
d01 x o o o o<br />
d02 x x o o o<br />
d03 x x x o o<br />
d<strong>04</strong> x x x x o<br />
d05 x x x x x<br />
d06 x x x x x<br />
Figure 5: Calculated core density depending on sand and process properties.<br />
22
Cut scrap by<br />
40% with<br />
Monitizer ®<br />
Figure 6: Calculated core density for the optimized solution.<br />
In the Assessment Perspective of Magma C+M, two<br />
objectives were analyzed: the average and the minimum<br />
sand density in the critical area of the core. From the six<br />
variants, version 4showed the best results (Figure 5). By<br />
systematically switching off four shoot nozzles, the pressure<br />
differences were significantly increased. This allowed<br />
the sand to be transported to the end of the critical area.<br />
The verification of this solution (Figure 6)inthe real<br />
core box immediately resulted in good core quality. The<br />
bottom line: The virtual optimization was successful, and,<br />
despite initial difficulties, Livar was able to reliably meet<br />
the customer‘s requirements.<br />
https://livar.si/en<br />
www.exotherm.si/en<br />
Pia Sonntag, Magma Gießereitechnologie GmbH,<br />
Aachen, Germany<br />
ABOUT LIVAR D.D.<br />
As one of the largest foundries in Slovenia, Livar employs<br />
over 750 people. The foundry produces high-quality grey<br />
and ductile iron castings. Livar has its own tooling and<br />
machining shop. The technology department is equipped<br />
with the latest technology, including Magmasoft. The<br />
