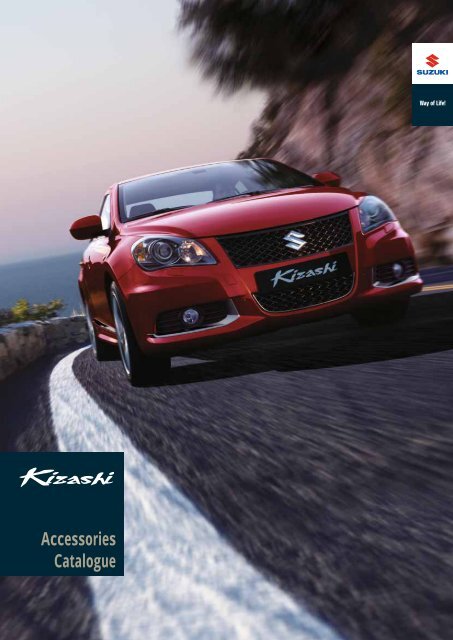

Accessories<br />

Catalogue


The shape<br />

of things to<br />

come.<br />

Or in other words: Kizashi. A dynamic sports car at<br />

heart, Suzuki’s exclusive sedan takes a new direction.<br />

While boldly mixing sportiness, comfort, and luxury it<br />

also offers an inspiring driving experience. So inspiring,<br />

in fact, that you probably can’t help but imagine the<br />

personal touches you could be adding to the mix.<br />

But whether you start with the exterior, safety, transportation<br />

and protection, or move straight onto the<br />

interior, navigation and audio, one thing is f or sure:<br />

nothing will make the Kizashi shine more than you in<br />

the driver’s seat.<br />

www.suzuki.at<br />

Some illustrations in this brochure may feature special equipment or accessories.<br />

For precise information about the equipment provided on the vehicle, please contact your Suzuki dealer.


Exterior<br />

More freedom, expanded horizons, worthwhile possibilities.<br />

The Kizashi always goes the extra mile. And no w you can<br />

too. Our meticulously crafted allo y rims will let y ou refine<br />

the look of your Kizashi with minimal effort. Nobody said the<br />

extra mile had to be strenuous after all.<br />

Well-crafted possibilities.<br />

1 | Alloy rim 1<br />

12-spoke design 7 x 17,<br />

for tyres 215 / 55 R17 94W.<br />

Part No. 43210-57L10-ZRD<br />

2 | Alloy rim 1<br />

20-spoke design 8 x 18,<br />

for tyres 235 / 45 R18 94W<br />

Part No. 43210-57L20-ZNP<br />

3 | Centre cap<br />

Part No. 43252-63J10-0PG<br />

4 | Trunk lid spoiler<br />

with high mount stop lamp and<br />

trunk lid torsion bars, primed<br />

(no ill.).<br />

Part No. 99000-99094-K01<br />

1<br />

Please order centre cap (Part No. 43252-63J10-0PG) separately.


Interior<br />

Wanting for nothing.<br />

The Kizashi’s interior is truly one of a kind. Carefully designed to offer comfort<br />

and luxury, it boasts fine materials, classy aesthetics and all the interior features<br />

you could probably ever need. Except for these six.<br />

1 | Ashtray<br />

Part No. 89810-86G10-5PK<br />

2 | Cigarette lighter<br />

no ill.<br />

Part No. 39400-59J10-000<br />

3 | Remote control key case<br />

black, genuine leather.<br />

Part No. 99000-990X6-A11<br />

4 | Coat hanger<br />

attach to the front head rest,<br />

one piece.<br />

Part No. 990E0-79J89-000<br />

5 | Cooling box<br />

capacity 15 litres, can<br />

be fixed with seatbelt.<br />

Part. No. 990E0-64J30-000<br />

6 | Cooling box<br />

with ISOFIX fastening,<br />

capacity 21 litres.<br />

Part. No. 990E0-64J23-000


Protection<br />

Keeping it pristine and you safe.<br />

1 | Child seat “Baby Safe”<br />

Perfectly safe and comfortable; this 0+<br />

group child seat for babies up to approx.<br />

18 months of age or weighing up to 13 kg<br />

is Child Seat Safety Standard ECE R 44/04<br />

tested and approved. Its safety features<br />

include a rearward-facing 3-point seatbelt<br />

installation system, optimum side impact<br />

protection, a 5-point harness system and<br />

a head support for babies up to approx.<br />

4 months of age. The seat’s softly padded<br />

fabric cover is detachable and washable.<br />

The child seat cannot be used in the front<br />

seat while the passenger’s seat airbag is<br />

still activated. Please let your SUZUKI dealer<br />

deactivate the passenger’s seat airbag.<br />

2 | Child seat “Kidfix”<br />

Keeps your little one safe; the Kidfix for<br />

groups 2 and 3 seats kids weighing from<br />

approximately 15 to 36 kg. It meets the<br />

current Child Seat Safety Standard ECE<br />

R44/04 regulations and offers optimal side<br />

impact protection. Its perfectly routed<br />

3-point seat belt installation plus additional<br />

fastening to the ISOFIX anchorage fastening<br />

points ensure maximum stability and safety.<br />

The headrest height can be adjusted to<br />

11 different positions and the backrest to<br />

the angle of the vehicle seat. The re clined<br />

position can be set using the lever in the<br />

access slot of the detachable and washable<br />

booster cushion cover.<br />

3 | Child seat “Duo Plus”<br />

Safe and long term; this group G1<br />

seat accommodates children from<br />

8 months to 4 years of age weighing<br />

anywhere between 9 and 18 kg. The<br />

seat meets ECE R44/04 regulations,<br />

is compatible with the ISOFIX system<br />

and features a height adjustable,<br />

5-point belt.<br />

Part No. 99000-990YA-020<br />

4 | Floor mat set<br />

set of 5 black velour carpets with<br />

Kizashi logo, for left-hand drive manual<br />

or automatic transmission.<br />

Part No. 75901-57LB0-PM3<br />

5 | Trunk mat<br />

anthracite with Kizashi logo.<br />

Part No. 99000-99071-KT2<br />

6 | Mud flap set<br />

rigid, front and rear, 4-piece set,<br />

we recommend to paint the parts<br />

in body colour.<br />

Part No. 72201-57L00-5PK<br />

Part No. 990E0-59J14-000<br />

Part No. 990E0-59J25-000<br />

7 | Protective rear seat cover<br />

for rear seat.<br />

Part No. 990E0-79J44-000<br />

8 | First aid kit<br />

complies with DIN 13164, incl.<br />

First aid kit, safety vest and<br />

warning triangle.<br />

Part No. 990E0-65J79-000


1 | Roof bicycle module 1<br />

for transporting complete bikes.<br />

Part No. 990E0-59J20-000<br />

2 | Roof bicycle module 1<br />

for transporting bikes with front<br />

wheel removed.<br />

Part No. 990E0-59J21-000<br />

5 | Roof box 1<br />

with universal clamp quicklock<br />

system, additional T-slot fixation<br />

not obligatory, can be opened<br />

from both sides, vol. 430l,<br />

192 x 82 x 42 cm.<br />

7 | Roof ski module 1<br />

for 4 pairs of skies or 2 snowboards.<br />

Part No. 99000-990YT-106<br />

8 | Roof ski module 1<br />

for 6 pairs of skies or 4 snowboards.<br />

Part No. 99000-990YT-107<br />

Part No. 990E0-59J45-000<br />

6 | Mounting kit for Roof box<br />

additional T-slot fixation (no ill.).<br />

Part No. 990E0-59J45-001<br />

Transportation<br />

A sedan’s second nature.<br />

4 | Multi roof rack 1<br />

Aluminium tubing with T-slot<br />

fixation system.<br />

Part No. 990E0-57L33-000<br />

3 | Roof rack storage bag<br />

for roof rack, black with large<br />

Suzuki logo.<br />

Part No. 990E0-79J91-000<br />

1<br />

Max. roof load: 50 kg.


Transportation<br />

9 | Rear bike carrier 1<br />

for 2 bikes, aluminium rails, only in combination<br />

with tow bar. When opening the back hatch,<br />

bike carrier can be pulled outward and does not<br />

require removal.<br />

Part No. 990E0-59J22-000<br />

12 | Retractable luggage box<br />

Part No. 99000-99W09-A01<br />

10 | Rear bike carrier extension 1<br />

for a third bike, only in combination with bike<br />

carrier (Part No. 990E0-59J22-000) (no ill.).<br />

Part No. 990E0-59J22-001<br />

11 | Luggage net<br />

Part No. 99000-990J5-C30<br />

13 | Tow bar detachable 1,2<br />

please order electric harness kit<br />

separately.<br />

Part No. 990E0-57L00-000<br />

14 | Adapter<br />

to connect 13-pin plug to<br />

7-pin socket.<br />

Part No. 990E0-79J67-000<br />

15 | Harness kit<br />

13-pin with turning signal.<br />

Part No. 990E0-57L01-000<br />

1<br />

Please observe the max. towing capacity of 720 kg non-braked and 1700 kg braked.<br />

2<br />

Please observe the max. vertical load of 75 kg and consult your owner’s manual<br />

for further details.


Audio and<br />

Navigation<br />

1 | Pioneer AVIC-F20BT<br />

Full scale navigation, entertainment and communication<br />

system with a comprehensive European map database and<br />

complete control via a unique 3D graphic touch screen interface.<br />

Phone calls can be handled with the integrated Parrot<br />

Bluetooth® 1 wireless telephony (microphone included in the<br />

scope of delivery).<br />

Main features<br />

Simultaneous navigation and AV entertainment, 7" slide down<br />

WVGA screen, touch panel operation with revolutionary AV 3D<br />

interface, Map type: pre-installed on built-in flash memory<br />

(navigation memory 4GB NAND Flash), Points of interest (POI):<br />

6 million, NavGate FEEDS PC application: downloadable from<br />

the internet for custom POIs and Drive Report, NavGate FEEDS<br />

for smartphones: downloadable from the Internet for custom<br />

POIs (for iPhone® 2 , Blackberry, Nokia S60), Junction view,<br />

Parrot Bluetooth® 1 wireless telephony, customisable key<br />

(RGB multi color) and display illumination, customisable shortcut<br />

menu, Multi-sensor navigation, TMC real-time traffic info,<br />

3D Gyro for optimal position determination. Plays: CD and<br />

DVD (incl. CD-R/-RW, DVD-R/-RW discs), MP3, WMA, iTunes® 2<br />

(AAC), WAV music on CD, DVD, SD card and USB, Audio stream<br />

via Bluetooth® 1 sourced directly from the compatible mobile<br />

phone, jpeg digital photos (for personalising your start-up<br />

screen), MPEG4, WMV, H.264 video on SD card and USB, DivX<br />

files on CD and DVD, iPod® 2 and iPhone® 2 via optional adaptor<br />

P/N 990E0-59J40-POD, USB device via a rear input, Other AV<br />

devices via the rear auxiliary input, Radio, Text to Speech<br />

voice guidance, Installation type: 2-DIN in-dash, Anti-theft<br />

protection. Languages: navigation coverage for 44 European<br />

countries; 18 voice guidance languages supported; 17 menu<br />

languages supported; for further details please contact your<br />

local SUZUKI dealer.<br />

Navigation features<br />

Eco Drive, Drag & Drop menu setting: This function allows you<br />

to create your own short cut menu which can act as your<br />

home menu. Making it easy to access your most frequently<br />

used function. Simply drag and drop icons into your menu to<br />

act as a quick link to these functions.<br />

iPod®<br />

2 compatibility & MusicSphere<br />

MusicSphere: This feature is a unique iTunes® 2 plug-in<br />

that matches your music to your mood. When installed,<br />

MusicSphere analyses your entire iPod® 2 , iPod Touch® 2 or<br />

iPhone® 2 music library and creates specialised playlists based<br />

on various musical attributes like: feeling (bright, energetic,<br />

gloomy, and calm), rhythm pattern, beats per minute, year of<br />

the song or date added to the device.<br />

Bluetooth® 1 features<br />

Parrot Bluetooth® 1 module integrated, Hands-free calling, Music<br />

streaming, Additional Bluetooth® 1 features: voice recognition,<br />

phone book transfer, 1,000 entries for each user (up to 5 users).<br />

Expandability<br />

RCA AV input: 1 rear-in, RCA AV Rear output: 1, RCA preouts:<br />

3 (F+R+S/W), Cinch AV in: 2 rear-in, SD-card input: yes,<br />

Rear USB-in, Portable device connectivity: via optional cable<br />

990E0-59J09-VID, Reverse camera input: for the optional<br />

back-up camera P/N 990E0-59J10-KAM, iPod® 2 and iPhone® 2<br />

via optional adapter P/N 990E0-59J40-POD, Direct sub drive,<br />

Hard-wired remote ready.<br />

Audio<br />

MOSFET 4x50W amplifier, 4x27W DIN sinus, Equaliser: 7-band<br />

graphic equaliser, Advanced sound retriever, AM/FM tuner:<br />

D4Q RDS, Advanced audio features: high quality power line<br />

capacitor for stable power supply, rounded audio signal<br />

pattern for noise reduction, advanced sound staging.<br />

Part No. 990E0-59J40-F20<br />

Basic mounting kit<br />

Part No. 990E0-59J18-KT5<br />

A new movement for the senses.<br />

1<br />

Bluetooth® is a registered trademark of Bluetooth SIG, Inc.<br />

2<br />

iPod®/iPod Touch®/iPhone® and iTunes® are registered trademarks of Apple Inc.


Audio and<br />

Navigation<br />

2 | Pioneer AVIC-F920BT<br />

Full scale navigation, entertainment and communication<br />

system with a comprehensive European map database and<br />

complete control via a unique 3D graphic touch screen interface.<br />

Phone calls can be handled with the integrated Parrot<br />

Bluetooth® 1 wireless telephony (microphone included in the<br />

scope of delivery).<br />

Main features<br />

Simultaneous navigation and AV entertainment, 6.1 inch high<br />

resolution WVGA touch panel operation with revolutionary AV<br />

3D interface, Map type: pre-installed on built-in flash memory<br />

(navigation memory 4GB NAND Flash), Points of interest (POI):<br />

6 million, NavGate FEEDS PC application: downloadable from<br />

the internet for custom POIs and Drive Report, NavGate FEEDS<br />

for smartphones: downloadable from the Internet for custom<br />

POIs (for iPhone® 2 , Blackberry, Nokia S60), Junction view,<br />

Parrot Bluetooth® 1 wireless telephony, customisable key<br />

(RGB multi colour) and display illumination, customisable shortcut<br />

menu, Multi-sensor navigation, TMC real-time traffic info,<br />

3D Gyro for optimal position determination. Plays: CD and<br />

DVD (incl. CD-R/-RW, DVD-R/-RW discs), MP3, WMA, iTunes® 2<br />

(AAC), WAV music on CD, DVD, microSD card and USB, jpeg<br />

digital photos (for personalising your start-up screen), MPEG4,<br />

WMV, H.264 video on microSD card and USB, DivX files on<br />

CD and DVD, iPod® 2 and iPhone® 2 via optional adaptor P/N<br />

990E0-59J40-POD, USB device via a rear input, Other AV devices<br />

via the rear auxiliary input. Languages: navigation coverage<br />

for 44 European countries; 18 voice guidance languages<br />

supported; 17 menu languages supported; for further details<br />

please contact your local SUZUKI dealer.<br />

Navigation features<br />

Eco Drive, Drag & Drop menu setting: This function allows you<br />

to create your own short cut menu which can act as your<br />

home menu. Making it easy to access your most frequently<br />

used function. Simply drag and drop icons into your menu to<br />

act as a quick link to these functions.<br />

iPod®<br />

2 compatibility & MusicSphere<br />

MusicSphere: This feature is a unique iTunes® 2 plug-in<br />

that matches your music to your mood. When installed,<br />

MusicSphere analyses your entire iPod® 2 , iPod Touch® 2 or<br />

iPhone® 2 music library and creates specialised playlists based<br />

on various musical attributes like: feeling (bright, energetic,<br />

gloomy, calm), rhythm pattern, beats per minute, year of the<br />

song or date added to the device.<br />

Bluetooth®<br />

1 features<br />

Parrot Bluetooth® 1 module integrated, Hands-free calling,<br />

Music streaming, Additional Bluetooth® 1 features: phone book<br />

transfer, 1,000 entries for each user (up to 5 users)<br />

Expandability<br />

RCA AV input: 1 rear-in, RCA AV Rear output: 1, RCA preouts:<br />

3 (F+R+S/W), Aux. in: 1 rear-in, SD-card input: yes<br />

(MicroSD input), Rear USB-in, Portable device connectivity:<br />

via optional cable 990E0-59J09-VID, Reverse camera input:<br />

for the optional back-up camera P/N 990E0-59J10-KAM,<br />

iPod® 2 and iPhone® 2 via optional adapter P/N 990E0-59J40-<br />

POD, Direct sub drive, Hard-wired remote ready<br />

Audio<br />

MOSFET 50Wx4 amplifier, Equaliser: 7-band graphic equaliser,<br />

Advanced sound retriever, AM/FM tuner: D4Q RDS, Advanced<br />

audio features: high quality power line capacitor for stable<br />

power supply, rounded audio signal pattern for noise reduction,<br />

advanced sound staging<br />

Part No. 990E0-59J40-920<br />

Basic mounting kit<br />

Part No. 990E0-59J18-KT5<br />

3 | Pioneer AVIC-F320BT<br />

Full scale navigation, entertainment and communication<br />

system with European map coverage and traffic info and<br />

detachable screen. Parrot Bluetooth® 1 module integrated.<br />

Main features<br />

Simultaneous navigation and AV (audio) entertainment,<br />

Map type: pre-installed built-in 4GB flash memory, Points of<br />

interest (POI): 2,3 million, NavGate feeds custom POI creator,<br />

Touchscreen operation, Screen (detachable): 4.3" high resolution<br />

WQVGA touch panel, Parrot Bluetooth® 1 wireless telephony<br />

(separate microphone included), Customisable key<br />

and display illumination, TMC traffic info receiver, ECO Drive.<br />

Plays: MPEG4 and H.264 video from SD card; CD (incl. CD-<br />

R/-RW); MP3, WMA, iTunes® (AAC) and WAV music on CD and<br />

USB; JPEG digital photos for personalising the start-up screen;<br />

music from iPod® 2 and iPhone® 2 via the original iPod® 2 cable;<br />

music from USB device via rear input, DVD region code: 2,<br />

Radio, Voice guidance, Text to Speech, Installation type:<br />

2-DIN in-dash, Anti-theft protection. Languages: navigation<br />

coverage for 44 European countries; 18 voice guidance languages<br />

supported; 17 menu languages supported; for further<br />

details please contact your local SUZUKI dealer.<br />

iP od® 2 compatibility & MusicSphere<br />

Please refer to your local dealer for detailed information<br />

concerning iPod® 2 and iPhone® 2 compatibility as well as for<br />

required adaptor cables.<br />

Bluetooth®<br />

1 features<br />

Parrot Bluetooth® 1 module integrated; separate external<br />

microphone included, Hands-free calling (hands-free profile),<br />

Additional Bluetooth® 1 features: 400 entries for each user<br />

(up to 5 users).<br />

Expandability<br />

RCA pre-outs: 1 (rear or subwoofer), Aux. in: 1 rear-in, SDcard<br />

input for NavGate Feeds and map updates (front-in),<br />

USB input (rear), Direct sub drive, Hard-wired remote ready.<br />

Audio<br />

MOSFET 4x50W max., 4x27W DIN sinus, Equaliser: 3-band<br />

parametric equaliser (PEQ), Sound retriever.<br />

Part No. 990E0-59J40-320<br />

Basic mounting kit<br />

Part No. 990E0-59J18-KT5<br />

1<br />

Bluetooth® is a registered trademark of Bluetooth SIG, Inc.<br />

2<br />

iPod®/iPod Touch®/iPhone® and iTunes® are registered trademarks of Apple Inc.<br />

1<br />

Bluetooth® is a registered trademark of Bluetooth SIG, Inc.<br />

2<br />

iPod®/iPod Touch®/iPhone® and iTunes® are registered trademarks of Apple Inc.


Audio and<br />

Navigation<br />

4 | Navi ClARION MAP790<br />

Specifications:<br />

4.3" wide colour LCD with touch panel control, antireflexion<br />

screen for sunlight protection, integrated RDS-TMC<br />

tuner for traffic information, integrated Bluetooth® 1 interface<br />

for hands-free operation with microphone, Sirf III<br />

GPS-module with 20-channel receiver, 400 MHz processor,<br />

integrated 2 GB flash memory, SD/MMC slot for up to<br />

4 GB including AC adapter, car charger, USB cable, solidly<br />

mounting kit, TMC antenna, Stylus, Backup DVD; rechargeable<br />

battery, USB 2.0 for updating and charging, 3.5<br />

mm external head phone connector, Microsoft Windows<br />

CE 5.0, weight 200g.<br />

Na<br />

vigation:<br />

Realistic 3D Building and 3D Landmark on the road, TTS<br />

with Phonetic Database (text to speech), lane assistant<br />

and signpost info, landscape in full 3D with elevation for<br />

roads, junctions and bridges, extreme fast routing, interactive<br />

map view with smart zoom technology, intuitive UI<br />

with large finger touch, speed limit information, safety<br />

camera warning available.<br />

Co<br />

verage:<br />

Map material for 43 countries included free of charge:<br />

AL, AD, A, BY, BE, BA, BG, HR, CZ, DK, EE,<br />

FI, F, MC, MK, D, GR, HU, IE, IT, VA, LV, LT, LU, MD, NL,<br />

NO, PT, RO, SM, SCG, SK, SI, ES, GI, SE, CH, LI, TR, UA,<br />

GB; voice management and display in<br />

25 languages; text to speech in 11 languages.<br />

MP3 player:<br />

MP3 and WMA from SD/MMC cards, graphic EQ setting<br />

with 12 presets, playlist compatible (.m3u).<br />

Pictur e viewer:<br />

JPEG and BMP from SD/MMC, thumbnail view and<br />

slideshow available.<br />

Mo<br />

vie player:<br />

MP4, MOV, AVI, WMV, ASF and 3GP.<br />

Part No. 990E0-59J51-000<br />

5 | Connection for USB-slot<br />

for standard USB-slot in dash console and<br />

in combination with a Pioneer AVIC-F20BT<br />

and AVIC-F920BT navigation system only<br />

Part No. 990E0-59J50-920<br />

6 | Connection for USB-slot<br />

for standard USB-slot in dash console and<br />

in combination with a Pioneer AVIC-F320BT<br />

navigation system only<br />

Part No. 990E0-59J50-320<br />

8 | Speaker upgrade set<br />

2 piece, fitting for front and rear,<br />

dual cone, 65 watt, frequency range<br />

80-17.500 Hz, plug and play.<br />

Part No. 990E0-62J32-000<br />

9 | Pioneer rear view camera<br />

Allows you to see behind the car when driving<br />

backwards. Only in combination with our<br />

Pioneer AVIC navigation system.<br />

Part No. 990E0-59J10-KAM<br />

7 | i-Pod® 2 connection<br />

Please order adaptor cable additionally.<br />

Part No. 990E0-59J40-POD<br />

1<br />

Bluetooth® is a registered trademark of Bluetooth SIG, Inc.<br />

2<br />

iPod® is a registered trademark of Apple Inc.


Suzuki Genuine Accessories have been specially designed for<br />

Suzuki cars and are subject to the same quality standards as<br />

the car. Please note that only Suzuki Genuine A ccessories<br />

have been tested and cleared for use by Suzuki. The necessary<br />

instructions can be found in the r elevant manuals. It<br />

is possible under some circumstances that the installation<br />

and / or use of other accessory parts could have a negative<br />

effect on the structural characteristics of your car and thus<br />

reduce driving safety. Suzuki cannot accept any liability for<br />

damage caused by the use of accessories other than Suzuki<br />

Genuine Accessories.<br />

On publication of this brochure all earlier information ceases<br />

to be valid. Some of the brochure’s illustrations show special<br />

equipment.<br />

The details given in this brochure are non-binding and are<br />

purely for informational purposes. Errors excepted.<br />

Last update: October <strong>2010</strong><br />

Your Suzuki Partner<br />

FOR INTERNAL USE ONLY<br />

Suzuki Austria Automobil Handels Gesellschaft m.b.H. 5020 Salzburg, Münchner Bundesstraße 160, Telefon 0662/2155-0, www.suzuki.at

Hooray! Your file is uploaded and ready to be published.

Saved successfully!

Ooh no, something went wrong!
