520 Chapter 9 ■ Flow over Immersed Bodies U B Bound vortex A Trailing vortex (a) A Low pressure High pressure Bound vortex Trailing vortex B F I G U R E 9.37 Flow past a finite length wing: (a) the horseshoe vortex system produced by the bound vortex and the trailing vortices; (b) the leakage of air around the wing tips produces the trailing vortices. (b) F l u i d s i n t h e N e w s Why winglets? Winglets, those upward turning ends of airplane wings, boost the performance by reducing drag. This is accomplished by reducing the strength of the wingtip vortices formed by the difference between the high pressure on the lower surface of the wing and the low pressure on the upper surface of the wing. These vortices represent an energy loss and an increase in drag. In essence, the winglet provides an effective increase in the aspect ratio of the wing without extending the wingspan. Winglets come in a variety of styles—the Airbus A320 has a very small upper and lower winglet; the Boeing 747-400 has a conventional, vertical upper winglet; and the Boeing Business Jet (a derivative of the Boeing 737) has an eight-foot winglet with a curving transition from wing to winglet. Since the airflow around the winglet is quite complicated, the winglets must be carefully designed and tested for each aircraft. In the past, winglets were more likely to be retrofitted to existing wings, but new airplanes are being designed with winglets from the start. Unlike tailfins on cars, winglets really do work. (See Problem 9.111.) A spinning sphere or cylinder can generate lift. As is indicated above, the generation of lift is directly related to the production of a swirl or vortex flow around the object. A nonsymmetric airfoil, by design, generates its own prescribed amount of swirl and lift. A symmetric object like a circular cylinder or sphere, which normally provides no lift, can generate swirl and lift if it rotates. As is discussed in Section 6.6.3, the inviscid flow past a circular cylinder has the symmetrical flow pattern indicated in Fig. 9.38a. By symmetry the lift and drag are zero. However, if the cylinder is rotated about its axis in a stationary real 1m 02 fluid, the rotation will drag some of the fluid around, producing circulation about the cylinder as in Fig. 9.38b. When this circulation is combined with an ideal, uniform upstream flow, the flow pattern indicated in Fig. 9.38c is obtained. The flow is no longer symmetrical about the horizontal plane through the center of the cylinder; the average pressure is greater on the lower half of the cylinder than on the upper half, and a lift is generated. This effect is called the Magnus effect, after Heinrich Magnus 11802–18702, a German chemist and physicist who first investigated this phenomenon. A similar lift is generated on a rotating sphere. It accounts for the various types of pitches in baseball 1i.e., curve ball, floater, sinker, etc.2, the ability of a soccer player to hook the ball, and the hook or slice of a golf ball. Typical lift and drag coefficients for a smooth, spinning sphere are shown in Fig. 9.39. Although the drag coefficient is fairly independent of the rate of rotation, the lift coefficient is strongly
A dimpled golf ball has less drag and more lift than a smooth one. dependent on it. In addition 1although not indicated in the figure2, both C and C D are dependent on 9.4 Lift 521 ω ω S S S S (a) (b) S = stagnation point (highest pressure) “(a) + (b) = (c)” (c) F I G U R E 9.38 Inviscid flow past a circular cylinder: (a) uniform upstream flow without circulation, (b) free vortex at the center of the cylinder, (c) combination of free vortex and uniform flow past a circular cylinder giving nonsymmetric flow and a lift. 0.8 C D = ____________ __ 1 U 2 __ π ρ D 2 2 4 0.6 ω U D Smooth sphere 0.4 0.2 C L = ____________ __ 1 U 2 __ π ρ D 2 2 4 Re = ___ = 6 × 10 4 v 0 0 1 2 3 4 5 F I G U R E 9.39 Lift and drag ωD/2U coefficients for a spinning smooth sphere (Ref. 23). L the roughness of the surface. As was discussed in Section 9.3, in a certain Reynolds number range an increase in surface roughness actually decreases the drag coefficient. Similarly, an increase in surface roughness can increase the lift coefficient because the roughness helps drag more fluid around the sphere increasing the circulation for a given angular velocity. Thus, a rotating, rough golf ball travels farther than a smooth one because the drag is less and the lift is greater. However, do not expect a severely roughed up 1cut2 ball to work better—extensive testing has gone into obtaining the optimum surface roughness for golf balls. C D , C L E XAMPLE 9.16 Lift on a Rotating Sphere GIVEN A table tennis ball weighing 2.45 10 2 N with diameter D 3.8 10 2 m is hit at a velocity of U 12 ms with zontal path, not dropping due to the acceleration of gravity? FIND What is the value of v if the ball is to travel on a hori- a back spin of angular velocity v as is shown in Fig. E9.16.
- Page 494 and 495: 470 Chapter 9 ■ Flow over Immerse
- Page 496 and 497: 472 Chapter 9 ■ Flow over Immerse
- Page 498 and 499: 474 Chapter 9 ■ Flow over Immerse
- Page 500 and 501: 476 Chapter 9 ■ Flow over Immerse
- Page 502 and 503: 478 Chapter 9 ■ Flow over Immerse
- Page 504 and 505: 480 Chapter 9 ■ Flow over Immerse
- Page 506 and 507: 482 Chapter 9 ■ Flow over Immerse
- Page 508 and 509: 484 Chapter 9 ■ Flow over Immerse
- Page 510 and 511: 486 Chapter 9 ■ Flow over Immerse
- Page 512 and 513: 488 Chapter 9 ■ Flow over Immerse
- Page 514 and 515: 490 Chapter 9 ■ Flow over Immerse
- Page 516 and 517: 492 Chapter 9 ■ Flow over Immerse
- Page 518 and 519: 494 Chapter 9 ■ Flow over Immerse
- Page 520 and 521: 496 Chapter 9 ■ Flow over Immerse
- Page 522 and 523: 498 Chapter 9 ■ Flow over Immerse
- Page 524 and 525: 500 Chapter 9 ■ Flow over Immerse
- Page 526 and 527: 502 Chapter 9 ■ Flow over Immerse
- Page 528 and 529: 504 Chapter 9 ■ Flow over Immerse
- Page 530 and 531: 506 Chapter 9 ■ Flow over Immerse
- Page 532 and 533: 508 Chapter 9 ■ Flow over Immerse
- Page 534 and 535: 510 Chapter 9 ■ Flow over Immerse
- Page 536 and 537: 512 Chapter 9 ■ Flow over Immerse
- Page 538 and 539: 514 Chapter 9 ■ Flow over Immerse
- Page 540 and 541: 516 Chapter 9 ■ Flow over Immerse
- Page 542 and 543: 518 Chapter 9 ■ Flow over Immerse
- Page 546 and 547: 522 Chapter 9 ■ Flow over Immerse
- Page 548 and 549: 524 Chapter 9 ■ Flow over Immerse
- Page 550 and 551: 526 Chapter 9 ■ Flow over Immerse
- Page 552 and 553: 528 Chapter 9 ■ Flow over Immerse
- Page 554 and 555: ∋ 530 Chapter 9 ■ Flow over Imm
- Page 556 and 557: 532 Chapter 9 ■ Flow over Immerse
- Page 558 and 559: 10 Open-Channel Flow CHAPTER OPENIN
- Page 560 and 561: 536 Chapter 10 ■ Open-Channel Flo
- Page 562 and 563: 538 Chapter 10 ■ Open-Channel Flo
- Page 564 and 565: 540 Chapter 10 ■ Open-Channel Flo
- Page 566 and 567: 542 Chapter 10 ■ Open-Channel Flo
- Page 568 and 569: 544 Chapter 10 ■ Open-Channel Flo
- Page 570 and 571: 546 Chapter 10 ■ Open-Channel Flo
- Page 572 and 573: 548 Chapter 10 ■ Open-Channel Flo
- Page 574 and 575: 550 Chapter 10 ■ Open-Channel Flo
- Page 576 and 577: 552 Chapter 10 ■ Open-Channel Flo
- Page 578 and 579: 554 Chapter 10 ■ Open-Channel Flo
- Page 580 and 581: 556 Chapter 10 ■ Open-Channel Flo
- Page 582 and 583: 558 Chapter 10 ■ Open-Channel Flo
- Page 584 and 585: 560 Chapter 10 ■ Open-Channel Flo
- Page 586 and 587: 562 Chapter 10 ■ Open-Channel Flo
- Page 588 and 589: 564 Chapter 10 ■ Open-Channel Flo
- Page 590 and 591: 566 Chapter 10 ■ Open-Channel Flo
- Page 592 and 593: 568 Chapter 10 ■ Open-Channel Flo

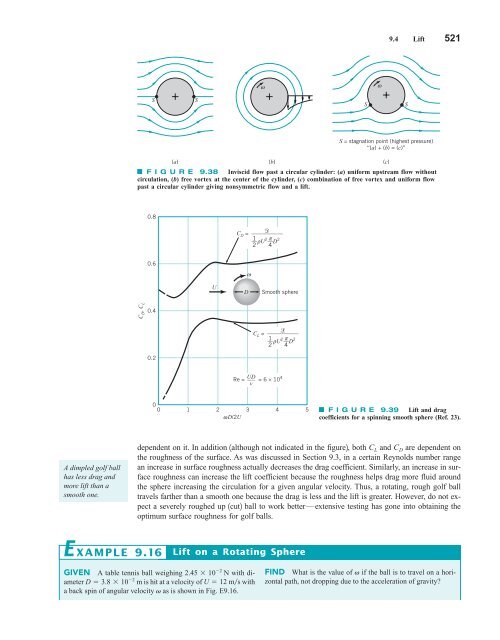

A dimpled golf ball<br />
has less drag and<br />
more lift than a<br />
smooth one.<br />
dependent on it. In addition 1although not indicated in the figure2, both C and C D are dependent on<br />
9.4 Lift 521<br />
ω<br />
ω<br />
S<br />
S<br />
S<br />
S<br />
(a)<br />
(b)<br />
S = stagnation point (highest pressure)<br />
“(a) + (b) = (c)”<br />
(c)<br />
F I G U R E 9.38 Inviscid flow past a circular cylinder: (a) uniform upstream flow without<br />
circulation, (b) free vortex at the center of the cylinder, (c) combination of free vortex and uniform flow<br />
past a circular cylinder giving nonsymmetric flow and a lift.<br />
0.8<br />
C D = ____________ <br />
__ 1 U 2 __ π<br />
ρ D 2<br />
2 4<br />
0.6<br />
ω<br />
U<br />
D Smooth sphere<br />
0.4<br />
0.2<br />
C L = ____________ <br />
__ 1 U 2 __ π<br />
ρ D 2<br />
2 4<br />
Re = ___ = 6 × 10 4<br />
v<br />
0<br />
0 1 2 3 4 5 F I G U R E 9.39 Lift and drag<br />
ωD/2U<br />
coefficients for a spinning smooth sphere (Ref. 23).<br />
L<br />
the roughness of the surface. As was discussed in Section 9.3, in a certain Reynolds number range<br />
an increase in surface roughness actually decreases the drag coefficient. Similarly, an increase in surface<br />
roughness can increase the lift coefficient because the roughness helps drag more <strong>fluid</strong> around<br />
the sphere increasing the circulation for a given angular velocity. Thus, a rotating, rough golf ball<br />
travels farther than a smooth one because the drag is less and the lift is greater. However, do not expect<br />
a severely roughed up 1cut2 ball to work better—extensive testing has gone into obtaining the<br />
optimum surface roughness for golf balls.<br />
C D , C L<br />
E XAMPLE 9.16<br />
Lift on a Rotating Sphere<br />
GIVEN A table tennis ball weighing 2.45 10 2 N with diameter<br />
D 3.8 10 2 m is hit at a velocity of U 12 ms with zontal path, not dropping due to the acceleration of gravity?<br />
FIND What is the value of v if the ball is to travel on a hori-<br />
a back spin of angular velocity v as is shown in Fig. E9.16.
