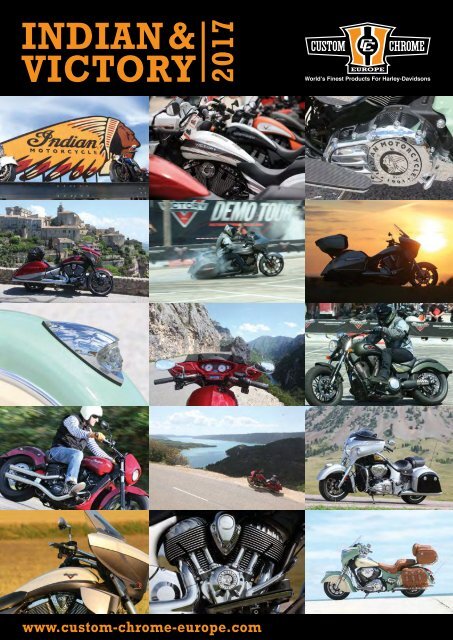

INDIAN VICTORY BROCHURE
Indian & Victory Parts
Indian & Victory Parts
You also want an ePaper? Increase the reach of your titles
YUMPU automatically turns print PDFs into web optimized ePapers that Google loves.
<strong>INDIAN</strong> &<br />
<strong>VICTORY</strong><br />
2017<br />
www.custom-chrome-europe.com
<strong>INDIAN</strong> | 2017<br />
Sprint Signature Series by John Shope<br />
For Indian Scout 15-16<br />
John Shope of Dirty Bird Concept knows how pushing the<br />
limits of Style. Transform your Indian Scout into a Badass<br />
Race-Inspired Custom!<br />
775671<br />
Sprint Café Fairing<br />
• Race-inspired for a unique café racer<br />
style<br />
• Easy bolt-on installation with included<br />
mounting bracket and hardware<br />
• Premium high-impact ABS<br />
775671 Sprint Café Fairing for Indian<br />
Scout 15-16<br />
775672<br />
Sprint Chin Spoiler<br />
• Easy installation<br />
• Optimum engine cooling<br />
• Ready to paint-match any custom<br />
color theme<br />
• Direct replacement<br />
• Premium high-impact ABS<br />
775672 Sprint Chin Spoiler for Indian<br />
Scout 15-16<br />
Sprint Front Fender<br />
• Shorter, scalloped and streamlined to<br />
hug the front tire for a clean look<br />
• Includes mounting brackets<br />
775673 Sprint front fender for<br />
Indian Scout 15-16<br />
775673<br />
775674<br />
Sprint Radiator Side Accents<br />
• Provides an instant transformation<br />
of the blank frame surrounding the<br />
radiator<br />
• Stamped from 6061 aluminum and<br />
easy to install using high-strength<br />
adhesive<br />
• Satin black mesh design features<br />
visible rivets for contrasting custom<br />
style<br />
775674 Sprint radiator side accents<br />
for Indian Scout 15-16<br />
IV.02
<strong>INDIAN</strong> | 2017<br />
775675<br />
Sprint Swing Arm Frame Accents<br />
• New and aggressive look in seconds<br />
• Stamped from 6061 aluminum and easy to install using<br />
high-strength adhesive<br />
• Satin black mesh design features visible rivets for contrasting<br />
custom style<br />
775675 Sprint swing arm frame accents for Indian<br />
Scout 15-16<br />
775676<br />
Sprint Side Cover Frame Accents<br />
• Rugged custom appearance<br />
• Stamped from 6061 aluminum and easy to install using<br />
high-strength adhesive<br />
775676 Sprint side cover frame accents for Indian Scout<br />
15-16<br />
775677<br />
Sprint Neck Frame Accents<br />
• Perfect addition to the Radiator Side Accents<br />
• Stamped from 6061 aluminum and easy to install using<br />
high-strength adhesive<br />
• Satin black mesh design features visible rivets for contrasting<br />
custom style<br />
775677 Sprint neck frame accents for Indian Scout<br />
15-16<br />
775678<br />
Sprint Rear Fender Side Accents<br />
• Highlight the Scout’s curves<br />
• Stamped from 6061 aluminum and easy to install using<br />
high-strength adhesive<br />
• Satin black mesh design features visible rivets for contrasting<br />
custom style<br />
775678 Sprint rear fender side accents for Indian Scout<br />
15-16<br />
for more details check www.custom-chrome-europe.com<br />
IV.03
<strong>INDIAN</strong> | 2017<br />
892110<br />
Fairing Kit for Indian Scout<br />
• Fairing in heavy ABS plastic<br />
• Windshield is made from smoked plexiglass<br />
• For Indian Scout 15-16<br />
990149 Painted black<br />
990150 Paintable<br />
Motherwell Solo Luggage Racks for<br />
Indian Scout Models<br />
7” wide chrome or gloss black solo luggage racks by<br />
Motherwell for Indian Scout models 15-16 (sold each).<br />
990141 Chrome<br />
990142 Gloss black<br />
Indian Chieftain<br />
990147 990148<br />
771628<br />
771628<br />
Victory Cross Country<br />
Gun Smoke Windshield<br />
Indian by Windvest<br />
Made of a high impact acrylic GE<br />
Plexiglas.<br />
Indian Chieftain<br />
990147 10”<br />
990148 12”<br />
771629<br />
Plug-N-Go Driver Backrest for Indian<br />
• Fits: 14-16 Indian models (except Scout)<br />
• Measures 7” tall x 10” wide<br />
771628 Black pad<br />
771629 Tan pad<br />
771629<br />
IV.04
<strong>INDIAN</strong> | 2017<br />
775630<br />
Speaker Grills for Indian<br />
775630 All 14-16 Indian Chieftain and<br />
Roadmaster models<br />
Saddlebag Top Trim for Indian<br />
775670 Fits all 14-16 Indian Chieftain &<br />
Roadmaster models<br />
Saddle Shields Heat Deflectors for<br />
Indian<br />
• Fits: 14-16 Indian models (except Scout)<br />
• Increase comfort in stop-and-go traffic on hot<br />
summer days and in warmer riding climates<br />
777181 Saddle shield heat deflectors for Indian<br />
775631<br />
BEFORE<br />
775620<br />
775621<br />
Top Dash Accent for Indian<br />
775631 All 14-16 Indian Chieftain and<br />
Roadmaster models<br />
775622<br />
Fairing Trims and Bezels for Indian<br />
771832<br />
AFTER<br />
775620<br />
Trunk Light Accent for Indian<br />
775680 Fits: 15-16 Roadmaster & 14-16 Chieftain if<br />
equipped with a Tour Trunk<br />
771832<br />
Windshield Trim for Indian<br />
775620 Fits 14-16 Indian Chieftain & Roadmaster<br />
models<br />
777697<br />
775621<br />
Passenger Drink Holder for Indian<br />
Tour Trunk<br />
771832 Fits 15-16 Roadmaster & 14-16 Chieftain if<br />
equipped with a Tour Trunk.<br />
Fairing Turn Signal Trim for Indian<br />
775621 Fits 14-16 Indian Chieftain & Roadmaster<br />
models<br />
775622<br />
Driving Light Bezels for Indian<br />
Fits 14-16 Indian Chieftain & Roadmaster models<br />
775622 Fits 14-16 Indian Chieftain & Roadmaster<br />
models<br />
Taillight Top Trim for Indian<br />
777697 Fits 14-16 Indian models (except Scout)<br />
for more details check www.custom-chrome-europe.com<br />
IV.05
<strong>INDIAN</strong> | 2017<br />
775654<br />
777655<br />
775690<br />
775650<br />
777655 777654<br />
LED Rear Fender Strip Lights for<br />
Indian<br />
775690 Fits 14-16 Indian models (except Scout)<br />
775655<br />
Kinetic Shift & Brake for Indian<br />
For 10-16 Cross Country, Cross Country Tour &<br />
Magnum Models, 10-14 Cross Roads models, 13-14<br />
Boardwalk, 12-13 Hard-Ball, 04-12 Kingpin & 08-16<br />
Vision models.<br />
• Perfect complement to our Kinetic line<br />
• Includes a 3/8” long spacer to adjust the position<br />
777654 Chrome<br />
777655 Gloss black<br />
777615<br />
778835<br />
775652<br />
778835 778828<br />
Footpegs Adapters for Indian<br />
Tapered Adapters<br />
Choose the footpegs you like and then select the<br />
model-specific adapter for your bike.<br />
778835 Driver peg mounts only, ‘15-16 Scout<br />
778805 Rear OEM peg mounts: 14-16 Chief Classic,<br />
Chief Vintage & Chieftain (will also fit<br />
Dark Horse if equipped with accessory peg<br />
mounts from Indian<br />
Splined Adapters<br />
Splined adapters required to mount Kuryakyn<br />
footpegs sold without adapters.<br />
778836 Driver peg mounts only, 15-16 Scout<br />
778828 Rear OEM peg mounts: 14-16 Chief Classic,<br />
Chief Vintage & Chieftain (will also fit<br />
Dark Horse if equipped with accessory peg<br />
mounts from Indian<br />
Spear Floorboards for Indian<br />
• Indian Motorcycle heritage with modern technology<br />
• Provide comfort and vibration reduction<br />
• To match with the Spear grips<br />
775650 Driver floorboards for Indian models 14-16<br />
(except Scout)<br />
775656 Passenger floorboards for Indian models<br />
(not pictured)<br />
775652 Passenger mini boards without adapters*<br />
775655 Shift & brake peg for 14-16 Indian models<br />
(Shift Peg Only) and 15-16 Scout (Shift &<br />
Brake)<br />
775654 Brake pedal pad for Indian models<br />
*Note: Required model specific splined adapter (sold separately)<br />
778856<br />
777615<br />
Toe Rest Cruise Pegs<br />
A comfortable cruising option.<br />
777615 Fits 1-1/4” engine guards<br />
777616<br />
777617<br />
IV.06<br />
ISO Shift & Brake for Indian<br />
778856 Fits: 14-16 Indian models (shift peg<br />
only), 15-16 Scout (shift & brake)<br />
Brute Highway Peg Mounts<br />
Fits 1 1/4“ engine guards or tubing<br />
777616 Gloss Black<br />
777617 Chrome
<strong>INDIAN</strong> | 2017<br />
775636<br />
895448<br />
771411<br />
775635<br />
Spear Grips for Indian<br />
• Indian Motorcycle heritage with modern technology<br />
• Provide comfort and vibration reduction<br />
• To match with the Spear floorboards<br />
775636 Scout 15-16<br />
775635 Chief Classic, Dark Horse, Vintage &<br />
Chieftain 14-16<br />
Mirror Adapters for Indian<br />
771411 Fits all 14-16 Indian models<br />
Note: On Chieftain, Classic, Roadmaster & Vintage models, #<br />
771411 adapters are only compatible with Bahn, Scythe or<br />
Teardrop mirrors. All other mirror styles require # 771713<br />
Adapters to clear master cylinder.<br />
Blue Streak Silicone<br />
Plug Wire Sets<br />
895449 Fits Indian 09-13<br />
776368<br />
771713<br />
Power Commander V<br />
776367<br />
Kinetic Grips for Indian Scout<br />
For Indian Scout 15-16<br />
• Aluminum body and rubber<br />
• Less fatigue and more control<br />
776367 Chrome<br />
776368 Gloss black<br />
Raised Mirror Adapters for Indian<br />
• Raising the mirror mounting position approximately<br />
1-1/2”<br />
• Polished stainless steel<br />
771413 Fits all 14-16 Indian models<br />
775013<br />
775012<br />
The Power Commander V for Indian<br />
Power Commander V<br />
The New Power Commander V is loaded with tons<br />
of new features. Below you will find some Power<br />
Commander V features.<br />
• Reduced size from PCIIIusb (less than half of the<br />
size of PCIII)<br />
• USB powered from computer (9 volt adapter is<br />
no longer needed for programming)<br />
• 2 position map switching function built in (map<br />
switch not included)<br />
• Gear input (allows for map adjustment based<br />
on gear and speed)<br />
• Analog input (allows user to install any 0-5 volt<br />
sensor and build an adjustment table based on<br />
its input such as boost or temperature)<br />
• With gear position input connected the PCV<br />
is capable of allowing each cylinder to be<br />
mapped individually and for each gear (for<br />
example: on a 4 cylinder bike with a six speed<br />
transmission there could be up to 24 separate<br />
fuel tables).<br />
• Unit has a -100/+250% fuel change range (up<br />
from -100/+100%). This allows more adjustment<br />
range for 8 injector sportbikes<br />
• 10 throttle position columns (up from 9 on<br />
PCIIIusb)<br />
• Enhanced “accel pump” utility (increased<br />
adjustment and sensitivity ranges)<br />
776366<br />
ISO-Grips For Indian<br />
776366 All 14-16 Indian Chief Classic, Dark<br />
Horse, Vintage & Chieftain models<br />
Note: Not compatible with OEM heated grips where heat element<br />
is in the grips<br />
Clamp-On Fork Mounted Driving<br />
Lights<br />
Unique clamp-on brackets place these 3” DOTcompliant<br />
driving lights on each side of the fork<br />
tubes for clearance with other accessories, or to<br />
get just the look you want.<br />
For 15-16 Scout models<br />
775012 Front mount<br />
775013 Side mount<br />
CCE# Indian Year<br />
990152 Chief (all models) 14-16<br />
990153 Scout 15-16<br />
for more details check www.custom-chrome-europe.com<br />
IV.07
<strong>INDIAN</strong> | 2017<br />
Ignition Coil for Indian Motorcycles by Motor Factory<br />
Quality replacement coil for Indian Chief Classic/Vintage 12-, Chieftain 14-, Roadmaster 15-, Dark<br />
Horse 12-13.<br />
990109 Ignition coil<br />
890084<br />
DIAG4BIKE Serial Diagnostic - SW<br />
Indian & Victory<br />
Includes functions to perform diagnostics of all embedded control units through the diagnostic connector on the motorcycle. The kit contains a communication<br />
interface with an Indian and Victory adapter, a USB cable to connect a laptop (or PC) and diagnostic Software which is compatible with Windows 7, 8 and 10. A<br />
wireless communication interface is also available separately.<br />
Version 16.x -is for models up to and including 2016; -represents the update number of the 2016 version, future updates are in preparation<br />
and can be downloaded free of charge for this version.<br />
Models<br />
• Indian 2014-2016<br />
Overview of control units which can be diagnosed and functions on all models<br />
• Engine control module<br />
• ABS control module<br />
• Gauge (Speedo, Tacho...) module<br />
• Vehicle control module<br />
• Radio control module<br />
• Read vehicle information<br />
• Read and clear Diagnostic Trouble Codes<br />
• Monitoring Real Time Data<br />
Global Test<br />
• Search for and identify all embedded control units, read fault code memory + generate and print a diagnostic report<br />
Under Preparation<br />
• Actuators testing<br />
• Victory models 2007 and older<br />
Software Kit includes<br />
• Adapter Indian and Victory<br />
• SW Installation on USB stick<br />
• SW license code<br />
890084 Serial Diagnostic-SW<br />
653745 USB serial interface (including Hardcase as shown) requires 653747<br />
653746 USB & Blue Tooth serial interface (including Hardcase as shown) requires 653747<br />
653745, 653746<br />
IV.08
A<br />
Indian<br />
B<br />
<strong>INDIAN</strong> | 2017<br />
BSL Outlines for Indian<br />
Choose the exhaust design for your model and combine the matching heat shield design<br />
Indian<br />
Choose Your Heatshield Finish<br />
Fits BSL Outline Design Raw Black<br />
Scout 14-17 A) Drag Race Bomb Low Exit Outline, VA satin 990218 990219<br />
Scout 14-17 B) Drag Race Bomb High Exit Outline, VA satin 990220 990221<br />
Indian<br />
C<br />
BSL Dreamliner for Indian<br />
Choose the exhaust design for your model and combine the matching heat shield design<br />
Choose Your Heatshield Finish<br />
Fits BSL Outline Design Polish Showchrome Black<br />
Chief Vintage, Chief Dark Horse, Chief Classic, Chief Roadmaster<br />
Classic<br />
C) Dreamliner 990222 990223 990224<br />
Springfield, Chieftain, Chieftain Dark Horse, Roadmaster C) Dreamliner 990225 990226 990227<br />
for more details check www.custom-chrome-europe.com<br />
IV.09
<strong>INDIAN</strong> | 2017<br />
3” Internal Disc for Indian Scout 15-16 Models<br />
• Huge Increase in flow over the stock units<br />
• Tunable 3” Internal Disc Based Mufflers, with Completely Rebuildable<br />
Cores<br />
892241 Chrome<br />
Rinehart, Slip- On Mufflers for Indian Scout Models<br />
The latest motorcycle from Indian loves to be ridden hard on city streets<br />
and backroads. Help open it up and scream down those roads with<br />
Rinehart Racing’s Scout Slip-On mufflers. Made from the same high quality<br />
materials, right here in the USA, as our leading Touring Slip-Ons you can<br />
now you can have that recognizable Rinehart Racing sound and performance<br />
for your Indian Scout 15-<br />
990138 Chrome with black end cap<br />
990139 Chrome with chrome end caps (not shown)<br />
Crusher Maverick Slip-Ons for Indian Scout Models<br />
• 5% horsepower gain without intake, header or fuel mapping modifications<br />
• 2.5“ muffler diameter<br />
• Simple bolt-on installation with included bracket and hardware<br />
• Approximately 14 lbs. lighter than stock mufflers<br />
77604 Chrome with black endcaps<br />
990140<br />
Rinehart 4“ Slip-On Mufflers for Indian Dark Horse/<br />
Classic/Vintage Models<br />
The world leader in Slip-On exhaust for V-Twin motorcycles has created<br />
new 4” Slip-On mufflers for all Indian Cruiser, Bagger and Touring motorcycles.<br />
The new Slip-Ons utilize Rinehart Racing’s distinctive sound technology<br />
and performance promise along with that classic Rinehart Racing look.<br />
Designed to be a pure Slip-On with no tuning or modifications are necessary.<br />
Fits Dark Horse 15-, Classic 14- and Vintage models 14-.<br />
990134 Chrome with black end caps<br />
990135 Chrome with chrome end caps (not shown)<br />
990140 2.5“ Hi-Flo Performance baffles for Indian Touring/Cruiser slip-ons<br />
(pair). Fits all 4“ Indian Touring slip-ons<br />
Exhaust systems shown may be intended only for restoration purposes or to be used on closed areas such as race tracks. <br />
The use of this items on public roads may be against local, state and/or federal/EU laws.<br />
Note: No warranty on exhaust chrome plating blueing or discoloration. All EFI models must be remapped! Please ask your local dealer.<br />
IV.10
<strong>INDIAN</strong> | 2017<br />
Rinehart 4“ Slip-On Mufflers for Indian Chieftain/<br />
Roadmaster Models<br />
The world leader in Slip-On exhaust for V-Twin motorcycles has created<br />
new 4” Slip-On mufflers for all Indian Cruiser, Bagger and Touring motorcycles.<br />
The new Slip-Ons utilize Rinehart Racing’s distinctive sound technology<br />
and performance promise along with that classic Rinehart Racing<br />
look. Designed to be a pure Slip-On with no tuning or modifications are<br />
necessary. Fits Chieftain models 14- and Roadmaster models 15-.<br />
990136 Chrome with black end caps<br />
990137 Chrome with chrome end caps (not shown)<br />
990140 2.5“ Hi-Flo Performance baffles for Indian Touring/Cruiser slip-ons<br />
(pair). Fits all 4“ Indian Touring slip-ons<br />
990140<br />
BEFORE<br />
BEFORE<br />
AFTER<br />
AFTER<br />
775644<br />
775642<br />
775643<br />
Chrome Inner Primary Cover for Indian<br />
Easy installation with high-strength 3M® VHB adhesive<br />
777643 Fits: 14-16 Indian models (except Scout)<br />
Starter End Cover for Indian<br />
775642 Fits: 14-16 Indian models (except Scout)<br />
775641<br />
Rear Oil Panel Accent for Indian<br />
Easy installation with high-strength 3M® VHB adhesive.<br />
775644 Fits: 14-16 Indian models (except Scout)<br />
Chrome Tappet Block Accent for<br />
Indian<br />
775641 Fit 14-16 Indian models (except Scout)<br />
for more details check www.custom-chrome-europe.com<br />
IV.11
<strong>INDIAN</strong> | 2017<br />
VELOCITY<br />
T-5<br />
SPEEDSTAR<br />
SINISTER 8<br />
990160<br />
SUPER CHARGER<br />
NITRO 18<br />
990162<br />
DOMINATOR 6<br />
MERIDIAN<br />
RevTech Hub Kits for Indian Scout Models<br />
Billet aluminum hubs from RevTech to mount the RevTech billet wheel program<br />
on Indian Scout models 15-17. Available black anodized or in chrome version.<br />
Re-use OEM pulley and brake discs.<br />
Front Hubs<br />
990159 Black<br />
990160 Chrome<br />
Rear Hubs<br />
990161 Black<br />
990162 Chrome<br />
ELIMINATOR 7<br />
REVPRO<br />
CHECK OUR 2017 CATALOG<br />
13.02-13.13<br />
IV.12
All Balls Victory & Indian Bearing and Seal Kits<br />
Part# Description Model Fitment<br />
990118<br />
Wheel bearing seal kit, front/rear (Victory<br />
only)<br />
990119 Wheel bearing seal kit, front, rear<br />
990120 * Wheel bearing seal kit, rear Indian: Scout 15<br />
990121 *<br />
Steering bearing kit, includes seals bearings<br />
with races<br />
<strong>INDIAN</strong> | 2017<br />
Victory: Boardwalk 13-14, Cross Country 10-15, Cross Country Tour 14-15, Cross Country 8-Ball 15, Cross<br />
Roads 10-13, Cross Roads Classic 14, Gunner 15, Hammer 05-13, Hammer 8-Ball 14-15, High-Ball 12-15,<br />
Jackpot 06-15, Judge 13-14, Kingpin 04, Kingpin 08-12, Magnum 15, Vegas 03-05, Vegas 8-Ball 06-15, Vision<br />
08-15, Indian (Front only): Scout 15-16, Chief Classic 14-15, Chief Vintage 14-15, Chieftain 14-15, Roadmaster<br />
15<br />
Victory: Classic Cruiser 03, Deluxe Cruiser 01-02, Deluxe Touring Cruiser 02, Special Edition 00, Sport Cruiser<br />
00-01, Standard Cruiser 99-02, Touring Cruiser 02-06<br />
Victory: Boardwalk 13-14, Cross Country 10-15, Cross Country 8-Ball 15, Cross Roads Classic 14, Cross Country<br />
Tour 14-15, Cross Roads 8-Ball 14, Gunner 15, Hammer 9-13, Hammer 8-Ball 14-15, Highball 12-15, Jackpot<br />
08-15, Judge 13-14, Kingpin 09-12, Magnum 15, Vegas 8-Ball 08-15, Vision 08-15, Indian: Scout 15-16, Chief<br />
Classic 14-15, Chief Vintage 14-15, Chieftain 14-15, Roadmaster 15<br />
990122<br />
Steering bearing kit, includes seals bearings Victory: Classic Cruiser 03, Deluxe Cruiser 01-02, Deluxe Touring Cruiser 02, Special Edition 00, Sport Cruiser<br />
with races<br />
00-01, Standard Cruiser 99-02, Touring Cruiser 02-06<br />
990123<br />
Steering bearing kit, includes seals bearings Victory: Hammer 05-08, Jackpot 06-07, Kingpin 04, Kingpin 08, Vegas 03-05, Vegas 8-Ball,<br />
with races<br />
990124 Fork oil seal and dust seal kit Victory: Hammer 05-08, Kingpin 04-08<br />
990125 Fork oil seal and dust seal kit<br />
Victory: Boardwalk 13-14, Gunner 15, Highball 12-15, Jackpot 06-15, Judge 13-14, Vegas 03-05, Vegas 8-Ball<br />
06-15<br />
990126 Fork oil seal and dust seal kit<br />
Victory: Classic Cruiser 03, Deluxe Cruiser 01-02, Deluxe Touring Cruiser 02, Standard Cruiser 01-02, Touring<br />
Cruiser 02-06, Vision 08<br />
990127 Fork oil seal only kit Victory: Hammer 05-08, Kingpin 04-08<br />
990128 Fork oil seal only kit<br />
Victory: Boardwalk 13-14, Gunner 15, Highball 12-15, Jackpot 06-15, Judge 13-14, Vegas 03-05, Vegas 8-Ball<br />
06-15<br />
990129 Fork oil seal only kit Victory: Special Edition 00, Sport Cruiser 00-01<br />
990130 Fork oil seal only kit<br />
Victory: Classic Cruiser 03, Deluxe Cruiser 01-02, Deluxe Touring Cruiser 02, Standard Cruiser 99-02, Touring<br />
Cruiser 02-06, Vision 08<br />
990131 Fork dust seal only kit<br />
Victory: Boardwalk 13-14, Gunner 15, Highball 12-15, Jackpot 06-15, Judge 13-14, Vegas 03-05, Vegas 8-Ball<br />
06-15<br />
990132 Fork dust seal only kit Victory: Hammer 05-08, Kingpin 04-08<br />
990133 Fork dust seal only kit<br />
Victory: Classic Cruiser 03, Deluxe Cruiser 01-02, Deluxe Touring Cruiser 02, Standard Cruiser 01-02, Touring<br />
Cruiser 02-06, Vision 08<br />
*Not shown<br />
990118 990119 990122 990123<br />
990124 990125 990126 990127 990128<br />
990129 990130 990131 990132 990133<br />
Indian<br />
Which friction compound should I choose for my bike?<br />
P – for OEM replacement where cooler running temperatures and gentler rotor wear than<br />
stock are desired.<br />
ST – for OEM replacement where performance and pad life are the priority.<br />
Front<br />
Rear<br />
P ST P ST<br />
Chief Classic 14-15 (Spoke wheel/Nissin calipers) 1 - 990110 4 990112 990111<br />
Chief Vintage 14-15 (Spoke wheel/Nissin calipers) 1 - 990110 4 990112 990111<br />
Chieftain 14-15 (Cast wheel/Nissin calipers) 1 - 990110 4 990112 990111<br />
for more details check www.custom-chrome-europe.com<br />
1<br />
69.8x 49.6x 7.1mm<br />
4<br />
102.1x 39.1x 9.8mm<br />
IV.13
<strong>INDIAN</strong> | 2017<br />
<strong>INDIAN</strong> SCOUT<br />
<strong>INDIAN</strong> SCOUT<br />
Cut out<br />
Non Cut out<br />
TXT Front Fenders Raw<br />
685428 125 mm wide, arc length 420 mm<br />
TXT Front Fender DIY Kits<br />
Universal<br />
Choose your own design and combine with the front raw fender 685428<br />
matching to your model and tire size! Universal brackets are undrilled.<br />
Indian Scout<br />
Tire Size<br />
Non Cut Out Cut Out<br />
130/90B16 990215 n/a<br />
110/90R19 990217 990216<br />
Universal 890616 890615<br />
<strong>INDIAN</strong> SCOUT<br />
Cut-Out<br />
Non Cut Out<br />
990211<br />
TXT Front Fenders<br />
Available ready to mount or as the universal version undrilled.<br />
Tire Size<br />
Indian Scout<br />
Non Cut Out<br />
Cut Out<br />
130/90B16 990212 990211<br />
110/90R19 990214 990213<br />
Universal 890628 890630<br />
TXT Rear Fenders<br />
Choose your rear fender size, available ready to mount or as a Do It Yourself<br />
kit, and then combine with the seat shell 990210.<br />
FENDERS<br />
Ready to Mount<br />
Smooth 200 tires (230 mm wide) 990207<br />
Smooth 240 tires (270 mm wide) 990206<br />
Do It Yourself Kit<br />
Smooth 200 tires (230 mm wide) 990209<br />
Smooth 240 tires (270 mm wide) 990208<br />
SEAT SHELL<br />
Seat shell 990210<br />
IV.14
<strong>INDIAN</strong> | 2017<br />
775640<br />
777344<br />
Front Fender Tip for Indian<br />
777344 Fits: 14-16 Indian Chief Classic &<br />
Chieftain models, and universal<br />
fitment for 6” or wider style fenders<br />
Note: Does not fit fenders with flat center width<br />
775640<br />
Oil Cooler Cover for Indian<br />
• A must have for your Indian<br />
• Fits stock oil cooler on 14-16 Indian models<br />
(except Scout)<br />
775640 Oil cooler cover<br />
S46 for Indian Scout 15-16 Models<br />
• Length 293 mm<br />
• Adjustable +6/-4 mm<br />
• Adjustable compression and rebound<br />
• Stroke 44 mm<br />
• Black Spring<br />
990151 S46HR1C1L<br />
990151<br />
990151<br />
for more details check www.custom-chrome-europe.com<br />
IV.15
<strong>VICTORY</strong> | 2017<br />
990143<br />
990145<br />
777693<br />
777694<br />
777691<br />
990144<br />
990146<br />
777693<br />
Victory Cross Country<br />
Gun Smoke Windshield for<br />
Victory & Indian by Windvest<br />
Made of a high impact acrylic GE Plexiglas.<br />
Victory Cross<br />
Country<br />
990143 9”<br />
990144 10”<br />
990145 11”<br />
990146 12”<br />
990143<br />
Windshield Trim For Victory<br />
Simple peel-&-stick installation.<br />
777693 For 10-16 Cross Country, Cross Country Tour & Magnum models<br />
777694<br />
771264<br />
Windshield Center Accent For Victory<br />
777694 For 10-16 Cross Country, Cross Country Tour & Magnum models<br />
777691<br />
771266<br />
771265<br />
Windshield Center Accent For Victory<br />
777691 For 10-16 Cross Country, Cross Country Tour & Magnum models<br />
771263<br />
Airmaster Graphic Windshields for Victory<br />
• For 10-16 Cross Country, Cross Country Tour & Magnum models<br />
• Premium quality, hard-coated polycarbonate<br />
• Windshield is 10” tall.<br />
771265 Zombie<br />
771266 Tribal<br />
771264 Catacomb<br />
Note: Bottom portion of graphic windshields are opaque. Take into account that you must maintain<br />
a clear line of sight over the windshield. The windshield should not obstruct your vision in any way.<br />
Requires removal of support brackets on Cross Country Tour Models<br />
Airmaster Dark Smoke Windshield<br />
• Designed specifically for the Cross Country<br />
• 1” taller than the factory windshield to reduce head buffeting<br />
• Manufactured from premium hard-coated polycarbonate<br />
771263 10-16 Cross Country, Cross Country Tour & Magnum models<br />
Note: Requires removal of support brackets on Cross Country Tour models<br />
IV.16
<strong>VICTORY</strong> | 2017<br />
774015<br />
771656<br />
Plug-N-Go Driver Backrest with<br />
Storage Pouch<br />
• Plug-N-Go and adjustable driver backrest<br />
• Storage pouch<br />
771656 10-16 Victory Cross Country, Cross Country<br />
Tour & Magnum models, 10-14 Cross<br />
Roads models & 12-13 Hard-Ball<br />
PM American Cycles Flying Saddle<br />
To mount the Flying Saddle it is needed to cut<br />
off the frame extensions. Fits all Victory Cruiser<br />
models except Hammer and Jackpot models.<br />
Includes saddle and fits taillight CCI# 653387.<br />
990086 Flying saddle, steel black coated all<br />
Cruisers except Hammer & Jackpot 09-15<br />
Speedometer Visor<br />
774015 Universal speedometers & tachometers<br />
3-3/4” visor. Diameter with 7/16” of exposed<br />
bezel/sidewall 04-10 Hammer Jackpot,<br />
Kingpin, Vegas models with digital gauge<br />
777189<br />
777180<br />
771660<br />
771661<br />
771659<br />
PM American Cycles GFK-Seat<br />
Baseplate Slim<br />
Baseplate matching to our Hammer rear fenders.<br />
990084 Baseplate raw fiber glass fits all Hammer<br />
& Jackpot models 09-15<br />
777180<br />
Side Panel Scoop for Victory<br />
777180 For 10-16 Cross Country, Cross Country<br />
Tour & Magnum models, 10-14 Cross<br />
Roads models & 12-13 Hard-Ball<br />
777699<br />
777696<br />
777698<br />
Multi-Purpose Driver & Passenger<br />
Backrest<br />
• ull adjustability will help you enjoy those longer<br />
rides<br />
• ull adjustability will help you enjoy those longer<br />
rides<br />
Multi-Purpose Backrest<br />
Various Applications - Requires Model Specific<br />
Mounting Straps, Sold Separately (below)<br />
771661 Black and chrome<br />
771660 Chrome<br />
Mounting Straps<br />
For 10-16 Cross Country (except Cross Country<br />
Tour), Magnum Models 12-13 Hard Ball, & 10-14<br />
Cross Roads models with hard saddlebags<br />
771659 Chrome mounting straps for multi-purpose<br />
backrest<br />
Note: Backrest & Mount Plates sold separately. Not for use with<br />
Victory Tour Trunk. Requires removal of saddlebag filler panels on<br />
Magnum models.<br />
LED Speaker Grills for Victory<br />
For 10-16 Cross Country & Cross Country Tour<br />
models.<br />
777698 Chrome<br />
777699 Gloss black<br />
Note: Will not fit Magnum models!<br />
777696<br />
Chrome Switch Panel Cover for<br />
Victory<br />
777696 For 10-16 Cross Country (except Cross<br />
Country 8 Ball), Cross Country Tour &<br />
Magnum models<br />
Note: Requires Victory OEM radio for installation. .<br />
for more details check www.custom-chrome-europe.com<br />
IV.17
<strong>VICTORY</strong> | 2017<br />
777680<br />
777159<br />
777173<br />
Top Dash Accent for Victory<br />
777680 For all 10-16 Victory Cross Country, Cross<br />
Country Tour & Magnum models<br />
771830<br />
Multi-Rack Adjustable Trunk<br />
Luggage Rack<br />
Rack measures 21” wide x 12” long<br />
777159 For 10-16 Cross Country, Cross Country<br />
Tour, Magnum models & Hard-Ball equipped<br />
with Tour Trunks (Not for Vision<br />
models)<br />
Note: Requires drilling four holes in trunk lid for installation.<br />
777695<br />
777172<br />
Saddlebag Hinges for Victory<br />
For 10-16 Victory Cross Country, Cross Country<br />
Tour & Magnum Models, 12-13 Hard-Ball, 10-14<br />
Cross Roads models with hard saddlebags.<br />
777173 Satin black<br />
777172 Chrome<br />
Note: Not compatible with OEM leather covered bags.<br />
Right Side Passenger Drink Holder<br />
for Victory<br />
771830 For 10-16 Cross Country Tour & if equipped<br />
with a Tour Trunk, Cross Country, Magnum,<br />
Cross Roads & Hard-Ball models<br />
777688<br />
771796<br />
Saddlebag Hinges for Victory<br />
For 10-16 Victory Cross Country, Cross Country<br />
Tour & Magnum models, 12-13 Hard-Ball & 10-14<br />
Cross Roads with OEM hard bags.<br />
• To coordinate with saddlebag front kick<br />
accents # 777692<br />
777695 Saddlebag top accents<br />
Note: Not compatible with OEM leather covered bags.<br />
777687<br />
777679<br />
771796<br />
777692<br />
777687<br />
Tech-Connect Fairing Mount for<br />
Victory<br />
• Mount your iPhone, iPod, GPS, smartphone or<br />
other small electronic<br />
• The included standard device holder will accommodate<br />
devices measuring 1-5/8” to 3-5/8”<br />
wide.<br />
771796 Fits: All 10-16 Victory Cross Country, Cross<br />
Country Tour & Magnum models<br />
Magnum models<br />
Saddlebag Front Kick Accents for<br />
Victory<br />
For 10-16 Cross Country, Cross Country Tour &<br />
Magnum models, 12-13 Hard Ball, & 10-14 Cross<br />
Roads models with hard bags.<br />
777692 Saddlebag front kick accents<br />
Note: Not compatible with OEM leather covered bags.<br />
Taillight Top Trim for Victory<br />
For 10-16 Cross Country, Cross Country Tour &<br />
Magnum Models, 10-14 Cross Roads models &<br />
12-13 Hard-Ball<br />
777679 Satin black<br />
777687 Chrome<br />
IV.18
<strong>VICTORY</strong> | 2017<br />
777279<br />
777174<br />
777279<br />
777170<br />
777479<br />
777617<br />
777171<br />
Brute Highway Pegs Mounts<br />
Fits 1-1/4” Engine guards or tubing.<br />
777617 Chrome<br />
777616 Gloss Black<br />
Note: Victory Cross Country Tour and Models with Lower Fairings<br />
must mount footpeg ahead of engine guard only.<br />
777174<br />
Sabertooth LED Saddlebag Accents<br />
for Victory<br />
For 10-16 Victory Cross Country, Cross Country<br />
Tour & Magnum Models, 12-13 Hard-Ball & 10-14<br />
Cross Roads with OEM hard bags.<br />
777279 Chrome<br />
777479 Satin black<br />
Note: Not compatible with OEM leather covered bags.<br />
LED Saddlebag Extensions for<br />
Victory<br />
For 10-16 Victory Cross Country, Cross Country<br />
Tour & Magnum models, 12-13 Hard-Ball, 10-14<br />
Cross Roads models with hard saddlebags.<br />
• Plug-&-play installation requires no drilling.<br />
• With stock or any aftermarket exhaust<br />
777170 Chrome<br />
777171 Satin black<br />
Note: LED Saddlebag Extensions will install with Victory OEM/<br />
Accessory Hard Bag Saddlebag Bottom Rails. Not compatible<br />
with OEM leather covered bags.<br />
777614<br />
777614<br />
Shift & Brake Pedal Pad Covers<br />
774037 For 09-16 Hammer & S, 12-16 High-Ball,<br />
09-14 Jackpot, 09-12 Kingpin Low, 09-13<br />
Ness Jackpot, 03-06 Touring Cruiser, 08-16<br />
Vegas, All V92DC models, All V92TC &<br />
99-03 V92C.<br />
Saddlebag Side Swoops for Victory<br />
For 10-16 Victory Cross Country, Cross Country Tour<br />
& Magnum models, 12-13 Hard-Ball, 10-14 Cross<br />
Roads models with hard saddlebags.<br />
• Easy peel-&-stick installation<br />
777174 Chrome<br />
Note: Not compatible with OEM leather covered bags.<br />
777559<br />
Retractable Passenger Cruise Pegs<br />
for Victory<br />
• Designed to mount to the OEM passenger footpeg<br />
or floorboards<br />
• Flip them forward for use, or back to be stowed<br />
out of the way<br />
777614 For 10-16 Cross Country, Cross Roads,<br />
Magnum & Hard-Ball with OEM passenger<br />
foot peg mounts (not for Cross<br />
Country Tour or OEM passenger board<br />
applications)<br />
Right Angle Cruise Mounts & Pegs<br />
Universal applications for 1-1/2” tubing.<br />
777559 Long mounts - Trident ISO-Pegs - 1-1/2”<br />
for more details check www.custom-chrome-europe.com<br />
IV.19
<strong>VICTORY</strong> | 2017<br />
772013<br />
778829<br />
777025<br />
778829<br />
Brake Bleeder Screw & Banjo Bolt<br />
Covers<br />
For most brake caliper bleeder screws.<br />
772013 Bleeder screw cover (Sold in pairs)<br />
Splined Passenger Board Mount<br />
Adapter For Victory<br />
778829 For OEM Passenger Board Mount on<br />
Cross Country Tour models<br />
BEFORE<br />
AFTER<br />
Kinetic Shift & Brake<br />
• Perfect complement to our Kinetic line<br />
777025 For Victory: 04-12 Kingpin, 13-14<br />
Boardwalk<br />
Note: This product only installs over OEM factory floorboards and<br />
is larger than OEM floorboards. Heel shift position may require<br />
adjustment.<br />
775660<br />
777618<br />
Handlebar Control Bracket Cover for<br />
Victory<br />
775660 For 10-16 Victory Cross Country, Cross<br />
Country Tour & Magnum models, 12-13<br />
Hard-Ball & 10-14 Cross Roads with<br />
stock 1” handlebars<br />
777129<br />
777619<br />
Chrome Radiator Shroud Accents for<br />
Victory<br />
777129 For 10-16 Cross Country, Cross Country<br />
Tour & Magnum models, 10-14 Cross Roads<br />
models, 12-13 Hard-Ball<br />
Kinetic Floorboard Inserts with Toe<br />
Rest for Victory<br />
• Direct replacement for OEM floorboard inserts.<br />
• Fits: 10-16 Victory Cross Country, Cross Country<br />
Tour & Magnum models, 10-14 Cross Roads<br />
models, & 12-13 Hard-Ball<br />
777618 Chrome<br />
777619 Gloss black<br />
Note: On Cross Country Tour models, the floorboard rubber base<br />
may contact the lower fairing and abrade painted surfaces..<br />
IV.20<br />
777618<br />
777822<br />
Brake Reservoir Cap<br />
777822 For rear brake reservoir on 10-16 Cross<br />
Country, Cross Country Tour & Magnum<br />
models, 10-14 Cross Roads models & 12-13<br />
Hard-Ball.<br />
PM American Cycles Headlight<br />
Bracket Boomerang<br />
Headlight bracket to mount CCI# 653860 or<br />
653861 V-Rod style headlights.<br />
990096 Stainless steel black coated fits all Cruiser<br />
models 09-15<br />
990097 Stainless steel polished fits all Cruiser<br />
models 09-15
<strong>VICTORY</strong> | 2017<br />
Custom Chrome V-Rod Headlights<br />
E-approved V-Rod style headlights with chrome or<br />
black housing.<br />
653860 Chrome Oval Head Light V-Rod Style<br />
653861 Black Oval Head Light V-Rod Style<br />
775009<br />
LED Turn Signals Stripe, E<br />
Approved<br />
Very small solution with 11 LED’s for turn signal<br />
function. Measures 53 mm wide, 15 mm<br />
depth and 6 mm height. Sold in pairs.<br />
653387 Stripe LED turn signals with E approval<br />
PM American Cycles Rear Turn<br />
Signal Bracket<br />
This bracket uses the same mounting points as the<br />
OEM plastic unit and needs to be used in conjunction<br />
with a PM American cycles side mount license<br />
plate bracket. (turn signals not included).<br />
990094 Rear bracket, steel black coated fits Vegas,<br />
Highball, Gunner models 09-15<br />
Note: Fits all turn signals with M8 mounting studs. We recommend<br />
the use of CCI# 12690 for LED.<br />
775009<br />
Constellation Driving Lights with<br />
Turn Signals<br />
• DOT-compliant H3 bulbs<br />
• 3” diameter stretched bullet housing and 2-1/4”<br />
turn signal housing<br />
• Turn signals come with smoked lenses and<br />
amber bulbs<br />
775009 For 05-16 Hammer & 04-12 Kingpin,<br />
requires Two-Piece fork mount #<br />
772275, sold separately.<br />
Note: We suggest using a Kuryakyn Wiring & Relay Kit for proper<br />
installation, # 772202 or # 772328 sold separately.<br />
PM American Cycles Weld In<br />
Taillight Housing<br />
Weld-in steel housing for Stripe taillights<br />
CCI#653387.<br />
• Universal fit<br />
990093 Steel taillight housing<br />
PM American Cycles Rear Turn<br />
Signal Bracket<br />
This bracket uses the same mounting points as the<br />
OEM plastic unit and needs to be used in conjunction<br />
with a PM American cycles side mount license<br />
plate bracket. (turn signals not included). Fits<br />
Hammer and Jackpot models.<br />
990095 Rear wide turn signal bracket, steel black<br />
coated fits all Hammer & Jackpot models<br />
09-15<br />
Note: Fits all turn signals with M8 mounting stud. We recommend<br />
the use of CCI# 12690 LED turn signals.<br />
775015<br />
775015<br />
Clamp-On Fork Mounted Driving<br />
Lights<br />
• 3” DOT-compliant driving lights<br />
775015 For 43mm & 49mm Fork Tubes<br />
Note: We recommend one of our Wiring & Relay Kits, # 772202 or<br />
# 772328 for installation, sold separately<br />
PM American Cycles Turn Signal<br />
Clamps<br />
CNC made billet aluminum clamps to be mounted<br />
on fork tubes. Available for several models<br />
listed below. Sold in pairs for turn signals with M8<br />
mounting studs.<br />
990098 ø 56 mm, polished (one piece design) fits<br />
Hammer models 09-15<br />
990099 Hammer ø 56 mm, black (one piece<br />
design) fits Hammer models 09-15<br />
990100 ø 43 mm, polished (one piece design) fits<br />
all Cruiser (except Hammer) 09-15<br />
990101 ø 43 mm, black (one piece design) fits all<br />
Cruiser (except Hammer) 09-15<br />
990102 ø 43 mm, pair, polished (two piece design)<br />
fits all Cruiser (except Hammer) 09-15<br />
990103 ø 43 mm, black (two piece design) fits all<br />
Cruiser (except Hammer) 09-15<br />
LED Indicator ‘Stella’, E-Approved<br />
W 39 x H 20 x D 19 mm with M8 thread<br />
618403 Black metal housing, smoke lens, short<br />
stem, pair<br />
618404 Chrome metal housing, clear lens, short<br />
stem, pair<br />
for more details check www.custom-chrome-europe.com<br />
IV.21
<strong>VICTORY</strong> | 2017<br />
Power Commander V<br />
PM American Cycles Sidemount License Plate Bracket<br />
PM Trix<br />
Available as standard or long version with Quick-Lock changing system for the<br />
number plate. Fits all Victory Cruiser models and comes polished or black powder<br />
coated in sizes for Austria, Switzerland and Germany (without adapter).<br />
990060 CH, standard version, polished fits all Cruiser models 09-15<br />
990061 CH, standard version, black coated fits all Cruiser models 09-15<br />
990062 CH, long version, polished fits all Cruiser models 09-15<br />
990063 CH, long version, black coated fits all Cruiser models 09-15<br />
990064 AT, standard version, polished fits all Cruiser models 09-15<br />
990065 AT, standard version, black coated fits all Cruiser models 09-15<br />
990066 AT, long version, polished fits all Cruiser models 09-15<br />
990067 AT, long version, black coated fits all Cruiser models 09-15<br />
990068 DE, standard version, polished fits all Cruiser models 09-15<br />
990069 DE, standard version, black coated fits all Cruiser models 09-15<br />
990070 DE, long version, polished fits all Cruiser models 09-15<br />
990071 DE, long version, black coated fits all Cruiser models 09-15<br />
PM American Cycles Adapter Side License Plate Bracket<br />
990072 Steel black coated fits all Cruiser models -15<br />
990073 Stainless steel polished fits all Cruiser models -15<br />
The Power Commander V for Victory<br />
Power Commander V<br />
The New Power Commander V is loaded with tons of new features. Below<br />
you will find some Power Commander V features.<br />
• Reduced size from PCIIIusb (less than half of the size of PCIII)<br />
• USB powered from computer (9 volt adapter is no longer needed for programming)<br />
• 2 position map switching function built in (map switch not included)<br />
• Gear input (allows for map adjustment based on gear and speed)<br />
• Analog input (allows user to install any 0-5 volt sensor and build an adjustment<br />
table based on its input such as boost or temperature)<br />
• With gear position input connected the PCV is capable of allowing each<br />
cylinder to be mapped individually and for each gear (for example: on a 4<br />
cylinder bike with a six speed transmission there could be up to 24 separate<br />
fuel tables).<br />
• Unit has a -100/+250% fuel change range (up from -100/+100%). This<br />
allows more adjustment range for 8 injector sportbikes<br />
• 10 throttle position columns (up from 9 on PCIIIusb)<br />
• Enhanced “accel pump” utility (increased adjustment and sensitivity ranges)<br />
CCE# Victory Year<br />
990154 100” 08-11<br />
990155 106” 09-15<br />
990156 106” 16<br />
990157 Crossroads / Crosscountry 10-15<br />
990158 Vision 09-15<br />
777688 777678<br />
LED Laydown Curved License Plate<br />
For 10-16 Cross Country, Cross Country Tour & Magnum Models, 10-14 Cross<br />
Roads models & 12-13 Hard-Ball.<br />
777688 Chrome<br />
777678 Satin black<br />
PM American Cycles PM Fuel Mode<br />
This unit uses one of the turn signal indicator lights to show when fuel level is<br />
low. We recommend CCI# 681477 or 681478 to be used along with this unit.<br />
990104 Fuel Mode fits all Cruisers models 09-15<br />
Arlen Ness Big-Shot II for Victory Models<br />
Adjustable Fuel Tuner for Victory models. Fits Victory® models 00-12.<br />
• Pull up to 10% of fuel out of the system<br />
• 16 positions of adjustability<br />
• Adjustable to your riding style. Ability to tell the system how much fuel to<br />
add and when<br />
550170 Big Shot II<br />
IV.22
<strong>VICTORY</strong> | 2017<br />
895448<br />
Blue Streak Silicone Plug Wire<br />
Sets<br />
895448 Fits Victory 08-15<br />
777290<br />
653745, 653746<br />
890084<br />
DIAG4BIKE Serial Diagnostic - SW<br />
Indian & Victory<br />
Includes functions to perform diagnostics of all embedded control units<br />
through the diagnostic connector on the motorcycle. The kit contains a<br />
communication interface with an Indian and Victory adapter, a USB cable to<br />
connect a laptop (or PC) and diagnostic Software which is compatible with<br />
Windows 7, 8 and 10. A wireless communication interface is also available<br />
separately.<br />
Version 16.x -is for models up to and including 2016; -represents the<br />
update number of the 2016 version, future updates are in preparation<br />
and can be downloaded free of charge for this version.<br />
Models<br />
• Victory 2008-2015<br />
Overview of control units which can be diagnosed and functions on<br />
all models<br />
• Engine control module<br />
• ABS control module<br />
• Gauge (Speedo, Tacho...) module<br />
• Vehicle control module<br />
• Radio control module<br />
• Read vehicle information<br />
• Read and clear Diagnostic Trouble Codes<br />
• Monitoring Real Time Data<br />
Global Test<br />
• Search for and identify all embedded control units, read fault code memory<br />
+ generate and print a diagnostic report<br />
Under Preparation<br />
• Actuators testing<br />
• Victory models 2007 and older<br />
Software Kit includes<br />
• Adapter Indian and Victory<br />
• SW Installation on USB stick<br />
• SW license code<br />
890084 Serial Diagnostic-SW<br />
653745 USB serial interface (including Hardcase as shown)<br />
653746 USB & Blue Tooth serial interface (including Hardcase as shown)<br />
Super Deluxe Wolo Bad Boy Horn Kit<br />
Universal for Victory Cruiser models, typical mounting on front down tube.<br />
• Plug-&-play installation<br />
• 118 decibel -530/680Hz Dual-Tone Air Horn.<br />
777290 Super deluxe Wolo Bad Boy Air Horn (kit)<br />
Note: Require 2“ clearance rear of mount for horn clearance from shift/brake pedal!<br />
777689<br />
Roulette Horn Cover for Victory<br />
777689 For 06-13 Hammer, Jackpot, Kingpin, Vegas & 8 Ball models. Universal<br />
for 06-13 Victory models with horn mounted at neck between front<br />
down tubes<br />
for more details check www.custom-chrome-europe.com<br />
IV.23
<strong>VICTORY</strong> | 2017<br />
Vegas Drager Exhaust System with EG-ABE by PM Legal<br />
Exhaust Systems<br />
The Vegas Drager exhaust system comes with stainless steel 2 1/2“ headpipes.<br />
All versions come with polished Cube end caps (not black as shown) to fit<br />
Vegas, Judge, Boardwalk, High-Ball and Gunner models. All systems with<br />
EG-ABE and removable quiet baffle insert. Loud baffles and more styles of end<br />
caps are available separately.<br />
990000 Vegas Drager system, polished<br />
990001 Vegas Drager system, chrome<br />
990002 Vegas Drager system, black<br />
Fire Starter Exhaust System with EG-ABE by PM Legal<br />
Exhaust Systems<br />
The Fire Starter exhaust system comes with stainless steel 2 1/2“ headpipes. All<br />
versions come with polished Donuts end caps to fit all Victory Cruiser models.<br />
All systems with EG-ABE and removable quiet baffle insert. Loud baffles and<br />
more styles of end caps are available separately.<br />
990003 Fire Starter, polished<br />
990004 Fire Starter, chrome<br />
990005 Fire Starter, black<br />
The Rocket Exhaust System with EG-ABE by PM Legal<br />
Exhaust Systems<br />
The ‘The Rocket’ exhaust system comes with stainless steel 2 1/2“ headpipes<br />
and heatshields. All versions come with polished Donuts end caps to fit all<br />
Cruiser models. All systems with EG-ABE and removable quiet baffle insert.<br />
Loud baffles and more styles of end caps are available separately.<br />
990027 The Rocket, polished<br />
990028 The Rocket, chrome<br />
990029 The Rocket, black<br />
Top Chop Staggered Vegas Exhaust System with EG-ABE<br />
by PM Legal Exhaust Systems<br />
The Top Chop Staggered Vegas exhaust system comes with stainless steel 2<br />
1/2“ headpipes. All versions come with polished Donuts end caps (not black as<br />
shown) to fit Vegas models. All systems with EG-ABE and removable quiet baffle<br />
insert. Loud baffles and more styles of end caps are available separately.<br />
990009 Top Chop Staggered, polished<br />
990010 Top Chop Staggered, chrome<br />
990011 Top Chop Staggered, black<br />
Top Chop Staggered Hammer Exhaust System with<br />
EG-ABE by PM Legal Exhaust Systems<br />
The Top Chop Staggered Hammer exhaust system comes with stainless steel 2<br />
1/2“ headpipes. All versions come with polished Donuts end caps (not black as<br />
shown) to fit Hammer models. All systems with EG-ABE and removable quiet<br />
baffle insert. Loud baffles and more styles of end caps are available separately.<br />
990012 Top Chop Staggered Hammer, polished<br />
990013 Top Chop Staggered Hammer, chrome<br />
990014 Top Chop Staggered Hammer, black<br />
Top Chop Vegas Exhaust System with EG-ABE by PM<br />
Legal Exhaust Systems<br />
The Top Chop Vegas exhaust system comes with stainless steel 2 1/2“<br />
headpipes. All versions come with polished Donuts end caps (not black as<br />
shown) to fit Vegas models. All systems with EG-ABE and removable quiet baffle<br />
insert. Loud baffles and more styles of end caps are available separately.<br />
990015 Top Chop Vegas, polished<br />
990016 Top Chop Vegas, chrome<br />
990017 Top Chop Vegas, black<br />
Exhaust systems shown may be intended only for restoration purposes or to be used on closed areas such as race tracks. <br />
The use of this items on public roads may be against local, state and/or federal/EU laws.<br />
Note: No warranty on exhaust chrome plating blueing or discoloration. All EFI models must be remapped! Please ask your local dealer.<br />
IV.24
<strong>VICTORY</strong> | 2017<br />
Top Chop Hammer Exhaust System with EG-ABE by PM<br />
Legal Exhaust Systems<br />
The Top Chop Hammer exhaust system comes with stainless steel 2 1/2“<br />
headpipes. All versions come with polished Donuts end caps (not black as<br />
shown) to fit Hammer models. All systems with EG-ABE and removable quiet<br />
baffle insert. Loud baffles and more styles of end caps are available separately.<br />
990018 Top Chop Hammer, polished<br />
990019 Top Chop Hammer, chrome<br />
990020 Top Chop Hammer, black<br />
Rainbow Flatside Exhaust System with EG-ABE by PM<br />
Legal Exhaust Systems<br />
The Rainbow Flatside exhaust system comes with stainless steel 2 1/2“<br />
headpipes and heatshield. All versions come with polished Donuts end caps<br />
to fit all Cruiser models. All systems with EG-ABE and removable quiet baffle<br />
insert. Loud baffles and more styles of end caps are available separately.<br />
990021 Rainbow Flat Side, polished<br />
990022 Rainbow Flat Side, chrome<br />
990023 Rainbow Flat Side, black<br />
Low Rider Bomb Exhaust System with EG-ABE by PM<br />
Legal Exhaust Systems<br />
The Low Rider Bomb exhaust system comes with stainless steel 2 1/2“<br />
headpipes. All versions come with polished 5-Window (external adjustable)<br />
end cap to fit all Cruiser models. All systems with EG-ABE!<br />
990024 Low Rider Bomb, polished<br />
990025 Low Rider Bomb, chrome<br />
990026 Low Rider Bomb, black<br />
Vegas Bomb Exhaust System with EG-ABE by PM Legal<br />
Exhaust Systems<br />
The Vegas Bomb exhaust system comes with stainless steel 2 1/2“ headpipes.<br />
All versions come with polished 5-Window (external adjustable) end cap to<br />
fit Vegas, Judge, Boardwalk, High-Ball and Gunner models. All systems with<br />
EG-ABE!<br />
990006 Vegas Bomb system, polished<br />
990007 Vegas Bomb system, chrome<br />
990008 Vegas Bomb system, black<br />
Slip-On Muffler Smooth with EG-ABE by PM Legal<br />
Exhaust Systems<br />
The Smooth slip-on mufflers are made of stainless steel and are sold in pairs.<br />
They feature polished Donuts end caps and fit all Cruiser models. They come<br />
with EG-ABE and removable quiet baffle insert. Loud baffles and more styles of<br />
end caps are available separately.<br />
990030 Slip On Muffler Smooth, polished<br />
990031 Slip On Muffler Smooth, chrome<br />
990032 Slip On Muffler Smooth, black<br />
Slip-On Muffler Hole with EG-ABE by PM Legal Exhaust<br />
Systems<br />
The Hole slip-on mufflers are made of stainless steel and are sold in pairs. They<br />
feature polished Donuts end caps and fit all Cruiser models. They come with<br />
EG-ABE and removable quiet baffle insert. Loud baffles and more styles of end<br />
caps are available separately.<br />
990033 Slip On Muffler Hole, polished<br />
990034 Slip On Muffler Hole, chrome<br />
990035 Slip On Muffler Hole, black<br />
for more details check www.custom-chrome-europe.com<br />
IV.25
<strong>VICTORY</strong> | 2017<br />
A<br />
Victory<br />
B<br />
C<br />
D<br />
E<br />
F<br />
G<br />
PM Outlines for Victory<br />
Choose the exhaust design for your model and combine the matching heat shield design (pictures<br />
for reference only)<br />
Victory<br />
Choose Your Heatshield Finish<br />
Fits BSL Outline Design Raw Black<br />
Vegas, Judge, Boardwalk, High-Ball, Gunner A) Vegas Drager Outline, VA satin 990163 990164<br />
All Victory Cruisers B) Firestarter Outline, VA satin 990165 990166<br />
Vegas, Judge, Boardwalk, High-Ball, Gunner C) The Vegas Bomb Outline, VA Satin 990167 990168<br />
Vegas D) Top Chop Staggered Victory Vegas Outline, VA satin 990169 990170<br />
Hammer D)* Top Chop Staggered Hammer Vegas Outline, VA satin 990171 990172<br />
E) Rainbow Flatside Victory Vegas Outline, VA satin 990173 990174<br />
All Victory Cruisers<br />
F) 2-1 Low Rider Bomb Outline, VA satin 990175 990176<br />
G) The Rocket Victory Outline, VA satin 990177 990178<br />
Note: Exhaust displayed on a Victory Vegas model.<br />
Note: These BSL exhaust systems are approved only for E3 homologated bikes<br />
IV.26
<strong>VICTORY</strong> | 2017<br />
Interference Replacement Pipe by PM Legal Exhaust<br />
Systems<br />
990038 Interference Pipe, replacement kit<br />
Exhaust Logo-Badge by PM Legal Exhaust Systems<br />
Replacement to replace scratched badges.<br />
990036 Polished<br />
990037 Black (shown)<br />
PM Legal Exhaust System Exhaust Muffler Clamp<br />
990054 Stainless steel clamp, polished<br />
888525 Catalytic converter cartridges, pair<br />
888524 Insulation wool<br />
888521 O-Ring, 70 x 3 mm for slip-on mufflers<br />
Heatshields for PM Legal Exhaust Systems<br />
The heatshields are without lasered logo and made of stainless steel in chrome,<br />
polished or black.<br />
Front heat shields for all Top<br />
Chop Vegas systems<br />
990039 Polished<br />
990040 Chrome<br />
990041 Black<br />
Front heat shields for all Top<br />
Chop Hammer systems<br />
990042 Polished<br />
990043 Chrome<br />
990044 Black<br />
Rear heat shields for all Top<br />
Chop systems<br />
990045 Polished<br />
990046 Chrome<br />
990047 Black<br />
Rear heat shields for Firestarter<br />
systems<br />
990048 Polished<br />
990049 Chrome<br />
990050 Black<br />
Rear heat shields for Rainbow<br />
systems<br />
990051 Polished<br />
990052 Chrome<br />
990053 Black<br />
Five Window Soundsystem Endcaps for PM Legal<br />
Exhaust Systems<br />
Flat and High 5-Window soundsystem with external key adjustment. Made of<br />
stainless steel, available in polished or black version.<br />
990055 Flat, polished<br />
990056 Flat, black<br />
990057 High, polished<br />
990058 High, black<br />
990059 Special adjustment key<br />
777189<br />
Spark Plug Filler for Victory<br />
777189 For all 06-16 Victory models and 05 Hammer models<br />
for more details check www.custom-chrome-europe.com<br />
IV.27
<strong>VICTORY</strong> | 2017<br />
777627<br />
777685<br />
777683<br />
777624<br />
Smooth V for Victory<br />
For 04-16 Victory Models with V shaped covers between<br />
cylinders (except Boardwalk, Gunner, Judge<br />
& Magnum Models). Fits both left and right sides.<br />
777685 Smooth V<br />
777683<br />
777686<br />
Clutch Arm Cover for Victory<br />
For all 08-16 Victory models.<br />
777683 Satin Black<br />
777686 Chrome<br />
777682<br />
777624<br />
Chrome Inner Primary Cover for<br />
Victory<br />
777624 For all 99-16 Victory models (except<br />
Vision)<br />
Chrome Dipstick Cover For Victory<br />
Stylish gear-tooth design looks great and retains<br />
functionality of stock dipstick.<br />
777682 For all 06-16 Victory models<br />
777627<br />
Cylinder Base Accent for Victory<br />
777627 For all 09-16 Victory Cruiser models<br />
(except 09-10 Kingpin, Vegas & Vegas<br />
8-Ball with 100” Engines), 10-16 Cross<br />
Country, Cross Country Tour & Magnum<br />
models, 10-14 Cross Roads models, &<br />
12-13 Hard-Ball (Except Vision).<br />
Note: Installation may require removal and re-installation of<br />
aftermarket exhaust<br />
777684<br />
777626 777627<br />
777623<br />
Engine Cam Adjuster Bolt Cover For<br />
Victory<br />
Stylish gear tooth-styled covers coordinate with all<br />
Victory chrome engine accents.<br />
777684 For all 06-16 Victory models<br />
Rear Transmission Center Cover for Victory<br />
For 10-16 Cross Country, Cross Country Tour & Magnum<br />
models, 10-14 Cross Roads models & 12-13 Hard-Ball.<br />
777623 Satin black<br />
777626 Chrome<br />
IV.28
All Balls Victory & Indian Bearing and Seal Kits<br />
Part# Description Model Fitment<br />
990118<br />
Wheel bearing seal kit, front/rear (Victory<br />
only)<br />
990119 Wheel bearing seal kit, front, rear<br />
990120 * Wheel bearing seal kit, rear Indian: Scout 15<br />
990121 *<br />
Steering bearing kit, includes seals bearings<br />
with races<br />
<strong>VICTORY</strong> | 2017<br />
Victory: Boardwalk 13-14, Cross Country 10-15, Cross Country Tour 14-15, Cross Country 8-Ball 15, Cross<br />
Roads 10-13, Cross Roads Classic 14, Gunner 15, Hammer 05-13, Hammer 8-Ball 14-15, High-Ball 12-15,<br />
Jackpot 06-15, Judge 13-14, Kingpin 04, Kingpin 08-12, Magnum 15, Vegas 03-05, Vegas 8-Ball 06-15, Vision<br />
08-15, Indian (Front only): Scout 15-16, Chief Classic 14-15, Chief Vintage 14-15, Chieftain 14-15, Roadmaster<br />
15<br />
Victory: Classic Cruiser 03, Deluxe Cruiser 01-02, Deluxe Touring Cruiser 02, Special Edition 00, Sport Cruiser<br />
00-01, Standard Cruiser 99-02, Touring Cruiser 02-06<br />
Victory: Boardwalk 13-14, Cross Country 10-15, Cross Country 8-Ball 15, Cross Roads Classic 14, Cross Country<br />
Tour 14-15, Cross Roads 8-Ball 14, Gunner 15, Hammer 9-13, Hammer 8-Ball 14-15, Highball 12-15, Jackpot<br />
08-15, Judge 13-14, Kingpin 09-12, Magnum 15, Vegas 8-Ball 08-15, Vision 08-15, Indian: Scout 15-16, Chief<br />
Classic 14-15, Chief Vintage 14-15, Chieftain 14-15, Roadmaster 15<br />
Victory: Classic Cruiser 03, Deluxe Cruiser 01-02, Deluxe Touring Cruiser 02, Special Edition 00, Sport Cruiser<br />
00-01, Standard Cruiser 99-02, Touring Cruiser 02-06<br />
Victory: Hammer 05-08, Jackpot 06-07, Kingpin 04, Kingpin 08, Vegas 03-05, Vegas 8-Ball,<br />
990122<br />
Steering bearing kit, includes seals bearings<br />
with races<br />
990123<br />
Steering bearing kit, includes seals bearings<br />
with races<br />
990124 Fork oil seal and dust seal kit Victory: Hammer 05-08, Kingpin 04-08<br />
990125 Fork oil seal and dust seal kit<br />
Victory: Boardwalk 13-14, Gunner 15, Highball 12-15, Jackpot 06-15, Judge 13-14, Vegas 03-05, Vegas 8-Ball<br />
06-15<br />
990126 Fork oil seal and dust seal kit<br />
Victory: Classic Cruiser 03, Deluxe Cruiser 01-02, Deluxe Touring Cruiser 02, Standard Cruiser 01-02, Touring<br />
Cruiser 02-06, Vision 08<br />
990127 Fork oil seal only kit Victory: Hammer 05-08, Kingpin 04-08<br />
990128 Fork oil seal only kit<br />
Victory: Boardwalk 13-14, Gunner 15, Highball 12-15, Jackpot 06-15, Judge 13-14, Vegas 03-05, Vegas 8-Ball<br />
06-15<br />
990129 Fork oil seal only kit Victory: Special Edition 00, Sport Cruiser 00-01<br />
990130 Fork oil seal only kit<br />
Victory: Classic Cruiser 03, Deluxe Cruiser 01-02, Deluxe Touring Cruiser 02, Standard Cruiser 99-02, Touring<br />
Cruiser 02-06, Vision 08<br />
990131 Fork dust seal only kit<br />
Victory: Boardwalk 13-14, Gunner 15, Highball 12-15, Jackpot 06-15, Judge 13-14, Vegas 03-05, Vegas 8-Ball<br />
06-15<br />
990132 Fork dust seal only kit Victory: Hammer 05-08, Kingpin 04-08<br />
990133 Fork dust seal only kit<br />
Victory: Classic Cruiser 03, Deluxe Cruiser 01-02, Deluxe Touring Cruiser 02, Standard Cruiser 01-02, Touring<br />
Cruiser 02-06, Vision 08<br />
*Not shown<br />
990118 990119 990122 990123<br />
990124 990125 990126 990127 990128<br />
990129 990130 990131 990132 990133<br />
for more details check www.custom-chrome-europe.com<br />
IV.29
<strong>VICTORY</strong> | 2017<br />
Which friction compound should I choose for<br />
my bike?<br />
P – for OEM replacement where cooler running temperatures<br />
and gentler rotor wear than stock are desired.<br />
ST – for OEM replacement where performance and pad life<br />
are the priority.<br />
Victory<br />
Front<br />
Rear<br />
P ST P ST<br />
V92SC 00-03 2 990115 - 5 990116 990117<br />
Ness Signature Series 05-07 2 990115 - 5 990116 990117<br />
Broadwalk 13-15 1 - 990110 4 990112 990111<br />
Cory Ness Cross Country 11-12 1 - 990110 4 990112 990111<br />
Cross Country 10-14 1 - 990110 4 990112 990111<br />
Cross Country 8-Ball 15- 1 - 990110 4 990112 990111<br />
Cross Country Tour 12-15 1 - 990110 4 990112 990111<br />
Cross Roads 10-12 1 - 990110 4 990112 990111<br />
Cross Roads 8-Ball (Cast wheel) 14- 1 - 990110 4 990112 990111<br />
Cross Roads Classic (Spoke wheel) 13-14 1 - 990110 4 990112 990111<br />
Cross Touring 13-14 1 - 990110 4 990112 990111<br />
Gunner 15- 1 - 990110 4 990112 990111<br />
Hammer 05-07 2 990115 - 5 990116 990117<br />
Hammer 08-11 1 - 990110 4 990112 990111<br />
Hammer 8-Ball 10-15 1 - 990110 4 990112 990111<br />
Hammer S -07 2 990115 - 5 990116 990117<br />
Hammer S 08-15 1 - 990110 4 990112 990111<br />
Hard Ball 12-13 1 - 990110 4 990112 990111<br />
Highball (Cast & Spoke wheel) 12-15 1 - 990110 4 990112 990111<br />
Jackpot 10-14 1 - 990110 4 990112 990111<br />
Judge 13-15 1 - 990110 4 990112 990111<br />
King Pin 04-07 2 990115 - 5 990116 990117<br />
King Pin 08-12 1 - 990110 4 990112 990111<br />
King Pin 8-Ball 08-11 1 - 990110 4 990112 990111<br />
King Pin Tour 04-07 2 990115 5 990116 990117<br />
King Pin Tour 08-09 1 - 990110 4 990112 990111<br />
King Pin Low 09 1 - 990110 4 990112 990111<br />
Magnum 15 1 - 990110 4 990112 990111<br />
Vegas 03-07 2 990115 5 990116 990117<br />
Vegas 08-12 1 - 990110 4 990112 990111<br />
Vegas 8-Ball 05-07 2 990115 - 5 990116 990117<br />
Vegas 8-Ball 08-15 1 - 990110 4 990112 990111<br />
Vegas Jackpot 06-07 2 990115 5 990116 990117<br />
Vegas Jackpot 08-09 1 - 990110 4 990112 990111<br />
Vegas Low 08-09 1 - 990110 4 990112 990111<br />
Zach Ness Vegas 08-12 1 - 990110 4 990112 990111<br />
Arlen Ness Vision 10-12 3 990114 990113 4 990112 990111<br />
Vision 8-Ball 10-11 3 990114 990113 4 990112 990111<br />
Vision Street 08-09 3 990114 990113 4 990112 990111<br />
Vision Tour (All models) 08-15 3 990114 990113 4 990112 990111<br />
1<br />
2<br />
3<br />
4<br />
PM American Cycles Easyclutch<br />
Cover<br />
Billet aluminum Easyclutch covers to support<br />
clutch hand power. Works in conjunction with<br />
Beringer hydraulic clutch only!<br />
990105 Easyclutch cover, polished fits all Victory<br />
with Beringer Hydro Clutch 09-15<br />
990106 Easyclutch cover, black fits all Victory with<br />
Beringer Hydro Clutch 09-15<br />
Note:Needs to be used in conjunction with hydraulic unit Polaris<br />
No.1911338 and Beringer clutch handlebar control unit CCE<br />
653672-75!<br />
PM American Cycles Clutch Cover<br />
Billet Aluminum cover to hide the ugly clutch<br />
spot!<br />
990107 Clutch cover, polished<br />
990108 Clutch cover, black<br />
PM American Cycles Fork Extension<br />
Kits<br />
Fork extensions to get more ground clearance (30<br />
mm). Sold in pairs.<br />
990074 Kit Victory, stainless steel polished for<br />
Judge, Gunner, Boardwalk and Highball<br />
models 09-15<br />
990075 Kit Vegas, stainless steel polished for<br />
Vegas and Jackpot models 09-15<br />
PM American Cycles Shock Blocker<br />
Cruiser<br />
Blocks the rear shock to avoid that the rear wheel<br />
touches the fender, when lowering kits or custom<br />
rear fenders are used.<br />
990079 Shock Blocker, steel black coated fits all<br />
Cruiser models 09-15<br />
69.8x 49.6x 7.1mm<br />
75.2x 55.2x 7.6mm<br />
115.6x 41.0x 8.3mm<br />
102.1x 39.1x 9.8mm<br />
5<br />
108.5x 40.0x 7.7mm<br />
PM American Cycles Rear Lowering-<br />
Kit<br />
Lowers the rear tail approximately 25 mm, made<br />
of steel black powder coated. Depending on<br />
the rear fender style we recommend to use CCI#<br />
990079.<br />
990076 Lowering Kit fits all Cruiser models 09-15<br />
IV.30
<strong>VICTORY</strong> | 2017<br />
77938<br />
PM American Cycles<br />
Backlift-Kit<br />
Fits all Cruiser models ideal when<br />
converted to Scrambler.<br />
990077 +45 mm, Steel black coated<br />
fits all Cruiser models 09-15<br />
990078 +35 mm, Steel black coated<br />
fits all Cruiser models 09-15<br />
Note: We recommend to use an extended kickstand<br />
version!<br />
PM American<br />
Cycles Side<br />
Covers Slim<br />
Matching side covers to<br />
our rear fender Slim with mounting<br />
studs for the OEM rubber grommets.<br />
990082 Side covers raw fiber glass<br />
fits all Hammer & Jackpot<br />
models 09-15<br />
990083 Side covers carbon fiber look<br />
fits all Hammer & Jackpot<br />
models 09-15<br />
PM American Cycles Rear-<br />
Fender Rigid<br />
Swingarm mounted rear fender Rigid<br />
with two mounting points at the<br />
passenger peg location and one spot<br />
which needs to be drilled into the<br />
swingarm. Includes housing for taillight<br />
CCI# 619249, 619251 or 619250.<br />
990085 Rear rigid fender, steel<br />
fits all Hammer & Jackpot<br />
models 09-15<br />
PM American<br />
Cycles Front<br />
Fender Gotthard<br />
Front fender to fit<br />
all Victory Cruiser models except<br />
Hammer models and tire size 130/70-<br />
18.<br />
990088 Front fender, raw fiber glass<br />
all Cruisers except Hammer<br />
09-15<br />
990089 Front fender, carbon fiber<br />
look all Cruisers except<br />
Hammer 09-15<br />
Custom Tie-Down Brackets<br />
for Victory<br />
• Provide a secure and specific location<br />
for your tie-down straps<br />
77938 For 10-16 Cross Country<br />
(except Cross Country<br />
Tour), Magnum, 10-14 Cross<br />
Roads, & 12-13 Hard-Ball<br />
777120<br />
777124<br />
777123<br />
Lower Fork Covers for<br />
Victory<br />
For 10-16 Cross Country, Cross<br />
Country Tour & Magnum models,<br />
10-14 Cross Roads models, & 12-13<br />
Hard-Ball.<br />
777123 Chrome<br />
777124 Gloss black<br />
PM American Cycles<br />
Bracket For motoscope<br />
mini Speedos<br />
CNC machined from billet aluminum<br />
black powder coated or polished.<br />
Fits all upper triple trees on Victory<br />
Cruiser models except Judge,<br />
Boardwalk, Highball and Gunner.<br />
It is supposed to be used with a<br />
motoscope mini CCI# 681475/-76<br />
and the indicator unit motosign<br />
CCI# 681477/-78. If you want to keep<br />
control of your fuel level we recommend<br />
CCI# 990104 Fuel Mode unit<br />
which uses one of the turn signal<br />
indicator lights as warning lamp.<br />
990091 Black coated fits all<br />
Hammer, Jackpot and Vegas<br />
models 09-15<br />
990092 Polished fits all Hammer,<br />
Jackpot and Vegas models<br />
09-15<br />
681475 Motoscope Mini Black<br />
681476 Motoscope Mini POLISHED<br />
PM American<br />
Cycles Rear<br />
Fender Gotthard<br />
Swingarm mounted<br />
rear fender Gotthard. Needs to cut<br />
off the frame extensions and swingarm<br />
needs to be drilled (includes<br />
drilling template). Fits 200 series rear<br />
tires on 18” wheels.<br />
990087 Fender, raw steel fits all<br />
Cruisers except Hammer &<br />
Jackpot 09-15<br />
777179<br />
PM American Cycles Rear<br />
Fender Slim<br />
Rear fender for tires up to 250 mm,<br />
reinforced with steel inlay bracket<br />
to accommodate passenger’s weight.<br />
Needs to be used in conjunction with<br />
side covers CCI# 999082/-83 and a<br />
custom taillight such as CCI# 653387.<br />
990080 Raw fiber glass fits all<br />
Hammer & Jackpot models<br />
09-15<br />
990081 Carbon fiber look fits all<br />
Hammer & Jackpot models<br />
09-16 fits all Hammer &<br />
Jackpot models 09-16<br />
Tank Speed Lines For<br />
Victory<br />
777179 For 10-16 Cross Country,<br />
Cross Country Tour,<br />
Magnum Models, Cross<br />
Roads, & 12-13 Hard-Ball<br />
(Set)<br />
777340<br />
Triceptor Fender Accent<br />
777340 Universal for Victory models<br />
(except Judge or Gunner)<br />
777121<br />
777120<br />
Upper Fork Shrouds for<br />
Victory<br />
For 10-16 Cross Country, Cross<br />
Country Tour & Magnum models,<br />
10-14 Cross Roads models, & 12-13<br />
Hard-Ball.<br />
• Add some style to your stock<br />
fork<br />
• Peel-&-stick installation<br />
777120 Chrome<br />
777121 Gloss black<br />
Note: Will not install with other accessories<br />
mounted on fork tubes.<br />
PM American Cycles Weld-<br />
In Housing For motogadget<br />
mini Speedo<br />
This bracket with housing can be<br />
welded in between the risers to hold<br />
a motogadget mini speedo.<br />
990090 Weld-in steel bracket fits all<br />
Cruiser models 09-15<br />
681475 Motoscope Mini Black<br />
681476 Motoscope Mini POLISHED<br />
for more details check www.custom-chrome-europe.com<br />
IV.31
CCE UK<br />
Phone: +44 (0) 1303 814 609<br />
e-mail: andy_tozer@customchrome.de<br />
Imprint<br />
Custom Chrome Europe GmbH<br />
Carl-von-Ossietzky-Straße 8<br />
D-55459 Grolsheim<br />
Phone: +49 (0) 6721 - 4 007 - 0<br />
Fax: +49 (0) 6721 - 4 007 - 100<br />
e-mail: info@customchrome.de<br />
www.custom-chrome-europe.com<br />
Managing Director: Andreas Scholz · Mainz Local Court<br />
HRB 45562 · VAT number DE811309246<br />
© Copyright by Custom Chrome Europe GmbH<br />
All rights reserved. No part of this publication may be reproduced, stored in a retrieval<br />
system, or transmitted, in any form or by any means, electronic, mechanical, photocopying,<br />
recording, or otherwise, without the prior written permission of the publisher.<br />
CCE ITALY<br />
Phone: +39 (0) 31 6841 41<br />
e-mail: ivano_segato@customchrome.de<br />
CCE FRANCE<br />
Phone: +33 (0) 556 332 878<br />
e-mail: geraldine_rietzler@customchrome.de<br />
CCE SPAIN<br />
Phone: +34 (0) 942 079 717<br />
e-mail: jaime_sagrado@customchrome.de<br />
CCE EASTERN EUROPE<br />
Phone: +421 (0) 948 936 244<br />
e-mail: marcel_masaryk@customchrome.de<br />
Warranty information and disclaimer<br />
Our general terms and conditions apply, as shown in the current price list.<br />
The repair and/or assembly of motorbikes demand a professional workmanship. Custom Chrome Europe does not have any control over the use and fitting of the parts,<br />
and is not liable for direct or indirect damages of any kind which result from unprofessional assembly and/or improper handling of the parts.<br />
We assure that at the time of going to print all the pictures and assembly instructions included in the catalog are conform with the status to the best of our knowledge.<br />
Please contact your responsible seller to assure yourself of the assembly instructions for models with a year of construction 2017.<br />
FIND KURYAKYN PARTS FOR<br />
<strong>INDIAN</strong> & <strong>VICTORY</strong><br />
IN THE DEALER STORE<br />
You'll find many more Indian and Victory parts online in the CCE Dealer Store. Even no-stock-parts will be ordered on demand and are available quickly.
