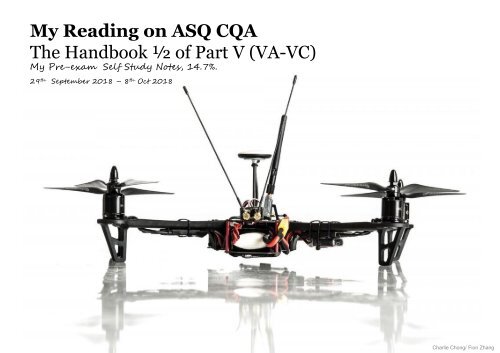

<strong>My</strong> <strong>Reading</strong> on ASQ CQA

The Handbook ½ of Part V (VA-VC)

<strong>My</strong> Pre-exam Self Study Notes, 14.7%.

29 th September 2018 – 8 th Oct 2018

Charlie Chong/ Fion Zhang

Industrial Robotic


The Magical Book of CQA


Charlie Chong/ Fion Zhang

闭门练功



Fion Zhang at Heilongjiang

29 th September 2018

ASQ Mission:

The American Society for Quality advances individual,

organizational, and community excellence worldwide

through learning, quality improvement, and knowledge

exchange.


BOK

Knowledge

Percentage Score

I. Auditing Fundamentals (30 Questions) 20%

II. Audit Process (60 Questions) 40%

III. Auditor Competencies (23 Questions) 15.3%

IV. Audit Program Management and Business Applications

(15 Questions)

10%

V. Quality Tools and Techniques (22 Questions) 14.7%

150 Questions 100%

https://asq.org/cert/resource/docs/cqa_bok.pdf


Part V


Quality Tools and Techniques

[26 of the CQA Exam Questions or 14.7 percent]

_____________________________________________________

Chapter 18 Basic Quality and Problem- Solving Tools/Part VA

Chapter 19 Process Improvement Techniques/Part VB

Chapter 20 Basic Statistics/Part VC

Chapter 21 Process Variation/Part VD

Chapter 22 Sampling Methods/Part VE

Chapter 23 Change Control and Configuration Management/Part VF

Chapter 24 Verification and Validation/Part VG

Chapter 25 Risk Management Tools/Part VH




Auditors use many types of tools to plan and perform an audit, as well as to analyze and report audit results. An

understanding of these tools and their application is essential for the performance of an effective audit since

both auditors and auditees use various tools and techniques to define processes, identify and characterize

problems, and report results. An auditor must have sufficient knowledge of these tools in order to determine

whether the auditee is using them correctly and effectively. This section provides basic information on some of

the most common tools, their use, and their limitations. For more in- depth information on the application of

tools, readers should consult an appropriate textbook.

Part VA

Chapter 18

Basic Quality and Problem- Solving

Tools/Part VA

__________________________________________________

Pareto Charts

Pareto charts, also called Pareto diagrams or Pareto analysis, are based on the Pareto principle, which

suggests that most effects come from relatively few causes. As shown in Figure 18.1, a Pareto chart consists

of a series of bars in descending order. The bars with the highest incidence of failure, costs, or other

occurrences are on the left side. The miscellaneous category, an exception, always appears at the far right,

regardless of size.

Pareto charts display, in order of importance, the contribution of each item to the total effect and the relative

rank of the items.

Pareto charts can be used to prioritize problems and to check performance of implemented solutions to

problems.

The Pareto chart can be a powerful management tool for focusing effort on the problems and solutions that

have the greatest payback. Some organizations construct year- end Pareto diagrams and form corporate

improvement teams in the areas determined to be in need of the greatest attention.




Figure 18.1 SQM software example of a frequency Pareto analysis.

80%

Defects



Pareto Analysis- vital few and the trivial many.

Pareto charts, also called Pareto diagrams or Pareto analysis, are based on the Pareto

principle, which suggests that most effects come from relatively few causes.

BREAKING DOWN 'Pareto Analysis'

In 1906, Italian economist Vilfredo Pareto discovered that 80% of the land in Italy was owned

by just 20% of the people in the country. He extended this research and found out that the

disproportionate wealth distribution was also the same across all of Europe. The 80/20

rule was formally defined as the rule that the top 20% of a country‘s population accounts for

an estimated 80% of the country‘s wealth or total income.

Joseph Juran, a Romanian-American business theorist stumbled on Pareto‘s research work

40 years after it was published, and named the 80/20 rule Pareto‘s Principle of Unequal

Distribution. Juran extended Pareto‘s Principle in business situations to understand whether

the rule could be applied to problems faced by businesses. He observed that in quality

control departments, most production defects resulted from a small percentage of the causes

of all defects, a phenomenon which he described as ―the vital few and the trivial many.‖

Following the work of Pareto and Juran, the British NHS Institute for Innovation and

Improvement provided that 80% of innovations comes from 20% of the staff; 80% of

decisions made in meetings comes from 20% of the meeting time; 80% of your success

comes from 20% of your efforts; 80% of complaints you make are from 20% of your services;

etc.

Read more: https://www.investopedia.com/terms/p/pareto-analysis.asp#ixzz5SU1aEH9H



Cause-and-Effect Diagrams

The cause-and-effect diagram (C-E diagram) is a visual method for analyzing causal factors for a given effect in

order to determine their relationship. The C-E diagram, one of the most widely used quality tools, is also called

an Ishikawa diagram (after its inventor) or a fishbone diagram (because of its shape). Basic characteristics of

the C-E diagram include the following:

• It represents the factors that might contribute to an observed condition or effect

• It clearly shows interrelationships among possible causal factors

• The interrelationships shown are usually based on known data

C-E diagrams are an effective way to generate and organize the causes of observed events or conditions since

they display causal information in a structured way. C-E diagrams consist of a description of the effect written in

the head of the fish and the causes of the effect identified in the major bones of the body.

These main branches typically include four or more of the following six influences but may be specifically

tailored as needed:

1. People (worker)

2. Equipment (machine)

3. Method

4. Material

5. Environment

6. Measurement

Figure 18.2 is a C-E diagram that identifies all the program elements that should be in place to prevent design

output errors.



Cause-and-Effect Diagrams



Figure 18.2 Cause-and-effect diagram.

These main branches typically include

four or more of the following six

influences but may be specifically




3. Method

4. Material


6. Measurement



Figure 18.2 Cause-and-effect diagram.

These main branches typically include

four or more of the following six

influences but may be specifically




3. Method

4. Material


6. Measurement


These main branches typically include four or more

of the following six influences but may be specifically




3. Method

4. Material


6. Measurement



Fishbone Diagram

Background

Fishbone Diagrams (also known as Ishikawa Diagrams) are can be used to answer the following questions that

commonly arise in problem solving: What are the potential root causes of a problem? What category of process

inputs represents the greatest source of variability in the process output?

Dr. Kaoru Ishikawa developed the "Fishbone Diagram" at the University of Tokyo in 1943. Hence the Fishbone

Diagram is frequently referred to as an "Ishikawa Diagram". Another name for this diagram is the "Cause &

Effect" or CE diagram. As illustrated below, a completed Fishbone diagram includes a central "spine" and

several branches reminiscent of a fish skeleton.

This diagram is used in process improvement methods to identify all of the contributing root causes likely to be

causing a problem. The Fishbone chart is an initial step in the screening process. After identifying potential root

cause(s), further testing will be necessary to confirm the true root cause(s). This methodology can be used on

any type of problem, and can be tailored by the user to fit the circumstances.

Using the Ishikawa approach to identifying the root cause(s) of a problem provides several benefits to process

improvement teams:

• Constructing a Fishbone Diagram is straightforward and easy to learn.

• The Fishbone Diagram can incorporate metrics but is primarily a visual tool for organizing critical thinking.

• By Involving the workforce in problem resolution the preparation of the fishbone diagram provides an

education to the whole team.

• Using the Ishikawa method to explore root causes and record them helps organize the discussion to stay

focused on the current issues.

• It promotes "System Thinking" through visual linkages.

• It also helps prioritize further analysis and corrective actions.

https://www.moresteam.com/toolbox/fishbone-diagram.cfm



How to Get Started

This tool is most effective when used in a team or group setting.

1. To create a Fishbone Diagram, you can use any of a variety of materials. In a group setting you can use a

white board, butcher-block paper, or a flip chart to get started. You may also want to use "Post-It" notes to

list possible causes but have the ability to re-arrange the notes as the diagram develops.

2.

Write the problem to be solved (the EFFECT) as descriptively as possible on one side of the work space,

then draw the "backbone of the fish", as shown below. The example we have chosen to illustrate is "Missed

Free Throws" (an acquaintance of ours just lost an outdoor three-on-three basketball tournament due to

missed free throws).

3. The next step is to decide how to categorize the causes. There are two basic methods:

A) by function, or

B) by process sequence.

The most frequent approach is to categorize by function.

In manufacturing settings the categories are often: Machine, Method, Materials, Measurement, People, and

Environment. In service settings, Machine and Method are often replaced by Policies (high level decision

rules), and Procedures (specific tasks).

In this case, we will use the manufacturing functions as a starting point, less Measurement because there

was no variability experienced from measurements (its easy to see if the ball goes through the basket).




4. You can see that this is not enough detail to identify specific root causes. There are usually many

contributors to a problem, so an effective Fishbone Diagram will have many potential causes listed in

categories and sub-categories. The detailed sub-categories can be generated from either or both of two

sources:

1. Brainstorming by group/team members based on prior experiences.

2. Data collected from check sheets or other sources.

A closely related Cause & Effect analytical tool is the "5-Why" approach, which states: "Discovery of the

true root cause requires answering the question 'Why?' at least 5 times". See the 5-Why feature of the

Toolbox. Additional root causes are added to the fishbone diagram below:




5. The usefulness of a Fishbone Diagram

is dependent upon the level of

development - moving past symptoms to

the true root cause, and quantifying the

relationship between the Primary Root

Causes and the Effect. You can take the

analysis to a deeper level by

using Regression Analysis to quantify

correlation, and Designed

Experiments to quantify causation. As

you identify the primary contributors,

and hopefully quantify correlation, add

that information to your chart, either

directly or with foot notes.

5. Cont.….The following chart has the top five primary root cause contributors highlighted in gold. The note

"MC" (for Mathematical Correlation) attached to air pressure indicates that strong correlation has been

established through statistical analysis of data (the lower the air pressure, the less bounce off the rim).

If you have ever tried to shoot baskets at a street fair or carnival to win a prize, you know that the operator

always over-inflates the ball to lower your chances. Pick any system that works for you - you could circle

instead of highlighting. The priority numbers can carry over to a corrective action matrix to help organize

and track improvement actions.

6. The tutorial provided below that shows how to make and use a Fishbone Diagram using EngineRoom.




Categorize The Causes by Functions

Manufacturing

Services

People

Machine

Methods

Materials

Measurement

Environment

People

Policy

Procedures

Materials

Measurement

Environment





Flowcharts and Process Mapping

Process maps and flowcharts are used to depict the steps or activities in a process or system that produces

some output. Flowcharts are specific tools for depicting sequential activities and typically use standard symbols

in their creation. Flowcharts and process maps are effective means for understanding procedures and overall

processes and are used by auditees to help define how work is performed. Flowcharts are especially helpful in

understanding processes that are complicated or that appear to be in a state of disorder. Auditors may also use

flowcharts to help understand both production and service processes during audit preparation. A flowchart may

be used to describe an existing system or process or to design a new one. It can be used to:

• Develop a common understanding of an overall process, system, and sequence of operations

• Identify inspection and checkpoints that result in a decision

• Identify personnel (by job title) performing specific steps

• Identify potential problem areas, bottlenecks, unnecessary steps or loops, and rework loops

• Discover opportunities for changes and improvements

• Guide activities for identifying problems, theorizing about root causes, developing potential corrective

actions and solutions, and achieving continuous improvement

Flowcharting usually follows a sequence from top to bottom and left to right, with arrowheads used to indicate

the direction of the activity sequence. Common symbols often used for quality applications are shown in Figure

18.3. However, there are many other types of symbols used in flowcharting, such as ANSI Y15.3, Operation

and Flow Process Charts (see Figures 18.4–18.8). Templates and computer software, both of which are easy to

use and fairly inexpensive, are available for making flowcharts.



The implementation of a process- based QMS (such as ISO 9001:2008) and the use of process auditing

techniques have made charting an important auditing tool.

In the book How to Audit the Process- Based QMS, the authors state, ―Many auditors find it useful to draw a

flowchart of the operations about to be audited. What processes are performed and what are the linkages?

This also helps to define the interfaces where information and other resources come into and flow out of the

audited area.‖ They continue by stating, ―To make maximum use of the process approach to auditing, the work

papers should reflect the flow of activities to be audited.‖ In the book The Process Auditing Techniques Guide,

the author explains, ―The primary tool of process auditing is creating a process flow diagram [PFD] or flowchart.

Charting the process steps [sequential activities] is an effective method for describing the process. For auditing

purposes, process flow diagrams should be used to identify sequential process steps [activities] and kept as

simple or as reasonable as possible.‖

Another variation of a flowchart is a process map. Process maps are very good tools that show inputs, outputs,

and area or department responsibilities along a timeline. The complexity of process maps can vary, but for

auditing, simplicity is the key.



Process maps

are very good tools that show inputs, outputs, and area or department responsibilities along a timeline. The

complexity of process maps can vary, but for auditing, simplicity is the key.



Process maps

are very good tools that show inputs, outputs, and area or department responsibilities along a timeline. The

complexity of process maps can vary, but for auditing, simplicity is the key.



Process Flow Diagram PFD.





Figure 18.3 Common flowchart symbols.



Figure 18.4 Activity sequence flowchart.


Figure 18.5 Top-down flowchart.

A top-down diagram shows the breakdown of a system to its lowest manageable levels. They are used in

structured programming to arrange program modules into a tree. Each module is represented by a box, which

contains the module's name. The tree structure visualizes the relationships between modules.

https://www.edrawsoft.com/topdowndiagram.php



Figure 18.5 Top-down flowchart.

A top-down diagram shows the breakdown of a system to its lowest manageable levels. They are used in

structured programming to arrange program modules into a tree. Each module is represented by a box, which

contains the module's name. The tree structure visualizes the relationships between modules.

https://www.edrawsoft.com/topdowndiagram.php



Figure 18.6 Matrix flowchart.

Deployment or Matrix Flowchart- A deployment flowchart maps out the process in terms of who is doing the

steps. It is in the form of a matrix, showing the various participants and the flow of steps among these

participants. It is chiefly useful in identifying who is providing inputs or services to whom, as well as areas

where different people may be needlessly doing the same task. See the Deployment of Matrix Flowchart.

https://www.edrawsoft.com/Flowchart-Definition.php




Figure 18.7 Flow process worksheet.

PFD Worksheets (Process Flow Diagrams)

In RCM++, there are two kinds of process flow diagrams (PFDs): a graphical process flow diagram, which is a

high level chart of a process; and a PFD worksheet, which integrates the chart into a worksheet that records

more detailed information about what the product goes through in each step of the manufacturing or assembly

process. This includes the processing of individual components, transportation of materials, storage, etc. Also

recorded are descriptions of the process and product characteristics that are affected in each step of the

process, how these characteristics are controlled and what needs to be achieved at each step. For example, a

process characteristic may be the temperature range for wax that will be sprayed onto the finished vehicle and

a product characteristic may be the required wax thickness.



Flow process worksheet.


Figure 18.8 A process map.

Process mapping is used to visually demonstrate all the steps and decisions in a particular process. A process

map or flowchart describes the flow of materials and information, displays the tasks associated with a process,

shows the decisions that need to be made along the chain and shows the essential relationships between the

process steps.

https://www.lucidchart.com/pages/process-mapping/how-to-make-a-process-map




Figure 18.8 A process map.

Process mapping is used to visually demonstrate all the steps and decisions in a particular process. A process

map or flowchart describes the flow of materials and information, displays the tasks associated with a process,

shows the decisions that need to be made along the chain and shows the essential relationships between the

process steps.



Statistical Process Control (SPC) Charts

Many companies use statistical process control (SPC) techniques as part of a continuing improvement effort.

Auditors need to be knowledgeable about the methods and application of control charts in order to determine

the adequacy of their use and evaluate the results achieved. Auditors need this knowledge for observation

purposes, but they are not required to plot control charts as part of the audit process.

Control charts, also called process control charts or run charts, are tools used in SPC. SPC recognizes that

some random variation always exists in a process and that the goal is to control distribution rather than

individual dimensions. Operators and quality control technicians use SPC to determine when to adjust a

process and when to leave it alone. The ability to operate to a tight tolerance without producing defects can be

a major business advantage. Control charts can tell an organization when a process is good enough so that

resources can be directed to more pressing needs. A control chart, such as the one shown in Figure 18.9, is

used to distinguish variations in a process over time. Variations can be attributed to either special or common

causes.

• Common-cause variations repeat randomly within predictable limits and can include chance causes,

random causes, system causes, and inherent causes.

• Special-cause variations indicate that some factors affecting the process need to be identified, investigated,

and brought under control. Such causes include assignable causes, local causes, and specific causes.

Control charts use operating data to establish limits within which future observations are expected to remain if

the process remains unaffected by special causes.



Figure 18.9 Control chart.



Statistical Process Control (SPC) Charts

Variations can be attributed to either special or common causes.

• Common-cause variations repeat randomly within predictable limits and can include

- chance causes,

- random causes,

- system causes, and

- inherent causes.

• Special-cause variations indicate that some factors affecting the process need to be identified,

investigated, and brought under control. Such causes include

- assignable causes,

- local causes, and

- specific causes.



Control charts can monitor the aim and variability, and thereby continually check the stability of a process. This

check of stability in turn ensures that the statistical distribution of the product characteristic is consistent with

quality requirements.

Control charts are commonly used to:

1. Attain a state of statistical control

2. Monitor a process

3. Determine process capability

The type of control chart used in a specific situation depends on the type of data being measured or counted.



Variable Data

Variable data, also called continuous data or measurement data, are collected from measurements of the items

being evaluated. For example, the measurement of physical characteristics such as time, length, weight,

pressure, or volume through inspection, testing, or measuring equipment constitutes variable data collection.

Variable data can be measured and plotted on a continuous scale and are often expressed as fractions or

decimals.

The X (average) chart and the R (range) chart are the most common types of control charts for variable data.

The X chart illustrates the average measurement of samples taken over time. The R chart illustrates the range

of the measurements of the samples taken. For these charts to be accurate, it is critical that individual items

composing the sample are pulled from the same basic production process. That is, the samples should be

drawn around the same time, from the same machine, from the same raw material source, and so on.8 These

charts are often used in conjunction with one another to jointly record the mean and range of samples taken

from the process at fairly regular intervals. Figure 18.10 shows an X and R chart.


Figure 18.10 X and R chart

example.

http://asq.org/learn-about-quality/tools-templates.html


https://en.wikipedia.org/wiki/X%CC%85_and_R_chart



X and R chart

In statistical quality control, the X and R chart is a type of control chart used to monitor variables data when

samples are collected at regular intervals from a business or industrial process.

The chart is advantageous in the following situations:

• The sample size is relatively small (say, n ≤ 10, X and s charts are typically used for larger sample sizes)

• The sample size is constant

• Humans must perform the calculations for the chart

The "chart" actually consists of a pair of charts: One to monitor the process standard deviation (as approximated

by the sample moving range) and another to monitor the process mean, as is done with the X and s and

individuals control charts. The X and R chart plots the mean value for the quality characteristic across all units in

the sample, X i , plus the range of the quality characteristic across all units in the sample as follows:

R = x max – x min.

The normal distribution is the basis for the charts and requires the following assumptions:

• The quality characteristic to be monitored is adequately modeled by a normally distributed random variable;

• The parameters μ (mu- mean or expectation of the distribution) and σ (sigma- the standard deviation) for the

random variable are the same for each unit and each unit is independent of its predecessors or successors;

• The inspection procedure is same for each sample and is carried out consistently from sample to sample.

As with X and s and individuals control charts, the X chart is only valid if the within-sample variability is constant.

Thus, the R chart is examined before the X chart; if the R chart indicates the sample variability is in statistical

control, then the X is examined to determine if the sample mean is also in statistical control. If on the other hand,

the sample variability is not in statistical control, then the entire process is judged to be not in statistical control

regardless of what the X chart indicates.




R chart

Centre Line:

R =

m

i=1 max x ij

−min(xij)

m

UCL = D 4 R

LCL = D 3 R

Plot Statistic, R i = max(x ij ) – min(x ij )




x chart

Centre Line:

x =

m

i=1

n

j=1 x ij

mn

UCL/LCL = x ± A 2 R

Plot Statistic, x i =

n

j=1 x ij

n

https://www.moresteam.com/university/workbook/wb_spcxbarandrintro.pdf



Plotting X and R chart

An X -Bar and R-Chart is a type of statistical process control chart for use with continuous data collected in

subgroups at set time intervals - usually between 3 to 5 pieces per subgroup. The Mean (X -Bar) of each

subgroup is charted on the top graph and the Range (R) of the subgroup is charted on the bottom graph. Out of

Control points or patterns can occur on either the X -bar or R chart. Like all control charts, an X -Bar and R-Chart

is used to answer the following questions:

• Is the process stable over time?

• What is the effect of a process change on the output characteristics?

• How will I know if the process becomes unstable, or the performance changes over time?

When is it used?

• Constructed throughout the DMAIC (Define, Measure, Analyze, Improve and Control) process, particularly in

the Measure, Analyze and Control phases of the cycle.

• Used to understand process behavior, evaluate different treatments or methods, and to control a process.

• Recommended for subgroup sizes of 10 or less. If the subgroup size exceeds 10, the range chart is replaced

by a chart of the subgroup standard deviation, or S chart.

NOTE: It has been estimated that 98% of all processes can be effectively represented by using either the XmR

charts or X-Bar & R charts.




How to Construct an X-Bar and R Control Chart

To construct an X -Bar and R Chart, follow the process steps below. For subgroup sizes greater than 10,

substitute the subgroup standard deviation (S) for range (R), and use constants for S from the table located after

the instructional steps.

1. Record subgroup observations.

2. Calculate the average (X -Bar) and range (R) for each subgroup.

x i =

n

j=1 x ij

n

, R i = max(x ij ) – min(x ij )

3. Calculate the average R value, or R-bar, and plot this value as the centerline on the R chart;

R =

m

i=1 max x ij

−min(xij)

m

45. Calculate the average x value, or x -bar, and plot this value as the centerline on the x chart;

x =

m

i=1

n

j=1 x ij

mn

Where:

m is the number of subgroup, n is the size of subgroup (sampling size)

5. Plot the x i and R i values for each subgroup in time series. You can create a meaningful control chart from as

few as 6-7 data points, although a larger sample size (20+ subgroups) will provide much more reliability. In most

cases, control limits are not calculated until at least 20 subgroups of data are collected.




5. Based on the subgroup size, select the appropriate constant, called D4, and multiply by R-bar (R) to

determine the Upper Control Limit for the Range Chart. All constants are available from the reference table. If

the subgroup size is between 7 and 10, select the appropriate constant, called D3, and multiply by R-bar to

determine the Lower Control Limit for the Range Chart. There is no Lower Control Limit for the Range Chart if

the subgroup size is 6 or less.

UCL (R)

LCL (R)

= R x D4 Plot the Upper Control Limit on the R chart.

= R x D3 Plot the Lower Control Limit on the R chart.

6. Calculate the X-bar Chart Upper Control Limit, or upper natural process limit, by multiplying R-bar by the

appropriate A2 factor (based on subgroup size) and adding that value to the average (X -bar-bar). Calculate the

X-bar Chart Lower Control Limit, or lower natural process limit, for the X -bar chart by multiplying R-bar by the

appropriate A2 factor (based on subgroup size) and subtracting that value from the average (X -barbar).

UCL (x -bar) = x + (A2 x R)

LCL (x -bar) = x - (A2 x R)

Plot the UCL/LCL on the x -bar chart.

10.After constructing the control chart, follow the same rules to assess stability that are used on mR charts.

Make sure to evaluate the stability of the Range Chart before drawing any conclusions about the

Averages (x - Bar) Chart --- if the Range Chart is out of control, the control limits on the Averages Chart will be

unreliable.


A Few Notes about the X-bar & R-Charts

False alarm in X-bar chart:

• The Type I error in control chart is called False alarm.

• When a control chart declares a process not-in-control when in fact it is in-control, it is a false alarm.

• The Shewhart charts with 3-sigma limits have a false alarm probability of 0.0027 in any one sample.

• That is, approximately 3 out of 1000 samples could cause false alarm.

https://courses.edx.org/asset-v1:TUMx+QEMx+2T2015+type@asset+block@8-2-2_X-bar_and_R-Charts.pdf




Control Chart Constants

Part VA


XR Chart Constants

Tabular values for X-bar and range charts

Subgroup Size A 2 d 2 D 3 D 4

2 1.880 1.128 ----- 3.268

3 1.023 1.693 ----- 2.574

4 0.729 2.059 ----- 2.282

5 0.577 2.326 ----- 2.114

6 0.483 2.534 ----- 2.004

7 0.419 2.704 0.076 1.924

8 0.373 2.847 0.136 1.864

9 0.337 2.970 0.184 1.816

10 0.308 3.078 0.223 1.777

11 0.285 3.173 0.256 1.744

12 0.266 3.258 0.283 1.717

13 0.249 3.336 0.307 1.693

14 0.235 3.407 0.328 1.672

15 0.223 3.472 0.347 1.653

16 0.212 3.532 0.363 1.637

17 0.203 3.588 0.378 1.622

18 0.194 3.640 0.391 1.608

19 0.187 3.689 0.403 1.597

20 0.180 3.735 0.415 1.585

https://www.pqsystems.com/qualityadvisor/formulas/x_bar_range_f.php





Exercise: Following is a table of data sampled twelve times from a process; the process mean is supposed to

be 74.000 inches. Plot these data in an X-bar R chart to determine if the process is in statistical control

(note: n = 6).




UCL/LCL

Range:

UCL (R) = R x D4 Plot the Upper Control Limit on the R chart. (0.026 x 2.004 = 0.0521)

LCL (R) = R x D3 Plot the Lower Control Limit on the R chart. (for n=6 no LCL)

Plot the UCL/LCL on the R -bar chart.

Mean:

UCL (x -bar) = x + (A2 x R) (74.001+ (0.483x0.026) = 74.013558)

LCL (x -bar) = x - (A2 x R) (74.001 - (0.483x0.026) = 73.988442)

Plot the UCL/LCL on the x -bar chart.


Western Electric Rules

―Western Electric‖* rules to increase the sensitivity of the X-bar chart are used in addition to the rule that any

one point outside of the 3-sigma limit will indicate an out-of-control situation: 1. Two of three consecutive plots

fall outside of a 2-sigma warning limit on the same side of the center line. 2. Four of five consecutive plots fall

outside of a 1-sigma warning limit on the same side. 3. More than seven consecutive plots fall above or below

the centerline. 4. More than seven consecutive plots are in a run-up or a run-down.

https://www.qimacros.com/control-chart/stability-analysis-control-chart-rules/


https://en.wikipedia.org/wiki/Nelson_rules



Nelson Rules

Nelson rules are a method in process control of determining if some measured variable is out of control

(unpredictable versus consistent). Rules, for detecting "out-of-control" or non-random conditions were first

postulated by Walter A. Shewhart [1] in the 1920s. The Nelson rules were first published in the October 1984

issue of the Journal of Quality Technology



Attribute data

Attribute data, also referred to as discrete data or counted data, provide information on number and frequency

of occurrences. By counting and plotting discrete events—the number of defects or percentage of failures, for

example- in integer values (1, 2, 3), an auditor is able to look at previously defined criteria and rate the product

or system as pass/fail, acceptable/unacceptable, or go/no-go. Several basic types of control charts can be used

for charting attribute data.

Attribute data can be either a fraction nonconforming or number of defects or nonconformities observed in the

sample. To chart the fraction of units defective, the p chart is used. The units are classified into one of two

states: go/no-go, acceptable/unacceptable, conforming/nonconforming, yes/no, and so on. The sample size

may be fixed or variable, which makes the technique very effective for statistically monitoring nontraditional

processes such as percentage of on- time delivery. However, if the sample size is variable, control limits must

be calculated for each sample taken. The np chart uses the number of nonconforming units in a sample. This

chart is sometimes easier for personnel who are not trained in SPC. It is easier to understand this chart when

the sample size is constant, but it can be variable like the p chart.

The c chart plots the number of nonconformities per some unit of measure. For example, the total number of

nonconformities could be counted at final inspection of a product and charted on a c chart. The number of

nonconformities may be made up of several distinct defects, which might then be analyzed for improvement of

the process. For this chart, the sample size must be constant from unit to unit.

The u chart is used for the average number of nonconformities per some unit of measure. Sample size can be

either variable or constant since it is charting an average. A classic example is the number of nonconformities

in a square yard of fabric in the textile industry. Bolts of cloth may vary in size, but an average can be

calculated. Figure 18.11 is an example of plotting attribute data using a u chart.



Figure 18.11 u chart for the average errors per truck for 20 days of production.



p-chart

What is it?

A p-chart is an attributes control chart used with data collected in subgroups of varying sizes. Because the

subgroup size can vary, it shows a proportion on nonconforming items rather than the actual count. P-charts

show how the process changes over time. The process attribute (or characteristic) is always described in a

yes/no, pass/fail, go/no go form. For example, use a p-chart to plot the proportion of incomplete insurance claim

forms received weekly. The subgroup would vary, depending on the total number of claims each week. P-charts

are used to determine if the process is stable and predictable, as well as to monitor the effects of process

improvement theories. What does it look like? The p-chart shows the proportion of nonconforming units in

subgroups of varying sizes.


p-Chart

In statistical quality control, the p-chart is a type of control chart used to monitor the proportion of

nonconforming units in a sample, where the sample proportion nonconforming is defined as the ratio of the

number of nonconforming units to the sample size, n.

The p-chart only accommodates "pass"/"fail"-type inspection as determined by one or more go-no go gauges or

tests, effectively applying the specifications to the data before they are plotted on the chart. Other types of

control charts display the magnitude of the quality characteristic under study, making troubleshooting possible

directly from those charts.

Assumptions

The binomial distribution is the basis for the p-chart and requires the following assumptions:

• The probability of nonconformity p is the same for each unit;

• Each unit is independent of its predecessors or successors;

• The inspection procedure is same for each sample and is carried out consistently from sample to sample

The control limits for this chart type are p ±3

p(1−p)

n

where p is the estimate of the long-term process mean established during control-chart setup. Naturally, if the

lower control limit is less than or equal to zero, process observations only need be plotted against the upper

control limit. Note that observations of proportion nonconforming below a positive lower control limit are cause

for concern as they are more frequently evidence of improperly calibrated test and inspection equipment or

inadequately trained inspectors than of sustained quality improvement.

Some organizations may elect to provide a standard value for p, effectively making it a target value for the

proportion nonconforming. This may be useful when simple process adjustments can consistently move the

process mean, but in general, this makes it more challenging to judge whether a process is fully out of control

or merely off-target (but otherwise in control).

https://en.wikipedia.org/wiki/P-chart



Potential pitfalls

There are two circumstances that merit special attention:

• Ensuring enough observations are taken for each sample

• Accounting for differences in the number of observations from sample to sample

Adequate sample size

Sampling requires some careful consideration. If the organization elects to use 100% inspection on a process,

the production rate determines an appropriate sampling rate which in turn determines the sample size. If the

organization elects to only inspect a fraction of units produced, the sample size should be chosen large enough

so that the chance of finding at least one nonconforming unit in a sample is high—otherwise the false alarm

rate is too high. One technique is to fix sample size so that there is a 50% chance of detecting a process shift of

a given amount (for example, from 1% defective to 5% defective). If δ is the size of the shift to detect, then the

sample size should be set to n ≥ ( 3 δ )2 p(1- p)

Another technique is to choose the sample size large enough so that the p-chart has a positive lower control

limit or n ≥ 32 (1−p)

p




Sensitivity of control limits

Some practitioners have pointed out that the p-chart is sensitive to the underlying assumptions, using control

limits derived from the binomial distribution rather than from the observed sample variance. Due to this

sensitivity to the underlying assumptions, p-charts are often implemented incorrectly, with control limits that are

either too wide or too narrow, leading to incorrect decisions regarding process stability[3]. A p-chart is a form of

the Individuals chart (also referred to as "XmR" or "ImR"), and these practitioners recommend the individuals

chart as a more robust alternative for count-based data.

Meaning:

XMR- The XmR chart is actually two charts. The X is the data point being measured and mR the Moving Range

which is the difference between consecutive data point measurements.

IMR?

p ±3

p(1−p)

n




np-Chart

In statistical quality control, the np-chart is a type of control chart used to monitor the number of nonconforming

units in a sample. It is an adaptation of the p-chart and used in situations where personnel find it easier to

interpret process performance in terms of concrete numbers of units rather than the somewhat more abstract

proportion.[1]

The np-chart differs from the p-chart in only the three following aspects:

• The control limits are np ±3 np(1 − p) ,

where n is the sample size and p is the estimate of the long-term process mean established during controlchart

setup.

• The number nonconforming (np), rather than the fraction nonconforming (p), is plotted against the control

limits.

• The sample size, n, is constant.

np ±3 np(1 − p)

https://en.wikipedia.org/wiki/Np-chart




SPC Chart Interpretations

An SPC chart is essentially a set of statistical control limits applied to a set of sequential data from samples

chosen from a process. The data composing each of the plotted points are a location statistic such as an

individual, an average, a median, a proportion, and so on. If the control chart is one to monitor variable data,

then an additional associated chart for the process variation statistic can be utilized.

Examples of variation statistics are:

• the range,

• standard deviation, and

• moving range.

Statistically Rare Patterns

By their design, control charts utilize unique and statistically rare patterns that can be associated with process

changes. These relatively rare or unnatural patterns are usually assumed to be caused by disturbances or

influences that interfere with the ordinary behavior of the process. These causes that disturb or alter the output

of a process are called assignable causes. (local/specific cause)

They can be caused by:

1. Equipment

2. Personnel

3. Materials



Statistically Rare Patterns 道可道非常道


Statistically Rare Patterns 道可道非常道




松下问童子言师采药去只在此山中云深不知处



If the process is out of control, the process engineer looks for an assignable cause by following the out- ofcontrol

action plan (OCAP) associated with the control chart. Out of control refers to rejecting the assumption

that the current data are from the same population as the data used to create the initial control chart limits.11

For classical Shewhart charts, a set of rules called the Western Electric Rules (WECO Rules) and a set of trend

rules often are used to determine out of control (see Figure 18.12). The WECO rules are based on probability.

We know that, for a normal distribution, the probability of encountering a point outside ± 3σ is 0.3%. This is a

rare event. Therefore, if we observe a point outside the control limits, we conclude the process has shifted and

is unstable. Similarly, we can identify other events that are equally rare and use them as flags for instability. The

probability of observing two points out of three in a row between 2σ and 3σ and the probability of observing four

points out of five in a row between 1σ and 2σ are also about 0.3%. Figure 18.13 is an example of any point

above +3 sigma in Figure 18.12. Figure 18.14 is an example of eight consecutive points on this side of the

control line in Figure 18.12. While the WECO rules increase a Shewhart chart‘s sensitivity to trends or drifts in

the mean, there is a severe downside to adding the WECO rules to an ordinary Shewhart control chart that the

user should understand. When following the standard Shewhart ―out-of-control‖ rule (i.e., signal if and only if

you see a point beyond the ± 3σ control limits) you will have ―false alarms‖ every 371 points on the average.

Adding the WECO rules increases the frequency of false alarms to about once in every 91.75 points, on the

average.12 The user has to decide whether this price is worth paying (some users add the WECO rules, but

take them ―less seriously‖ in terms of the effort put into troubleshooting activities when out-of-control signals

occur). Figure 18.15 is an example of four out of the last five points above +1 sigma in Figure 18.12.



Figure 18.12 WECO rules for signaling ―out of control.‖

Rule-1

Rule-2

Rule-3

Rule-4


WECO (Western Electric Company) rules for signaling “out of control.”

Rule-1

Rule-2

Rule-3

Rule-4

https://www.pmi.co.uk/sectors/manufacturing/




Figure 18.13 Any point above +3 sigma control limit (a point above 3 sigma, C line).

Rule-1



Figure 18.14 Consecutive points above the average (trend: 8 points in a row but within 3 sigma, C line).

Rule-4, 9 points above X

8 point above X only.

(Nelson rule valid)



Figure 18.15 Four out of the last five points above +1 sigma.

Rule-2

Rule-3


Nelson rules for signaling “out of control.”

Nelson Rules are an expanded set of rules developed to cover increasingly rare conditions.

WECON Rule-4

9 (8) points above CL

14 points in Zone C

6 points ascending or

descending

WECON Rule-4

https://www.qimacros.com/control-chart/stability-analysis-control-chart-rules/




Checklists, Check Sheets, Guidelines, and Log Sheets

Four basic tools are used by auditors in the performance of audits, to ensure consistency and effectiveness of

the audit. Although each may be used independently of one another, they may be used together to document

audit evidence. Also see ―5. Auditing Tools and Working Papers‖ in Part II for more information about checklists,

check sheets, guidelines, and log sheets.

• Checklists

Checklists are the most common tools used to collect data during an audit. They provide an organized form for

identifying information to be collected and a means for recording information once it is collected. In addition, the

checklist serves as a tool to help guide the audit team during audit performance. A checklist usually contains a

listing of required items where audit evidence is needed, places for recording acceptable responses, and

places for taking notes. An auditor‘s checklist is either a list of questions to answer or statements to verify.

Figures 18.16–18.18 provide samples of checklists.



Figure 18.16 Sample checklist, ISO 9001, clause 8.2.2, Internal auditing.

ISO 9001:2008 Checklist

Ref. Question/Criteria Yes/No Comments/Data

collection plan

8.2.2 Internal auditing

8.2.2-1 Are internal audits conducted at planned intervals?

8.2.2-2 Are audits carried out to determine conformance of the QMS to

planned arrangements, the organization‘s QMS requirements, this

International Standard, and that the QMS has been effectively

implemented and maintained?

8.2.2-3 Does the audit program plan consider status and importance of the

activities and areas to be

8.2.2-4 Are audit criteria, scope, frequency, and methods defined?

8.2.2-5 Are auditors selected and audits conducted to ensure objectivity and

impartiality of the audit process? Are auditors prevented from auditing

their own work?

8.2.2-6 Are there documented procedures? Do the procedures cover

responsibilities, requirements for planning and conducting, and

recording and reporting results? [4.2.4]

8.2.2-7 Is action taken by management responsible for the area to eliminate

nonconformities and their causes? Is this done without undue delay?

8.2.2-8 Are follow-up activities carried out to verify the implementation of the

action? Are the verification results reported? [8.5.2]



Figure 18.17 Sample quality system checklist.

A. Review of customer requirements

1. Is there a quality review of purchase orders to identify special or unusual requirements?

2. Are requirements for special controls, facilities, equipment, and skills preplanned to ensure they will be in place when needed?

3. Have exceptions to customer requirements been taken?

4. Are customer requirements available to personnel involved in the manufacture, control, and inspection of the product?

5. Are supplier and subtier sketches, drawings, and specifications compatible with the customer‘s requirements?

B. Supplier control practices

6. Is there a system for identifying qualified sources, and is this system adhered to by the purchasing function?

7. Are initial audits of major suppliers conducted?

8. Does the system ensure that technical data (drawings, specifications, and so on) are included in purchase orders?

9. Is the number and frequency of inspections and tests adjusted based on supplier performance?

C. Nonconforming material

10. Are nonconformances identified and documented?

11. Are nonconformances physically segregated from conforming material where practical?

12. Is further processing of nonconforming items restricted until an authorized disposition is received?

13. Do suppliers know how to handle nonconformances?

14. Are process capability studies used as a part of the nonconforming material control and process planning?

D. Design and process change control routines

15. Are changes initiated by customers incorporated as specified?

16. Are internally initiated changes in processing reviewed to see if they require customer approval?

17. Is the introduction date of changes documented?

18. Is there a method of notifying subtier suppliers of applicable changes?

E. Process and product audits

19. Are process audits conducted?

20. Are product audits used independent of normal product acceptance plans?

21. Do the audits cover all operations, shifts, and products?

22. Do audit results receive management review?

23. Is the audit frequency adjusted based on observed trends?



Figure 18.18 Calibration area checklist.

Lab/Appraisal # _________________ Date: _________ Page 1 of ___

Reference

Criteria

Results

Sat

Un-sat

Comments

NL-QAM

NL-QAM

NL-QAP-5.1

NL-QAP-5.1

NL-QAP-5.1

1. Is monitoring and data collection

equipment calibrated?

2. Is equipment calibration traceable

to nationally recognized standards?

3. Is equipment calibration performed

using approved instructions?

4. Are calibration records maintained

for each piece of equipment?

5. Is a use log maintained?



• Check sheets

Of the many tools available to auditors, a check sheet is the simplest and easiest to construct and use because

there is no set form or content. The user may structure the check sheet to meet the needs of the situation under

review. Figure 18.19 shows an example of a check sheet used in an audit of QMS documentation. The

advantage of using a check sheet in this manner is the ability to demonstrate the magnitude of the impact of the

issues identified in relation to the total population of the documents in the system. Rather than focusing on a

single document, the auditor can easily demonstrate the impact on the process control (or process

documentation) to the auditee.

However, additional information will need to be provided to the auditee from the auditor‘s notes, such as:

• The document number, title, and so on

• A description of each nonconforming item

• The reason the item is nonconforming

For this reason, check sheets are often used with a log sheet or checklist to record the details of the issues

found during the audit. Using check sheets in this manner is advantageous for the auditor because the auditee

may use this information to easily construct a Pareto chart for corrective action. By doing so, the corrective

action team‘s efforts will not only be more focused, but also the team has baseline data from which

improvement may be demonstrated.



Figure 18.19 Check sheet for documentation.

Documentation check sheet

Type Conforming Nonconforming Total NC %

Procedures ///// //// / 10 10

Records ///// ///// ///// ///// ///// ///// ///// ///// / ///// //// 50 18

Forms ///// ///// ///// ///// ///// ///// // 32 21.9

Labels ///// ///// ///// ///// /// // 25 8

Tags ///// ///// ///// ///// ///// // ///// / 33 18.2

Summary 125 25 150 16.7



• Guidelines

Audit guidelines are used to help focus audit activities. Typically, these consist of written attribute statements

that are used to evaluate products, processes, or systems. Audit guidelines are usually not prepared by the

auditor but rather by the auditor‘s organization, client, or by a regulatory authority. They are often used to

ensure that specific items are evaluated during each audit when audit programs cover several locations,

departments, or organizations. The primary differences between checklists and guidelines are that audit

guideline items are usually written in statement form rather than as questions, and guidelines don‘t include

provisions for recording audit results. To provide for the latter, log sheets are often used.

Keywords:

• Typically, these consist of written attribute statements that are used to evaluate products, processes, or

systems.

• Audit guidelines are usually not prepared by the auditor but rather by the auditor‘s organization, client, or

by a regulatory authority.



• Log Sheets

Log sheets are simply blank columnar forms for recording information during an audit. Often, a log sheet is a

simple ruled piece of paper on which the auditor records information reviewed (such as the procedures, records,

processes, and so on) or evidence examined during the audit. Used in conjunction with audit guidelines, check

sheets, or to augment ( make (something) greater by adding to it; increase.) checklists, they help ensure that

objective evidence collected during an audit is properly recorded.



• Scatter Diagrams

Scatter diagrams (correlation charts) identify the relationship between two variables. They can also be applied

to identify the relationship of some variable with the potential root cause.

Scatter diagrams plot relationships between two different variables;

• independent variables on the x axis and

• dependent variables on the y axis.

This tool can also be used by the auditor for analysis of audit observation results. Typical patterns for scatter

diagram analysis (as shown in Figure 18.20) include positive correlation, negative correlation, curvilinear

correlation, and no correlation.



Figure 18.20 Data correlation patterns for scatter analysis.



Data correlation patterns for scatter analysis.










Data correlation patterns for scatter analysis.

https://www.mymarketresearchmethods.com/types-of-charts-choose/



Data correlation patterns for scatter analysis.

(online plot)

https://scatterplot.online/



Statistics Calculator:

Linear Regression

(online plot)

y = 2x - 4.7

http://www.alcula.com/calculators/statistics/linear-regression/



Correlation Test Online Calculator

https://www.answerminer.com/calculators/correlation-test




Pearson correlation coefficient

In statistics, the Pearson correlation coefficient (PCC), also referred to as Pearson's r, the Pearson productmoment

correlation coefficient (PPMCC) or the bivariate correlation,[1] is a measure of the linear correlation

between two variables X and Y. Owing to the Cauchy–Schwarz inequality it has a value between +1 and −1,

where 1 is total positive linear correlation, 0 is no linear correlation, and −1 is total negative linear correlation. It is

widely used in the sciences. It was developed by Karl Pearson from a related idea introduced by Francis Galton in

the 1880s.

Examples of scatter diagrams with different values of correlation coefficient (ρ)

https://en.wikipedia.org/wiki/Pearson_correlation_coefficient




Pearson correlation coefficient

Several sets of (x, y) points, with the correlation coefficient of x and y for each set. Note that the correlation

reflects the non-linearity and direction of a linear relationship (top row), but not the slope of that relationship

(middle), nor many aspects of nonlinear relationships (bottom). N.B.: the figure in the center has a slope of 0 but in

that case the correlation coefficient is undefined because the variance of Y is zero.

https://en.wikipedia.org/wiki/Pearson_correlation_coefficient



Spearman's rank correlation coefficient

In statistics, Spearman's rank correlation coefficient or Spearman's rho, named after Charles Spearman and often

denoted by the Greek ρ or as r s , is a nonparametric measure of rank correlation (statistical dependence between

the rankings of two variables). It assesses how well the relationship between two variables can be described using

a monotonic function. The Spearman correlation between two variables is equal to the Pearson correlation

between the rank values of those two variables; while Pearson's correlation assesses linear relationships,

Spearman's correlation assesses monotonic relationships (whether linear or not). If there are no repeated data

values, a perfect Spearman correlation of +1 or −1 occurs when each of the variables is a perfect monotone

function of the other. Intuitively, the Spearman correlation between two variables will be high when observations

have a similar (or identical for a correlation of 1) rank (i.e. relative position label of the observations within the

variable: 1st, 2nd, 3rd, etc.) between the two variables, and low when observations have a dissimilar (or fully

opposed for a correlation of −1) rank between the two variables.

Spearman's coefficient is appropriate for both continuous and discrete ordinal variables.[1][2] Both Spearman's ρ

and Kendall's τ can be formulated as special cases of a more general correlation coefficient.

https://en.wikipedia.org/wiki/Spearman%27s_rank_correlation_coefficient

A Spearman correlation of 1 results when the two variables being

compared are monotonically related, even if their relationship is

not linear. This means that all data-points with greater x-values

than that of a given data-point will have greater y-values as well.

In contrast, this does not give a perfect Pearson correlation.

https://mathcracker.com/spearman-correlation-calculator.php#results



Kendall rank correlation coefficient

Overview The Kendall (1955) rank correlation coefficient evaluates the degree of similarity between two sets of

ranks given to a same set of objects. This coefficient depends upon the number of inversions of pairs of objects

which would be needed to transform one rank order into the other. In order to do so, each rank order is

represented by the set of all pairs of objects (e.g., [a,b] and [b,a] are the two pairs representing the objects a and

b), and a value of 1 or 0 is assigned to this pair when its order corresponds or does not correspond to the way

these two objects were ordered. This coding schema provides a set of binary values which are then used to

compute a Pearson correlation coefficient.

https://www.answerminer.com/calculators/correlation-test




• Histograms

A histogram is a graphic summary of variation in a set of data. Histograms, such as the one shown in Figure

18.21, give a clearer and more complete picture of the data than would a table of numbers, since patterns may

be difficult to discern in a table. Patterns of variation in data are called distributions. Often, identifiable patterns

exist in the variation, and the correct interpretation of these patterns can help identify the cause of a problem.

A histogram is one of the simplest tools for organizing and summarizing data. It is essentially a vertical bar

chart of a frequency distribution that is used to show the number of times a given discrete piece of information

occurs. The histogram‘s simplicity of construction and interpretation makes it an effective tool in the auditor‘s

elementary analysis of collected data. Histograms should indicate sample size to communicate the degree of

confidence in the conclusions. Once a histogram has been completed, it should be analyzed by identifying and

classifying the pattern of variation, and developing a plausible and relevant explanation for the pattern. For a

normal distribution, the following identifiable patterns, shown in Figure 18.22, are commonly observed in

histograms.



Figure 18.21 Histogram with normal distribution.



Figure 18.22 Common histogram patterns.



a. Bell-shaped: A symmetrical shape with a peak in the middle of the range of data.

This is the normal and natural distribution of data. Deviations from the bell shape might indicate the

presence of complicating factors or outside influences. While deviations from a bell shape should be

investigated, such deviations are not necessarily bad.

b. Double-peaked (bimodal): A distinct valley in the middle of the range of the data with peaks on either side.

Usually a combination of two bell- shaped distributions, this pattern indicates that two distinct processes

are causing this distribution.

c. Plateau: A flat top with no distinct peak and slight tails on either side.

This pattern is likely to be the result of many different bell shaped distributions with centers spread evenly

throughout the range of data.

d. Comb: High and low values alternating in a regular fashion.

This pattern typically indicates measurement error, errors in the way data were grouped to construct the

histogram, or a systematic bias in the way data were rounded off. A less likely alternative is that this is a

type of plateau distribution.



e. Skewed: An asymmetrical shape in which the peak is off- center in the range of data and the distribution

tails off sharply on one side and gently on the other.

If the long tail extends rightward, toward increasing values, the distribution is positively skewed; a

negatively skewed distribution exists when the long tail extends leftward, toward decreasing values. The

skewed pattern typically occurs when a practical limit, or a specification limit, exists on one side and is

relatively close to the nominal value. In this case, there are not as many values available on the one side

as on the other.

f. Truncated: An asymmetrical shape in which the peak is at or near the edge of the range of the data, and

the distribution ends very abruptly on one side and tails off gently on the other.

Truncated distributions are often smooth bell- shaped distributions with a part of the distribution removed,

or truncated, by some external force.

g. Isolated-peaked: A small, separate group of data in addition to the larger distribution.

This pattern is similar to the doublepeaked distribution; however, the short bell shape indicates

something that doesn‘t happen very often.

h. Edge-peaked: A large peak is appended to an otherwise smooth distribution.

It is similar to the comb distribution in that an error was probably made in the data. All readings past a

certain point may have been grouped into one value.


Figure 18.22 Common histogram patterns.


Normal and natural

distribution of data

This pattern indicates that two

distinct processes are

causing this distribution.

Pattern typically occurs when a

practical limit, or a specification limit,

exists on one side and is relatively

close to the nominal value.

Truncated distributions are often

smooth bell- shaped distributions with

a part of the distribution removed, or

truncated, by some external force.

Result of many different bell shaped

distributions with centers spread evenly

throughout the range of data.

Typically indicates measurement

error. Less likely many plateaus.

This pattern is similar the doublepeaked

distribution; however, the

short bell shape indicates

something that doesn‘t happen

very often.

It is similar to the comb distribution in

that an error was probably made in

the data. All readings past a certain

point may have been grouped into

one value.



No rules exist to explain pattern variation in every situation. The three most important characteristics are:

• centering (central tendency),

• width (spread, variation, scatter, dispersion), and

• shape (pattern).

If no discernible pattern appears to exist, the distribution may not be normal, and the data may actually be

distributed according to some other distribution, such as exponential, gamma, or uniform. Analysis of

distributions of these types is beyond the scope of this text, and further information should be sought from

specialized statistics texts. All the topics in the remainder of this chapter are normally addressed by the auditee,

but the auditor should have the knowledge to evaluate the auditee‘s improvement programs. Effective

implementation and maintenance of improvement programs is critical to the ongoing success of the

organization.


Gamma Distributions

In probability theory and statistics, the gamma distribution is a two-parameter family of continuous probability

distributions. The exponential distribution, Erlang distribution, and chi-squared distribution are special cases of

the gamma distribution. There are three different parametrizations in common use:

• With a shape parameter k and a scale parameter θ.

• With a shape parameter α = k and an inverse scale parameter β = 1/θ, called a rate parameter.

• With a shape parameter k and a mean parameter μ = kθ = α/β.

In each of these three forms, both parameters are positive real numbers.

Probability density function

Cumulative distribution function

https://en.wikipedia.org/wiki/Gamma_distribution




Root Cause Analysis (RCA).

Although an effort to solve a problem may utilize many of the tools, involve the appropriate people, and result

in changes to the process, if the order in which the problemsolving actions occur isn‘t logically organized and

methodical, much of the effort is likely to be wasted. In order to ensure that efforts are properly guided, many

organizations create or adopt one or more models—a series of steps to be followed—for all such projects.

More <strong>Reading</strong>:

https://www.slideshare.net/oeconsulting/root-cause-analysis-by-operational-excellence-consulting

https://www.slideserve.com/issac/root-cause-analysis-presented-by-team-incredibles


Part VA

http://www.prosolve.co.nz/root-cause-analysis/



Root Cause Analysis (RCA)


Root Cause Analysis (RCA)

https://www.slideshare.net/oeconsulting/root-cause-analysis-by-operational-excellence-consulting



Affinity Diagram

The affinity diagram is a business tool used to organize ideas and data. It is one of the Seven Management and

Planning Tools. People have been grouping data into groups based on natural relationships for thousands of

years; however, the term affinity diagram was devised by Jiro Kawakita in the 1960s and is sometimes referred

to as the KJ Method.

The tool is commonly used within project management and allows large numbers of ideas stemming from

brainstorming to be sorted into groups, based on their natural relationships, for review and analysis. It is also

frequently used in contextual inquiry as a way to organize notes and insights from field interviews. It can also

be used for organizing other freeform comments, such as open-ended survey responses, support call logs, or

other qualitative data.

Process

The affinity diagram organizes ideas with following steps:

• Record each idea on cards or notes.

• Look for ideas that seem to be related.

• Sort cards into groups until all cards have been used.

Once the cards have been sorted into groups the team may sort large clusters into subgroups for easier

management and analysis. Once completed, the affinity diagram may be used to create a cause and effect

diagram.

In many cases, the best results tend to be achieved when the activity is completed by a cross-functional team,

including key stakeholders. The process requires becoming deeply immersed in the data, which has benefits

beyond the tangible deliverables.

https://en.wikipedia.org/wiki/Affinity_diagram



http://gantt-chart-excel.com/tag/the-starbucks-menu-example





Template

https://slidemodel.com/templates/split-arrows-diagram-template-powerpoint/




• Seven-step Problem- Solving Model

Problem solving is about identifying root causes that have caused the problem to occur and taking actions to

alleviate those causes. Following is a typical problemsolving process model and some possible activities and

rationale for each step:

1. Identify the problem

This step involves making sure that everyone is focused on the same issue. It may involve analysis of data to

determine which problem should be worked on and writing a problem statement that clearly defines the exact

problem to be addressed and where and when it occurred. A flowchart might be used to ensure that everyone

understands the process in which the problem occurs.

2. List possible root causes

Before jumping to conclusions about what to do about the problem, it is useful to look at the wide range of

possibilities. Brainstorming and cause- and-effect analysis are often used.

3. Search out the most likely root cause

This stage of the process requires looking for patterns in failure of the process. Check sheets might be used to

record each failure and supporting information, or control charts may

be used to monitor the process in order to detect trends or special causes.

4. Identify potential solutions

Once it is fairly certain that the particular root cause has been found, a list of possible actions to remedy it

should be developed. This is a creative part of the problemsolving process and may rely on brainstorming as

well as input from specialists who may have a more complete understanding of the technology involved.



5. Select and implement a solution

After identifying several possible solutions, each should be evaluated as to its potential for success, cost and

timing to implement, and other important criteria. Simple processes such as ranking or multivoting, or more

scientific analysis using a matrix, are likely to be used in the selection process.

6. Follow up to evaluate the effect

All too often problemsolving efforts stop after remedial action has been taken. As with any good corrective

action process, however, it is necessary that the process be monitored after the solution has been

implemented. Control charts or Pareto diagrams are tools used to determine whether the problem has been

solved. Possible findings might be that there was no effect (which may mean the solution wasn‘t properly

implemented, the solution isn‘t appropriate for the root cause, or the real root cause wasn‘t found), a partial

effect, or full resolution of the problem. If there was no effect, then the actions taken during the previous steps

of the problemsolving model need to be reviewed in order to see where an error may have occurred.

7. Standardize the process

Even if the problem has been resolved, there is one final step that needs to occur. The solution needs to be

built into the process (for example, poka-yoke, training for new employees, updating procedures) so that it will

continue to work once focused attention on the problem is gone. A review to see what was learned from the

project is also sometimes useful.


Possible findings might be that there was no effect (which may mean the solution

wasn‘t properly implemented, the solution isn‘t appropriate for the root cause, or the

real root cause wasn‘t found), a partial effect, or full resolution of the problem. If

there was no effect, then the actions taken during the previous steps of the problemsolving

model need to be reviewed in order to see where an error may have occurred.

https://www.slideshare.net/agnihotry/rca-for-beginners




• Five Whys

Throughout most problem solving there is usually a significant amount of effort expended in trying to

understand why things happen the way they do. Root cause analysis requires understanding how a system or

process works, and the many complex contributors, both technical and human. One method for getting to root

causes is to repeatedly ask ―why?‖ For example, if a car doesn‘t start when the key is turned, ask ―why?‖ Is it

because the engine doesn‘t turn over or because when it does turn over, it doesn‘t begin running on its own? If

it doesn‘t turn over, ask ―why?‖ Is it because the battery is too weak or because the starter is seized up? If it‘s

because the battery is too weak, ask ―why?‖ Is it because the temperature outside is extremely cold, that the

battery cables are loose, or because an internal light was left on the previous evening and drained the battery?

Although this is a simple example, it demonstrates the process of asking why until the actual root cause is

found. It is called the five whys since it will often require asking why five times or more before the actual root

cause is identified. The use of data or trials can help determine answers at each level. Figure 18.23 is adapted

from a healthcare facility application.



Figure 18.23 Five whys.



Plan-do-check-act (PDCA/PDSA) Cycle

The seven- step problemsolving model presented earlier is actually nothing more than a more detailed version

of a general process improvement model originally developed by Walter Shewhart. The plan–do–check–act

(PDCA) cycle was adapted by W. Edwards Deming as the plan–do–study–act (PDSA) cycle, emphasizing the

role of learning in improvement. In both cases, action is initiated by developing a plan for improvement,

followed by putting the plan into action. In the next stage, the results of the action are examined critically. Did

the action produce the desired results? Were any new problems created? Was the action worthwhile in terms of

cost and other impacts? The knowledge gained in the third step is acted on. Possible actions include changing

the plan, adopting the procedure, abandoning the idea, modifying the process, amplifying or reducing the scope,

and then beginning the cycle all over again. Shown in Figure 18.24, the PDCA/PDSA cycle captures the core

philosophy of continual improvement.



Figure 18.24 PDCA/PDSA cycle.



SIPOC Analysis

Problem-solving efforts are often focused on remedying a situation that has developed in which a process is not

operating at its normal level. Much of continual improvement, however, involves improving a process that may

be performing as expected, but where a higher level of performance is desired. A fundamental step in improving

a process is to understand how it functions from a process management perspective. This can be seen through

an analysis of the process to identify the supplier–input–process–output–customer (SIPOC) linkages (see

Figure 18.25).

SIPOC analysis begins with defining the process of interest and listing on the right side the outputs that the

process creates for customers, who are also listed. Suppliers and the inputs they provide to enable the process

are similarly shown on the left side. Once this fundamental process diagram is developed, two additional items

can be discussed—measures that can be used to evaluate performance of the inputs and outputs, and the

information and methods necessary to control the process.



Figure 18.25 SIPOC diagram.



SIPOC

In process improvement, a SIPOC (sometimes COPIS) is a tool that summarizes the inputs and outputs of one

or more processes in table form.

The acronym SIPOC stands for suppliers, inputs, process, outputs, and customers which form the columns of

the table. It was in use at least as early as the total quality management programs of the late 1980s[a] and

continues to be used today in Six Sigma, lean manufacturing, and business process management.

To emphasize putting the needs of the customer foremost, the tool is sometimes called COPIS and the process

information is filled in starting with the customer and working upstream to the supplier.

The SIPOC is often presented at the outset of process improvement efforts such as Kaizen events or during the

"define" phase of the DMAIC process. It has three typical uses depending on the audience:

• To give people who are unfamiliar with a process a high-level overview

• To reacquaint people whose familiarity with a process has faded or become out-of-date due to process

changes

• To help people in defining a new process

Several aspects of the SIPOC that may not be readily apparent are:

• Suppliers and customers may be internal or external to the organization that performs the process.

• Inputs and outputs may be materials, services, or information.

• The focus is on capturing the set of inputs and outputs rather than the individual steps in the process.

Meanings:

COPIS, customer, output, process, input, supplier

KAIZEN: Kaizen ( 改善 ) is the Japanese word for "improvement". In business, kaizen refers to activities that continuously improve all functions and involve all employees from the CEO to the assembly line workers. It also applies to processes, such

as purchasing and logistics, that cross organizational boundaries into the supply chain.[1] It has been applied in healthcare,[2] psychotherapy,[3] life-coaching, government, and banking. By improving standardized programmes and processes, kaizen aims to

eliminate waste (see lean manufacturing). Kaizen was first practiced in Japanese businesses after World War II, influenced in part by American business and quality-management teachers, and most notably as part of The Toyota Way. It has since spread

throughout the world and has been applied to environments outside business and productivity. https://en.wikipedia.org/wiki/Kaizen


Figure 18.25 SIPOC diagram.

http://jimmypnufc.blogspot.com/2016/03/the-introduction-of-5s-into-cell-culture.html



KAIZEN 改善 .

As part of the Marshall Plan after World War II, American occupation forces brought in experts to help with the rebuilding of Japanese industry while the Civil

Communications Section (CCS) developed a management training program that taught statistical control methods as part of the overall material. Homer

Sarasohn and Charles Protzman developed and taught this course in 1949-1950. Sarasohn recommended W. Edwards Deming for further training in

statistical methods. The Economic and Scientific Section (ESS) group was also tasked with improving Japanese management skills and Edgar McVoy was

instrumental in bringing Lowell Mellen to Japan to properly install the Training Within Industry (TWI) programs in 1951. The ESS group had a training film to

introduce TWI's three "J" programs: Job Instruction, Job Methods and Job Relations. Titled "Improvement in Four Steps" (Kaizen eno Yon Dankai) it thus

introduced kaizen to Japan. For the pioneering, introduction, and implementation of kaizen in Japan, the Emperor of Japan awarded the Order of the Sacred

Treasure to Dr. Deming in 1960.

Implementation

The Toyota Production System is known for kaizen, where all line personnel are expected to stop their moving production line in case of any abnormality and,

along with their supervisor, suggest an improvement to resolve the abnormality which may initiate a kaizen.

The PDCA cycles. The cycle of kaizen activity can be defined as: "Plan → Do → Check → Act". This is also known as the Shewhart cycle, Deming cycle, or

PDCA.

https://en.wikipedia.org/wiki/Kaizen




1910 Ginza

http://www.oldtokyo.com/ginza-crossing/

https://2.bp.blogspot.com/-5Pg1vrux_XQ/Vz9p-EYKbXI/AAAAAAACNDA/0Z8B1H5X1lgN78zu1E2dOsyWIGA07YUJACLcB/s1600/Tokyo-1950s-9.jpg



1950 Tokyo

https://2.bp.blogspot.com/-5Pg1vrux_XQ/Vz9p-EYKbXI/AAAAAAACNDA/0Z8B1H5X1lgN78zu1E2dOsyWIGA07YUJACLcB/s1600/Tokyo-1950s-9.jpg



1948 Tokyo

Wako building at Ginza Crossing


Part VB

Chapter 19

Process Improvement Techniques/

Part VB

_________________________

VB1. Six Sigma σ and The DMAIC Model

Statistically speaking, sigma σ is a term indicating to what extent a process varies from perfection. The quantity

of units processed divided into the number of defects actually occurring, multiplied by one million results in

defects per million.

Adding a 1.5 sigma shift in the mean results in the following defects per million:

1 sigma = 690,000 defects per million




5 sigma = 230 defects per million

6 sigma = 3.4 defects per million

While much of the literature refers to defects relative to manufactured products, Six Sigma may be used to

measure material, forms, a time frame, distance, computer program coding, and so on. For example: if the cost

of poor quality, at a four sigma level, represented 15 percent to 20 percent of sales revenue, an organization

should be concerned.


Part VB1

Six Sigma, as a philosophy, translates to the organizational belief that it is possible to produce totally defectfree

products or services—albeit more a dream than a reality for most organizations. With most organizations

operating at about three sigma or below, getting to perfection leaves much work to be done. Motorola initiated

the Six Sigma methodology in the 1980s. General Electric‘s CEO directed their Six Sigma initiative in 1995. Six

Sigma constitutes an evolving set of principles, fundamental practices, and tools—a breakthrough strategy.

The evolving Six Sigma principles are:

1. Committed and strong leadership is absolutely essential—it‘s a major cultural change.

2. Six Sigma initiatives and other existing initiatives, strategies, measures, d practices must be integrated—

Six Sigma must be an integral part of how the organization conducts its business.



3. Quantitative analysis and statistical thinking are key concepts—it‘s data- based managing.

4. Constant effort must be applied to learning everything possible about customers and the marketplace—

intelligence gathering and analysis is critical.

5. The Six Sigma approach must produce a significant payoff in a reasonable time period—real validated

dollar savings is required.

6. A hierarchy of highly trained individuals with verified successes to their credit, often referred to as Master

Black Belts, Black Belts, and Green Belts, are needed to extend the leadership to all organizational levels.

7. Performance tracking, measuring, and reporting systems are needed to monitor progress, allow for course

corrections as needed, and link the Six Sigma approach to the organizational goals, objectives, and plans.

Very often, existing performance tracking, measuring, and reporting systems fail to address the level

where they are meaningful to the people involved.

8. The organization‘s reward and recognition systems must support continuous reinforcement of the people,

at every level, who make the Six Sigma approach viable and successful. Compensation systems

especially need to be reengineered.

9. The successful organization should internally celebrate successes frequently—success breeds success.

10. To further enhance its image, and the self- esteem of its people, the successful organization should widely

publicize its Six Sigma accomplishments and, to the extent feasible, share its principles and practices with

other organizations—be a member of a world- class group of organizations who have committed their

efforts to achieving perfection.


Z Score Calculator

https://www.zscorecalculator.com/




The following list contains fundamental Six Sigma practices and some of the applicable tools, commonly known

by the mnemonic DMAIC, which stands for:

Define the customer and organizational requirements. Management prepares a team charter that includes the

problem statement, scope, goals and objectives, milestones, roles and responsibilities, resources, and project

timelines. In this phase, the customer, core business processes, and issues critical to quality (CTQ) are

identified:

• Data collection tools: check sheets, brainstorming, flowcharts;

• Data analysis tools: cause- and-effect diagrams, affinity diagrams, tree diagrams, root cause analysis;

• Customer data collection and analysis: QFD (quality function deployment), surveys.

Measure what is critical to quality, map the process, establish measurement system, and determine what is

unacceptable (defects). The team gathers data from the targeted process to establish baseline performance,

then benchmarks similar processes or operations in order to define a strategy for achieving objectives:

• Process control tools: control charts;

• Process improvement tools: process mapping, Pareto charts, process benchmarking, TOC (theory of

constraints), risk assessment, FMEA, design of experiments, cost of quality, lean thinking techniques.

Analyze to develop a baseline (process capability). The data collected and process map are used to determine

root causes of defects and opportunities for improvement. A number of statistical tools are used in this phase

to ensure that the underlying issues affecting performance are understood and that the capability can be

improved. The information collected is utilized to determine root causes and to identify opportunities for

improvement:

• Identify root causes of defects;

• Pinpoint opportunities and set objectives.

Meanings:

Mnemonic- assisting or intended to assist the memory.



Improve the process. This phase identifies solutions to problems through the application of advanced statistical

tools and design of experiments. The solutions include performance measurements to ensure that the

improvements are long term:

• Project planning and management

• Training

Control the system through an established process. Having improved and stabilized the process, the resulting

capability is determined. The goal in this phase is to ensure that the process controls are in place to maintain

the improvements attained. This includes updating process and system documentation as well as establishing

ongoing performance measures so that performance gains are not lost.

The DMAIC phases are normally applied to a project. Individuals select or are assigned process improvement

teams (PITs) and apply the Six Sigma approach. Six Sigma program/projects may contribute to corrective

action, preventive action, or innovative actions. Auditors can verify benefits claimed, ensure that the program is

sustained, and provide input for additional improvements using continual improvement assessment techniques.

Acronym:

critical to quality (CTQ)

QFD (quality function deployment)

TOC (theory of constraints)


Tree Diagram

A decision tree is a decision support tool that uses a tree-like graph or model of decisions and their possible

consequences, including chance event outcomes, resource costs, and utility. It is one way to display an

algorithm that only contains conditional control statements. Decision trees are commonly used in operations

research, specifically in decision analysis, to help identify a strategy most likely to reach a goal, but are also a

popular tool in machine learning.

https://en.wikipedia.org/wiki/Decision_tree




An affinity diagram shows the relationships between information, opinions, problems, solutions, and issues by

placing them in related groups. It allows a broad range of ideas to be organized so they can be more effectively

analyzed. It's also known as a KJ diagram. The History of Affinity Diagrams Affinity diagrams were invented by Jiro

Kawakita in the 1960s, who called this diagram the K-J Method. They help prioritize actions and improve group

decision-making when resources are limited. By the 1970s, affinity diagrams were part of what's known as the

Seven Management and Planning Tools, an approach to process improvement used in Total Quality Control in

Japan. Other tools include: interrelationship diagram, tree diagram, prioritization matrix, matrix diagram, process

decision program chart, and activity network diagram.

https://en.wikipedia.org/wiki/Decision_tree




When to use Affinity Diagrams

An Affinity Diagram is useful when you want to:

• Make sense out of large volumes of chaotic data

• Encourage new patterns of thinking. An affinity diagram can break through traditional or entrenched thinking

https://uxdict.io/design-thinking-methods-affinity-diagrams-357bd8671ad4








https://uxdict.io/design-thinking-methods-affinity-diagrams-357bd8671ad4








https://www.nngroup.com/articles/affinity-diagram/




















VB2. Lean

Lean is a strategy for achieving the shortest possible cycle time. Based on the Toyota Production System, lean

manufacturing aims to increase value- added work by eliminating waste and unnecessary process steps,

reducing inventory, reducing product development time, and increasing customer responsiveness while

providing high- quality products as economically and efficiently as possible. The techniques employed are

focused on reducing the time from the receipt of a customer‘s order to its shipment. The goal is to improve

customer satisfaction, throughput time, employee morale, and profitability.

Cycle-Time Reduction

Cycle time is the total amount of time required to complete a process, from the first step to the last. Today‘s

methods for cycle-time reduction came about through Henry Ford‘s early focus on minimizing waste, traditional

industrial engineering techniques (for example, time and motion studies), and the Japanese adaptation of these

methods (often called the Toyota Production System [TPS]) to smaller production run applications. Although

cycle-time reduction is best known for application to production operations, it is equally useful in

nonmanufacturing environments, where person- to-person handoffs, queues of jobs, and facility layout affect

productivity of knowledge workers. To be able to select where best to implement cycle-time reduction requires

a high- level system analysis of the organization to determine where current performance deficits or bottlenecks

are located. The organization‘s overall system has a critical path (the series of steps that must occur in

sequence and take the longest time to complete). Clearly, improving a process that is not on the critical path will

have no real impact on cycle time.



Typical actions to shorten the cycle time of processes include:

1. Removing non-value-adding steps.

2. Speeding up value-adding steps.

3. Integrating several steps of the process into a single step; this often requires expanding the skill level of

employees responsible for the new process and/or providing technical support such as a computer

database.

4. Breaking the process into several smaller processes that focus on a narrower or special product. This work

cell or small business unit concept allows employees to develop customer-product-focused skills and

usually requires collocating ( to set or place together, especially side by side.) equipment and personnel

responsible for the cell.

5. Shifting responsibility to suppliers or customers, or taking back some of the responsibility currently being

performed by suppliers or customers. The practice of modular assembly is a typical example of this

process.

6. Standardizing the product/service process as much as possible, then creating variations when orders are

received; this allows the product to be partially processed, requiring only completion before shipment (for

example, the practice of producing only white sweaters, then dyeing them just prior to shipment).



Other ways of improving cycle times include improving equipment reliability (thereby reducing non-value-added

maintenance downtime), reducing defects (that use up valuable resource time), and reducing unnecessary

inventory. Another fundamental process for improving cycle time is that of simply better organizing the

workplace. (See ―Five S‖ section.)

Reducing cycle time can reduce work-in-process and finished goods inventories, allow smaller production lot

sizes, decrease lead times for production, and increase throughput (decrease overall time from start to finish).

Also, when process steps are eliminated or streamlined, overall quality tends to improve. Because many

opportunities might be identified when beginning the effort to reduce cycle time, a Pareto analysis (discussed

in Chapter 18) can be performed to decide which factors demand immediate attention. Some problems might

be fixed in minutes, whereas others might require the establishment of a process improvement team and take

months to complete. Although lean production is based on basic industrial engineering concepts, it has been

primarily visible to U.S. companies as the Toyota Production System.

The basic premise is that only what is needed should be produced, and it should only be produced when it is

actually needed.

Due to the amount of time, energy, and other resources wasted by how processes and organizations are

designed, however, organizations tend to produce what they think they might need (for example, based on

forecasts) rather than what they actually need (for example, based on customer orders).



Value Stream Mapping

Value stream mapping (VSM) is charting the sequence of movements of information, materials, and production

activities in the value stream (all activities involving the designing, ordering, producing, and delivering of

products and services to the organization‘s customers).

An advantage to this is that a ―before action is taken‖ value stream map depicts the current state of the

organization and enables identification of how value is created and where waste occurs. Plus employees see

the whole value stream rather than just the one part in which they are involved. This improves understanding

and communications, and facilitates waste elimination. A VSM is used to identify areas for improvement. At the

macro level, a VSM identifies waste along the value stream and helps strengthen supplier and customer

partnerships and alliances. At the micro level, a VSM identifies waste:

non-value-added activities and

identifies opportunities that can be addressed with a kaizen blitz

Figures 19.1 and 19.2 are sample value stream maps (macro level and micro level).


Value-stream Mapping

Value-stream mapping is a lean-management method for analyzing the current state and designing a future

state for the series of events that take a product or service from its beginning through to the customer with

reduced lean wastes as compared to current map. A value stream focuses on areas of a firm that add value to a

product or service, whereas a value chain refers to all of the activities within a company. At Toyota, it is known

as "material- and information-flow mapping".

Purpose Of Value Stream Mapping

The purpose of value stream mapping is to identify and remove or reduce "waste" in value streams, thereby

increasing the efficiency of a given value stream. Waste removal is intended to increase productivity by creating

leaner operations which in turn make waste and quality problems easier to identify.

Types Of Waste

Daniel T. Jones (1995) identifies seven commonly accepted types of waste. These terms are updated from the

Toyota production system (TPS)'s original nomenclature:

1. Faster-than-necessary pace: creating too much of a good or service that damages production flow, quality,

and productivity. Previously referred to as overproduction, and leads to storage and lead time waste.

2. Waiting: any time goods are not being transported or worked on.

3. Conveyance: the process by which goods are moved around. Previously referred to as transport, and

includes double-handling and excessive movement.

4. Processing: an overly complex solution for a simple procedure. Previously referred to as inappropriate

processing, and includes unsafe production. This typically leads to poor layout and communication, and

unnecessary motion.

5. Excess Stock: an overabundance of inventory which results in greater lead times, increased difficulty

identifying problems, and significant storage costs. Previously referred to as unnecessary inventory.

6. Unnecessary motion: ergonomic waste that requires employees to use excess energy such as picking up

objects, bending, or stretching. Previously referred to as unnecessary movements, and usually avoidable.

7. Correction of mistakes: any cost associated with defects or the resources required to correct them.

https://en.wikipedia.org/wiki/Value_stream_mapping



Waste Removal Operations

Monden (1994) identifies three types of operations:

• Non-value adding operations (NVA): actions that should be eliminated, such as waiting.

• Necessary but non-value adding (NNVA): actions that are wasteful but necessary under current operating

procedures

• Value-adding (VA): conversion of processing of raw materials via manual labor.

Applications

Value-stream mapping has supporting methods that are often used in Lean environments to analyze and

design flows at the system level (across multiple processes).

Although value-stream mapping is often associated with manufacturing, it is also used in logistics, supply chain,

service related industries, healthcare, software development, product development, and administrative and

office processes.[

In a build-to-the-standard form, Shigeo Shingo suggests that the value-adding steps be drawn across the

centre of the map and the non–value-adding steps be represented in vertical lines at right angles to the value

stream. Thus, the activities become easily separated into the value stream, which is the focus of one type of

attention, and the 'waste' steps, another type. He calls the value stream the process and the non-value streams

the operations. The thinking here is that the non–value-adding steps are often preparatory or tidying up to the

value-adding step and are closely associated with the person or machine/workstation that executes that valueadding

step. Therefore, each vertical line is the 'story' of a person or workstation whilst the horizontal line

represents the 'story' of the product being created.

Value stream mapping is a recognised method used as part of Six Sigma methodologies.




Value-stream mapping usually employs standard symbols to represent items and processes, therefore

knowledge of these symbols is essential to correctly interpret the production system problems.

http://courses.washington.edu/ie337/Value

_Stream_Mapping.pdf




Read More: Value-stream mapping

Pioneered by Toyota in the 1940s, Lean thinking revolutionized the manufacturing industry, improving

collaboration, communication, and flow on production lines. Value stream mapping is the Lean tool Toyota used

to define and optimize the various steps involved in getting a product, service, or value-adding project from start

to finish.

http://courses.washington.edu/ie337/Value_Stream_Mapping.pdf




Figure 19.1 Value stream map—macro level (partial).



Figure 19.2 Value stream map—plant level (partial).



Five S

The Japanese use the term Five S for five practices for maintaining a clean and efficient workplace:

1. Seiri Separate needed tools, parts, and instructions from unneeded materials; remove latter.

2. Seiton Neatly arrange and identify parts and tools for ease of use.

3. Seiso Conduct a cleanup campaign.

4. Seiketsu As a habit, beginning with self, then the workplace, be clean and tidy.

5. Shitsuke Apply discipline in following procedures.

Note: The typical English words for Five S are Sort, Set, Shine, Standardize, Sustain.

Far more than the good things they do, the Five Ss can:

• Build awareness of the concept and principles of improvement

• Set the stage to begin serious waste reduction initiatives

• Break down barriers to improvement, at low cost

• Empower the workers to control their work environment

Sort Set Shine Standardize Sustain



Five S




Visual Management

This method is used to arrange the workplace, all tools, parts, and material, and the production process itself,

so that the status of the process can be understood at a glance by everyone. Further, the intent is to furnish

visual clues to aid the performer in correctly processing a step or series of steps, reduce cycle time, cut costs,

smooth work flow, and improve quality. By seeing the status of the process, both the performer and

management have an up-to-the-second picture of what has happened, what‘s presently happening, and what‘s

to be done. Advantages of visual management are:

• Catches errors and defects before they can occur

• Quick detection enables rapid correction

• Identifies and removes safety hazards

• Improves communications

• Improves workplace efficiency

• Cuts costs

Examples of visual management are:

• Color-coded sectors on meter faces to indicate reading acceptance range, low and high unacceptable

readings

• Electronic counters mounted over work area to indicate rate of accepted finished product

• Work orders printed on colored paper where the color denotes the grade and type of metal to be used

• Lights atop enclosed equipment indicating status of product being processed

• Slots at dispatch station for pending work orders, indicating work to be scheduled (and backlog) and when

the work unit(s) will become idle

• Painted floor and/or wall space with shadow images of the tool, die, or pallet that usually occupies the

space when not in use



Visual Management



Visual Management



Visual Management





Visual Management



Visual Management



Visual Management



Warehouse

Visual

Management



Waste Reduction

Lean production focuses on reducing waste and goes against traditional mass production thinking by defining

waste as anything that does not add value.

Waste is frequently a result of how the system is designed. The Japanese word for waste is muda Examples of

seven types of waste are:

1. Overproduction

• Enlarging number of requirements beyond customers‘ needs

• Including too much detail or too many options in designs

• Specifying materials that require sole- source procurement or that call for seeking economy- of-scale–

oriented procurement

• Requiring batch processing, lengthy and costly setups, or low yield processes

2. Delays, waiting

• Holdups due to people, information, tools, and equipment not being ready

• Delays waiting for test results to know if a part is made correctly

• Unrealistic schedules resulting in backups in manufacturing flow

• Part improperly designed for manufacture, design changes



3. Transportation

• Non-value-added transport of work in process

• Inefficient layout of plant causing multiple transports

• Specifying materials from suppliers geographically located a great distance from manufacturing

facility, resulting in higher shipping costs

4. Processing

• Non-value-added effort expended

• Designers failed to consider production process capabilities (constraints, plant capacities, tolerances

that can be attained, process yield rate, setup time and complexity, worker skills and knowledge,

storage constraints, material handling constraints)

• Designs too complex

• Pulse (takt time) of production flow too high or too low in relation to customer demand

5. Excess inventory

• Stockpiling more materials than are needed to fulfill customer orders —Material handling to store,

retrieve, store . . . as part proceeds in the process

• Unreliable production equipment so safety stock is desired



6. Wasted motion

• Non-value-added movements, such as reaching, walking, bending, searching, sorting

• Product designs that are not manufacturing- friendly

• Requirements for lifting cumbersome and/or heavy parts

• Manufacturing steps that require many positioning- type moves

7. Defective parts

• Corrective actions, looking for root cause

• Scrap

• Downgrading defectives (reducing price, seeking a buyer) in order to recover some of the cost of

manufacture

• Faulty design causing defects

• Excessive tolerances creating more defectives



Inventories (buffer stock and batch and queue processing) can be a huge waste.

Consider this example:

The objective is to complete 200 pieces.

• The process consists of three operations of 10 seconds each. If the 200 pieces are processed as a batch,

the total cycle time is 6000 seconds (200 × 30 seconds).

• In a single-piece flow mode, there is no accumulation of material between steps. Cycle time is 30 seconds

for a single piece (approximately 2000 seconds total). The reduction in total cycle time is 67 percent. Work

in process has also been reduced from 600 pieces to 3 pieces.

Analyses of processes for waste usually involve diagrams that show the flow of materials and people and

document how much time is spent on value-added versus non-value- added activity.

The objective is to complete 200 pieces.

• The process consists of three operations of 10 seconds each. If the 200 pieces are processed

as a batch, the total cycle time is 6000 seconds (200 × 30 seconds).

• In a single-piece flow mode, there is no accumulation of material between steps. Cycle time is

30 seconds for a single piece (approximately 2000 seconds total). The reduction in total cycle

time is 67 percent. Work in process has also been reduced from 600 pieces to 3 pieces.



Cycle time is affected by both visible and invisible waste.

Examples of visible waste are:

• Out-of-spec incoming material. For example, an invoice from a supplier has incorrect pricing or aluminum

sheets are the wrong size.

• Scrap. For example, holes are drilled in the wrong place or shoe soles are improperly attached.

• Downtime. For example, school bus is not operable or process 4 cannot begin because of backlog at 3.

• Product rework. For example, failed electrical continuity test or customer number is not coded on invoice.

Examples of invisible waste are:

• Inefficient setups. For example, jig requires frequent retightening or incoming orders not sorted correctly for

data entry.

• Queue times of work in process. For example, an assembly line is not balanced to eliminate bottlenecks

(constraints) or an inefficient loading zone protocol slows school bus unloading, causing late classes.



• Unnecessary motion. For example, materials for assembly are located out of easy reach or workers need to

bring each completed order to dispatch desk.

• Wait time of people and machines. For example, utility crew (three workers and truck) waiting until a parked

auto can be removed from work area or planes are late in arriving due to inadequate scheduling of available

terminal gates.

• Inventory. For example, obsolete material returned from distributor‘s annual clean- out is placed in inventory

anticipating possibility of a future sale or, to take advantage of quantity discounts, a year‘s supply of paper

bags is ordered and stored.

• Movement of material, work in progress (WIP), and finished goods. For example, in a function- oriented

plant layout, WIP has to be moved from 15 to 950 feet to next operation or stacks of files are constantly

being moved about to gain access to filing cabinets and machines.

• Overproduction. For example, because customers usually order the same item again, an overrun is

produced to place in inventory just in case or extras are made at earlier operations in case they are needed

in subsequent operations.

• Engineering changes. For example, problems in production necessitate engineering changes or failure to

clearly review customer requirements causes changes.

• Unneeded reports. For example, a report initiated five years ago is still produced each week even though

the need was eliminated four years ago or a hard copy report duplicates the same information available on

a computer screen.

• Meetings that add no value. For example, a morning production meeting is held each day whether or not

there is a need (coffee and danish is served) or 15 people attend a staff meeting each week where one of

the two hours is used to solve a problem usually involving less than one-fifth of the attendees.

• Management processes that take too long or have no value. For example, all requisitions (even for paper

clips) must be signed by a manager or a memo to file must be prepared for every decision made between

one department and another.



Mistake-Proofing

Mistake-proofing originated in Japan as an approach applied to factory processes. It was perfected by Shigeo

Shingo as poka-yoke. It is also applicable to virtually any process in any context. For example, the use of a

spellchecker in composing text on a computer is an attempt to prevent the writer from making spelling errors

(although we have all realized it isn‘t foolproof). This analytical approach involves probing a process to

determine where human errors could occur. Then each potential error is traced back to its source.

From these data, consider ways to prevent the potential error. Eliminating the step is the preferred alternative. If

a way to prevent the error cannot be identified, then look for ways to lessen the potential for error. Finally,

choose the best approach possible, test it, make any needed modifications, and fully implement the approach.

Mistakes may be classified into four categories:

• Information errors

• Information is ambiguous

• Information is incorrect

• Information is misread, misinterpreted, or mis-measured

• Information is omitted

• There‘s inadequate warning



• Misalignment

• Parts are misaligned

• A part is misadjusted

• A machine or process is mistimed or rushed

• Omission or commission

• Material or part is added

• Prohibited and/or harmful action is performed

• Operation is omitted

• Parts are omitted, so there‘s a counting error

• Selection errors

• A wrong part is used

• There is a wrong destination or location

• There‘s a wrong operation

• There‘s a wrong orientation

Mistake-proofing actions are intended to:

• Eliminate the opportunity for error

• Detect potential for error

• Prevent an error



Let’s Look at Some Examples.

1. In the first situation, a patient is required to fill out forms at various stages of diagnosis and treatment (the

ubiquitous clipboard treatment). The patient is prone to making errors due to the frustration and added

anxiety of filling out subsequent forms. After analyzing the situation, the solution is to enter initial patient

data into a computer at first point of patient‘s arrival. Add to the computer record as the patient passes

through the different stages with different doctors and services. When referrals are made to doctors

outside the initial facility, send an electronic copy of the patient‘s record (e-mail) to the referred doctor.

Except to correct a previous entry, the intent is to never require the patient to furnish the same data more

than once. Considering the four types of mistakes, we can see that information was omitted or incorrectly

entered at subsequent steps. The solution eliminates resubmitting redundant data.

2. In the second example, a low- cost, but critical part is stored in an open bin for access by any operator in

the work unit. While there is a minimum on-hand quantity posted and a reorder card is kept in the bin, the

bin frequently is empty before anyone takes notice. The mistake is that there‘s inadequate warning in

receiving vital information. The solution is to design and install a spring- loaded bin bottom that is calibrated

to trigger an alarm buzzer and flashing light when the minimum stock level is reached. The alarm and light

will correct the mistake.

3. In the last example, there is a potential to incur injury from the rotating blades when operators of small

tractor- mowers dismount from a running tractor. The solution is to install a spring- actuated tractor seat

that shuts off the tractor motor as soon as weight is removed. Using this tractor seat will prevent a harmful

action. Careful elimination, detection, and prevention actions can result in near 100 percent quality.

Unintended use, ignorance, or willful misuse or neglect by humans may still circumvent safeguards,

however. For example, until operating a motor vehicle is prevented until all seatbelts are securely fastened,

the warning lights and strict law enforcement alone won‘t achieve 100 percent effectiveness. Continually

improve processes and mistake- proofing efforts to strive for 100 percent.


https://www.slideshare.net/timothywooi/pokayoke-a-lean-strategy-to-mistake-proofing



No Human Error.

https://www.slideshare.net/timothywooi/pokayoke-a-lean-strategy-to-mistake-proofing




Setup/Changeover Time Reduction

The long time required to change a die in a stamping operation meant that a longer production run would be

required to absorb the downtime caused by the changeover. To address this, the Japanese created a method

for reducing setup times called single minute exchange of die (SMED), also referred to as rapid exchange of

tooling and dies (RETAD). Times required for a die change were dramatically reduced, often reducing

changeover time from several hours to minutes.

To improve setup/changeover times, initiate a plan–do–check–act approach:

1. Map the processes to be addressed. (Videotaping the setup/changeover process is a useful means for

identifying areas for improvement.)

2. Collect setup data times for each process.

3. Establish setup time reduction objectives.

4. Identify which process is the primary overall constraint (bottleneck). Prioritize remaining processes by

magnitude of setup times, and target next process by longest time.

5. Remove non- value-adding activities from the targeted process (for example, looking for tools required for

the changeover).

Trischler lists dozens of non- value-added activities, most of which are applicable in a variety of industries

and processes. Note that there are some steps that fit the non-value-added category that cannot actually

be removed, but can be speeded up.



6. Identify setup steps that are internal (steps the machine operator must perform when the machine is idle)

versus steps that are external (steps that can be performed while the machine is still running the previous

part; for example, removing the fixture or materials for the next part from storage and locating them near

the machine).

Internal set-up step: steps the machine operator must perform when the machine is idle.

External set-up step: steps that can be performed while the machine is still running the previous part.

7. Focus on moving internal steps to external steps where possible.

8. Identify setup activities that can be done simultaneously while the machine is down (the concept of an auto

racing pit crew).

9. Speed up required activities.

10. Standardize changeover parts (for example, all dies have a standard height, all fasteners require the same

size wrench to tighten).

11. Store setup parts (dies and jigs) on portable carts in a position and at the height where they can be readily

wheeled into place at the machine and the switchover accomplished with minimum movement and effort.

12. Store all setup tools to be used in a designated place within easy reach (for example, visual shadow areas

on a portable tool cart).

13. Error-proof the setup process.

14. Evaluate the setup/changeover process and make any modifications needed.

15. Return to step 4 and repeat sequence until all setup times have been improved.

16. Fully implement setup/changeover procedures.

17. Evaluate effectiveness of setup/changeover time reduction efforts against objectives set in step 3.

18. Collect setup time data periodically and initiate improvement effort again; return to step 1.



Spiral Welded API Pipe mill



Total Productive Maintenance

Maintenance typically may follow one of the following scenarios:

• Equipment is repaired when it routinely produces defectives. Maintenance is left to the maintenance crew‘s

discretion. (Fix it when it breaks.)

• Equipment fails and maintenance is performed while the equipment is down for repairs. (Maintenance if and

when the opportunity presents itself.)

• Equipment maintenance is on a predetermined schedule based on equipment manufacturer‘s

recommendations or all maintenance is scheduled to be done during the annual plant shutdown (preventive

maintenance).

• Operators are trained to recognize signs of deterioration (wear, loose fixtures and fasteners, missing bolts

and nuts, accumulated shavings from the process, accumulated dirt and dust, over or under lubrication,

excessive operating noise, excess vibration, spilled coolants, leaks, clogged drains, valves and switches

not working correctly, tooling showing signs of excessive wear, increasing difficulty in maintaining

tolerances) and act to eliminate or reduce the conditions (autonomous maintenance).

• Statistical analysis is used to determine the optimum time between failures. The equipment is scheduled for

maintenance at a reasonable interval before failure is likely to occur (predictive maintenance).

• Maintenance is eliminated or substantially reduced by improving and redesigning the equipment to require

low or no maintenance (maintenance prevention).



Total productive maintenance (TPM) is an organization- wide effort aimed at reducing loss due to equipment

failure, slowing speed, and defects. TPM is critical to a lean operation in that there is minimum to no buffer

stock to counter the effect of equipment malfunctions and downtime. The purposes of TPM are to:

• Achieve the maximum effectiveness of equipment

• Involve all equipment operators in developing maintenance skills

• Improve the reliability of equipment

• Reduce the size and cost of a maintenance staff

• Avoid unplanned equipment downtime and its associated costs

• Achieve an economic balance between prevention costs and total costs while reducing failure costs



Total productive maintenance (TPM)

Involve all equipment operators in developing maintenance skills




- Involve all equipment operators in developing maintenance skills




- Involve all equipment operators in developing maintenance skills



Management‘s role in TPM is to:

• Enthusiastically sponsor and visibly support the TPM initiative

• Provide for documented work instructions to guide operators‘ TPM activities

• Provide for the training operators need to perform maintenance and minor repairs of the equipment

assigned to them

• Provide for the resources operators need (special tools, cleaning supplies)

• Provide for the operators‘ time to perform TPM activities

• Adjust the compensation system as necessary to reinforce operators‘ TPM performance

• Provide for establishing the metrics that are used to monitor and continually improve TPM, including

developing the economic case for TPM

• Provide for appropriate and timely operator performance feedback and recognition for work done well

relative to TPM activities



Kaizen Blitz/Event

Kaizen is a Japanese word 改善 . It has come to mean a continual and incremental improvement (as opposed

to reengineering, which is a breakthrough, quantum- leap approach).

A kaizen blitz or kaizen event is an intense process often lasting three to five consecutive days. It introduces

rapid change into an organization by using the ideas and motivation of the people who do the work. It has also

been called zero investment improvement. In a kaizen event, a cross- functional team focuses on a target

process, studies it, collects and analyzes data, discusses improvement alternatives, and implements changes.

The emphasis is on making the process better, not necessarily perfect. Sub-processes that impact cycle time

are a prime target on which to put the synergy of a kaizen team to work.

The typical stages of a kaizen event are:

• Week before blitz

• Wednesday Train three or four facilitators in kaizen blitz techniques and tools, as well as enhance

their facilitation skill level.

• Thursday Target the process to be addressed.

• Friday Gather initial data on the present targeted process.

• Blitz week

• Monday Train the participants in kaizen blitz techniques and tools.

• Tuesday Training (AM), process mapping present state (PM).

• Wednesday Process mapping future state. Eliminating non-value added steps and other waste.

Eliminating bottlenecks. Designing new process flow.

• Thursday Test changes, modify as needed.

• Friday Implement the new work flow, tweak the process, document the changes, and be ready for fullscale

production on Monday. Prepare follow- up plan.

• Post blitz

• Conduct follow- up evaluation of change (at an appropriate interval). — Plan the next blitz.



Kaizen Blitz

The Blitz was a German bombing offensive against Britain in 1940 and 1941, during the Second World War. The

term was first used by the British press and is the German word for 'lightning'.


Me 262-Blitz

The Messerschmitt Me 262, nicknamed Schwalbe (German: "Swallow") in fighter versions, or Sturmvogel (German: "Storm

Bird") in fighter-bomber versions, was the world's first operational jet-powered fighter aircraft. Design work started before World

War II began, but problems with engines, metallurgy and top-level interference kept the aircraft from operational status with the

Luftwaffe until mid-1944. The Me 262 was faster and more heavily armed than any Allied fighter, including the British jet-powered

Gloster Meteor.[5] One of the most advanced aviation designs in operational use during World War II,[6] the Me 262's roles

included light bomber, reconnaissance and experimental night fighter versions.

https://en.wikipedia.org/wiki/Messerschmitt_Me_262



V2 Rocket-Blitz

The V-2 (German: Vergeltungswaffe 2, "Retribution Weapon 2"), technical name Aggregat 4 (A4), was the world's first longrange[4]

guided ballistic missile. The missile, powered by a liquid-propellant rocket engine, was developed during the Second

World War in Germany as a "vengeance weapon", assigned to attack Allied cities as retaliation for the Allied bombings against

German cities. The V-2 rocket also became the first man-made object to travel into space by crossing the Kármán line with the

vertical launch of MW 18014 on 20 June 1944.

https://en.wikipedia.org/wiki/Messerschmitt_Me_262




Kanban 看板

This method is used in a process to signal an upstream supplier (internal or external) that more material or

product is needed downstream. Originally it was just a manual card system, but has evolved to more

sophisticated signaling methods for some organizations. It is referred to as a pull system because it serves to

pull material or product from a supplier rather than relying on a scheduling system to push the material or

product forward at predetermined intervals. It is said that the kanban method was inspired by Toyota‘s Taiichi

Ohno‘s visit to a U.S. supermarket.



Kanban 看板 - War Room



Kanban 看板 - War Room



Just-in-time

Just-in-time (JIT) is a material requirements planning system that provides for the delivery of material or product

at the exact time and place where the material or product will be used. Highly coordinated delivery and

production systems are required to match delivery to use times. The aim is to eliminate or reduce on- hand

inventory (buffer stock) and deliver material or product that requires no or little incoming inspection.


Just-in-time- an Inventory Lean Strategy.

Just-In-Time (JIT): in lean manufacturing , JIT is very important as it means to supply at the right time the right

product with the right quantity etc. In football game , supplying the ball to the right person at the right time with

the right force will surely helps in winning the game. JIT, a methodology aimed primarily at reducing flow times

within production system as well as response times from suppliers and to customers, denotes a manufacturing

system in which materials or components are delivered immediately before they are required in order to

minimize inventory costs. JIT, a production model in which items are created to meet demand, not created in

surplus or in advance of need, is an inventory strategy companies employ to increase efficiency and decrease

waste by receiving goods only as they are needed in the production process, thereby reducing inventory costs.

https://www.crcpress.com/authors/news/i3151-happy-new-year-hansei-on-lean-manufacturing-at-new-years-eve




Takt Time

Takt time is the total work time available (per day or per shift) divided by the demand requirements (per day or

per shift) of customers. Takt time establishes the production pace relative to the demand. For example, let‘s say

customer orders (demand) average 240 units per day. The production line runs on one shift (480 minutes) per

day; so takt time is two minutes. To meet demand one unit must be completed every two minutes. Figure 19.3

shows an analysis of actual time versus takt time for a process consisting of four operations.

Takt time is the average time between the start of production of one unit and the start of production of the next

unit, when these production starts are set to match the rate of customer demand. For example, if a customer

wants 10 units per week, then, given a 40-hour work week and steady flow through the production line, the

average time between production starts should be 4 hours (actually less than that in order to account for things

like machine downtime and scheduled paid employee breaks), yielding 10 units produced per week. Note, a

common misconception is that takt time is related to the time it takes to actually make the product. In fact, takt

time simply reflects the rate of production needed to match the demand. In the previous example, whether it

takes 4 minutes or 4 years to produce the product, the takt time is based on customer demand. If a process or

a production line are unable to produce at takt time, either demand leveling, additional resources, or process reengineering

is needed to correct the issue.

https://en.wikipedia.org/wiki/Takt_time



Figure 19.3 Takt time analysis.



Line Balancing

Line balancing is the method of proportionately distributing workloads within the value stream to meet takt time.

The analysis begins with the current state. A balance chart of work steps, time requirements, and operators for

each workstation is developed. It shows improvement opportunities by comparing the time of each operation to

takt time and total cycle time. Formulae are used to establish a proposed- state balanced line.


Line Balancing (Production and Operations Management)

―Line Balancing‖ in a layout means arrangement of machine capacity to secure relatively uniform flow at

capacity operation. It can also be said as ―a layout which has equal operating times at the successive

operations in the process as a whole‖. Product layout requires line balancing and if any production line remains

unbalanced, machinery utilization may be poor. Let us assume that there is a production line with work stations

x, y and z. Also assume that each machine at x, y and z can produce 200 items, 100 items, and 50 items per

hour respectively. If each machine were to produce only 50 items per hour then each hour the machines at x

and y would be idle for 45 and 30 minutes respectively. Such a layout will be unbalanced one and the

production line needs balancing. http://www.businessmanagementideas.com/industries/plant-layout/line-balancing-meaning-and-methods/6784

http://www.me.nchu.edu.tw/lab/CIM/www/courses/Flexible%20Manufacturing%20Systems/Microsoft%20Word%20-%20Chapter8F-ASSEMBLY%20SYSTEMS%20AND%20LINE%20BALANCING.pdf



Line Balancing (Production and Operations Management)

a. Suppose that a five station line had station process times of 1 min at all but the fifth station is 2 minutes.

b. Then the production rate Rc = 30 units/hr, if two station were arranged in parallel at the fifth station, the

output could be increase Rc = 60 units/hr.

http://www.me.nchu.edu.tw/lab/CIM/www/courses/Flexible%20Manufacturing%20Systems/Microsoft%20Word%20-%20Chapter8F-ASSEMBLY%20SYSTEMS%20AND%20LINE%20BALANCING.pdf




Standardized Work

Standardized work consists of agreed-to work instructions that utilize the best known methods and sequence

for each manufacturing or assembly process. Establishing standardized work supports productivity

improvement, high quality, and safety of workers.



Single-piece Flow

One-piece flow is a product moving through the process one unit at a time. This approach differs from batch

processing that produces batches of the same item at a time, moving the product through the process batch by

batch. Advantages of single-piece flow are:

• It cuts the elapsed time between the customer‘s order and shipment of the order;

• It reduces or eliminates wait time delays between processing of batches;

• It reduces inventory, labor, energy, and space required by batch- and-queue processing;

• It reduces product damage caused by handling and temporary storing of batches;

• It enables the detection of quality problems early in the process;

• It allows for flexibility in meeting customer demands;

• It enable identification of non-value-added steps, thereby eliminating waste.


Single Piece Flow

For the ease of understanding, this author is using the word ‗piece‘ to mean (in the generic sense) the making of a tangible

product. It could be an ice cream cone, a widget, or an automobile. One of the tenets of lean is single piece flow. Instead of

building up a stack of inventory between the steps in the process, the idea with single piece flow (also known as one piece flow),

is to build at the pulse rate of customer demand. This pulse rate of customer demand, known as takt time, ebbs and flows over

time. With single piece flow, the idea is to make a piece only when the customer asks for one.

https://www.gembaacademy.com/promos/one-piece-flow-simulation



Single-Piece Flow.

Benefits of One Piece Flow and How It Is Implemented.

In ―One piece flow‖ production, the product transfers from one phase to the next phase with one piece at a time. This approach is different from lot production where a number of units are prepared at an agreed stage and then every unit is moved to the next level at the same time. One piece movement is encouraged by majority of the operational excellence practitioners.

Benefits of One Piece Flow

The manufacturer can enjoy lots of benefits by implementing one piece flow as no idle time is there between the units.

Minimize Financial Loss

The piece that is completed first cannot transfer to the next stage with lot production until the last piece is finished in the lot. So in that scenario it is quite evident that first piece remains unusable until the full lot is processed. One piece flow also allows the manufacturer to stop the production process earlier in case of any defect and the problem can be fixed. Moreover, the defect happens just because of that existing unit. The defect can be avoided in the next units all together because the problem is fixed immediately by the manufacturer. In this way the manufacturer is able to save any kind of financial loss.

Improves Flexibility Level

In addition to that, one piece flow improves the flexibility level in a great way because it is quicker as compared to batch and queue. Due to the factors of the one piece flow being faster, it is possible to wait longer to plan the order and yet deliver in time. Consequently, it allows us to comply with last minutes changes from the customer and as it‘s very common that despite of the industry we work in customers love to change their preferences. Sampling inspection takes place after the production of a certain step with lot production. If a defect is yielded during inspection then the complete lot is suspected. In order to find that defect all parts must be reviewed in the lot because we can expect more defects in the lot.

Minimize Wastes

If an organization wants to get rid of the eight categories of waste then all individual activities process must be united and synchronized by implementing one piece flow. To accomplish this purpose there will be need of improved designs so that the travel distance between successive operations can be reduced. In the implementation of one piece flow the most common approach is known as Work Cell. Workstations are moved near to each other for decreasing transport between them. In a conventional plant setting the manufacturing departments carry out specific tasks including grinding, welding, fabrication, drilling, and assembly by utilizing its specific workforce that has got the single skill. The main emphasis of the Work Cell approach is the flow of product and the individuals

manage themselves in accordance with the demands of customer, by altering the method in which work content is separated. On the other hand, the manufacturing cells are intended to offer entire products to an inner work cell or an outside customer. More to the point, work cells execute a number of procedures or tasks and call for multi-skilled workforce who has got the quality of flexibility.

Decreases operator movements

Furthermore, the operator movements are also reduced when the cell is U-shaped and in that case the work cell can be referred as the U-cell as well. So to complete each and every process activities in the least amount of physical space the formation of U-shaped work cells is a must have and most importantly they must be linked. The standards of high-quality work cell design incorporates organizing the work in order, utilizing a flow in counter clockwise, placing machines and processes close as one, and putting the last operation near to the initial operation. For producing the approval for manufacturing the work cell must be planned to achieve line balance with regard to takt time, and Kanban. The work cell employees are authorized by the organization to take all necessary

measures to meet the needs of internal and external customers.

The amount of persons within the cell establishes the quantity of WIP (Work in Process) in the work cell and the cycle time. In some companies the employees face a multifaceted environment where customer demand differs and various production lines are offered for diverse product families. In that case by simply adding up and eliminating people from work cells the principle of Work Cell can be helpful to adjust the cycle times so a proper response to these changes of demands can be complied. Depending on the kind of process, whether or not, work cells can be implemented in two or more workplaces.[

http://www.latestquality.com/one-piece-flow/




Cellular Operations

A work cell is a self- contained unit dedicated to performing all the operations to complete a product or a major

portion of a production run. Equipment is configured to accomplish:

• Sequential processing

• Counterclockwise flow to enable operators to optimize use of their right hands as operators move through

the cell (moving the part to each subsequent operation)

• Shorter movements by close proximity of machines

• Position the last operation close to the first operation for the next part

• Adaptability of cell to accommodate customers‘ varying demands The most prevalent layout is a U shape

(see Figure 19.4), although L, S, and V shapes have been used. Product demand, product mix, and

constraints are all considerations in designing a work cell.



Figure 19.4 Typical U-shape cell layout.



Cellular Flow Manufacturing is a method of organizing manual and machine operations in the most efficient

combination to maximize value-added content and minimize waste.

Cellular Manufacturing Benefits

• Simplified scheduling and communication

• Minimal inventory needed between processes

• Increased visibility

• provide quick feedback and problem resolution

• Development of increased product knowledge

• workers are trained to understand the total process

• Shorter lead times

• Small lots and one piece flow to match customer demand

http://www.webpages.uidaho.edu/mindworks/Lean/Lecture%20Notes/ME%20410%20Lecture%20Slides%2007%20Cell%20Design.pdf




• Concept of performing all of the necessary operations to make a component, subassembly, or finished

product in a work cell.

• Basic assumption is that product or part families exist and that the combined volume of products in the family

justifies dedicating machines and workers to focused work-cells.

• Basic building blocks of cells

• Workstations

• Machines

• Workers

• Tools, gages, and fixtures

• POU materials storage

• Materials handling between

work stations

http://web.utk.edu/~kkirby/IE527/Ch10.pdf



https://youtu.be/WQFvO67oN0k

Published time: 3 Oct, 2018 06:03

https://www.rt.com/usa/440180-trump-saudi-security-two-weeks/



Part VC

Chapter 20

Basic Statistics/Part VC

_________________________

Descriptive statistics furnish a simple method of extracting information from what often seems at first glance to

be a mass of random numbers. These characteristics of the data may relate to:

1. Typical, or central, value (mean, median, mode)

2. A measure of how much variability is present (variance, standard deviation)

3. A measure of frequency (percentiles)

Statistics is concerned with scientific methods for collecting, organizing, summarizing, presenting, and

analyzing data, as well as drawing valid conclusions and making reasonable decisions on the basis of such

analysis. In a narrower sense, the term statistics is used to denote the data themselves or numbers derived

from the data, such as averages.

An auditor must look at how an auditee defines the process and necessary controls, and must establish some

type of measurement system to ensure that the measurements or the process was properly defined. The

auditor looks at the results of what other people have done, and if they used statistical tools, the auditor must

be knowledgeable enough to decide whether the information being gathered from the data is valid.

Descriptive Statistics

The phase of statistics that seeks only to describe and analyze a given group (sample) without drawing any

conclusions or inferences about a larger group (population) is referred to as deductive or descriptive statistics.

Measures of central tendency and dispersion are the two most fundamental concepts in statistical analysis.


Descriptive Statistic

Are numbers that are used to

summarized and descried data.

The word ―Data‖ refers to the

information that has been collected

from experiment, a survey, a

historical record, etc.

Inferential Statistic

In inferential statistic the samples

were set of data taken from the

population to represent the

population. Probability distribution,

hypothesis testing, correlation

testing and regression analysis all

fall under the category of inferential

statistics,

https://www.slideshare.net/ShayanZahid1/descriptive-statistics-and-inferential-statistics



Descriptive Statistics

Descriptive statistics is the term given to the analysis of data that helps describe, show or summarize data in a

meaningful way such that, for example, patterns might emerge from the data. Descriptive statistics do not, however,

allow us to make conclusions beyond the data we have analysed or reach conclusions regarding any hypotheses we

might have made. They are simply a way to describe our data.

Descriptive statistics are very important because if we simply presented our raw data it would be hard to visulize what

the data was showing, especially if there was a lot of it. Descriptive statistics therefore enables us to present the data in

a more meaningful way, which allows simpler interpretation of the data. For example, if we had the results of 100

pieces of students' coursework, we may be interested in the overall performance of those students. We would also be

interested in the distribution or spread of the marks. Descriptive statistics allow us to do this. Typically, there are two

general types of statistic that are used to describe data:

Measures of central tendency: these are ways of describing the central position of a frequency distribution for a group

of data. In this case, the frequency distribution is simply the distribution and pattern of marks scored by the 100

students from the lowest to the highest. We can describe this central position using a number of statistics, including the

mode, median, and mean.

Measures of spread: these are ways of summarizing a group of data by describing how spread out the scores are. For

example, the mean score of our 100 students may be 65 out of 100. However, not all students will have scored 65

marks. Rather, their scores will be spread out. Some will be lower and others higher. Measures of spread help us to

summarize how spread out these scores are. To describe this spread, a number of statistics are available to us,

including the range, quartiles, absolute deviation, variance and standard deviation.

When we use descriptive statistics it is useful to summarize our group of data using a combination of tabulated

description (i.e., tables), graphical description (i.e., graphs and charts) and statistical commentary (i.e., a discussion of

the results).

https://statistics.laerd.com/statistical-guides/descriptive-inferential-statistics.php



Inferential Statistics

We have seen that descriptive statistics provide information about our immediate group of data. For example,

we could calculate the mean and standard deviation of the exam marks for the 100 students and this could

provide valuable information about this group of 100 students. Any group of data like this, which includes all the

data you are interested in, is called a population. A population can be small or large, as long as it includes all

the data you are interested in. For example, if you were only interested in the exam marks of 100 students, the

100 students would represent your population. Descriptive statistics are applied to populations, and the

properties of populations, like the mean or standard deviation, are called parameters as they represent the

whole population (i.e., everybody you are interested in).

Often, however, you do not have access to the whole population you are interested in investigating, but only a

limited number of data instead. For example, you might be interested in the exam marks of all students in the

UK. It is not feasible to measure all exam marks of all students in the whole of the UK so you have to measure

a smaller sample of students (e.g., 100 students), which are used to represent the larger population of all UK

students. Properties of samples, such as the mean or standard deviation, are not called parameters, but

statistics. Inferential statistics are techniques that allow us to use these samples to make generalizations about

the populations from which the samples were drawn. It is, therefore, important that the sample accurately

represents the population. The process of achieving this is called sampling (sampling strategies are discussed

in detail here on our sister site). Inferential statistics arise out of the fact that sampling naturally incurs sampling

error and thus a sample is not expected to perfectly represent the population. The methods of inferential

statistics are (1) the estimation of parameter(s) and (2) testing of statistical hypotheses.

Keywords:

• Parameters

• Statistics

https://statistics.laerd.com/statistical-guides/descriptive-inferential-statistics.php



Part VC1

1. Measures of Central Tendency

―Most frequency distributions exhibit a ‗central tendency,‘ i.e., a shape such that the bulk of the observations pile

up in the area between the two extremes. Central tendency is one of the most fundamental concepts in all

statistical analysis. There are three principal measures of central tendency: mean, median, and mode.‖

Mean

The mean, arithmetic mean, or mean value is the sum total of all data values divided by the number of data

values. It is the average of the total of the sample values. Mean is the most commonly used measure of central

tendency and is the only such measure that includes every value in the data set. The arithmetic mean is used for

symmetrical or near-symmetrical distributions, or for distributions that lack a single, clearly dominant peak.

Median

The median is the middle value (midpoint) of a data set arranged in either ascending or descending numerical

order. The median is used for reducing the effects of extreme values or for data that can be ranked but are not

economically measurable, such as shades of colors, odors, or appearances.

Mode

The mode is the value or number that occurs most frequently in a data set. If all the values are different, no mode

exists. If two values have the highest and same frequency of occurrence, then the data set or distribution has two

modes and is referred to as bimodal. The mode is used for severely skewed distributions, for describing an

irregular situation when two peaks are found, or for eliminating the observed effects of extreme values.



Mean/ Median/ Mode

The "mode" is the value that occurs most often.

If no number in the list is repeated, then there

is no mode for the list.

Most Often

The "median" is the "middle" value in the list of

numbers. To find the median, your numbers

have to be listed in numerical order from

smallest to largest, so you may have to rewrite

your list before you can find the median. Example:

Data set- 3, 18, 13, 14, 13, 16, 14, 21, 13 rewrite ascending order: 13, 13, 13,

13, 14, 14, 16, 18, 21. So the median is 14.

Middle or mid value of

recorded in ascending

or descending order

The "mean" is the "average" you're used to,

where you add up all the numbers and then

divide by the number of numbers.

Average




Mean

The mean, arithmetic mean, or mean value is

the sum total of all data values divided by the

number of data values. It is the average of the

total of the sample values. Mean is the most

commonly used measure of central tendency

and is the only such measure that includes

every value in the data set. The arithmetic

mean is used for symmetrical or nearsymmetrical

distributions, or for distributions

that lack a single, clearly dominant peak.

Median

The median is the middle value (midpoint) of a

data set arranged in either ascending or

descending numerical order. The median is

used for reducing the effects of extreme values

or for data that can be ranked but are not

economically measurable, such as shades of

colors, odors, or appearances.

Mode

The mode is the value or number that occurs

most frequently in a data set. If all the values

are different, no mode exists. If two values

have the highest and same frequency of

occurrence, then the data set or distribution

has two modes and is referred to as bimodal.

The mode is used for severely skewed

distributions, for describing an irregular

situation when two peaks are found, or for

eliminating the observed effects of extreme

values.

http://polymerprocessing.blogspot.com/2008/09/bimodal-high-density-polyethylene-hdpe.html



Mode

Bimodal

The mode is the value or number that occurs most frequently in a data set. If all the values are different, no mode exists. If two values have the highest and

same frequency of occurrence, then the data set or distribution has two modes and is referred to as bimodal. The mode is used for severely skewed

distributions, for describing an irregular situation when two peaks are found, or for eliminating the observed effects of extreme values.



Sample Right-Skewed and Left-Skewed Frequency Distributions (a) This is an example of a right-skewed frequency distribution in which the tail of the

distribution goes off to the right. In a right-skewed distribution, the mean is greater than the median because the unusually high scores distort it. (b) This is

an example of a left-skewed frequency distribution in which the tail of the distribution goes off to the left. The mean is less than the median because the

unusually low scores distort it.

Right/

Positive Skew

Median

Median

Left/

Negative Skew

http://www.macmillanhighered.com/BrainHoney/Resource/22292/digital_first_content/trunk/test/griggs4e/asset/ch01/c01_fig05.html


http://polymerprocessing.blogspot.com/2008/09/bimodal-high-density-polyethylene-hdpe.html




Find the mean, median, mode, and range for the following list of values:

13, 18, 13, 14, 13, 16, 14, 21, 13

The mean is the usual average, so I'll add and then divide:

(13 + 18 + 13 + 14 + 13 + 16 + 14 + 21 + 13) ÷ 9 = 15

Note that the mean, in this case, isn't a value from the original list. This is a common result. You

should not assume that your mean will be one of your original numbers.

The median is the middle value, so first I'll have to rewrite the list in numerical order:

13, 13, 13, 13, 14, 14, 16, 18, 21

There are nine numbers in the list, so the middle one will be the (9 + 1) ÷ 2 = 10 ÷ 2 = 5th

number:

13, 13, 13, 13, 14, 14, 16, 18, 21

So the median is 14.

The mode is the number that is repeated more often than any other, so 13 is the mode.

The range: largest value in the list is 21, and the smallest is 13, so the range is 21 – 13 = 8.

mean: 15

median: 14

mode: 13

range: 8

.



2. Measures Of Dispersion

Dispersion is the variation in the spread of data about the mean. Dispersion is also referred to as variation,

spread, and scatter. A measure of dispersion is the second of the two most fundamental measures of all

statistical analyses. The dispersion within a central tendency is normally measured by one or more of several

measuring principles. Data are always scattered around the zone of central tendency, and the extent of this

scatter is called dispersion or variation.

There are several measures of dispersion:

• range,

• standard deviation, and

• coefficient of variation.

Range

The range is the simplest measure of dispersion. It is the difference between the maximum and minimum

values in an observed data set. Since it is based on only two values from a data set, the measurement of range

is most useful when the number of observations or values is small (10 or fewer).



Standard Deviation

Standard deviation, the most important measure of variation, measures the extent of dispersion around the

zone of central tendency. For samples from a normal distribution, it is defined as the resulting value of the

square root of the sum of the squares of the observed values, minus the arithmetic mean (numerator), divided

by the total number of observations, minus one (denominator). The standard deviation of a sample of data is

given as:

σ =

n i=1

X−μ 2

n

or s =

n i=1

n−1

X i

− X 2

s = sample standard deviation

σ = population standard deviation

n = number of samples (observations or data points)

X = value measured

X = average value measured

μ = population mean

MIT Galant Σ(Sigma) 1976


Standard Deviation

In statistics, the standard deviation (SD, also represented by the Greek letter sigma σ or the Latin letter s) is a

measure that is used to quantify the amount of variation or dispersion of a set of data values. A low standard

deviation indicates that the data points tend to be close to the mean (also called the expected value) of the set,

while a high standard deviation indicates that the data points are spread out over a wider range of values.

X

X

σ =

n i=1

X i

−μ 2

n

s =

n i=1

n−1

X i

− X 2

In statistics, Bessel's correction is the use of n − 1 instead of n in the formula for the

sample variance and sample standard deviation, where n is the number of observations

in a sample. This method corrects the bias in the estimation of the population variance.

It also partially corrects the bias in the estimation of the population standard deviation.

However, the correction often increases the mean squared error in these estimations.

This technique is named after Friedrich Bessel.

In estimating the population variance from a sample when the population mean is

unknown, the uncorrected sample variance is the mean of the squares of deviations of

sample values from the sample mean (i.e. using a multiplicative factor 1/n). In this case,

the sample variance is a biased estimator of the population variance.

https://en.wikipedia.org/wiki/Bessel%27s_correction

The (sample) standard deviation s of a random variable, statistical population, data set, or probability distribution is

the square root of its (sample) variance s = v , v = 1 n

x

n−1

i − x

2

i=1 It is algebraically simpler, though in practice

less robust, than the average absolute deviation. A useful property of the standard deviation is that, unlike the

variance, it is expressed in the same units as the data.

In addition to expressing the variability of a population, the standard deviation is commonly used to measure

confidence in statistical conclusions. For example, the margin of error in polling data is determined by calculating

the expected standard deviation in the results if the same poll were to be conducted multiple times. This derivation

of a standard deviation is often called the "standard error" of the estimate or "standard error of the mean" when

referring to a mean. It is computed as the standard deviation of all the means that would be computed from that

population if an infinite number of samples were drawn and a mean for each sample were computed.

https://en.wikipedia.org/wiki/Standard_deviation



It is very important to note that the standard deviation of a population and the standard error of a statistic

derived from that population (such as the mean) are quite different but related (related by the inverse of the

square root of the number of observations). The reported margin of error of a poll is computed from the

standard error of the mean (or alternatively from the product of the standard deviation of the population and the

inverse of the square root of the sample size, which is the same thing) and is typically about twice the standard

deviation—the half-width of a 95 percent confidence interval.

In science, many researchers report the standard deviation of experimental data, and only effects that fall much

farther than two standard deviations away from what would have been expected are considered statistically

significant—normal random error or variation in the measurements is in this way distinguished from likely

genuine effects or associations. The standard deviation is also important in finance, where the standard

deviation on the rate of return on an investment is a measure of the volatility of the investment.

When only a sample of data from a population is available, the term standard deviation of the sample or sample

standard deviation can refer to either the above-mentioned quantity as applied to those data or to a modified

quantity that is an unbiased estimate of the population standard deviation (the standard deviation of the entire

population).

https://en.wikipedia.org/wiki/Standard_deviation


https://www.mathsisfun.com/data/standard-deviation.html



Population Standard Deviation, σ

Example:

You and your friends have just measured the heights of your dogs (in millimeters):

The heights (at the shoulders) are: 600mm, 470mm, 170mm, 430mm and 300mm.

Find out the Mean, the Variance, and the Standard Deviation.

Your first step is to find the Mean:

Mean, μ = (600 + 470 + 170 + 430 + 300) /5

= 1970/5

= 394mm

so the mean (average) height is 394 mm. Let's plot this on the chart:




so the μ mean (average) height is 394 mm. Let's plot this on the chart:

μ

To calculate the Variance, take each difference, square it, and then average the result:

σ 2 =

=

1

n

1

n

i=1

x i − x

2

5 (2062 + 76 2 + (−224) 2 + 36 2 + (−94) 2 )

= 42436 + 5776 + 50176 + 1296 + 8836 / 5

= 108520/ 5

= 21704

So the Variance is 21,704#

And the Standard Deviation is just the square root of Variance, so:

σ = √σ 2

= √21704

= 147.32...

= 147 (to the nearest mm)




And the good thing about the Standard Deviation is that it is useful. Now we can show which heights are within

one Standard Deviation (147mm) of the Mean:

So, using the Standard Deviation we have a "standard" way of knowing what is normal, and what is extra large

or extra small.

Rottweilers are tall dogs. And Dachshunds are a bit short ... but don't tell them!




But ... there is a small change with Sample Data

Our example has been for a Population (the 5 dogs are the only dogs we are interested in).

But if the data is a Sample (a selection taken from a bigger Population), then the calculation changes!

When you have "N" data values that are:

The Population:

A Sample:

divide by N when calculating Variance (like we did)

divide by N-1 when calculating Variance

All other calculations stay the same, including how we calculated the mean.

Example: if our 5 dogs are just a sample of a bigger population of dogs, we divide by 4 instead of 5 like this:

Sample Variance = 108,520 / 4 = 27,130

Sample Standard Deviation = √27,130 = 164 (to the nearest mm)

Population σ = 147

Sample S = 164

Think of it as a "correction" when your data is only a sample.




Formulas

Here are the two formulas, explained at Standard Deviation Formulas if you want to know more:

The "Population Standard Deviation":

The "Sample Standard Deviation":


https://www.mathsisfun.com/data/standard-deviation-calculator.html




Coefficient of Variation

The final measure of dispersion, coefficient of variation is the standard deviation divided by the mean. Variance

is the guaranteed existence of a difference between any two items or observations. The concept of variation

states that no two observed items will ever be identical.

Keywords:

coefficient of variation is the standard deviation divided by the mean


http://www.who.int/ihr/training/laboratory_quality/quantitative/en/



Coefficient of Variation

In probability theory and statistics, the coefficient of variation (CV or c v ), also known as relative standard

deviation (RSD), is a standardized measure of dispersion of a probability distribution or frequency distribution. It

is often expressed as a percentage, and is defined as the ratio of the standard deviation σ to the mean μ (or its

absolute value, μ ) ( σ x100). The CV or RSD is widely used in analytical chemistry to express the precision

μ

and repeatability of an assay. It is also commonly used in fields such as engineering or physics when doing

quality assurance studies and ANOVA gauge R&R.(ANOVA-Analysis of variance). In addition, CV is utilized by

economists and investors in economic models and in determining the volatility of a security

ANOVA gauge repeatability and reproducibility is a measurement systems analysis technique that

uses an analysis of variance (ANOVA) random effects model to assess a measurement system.

The coefficient of variation (CV) is defined as the ratio of the standard deviation σ to the mean μ, c v = σ μ It

shows the extent of variability in relation to the mean of the population. The coefficient of variation should be

computed only for data measured on a ratio scale, as these are the measurements that allow the division

operation. The coefficient of variation may not have any meaning for data on an interval scale.[2] For example,

most temperature scales (e.g., Celsius, Fahrenheit etc.) are interval scales with arbitrary zeros, so the

coefficient of variation would be different depending on which scale you used. On the other hand, Kelvin

temperature has a meaningful zero, the complete absence of thermal energy, and thus is a ratio scale. While

the standard deviation (SD) can be meaningfully derived using Kelvin, Celsius, or Fahrenheit, the CV is only

valid as a measure of relative variability for the Kelvin scale because its computation involves division.

Measurements that are log-normally distributed exhibit stationary CV; in contrast, SD varies depending upon

the expected value of measurements.

A more robust possibility is the quartile coefficient of dispersion, half the interquartile range (Q3−Q1)

divided by

the average of the quartiles (the midhinge), (Q1+Q3)

.

2

2

https://en.wikipedia.org/wiki/Coefficient_of_variation



Examples

1. A data set of [100, 100, 100] has constant values. Its standard deviation is 0 and average is 100, giving the

coefficient of variation as 0 / 100 = 0%

2. A data set of [90, 100, 110] has more variability. Its standard deviation is 8.16 and its average is 100, giving

the coefficient of variation as 8.16 / 100 = 8.16%

3. A data set of [1, 5, 6, 8, 10, 40, 65, 88] has still more variability. Its standard deviation is 32.9 and its average

is 27.8, giving a coefficient of variation of 32.9 / 27.8 = 118%

Comparison to standard deviation

• Advantages

The coefficient of variation is useful because the standard deviation of data must always be understood in the

context of the mean of the data. In contrast, the actual value of the CV is independent of the unit in which the

measurement has been taken, so it is a dimensionless number. For comparison between data sets with different

units or widely different means, one should use the coefficient of variation instead of the standard deviation.

• Disadvantages

When the mean value is close to zero, the coefficient of variation will approach infinity and is therefore sensitive to

small changes in the mean. This is often the case if the values do not originate from a ratio scale.

Unlike the standard deviation, it cannot be used directly to construct confidence intervals for the mean.

CVs are not an ideal index of the certainty of a measurement when the number of replicates varies across

samples because CV is invariant to the number of replicates while certainty of the mean improves with increasing

replicates. In this case standard error in percent is suggested to be superior.




Data Types

The coefficient of variation (CV) is defined as the ratio of the standard deviation σ to the mean μ, c v = σ It shows

μ

the extent of variability in relation to the mean of the population. The coefficient of variation should be computed

only for data measured on a ratio scale, as these are the measurements that allow the division operation. The

coefficient of variation may not have any meaning for data on an interval scale.[2] For example, most temperature

scales (e.g., Celsius, Fahrenheit etc.) are interval scales with arbitrary zeros, so the coefficient of variation would

be different depending on which scale you used. On the other hand, Kelvin temperature has a meaningful zero,

the complete absence of thermal energy, and thus is a ratio scale.




Disadvantages

When the mean value is close to zero, the coefficient of variation will approach infinity and is therefore sensitive to

small changes in the mean. This is often the case if the values do not originate from a ratio scale.

Unlike the standard deviation, it cannot be used directly to construct confidence intervals for the mean.

CVs are not an ideal index of the certainty of a measurement when the number of replicates varies across

samples because CV is invariant to the number of replicates while certainty of the mean improves with increasing

replicates. In this case standard error in percent is suggested to be superior.

Singularity

Event Horizon

https://sacredgeometryinternational.com/the-meaning-of-sacred-geometry-ii-whats-the-point/




Frequency distributions

A frequency distribution is a tool for presenting data in a form that clearly demonstrates the relative frequency of

the occurrence of values as well as the central tendency and dispersion of the data. Raw data are divided into

classes to determine the number of values in a class or class frequency. The data are arranged by classes, with

the corresponding frequencies in a table called a frequency distribution. When organized in this manner, the

data are referred to as grouped data, as in Table 20.1.

The data in this table appear to be normally distributed. Even without constructing a histogram or calculating

the average, the values appear to be centered around the value 18. In fact, the arithmetic average of these

values is 18.02. The histogram in Figure 20.1 provides a graphic illustration of the dispersion of the data. This

histogram may be used to compare the distribution of the data with specification limits in order to determine

where the process is centered in relation to the specification tolerances. Frequency distributions are useful to

auditors for evaluating process performance and presenting the evidence of their analysis. Not only is a

histogram a simple tool to use, it is also an effective method of illustrating process results.



Table 20.1 Frequency distribution.



Figure 20.1 Histogram data dispersion.



3. Qualitative And Quantitative Analysis

Types o f Data

During an audit, an auditor must analyze many different types of information to determine its acceptability with

the overall audit scope and the characteristics, goals, and objectives of the product, process, or system being

evaluated. This information may be documented or undocumented and includes procedures, drawings, work

instructions, manuals, training records, electronic data on a computer disk, observation, and interview results.

The auditor must determine if the information is relevant to the audit purpose and scope.

Quantitative Data

Quantitative data means either that measurements were taken or that a count was made, such as counting the

number of defective pieces removed (inspected out), the number of customer complaints, or the number of

cycles of a molding press observed during a time period. In short, the data are expressed as a measurement

or an amount. IIA‘s Internal Auditing: Principles and Techniques suggests that there are many sources of

quantitative data, such as:

• Test reports

• Product scrap rates

• Trend analyses

• Histograms

• Regression analyses

• Ratio analyses

• Lost-time accidents

• Frequency distributions

• Chi square tests

• Risk analyses

• Variance analyses

• Budget comparisons

• Mean, mode, median

• Profitability

• Cost/benefit studies



Chi square tests

A chi-squared test, also written as χ2 test, is any statistical hypothesis test where the

sampling distribution of the test statistic is a chi-squared distribution when the null

hypothesis is true. Without other qualification, 'chi-squared test' often is used as

short for Pearson's chi-squared test. The chi-squared test is used to determine

whether there is a significant difference between the expected frequencies and the

observed frequencies in one or more categories.

In the standard applications of the test, the observations are classified into mutually

exclusive classes, and there is some theory, or say null hypothesis, which gives the

probability that any observation falls into the corresponding class. The purpose of the

test is to evaluate how likely the observations that are made would be, assuming the

null hypothesis is true.

Chi-squared tests are often constructed from a sum of squared errors, or through the

sample variance. Test statistics that follow a chi-squared distribution arise from an

assumption of independent normally distributed data, which is valid in many cases

due to the central limit theorem. A chi-squared test can be used to attempt rejection

of the null hypothesis that the data are independent.

Also considered a chi-squared test is a test in which this is asymptotically true,

meaning that the sampling distribution (if the null hypothesis is true) can be made to

approximate a chi-squared distribution as closely as desired by making the sample

size large enough.



https://youtu.be/qYOMO83Z1WU




https://youtu.be/qYOMO83Z1WU




https://www.di-mgt.com.au/chisquare-calculator.html




https://youtu.be/2cibIAU6jkg




https://youtu.be/2cibIAU6jkg








https://www.youtube.com/watch?v=2QeDRsxSF9M&feature=youtu.be




https://www.youtube.com/watch?v=2QeDRsxSF9M&feature=youtu.be







Chi Square Tests

What are degrees of freedom?

Degrees of freedom can be described as the number of scores that are free to vary. For example, suppose you tossed three dice.

The total score adds up to 12. If you rolled a 3 on the first die and a 5 on the second, then you know that the third die must be a 4

(otherwise, the total would not add up to 12). In this example, 2 die are free to vary while the third is not. Therefore, there are 2

degrees of freedom.

In many situations, the degrees of freedom are equal to the number of observations minus one. Thus, if the sample size were 20,

there would be 20 observations; the degrees of freedom would be 20 minus 1 or 19.

What is a chi-square critical value?

The chi-square critical value can be any number between zero and plus infinity. The chi-square calculator computes the probability

that a chi-square statistic falls between 0 and the critical value.

Suppose you randomly select a sample of 10 observations from a large population. In this example, the degrees of freedom (DF)

would be 9, since DF = n - 1 = 10 - 1 = 9. Suppose you wanted to find the probability that a chi-square statistic falls between 0

and 13. In the chi-square calculator, you would enter 9 for degrees of freedom and 13 for the critical value. Then, after you click

the Calculate button, the calculator would show the cumulative probability to be 0.84.

What is a cumulative probability? (≤ CV)

A cumulative probability is a sum of probabilities. The chi-square calculator computes a cumulative probability. Specifically, it

computes the probability that a chi-square statistic falls between 0 and some critical value (CV).

With respect to notation, the cumulative probability that a chi-square statistic falls between 0 and CV is indicated by P(Χ 2 < CV).

https://www.stattrek.com/online-calculator/chi-square.aspx




Qualitative Data

In contrast, qualitative data refers to the nature, kind, or attribute of an observation. Qualitative data may

include single observations or data points, such as in the following examples: last month‘s withholding tax

deposit was three days late; the paycheck amount was wrong; the injection needle was contaminated; the

wrong reference standard was used; the purchase order specification gave the wrong activity level; computer

equipment was missing from the clerk‘s office; or a regulatory violation was reported. Whether the evidence is

qualitative or quantitative, it should be objective, unbiased, and proven true. The auditor must analyze the data

to determine relevancy. Some data are important and should be reported due to frequency or level. Other data

are important due to the nature or kind of information even though an event occurred only once.

With quantitative information, the determination of acceptability is fairly straightforward for two reasons. First, a

direct comparison can be made between the information and the requirements or criteria for the audit. For

instance, suppose the measure of system effectiveness used in an audit is found to have less than a

predetermined number of customer complaints about product quality in a three- month period. Analysis would

consist of comparing customer complaint records against the criteria to determine whether the system is

effective. Second, most quantitative information is considered reliable because by nature it should be free of

emotion and bias. Qualitative data must be unbiased and traceable, just like any observation that is used as

objective evidence by the auditor. Additionally, the auditor should determine the usefulness or relevance of the

information. For instance, the auditor may be informed that one customer complaint turned into a $10 million

lawsuit. In this case, the data must be verified, and the auditor will seek to determine whether the data have

any bearing on the management system. Once the information has been determined to have a real effect on

the system, the auditor may use the data to draw conclusions about system effectiveness. Or the auditor may

determine that the data represented a once- in-a-lifetime event and are not relevant to current operations.



Patterns and Trends

Pattern analysis involves the collection of data in a way that readily reveals any kind of clustering that may

occur. This technique is of major value in internal audits, since it is so effective in making use of data from

repetitive audits. It can be both location- and time- sensitive. Pattern analysis is of limited value in external

audits owing to the lack of repetition in such audits.4 While no one specific tool exists to determine patterns and

trends, the following tools, matrices, and data systems are among the many tools that can help make such

determinations. Patterns and trends can often indicate the severity of a problem and can be used to help

determine whether a problem is a systemic issue. Line/Trend graphs connect points that represent pairs of

numeric data, to show how one variable of the pair is a function of the other. As a matter of convention,

independent variables are plotted on the horizontal axis, and dependent variables are plotted on the vertical

axis. Line graphs are used to show changes in data over time (see Figure 20.2). A trend is indicated when a

series of points increases or decreases. Nonrandom patterns indicate a trend or tendency. (Experience is

required for proper interpretation.) Pareto charts and scatter diagrams are used as necessary.



Following are characteristics of trend analysis:

• Allows us to describe the historical pattern in the data

• Permits us to project the past patterns and/or trends in the future

• Helps us understand the long- term variation of the time series

Bar graphs also portray the relationship or comparison between pairs of variables, but one of the variables

need not be numeric. Each bar in a bar graph represents a separate, or discrete, value. Bar graphs can be

used to identify differences between sets of data (see Figure 20.3).

Pie charts are used to depict proportions of data or information in order to understand how they make up the

whole. The entire circle, or ―pie,‖ represents 100% of the data. The circle is divided into ―slices,‖ with each

segment proportional to the numeric quantity in each class or category (see Figure 20.4). Matrices are twodimensional

tables showing the relationship between two sets of information. They can be used to show the

logical connecting points between performance criteria and implementing actions, or between required actions

and personnel responsible for those actions. In this way, matrices can determine what actions and/or personnel

have the greatest impact on an organization‘s mission. Auditors can use matrices as a way to focus auditing

time and to organize the audit. In Table 20.2, the matrix helps the auditor by identifying organizational

responsibilities for the different audit areas. This particular matrix is used to maximize use of time during the

site visit.



Figure 20.2 Line graph.



Figure 20.3 Bar graph.



Figure 20.4 Pie chart.



Table 20.3, a much broader matrix, allows the auditor to do the longrange planning necessary for ensuring

proper application of the audit program. In this example, the various audited areas (y axis) are applied against

the different organizations to be audited. Data systems exist in a wide range of forms and formats. They may

include the weekly and monthly reports of laboratory or organizational performance that are used to alert the

auditing organization of potential audit areas, or computerized databases that link performance to specific

performance objectives or track actions to resolve programmatic weaknesses. In any case, data systems are

important tools that provide the auditor with the data needed to focus on audit activities. In Table 20.4

information on lost- time injuries is displayed in tabular form; the same information is displayed as a graph in

Figure 20.5. This information can be used to focus the assessment on either the location of the injuries or the

work procedures involved to identify any weaknesses in the accident prevention program.



Table 20.2 Area of responsibilities matrix.



Table 20.3 Audit planning matrix.



Table 20.4 Lost-time accident monthly summary.



Figure 20.5 Lost work this month.




Quality Tools and Techniques

[26 of the CQA Exam Questions or 17.3 percent]

________________________________________________

Chapter 18 Basic Quality and Problem- Solving Tools/Part VA

Chapter 19 Process Improvement Techniques/Part VB

Chapter 20 Basic Statistics/Part VC

Chapter 21 Process Variation/Part VD

Chapter 22 Sampling Methods/Part VE

Chapter 23 Change Control and Configuration Management/Part VF

Chapter 24 Verification and Validation/Part VG

Chapter 25 Risk Management Tools/Part VH

My Reading on ASQ CQA HB Part V Part 1 small

Create successful ePaper yourself

Delete template?

Save as template?
