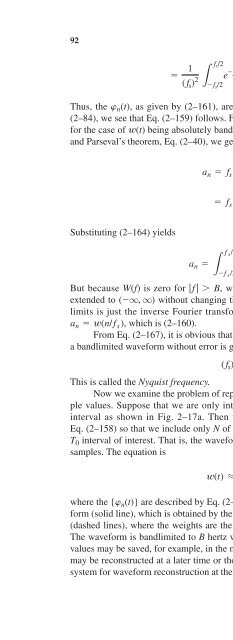

92<br />
Signals and Spectra Chap. 2<br />
f s /2<br />
= 1<br />
(2–165)<br />
(f s ) 2 e -j2m(n-m)(f/fs) df = 1 d<br />
L-f s /2<br />
f nm<br />
s<br />
Thus, the w n (t), as given by (2–161), are orthogonal functions with K n = 1/f s . Using Eq.<br />
(2–84), we see that Eq. (2–159) follows. Furthermore, we will show that Eq. (2–160) follows<br />
for the case of w(t) being absolutely bandlimited to B hertz with f s Ú 2B. Using Eq. (2–84)<br />
and Parseval’s theorem, Eq. (2–40), we get<br />
q<br />
a n = f s w(t)w n<br />
*(t) dt<br />
L<br />
-q<br />
q<br />
= f s W(f)£ n<br />
*(f) dt<br />
L<br />
-q<br />
(2–166)<br />
Substituting (2–164) yields<br />
f s /2<br />
a n = W(f)e +j2pf(n/f s)<br />
df<br />
L<br />
-f s /2<br />
(2–167)<br />
But because W(f) is zero for |f| 7 B, where B … f s /2, the limits on the integral may be<br />
extended to (-q, q) without changing the value of the integral. This integral with infinite<br />
limits is just the inverse Fourier transform of W(f) evaluated at t = n/f s . Consequently,<br />
a n = w(n/f s ), which is (2–160).<br />
From Eq. (2–167), it is obvious that the minimum sampling rate allowed to reconstruct<br />
a bandlimited waveform without error is given by<br />
(2–168)<br />
This is called the Nyquist frequency.<br />
Now we examine the problem of reproducing a bandlimited waveform by using N sample<br />
values. Suppose that we are only interested in reproducing the waveform over a T 0 -s<br />
interval as shown in Fig. 2–17a. Then we can truncate the sampling function series of<br />
Eq. (2–158) so that we include only N of the wn(t) functions that have their peaks within the<br />
T 0 interval of interest. That is, the waveform can be approximately reconstructed by using N<br />
samples. The equation is<br />
w(t) L<br />
(f s ) min = 2B<br />
n=n 1 +N<br />
a<br />
n=n 1<br />
a n w n (t)<br />
(2–169)<br />
where the { w n (t)} are described by Eq. (2–161). Figure 2–17b shows the reconstructed waveform<br />
(solid line), which is obtained by the weighted sum of time-delayed (sin x)/x waveforms<br />
(dashed lines), where the weights are the sample values a n = w(n/f s ) denoted by the dots.<br />
The waveform is bandlimited to B hertz with the sampling frequency f s Ú 2B. The sample<br />
values may be saved, for example, in the memory of a digital computer, so that the waveform<br />
may be reconstructed at a later time or the values may be transmitted over a communication<br />
system for waveform reconstruction at the receiving end. In either case, the waveform may be
