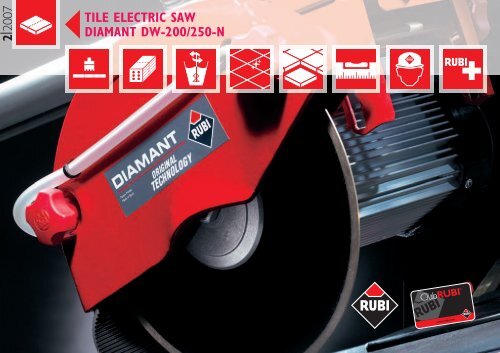

2 <strong>200</strong>7<strong>TILE</strong> <strong>ELECTRIC</strong> <strong>SAW</strong><strong>DIAMANT</strong> <strong>DW</strong>-<strong>200</strong>/<strong>250</strong>-N
i<strong>DIAMANT</strong><strong>DW</strong>-<strong>200</strong>/<strong>250</strong>-NWith extensive experience in the market and professional accolades theworld over, RUBI ® presents the new <strong>DIAMANT</strong> <strong>DW</strong>-N series, an evolutionof the previous <strong>DW</strong>-LPS range.In answer to the numerous consultations received from Club RUBI ® members,this brief technical note details some of the advantages of, and gives adviceon the utilisation of these new electric cutters which can be used for cuttingceramic tiles, earthenware, marble, granite and other materials.<strong>DIAMANT</strong> <strong>DW</strong>-<strong>200</strong>-N230 V 50 Hz. 54900220 V 60 Hz. 54901220 V 60 Hz. "A" 54902110 V 50 Hz. UK 54903100 V 60 Hz. JP 54904<strong>DIAMANT</strong> <strong>DW</strong>-<strong>250</strong>-N230 V 50 Hz. 54940220 V 60 Hz. 54941220 V 60 Hz. "A" 54942110 V 50 Hz. UK 54943100 V 60 Hz. JP 54944REF. REF. REF.230 V 50 Hz. UK 54905120 V 50 Hz. 54906230 V 50 Hz. CH 54907120 V 60 Hz. "A" 54908120 V 60 Hz. 54909100 V 50 Hz. JP 54910230 V 50 Hz. AUS 54916230 V 50 Hz. DK 54919REF. REF. REF.230 V 50 Hz. UK 54945120 V 50 Hz. 54946230 V 50 Hz. CH 54947120 V 60 Hz. "A" 54948120 V 60 Hz. 54949100 V 50 Hz. JP 54950230 V 50 Hz. AUS 54956230V 50 Hz. DK 54959<strong>DW</strong>-<strong>200</strong>-N 1,5 / 1,1 2875 73-*75 cm. (28 -*29”) 52x52 cm. (21 x 21”) ∞ 32 / 55 mm. (1 5 /8’’ / 2 3 /16’’) • <strong>200</strong> mm. (Ø 8”) 116x48x116 cm. (45’’ x 18’’ x 45’’) 46 kg. (101.4 Lb) •<strong>DW</strong>-<strong>250</strong>-N 1,5 / 1,1 2875 73-*75 cm. (28 -*29”) 52x52 cm. (21 x 21”) ∞ 65 / 80 mm. (2 5 /8’’ / 3 1 /4’’) • <strong>250</strong> mm. (Ø 10”) 116x48x116 cm. (45’’ x 18’’ x 45’’) 47 kg. (103.6 Lb) •*Using plunge cut effect.
ADVICEON HOW TO USEBy improving on the excellent existing features and keeping agreat price-quality balance, the new <strong>DW</strong>-N electric saws andjigsaws have been designed to maximize their user friendlinessand to improve their functionality.The mounted casters on the chassis allow, without effort,the easy loading and unloading of the machine by a singleoperator.Standing out amongst the new features of this series, is theintegration of a collapsible table which greatly improves thecleaning process. The foldable legs, together with the incorporationof wheels and handles ease the movement of the machine andits loading onto a vehicle.The Diamant <strong>DW</strong>-<strong>200</strong>-N and the <strong>DW</strong>-<strong>250</strong>-N are equippedwith a 1.5 HP motor with fold-away sliding bearings to carryout mitre cuts. The head also functions as a mitre saw and canbe vertically adjusted. It is worth highlighting its new guide wichcomes with a measuring rule and adjustable square. This allowswith great precision, the carrying out of repetitive cuts as wellas diagonal cuts.The integration of these new features is the fruit of detailedstudy of the uses and the needs of professionals within theconstruction industry. As with other RUBI ® ranges, the <strong>DW</strong>-N has a thermal protector and a cooling system for the bladewith a water pump and a flow regulator valve.The new folding legs fitted on the end of the chassis, confergreater stability and allow easy manipulation of the machine.The new collapsible worktop allows for fast and easy cleaningof the machine after its use.
ClubRUBI ®ADVICERELATEDPRODUCTSThe cutting of ceramics floor tiles with an electric machinecan generate some tensions on the tile. These tensionstend to escape through the most fragile point of the tileitself (generally in the last half a centimetre of the cut), bycreating a small break in the final part of the cut piece.CONTINUOUS DIAMOND BLADESCLEANING BLOCKTo avoid this it is advisable to use the lateral stop of thesaw at all times (even if it is not performing a measuringfunction), as this will block the piece from the right andtherefore will prevent the tensions from cracking that partof the floor tile. At same time the left side of the pieceshould be held by hand (there is no lateral stop) thusobtaining a clean cut from start to finish.CRN <strong>200</strong> - Ref. 30906CRN <strong>250</strong> - Ref. 30909CPA <strong>200</strong> 5/8” - Ref. 30932CPA <strong>200</strong> - Ref. 30926CPA <strong>250</strong> 5/8” - Ref. 30934CPA <strong>250</strong> - Ref. 30929CPC <strong>200</strong> - Ref. 30966CPC <strong>250</strong> - Ref. 30969Ref. 05973NOTE TO ClubRUBI ® MEMBERSTo request previous editions or to suggest topicsof interest go to www.rubi.com/clubrubi orcontact us at clubrubi@rubi.comCEV <strong>200</strong> 5/8” - Ref. 30935CEV <strong>200</strong> - Ref. 30946CEV <strong>250</strong> 5/8” - Ref. 30937CEV <strong>250</strong> - Ref. 30949CER <strong>200</strong> - Ref. 30747CER <strong>250</strong> - Ref. 30749CVG <strong>200</strong> - Ref. 34966CVG <strong>250</strong> - Ref. 34969Ref. 90091
