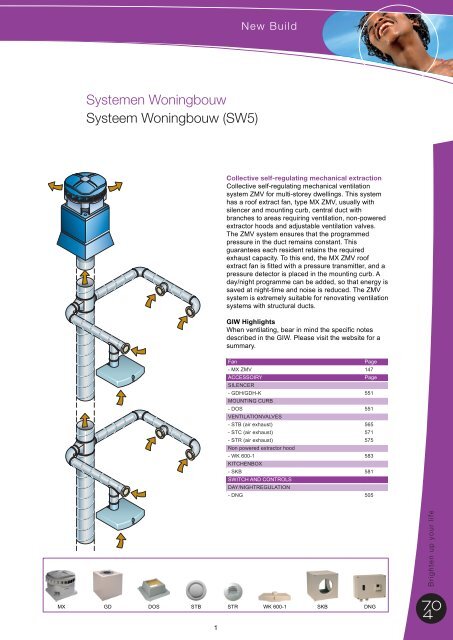

New BuildSystemen WoningbouwSysteem Woningbouw (SW5)Collective self-regulating mechanical extractionCollective self-regulating mechanical ventilationsystem ZMV for multi-storey dwellings. This systemhas a roof extract fan, type MX ZMV, usually withsilencer and mounting curb, central duct withbranches to areas requiring ventilation, non-poweredextractor hoods and adjustable ventilation valves.The ZMV system ensures that the programmedpressure in the duct remains constant. Thisguarantees each resident retains the requiredexhaust capacity. To this end, the MX ZMV roofextract fan is fitted with a pressure transmitter, and apressure detector is placed in the mounting curb. Aday/night programme can be added, so that energy issaved at night-time and noise is reduced. The ZMVsystem is extremely suitable for renovating ventilationsystems with structural ducts.GIW HighlightsWhen ventilating, bear in mind the specific notesdescribed in the GIW. Please visit the website for asummary.FanPage- MX ZMV 147ACCESSOIRYPageSILENCER- GDH/GDH-K 551MOUNTING CURB- DOS 551VENTILATIONVALVES- STB (air exhaust) 565- STC (air exhaust) 571- STR (air exhaust) 575Non powered extractor hood- WK 600-1 583KITCHENBOX- SKB 581SWITCH AND CONTROLSDAY/NIGHTREGULATION- DNG 505MX GD DOS STB STR WK 600-1 SKB DNG1

New Build2
