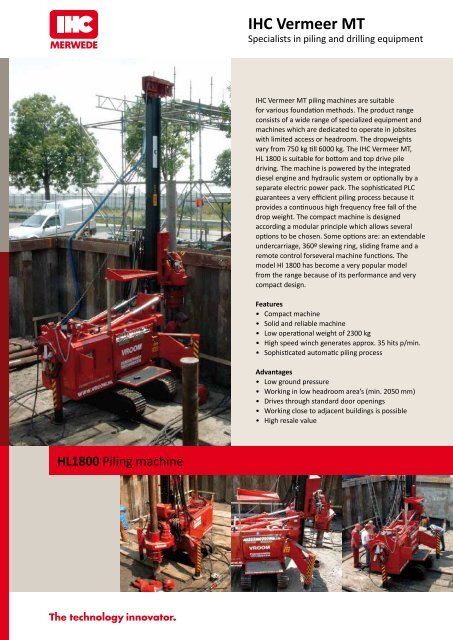

IHC Vermeer MTSpecialists in piling and drilling equipmentIHC Vermeer MT piling machines are suitablefor various foundation methods. The product rangeconsists of a wide range of specialized equipment andmachines which are dedicated to operate in jobsiteswith limited access or headroom. The dropweightsvary from 750 kg till 6000 kg. The IHC Vermeer MT,HL 1800 is suitable for bottom and top drive piledriving. The machine is powered by the integrateddiesel engine and hydraulic system or optionally by aseparate electric power pack. The sophisticated PLCguarantees a very efficient piling process because itprovides a continuous high frequency free fall of thedrop weight. The compact machine is designedaccording a modular principle which allows severaloptions to be chosen. Some options are: an extendableundercarriage, 360º slewing ring, sliding frame and aremote control forseveral machine functions. Themodel Hl 1800 has become a very popular modelfrom the range because of its performance and verycompact design.Features• Compact machine• Solid and reliable machine• Low operational weight of 2300 kg• High speed winch generates approx. 35 hits p/min.• Sophisticated automatic piling processAdvantages• Low ground pressure• Working in low headroom area’s (min. 2050 mm)• Drives through standard door openings• Working close to adjacent buildings is possible• High resale valueHL1800 Piling machine

IHC Vermeer MTSpecialists in piling and drilling equipmentHL1800 Piling machineTrack width (std.)Track width (ext.)Track lengthTrack plate widthTrack plate materialTorque of undercarriagedrive motorsMain winchDrop hammer weightHoisting speedHits at 1m fall heightControl (piling)Control (hoisting)Rope diamtr. / lengthPullHoisting speedHoisting controlRope diamtr. / lengthMovement of mastTransport heightWorking heightHydraulic mastextensionStandaard power unitOptional power unitStabilizersWeight of standardmachineSuitable for1100 mm1400 mm2250 mm300 mmVulcanized rubber or steel2 x 4,5 kNm(free-fall)(max. / min.) 1800 / 400 kg80 m / min.30 - 35 / min.Fully automaticHydr. proportional14 mm / 40 m(max) 10 kN30 m / min.Hydr. proportional12 mm / 20 mhydraulic 8° forward, 90° backward2300 mm (excl. sheave head 1930 mm)Max./ min. 9350 / 2700 mm (incl. sheave head)850 mmDiesel engine. Output rated at 34 kWElectric motor and separate generator.Output rated at 37 kW - 400/690VPosition 1 at the rear, 2 swiveling at the frontHydraulic controlledApprox. 7000 kg(without dropweight or hammer)Pile driving and drillingOptions• 360º slewing ring• Hydraulic extendable undercarriage(1100 up to 1400 mm)• Sliding frame for horizontal movementof the mast of approx. 200 mm• Hydraulic power outlet(max. 100 l / min. at 200 bar)• Track drive operated by remote control• Electric socket(for welding or small electric tools)• Two working lights 24V / 70W• Painting in a color of the customerschoice11611UKNo rights can be attached to the mentioned specifications because they can be changed as a result of new developmentswithout further notifications. All data is subject printing and conversion errors.IHC Fundex Equipment B.V.P.O. Box 83, 4460 AB GoesHoutkade 50, 4463 AC GoesThe NetherlandsT +31 113 23 29 00F +31 113 21 26 30vermeermt@ihcmerwede.comwww.ihcvermeermt.nl / www.ihcmerwede.com
