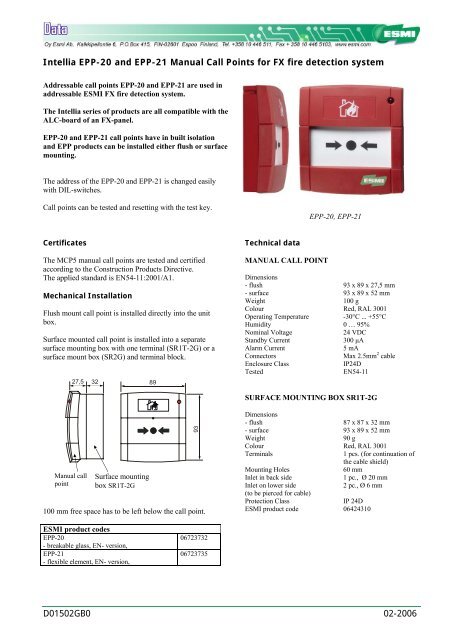

<strong>Intellia</strong> <strong>EPP</strong>-<strong>20</strong> <strong>and</strong> <strong>EPP</strong>-<strong>21</strong> <strong>Manual</strong> <strong>Call</strong> Points for FX fire detection systemAddressable call points <strong>EPP</strong>-<strong>20</strong> <strong>and</strong> <strong>EPP</strong>-<strong>21</strong> are used inaddressable ESMI FX fire detection system.The <strong>Intellia</strong> series of products are all compatible with theALC-board of an FX-panel.<strong>EPP</strong>-<strong>20</strong> <strong>and</strong> <strong>EPP</strong>-<strong>21</strong> call points have in built isolation<strong>and</strong> <strong>EPP</strong> products can be installed either flush or surfacemounting.The address of the <strong>EPP</strong>-<strong>20</strong> <strong>and</strong> <strong>EPP</strong>-<strong>21</strong> is changed easilywith DIL-switches.<strong>Call</strong> points can be tested <strong>and</strong> resetting with the test key.<strong>EPP</strong>-<strong>20</strong>, <strong>EPP</strong>-<strong>21</strong>CertificatesThe MCP5 manual call points are tested <strong>and</strong> certifiedaccording to the Construction Products Directive.The applied st<strong>and</strong>ard is EN54-11:<strong>20</strong>01/A1.Mechanical InstallationFlush mount call point is installed directly into the unitbox.Surface mounted call point is installed into a separatesurface mounting box with one terminal (SR1T-2G) or asurface mount box (SR2G) <strong>and</strong> terminal block.27,5 32 89Technical dataMANUAL CALL POINTDimensions- flush- surface93 x 89 x 27,5 mm93 x 89 x 52 mmWeight100 gColour Red, RAL 3001Operating Temperature-30°C ... +55°CHumidity 0 … 95%Nominal Voltage24 VDCSt<strong>and</strong>by Current300 μAAlarm Current5 mAConnectorsMax 2.5mm 2 cableEnclosure ClassIP24DTestedEN54-11SURFACE MOUNTING BOX SR1T-2G<strong>Manual</strong> callpointSurface mountingbox SR1T-2G93100 mm free space has to be left below the call point.Dimensions- flush- surface87 x 87 x 32 mm93 x 89 x 52 mmWeight90 gColour Red, RAL 3001Terminals1 pcs. (for continuation ofthe cable shield)Mounting Holes60 mmInlet in back side1 pc., Ø <strong>20</strong> mmInlet on lower side2 pc., Ø 6 mm(to be pierced for cable)Protection ClassIP 24DESMI product code 06424310ESMI product codes<strong>EPP</strong>-<strong>20</strong>- breakable glass, EN- version,<strong>EPP</strong>-<strong>21</strong>- flexible element, EN- version,0672373<strong>20</strong>6723735<strong>D015<strong>02</strong>GB0</strong> <strong>02</strong>-<strong><strong>20</strong>06</strong>
Electrical InstallationSURFACE MOUNTINGFX ALC addressable loop<strong>EPP</strong>-<strong>20</strong>, <strong>EPP</strong>-<strong>21</strong>L+ = Loop input +L+ = Loop output +L- = Loop input –L- = Loop output –Address switch01123 4 5 67Note:L+ <strong>and</strong> L- are polarity sensitive.L+ L+ L- L-Surfacemounting boxFLUSH MOUNTING<strong>EPP</strong>-<strong>20</strong>, <strong>EPP</strong>-<strong>21</strong>Address switch011 234567L+ = Loop input +L+ = Loop output +L- = Loop input –L- = Loop output –L+ L+ L- L-Note:L+ <strong>and</strong> L- are polarity sensitiveFX ALC addressable loop<strong>D015<strong>02</strong>GB0</strong> 2 <strong>02</strong>-<strong><strong>20</strong>06</strong>
AccessoriesREPLACEMENT GLASS ELEMENT – KG1MANUAL CALL POINT COVER – PS<strong>20</strong>0Transparent hinged cover for call point.MaterialResetting functionGlass elements in packageESMI product codePlastic covered glassGlass must be replaced<strong>20</strong> pcs06424900ENCover dimensions90 x 104 mmWeight35 gESMI product code 064245<strong>02</strong>REPLACEMENT FLEXIBLE ELEMENT – PS<strong>21</strong>0SPARE TEST KEYS – SC017For testing <strong>and</strong> resetting <strong>EPP</strong>-<strong>20</strong> <strong>and</strong> <strong>EPP</strong>-<strong>21</strong> manual call pointsTest keys in package10 pcsESMI product code 06424510MaterialPlasticResetting functionTest & Re-set facilityElements in package<strong>20</strong> pcsESMI product code 064249<strong>20</strong>Esmi reserves the right to modifications.<strong>D015<strong>02</strong>GB0</strong> 3 <strong>02</strong>-<strong><strong>20</strong>06</strong>
TO TESTTO REPLACE GLASS/RESETABLE ELEMENTTO RESET<strong>D015<strong>02</strong>GB0</strong> 4 <strong>02</strong>-<strong><strong>20</strong>06</strong>
