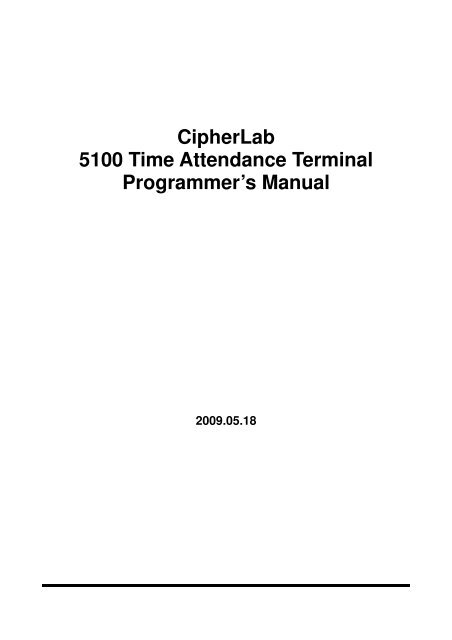

CipherLab 5100 Time Attendance Terminal Programmer's Manual

More documents

Recommendations

Info

Syntech Information Co., Ltd. 智5100 Time Attendance Programmers Manual3.3.4 Find online station IDCommand XFormat XReturn Current online station ID.NAK: Invalid commandDescription Find online station IDExample X: return message is“010203”means 3 stations are currently on-line 01, 02 and 03Remark3.3.5 Set system parametersCommandFormatReturnDescriptionSS00ss– ready to set upS01ssnn – change line connectionS02ssn– keypad input enabled or disabledS05ssnn – maximum station numberS06ssn– set year formatS07ssn– store blacklist data enabled or disabledS08ssnn – set blacklist DOUT timeS09ssnn – card display timeS10ssnnnn – backup sumS11ssn– show Card ID or nameS13ssn– prefix code enabled or disabledS18ssnn… – set Master Card IDS19ssnn… – set Master passwordS21ssn– set languageS22ssn– set reader typeS23ssn– set data formatS26ssn– lock machineS30ssnn… – set 5100 IP addressS31ssnn… – set gateway IP addressS32ssnn… – set portS33ssn– set list typeS99– updateDONE: The setting is done successfully.NAK: Invalid commandSet system parametersThe values indicated by parameters index are as follows:2009.05.18 11
Syntech Information Co., Ltd. 智5100 Time Attendance Programmers Manualssn for S06n for S11n for S21n for S22n for S23n for S26n for S33n for S2, S7 & S13nn for S01nn for S05nn for S08nn for S09nn for S18nn for S19nn for S30 & S31nn for S32Example S02011: Set to enable keyboard input of station 01.Remark3.3.6 Read System Parameters– station ID– 0: yy, 1: yyyy– 0: Card ID, 1: Name– 0: English, 1: local– 0: EM, 1: myfare, 2: felica– 0: decimal 1: hex– 0: unlock, 1: lock– 0: all, 1: include only, 2: exclude– 0: disable 1: enable– new line connection (11: Master 10:Slave 01:Single)– range 01~99, of 2 digits at most– Blacklist DOUT time, of 2 digits at most– Card display time, of 2 digits at most– Master Card ID, of 20 digits at most– Master Password, of 6 digits at most– IP address, xxx.xxx.xxx.xxx– Port, of 5 digits at mostCommand GFormat G01ss– read line connection (11: Master 10:Slave 01:Single)G02ss– read if keypad input enabled or disabledG05ss– read maximum station numberG06ss– read year formatG07ss– read if store blacklist data enabled or disabledG08ss– read blacklist DOUT timeG09ss– read card display timeG10ss– read backup sumG11ss– read if show Card ID or nameG13ss– read prefix code enabled or disabledG18ss– read Master Card IDG19ss– read Master passwordG21ss– read languageG22ss– read reader typeG23ss– read data formatG26ss– read if lock machine or notG30ss– read 5100 IP addressG31ss– read gateway IP addressG32ss– read portG33ss– read list typeReturn The requested system parameters are displayed on the screen.NAK: Invalid commandDescription Read system parametersss: station ID 01-99Example G0201: return message is 1The keypad input for station 01 is enabled.Remark2009.05.18 12
