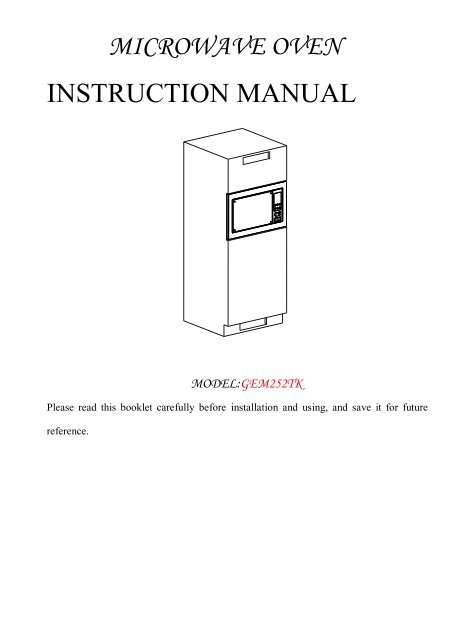

microwave oven - Baumatic

Welcome to Think AppliancesThank you for selecting a quality product from Think Appliances. We have taken the time to ensurethat your appliance is of the highest possible standard and will give you years of use in your home.Please take the time to call our Customer Care centre on our free call number1800 444 357to register your 2 year parts and labour warranty (some conditions apply – please refer to your warrantycard for more details).Our Customer Care centre is there to ensure you get the most out of your appliance. For example,should you want to learn more about recommended cooking temperatures, the various cookingfunctions available, how to set and program your LED clock, and importantly taking care of yourappliance when cleaning, please call us because we are here to help you.It is important that you read through the following use and care manual thoroughly to familiariseyourself with the installation and operation requirements of your appliance to ensure optimumperformance. Should you have any queries regarding this information, please don’t hesitate to contactour Customer Care centre.We also carry a complete range of spare parts for all Think products. Please contact our team atPronto Parts on 1300 306 973 for all your spare parts requirements.Again, thank you for choosing an appliance brought to you by Think Appliances and we look forwardto being of service to you.Kind regards,Ruud JonaManaging Director Think Appliances1

This appliance is not intended for use by persons (including children) with reduced physical, sensory ormental capabilities, or lack of experience and knowledge, unless they have been given supervision orinstruction concerning use of the appliance by a person responsible for their safety.Children should be supervised to ensure that they do not play with the appliance.IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FORFUTURE REFERENCE– WARNING: If the door or door seals are damaged, the oven must not be operated until it has beenrepaired by a competent person;– WARNING: It is hazardous for anyone other than a competent person to carry out any service orrepair operation that involves the removal of a cover which gives protection against exposure tomicrowave energy;– WARNING: Liquids and other foods must not be heated in sealed containers since they are liable toexplode;– WARNING When the appliance is operated in the combination mode, children should only use theoven under adult supervision due to the temperatures generated.– WARNING: Only allow children to use the oven without supervision when adequate instructionshave been given so that the child is able to use the oven in a safe way and understands the hazards ofimproper use;– only use utensils that are suitable for use in microwave ovens;– when heating food in plastic or paper containers, keep an eye on the oven due to the possibility ofignition;– if smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle anyflames;– microwave heating of beverages can result in delayed eruptive boiling, therefore care must be takenwhen handling the container;– the contents of feeding bottles and baby food jars shall be stirred or shaken and the temperaturechecked before consumption, in order to avoid burns;– eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since theymay explode, even after microwave heating has ended;– refer to “Cleaning and maintenance” details for cleaning door seals, cavities and adjacent parts;– the oven should be cleaned regularly and any food deposits removed;– failure to maintain the oven in a clean condition could lead to deterioration of the surface that couldadversely affect the life of the appliance and possibly result in a hazardous situation;– only use the temperature probe recommended for this oven (for appliances having a facility to use atemperature-sensing probe);2

OPERATION THEORY OF MICROWAVE OVEN1. Microwave is a form of high frequency electromagnetic wave, which is commonly distributed in thenature. 53507Microwaves are dispersed in nature so that they cannot be concentrated for heatingpurpose. The magnetron microwave generator in the oven transforms the energy of electricity tomicrowave and the energy of microwave field is concentrated inside the closed cavity. Food moleculesare caused to vibrate at very high speed and the friction heat produced cooks the food quickly.2. There are 3 properties of microwave:a) Absorbability: the microwave can cause the excess vibration of molecule of various food so as toobtain the heating purpose. But the infiltration ability is largely depend on the size, thickness andproperties of the food.b) Penetrability: microwave can penetrate through ceramics, glass, temperature-resistant plastics. It isrequired to use the containers whose material have good microwave penetrability to achieve bestheating result. See the below utensils guide.c) Reflectivity: microwave would be reflected by the metal wall of interior cavity so as to establish aneven magnetic field, thus can prevent the overheating of partial area.INSTALLATION OF MICROWAVE OVEN1) The position of the oven shall be such that it is far from the TV, Radio or antenna as picturedisturbance or noise may occur.2) The appliance must be positioned so that the plug is accessible.3) This is a cabinet microwave oven, which is subject to PRECAUTIONS and INSTALLATIONbelow .1 PRECAUTIONS:To ensure THIS microwave oven against a poor ventilation work, fires as well as an undue life, apossible cabinet shall follow:a) Intake and exhaust port on back surface, as shown in Fig.4.b) Net depth≥550mm, as shown in Fig.3.c) Reference plate thickness between 18 and 20mm.2 INSTALLATION:a) Secure top air guide onto housing while outer-back baffle onto outer-back plate with self-lockscrews, as shown in Fig.1.b) Secure holders onto each side housing with self-lock screws, as shown in Fig.2.3

c) Place microwave oven into cabinet, then fix it with wood screws, as shown in Fig.3.Cabinet details:Cavity: (L)560mm*(H)360mm*(D)550mm;Intake: (L)≥272mm*(W)≥72mmExhaust Port: (L)≥272mm*(W)≥72mm4

d) Secure ornamental trim to holders, as shown in Fig.4.e) Final assembly as shown in Fig.5.5

f) Cabinet airflow chart as shown in Fig.6.Cabinet Airflow ChartExhaust PortNet Dept h≥ 550mmIntakeFig.6UTENSILS GUIDELINEIt is strongly recommended to use the containers which are suitable and safe for microwave cooking.Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic aresuitable for microwave cooking. Never use the metal containers for microwave cooking andcombination cooking as spark is likely to occur. You can take the reference of below table.Material of container Microwave Grill Combi NotesHeat-resistant ceramic Yes No No Never use the ceramics which are decorated withmetal rim or glazedHeat-resistant plastic Yes No No Can not be used for long time microwave cookingHeat-resistant glass Yes No NoGrill rack No Yes YesPlastic film Yes No No It should not be used when cooking meat (such assteak or chops) as the over temperature may dodamage to the filmFOR THE FIRST USESAs there is manufacturing residue or oil remaining on the oven cavity or heat element, it usually wouldsmell the odor, even a slight smoke, It is normal case and would not occur after several times use, keepthe door or window open to ensure good ventilation. So it is strongly recommended to set the oven togrill mode and operate dry several times. Operating dry can only be conducted in the grill mode, it cannot be conducted at combination mode.6

IMPORTANT SAFEGUARDSThe following basic precautions should always be followed when using electrical appliance:1. Read all instructions before using.2. Make sure the voltage in your living area corresponding to the one shown on the rating label of theappliance. And the wall socket is properly grounded.3. To reduce the risk of fire in the oven cavity:a. Do not overcook the food.b. Remove wire twist-ties from paper or plastic bags before placing bags in the oven.c. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any foodsplashes and grease. Built-up grease may overheat and begin to cause smoke or catch fire.e. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off anddisconnect the power supply.f. Close supervision is necessary when using disposable containers made from plastic, paper or othercombustible material.4. To reduce the risk of explosion and sudden boiling:a. Do not place sealed containers in the oven. Baby bottles fitted with a screw cap or teat are consideredto be sealed containers.b. When boiling liquid in the oven, use the wide-mouthed container and stand about 20 seconds at theend of cooking to avoid delayed eruptive boiling of liquids.c. Potatoes, sausage and chestnut should be peeled or pierced before cooking. Eggs in their shell, wholehard-boiled eggs should not be heated in microwave ovens since they may explode, even aftermicrowave heating has ended.d. The cooked liquid should not be removed immediately. Several moments should be allowed beforeremoving an order to avoid possible hazards caused by delayed eruptive boiling of liquids.e. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is tobe checked before consumption, in order to avoid burns.5. Never operate the oven further if the door or door seals are damaged or the oven is malfunctioning orsupply cord is damaged. Return the appliance to the nearest authorized service center for repair andmaintenance. Never try to adjust or repair the oven yourself.6. If the supply cord is damaged it must be replaced by the manufacturer or its service agent or aqualified technician in order to avoid a shock hazard.7. After cooking, the container is very hot. Use gloves to take out the food and avoid steam burns bydirecting steam away from the face and hands.8. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcornand oven cooking bags away from the face.9. To prevent the turntable from breaking:a. Let the turntable cool down before cleaning.b. Do not place hot foods or utensils on the cold turntable.c. Do not place frozen foods or utensils on the hot turntable.10. Make sure the utensils do not touch the interior walls during cooking.11. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that couldadversely affect the life of the appliance and possibly result in a hazardous situation.12. Only use utensils that are suitable for use in microwave ovens.13. Do not store food or any other things inside the oven.14. Do not operate the oven without any liquid or food inside the oven. This would do damage the oven.15. This appliance is not intended for use by young children or infirm persons without supervision.Only allow children to use the oven without supervision when adequate instructions have been given so7

8. ExpressPress Express button, LED Display cycles toshow 0:30--1:00--1:30.This function will allow you to heat a cup ofwater or beverage conveniently, omitting thesteps of setting time. Choose the proper timedepending on the beverage capacity.0:30 --- default 30 sec operation time1:00 --- default 1minute operation time1:30 --- default time is 1 and half minutesExample: To cook with express for 1 minuteDepressDisplay1. After power-up, the colon flashes or :press Pause/Cancel button once2. Depress Express button consecutivelyto select desired menu1 : 003. Start cooking by pressing Instant/Start button9.GrillPress Crill button to select light grill mode,whichis applicable for grilling thin meat such assteak,sausage, chicken wings as well as sandwichas good brown color can be obtained.Note: It is not necessary to preheat for grillcooking.10. Grill CombiPress Crill Combi button, LED cycles to showGrill combi1—Grill combi2—Grill combi3Grill combi1---30 % microwavecooking timewhile 70% grilling time, applicable forwestern-style food,such as steak,or suchlike to get a satisfyinggrillingresult.Grill combi2---55 % microwavecooking timewhile45% grilling time, applicable for meat, wholepoultry or suchlike as more rapidmicrowavingcooking makes penetrated food.Grill combi3---70 % microwavecooking timewhileExample: To grill food with Light grill for 10 minutesDepress1.After power-up, the colon flashes orpress Pause/Cancel button once2. Select the desired cooking menu bypressing Grill button3. Set cooking time by turningTimeWeight/Auto Cooking knob4. Press Instant/Start button to start, andLED will count down to show runningDisplay30% grilling time, applicable for meat, whole poultry or suchlike as most rapid microwavingcookingmakes penetrated food.Note: It is not necessary to preheat for grill cooking.Warning:In the mode of Crill Combi, oven parts as well as the rack and cooking containers, may become veryhot. Use caution when removing any item from the oven. Use heavy potholders or oven mitts toPREVENT BURNS.time.:0 : 001 0 : 001 0 : 00Example: To grill food with Grill combi1 for 10 minutesDepress1.After power-up, the colon flashes orpress Pause/Cancel button once2. Select the desired cooking menu bypressing Grill Combi button3. Set cooking time by turningTime.Weight/Auto Cooking knob4. Press Instant/Start button to start, andLED will count down to show runningtime.Display:0 : 001 0 : 001 0 : 0011

11. Auto DefrostPress Auto Defrost button, LED cycles to showD.1—D.2—D.3D.1 ---applicable for defrosting poultry rangedfrom 0.2 to 3.0Kg.D.2---applicable for defrosting meat ranged from0.1 to 2.0 kg.D.3--- applicable for defrosting seafood rangedfrom 0.1to 0.9kg.Note:1. It is necessary to turn over the food duringoperation to obtain uniform effect.2. Usually defrosting will need longer time thanthat of cooking the food.3. If the food can be cut by knife, the defrostingprocess can be considered completed.4. Observe the below Defrost guide to achieve bestperformance.Defrost guideSteaks chop- Shield thin end of chops or steaks with foil.Example: To defrost 0.4 kg poultryDepress1. After power-up, the colon flashes orpress Pause/Cancel button once2. Select the food kind by pressingAuto Defrost button3. Set defrosting weight by turning theTime. Weight/Auto Cooking knob4. Start cooking by pressing Instant/Startbutton. LED will count down to showrunning time.Display5. Half way during defrosting 3 beep sound will be heardtwo times to prompt you turn over the food. Open the doorand turn over the food and shield the warm portion. PressInstant/Start button again to continue the defrosting. Ifyou do not when an audible signal sounds, the defrostingcycle will continue until the time count down to 0.- Position the food with thinner parts in the centre in a single layer on a shallow dish. If pieces are stucktogether, try to separate as soon as possible.- When the oven beeps, it is to prompt you to turn over the food. Turn over, rearrange and shield thedefrosted portions.- Press Instant/Start button to continue defrosting.- After defrost time, stand covered with aluminium foil for 5-15 minutes.Minced Beef- Place frozen minced beef on a shallow dish. Shield edges.- When the oven Beeps, it is to prompt you to turn over the food. Remove defrosted portions, turn overand shield edges with foil strips.- Press Instant/Start button to continue defrosting.- After defrost time, stand covered with aluminium foil for 5-15 minutes.Roast Meat (Beef/pork/lamb)- Shield the edges with foil strips.- Place joint with lean side face upwards (if possible) on a shallow dish.- When the oven Beeps, it is to prompt you to turn over the food. Turn over, and shield the defrostedportions.- Press Instant/Start button to continue defrosting.- After defrost time, stand covered with aluminium foil for 10-30 minutes.Poultry- Remove from original wrapper. Shield wing and leg tips with foil.- Place breast side down on a shallow dish.- When the oven Beeps, it is to prompt you to turn over the food. Turn over and shield the defrostedportions.- Press Instant/Start button to continue defrosting.- After defrost time, stand covered with aluminium foil for 15-30 minutes.Note: After standing run under cold water to remove giblets if necessary.Chicken pieces (chicken wings and drumstick)- Shield the exposed bone with foil.- Place chicken pieces on a shallow dish.- When the oven beeps, it is to prompt you to turn over the food. Turn over, rearrange and shield the:.10 . 45 : 1612

defrosted portions.- Press Instant/Start button to continue defrosting.- After defrost time, stand covered with aluminium foil for 5-30 minutes.12. Auto CookingThe oven has default cooking menu for simpleoperation.When LED flashes colon turnTime.Weight/Auto Cooking knob,LEDcycles to show AC-1—AC-2—AC-3….AC-8Choose the appropriate menu according to thefood type and weight and strictly observe thedirections of below table, otherwise thecooking effect will be largely influenced.Auto cook tableDisplay Category DirectionAC-1 Rice Suitable for cooking rice ranged from 0.15 to 0.60kgAC-2AC-3AC-4FreshvegetablePopcornPotatoExample: Steam 0.3kg fishDepress1. After power-up, the colon flashes orpress Pause/Cancel button once2. Choose the appropriate menu by turningWeight.Time/Auto Cooking knob3. Press Instant/Start button once to confirm4. Turn Weight.Time/Auto Cooking knobto select the desired one among thegiven weight.5. Start cooking by pressing Instant/StartSuitable for cooking rice ranged from 0.1to 0.5kgSuitable for popping a bag of corn, which is available in the market,weighted 0.1kg. Popcorn prior to completing, if the popping speed has beendecreased to 1 time per 1-2 seconds you should press Pause/Cancel buttonto stop the popping processSuitable for cooking potato strips of 5mm based on total weight rangedfrom 0.15 to 0.60kg .Place the strips on a large dish and cover the dish witha thin film to prevent water lossAC-5 Pizza Warm a piece of chilled pizza,0.15/0.30kg in total.Based on existing temperature ranged from 50℃ to 80℃,applicable for:1. Heating a cup of 250 ml liquid or beverageDisplaybutton, and LED will count down to show running time.:AC- 70 . 31 5 : 00AC-6AC-7AC-8BeverageFishChicken2. Heating a cup of 500ml liquid or beverage3. Heating a cup of 700 ml liquid or beverageUse a big mouth cup and do not seal.Suitable for steaming a fish ranged from 0.1 to 0.4kg. After the fish washedand scales removed, make a slits on the skin of fish .Put the fish on ashallow dish of 22-27cm diameter sprinkle lightly with some ingredient andcover the dish with a thin film to prevent water loss. During the middle ofcooking process, press Pause/Cancel button and turn the fish over to get abetter result. When cooking completed, stand for 2 minutes.Suitable for grilling chicken ranged from 0.2 to 1.2kg. During the middle ofcooking process, press Pause/Cancel button and turn the fish over to get abetter result13

MICROWAVE COOKING TIP1) Arranging foodPlace thicker areas toward outside of dish and the thinner meat in the center and spread them evenly. Donot overlap if possible.2) Cooking timeStart cooking with the shorter period of time and extend it according to the actual need. Overcookingmay result in smoking and burning.3) Cover foods before cooking refer to the recipeUse paper towels, microwave plastic wrap or a cover to cover food so that prevent spattering and helpfoods to cook evenly. (Helps keep oven clean).4) Partial shielding of foodUse small pieces of aluminium foil to cover thin areas of meats or poultry to avoid overcooking.5) Stir foodsFrom outside to center of dish once or twice during cooking, if possible.6) Turn foodsFoods such as chicken, hamburgers or steaks should be turned over once during cooking.7) Rearrange foodsPlease change the positions of food in half way during cooking such as: from top to bottom and fromthe center of the dish to the outside.8) Allow standing timeAfter cooking ensure adequate standing time. Remove food from oven and stir if possible. Cover forstanding time which allows the food to finish cooking without overcooking.9) Check for donenessObserve the food color and hardness to determine whether the food is cooked. Doneness signs include:-Steams throughout food, not just at edge part.- Joints of Poultry move easily.- Pork and poultry show no evidence of blood.- Fish is opaque and flakes easily with a fork.10) CondensationIt is a normal case of microwave cooking. The humidity and moisture of food will influence the amountof moisture in the oven. Generally, covered foods will not cause as much condensation as uncoveredfoods. Ensure that the ventilation openings are not blocked.11) Microwave safe plastic wrapFor cooking food with high fat content, do not bring the wrap in contact with the food as it may melt.12) Microwave safe plastic cookwareSome microwave safe plastic cookware are not suitable for cooking foods with high fat and sugarcontent.15

CLEANING AND MAINTENANCEThe oven should be cleaned regularly and any food deposits removed.Disconnect the power supply cord before cleaning. And if possible leave the door open to inactivate theoven during cleaning.Exterior:The outside may be cleaned wipe with a soft and damp cloth. Avoid the use of harsh abrasive cleaners.Door:Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp clothto remove any spills or spatters. Do not use abrasive cleaners.Control panel:Care should be taken in cleaning the control panel. Wipe the panel with a cloth dampened slightly. Donot scrub or use any sort of chemical cleaners.Interior walls:To clean the interior surfaces, wipe with a soft and damp cloth for hygienic reasons. After use wipe thewaveguide cover in the oven with a soft damp cloth to remove any food splashed. Buildup splashes mayoverheat and begin to smoke or catch fire. Do not remove the waveguide cover. Do not use acommercial oven cleaner, abrasive or harsh cleaners and scouring pads on any part of your microwaveoven. Never spray oven cleaners directly onto any part of your oven.Turntable/ Rotating ring/Rotating axisWash with mild soapy water and dry thoroughly.TIP: When the microwave oven has been used for a long time, there may be some strange odors exist inoven, Following 3 methods can get rid of them:1. Place several lemon slices in a cup, then heat with high power for 2-3 min.2. Place a cup of red tea in oven, then heat with high power.3. Put some orange peel into oven, then heat them with high power for 1 minute.SERVICINGWarning: it is hazardous for anyone, other than a qualified service technician, to carry out anyservice for repairing operation which involves removal of any cover which gives protectionagainst exposure to microwave energy.Caution: MICROWAVE RADIATIONWarning:The temperature of accessible surface may be high when the appliance isoperating.Do not become exposed to radiation from the microwave generator or other parts conductingmicrowave energy.During servicing below listed parts are liable to be removed and give access to potentials above250V toearth.1. Magnetron2. High voltage transformer3. High voltage capacitor4. High voltage diode5. High voltage fuseBelow listed condition may cause undue microwave exposure during servicing.16

1. Unproper fitting of magnetron.2. Unproper matching of Door interlock, door hinge and door.3. Unproper fitting of switch support.4. Door, Door seal or enclosure has been damage.ENVIRONMENT FRIENDLY DISPOSALDISPOSAL: Do not dispose this product as unsorted municipalwaste, collection of such waste separately for special treatmentis necessary.17

CONDITIONS OF GUARANTEEDear Customer,The conditions of guarantee which apply to your appliance are as follows: Thisproduct is guaranteed for 3 years from the date of original purchase. Please referto the Think Warranty Card for details.If you have any further questions please contact Think Appliances Pty Ltd:SERVICE DEPARTMENTPhone:1800 444 357Fax:1300 133 279Email:service@thinkappliances.comSALES DEPARTMENTPhone:1300 132 824Fax:1300 660 188Web:www.thinkappliances.com18
