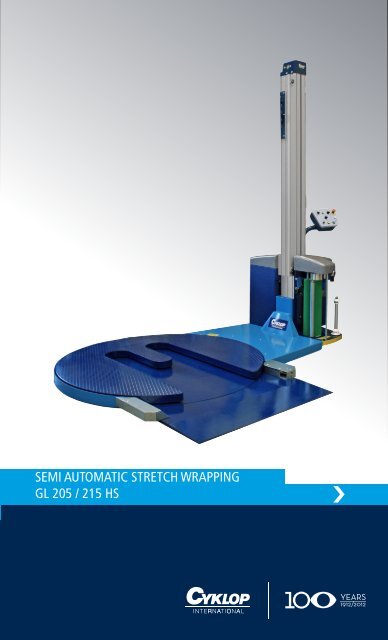

SEMI AUTOMATIC STRETCH WRAPPING GL 205 / 215 HS
SEMI AUTOMATIC STRETCH WRAPPING GL 205 / 215 HS
SEMI AUTOMATIC STRETCH WRAPPING GL 205 / 215 HS
- No tags were found...
You also want an ePaper? Increase the reach of your titles
YUMPU automatically turns print PDFs into web optimized ePapers that Google loves.
<strong>SEMI</strong> <strong>AUTOMATIC</strong> <strong>STRETCH</strong> <strong>WRAPPING</strong><strong>GL</strong> <strong>205</strong> / <strong>215</strong> <strong>HS</strong>
<strong>STRETCH</strong> WRAPPER <strong>GL</strong> <strong>205</strong> / <strong>215</strong> <strong>HS</strong>Overview and dimensionsTop plate(option)Cyklop’s patentedwithadjustable prestretch system up to 300%Air supply not neededThe photocells stops the machineif the beam is broken.Easy loading of turntable with palletjack. Ramp isremovable and can be attached in three directionswith oursystem (Left,right and front).CBDAEDim (mm) A B C D E F GGStandard 85 2540 2675 Ø1650 440 990 625FOption 2995Weight, standard: 500 kg (Weight can vary depending on options). Crated dimensions: L2900 x H1050 x W1800 mm, weight: 650 kg.
D:\Vault_WF\Designs\Mek\hand toppfilmare\210081.iam250250D:\Vault_WF\Designs\Mek\hand toppfilmare\210080.iamØ250ISSUED BY BURTECH AB1000-1600 mmISSUED BY BURTECH AB<strong>STRETCH</strong> WRAPPER <strong>GL</strong> <strong>205</strong> / <strong>215</strong> <strong>HS</strong>Specification<strong>GL</strong> <strong>205</strong> <strong>HS</strong><strong>GL</strong> <strong>215</strong> <strong>HS</strong>Machine Table diam Ø1650 mmTable speedUp to 10,5 r/m adjustableSoft start / stopElectronically runBottom/top wrappings 1–3 1–6Film carriage speedVariable film overlapping top and bottomPre-stretch systemPowerPallet GoodsStretch FilmPre-stretch ratio onthe Ecostretch unitStretch wrapping programsControllerSupplyProtectionLoadingMax size (length x width)Max. goods height incl. pallet:Permitted load weightCore diameterOuter diameter, maxFilm width, maxFilm thickness<strong>GL</strong> <strong>205</strong>: 1, 25, 45, 65, 90, 135, 170 or 210 % adjustable<strong>GL</strong> <strong>215</strong>: 30, 60, 80, 110, 145, 200, 250 or 300 % adjustable4 standard, 2 optionsSiemens PLC3-phase 400 V+N+PE, 50 HzIP5416 A1200 x 1200 mmUp to 2200 mm (standard machine)Up to 1200 Kg76 mm250 mm500 mm9-35 mySelected options1234567 Extended mast (load height 2600 mm) Top film cassette 1-phase 220V Low temperatureA Extra corrosion protection1234AB5C17501300 /16006 78910A1750DB1300 / 1600BECCDFDEGEThe stringroller is an optionto press up the bottom ofthe film width to a string.FTop plate, rectangular/round.To increase the stability of the cargo.GHFloor/wall mounted top film dispenser.Designed bymjoFWhen 1 palletized 23goods need 4 protection56from dust/water or dampness.GDrawn by Approvedmjo7H12345Designed by Drawn by Approved by Rev. no StandardScalemjo mjoA3TOP SHEET DISPENSERFOR WALL COMPLETE6 789ReplaceFile name210081.iamDrawing no.210081Replaced byDate2005-03-1010H
Stretch Wrapper <strong>GL</strong> <strong>205</strong> / <strong>215</strong> <strong>HS</strong>Wraps 15-50 loads per day. Wraps irregular shaped loads. Uses forktruck/palletjack to load the stretch wrapper.The operator starts the wrapping cycle at the machine and manually cuts/attaches the film.The versatile Cyklop wrapper for a wide range of applications. The development of the <strong>GL</strong> <strong>205</strong>/<strong>215</strong> with thepatented Ecostretch system, have been based on years of experience. Together with the equipment options and thevarieties of settings they offer, optimum adaptations to any requirements and thus provide the new stretch wrapperseries with a high level of cost-effectiveness.These properties guarantee not only good load securement but also minimum material costs, i.e. low filmconsumption. With the <strong>GL</strong> <strong>215</strong> you have the possibility to regulate the application of tension (force of applying thefilm to the product).Easy to operate Controls are easy to find and understand.Foldable mast and fork lift truck voids are fittedfor easy in-transport and good mobility Film roll change fast and simple. Automatic load height sensor. Air supply not needed.Saves money Pre-stretch ratio is adjustable up to 210/300%.Patent approved system, The chosen prestretch ratio stays constant,which guarantees a consistent low film,consumption, load after load. Film carriage speed is individually adjustable tominimize film overlap. Motorized prestretch device minimizes filmconsumption and protects delicate goods.Consistent packaging result Flexible setting possibilities enable optimumpackaging for a variety of goods. The film tension is automatically controlledwhich gives an even cover around the goods. Several standard programs are available, e gwith top sheet for protection against water. 4 programs are factory preset.Key featuresRamp can be attached in three directions.Easy change of all program parameters andsettings.Allows operator to easily load turntable withpalletjack. Ramp is easily removable to allowforktruck loading.The photocells stops the machine if the beamis broken.Subject to Modification. Protectory notice persuant to ISO 16016 to be observed. © Copyright Cyklop GmbH, Cologne, Cyklop Teknik AB - PBE961016EN - 2012WWW.CYKLOPTEKNIK.SE
