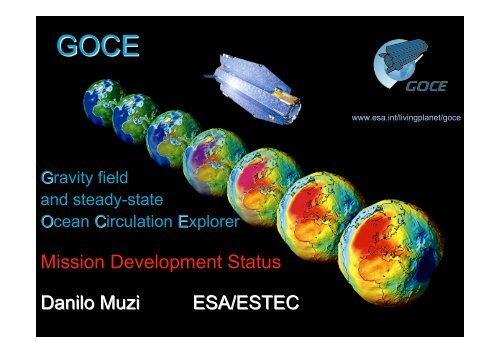

GOCE<br />
Gravity field<br />
and steady-state<br />
Ocean Circulation Explorer<br />
<strong>Mission</strong> Development Status<br />
<strong>Danilo</strong> <strong>Muzi</strong> <strong>ESA</strong>/<strong>ESTEC</strong><br />
EOEP Science Review Meeting 14 and 15 June 2005<br />
www.esa.int/livingplanet/goce
SPACE<br />
SEGMENT<br />
GROUND<br />
SEGMENT<br />
Calibr. Requ.<br />
!"#$%"&'()**%+,-.'/<br />
RPF<br />
CMF<br />
<strong>ESA</strong> <strong>Mission</strong> Management<br />
Planning<br />
Aux. Data<br />
Aux. Data<br />
Products<br />
Telecommands Telemetry<br />
FOS<br />
PDGS<br />
HPF<br />
<strong>ESA</strong> Core Elements<br />
Rec. TM Data<br />
Auxiliary Data<br />
L1 Products L2 Products<br />
GOCE Workshop, November 6-8, 2006 Frascati, ITALY<br />
User<br />
Community
Gradiometer Instrument<br />
ALCATEL ALENIA SPACE(F)<br />
Gradiometer Assembly<br />
Electronic (GAE)<br />
ONERA (F)<br />
!"#$%+).'**0.'%#1('%2345-.(0)*%6')/<br />
GOCE Satellite<br />
Prime Contractor<br />
ALCATEL ALENIA SPACE (I)<br />
PLATFORM<br />
ASTRIUM (D)<br />
System Performances<br />
Support<br />
ONERA (F)<br />
The Core Team leads a consortium of 39 sub-contractors<br />
distributed over 13 European countries.<br />
GOCE Workshop, November 6-8, 2006<br />
Frascati, ITALY
!"#$%+).'**0.'%2345-.(0)*%#13-1(.05/<br />
GOCE Workshop, November 6-8, 2006 Frascati, ITALY
!"#$%!(1534%+'7 / '3.%2345-.(0)*%#13-1(.05/<br />
• The development of the Payload Data Segment (PDS) has been<br />
carried out by ACS (I), with Logica (B), ONERA (F), and IAPG (D)<br />
as sub-contractors.<br />
• The High-Level Processing Facility (i.e. Level 1b to Level 2 data<br />
processing) has been developed by a consortium of 10 institutes<br />
distributed in 7 countries: IAPG (D), AIUB (CH), CNES (F),<br />
FAE/A&S (NL), GFZ (D), ITG (D), Polimi (I), SRON (NL), TUG<br />
(A), and UCPH (DK).<br />
GOCE Workshop, November 6-8, 2006 Frascati, ITALY
!"#$%!(1534%+'7 / '3.%2345-.(0)*%#13-1(.05/<br />
• The calibration and Monitoring Facility (CMF) and Reference<br />
Planning Facility (RPF) development has been carried out by<br />
Deimos (E) with ACS (I), SRON (NL) and IAPG (D) as subcontractors.<br />
• The Flight Operation Segment (FOS) has GMV (E) as prime and<br />
Dataspazio (I) as sub-contractor for the development of the<br />
<strong>Mission</strong> Control System, whereas SciSys (UK) is responsible for<br />
the development of the simulator.<br />
GOCE Workshop, November 6-8, 2006 Frascati, ITALY
GOCE <strong>Mission</strong> is very challenging<br />
being the satellite a first in many<br />
ways:<br />
First flying a three axis Gravity<br />
Gradiometer and a Drag Free<br />
Attitude Control System at low orbit<br />
altitude (i.e. 250 Km) with no<br />
mechanical moving parts and using<br />
advanced technologies.<br />
!"#$%#8)**'37 '-<br />
GOCE Workshop, November 6-8, 2006<br />
Frascati, ITALY
!"#$%+9):'%+'7 / '3.%;'&'*19/ '3.%+.).5-<br />
• Gradiometer Structural and Thermal Model (STM) programme<br />
completed with, in particular, qualification of the Carbon-Carbon<br />
technology used for the Gradiometer Structure.<br />
• Satellite Structural Model programme completed.<br />
• Payload Engineering Model (EM) programme (i.e. Gradiometer<br />
and Satellite to Satellite Tracking Instrument) completed.<br />
• Satellite EM integration completed and functional verification in<br />
progress.<br />
GOCE Workshop, November 6-8, 2006<br />
Frascati, ITALY
!"#$%+9):'%+'7 / '3.%;'&'*19/ '3.%+.).5-<br />
• Platform Flight Model (FM) integration completed with the exception<br />
of Ion Propulsion Assembly (IPA).<br />
• 2 Satellite to Satellite Tracking Instrument FMs completed.<br />
• Gradiometer Electronics FMs completed.<br />
• 6 Accelerometer Sensor Heads completed.<br />
• First Gradiometer arm integrated and aligned.<br />
GOCE Workshop, November 6-8, 2006<br />
Frascati, ITALY
!"#$%+9):'%+'7 / '3.%
!"#$%+9):'%+'7 / '3.%
!"#$%!(1534%+'7 / '3.%;'&'*19/ '3.%+.).5-<br />
• The development of the various GOCE Ground Segment<br />
elements has reached a mature status (i.e. Acceptance Reviews<br />
successfully held) and we are starting now the Ground Segment<br />
Overall Validation (GSOV).<br />
• The first GSOV tests are running between FOS and PDS, these<br />
will be incremented with the addition of: RPF, HPF, PMF and<br />
CMF.<br />
GOCE Workshop, November 6-8, 2006 Frascati, ITALY
619>?'&'*%+:8'45*'<br />
GOCE Workshop, November 6-8, 2006 Frascati, ITALY
