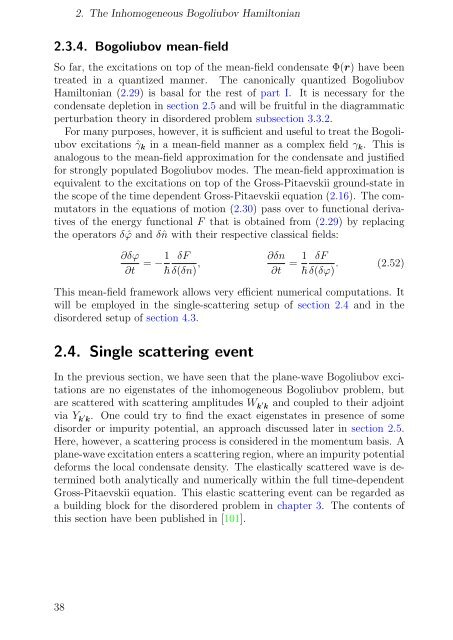

2. The Inhomogeneous Bogoliubov Hamiltonian 2.3.4. Bogoliubov mean-field So far, the excitations on top of the mean-field condensate Φ(r) have been treated in a quantized manner. The canonically quantized Bogoliubov Hamiltonian (2.29) is basal for the rest of part I. It is necessary for the condensate depletion in section 2.5 and will be fruitful in the diagrammatic perturbation theory in disordered problem subsection 3.3.2. For many purposes, however, it is sufficient and useful to treat the Bogoliubov excitations ˆγk in a mean-field manner as a complex field γk. This is analogous to the mean-field approximation for the condensate and justified for strongly populated Bogoliubov modes. The mean-field approximation is equivalent to the excitations on top of the Gross-Pitaevskii ground-state in the scope of the time dependent Gross-Pitaevskii equation (2.16). The commutators in the equations of motion (2.30) pass over to functional derivatives of the energy functional F that is obtained from (2.29) by replacing the operators δ ˆϕ and δˆn with their respective classical fields: ∂δϕ ∂t δF = −1 � δ(δn) , ∂δn ∂t 1 δF = . (2.52) � δ(δϕ) This mean-field framework allows very efficient numerical computations. It will be employed in the single-scattering setup of section 2.4 and in the disordered setup of section 4.3. 2.4. Single scattering event In the previous section, we have seen that the plane-wave Bogoliubov excitations are no eigenstates of the inhomogeneous Bogoliubov problem, but are scattered with scattering amplitudes W k ′ k and coupled to their adjoint via Y k ′ k. One could try to find the exact eigenstates in presence of some disorder or impurity potential, an approach discussed later in section 2.5. Here, however, a scattering process is considered in the momentum basis. A plane-wave excitation enters a scattering region, where an impurity potential deforms the local condensate density. The elastically scattered wave is determined both analytically and numerically within the full time-dependent Gross-Pitaevskii equation. This elastic scattering event can be regarded as a building block for the disordered problem in chapter 3. The contents of this section have been published in [101]. 38
k k ′ 2.4.1. Single scattering setting θ 2.4. Single scattering event Figure 2.5: 2D single-scattering setup. A bluedetuned laser beam focused perpendicularly through a 2D BEC provides an impurity potential V (r) = V (0) exp(−r 2 /r 2 0), which scatters an incident Bogoliubov wave with wave vector k into modes k ′ at scattering angle θ. The following experimental setting is proposed for observing the scattering of a Bogoliubov excitation off a potential impurity. The basic idea is to create a BEC in a shallow trap with an impurity and then to imprint a single plane-wave Bogoliubov excitation. After some time, the wave scattered at a certain angle is measured. The experiment should be realized in two dimensions for the following reasons. In an experiment in one dimension, there is only forward and backscattering. Thus, no angular dependence is observable. In contrast, a two-dimensional setup allows observing the angular dependence of the scattered wave, and the impurity can be realized easily by means of a bluedetuned laser penetrating perpendicularly through the center of the condensate. The two-dimensional setup is sketched in figure 2.5. In three dimensions, things would become more complicated, because the impurity cannot be realized using a single laser beam as in d = 2. Moreover, simple time-of-flight images are more complicated to evaluate, because they show the integrated density along the vertical dimension. The trap should be shallow enough, such that the condensate can be considered as homogeneous around the impurity. Thus, the potential appearing in the formalism of section 2.3 is given by the impurity potential alone. The light-shift potential of the laser beam forming the impurity potential takes the shape of the Gaussian intensity profile of the beam V (r) = V (0) exp(−r 2 /r 2 0). As discussed in subsection 2.2.3, this potential causes a depression in the ground-state density of the BEC [see figure 2.2]. Next, a plane-wave Bogoliubov excitation is imprinted by a Braggspectroscopy technique [60, 61]. Two laser beams with a certain detuning are radiated onto the condensate at a certain angle. By absorption of a photon from the one beam and stimulated emission of a photon into the other, the energy and the momentum for a Bogoliubov quasiparticle are provided. By 39
