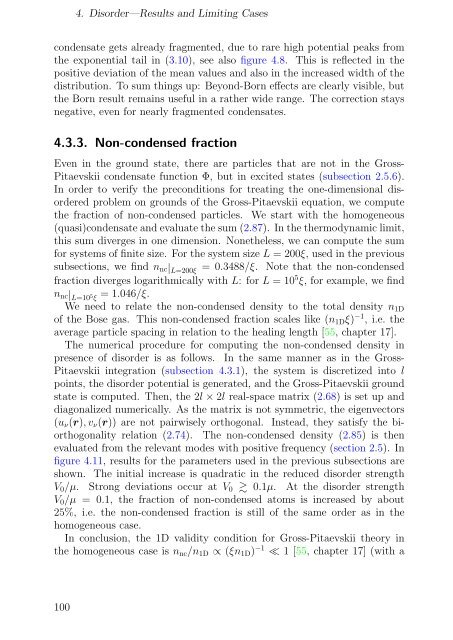

4. Disorder—Results and Limiting Cases condensate gets already fragmented, due to rare high potential peaks from the exponential tail in (3.10), see also figure 4.8. This is reflected in the positive deviation of the mean values and also in the increased width of the distribution. To sum things up: Beyond-Born effects are clearly visible, but the Born result remains useful in a rather wide range. The correction stays negative, even for nearly fragmented condensates. 4.3.3. Non-condensed fraction Even in the ground state, there are particles that are not in the Gross- Pitaevskii condensate function Φ, but in excited states (subsection 2.5.6). In order to verify the preconditions for treating the one-dimensional disordered problem on grounds of the Gross-Pitaevskii equation, we compute the fraction of non-condensed particles. We start with the homogeneous (quasi)condensate and evaluate the sum (2.87). In the thermodynamic limit, this sum diverges in one dimension. Nonetheless, we can compute the sum for systems of finite size. For the system size L = 200ξ, used in the previous subsections, we find nnc|L=200ξ = 0.3488/ξ. Note that the non-condensed fraction diverges logarithmically with L: for L = 105ξ, for example, we find nnc|L=10 5 ξ = 1.046/ξ. We need to relate the non-condensed density to the total density n1D of the Bose gas. This non-condensed fraction scales like (n1Dξ) −1 , i.e. the average particle spacing in relation to the healing length [55, chapter 17]. The numerical procedure for computing the non-condensed density in presence of disorder is as follows. In the same manner as in the Gross- Pitaevskii integration (subsection 4.3.1), the system is discretized into l points, the disorder potential is generated, and the Gross-Pitaevskii ground state is computed. Then, the 2l × 2l real-space matrix (2.68) is set up and diagonalized numerically. As the matrix is not symmetric, the eigenvectors (uν(r), vν(r)) are not pairwisely orthogonal. Instead, they satisfy the biorthogonality relation (2.74). The non-condensed density (2.85) is then evaluated from the relevant modes with positive frequency (section 2.5). In figure 4.11, results for the parameters used in the previous subsections are shown. The initial increase is quadratic in the reduced disorder strength V0/µ. Strong deviations occur at V0 � 0.1µ. At the disorder strength V0/µ = 0.1, the fraction of non-condensed atoms is increased by about 25%, i.e. the non-condensed fraction is still of the same order as in the homogeneous case. In conclusion, the 1D validity condition for Gross-Pitaevskii theory in the homogeneous case is nnc/n1D ∝ (ξn1D) −1 ≪ 1 [55, chapter 17] (with a 100
nnc(V )−nnc(0) nnc(0) 1.2 1.15 1.1 1.05 0.002 0.004 0.006 0.008 0.01 4.3. Numerical study of the speed of sound V 2 µ 2 Figure 4.11: Relative increase of the non-condensed density nnc due to disorder. With the parameters of the present section σ = ξ = L/200. Note that the increase and the reference nnc(V = 0) both depend on the system size L/ξ. proportionality factor that depends logarithmically on L). As function of disorder strength, the non-condensed fraction increases, but it stays within the same order of magnitude, at least in the range of parameters of the present section. 4.3.4. Speed of sound as function of the correlation length Having checked the prediction at one particular value of the disorder correlation length, we now investigate different regimes of length scales. Given the condition kξ = 0.05 ≪ 1, the correlation length σ can be the shortest of all length scales, larger than the healing length but shorter than the wave length, or the largest of all length scales. In the intermediate range, the full integral (3.60) interpolates between the hydrodynamic limit (4.15) and the limit of low-energy excitations (4.31). In the first case, the prediction (4.31) from section 4.2 holds (green dashed line in figure 4.2). In the last case, the hydrodynamic limit (4.14) from section 4.1 is applicable (blue dotted line in figure 4.2). In-between, the full formula from subsection 3.4.5 has to be evaluated (solid line in figure 4.2). In figure 4.2 numerical data averaged over 50 realizations of disorder is shown together with the perturbative prediction from subsection 3.4.5. We find good agreement, both for V0 > 0 and V0 < 0. 101
