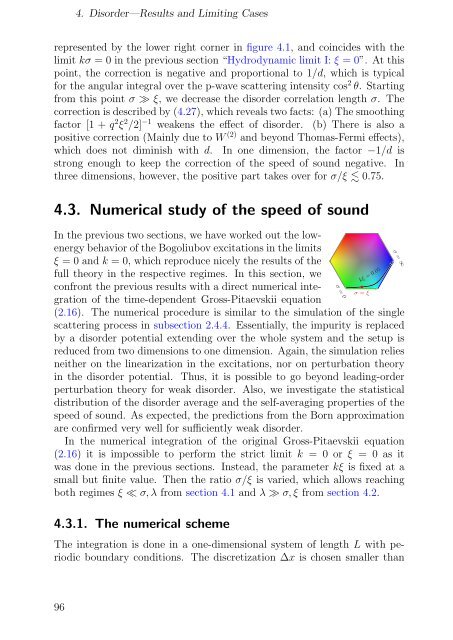

4. Disorder—Results and Limiting Cases represented by the lower right corner in figure 4.1, and coincides with the limit kσ = 0 in the previous section “Hydrodynamic limit I: ξ = 0”. At this point, the correction is negative and proportional to 1/d, which is typical for the angular integral over the p-wave scattering intensity cos 2 θ. Starting from this point σ ≫ ξ, we decrease the disorder correlation length σ. The correction is described by (4.27), which reveals two facts: (a) The smoothing factor [1 + q 2 ξ 2 /2] −1 weakens the effect of disorder. (b) There is also a positive correction (Mainly due to W (2) and beyond Thomas-Fermi effects), which does not diminish with d. In one dimension, the factor −1/d is strong enough to keep the correction of the speed of sound negative. In three dimensions, however, the positive part takes over for σ/ξ � 0.75. 4.3. Numerical study of the speed of sound In the previous two sections, we have worked out the lowenergy behavior of the Bogoliubov excitations in the limits ξ = 0 and k = 0, which reproduce nicely the results of the full theory in the respective regimes. In this section, we confront the previous results with a direct numerical inte- σ = ξ gration of the time-dependent Gross-Pitaevskii equation (2.16). The numerical procedure is similar to the simulation of the single scattering process in subsection 2.4.4. Essentially, the impurity is replaced by a disorder potential extending over the whole system and the setup is reduced from two dimensions to one dimension. Again, the simulation relies neither on the linearization in the excitations, nor on perturbation theory in the disorder potential. Thus, it is possible to go beyond leading-order perturbation theory for weak disorder. Also, we investigate the statistical distribution of the disorder average and the self-averaging properties of the speed of sound. As expected, the predictions from the Born approximation are confirmed very well for sufficiently weak disorder. In the numerical integration of the original Gross-Pitaevskii equation (2.16) it is impossible to perform the strict limit k = 0 or ξ = 0 as it was done in the previous sections. Instead, the parameter kξ is fixed at a small but finite value. Then the ratio σ/ξ is varied, which allows reaching both regimes ξ ≪ σ, λ from section 4.1 and λ ≫ σ, ξ from section 4.2. 4.3.1. The numerical scheme σ = 0 kξ = 0.05 The integration is done in a one-dimensional system of length L with periodic boundary conditions. The discretization ∆x is chosen smaller than 96 σ = ∞
1 0.5 0 -0.5 0 20 40 60 80 100 x/σ (a) 4.3. Numerical study of the speed of sound 1 0.5 0 -0.5 0 20 40 60 80 100 x/σ (b) Figure 4.8.: Speckle potential V (x)/µ (red) and ground state density profile n0(x)/n∞ (green) for (a) a repulsive speckle potential V0 = +0.1µ, (b) an attractive speckle potential V0 = −0.1µ. The asymmetric distribution (3.10) of the speckle potential can lead to occasional deep density depressions (a) or density peaks (b). At σ = ξ, the density profiles are slightly smoothed, compared with the Thomas-Fermi profile (2.20). healing length, disorder correlation length and wave length. Due to the finite system size L, Fourier space becomes discrete, with ∆k = 2π/L. The first step is to generate the speckle disorder potential. For all k ≤ σ−1 , the independent complex field amplitudes Ek from (3.7) are populated using a Gaussian random number generator from the gsl library. In real space, the amplitudes are squared and the mean value is compensated, which gives the speckle disorder potential (3.9). Then the condensate ground-state is computed by imaginary time evolution, using the fourth-order Runge-Kutta algorithm [104]. Starting point is the homogeneous condensate, which adapts to the disorder potential during the imaginary time evolution, figure 4.8. The imaginary time evolution is not unitary, thus it violates the normalization of the wave function. This is compensated by re-normalizing the wave function after each imaginary time step, which corresponds to the shift of the chemical potential discussed in subsection 3.4.5. Next, the disordered ground state is superposed with a plane-wave excitation γk of the homogeneous system. According to the Bogoliubov transformation (2.33) the imprints in density and phase read δn(x) = 2 √ n∞ � ɛ 0 k ɛk Γ cos(kx) δϕ(x) = 1 � ɛk √ n∞ ɛ0 Γ sin(kx). (4.34) k The amplitude of the phase modulation is much larger than the amplitude in the density, because of ɛk ≫ ɛ0 k in the sound-wave regime. Thus, we choose a small value for the amplitude � ɛk/ɛ0 k Γ = 0.3√n∞V0/µ. Then, the time 97
