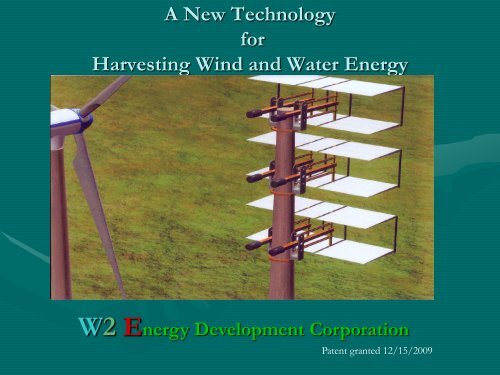

The Corporate Goal :Creating a Balanced Technological System100% Efficiencyis the ObjectiveW2 <strong>Energy</strong> DevelopmentCorporation
The Basic Concept for Utilizing the Kinetic <strong>Energy</strong> in Wind and WaterFirst: Create a System in BalanceWithEqual Weight on Each Side of a Fulcrum22W2 <strong>Energy</strong> Development Corporation
Then:Reconfigure the Balanced Beam with Devices that have aHigh Potential for Harvesting Wind <strong>Energy</strong>CounterbalancingWeightSymmetrical Wings asHarvesting DevicesSubstitute DifferentlyConfigured Weights on eachside of the fulcrum and theSystem remains in balanceW2 <strong>Energy</strong> Development Corporation
Thereby a Wind Harvesting ProcessA positive Angle ofattack on a wing createsa positive liftA negative angle ofattack createsa negative lift1is Created10Wind <strong>Energy</strong>Mechanical advantageof 10:1Useful ForceSystem balance changed by thewind force interacting with the wingW2 <strong>Energy</strong> DevelopmentCorporationPatent granted 12/15/2009
Now Consider The Initial Efficiency of Wind Turbine Bladesas the Ratio of the Total Swept Area to the Total Forward BladeArea in ContactWith the WindLWDisregarded<strong>Energy</strong>Disregarded<strong>Energy</strong>R= 90 feetHarvested Wind <strong>Energy</strong>
WindWing Area vs. Turbine Blade Area<strong>Energy</strong> Extraction Area ComparisonWing AreaWing Area180ftWing AreaWing AreaWing AreaWing Area
Projected Harvesting Capability OfEquivalent WindWing Size• If the wings are 180 feet by 20 feet with the angle of attack at 20 odegrees, the exposed wing area is ~3,600 sq. ft. /wing• With six wings the combined area is~ 21,600sq. ft.• With a rectangular swept area of (180 ft x 180 ft ) = 32,400 sq.ft.&ThenThe potential for harvesting wind energy beforeconversion losses = ~21,600/ 32,400 =~65%W2 <strong>Energy</strong> Development Corporation
Increased Area of ContactMore wind energy is harvested because there is morecontact area exposed to the force of the wind. Dependingon the Angle of Attack this could average 60% of a sweptarea as opposed to 5% or less for the propeller driventurbines
New WindWing InstallationW2 <strong>Energy</strong> Development Corporation
WindWing Retrofit in Wind FarmW2 <strong>Energy</strong> Development Corporation
THE TECHNOLOGY APPLIED TO FLOWING WATER• In the more dense environment, such as a riveror an aqueduct, the wing can be submerged andthe force of flowing water is captured in thesame manner as the WindWing harvests windenergy.• The following slides present the concept:W2 <strong>Energy</strong> Development Corporation
WaterWingA New Technology for Harvesting Water <strong>Energy</strong>W2 <strong>Energy</strong> DevelopmentCorporationPatent granted 12/15/2009
Comparison of Lift on an Airfoilin Air and Water !Joukowski Airfoil in Standard Earth AtmosphereAirspeed = 3 mph, Altitude = 5 ft, Surface Area = 7.75 sq ft,Pressure = 14.694lb/sq in, Temperature = 58F, Density = 0.00237slug/cu ftAngle of attack = 15.0 degrees, Camber = 0.0 % chord, Thickness = 12.5 % chord,Lift = 0.44 lbs Wings OnlyLift = 4.4 lbs With Mechanical AdvantageJoukowski Airfoil in WaterWater velocity = 3 mph, Depth = 5 ft, Surface Area = 7.75 sq ft,Pressure = 16.863lb/sq in, Temperature = 60F, Density = 1.94slug/cu ftAngle of attack = 15.0 degrees, Camber = 0.0 % chord, Thickness = 12.5 % chord,Lift = 359 lbs Wings OnlyLift = 3,590 lbs With Mechanical AdvantageW2 <strong>Energy</strong> DevelopmentCorporation
Conceptual Aqueduct InstallationW2 <strong>Energy</strong> Development Corporation
WaterWing in a River DiversionPatent Granted 12/15/2009W2 <strong>Energy</strong> Development Corporation
For Instance
Something Else to Consider:The GridLarge output production facilities will always be neededto produce electricity for transfer to heavy demandpoints of use.Distributed production by smaller producers satisfyingtheir own needs by using a variety of means for doing sowill provide for a reduction of the stress on the Grid.
Large Scale <strong>Gene</strong>ratorLarge Scale <strong>Gene</strong>ratorDistributed Production Small<strong>Gene</strong>ratorVIRTUAL BATTERYLarge Scale <strong>Gene</strong>ratorDistributed Production Small<strong>Gene</strong>ratorDistributed Production Small<strong>Gene</strong>ratorLarge Scale <strong>Gene</strong>ratorLarge Scale <strong>Gene</strong>ratorThe Continental Grid
WindWing in a MicroGrid SystemProprietary Design for Producing Quality Electricity Off Grid(Equally Suited for Water Applications)W2 <strong>Energy</strong> Development Corporation
Next Steps• Capitalization of Projects• Inaugurating Test and Evaluation Programs fora variety of applications off grid.• Program for integrating WindWing technologyinto new and currently operating systems.• Developing a Macro and Micro-ClustertechnologyW2 <strong>Energy</strong> Development Corporation
Putting it All to WorkW2 <strong>Energy</strong> Development CorporationTechnology Distribution PlanSuperRegion OneRegion TwoRegion ThreeRegion FourLicLicLicLicLicLicLicLicApps Apps Apps
Wind Harvesting TechnologyElegant Simplicity in DesignThank You For Your InterestCONTACT:W2 <strong>Energy</strong> Development Corporation402 E GutierrezSanta Barbara, CA93101<strong>Gene</strong> R. <strong>Kelley</strong>, FounderPresident/CEO805 685 6535 Cell: 805 450 8767gkelley49@gmail.comDavid BuckalewSenior Vice President805 685 6535tdbmv@Gmail.com
WindWinga new technology for harvesting water energyComparative Considerations BetweenThe WindWing TechnologyandWind TurbinesW2 <strong>Energy</strong> Development Corporation
Applications ConsiderationsTechnical Issues Propeller Turbines WindWingBetz Limit Yes NoMaintenance High LowSolar Options No Yes<strong>Gene</strong>rator Placement Nacelle on Pole On Ground LevelSafety Issues Significant LowScalable Efficiency No YesSite Adjustability No Number of WingStacksForce Multiplier Low Mechanical AdvantageOff Grid PlacementLimited &ExpensiveW2 <strong>Energy</strong> Development CorporationYes, Micro & MacroCluster Designs
Environmental ImpactEnvironmentalIssues Propeller Turbines WindWingAvian Destruction Yes Unlikely to occurNoise Pollution Yes NegligibleFootprint & Profile Large & High Smaller & LowerPlacement Wind Farms Distributed Pointsof ApplicationsAestheticallyAppealing No YesW2 <strong>Energy</strong> Development Corporation
Investment, Availability andIntegration ConsiderationsFinancial Issues Propeller Turbines WindWingEfficiency Gains 3-5% 40-60%Manufacture Remote/ Specialized Local/Low CostShip, Install Costs Specialized/High Routine/Local LaborEffective Start Speed 16 MPH 6-8 MPHDelivery Time 2-3 years 4-8 monthsRetrofit Capability No YesMulti Stacking No YesW2 <strong>Energy</strong> Development Corporation
WindWing Attributes• Higher quality power output• Improved consistency of power• Scalable for application adaptability• Benign environmental impact• Standardized industrial components• Low Manufacturing CostsW2 <strong>Energy</strong> Development Corporation
Micro-and Macro-cluster Benefits• Distributed generation reduces Grid demand• Matches application & use requirements• Grid capacity limits not affected• Decentralization allows for increased energyproduction at more locations closer to users• Provides emergency back up power for the grid• Provides for remote electricity requirements noteconomically available from the gridW2 <strong>Energy</strong> Development Corporation
Future Benefits• Available work force is expected to diminish by30% in next 10 to 15 years – However,WindWing technology will grow local workforce demand• Because of simplicity and efficiency in design,fewer highly skilled personnel will be required• Personnel requirements will be for fewertechnicians decentralized in smaller work groupsW2 <strong>Energy</strong> Development Corporation
