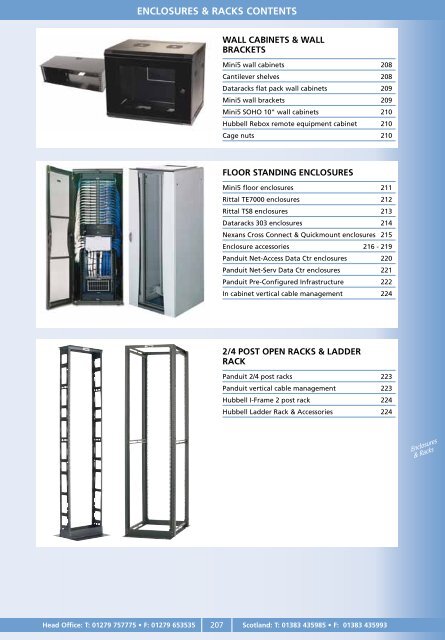

enclOSureS & rackS cOnTenTS - Minitran

enclosure accessoriesFan TraysTMPictures are representative. Designmay vary for each manufacturer.For Mini5EnclosuresFor Rittall TE7000EnclosuresFor RittallTS8EnclosuresFor Dataracks303 Enclosures(Roof mount)2 way roof mount MT-FANT24 way roof mount MT-FANT42 way rack mount MT-FAN2RM3 way rack mount MT-FAN23MMini5 fans are 28db noise level suitable for anoffice environment.4 way roof mount 70010012 way rack mount (1U) 70275044 way roof mount for 800(w)x800(d)& 600(w)x1000(d) grey 75376714 way roof mount for 600(w)x600(d),600(w)x800(d) & 800(w)x600(d) grey 75376704 way roof mount for 800(w)x1000(d) grey 75376734 way roof mount for 600(w)x1000(d) black 75373474 way roof mount for 800(w)x1000(d) black 75373462 way for 600(w)x650(d) EA1-040-0212 way for 600(w)x850(d) EA1-041-0212 way for 600(w)x950(d) EA1-042-0212 way for 800(w)x650(d) EA1-043-0212 way for 800(w)x850(d) EA1-044-0212 way for 800(w)x950(d) EA1-045-0214 way for 600(w)x650(d) EA1-046-0214 way for 600(w)x850(d) EA1-047-0214 way for 600(w)x950(d) EA1-048-0214 way for 800(w)x650(d) EA1-049-0214 way for 800(w)x850(d) EA1-050-0214 way for 800(w)x950(d) EA1-051-0214 way for 800(w)x1050(d) EA1-209-021Dataracks fans are 28db noise level suitable for anoffice environment.CastorsMini5Light duty (pack of 4)60kg loadHeavy duty (pack of 4)MT-CASLDMT-CASHDRittal TS8 Heavy duty (pack of 4) 8908321Light duty (pk of 4)GA1-140-000Dataracks 303Heavy duty (pk of 4)GA1-142-000PDUs & powercables:pages 226-230Head Office: T: 01279 757775 • F: 01279 653535 217 Scotland: T: 01383 435985 • F: 01383 435993

enclosure accessoriesLevelling FeetFor Mini5 EnclosureFor Dataracks 303 EnclosureMT-LEVFGA1-143-000Rittal TE7000 & Rittal TS8 Server cabs are suppliedwith levelling feet.Standard PlinthsTMFor Mini5EnclosuresFor RittallTE7000 & TS8Enclosures600(w)x600(d)600(w)x800(d)800(w)x600(d)800(w)x800(d)600(w)x1000(d)800(w)x1000(d)1 x Front/rear & 1 x side needed for each Rittalenclosure (sold in pairs).GreyMT-PLI66MT-PLI68MT-PLI86MT-PLI88MT-PLI61MT-PLI81BlackFront/Rear 100(h)x600(w) 8908105 8908106Front/Rear 100(h)x800(w) 8908107 8908108Front/Rear 200(h)x600(w) 8908110 8908111Front/Rear 200(h)x800(w) 8908112 8908113Side 100(h)x600(d) 8908114 -Side 100(h)x800(d) 8908115 -Side 100(h)x1000(d) 8908116 8908117Side 200(h)x600(d) 8908118 -Side 200(h)x800(d) 8908119 -Side 200(h)x1000(d) 8908120 8908121Picture is representative. Design mayvary for each manufacturer.ForDataracks303Enclosures600(w)x650 deep600(w)x850 deep600(w)x950 deep800(w)x650 deep800(w)x850 deep800(w)x950 deepSS1-025-314SS1-026-314SS1-027-314SS1-028-314SS1-029-314SS1-030-314Extendable stabilising plinths also available. Contact our sales office for details.Earth Bonding KitsMini5 Earth Bonding KitMT-EBKRittal TE7000 Earth Bonding Kit 7001182Rittal TS8 Earth Bonding Kit 8908133Dataracks 303 Earth Bonding Kit EA1-030-000sales@minitran.co.uk218www.minitran.co.uk

enclosure accessoriesCable Management RingsTMFor Mini5Enclosures45x65mm (fits to front of profiles)100x90mm (fits to side mngmnt on800mm wide cabs)MT-JUM4565MT-JUM10090For Rittal TE7000& TS8 Enclosures60x120mm (pack of 10) 702745040x80mm (pack of 10) 7027451120x90mm (pack of 10) 7537171Rittal TE7000 mngmnt rings fit to front profilesFor Dataracks303 EnclosuresJumper Ring for 600 wide enclosure- fits to upright (pack of 10) GA1-145-000Management arms for 800 wideenclosure, fits to upright (pack of 4) GA1-173-000Cable TrayTMMini5 EnclosuresCT*****Available in 12U, 18U, 24U, 30U, 36U, 42U & 48U in150mm & 300mm width. **Add required U height andwidth to above part number e.g. 42U 300mm wide =CT42300,18U 150mm wide = CT18150Rittal TE7000 & TS8 EnclosuresU height 150mm width 300mm width25U 7027260 -27U - 702726836U 7027261 702726942U 7027262 702727447U 7027263 7027275Dataracks 303 EnclosuresU height 150mm width 300mm width12U GA1-067-311 GA1-074-31118U GA1-068-311 GA1-075-31124U GA1-069-311 GA1-076-31130U GA1-070-311 GA1-077-31136U GA1-071-311 GA1-078-31142U GA1-072-311 GA1-079-31148U GA1-073-311 GA1-080-311Head Office: T: 01279 757775 • F: 01279 653535 219 Scotland: T: 01383 435985 • F: 01383 435993

panduit net-access enclosuresEnergy Efficient Data Centre Cabinet SystemNet-Access cabs include many unique features including innovative thermal designs to maintain hot/cold airseparation for improved cooling & reduced energy consumption.Superior cable management, inset frame &in-cabinet ducting options ensure proper airflow.Net-Access cabs have been designed around Cisco switches & have been verified by Cisco asmeeting their Nexus 7000, MD9500 & 6500 series requirements. See page 103 for the thermalmanagement characteristics of these enclosuresCable pathwaysTop air seal fittingsCable managementOverhead/underfloorcable routingThermal managementVertical panel/PDU mountingIntegral grounding/bondingNet-Access Switch Cabs: (2134(h) x 800(w) x 1044mm(d) with 45U cablemanagement on front and rear of front posts45U cabinet with dual hinged perforated front door. Split perforatedrear door, solid removable side panels,45U cabinet as above but without side doors45U open frame without front/rear or side doors45U cabinet with split perforated front & rear doors, solid removable side panels.45U cabinet with split perforated front & rear doors, no side panels.CN1**CN2**CN3**CN4**CN5**** Supplied with threaded mounting rails. Substitute ** with CN for cage nut version.Net-Access Server Cabs: (2134(h)x800(w)x1044mm(d) with 45U cable mngmnt on rear of front posts,vertical blanking panels, cage nut rails & PDU brackets45U cabinet with single hinged perforated front door. Split perforated reardoor, solid removable side panels45U cabinet as above but without side doors45U open frame without front/rear or side doorsVertical exhaust ductSTOP PRESSWhite Net-Accesscabs & 42U versionsnow availableThere are so many accessories to choose from that we have only listed part numbers for cabs & shownsome accessories. Please ask for the Net-Access brochure.CS1CS2CS3sales@minitran.co.uk220www.minitran.co.uk

panduit net-serv enclosuresNet-Serv EnclosuresNet-Serv cabinets are designed to provide the best combination of space utilisation &thermal management for server applications. They compliment the Net-Access cabs (page 55)& provide a complete infrastructure solution.• 42U or 45U heights either 600mm or 700mm wideby 1200mm deep• Cable mngmnt, outset cab frame, perforationpatterns & vertical blanking panels work togetherto ensure proper airflow• Cage nut rails with U height• Vertical mount PDU brackets• Optional thermal management systems• Anti tip brackets included• Finger cable mngmnt on std density versions• Four separate vertical cable pathways on highdensity versions• Lockable doors & side panels• Baying brackets included• Available in basic, standard density, high density& vertical patching versions• Levelling legs fitted• Welded construction, 1134kg load rating• Many accessories availableFinger managementCable managementchannelsNet-Serv cabinet part number configurator:1: S S = Net-Serve Cab2: 76 = 600mm wide7 = 700mm wide3: 2 2 = 42U5 = 45U4: 2 2 = 1200mm depth5: C C = cage nut rails6: 1 1 = Perforated front door7: 22 = Perforated split rear door3 = solid rear doorAccessoriesSet of 4 castorsBracket to vertically mount 19"patch panelsBracket to tool-less mount PanduitPDU'sSCSTRSVPPBSVPDUBVertical panelmounting8: 1 = One side panel2 = Two side panels9 = No side panels9: F = Std density cabs (left/right cable fingers)H = High density cabs (4 x cable mngmntchannels)P = Vertical patchB = Basic (no cable mngmnt)10: V = Vertical exhaust ductLeave blank for no exhaustExample: S722C129FVShelf (584mm depth)Shelf (762mm depth)Shelf (914mm depth)ThermalmanagementSTOP PRESSWhite Net-Servcabs now availableRSHLF23RSHLFRSHLF36There are many accessories to choose from & onlya few are shown here. Please ask for the Net-Servbrochure.Head Office: T: 01279 757775 • F: 01279 653535 221 Scotland: T: 01383 435985 • F: 01383 435993

panduit Pre-Configured InfrastructureFor Cisco Nexus, UCS & Catalyst PlatformsPanduit & Cisco have created a data centre solution that integrates the Cisco compatiblephysical infrastructure systems needed in an optimised data centre deployment. Preconfiguredenclosures arrive at partner or end user sites ready to be deployed, reducingthe time required for planning, designing, procurement, installation as well as the cost ofoperators.Panduit pre-configured physical infrastructures for Nexus 7010, Cisco UCS & Catalyst 6509 platformsincrease business agility through high performance, flexible, scalable & reliable data centre design.Optimised for Power, Cooling & Performance : As a leading infrastructure partner for Cisco, Panduitworks with Cisco engineering & product teams to develop optimal physical layer solutions for networkingproducts. These pre-configured infrastructures were specifically designed for the Cisco UCS, Nexus & Catalystplatforms to balance scalability, power & thermal characteristics.See page 103 for information on the thermal management characteristics of these enclosures.Pre-Configured For Rapid Deployment: Includes all necessary systems, pre-configured within PanduitCabinets to rapidly deploy Cisco platforms. Includes thermal management, high speed data transport (HSDT)copper & fibre cabling, cable management, grounding & bonding.Scalability: Designed to support various line card & equipment densities enabling growth and agilityacross the entire offering. Also accommodates migration from 10G to 40G/100G Ethernet with minimuminvestment & downtime. Making changes to Cisco UCS, Nexus or Catalyst platform is easy with modularQuickNet panels & connectivity (page 47) enabling quick migration to higher speeds.For part numbers & configuration options,please contact our sales office.sales@minitran.co.uk222Environmental monitoring: page 237Enclosure access control & monitoring:page 238www.minitran.co.uk

panduit open racks2 & 4 Post Open Racks• Adjustable front & rear mounting rails on 4 postversion• Printed U height numbersAdditional accessories available. Contact Minitranfor details.2 post rack & accessories45U 2 post open rack with 76mm deep posts R2P45U 2 post open rack with 152mm deepposts with slotsR2P6S3U 2 part centre mount shelf, mountseach side of rack 316mm depth SRM19CM33U 2 part vented ctr mount shelf,mounts each side of rack635mm depthSRM19CMV34 post rack & accessories45U 584mm depth rackR4P23**45U 762mm depth rackR4P**45U 914mm depth rackR4P36**45U 1054mm depth rackR4P42**Castors (set of 4)RCSTSShelf (584mm depth)RSHLF23Shelf (762mm depth)RSHLFShelf (914mm depth)RSHLF36** Threaded equipment rails as standard. Add suffixCN to end of part number for cage nut versions.*2 & 4 post racks accept NetRunner vertical cable management (below) & PatchRunnersystem on page 54NetRunner Vertical Cable ManagersMounts to 2 post racks with 76mm deep posts and 4post racks shown above.Cable management fingers manage cable on thefront/rear of the rack.• Moulded plastic with pass through holes• Dual hinged cover opens left or rightVertical front & rear management45U 125(w)x306mm(d)45U 170(w)x357mm(d)WMPV45EWMPVHC45EVertical front only management45U 125(w)x165mm(d)45U 170(w)x192mm(d)WMPVF45EWMPVHCF45EHead Office: T: 01279 757775 • F: 01279 653535 223 Scotland: T: 01383 435985 • F: 01383 435993

cable management, ladder racks & I-frameIn Cabinet 40U Vertical CableManagementLadder Rack & AccessoriesWorks with the majority ofcabs as long as the cab is686mm wide or more. 40Umanagers with bracketsthat fit to the front or sideof the cabinets verticalrails. Both types occupy thespacebetween the rails &side wall of the cab.Can be used in front & rearof the cabinet. PVC cablemngmnt fingers with snapon covers.Sold individually, 2 requiredper cabinet.With front mount brackets:1778.8(h) x 82.5(w) x 76.2mm(d)With front mount brackets:1778.8(h) x 57.1(w) x 76.2mm(d)With side mount brackets:1800(h) x 74.6(w) x 95.5mm(d)With side mount brackets:1800(h) x 49.6(w) x 95.5mm(d)CWMPV3340CWMPV2340CWMPV3440CWMPV2440Modular system easily configured for new andexisting cable routing. Mounts to floors walls,ceilings, equipment racks & cabinets.Rack screws (pack of 20) 1224RRSCRW20Ladder rack (10ft x 12")HLS1012BLadder rack (6ft x 12")HLS0612BLadder rack 12" 90 degree angled HLF1290BMounting kit - secures ladderrack to top of rackHLMPK19Wall angle support for terminatingadder rack to wallHLX0612Protective end caps. Used on endof cable posts.HLECPK2T junction splice kit - connects ladderrack perpendicular to anotherHLTKVertical wall bracket - secures ladderrack vertically to wallHLVWBKSplice kit (joins ladder racking)HLBSKI-Frame 45U 2 Post rack• Designed to align with two foot data centre floortiles & dropped ceiling floor grid• Eleven I-Frame racks fits into the space of tenconventional racks• Exceptional column strength eliminates the needto tie the top of the rack to the wall• Cables run within each vertical column• Cable routing spools & hinged covers• Fast easy installation - just bolt the column to thefloor & screw horizontal in placeEach IS7 column is supplied with a top horizontalplate, 12 x snap in cable spools, hinged columncover, heavy duty floor anchor, screws/washers,bottom alignment instalation aid & floor template.1 x IS7 column/top plate & accessories.(Two columns must be ordered for thefirst rack in a line. Only one IS7 column needsto be ordered for each additional rack if theyare being used in a line).IS7Top ladder rack - provides an overheadcable pathway between IS7 columnsRear cable management kit -simplifies pulling, lacing &terminating horizontal cableAdditional cable spools (pack/50)ICKLICKCICKSSsales@minitran.co.uk224www.minitran.co.uk
