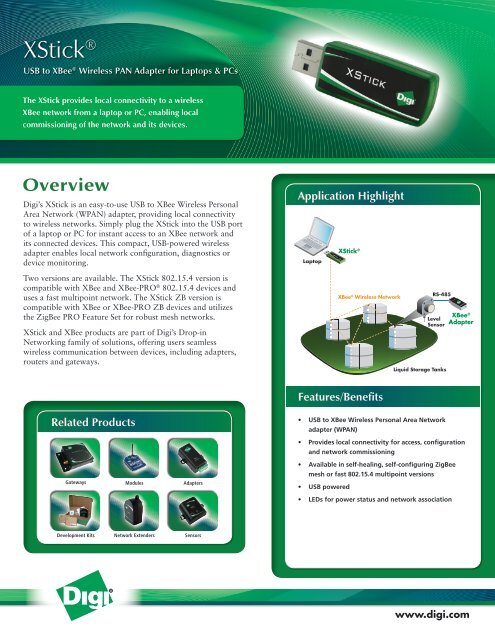

<strong>XStick</strong> ®<strong>USB</strong> <strong>to</strong> <strong>XBee</strong> ® <strong>Wireless</strong> <strong>PAN</strong> <strong>Adapter</strong> for Lap<strong>to</strong>ps & PCsThe <strong>XStick</strong> provides local connectivity <strong>to</strong> a wireless<strong>XBee</strong> network from a lap<strong>to</strong>p or PC, enabling localcommissioning of the network and its devices.OverviewDigi’s <strong>XStick</strong> is an easy-<strong>to</strong>-use <strong>USB</strong> <strong>to</strong> <strong>XBee</strong> <strong>Wireless</strong> PersonalArea Network (W<strong>PAN</strong>) adapter, providing local connectivity<strong>to</strong> wireless networks. Simply plug the <strong>XStick</strong> in<strong>to</strong> the <strong>USB</strong> por<strong>to</strong>f a lap<strong>to</strong>p or PC for instant access <strong>to</strong> an <strong>XBee</strong> network andits connected devices. This compact, <strong>USB</strong>-powered wirelessadapter enables local network configuration, diagnostics ordevice moni<strong>to</strong>ring.Two versions are available. The <strong>XStick</strong> 802.15.4 version iscompatible with <strong>XBee</strong> and <strong>XBee</strong>-PRO ® 802.15.4 devices anduses a fast multipoint network. The <strong>XStick</strong> ZB version iscompatible with <strong>XBee</strong> or <strong>XBee</strong>-PRO ZB devices and utilizesthe ZigBee PRO Feature Set for robust mesh networks.<strong>XStick</strong> and <strong>XBee</strong> products are part of Digi’s Drop-inNetworking family of solutions, offering users seamlesswireless communication between devices, including adapters,routers and gateways.Application HighlightLap<strong>to</strong>p<strong>XStick</strong> ®<strong>XBee</strong> ® <strong>Wireless</strong> NetworkRS-485LevelSensorLiquid S<strong>to</strong>rage Tanks<strong>XBee</strong> ®<strong>Adapter</strong>9-30V DC525mA MAXFeatures/BenefitsRelated Products• <strong>USB</strong> <strong>to</strong> <strong>XBee</strong> <strong>Wireless</strong> Personal Area Networkadapter (W<strong>PAN</strong>)• Provides local connectivity for access, configurationand network commissioning• Available in self-healing, self-configuring ZigBeemesh or fast 802.15.4 multipoint versionsGatewaysModules<strong>Adapter</strong>s• <strong>USB</strong> powered• LEDs for power status and network associationDevelopment KitsNetwork ExtendersSensorswww.digi.com
Specifications <strong>XStick</strong>® ZB <strong>XStick</strong>® 802.15.4PerformanceIndoor/Urban Range 66 ft (20 m) 49 ft (15 m)Outdoor/RF Line-of-Sight Range 164 ft (50 m) 131 ft (40 m)Transmit Power Output (Nominal 25º C) 2.8 mW (4.5 dBm) 1 mW (0 dBm)RF Data RateSerial Interface Data Rate (Software Selectable)Receiver Sensitivity250 Kbps1200 bps - 115.2 Kbps-90 dBmPower RequirementsSupply Voltage5V from <strong>USB</strong> port of PCTransmit Current 51 mA 64 mAReceive Current 47 mA 64 mAPower-Down Current<strong>XStick</strong> should not be put in<strong>to</strong> sleep modeGeneralFrequency BandDimensions (L x W x H)Operating TemperatureConnec<strong>to</strong>rAntenna Options2.4 GHz ISM2.29 in x 0.80 in x 0.43 in (5.83 cm x 2.03 cm x 1.08 cm)-40º C <strong>to</strong> +85º C<strong>USB</strong> Type AInternal onlyNetworking & SecuritySupported Network Topologies ZigBee Mesh Point-<strong>to</strong>-Point, Point-<strong>to</strong>-Multipoint, Peer-<strong>to</strong>-PeerNumber of Channels (Software Selectable) 16Addressing Options<strong>PAN</strong>, Channel, AddressRegula<strong>to</strong>ry ApprovalsFCC Part 15.247 (USA) Yes (MCQ-XSTICK2) Pending (MCQ-XSTICK1)IC (Canada) Yes (1846A-XSTICK2)0.477”Pending (1846A-XSTICK1)ETSI (Europe) Yes PendingTELEC (Japan)0.800”Yes No0.477”<strong>XStick</strong> - Top View<strong>XStick</strong> - Side View0.495” 1.800”0.025”<strong>XStick</strong> - Connec<strong>to</strong>r0.477”0.425” 0.800”0.495” 1.800”0.495”0.025”Visit www.digi.com for part numbers.0.425”0.425”DIGI SERVICE AND SUPPORT - You can purchase with confidence knowing that Digi is here <strong>to</strong> support youwith expert technical support and a strong five-year warranty. www.digi.com/support© 2008-2010 Digi International Inc.All rights reserved. Digi, Digi International, the Digi logo, the Making <strong>Wireless</strong> M2M Easy logo, <strong>XBee</strong>, <strong>XBee</strong>-PRO and <strong>XStick</strong> aretrademarks or registered trademarks of Digi International Inc. in the United States and other countries worldwide. All other trademarks arethe property of their respective owners. All information provided is subject <strong>to</strong> change without notice.91001463B1/210BUY ONLINE • www.digi.com<strong>Delmation</strong> Products BVinfo@delmation.nlwww.delmation.nlTel: +31 (0)79 342 2041
