x 1<br />
x 2<br />
x 1<br />
x 2<br />

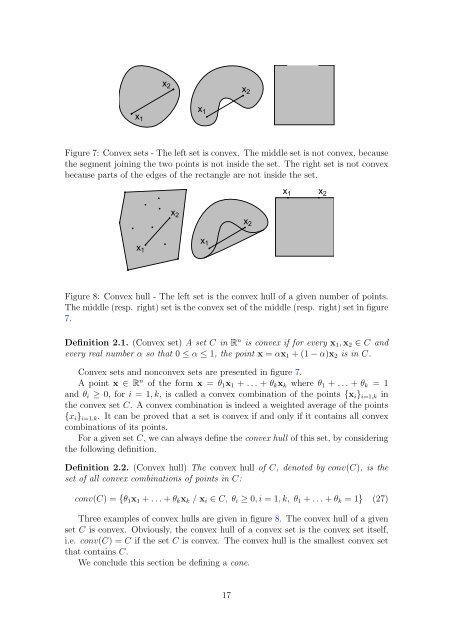

Figure 7: Convex sets - The left set is convex. The middle set is not convex, because<br />
the segment joining the two points is not inside the set. The right set is not convex<br />
because parts of the edges of the rectangle are not inside the set.<br />
x 1 x 2<br />
x 2<br />
x 2<br />
x 1<br />
x 1<br />
Figure 8: Convex hull - The left set is the convex hull of a given number of points.<br />
The middle (resp. right) set is the convex set of the middle (resp. right) set in figure<br />
7.<br />
Definition 2.1. (Convex set) A set C in R n is convex if for every x 1 , x 2 ∈ C and<br />
every real number α so that 0 ≤ α ≤ 1, the point x = αx 1 + (1 − α)x 2 is in C.<br />
Convex sets and nonconvex sets are presented in figure 7.<br />
A point x ∈ R n of the form x = θ 1 x 1 + . . . + θ k x k where θ 1 + . . . + θ k = 1<br />
and θ i ≥ 0, for i = 1, k, is called a convex combination of the points {x i } i=1,k in<br />
the convex set C. A convex combination is indeed a weighted average of the points<br />
{x i } i=1,k . It can be proved that a set is convex if and only if it contains all convex<br />
combinations of its points.<br />
For a given set C, we can always define the convex hull of this set, by considering<br />
the following definition.<br />
Definition 2.2. (Convex hull) The convex hull of C, denoted by conv(C), is the<br />
set of all convex combinations of points in C:<br />
conv(C) = {θ 1 x 1 + . . . + θ k x k / x i ∈ C, θ i ≥ 0, i = 1, k, θ 1 + . . . + θ k = 1} (27)<br />
Three examples of convex hulls are given in figure 8. The convex hull of a given<br />
set C is convex. Obviously, the convex hull of a convex set is the convex set itself,<br />
i.e. conv(C) = C if the set C is convex. The convex hull is the smallest convex set<br />
that contains C.<br />
We conclude this section be defining a cone.<br />
17
