172 CHAPTER 9. DIFFERENTIAL ALGEBRAIC EQUATIONS we conclude that v = (I − ND + · · · + N k−1 D k−1 )h (9.60) = h − Nh ′ + N 2 h ′′ − · · · + N k−1 h ( k − 1) (9.61) In other words, equation 9.55 is not a differential equation at all, despite the presence of the derivative, but is an algebraic equation for v. This is sometimes referred to as a hidden constraint of the DAE. Two key points emerge from the preceding discussion. First, we see that DAE’s may have hidden constraints, namely, part of the solution may be fully determined independently of any initial conditions. Second, two many initial conditions can over-determine the system. If too many initial conditions are provided, that is, more than are necessary to determine u, then there may not be any solution at all. Theorem 9.3. Let Ay ′ + By = f be a solvable linear constant coefficient DAE with index k ≥ 1. Then (A + λB) −1 has a pole of order k at λ = 0, and (A + λB) −1 A has pole of order k − 1 at λ = 0. Proof. We will give the proof for the first statement. The second is left as an exercise. Hence I = Q −1 Q (9.62) = Q −1 (A + λB) −1 (A + λB)Q (9.63) = Q −1 (A + λB) −1 P −1 P (A + λB)Q (9.64) = Q −1 (A + λB) −1 P −1 (P AQ + λP BQ) (9.65) Q −1 (A + λB) −1 P −1 = (P AQ + λP BQ) −1 (9.66) (A + λB) −1 = Q(P AQ + λP BQ) −1 P (9.67) ( ) −1 I + λC 0 = Q P (9.68) 0 N + λI ( ) (I + λC) −1 0 = Q 0 (N + λI) −1 P (9.69) Since (this can be verified by multiplying out the product, using the fact that N k = 0) I = 1 [I − 1 λ λ N + 1 ] λ 2 N 2 + · · · + (−1)k−1 λ k−1 N k−1 [N + λI] (9.70) we know that (N + λI) −1 = 1 λ ∑k−1 i=0 −1 i λ i N i (9.71) Hence A + λB has elements that are proportional to 1/λ k . This gives a pole of oder k when λ → 0. Math 582B, Spring 2007 California State University Northridge c○2007, B.E.Shapiro Last revised: May 23, 2007
CHAPTER 9. DIFFERENTIAL ALGEBRAIC EQUATIONS 173 9.3 General Linear Differential Algebraic Equations In the general linear system the matrices A and B may be functions of t, A(t)y ′ (t) + B(t)y(t) = f(t) (9.72) Then theorem 9.1 is still valid, but theorem 9.2 is not. In general, the index of the pencil and the index of the DAE are not the same! Definition 9.7. Let A(t)y ′ + B(t)y = f be a linear time-varying DAE with pencil λA(t) + B(t). We say the DAE is a regular DAE if the pencil is regular for all values of t. Definition 9.8. Let A(t)y ′ + B(t)y = f be a linear time-varying DAE with pencil λA(t) + B(t).Then the local index of the pencil is the index of the pencil at a given time t. Theorem 9.4. Let A(t)y ′ + B(t)y = f be a solvable linear time-varying DAE with pencil λA(t) + B(t).Then the following are equivalent: 1. A(t)y ′ + B(t)y = f is an ordinary differential equation (system). 2. The index of the DAE A(t)y ′ + B(t)y = f is zero. 3. The local index of the pencil λA(t) + B(t) is zero for all t. 4. The local index of the pencil is zero for some t = t 0 . Theorem 9.5. Let A(t)y ′ + B(t)y = f be a solvable linear time-varying DAE with pencil λA(t) + B(t). Then the index of the pencil is one if and only if the index of the DAE is one. Definition 9.9. Let A(t)u ′ (t)+B(t)u(t) = f be a solvable linear time-varying DAE. An analytically equivalent transformation of the DAE is given by 1. Pre-multiply the DAE by a non-singular matrix P (t), P Au ′ + P Bu = P f (9.73) 2. Make the change of variables u = Q(t)y, for some non-singular matrix Q(t) P A(Qy ′ + Q ′ y) + P BQy = P f (9.74) P AQy ′ + (P AQ ′ + P BQ)y = P f (9.75) Theorem 9.6. An analytically equivalent transformation preserves the following properties of a solvable linear DAE: 1. The local index of the pencil is zero 2. The local index of the pencil is one c○2007, B.E.Shapiro Last revised: May 23, 2007 Math 582B, Spring 2007 California State University Northridge
- Page 127 and 128: CHAPTER 6. LINEAR MULTISTEP METHODS
- Page 129 and 130: CHAPTER 6. LINEAR MULTISTEP METHODS
- Page 131 and 132: CHAPTER 6. LINEAR MULTISTEP METHODS
- Page 133 and 134: CHAPTER 6. LINEAR MULTISTEP METHODS
- Page 135 and 136: CHAPTER 6. LINEAR MULTISTEP METHODS
- Page 137 and 138: CHAPTER 6. LINEAR MULTISTEP METHODS
- Page 139 and 140: CHAPTER 6. LINEAR MULTISTEP METHODS
- Page 141 and 142: Chapter 7 Delay Differential Equati
- Page 143 and 144: CHAPTER 7. DELAY DIFFERENTIAL EQUAT
- Page 145 and 146: CHAPTER 7. DELAY DIFFERENTIAL EQUAT
- Page 147 and 148: CHAPTER 7. DELAY DIFFERENTIAL EQUAT
- Page 149 and 150: CHAPTER 7. DELAY DIFFERENTIAL EQUAT
- Page 151 and 152: CHAPTER 7. DELAY DIFFERENTIAL EQUAT
- Page 153 and 154: CHAPTER 7. DELAY DIFFERENTIAL EQUAT
- Page 155 and 156: CHAPTER 7. DELAY DIFFERENTIAL EQUAT
- Page 157 and 158: CHAPTER 7. DELAY DIFFERENTIAL EQUAT
- Page 159 and 160: Chapter 8 Boundary Value Problems 8
- Page 161 and 162: CHAPTER 8. BOUNDARY VALUE PROBLEMS
- Page 163 and 164: CHAPTER 8. BOUNDARY VALUE PROBLEMS
- Page 165 and 166: CHAPTER 8. BOUNDARY VALUE PROBLEMS
- Page 167 and 168: CHAPTER 8. BOUNDARY VALUE PROBLEMS
- Page 169 and 170: CHAPTER 8. BOUNDARY VALUE PROBLEMS
- Page 171 and 172: CHAPTER 8. BOUNDARY VALUE PROBLEMS
- Page 173 and 174: Chapter 9 Differential Algebraic Eq
- Page 175 and 176: CHAPTER 9. DIFFERENTIAL ALGEBRAIC E
- Page 177: CHAPTER 9. DIFFERENTIAL ALGEBRAIC E
- Page 181 and 182: CHAPTER 9. DIFFERENTIAL ALGEBRAIC E
- Page 183 and 184: CHAPTER 9. DIFFERENTIAL ALGEBRAIC E
- Page 185 and 186: CHAPTER 9. DIFFERENTIAL ALGEBRAIC E
- Page 187 and 188: CHAPTER 9. DIFFERENTIAL ALGEBRAIC E
- Page 189 and 190: CHAPTER 9. DIFFERENTIAL ALGEBRAIC E
- Page 191 and 192: CHAPTER 9. DIFFERENTIAL ALGEBRAIC E
- Page 193 and 194: CHAPTER 9. DIFFERENTIAL ALGEBRAIC E
- Page 195 and 196: CHAPTER 9. DIFFERENTIAL ALGEBRAIC E
- Page 197 and 198: CHAPTER 9. DIFFERENTIAL ALGEBRAIC E
- Page 199 and 200: Chapter 10 Appendix on Analytic Met
- Page 201 and 202: CHAPTER 10. APPENDIX ON ANALYTIC ME
- Page 203 and 204: CHAPTER 10. APPENDIX ON ANALYTIC ME
- Page 205 and 206: Bibliography [1] Ascher, Uri M., Ma

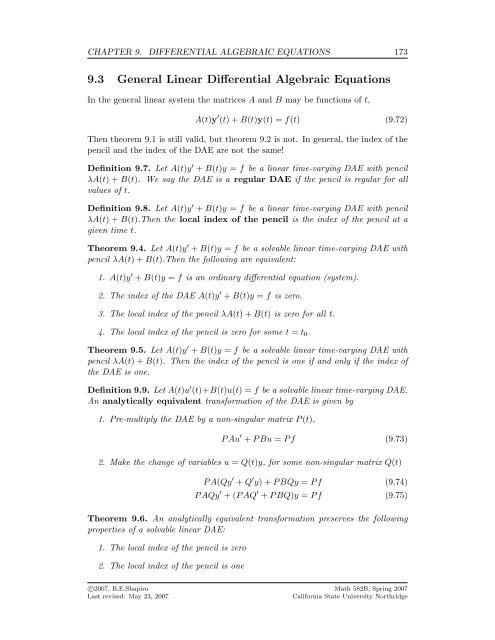

CHAPTER 9. DIFFERENTIAL ALGEBRAIC EQUATIONS 173<br />
9.3 General Linear <strong>Differential</strong> Algebraic <strong>Equation</strong>s<br />
In the general linear system the matrices A and B may be functions of t,<br />
A(t)y ′ (t) + B(t)y(t) = f(t) (9.72)<br />
<strong>The</strong>n theorem 9.1 is still valid, but theorem 9.2 is not. In general, the index of the<br />
pencil and the index of the DAE are not the same!<br />
Definition 9.7. Let A(t)y ′ + B(t)y = f be a linear time-varying DAE with pencil<br />
λA(t) + B(t). We say the DAE is a regular DAE if the pencil is regular for all<br />
values of t.<br />
Definition 9.8. Let A(t)y ′ + B(t)y = f be a linear time-varying DAE with pencil<br />
λA(t) + B(t).<strong>The</strong>n the local index of the pencil is the index of the pencil at a<br />
given time t.<br />
<strong>The</strong>orem 9.4. Let A(t)y ′ + B(t)y = f be a solvable linear time-varying DAE with<br />
pencil λA(t) + B(t).<strong>The</strong>n the following are equivalent:<br />
1. A(t)y ′ + B(t)y = f is an ordinary differential equation (system).<br />
2. <strong>The</strong> index of the DAE A(t)y ′ + B(t)y = f is zero.<br />
3. <strong>The</strong> local index of the pencil λA(t) + B(t) is zero for all t.<br />
4. <strong>The</strong> local index of the pencil is zero for some t = t 0 .<br />
<strong>The</strong>orem 9.5. Let A(t)y ′ + B(t)y = f be a solvable linear time-varying DAE with<br />
pencil λA(t) + B(t). <strong>The</strong>n the index of the pencil is one if and only if the index of<br />
the DAE is one.<br />
Definition 9.9. Let A(t)u ′ (t)+B(t)u(t) = f be a solvable linear time-varying DAE.<br />
An analytically equivalent transformation of the DAE is given by<br />
1. Pre-multiply the DAE by a non-singular matrix P (t),<br />
P Au ′ + P Bu = P f (9.73)<br />
2. Make the change of variables u = Q(t)y, for some non-singular matrix Q(t)<br />
P A(Qy ′ + Q ′ y) + P BQy = P f (9.74)<br />
P AQy ′ + (P AQ ′ + P BQ)y = P f (9.75)<br />
<strong>The</strong>orem 9.6. An analytically equivalent transformation preserves the following<br />
properties of a solvable linear DAE:<br />
1. <strong>The</strong> local index of the pencil is zero<br />
2. <strong>The</strong> local index of the pencil is one<br />
c○2007, B.E.<strong>Shapiro</strong><br />
Last revised: May 23, 2007<br />
Math 582B, Spring 2007<br />
