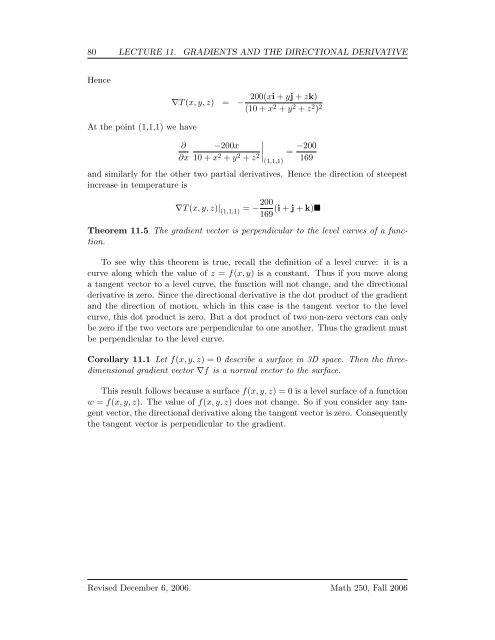

80 LECTURE 11. GRADIENTS AND THE DIRECTIONAL DERIVATIVE<br />
Hence<br />
At the point (1,1,1) we have<br />
200(xi + yj + zk)<br />
∇T (x, y, z) = −<br />
(10 + x 2 + y 2 + z 2 ) 2<br />
∂<br />
∂x<br />
∣<br />
−200x ∣∣∣(1,1,1)<br />
10 + x 2 + y 2 + z 2 = −200<br />
169<br />
and similarly for the other two partial derivatives. Hence the direction of steepest<br />
increase in temperature is<br />
∇T (x, y, z)| (1,1,1)<br />
= − 200 (i + j + k)<br />
169<br />
Theorem 11.5 The gradient vector is perpendicular to the level curves of a function.<br />
To see why this theorem is true, recall the definition of a level curve: it is a<br />
curve along which the value of z = f(x, y) is a constant. Thus if you move along<br />
a tangent vector to a level curve, the function will not change, and the directional<br />
derivative is zero. Since the directional derivative is the dot product of the gradient<br />
and the direction of motion, which in this case is the tangent vector to the level<br />
curve, this dot product is zero. But a dot product of two non-zero vectors can only<br />
be zero if the two vectors are perpendicular to one another. Thus the gradient must<br />
be perpendicular to the level curve.<br />
Corollary 11.1 Let f(x, y, z) = 0 describe a surface in 3D space. Then the threedimensional<br />
gradient vector ∇f is a normal vector to the surface.<br />
This result follows because a surface f(x, y, z) = 0 is a level surface of a function<br />
w = f(x, y, z). The value of f(x, y, z) does not change. So if you consider any tangent<br />
vector, the directional derivative along the tangent vector is zero. Consequently<br />
the tangent vector is perpendicular to the gradient.<br />
Revised December 6, 2006. Math 250, Fall 2006
