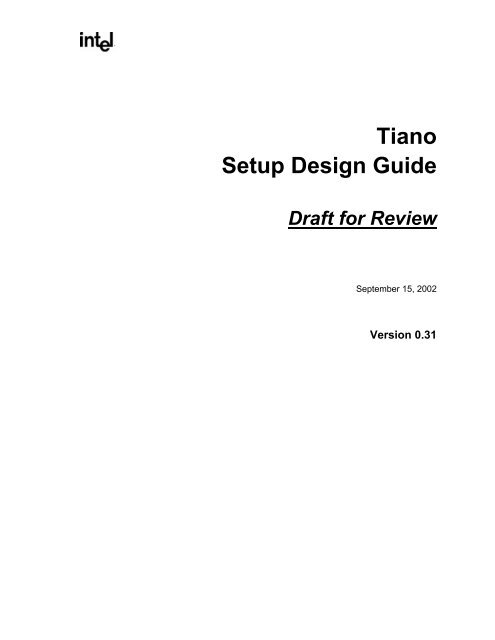

Tiano<br />
Setup Design Guide<br />
Draft for Review<br />
September 15, 2002<br />
Version 0.31
THIS SPECIFICATION IS PROVIDED “AS IS” WITH NO<br />
WARRANTIES WHATSOEVER, INCLUDING ANY WARRANTY OF<br />
MERCHANTABILITY, NONINFRINGEMENT, FITNESS FOR ANY<br />
PARTICULAR PURPOSE, OR ANY WARRANTY OTHERWISE<br />
ARISING OUT OF ANY PROPOSAL, SPECIFICATION OR SAMPLE.<br />
A license is hereby granted to copy and reproduce this specification for<br />
internal use only.<br />
No other license, express or implied, by estoppel or otherwise, to any other<br />
intellectual property rights is granted herein.<br />
Intel disclaims all liability, including liability for infringement of any<br />
proprietary rights, relating to use of information in this specification. No<br />
license, express or implied, by estoppel or otherwise, to any intellectual<br />
property rights is granted herein.<br />
This specification is an intermediate draft for comment only and is subject to<br />
change without notice. Readers should not design products based on this<br />
document.<br />
† Third party brands and names are the property of their<br />
respective owners.<br />
Copyright © Intel Corporation, 2000.<br />
Intel order number xxxxxx-001
Setup Design Guide<br />
DRAFT<br />
Revision History<br />
Revision Revision History Date<br />
0.1<br />
Initial Draft<br />
02/11/ 2002<br />
Added bi-directional support<br />
02/14/2002<br />
(RIGHT_TO_LEFT flag) for the<br />
#strlang command.<br />
Lots of grammatical fixes<br />
Updated terms section<br />
02/21/2002<br />
0.11<br />
0. 12<br />
0. 30<br />
Updated 2.6.1 with reference to<br />
Hii.NewString and Hii.UpdateForm<br />
Added keyboard related package<br />
structure definitions as well as<br />
a chapter explaining the<br />
mechanics of describing a<br />
keyboard layout.<br />
Added GLYPH_NON_BREAKING<br />
Added the RemovePack function in<br />
the HII Protocol.<br />
Completed first round of reviews.<br />
Also added a RemovePack function<br />
to provide the ability to<br />
03/01/2002<br />
04/11/2002<br />
04/20/2002<br />
de-register information from HII.<br />
0. 31<br />
Added data to the<br />
EFI_FORM_CONFIGURATION_PROTOCOL<br />
section to enable the sending of<br />
mailbox events to the<br />
configuration browser.<br />
Changed the NV Steering protocol<br />
to a more general-purpose<br />
configuration callback protocol.<br />
05/02/2002<br />
iii
Table of Contents<br />
1 Introduction......................................................................................................... 7<br />
1.1 Scope .................................................................................................................... 7<br />
1.2 Target Audience .................................................................................................... 7<br />
1.3 Related Information ............................................................................................... 7<br />
1.4 Terms .................................................................................................................... 8<br />
1.5 Conventions Used in This Document .................................................................. 10<br />
1.5.1 1.5.2 Data Structure Descriptions..................................................................... 10<br />
Protocol Descriptions............................................................................... 10<br />
1.5.3 Procedure Descriptions ........................................................................... 10<br />
1.5.4 Pseudo-Code Conventions...................................................................... 11<br />
1.5.5 Typographic Conventions........................................................................ 11<br />
2 Setup Infrastructure Overview ........................................................................ 13<br />
2.1 Components of the Setup Infrastructure.............................................................. 13<br />
2.1.1 VFR/IFR................................................................................................... 13<br />
2.1.2 2.1.3<br />
Strings ..................................................................................................... 13<br />
Fonts........................................................................................................ 14<br />
2.1.4 EFI Driver (Containing Setup Data) ......................................................... 15<br />
2.1.5 HII Database............................................................................................ 16<br />
2.1.6 Configuration Driver................................................................................. 16<br />
2.2<br />
2.3<br />
2.4<br />
Composition of VFR and String data................................................................... 16<br />
How multiple language support is handled.......................................................... 17<br />
Storing Configuration Settings............................................................................. 18<br />
2.5 O/S Runtime Utilization ....................................................................................... 19<br />
2.6 How to get hardware information in setup........................................................... 20<br />
2.6.1 2.6.2 Single Iteration Hardware Interaction ...................................................... 20<br />
Multiple Iteration Hardware Interaction.................................................... 21<br />
2.7 Setup Infrastructure Overview Graphic ............................................................... 22<br />
3<br />
Setup Build Infrastructure ............................................................................... 24<br />
3.1 Setup Build Infrastructure Elements.................................................................... 24<br />
3.1.1 VFR Compiler .......................................................................................... 24<br />
3.1.2 NVRAM Mapping File .............................................................................. 24<br />
3.1.3 String Definitions...................................................................................... 25<br />
3.1.4 IFR Header Files...................................................................................... 25<br />
4 VFR Programming Language .......................................................................... 27<br />
4.1 BNF of VFR ......................................................................................................... 27<br />
4.2 VFR Programming Keywords.............................................................................. 29<br />
4.2.1 4.2.2 // (comment marker) ................................................................................ 29<br />
#define..................................................................................................... 29<br />
4.2.3 #include ................................................................................................... 29<br />
4.2.4 #strlang.................................................................................................... 29<br />
4.2.5 #strdef...................................................................................................... 29<br />
4.2.6 formset / endformset................................................................................ 30<br />
4.2.7 nvstorage................................................................................................. 30<br />
Version 0.92 1/19/00 iv
DRAFT<br />
4.3<br />
5 User Interface Design....................................................................................... 40<br />
5.1 Home Page ......................................................................................................... 40<br />
5.2 Subsequent Pages .............................................................................................. 40<br />
5.3 Key-based Navigation ......................................................................................... 40<br />
5.4 Mouse Navigation................................................................................................ 41<br />
5.5 Screen Format..................................................................................................... 41<br />
5.6 Colors .................................................................................................................. 42<br />
5.7 Pop-Ups .............................................................................................................. 43<br />
5.8 Partial Language Availability ............................................................................... 43<br />
6<br />
7<br />
4.2.8 form / endform ......................................................................................... 30<br />
4.2.9 subtitle ..................................................................................................... 31<br />
4.2.10 text........................................................................................................... 31<br />
4.2.11 oneof / endoneof...................................................................................... 31<br />
4.2.12 checkbox / endcheckbox ......................................................................... 32<br />
4.2.13 numeric.................................................................................................... 32<br />
4.2.14 date.......................................................................................................... 33<br />
4.2.15 time.......................................................................................................... 34<br />
4.2.16 string........................................................................................................ 35<br />
4.2.17 password ................................................................................................. 35<br />
4.2.18 goto.......................................................................................................... 36<br />
4.2.19 grayoutif................................................................................................... 36<br />
4.2.20 suppressif ................................................................................................ 36<br />
4.2.21 hidden...................................................................................................... 36<br />
4.2.22 inconsistentif............................................................................................ 36<br />
4.2.23 AND, OR, NOT ........................................................................................ 37<br />
4.2.24 graphics ................................................................................................... 37<br />
Reserved Keywords ............................................................................................ 37<br />
4.3.1 DEFAULT ................................................................................................ 37<br />
4.3.2 MANUFACTURING ................................................................................. 37<br />
4.3.3 DYNAMIC ................................................................................................ 37<br />
4.3.4 INTERACTIVE......................................................................................... 38<br />
Setup Driver Considerations ........................................................................... 44<br />
6.1 Pre-boot Operation versus Runtime Operation ................................................... 44<br />
6.2 How to allocate and steer data to NV storage..................................................... 44<br />
HII Database Interface ...................................................................................... 46<br />
7.1 EFI Human Interface Infrastructure Protocol....................................................... 46<br />
7.1.1 EFI_HII_PROTOCOL.NewPack()............................................................ 52<br />
7.1.2 EFI_HII_PROTOCOL.RemovePack()...................................................... 53<br />
7.1.3 EFI_HII_PROTOCOL.FindHandles()....................................................... 54<br />
7.1.4 EFI_HII_PROTOCOL.TestString()........................................................... 55<br />
7.1.5 EFI_HII_PROTOCOL.GetGlyph()............................................................ 56<br />
7.1.6 EFI_HII_PROTOCOL.NewString() .......................................................... 57<br />
7.1.7 EFI_HII_PROTOCOL.GetPrimaryLanguages() ....................................... 58<br />
7.1.8 EFI_HII_PROTOCOL.GetSecondaryLanguages() .................................. 59<br />
7.1.9 EFI_HII_PROTOCOL.GetString()............................................................ 60<br />
7.1.10 EFI_HII_PROTOCOL.GetLine() .............................................................. 62<br />
7.1.11 EFI_HII_PROTOCOL.GetForms() ........................................................... 64<br />
1.
DRAFT<br />
7.2<br />
7.3<br />
7.1.12 EFI_HII_PROTOCOL.UpdateForm() ....................................................... 65<br />
7.1.13 EFI_HII_PROTOCOL.GetKeyboardLayout() ........................................... 66<br />
EFI Form Configuration Protocol......................................................................... 67<br />
7.2.1 EFI_FORM_CONFIGURATION_PROTOCOL.SendForm() .................... 68<br />
7.2.2 EFI_FORM_CONFIGURATION_PROTOCOL.SendMessage().............. 70<br />
EFI Form Callback Protocol................................................................................. 72<br />
7.3.1 EFI_FORM_CALLBACK_PROTOCOL.NvRead() ................................... 73<br />
7.3.2 EFI_FORM_CALLBACK_PROTOCOL.NvWrite() ................................... 75<br />
7.3.3 EFI_FORM_CALLBACK_PROTOCOL.CallBack() .................................. 76<br />
8 Simple Input Modification................................................................................ 78<br />
8.1 Extending Simple Input ....................................................................................... 78<br />
9 HII Keyboard Support....................................................................................... 80<br />
9.1 Keyboard Mapping .............................................................................................. 80<br />
9.2 Modifier Key Definitions....................................................................................... 81<br />
9.3 Keyboard Layout Switching................................................................................. 83<br />
9.4 Dead Keys........................................................................................................... 83<br />
9.4.1 Bi-directional Input (Reserved for future implementation) ....................... 85<br />
1.
DRAFT<br />
1<br />
Introduction<br />
1.1 Scope<br />
This document describes the general goals and requirements associated with system configuration<br />
in EFI 2.0. It covers basic requirements for being able to present a user interface to a user during<br />
pre-boot, run-time, and remotely. Additionally, this specification describes a standard<br />
programming interface that an OEM can use for the registering of setup user interfaces, strings, and<br />
fonts.<br />
This document provides enough material to create infrastructure files for the user interface as well<br />
as the creation of a driver to export setup related information to the Human Interface Infrastructure<br />
programming interface.<br />
A full understanding of the EFI Specification is assumed throughout this document.<br />
1.2 Target Audience<br />
This document is intended for the following readers:<br />
• OEM’s that design and manufacture computers for an international audience using the EFI<br />
firmware implementation.<br />
• BIOS developers, either those who create general-purpose BIOS and other firmware products<br />
or those who modify these products for use in Intel architecture-based products.<br />
• Software developers who will be adapting their product suites (Manufacturing<br />
tools/Diagnostics/etc.) for an international audience to run on a platform with the Tiano<br />
firmware implementation.<br />
1.3 Related Information<br />
The following publications and sources of information may be useful to you or are referred to by<br />
this specification:<br />
•<br />
•<br />
•<br />
•<br />
•<br />
EFI Specification Version 1.02, Intel Corporation, 2000,<br />
http://developer.intel.com/technology/efi.<br />
ISO Standard 3166, Codes for representation of Country name,<br />
http://www.iso.ch/iso/en/ISOOnline.frontpage<br />
ISO Standard 639-2, Codes for representation of three-letter language abbreviations,<br />
http://www.iso.ch/iso/en/ISOOnline.frontpage<br />
ISO Standard 10646, Universal multiple-octet coded character set,<br />
http://www.iso.ch/iso/en/ISOOnline.frontpage<br />
ISO Standard 9995, Keyboard layouts for text and office systems,<br />
http://www.iso.ch/iso/en/ISOOnline.frontpage<br />
1.
DRAFT<br />
•<br />
•<br />
•<br />
IBM National Language Design Guide, Publication number SE09-8002-03, www.ibm.com<br />
The Unicode Standard 3.0, ISBN 0-201-61633-5, www.unicode.org<br />
Standardizing Out-of-Band Management Console Output and Terminal Emulation,<br />
http://www.microsoft.com/hwdev/headless/download/VT-UTF8andVT100+-v077.ZIP<br />
1.4 Terms<br />
The following terms are used throughout this document to describe varying aspects of input<br />
localization:<br />
Alt-GR Unicode: This represents the Unicode value of a key when the Alt-GR modifier key is<br />
being held down. This key (A2) in some keyboard layouts is defined as the right alternate key and<br />
serves the same function as the left alternate key, however in many other layouts it is a secondary<br />
modifier key similar to shift. For instance, key C1 is equated to an ‘a’ and it’s Unicode value in the<br />
typical U.K. keyboard is a non-shifted value of 0x0061, however when the Alt-GR key is held<br />
down in conjunction with the pressing of key C1 the value on the same keyboard often produces an<br />
‘á‘ which is a Unicode 0x00E1.<br />
BNF: BNF is an acronym for "Backus Naur Form". John Backus and Peter Naur introduced for<br />
the first time a formal notation to describe the syntax of a given language.<br />
Dead Key: This is typically an accent key that does not advance the cursor and is used to create<br />
special characters similar to ÄäĂăÊêŰűŨũ. This function is provided only on certain keyboard<br />
layouts.<br />
FONT: A font is a graphical representation corresponding to a character set, in this case Unicode.<br />
The following (A A A) are the same Latin letter in three fonts using the same size (14):<br />
GLYPH: The individual elements of a font corresponding to single characters. Single Width<br />
characters typically have a matrix of 8 width and 19 height. Wide characters are 16 width and 19<br />
height.<br />
HII: Human Interface Infrastructure. This generally refers to the database which contains string,<br />
font, and IFR information along with other pieces which use one of the database components.<br />
IFR: Internal Forms Representation. This is the binary encoding that is used for the representation<br />
of a user interface page(s).<br />
Keyboard Layout: The physical representation of a user’s keyboard. The usage of this is in<br />
conjunction to a structure that equates the physical key(s) and the associated action it represents.<br />
For instance, key C1 is equated to an ‘a’ and it’s Unicode value in the typical U.K. keyboard is a<br />
non-shifted value of 0x0061.<br />
PUSH MODE: A typing mode that is typically used by bi-directional languages, which toggles the<br />
ability to type in left-to-right and right-to-left.<br />
1.
DRAFT<br />
RTC: Real Time Clock. The piece of hardware often used to store a system’s date and time<br />
settings.<br />
Shifted Unicode: This represents the Unicode value of a key when the shift modifier key is being<br />
held down. For instance, key C1 is equated to an ‘a’ and it’s Unicode value in the typical U.K.<br />
keyboard is a non-shifted value of 0x0061, however when the shift key is held down in conjunction<br />
with the pressing of key C1 the value on the same keyboard often produces an ‘A’ which is a<br />
Unicode 0x0041.STRING: A null-terminated ordered list of 16-bit Unicode characters.<br />
TAG: A term used to refer to a directive.<br />
VFR: Visual Forms Representation. This is the source code format that is used by developers to<br />
create a user interface with varying pieces of data and/or questions. This would later be compiled<br />
into a binary encoding.<br />
1.
DRAFT<br />
1.5 Conventions Used in This Document<br />
This document uses typographic and illustrative conventions described below.<br />
1.5.1 Data Structure Descriptions<br />
The Intel Architecture processors of the IA-32 family are “little endian” machines. This means that<br />
the low-order byte of a multi-byte data item in memory is at the lowest address, while the highorder<br />
byte is at the highest address. Processors of the Itanium Processor Family (IPF) may be<br />
configured for both “little endian” and “big endian” operation. All implementations designed to<br />
conform to this specification will use “little endian” operation.<br />
In some memory layout descriptions, certain fields are marked reserved. Software must initialize<br />
such fields to zero, and ignore them when read. On an update operation, software must preserve<br />
any reserved field.<br />
1.5.2 Protocol Descriptions<br />
A protocol description generally has the following format:<br />
Protocol:<br />
Summary:<br />
GUID:<br />
Revision Number:<br />
Protocol Interface Struct<br />
Parameters:<br />
Related Definitions:<br />
Description:<br />
1.5.3 Procedure Descriptions<br />
The formal name of the protocol interface.<br />
A brief description of the protocol interface.<br />
The 128 bit unique identifier for the protocol interface.<br />
The revision of the protocol interface.<br />
A ‘C-style’ data structure definition containing the<br />
procedures and data fields produced by this protocol<br />
interface.<br />
A brief description of each field in the protocol interface<br />
structure.<br />
The type declarations and constants that are used in the<br />
protocol interface structure or any of its procedures.<br />
A description of the functionality provided by the<br />
protocol interface including any limitations and caveats<br />
the caller should be aware of.<br />
A procedure description generally has the following format:<br />
ProcedureName(): The formal name of the procedure.<br />
Summary:<br />
Prototype:<br />
Parameters:<br />
Related Definitions:<br />
A brief description of the procedure.<br />
A ‘C-style’ procedure header defining the calling<br />
sequence.<br />
The parameters defined in the template are described in<br />
further detail.<br />
The type declarations and constants that are only used by<br />
this procedure.<br />
1.
DRAFT<br />
Description:<br />
Status Codes Returned:<br />
A description of the functionality provided by the<br />
interface including any limitations and caveats the caller<br />
should be aware of.<br />
A description of the codes returned by the interface.<br />
1.5.4 Pseudo-Code Conventions<br />
Pseudo-code is presented to describe algorithms in a more concise form. None of the algorithms in<br />
this document are intended to be compiled directly. The code is presented at a level corresponding<br />
to the surrounding text.<br />
In describing variables, a list is an unordered collection of homogeneous objects. A queue is an<br />
ordered list of homogeneous objects. Unless otherwise noted, the ordering is assumed to be FIFO.<br />
Pseudo-code is presented in a C-like format, using C conventions where appropriate. The coding<br />
style, particularly the indentation style, is used for readability and does not necessarily comply with<br />
an implementation of the EFI Specification.<br />
1.5.5 Typographic Conventions<br />
The following typographic conventions are used in this document to illustrate programming<br />
concepts:<br />
Prototype<br />
This typeface is use to indicate prototype code.<br />
Argument<br />
Name<br />
register<br />
This typeface is used to indicate arguments.<br />
This typeface is used to indicate actual code or a programming construct.<br />
This typeface is used to indicate a processor register.<br />
1.
Setup Design Guide<br />
DRAFT<br />
2<br />
Setup Infrastructure Overview<br />
The intention of this chapter is to give a working overview to what this document will speak to at a<br />
higher level of detail. It is also intended to show how things work together and the advantages this<br />
provides to the user of this architecture.<br />
2.1 Components of the Setup Infrastructure<br />
2.1.1 VFR/IFR<br />
VFR (Visual Forms Representation) is the development language used to create IFR (Internal Forms<br />
Representation). IFR is the compiled version of the control language. This language controls what the<br />
contents of each displayed page consists of, where the changed data gets saved, how pages are linked,<br />
and much more.<br />
VFR<br />
source file<br />
VFR Compiler<br />
IFR<br />
in the form of<br />
a header file<br />
2.1.2 Strings<br />
VFR source files will include a Unicode file(s) which contains the string definitions for the particular<br />
application. The Unicode file will contain both the displayed strings as well as the translations for all<br />
the supported languages for the particular application.<br />
13
Setup Design Guide<br />
DRAFT<br />
VFR<br />
source file<br />
Strings<br />
Unicode file<br />
VFR Compiler<br />
IFR<br />
in the form of<br />
a header file<br />
String Tokens<br />
in the form of<br />
a header file<br />
2.1.3 Fonts<br />
Typically, the system firmware will carry a set of fonts to cover a common character set, however there<br />
might be times when a consumer of the setup infrastructure requires the printing of a character that the<br />
system does not have font data for. In this case, an EFI driver will carry this font data and submit it to<br />
the HII Database to be used later. A font can be submitted if there is not a font definition already for<br />
that particular Unicode character.<br />
14
Setup Design Guide<br />
DRAFT<br />
Human Interface Infrastructure<br />
Database<br />
Consists of IFR/String/Font<br />
Which has been submitted by varying EFI drivers<br />
EFI Driver<br />
Fonts in Database<br />
Fonts being submitted<br />
Unicode Value<br />
…<br />
0x0040<br />
0x0041<br />
0x0042<br />
…<br />
Font Defined<br />
TRUE<br />
TRUE<br />
FALSE<br />
Unicode Value<br />
…<br />
0x003F<br />
0x0041<br />
0x0042<br />
…<br />
Fonts in Database<br />
Unicode Value<br />
…<br />
0x003F<br />
0x0040<br />
0x0041<br />
0x0042<br />
…<br />
Font Defined<br />
TRUE<br />
TRUE<br />
TRUE<br />
TRUE<br />
2.1.4 EFI Driver (Containing Setup Data)<br />
The EFI Driver that contains setup information will be compiled with IFR, Strings, and Font data.<br />
IFR<br />
in the form of<br />
a header file<br />
String Tokens<br />
in the form of<br />
a header file<br />
EFI Driver<br />
source code<br />
‘C’ Compiler<br />
EFI Driver<br />
Fonts<br />
in the form of<br />
a header file<br />
15
Setup Design Guide<br />
DRAFT<br />
2.1.5 HII Database<br />
The Human Interface Infrastructure Database is the resource that serves as the repository of all the IFR,<br />
String, and Font data for the system. Drivers that contain information which is appropriate for the<br />
database will export this data to the HII Database.<br />
In a typical system, one might expect a driver which contains all the motherboard specific data<br />
(traditional F1-setup for the system). Additionally, there might be other add-in cards that contain their<br />
own drivers which have their own set of setup related data. All of the drivers that contain setup related<br />
data would export their information to the HII Database.<br />
Human Interface Infrastructure<br />
Database<br />
Consists of IFR/String/Font<br />
Which has been submitted by varying EFI drivers<br />
EFI Driver<br />
EFI Driver<br />
EFI Driver<br />
2.1.6 Configuration Driver<br />
The EFI Configuration Driver is the program that reads the contents of the HII Database and interprets<br />
the data to present it to the user. This is also the program that takes the user input and provides for a<br />
mechanism to save the changes into an NVRAM location.<br />
Human Interface Infrastructure<br />
Database<br />
Consists of IFR/String/Font<br />
Which has been submitted by varying EFI drivers<br />
EFI Driver<br />
EFI Driver<br />
EFI Driver<br />
EFI Configuration Driver<br />
Provides User Interface Support<br />
Callable by a Protocol Interface<br />
2.2 Composition of VFR and String data<br />
VFR has several keywords which determine the type of functions presented to the user. These<br />
keywords reference strings via tokens, which make them language agnostic.<br />
The strings are broken into language sections which have a one-to-one parallelism between each of the<br />
strings. For instance, if string token #3 is the equivalent of “I love bananas” in the English section,<br />
token #3 in any of the other language sections will contain strings that have the same meaning.<br />
16
Setup Design Guide<br />
DRAFT<br />
VFR Sample<br />
IFR Translation<br />
subtitle text = BANANA_STRING; Subtitle Op-Code, 3<br />
This example shows a sample of the type of encoding that happens between<br />
IFR and the string tokens. When a user chooses to display a particular language<br />
it has no effect on the IFR encoding. The infrastructure simply pulls the same<br />
token from a different string section.<br />
ENG<br />
Token 1 “Hello World”<br />
Token 2 “Goodbye World”<br />
Token 3 “I love bananas”<br />
SPA<br />
Token 1 “Hola Mundo”<br />
Token 2 “Adios Mundo”<br />
Token 3 “Yo amo plátanos”<br />
System is in<br />
Spanish mode.<br />
GER<br />
Token 1 “Hallo Welt”<br />
Token 2 “Auf Wiedersehen Welt”<br />
Token 3 “Ich liebe Bananen”<br />
Yo amo plátanos<br />
2.3 How multiple language support is handled<br />
When providing support for multiple setup programs, the varying language support for each program<br />
must be taken in consideration. For instance, if there are three drivers that have exported data to the HII<br />
database, each of them with different language string support, a “Home Page” will be created when the<br />
Configuration Driver is launched. This Configuration Driver will show as its initial page all the drivers<br />
which have exported configuration data and strings.<br />
The order of what is displayed on the initial page is determined by language priority. If a driver<br />
contains strings for the system’s default language setting (determined by the Lang global variable) the<br />
translated name of that driver will be shown at the top of the list. Immediately after that list will be a<br />
list of the drivers in their translated forms. The intention for this is to provide a simple mechanism for a<br />
user to scroll up and down a list of drivers and pick the appropriate driver for their use. Whichever<br />
language choice is made by the user, the language choice made at the initial page will carry forward to<br />
the rest of the pages and strings displayed under the initial page.<br />
17
Setup Design Guide<br />
DRAFT<br />
Human Interface Infrastructure<br />
Database<br />
Consists of IFR/String/Font<br />
Which has been submitted by varying EFI drivers<br />
“Setup One”<br />
“Setup Two”<br />
“Setup Three”<br />
Setup One Supports: Setup Two Supports: Setup Three Supports:<br />
ENG ENG ENG<br />
SPA<br />
SPA<br />
FRA<br />
EFI Configuration Driver<br />
Provides User Interface Support<br />
Callable by a Protocol Interface<br />
Setup One<br />
Setup Two<br />
Setup Three<br />
Setup Uno<br />
Setup Tres<br />
Setup Trois<br />
System is in<br />
English mode.<br />
2.4 Storing Configuration Settings<br />
There is an assumption of having some type of NVRAM available so that settings that are changed by<br />
the user are able to be saved. How one gets to the NVRAM is based on whether it is system NV<br />
storage one is accessing, or NV storage local to a specific card. Both are supported.<br />
With the exception of setting a system password, and system date and time, settings are not posted to<br />
NV storage until the user directs the infrastructure specifically to do so. As a rule of thumb, hardware<br />
configuration changes do not take place until a system reset has occurred.<br />
18
Setup Design Guide<br />
DRAFT<br />
When a system reset occurs, the architectural protocol BDS launches the drivers and loads the<br />
Configuration driver. Drivers that are enabled to take direction from an NV setting will read the<br />
updated settings during their initialization.<br />
System Reset<br />
BDS<br />
Human Interface Infrastructure<br />
Database<br />
Consists of IFR/String/Font<br />
Which has been submitted by varying EFI drivers<br />
EFI Driver<br />
EFI Driver<br />
EFI Driver<br />
EFI Configuration Driver<br />
Provides User Interface Support<br />
Callable by a Protocol Interface<br />
User<br />
Changes<br />
NVRAM<br />
2.5 O/S Runtime Utilization<br />
Due to the static nature of the data contained in the HII Database and the capacity to update NVRAM<br />
variables, the pre-boot configuration data can be used during O/S runtime. This allows the same<br />
configuration mechanisms to be used in pre-boot as well as in runtime.<br />
19
Setup Design Guide<br />
DRAFT<br />
Human Interface Infrastructure<br />
Database<br />
Consists of IFR/String/Font<br />
Which has been submitted by varying EFI drivers<br />
Runtime<br />
Buffer<br />
EFI Configuration Driver<br />
Provides User Interface Support<br />
Callable by a Protocol Interface<br />
Runtime Configuration<br />
Application<br />
Can act as a server to<br />
an HTML browser<br />
2.6 How to get hardware information in setup<br />
For the most part, the only hardware interaction that the Configuration Driver has is when it accesses<br />
NVRAM or saves information to an RTC. However, there are times when a developer needs to get<br />
hardware information presented to the user.<br />
In this infrastructure there are two classifications of hardware interaction, single and multiple iteration.<br />
Each of these interactions have varying procedures one must follow as well as varying ramifications.<br />
2.6.1 Single Iteration Hardware Interaction<br />
An EFI driver that uses the EFI setup infrastructure will typically carry both IFR and string data. In<br />
some cases, not all the information that is needed is included at build time. For example, a user might<br />
have a text string which shows what the CPU’s frequency is. In this case, the information is obviously<br />
not available at build time, so the information has to be retrieved.<br />
There are several ways one might go about this. One way might be that the driver that is about to<br />
export the setup data to the HII database calls the appropriate hardware services to determine what the<br />
CPU frequency is, fills in the appropriate string data, and then exports the data to the HII database.<br />
Another way might be that the driver that has exported data to the HII database needs to add<br />
information to the database could use the HII protocol calls for NewString or UpdateForm. Both<br />
of these functions are intended for post-export modification of database information.<br />
Another method, which is used for more complex situations, would be to label the op-code which<br />
required additional data with a DYNAMIC flag. When the data is exported to the HII database, it calls<br />
back to the driver to get the additional data. The driver will do the hardware interaction and return a<br />
packet of data to the database to fill in the appropriate string data.<br />
Once this single level of hardware interaction is complete, the presentation data stored in the database is<br />
static and the DYNAMIC flag is turned off. Due to the static nature of this data, it is able to be used<br />
pre-boot and be exported to an O/S runtime application and be used during that phase of operation.<br />
20
Setup Design Guide<br />
DRAFT<br />
Human Interface Infrastructure<br />
Database<br />
Consists of IFR/String/Font<br />
Which has been submitted by varying EFI drivers<br />
EFI Driver<br />
VFR Sample<br />
text text = CPU_STRING,<br />
text = DERIVED_CPU_FREQUENCY,<br />
flags = DYNAMIC,<br />
key = CPU_FREQUENCY_KEY;<br />
This sample shows an example of the programming language used in the EFI Setup<br />
infrastructure. In this case, a DYNAMIC flag signifies that when this code is exported to<br />
the database a callback will be done for this operation to fill in the second text entry.<br />
The behavior and operands will vary based on which type of op-code is thus flagged.<br />
String Tokens – Prior to Callback<br />
ENG<br />
CPU_STRING<br />
“CPU Frequency”<br />
DERIVED_CPU_FREQUENCY “”<br />
SPA<br />
CPU_STRING<br />
“Frecuencia del CPU”<br />
DERIVED_CPU_FREQUENCY “”<br />
String Tokens – After Callback<br />
ENG<br />
CPU_STRING<br />
DERIVED_CPU_FREQUENCY<br />
SPA<br />
CPU_STRING<br />
DERIVED_CPU_FREQUENCY<br />
“CPU Frequency”<br />
“2.2 Ghz”<br />
“Frecuencia del CPU”<br />
“2.2 Ghz”<br />
2.6.2 Multiple Iteration Hardware Interaction<br />
An EFI driver that uses the EFI setup infrastructure will typically carry both IFR and string data. In<br />
some cases, not all the information that is needed is included at build time. For example, a user might<br />
need to add a boot option and to do this they need to select the file from a file system. In this case, the<br />
information is obviously not available at build time, so the information has to be retrieved.<br />
Unlike the previous section which had hardware interaction completed prior to the user ever having<br />
seen any data, this example requires hardware interaction at the user level. In the example of searching<br />
for a file, the driver will have the op-code labeled with a DYNAMIC and INTERACTIVE flag. When<br />
the data is exported to the EFI configuration driver, it calls back to the driver to get the additional data.<br />
21
Setup Design Guide<br />
DRAFT<br />
The driver will do the hardware interaction and return a packet of data to the database and it will fill in<br />
the appropriate string data. If the packet is returned successfully, the DYNAMIC flag is turned off.<br />
This string data would likely correlate to the initial list of file systems available on the system. This<br />
completes the first phase of interaction to acquire all the information the system needs to display data to<br />
the user.<br />
Additionally, when the user manually selects the file system they want to start searching, a callback to<br />
the exporting driver would occur and a packet would return the data requested. This would continue<br />
until the desired file was chosen.<br />
In the case where the driver which is exporting data bypasses the HII database and sends the data<br />
directly to the EFI configuration driver, the driver becomes responsible for the saving of the NVRAM<br />
data if any. Additionally, bypassing the HII database along with the multiple iteration callbacks are not<br />
compatible with runtime propagation. This use case would likely be used by pre-boot only utilities like<br />
the EFI Boot Maintenance Manager.<br />
Human Interface Infrastructure<br />
Database<br />
Consists of IFR/String/Font<br />
Which has been submitted by varying EFI drivers<br />
EFI Driver/Utility<br />
Requiring Dynamic Hardware Interaction<br />
EFI Configuration Driver<br />
Provides User Interface Support<br />
Callable by a Protocol Interface<br />
EFI Driver/Utility<br />
Requiring Dynamic Hardware Interaction<br />
Pre-boot Only and Responsible<br />
for storing NVRAM changes<br />
Additionally, a driver which required multiple iteration support could use the HII database so that the<br />
data might have a presence in the O/S runtime. The practical situation for this might be a driver which<br />
has a large amount of questions and possibly only a very small set which require multiple iteration<br />
support. In this case, the developer needs to be conscious when designing the page contents of the VFR<br />
script so that if the O/S runtime version of the data is stripped of op-codes with the INTERACTIVE<br />
flag turned on the user experience will not be odd. For instance, if a driver contains a page dedicated to<br />
modem initialization and the op-codes associated with that page are all set to INTERACTIVE, it might<br />
look very odd if the O/S runtime user is presented with a blank page which inferred there should be<br />
more data.<br />
2.7 Setup Infrastructure Overview Graphic<br />
22
Setup Design Guide<br />
DRAFT<br />
BDS<br />
Policy Engine for EFI<br />
Responsible for launching drivers and boot options.<br />
typedef struct {<br />
EFI_HII_PACKET<br />
EFI_HII_PACKET<br />
EFI_HII_PACKET<br />
} EFI_IFR_PACKET;<br />
*IFRData;<br />
*FontData;<br />
*StringData;<br />
Human Interface Infrastructure<br />
Database<br />
Consists of IFR/String/Font Data<br />
Which has been submitted by varying EFI drivers<br />
EFI Driver<br />
EFI Driver<br />
EFI Driver<br />
EFI Driver<br />
Requiring Dynamic Hardware Interaction<br />
If UseDatabase == TRUE, Retrieve all DBHandles, Ignore Packet/DriverPointer<br />
If UseDatabase == FALSE, process the Packet and DriverPointer.<br />
EFI Configuration Driver<br />
Provides User Interface Support<br />
Callable by a Protocol Interface<br />
typedef struct _EFI_CONFIGURATION_PROTOCOL {<br />
BOOLEAN<br />
UseDatabase;<br />
EFI_IFR_PACKET<br />
*Packet; OPTIONAL<br />
VOID<br />
*DriverPointer; OPTIONAL<br />
} EFI_CONFIGURATION_PROTOCOL<br />
23
Setup Design Guide<br />
DRAFT<br />
3<br />
Setup Build Infrastructure<br />
3.1 Setup Build Infrastructure Elements<br />
Many elements are involved in the building of a driver that uses the EFI Setup Infrastructure. No<br />
matter if the driver that is using EFI for configuration of a system board, a network device, or an<br />
embedded controller, they all will follow the same basic steps when assembling the components to<br />
leverage the EFI Setup Infrastructure.<br />
3.1.1 VFR Compiler<br />
Some of the things that the compiler is responsible for are the interpreting of the VFR keywords and<br />
converting them to IFR. The compiler is responsible for detecting situations in the VFR files that<br />
would otherwise cause an invalid binary format output.<br />
The command-line interface for the VFR compiler is:<br />
VFRCOMPILE [drive:][path]VfrSourceFile [drive:][path]StringFile<br />
The input to the compiler is the VFR source file and a Unicode string file. The VFR source file will<br />
contain VFR and likely make #include references to a separate global NVRAM mapping file. All of<br />
these are compiled into an output header file.<br />
The outputs of the compiler are header files that will be used by the driver which will export the data.<br />
3.1.2 NVRAM Mapping File<br />
Many of the op-codes associated with IFR are intended to save the user’s choice to some NV data<br />
location. To enable this feature, a map file must be created so that the EFI setup infrastructure knows<br />
where in an NVRAM variable the data must be stored. This map is also used by hardware specific<br />
drivers that might have configuration data stored in the NVRAM variable. For instance, when a driver<br />
has interest in the state of the SerialPortEnable setting, it will need to include this NVRAM<br />
mapping file to know at what offset this data is located.<br />
struct {<br />
UINT16<br />
SystemPassword[20];<br />
UINT16<br />
ModemInitializationString[60];<br />
UINT8<br />
SerialPortEnable;<br />
UINT16<br />
SamplePieceOfData;<br />
UINT32<br />
MyFavoriteNumber;<br />
} SystemNvRamMap;<br />
Note that the SystemNvRamMap is the name of the structure name that is used to reference data both<br />
for the drivers that are interested in their content and the VFR language itself. For instance, if a<br />
command to display the ModemInitializationString setting was to be written in VFR it might<br />
be done as follows:<br />
text<br />
text = SystemNvRamMap.ModemInitializationString;<br />
24
Setup Design Guide<br />
DRAFT<br />
3.1.3 String Definitions<br />
One of the primary aspects of a user interface is the list of strings associated with it. When an EFI<br />
driver which exports setup information is compiled, the strings are located in a Unicode file. This file<br />
uses the #strdef command to signify the beginning of a string definition. On that same line is an<br />
ISO 639-2 language code, a programmatic name of the string, and lastly the string itself.<br />
#strdef ENG STR_TITLE "My English setup engine"<br />
#strdef ENG STR_PAGE1 "My First Setup Page"<br />
#strdef ENG STR_PAGE2 "My Second Setup Page"<br />
#strdef ENG STR_PAGE3 "My Third Setup Page"<br />
3.1.3.1 Multiple Language Support<br />
The EFI Setup Infrastructure supports multiple languages in the string definitions. The #strlang<br />
command defines what string to associate with the ISO 639-2 language code. Each string is treated as a<br />
token, so it can be noticed that the programmatic name for each string has a corresponding string in<br />
each language. For instance, the STR_TITLE shows up in the English, Spanish, and French set of<br />
strings.<br />
When writing VFR, no concern really needs to be given to which language to use or reference since the<br />
EFI Configuration Driver will determine which language’s string token will be used. For more on this<br />
see section 2.3.<br />
#strlang ENG "English"<br />
#strlang FRA "Français"<br />
#strlang GER "Deutsche"<br />
#strdef ENG STR_TITLE "My English setup engine"<br />
#strdef ENG STR_PAGE1 "My First Setup Page"<br />
#strdef ENG STR_PAGE2 "My Second Setup Page"<br />
#strdef ENG STR_PAGE3 "My Third Setup Page"<br />
#strdef FRA STR_TITLE "Mon moteur de setup Français"<br />
#strdef FRA STR_PAGE1 "Ma Première Page D'Installation"<br />
#strdef FRA STR_PAGE2 "Ma Deuxième Page D'Installation"<br />
#strdef FRA STR_PAGE3 "Ma Troisième Page D'Installation"<br />
#strdef GER STR_TITLE "Meine Deutsche aufstellung maschine"<br />
#strdef GER STR_PAGE1 "Meine Erste InstallationsSeite"<br />
#strdef GER STR_PAGE2 "Meine Zweite InstallationsSeite"<br />
#strdef GER STR_PAGE3 "Meine Dritte InstallationsSeite"<br />
3.1.4 IFR Header Files<br />
The VFR compiler takes all the previously mentioned input files and converts them into a form that is<br />
usable by the EFI setup compatible driver. Since it is highly likely this driver will use a ‘C’ compiler to<br />
be built, the form of the VFR output files are in ‘C’ type header files. The header files should not ever<br />
need to be manipulated, but there are often comments associated with the byte encodings in the header<br />
files. The byte encoding of the header file is generally organized in the order of IFR followed by String<br />
Tokens and then Font data. A portion of a header file might look as follows:<br />
25
Setup Design Guide<br />
DRAFT<br />
#define IFR_BEGINNING_OFFSET<br />
#define STRING_BEGINNING_OFFSET<br />
#define FONT_BEGINNING_OFFSET<br />
0x0000<br />
0x01c3<br />
0x09de<br />
UINT8 Byte<strong>Encoding</strong>[] = {<br />
/*O*/ 0x11,<br />
// offset = 0x0000<br />
/*L*/ 0x14,<br />
/*G*/ 0x00, 0x00, 0x00, 0x00, 0x0C, 0xF3,<br />
0xD3, 0x4E, 0x00, 0x01, 0x02, 0x03, 0x04, 0x05,<br />
0x06, 0x07,<br />
/*S*/ 0x01, 0x00,<br />
/*O*/ 0x01,<br />
/*L*/ 0x06, 0x01, 0x00,<br />
/*S*/ 0x02, 0x00,<br />
/*O*/ 0x02,<br />
/*L*/ 0x04,<br />
/*S*/ 0x05, 0x00,<br />
/*O*/ 0x95,<br />
/*L*/ 0x13, 0xA9, 0x00, 0xA9, 0x00, 0x00,<br />
/*S*/ 0x10, 0x00,<br />
/*S*/ 0x13, 0x00, 0x93, 0x07, 0x35, 0x08, 0x01, 0x00, 0xAC, 0x07,<br />
…<br />
// offset = 0x1c3<br />
0xDE, 0x10, 0x00, 0x00, // Length for this language list of strings<br />
0x45, 0x4E, 0x47, 0x00, // Language = ENG<br />
0x94, 0x00, 0x00, 0x00, // printable-name<br />
0x00, 0x00, 0x00, 0x00, // attributes<br />
0x94, 0x00, 0x00, 0x00, // offset to string 0<br />
0xA4, 0x00, 0x00, 0x00, // offset to string 1<br />
0xD4, 0x00, 0x00, 0x00, // offset to string 2<br />
0xFC, 0x00, 0x00, 0x00, // offset to string 3<br />
0x26, 0x01, 0x00, 0x00, // offset to string 4<br />
0x4E, 0x01, 0x00, 0x00, // offset to string 5<br />
0x70, 0x01, 0x00, 0x00, // offset to string 6<br />
…<br />
26
Setup Design Guide<br />
DRAFT<br />
4<br />
VFR Programming Language<br />
4.1 BNF of VFR<br />
Character sequences that are in bold are key words. Keywords are case insensitive. The same<br />
extensions to BNF used to describe VFR are used here. Where elements are on separate lines in the<br />
BNF, those elements are required. VFR comments start with ‘//’ and end at the end of the line.<br />
The following ‘meta’-language elements are allowed on any line.<br />
::=<br />
::=<br />
::=<br />
define | define <br />
redefine | redefine <br />
include file-path<br />
Note: No comments are allowed on a file path line. The entire line from the first non-blank character<br />
following the include is taken as the file name.<br />
::=<br />
*<br />
endformset<br />
formset guid= title= nvstore=<br />
Note: is the current placeholder for the variable path.<br />
::=<br />
*<br />
endform<br />
form formid= title=<br />
::= | | | | | |<br />
| | | | | <br />
::=<br />
::=<br />
subtitle text=<br />
text text=<br />
::= varid= prompt= help=<br />
[location=,]<br />
, ::= <br />
Note: It is expected that the compiler will automatically allocate the location information in most cases.<br />
27
Setup Design Guide<br />
DRAFT<br />
::= oneof <br />
*<br />
endoneof<br />
::= option text= value= [default][]<br />
::= checkbox [default][]<br />
Note: The default flag being activated for a checkbox defines the initial behavior to be active.<br />
::= numeric min= max= [default=]<br />
[step=]<br />
, , , all ::= <br />
Note: The default initial value is the value. The default step value is 1.<br />
::= password minsize= maxsize= encoding=<br />
::= supressif <br />
::= grayoutif <br />
::= inconsistentif text=<br />
::= goto prompt= formid=<br />
::= hidden id= value=<br />
::= image string= graphic=<br />
::= background graphic=<br />
, ::= <br />
::= []*<br />
::= a | b | c | … | z | _<br />
::= | 0 | 1 | … | 9<br />
::= <br />
::= <br />
::= UINT8-constant<br />
::= |<br />
|<br />
|<br />
<br />
, , ::= UINT8-constant<br />
::= | | <br />
::= <br />
::= <br />
::= []n..n<br />
::= <br />
, , ::= UINT8-constant<br />
28
Setup Design Guide<br />
DRAFT<br />
4.2 VFR Programming Keywords<br />
The keywords described in the following section compose the working set of commands for the VFR<br />
language. Each description is followed by an example to better help the programmer understand what a<br />
sample line of VFR code would look like using that particular keyword.<br />
4.2.1 // (comment marker)<br />
Allows a programmer to leave comments in the VFR file and has no effect on the IFR binary that is<br />
generated.<br />
Example: // This is a typical comment marker<br />
4.2.2 #define<br />
Used to assign a meaningful name to a constant. Very similar in function to the ‘C’ style #define<br />
keyword.<br />
Example: #define FORMSET_GUID “CAED85D9-F30C-4ed3-B7A6-83EE32A1C604”<br />
#define GUID FORMSET_GUID<br />
4.2.3 #include<br />
This command tells the VFR compiler to use the contents of a file as part of the source to compile.<br />
Example: #include “C:\Source\SourceFile.ifr”<br />
4.2.4 #strlang<br />
This command is used to assign the ISO-639-2 three letter language abbreviation to its corresponding<br />
printable language name.<br />
This command will be used in an included header file which has a Unicode format. It will be an error<br />
condition which will be detected by the compiler if this is used in a non-Unicode formatted file.<br />
Example: #strlang SPA “Español”;<br />
#strlang FRA “Français”;<br />
#strlang ENG “English”;<br />
#strlang HEB ”עברית“ RIGHT_TO_LEFT;<br />
Notice how the 4 th example shows a RIGHT_TO_LEFT flag is turned on. This information will be<br />
passed on to the attributes for strings that are defined under the HEB (Hebrew) language. Strings that<br />
normally were left-justified in the default situation would now be right justified with this flag turned on.<br />
Additionally, user input will move from right to left. Instead of the column location of the cursor<br />
incrementing as a user types, it will decrement.<br />
4.2.5 #strdef<br />
This command is used to define a string and which language it belongs to.<br />
This command will be used in a separate Unicode header file. It will be an error condition which will<br />
be detected by the compiler if this is used in a non-Unicode formatted file.<br />
Example: #strdef ENG STR_SUBTITLE_TEXT “My subtitle text”<br />
#strdef FRA STR_SUBTITLE_TEXT “Mon texte de sous-titre”<br />
29
Setup Design Guide<br />
DRAFT<br />
#strdef<br />
SPA STR_SUBTITLE_TEXT “Mi texto del subtítulo”<br />
4.2.6 formset / endformset<br />
This command is used to define the beginning and end of a set of forms.<br />
If any of the keywords used in the VFR file have a DYNAMIC or an INTERACTIVE flag turned on,<br />
then calls to the HII must pass in the pointer to the driver’s callback interface and the<br />
drivercallback should be set to TRUE. The drivercallback field will be filled into the<br />
byte-stream by the compiler, and is an optional field for the user to input. When this data is exported to<br />
the HII database, a FALSE will be replaced with a zero, and a TRUE will be replaced with the value of<br />
the driver’s callback interface pointer.<br />
Example: formset guid = FORMSET_GUID,<br />
title = STR_FORMSET_TITLE,<br />
[drivercallback = TRUE,]<br />
version = 2,<br />
endformset;<br />
4.2.7 nvstorage<br />
This command is used to define the location of the non-volatile storage used for the choices made by<br />
the user. If the NV storage will not be located in the system NV (e.g. Add-in card NV storage) then<br />
access to the add-in card’s NV must be exposed via the EFI_FORM_CALLBACK_PROTOCOL<br />
protocol. For more information on the EFI_FORM_CALLBACK_PROTOCOL protocol see section<br />
7.3.The handle that contains the interface will be communicated via the nvstorage setting. The first<br />
example shows how one might define an NV storage descriptor for the system variables.<br />
Example: nvstorage handle = NULL,<br />
devicepath = NULL,<br />
key = NULL;<br />
In the second example, the handle and devicepath are defined to be non-NULL to signify that<br />
when this data is exported, there will be a callback done to fill in the two variables. The key value will<br />
be retrieved from a VFR_NV_KEY() macro. It is intended to be a uniquely identified value so that the<br />
callback to the driver will correctly identify the purpose of the callback and hand back the correct<br />
information.<br />
Example: nvstorage handle = 1,<br />
devicepath = 1,<br />
For more information about NV steering see section 6.2.<br />
4.2.8 form / endform<br />
key = RaidControllerMapDefine;<br />
This command is used to define the beginning and end of a page of user interface data.<br />
Example: form formid = PAGE_ONE,<br />
title = STR_FORM_TITLE,<br />
endform;<br />
30
Setup Design Guide<br />
DRAFT<br />
4.2.9 subtitle<br />
Subtitle strings are intended to be used by authors to separate sections of questions into semantic<br />
groups.<br />
Example: subtitle text = STR_SUBTITLE_TEXT;<br />
4.2.10 text<br />
Unlike HTML, text is simply another tag. This enables IFR to be more easily localized. The first<br />
example shows a simple usage case where a static string is being printed. The second example shows a<br />
use case which is more complex and allows for a one-time callback to acquire the secondary text data.<br />
The second case is described in more detail in section 4.3.3.<br />
Example: text text = STR_MISCELLANEOUS_TEXT;<br />
Example: text text = STR_MISCELLANEOUS_TEXT;<br />
4.2.11 oneof / endoneof<br />
text = STR_CPU_DERIVED_TEXT,<br />
flags = DYNAMIC,<br />
key = CPU_FREQUENCY_KEY;<br />
This command provides the ability to choose from multiple choices. Each of the choices is defined by<br />
an option statement. To support the ability to reset the user choices to a specific set of defaults, the<br />
flags settings contains a bit-mask which defines which option is defined as a system default and/or a<br />
manufacturing setting.<br />
Note that the flags setting is used to determine which choice is a system default. In the case of<br />
option 3 the flags setting is set for a manufacturing default setting. It is an error condition if more<br />
than one option has the DEFAULT or MANUFACTURING flag turned on.<br />
Also notice that this is the first keyword example that the results of the user’s choice can be reflected<br />
into a NVRAM storage location. See 6.2 to learn more about NVRAM configuration and to better<br />
understand how this works programmatically.<br />
It is also reasonable that a particular option can have both the default and manufacturing bits set. In this<br />
case it would be specified with a flags = DEFAULT | MANUFACTURING.<br />
Example: oneof<br />
varid = NvRamMap.SerialPortQuestion1,<br />
prompt = STR_ONE_OF_PROMPT,<br />
help = STR_ONE_OF_HELP,<br />
option text = STR_SERIAL_PORT1, value=0, flags=NULL;<br />
option text = STR_SERIAL_PORT2, value=1, flags=DEFAULT;<br />
option text = STR_SERIAL_PORT3, value=2, flags=MANUFACTURING;<br />
endoneof;<br />
A second example shows how one would create a oneof command which required dynamic<br />
interaction with a hardware driver. Note from the first example that the key and flags settings are<br />
optional for this command. This example is not compatible with exporting data to runtime, and thus<br />
31
Setup Design Guide<br />
DRAFT<br />
should only be used in cases where the calling application is intended to be a pre-boot only utility. For<br />
further information on the DYNAMIC and INTERACTIVE flags, see sections 4.3.3 and 4.3.4.<br />
Example: oneof<br />
varid = NULL.BootOptionSelection,<br />
prompt = STR_BOOT_OPTION_SELECTION,<br />
help = STR_BOOT_OPTION_HELP,<br />
key = BOOT_OPTION_KEY,<br />
flags = DYNAMIC | INTERACTIVE,<br />
// There are no options defined in this case. The initial set of options are<br />
// not known since they are system specific. For instance – when looking up<br />
// a file, one cannot know how many file systems will be found on available<br />
// media.<br />
endoneof;<br />
More information about interacting with hardware is contained in section 2.6.<br />
4.2.12 checkbox / endcheckbox<br />
The result returned by Checkbox is zero if the box is not checked and one if it is. If the default value<br />
needs to be one, set the flags parameter to turn on the DEFAULT flag bit.<br />
Notice that this is an example that the results of the user’s choice can be reflected into a NVRAM<br />
storage location. See 6.2 to learn more about NVRAM configuration and to better understand how this<br />
works programmatically.<br />
Example: checkbox<br />
4.2.13 numeric<br />
endcheckbox;<br />
varid = NvRamMap.SerialPortQuestion2,<br />
prompt = STR_CHECK_BOX,<br />
help = STR_CHECK_BOX_HELP,<br />
flags = DEFAULT,<br />
This command allows for numeric entry by selecting from numeric choices. The step portion of the<br />
numeric command allows for the defining of at what rate the value increments when selection the next<br />
or previous entry. If the step is set to zero, the user will be prompted for manual input of the numeric<br />
value.<br />
Notice that this is an example that the results of the user’s choice can be reflected into a NVRAM<br />
storage location. See 6.2 to learn more about NVRAM configuration and to better understand how this<br />
works programmatically.<br />
Example: numeric<br />
varid = NvRamMap.SystemTimeoutValue,<br />
prompt = STR_NUMERIC,<br />
help = STR_NUMERIC_HELP,<br />
min = 0,<br />
max = 35,<br />
32
Setup Design Guide<br />
DRAFT<br />
4.2.14 date<br />
endnumeric;<br />
step = 1,<br />
default = 8,<br />
This command allows for the entry of date information.<br />
Notice that this is an example that the results of the user’s choice can be reflected into an NVRAM<br />
storage location. See 6.2 to learn more about NVRAM configuration and to better understand how this<br />
works programmatically.<br />
Also notice that date and time are the two functions that are likely to be included in a system for<br />
user input, yet not stored in a traditional NVRAM storage location. In this case, the destination is likely<br />
an RTC. This example shows the storage location as being NULL. Date and time are special cases<br />
where the storage location being NULL is translated into a call to the RTC (if available). In all other<br />
cases, a NULL parent will force the data the user inputs to be thrown away.<br />
Example: date year varid = NULL.Year,<br />
prompt = STR_DATE,<br />
help = STR_DATE_YEAR_HELP,<br />
min = 1939,<br />
max = 2076,<br />
step = 1,<br />
default = 2002;<br />
month varid = NULL.Month,<br />
prompt = STR_DATE,<br />
help = STR_DATE_MONTH_HELP,<br />
min = 1,<br />
max = 12,<br />
step = 1,<br />
default = 1;<br />
day varid = NULL.Day,<br />
prompt = STR_DATE,<br />
help = STR_DATE_DAY_HELP,<br />
min = 1,<br />
max = 31,<br />
step = 1,<br />
default = 1;<br />
33
Setup Design Guide<br />
DRAFT<br />
4.2.15 time<br />
enddate;<br />
This command allows for the entry of time information.<br />
Notice that this is an example that the results of the user’s choice can be reflected into an NVRAM<br />
storage location. See 6.2 to learn more about NVRAM configuration and to better understand how this<br />
works programmatically.<br />
Also notice that date and time are the two functions that are likely to be included in a system for<br />
user input, yet not stored in a traditional NVRAM storage location. In this case, the destination is likely<br />
an RTC. This example shows the storage location as being NULL. Date and time are special cases<br />
where the storage location being NULL is translated into a call to the RTC (if available). In all other<br />
cases, a NULL parent will force the data the user inputs to be thrown away.<br />
Example: time hour varid = NULL.Hour,<br />
prompt = STR_TIME,<br />
help = STR_TIME_HOUR_HELP,<br />
min = 0,<br />
max = 23,<br />
step = 1,<br />
default = 0;<br />
minute varid = NULL.Minute,<br />
prompt = STR_TIME,<br />
help = STR_TIME_MINUTE_HELP,<br />
min = 0,<br />
max = 59,<br />
step = 1,<br />
default = 0;<br />
second varid = NULL.Second,<br />
prompt = STR_TIME,<br />
help = STR_TIME_SECOND_HELP,<br />
min = 0,<br />
max = 59,<br />
step = 1,<br />
default = 0;<br />
endtime;<br />
34
Setup Design Guide<br />
DRAFT<br />
4.2.16 string<br />
This command allows for the typing of a text string. This could take the form of a modem initialization<br />
string, or any other piece of informational human-readable data.<br />
Example: string<br />
endstring;<br />
varid = NvRamMap.MyStringData,<br />
prompt = STR_MY_STRING_PROMPT,<br />
help = STR_MY_STRING_HELP,<br />
minsize = 6,<br />
maxsize = 60,<br />
A second example shows how one would create a string command which required interaction with a<br />
hardware driver. Note from the first example that the key and flags settings are optional for this<br />
command. This example is not compatible with exporting data to runtime, and thus should only be<br />
used in cases where the calling application is intended to be a pre-boot only utility. For further<br />
information on the DYNAMIC and INTERACTIVE flags, see sections 4.3.3 and 4.3.4.<br />
Example: string<br />
endstring;<br />
varid = NULL.ModemString,<br />
prompt = STR_MODEM_STRING_PROMPT,<br />
help = STR_MODEM_STRING_HELP,<br />
minsize = 1,<br />
maxsize = 60,<br />
flags = INTERACTIVE,<br />
key = MODEM_STRING_KEY,<br />
More information about interacting with hardware is contained in section 2.6.<br />
4.2.17 password<br />
This command allows for the entry of a system password. It does not dictate system policy; the actual<br />
prompting for a power-on password is not done from the setup infrastructure. However, if a password<br />
is already set, the user will be prompted for the original password prior to allowing the user to change<br />
the password.<br />
Additionally, the storage format of the password is defined both by the VFR password encoding<br />
setting and the infrastructure itself. If the encoding is set to a zero value, the password will be stored<br />
in it’s Unicode format without encryption. The reference implementation provides a very rudimentary<br />
sample of an encryption mechanism which would be enabled by setting the encoding flag to one.<br />
Example: password<br />
varid = NvRamMap.Password,<br />
prompt = STR_PASSWORD_PROMPT,<br />
help = STR_PASSWORD_HELP,<br />
35
Setup Design Guide<br />
DRAFT<br />
4.2.18 goto<br />
endpassword;<br />
minsize = 6,<br />
maxsize = 20,<br />
encoding = 1,<br />
This command allows the user to jump to a new page. In terms of HTML operations, this behaves<br />
exactly like a hyper-link. The target for a goto command is going to be a form.<br />
Example: goto formid PAGE_ONE,<br />
4.2.19 grayoutif<br />
prompt = STR_GOTO_PAGE_ONE;<br />
The grayoutif tag causes the following tag to be displayed in a special display form used for<br />
inaccessible options if the Boolean expression evaluates to true. Those writing IFR should realize that<br />
different browsers will support this option to varying degrees. In particular, HTML has no similar<br />
construct so may not support this facility.<br />
Example: grayoutif NvRamMap.MagicNumber == 3;<br />
4.2.20 suppressif<br />
The suppressif tag causes the following tag to be hidden from the user if the Boolean expression<br />
evaluates to true. As with grayoutif, the quality of support may vary from browser to browser.<br />
HTML does not itself have a mechanism to provide this functionality.<br />
Example: suppressif NvRamMap.SerialPortCount == 0;<br />
4.2.21 hidden<br />
Hidden input allows for communication of things like revision data between the creator of the VFR and<br />
the consumer. The user should not generally see hidden tags. Hidden tags can be used inside VFR<br />
along with the grayoutif and suppressif tags to control display of optional data.<br />
Example: hidden<br />
4.2.22 inconsistentif<br />
varid = NULL.CurrentIfrVersion,<br />
value = 2;<br />
This tag uses a Boolean expression to allow the creator of the IFR to check options in a richer manner<br />
than provided by the question tags themselves. This tag may be used to e.g. validate that two options<br />
aren’t using the same address or that numbers entered align to some pattern (like leap years and<br />
February in date input). The tag provides a string to be used in a “pop-up” display to alert the user to<br />
the issue. Inconsistency tags may be evaluated when the user traverses from tag to tag or only upon<br />
submission. The user should not be allowed to submit the results of a form inconsistencies.<br />
Example: inconsistentif<br />
endif;<br />
prompt = STR_ERROR_POPUP,<br />
ideqval NvRamMap.TestValue == 2,<br />
36
Setup Design Guide<br />
DRAFT<br />
inconsistentif<br />
endif;<br />
prompt = STR_ERROR_POPUP,<br />
ideqvallist NvRamMap.TestValue length = 4,<br />
inconsistentif<br />
endif;<br />
ideqid<br />
4.2.23 AND, OR, NOT<br />
values == 1 2 3 4,<br />
prompt = STR_ERROR_POPUP,<br />
NvRamMap.TestValue == NvRamMap.TestOtherValue,<br />
These tags are used in conjunction with inconsistentif expressions. Much like their ‘C’<br />
counterparts, these tags are defined as logical and, or, and not operations.<br />
Example: inconsistentif<br />
endif;<br />
4.2.24 graphics<br />
TBD<br />
prompt = STR_ERROR_CALENDAR,<br />
ideqval NULL.Day == 29,<br />
AND,<br />
ideqval NULL.Month == 2,<br />
AND,<br />
NOT,<br />
4.3 Reserved Keywords<br />
ideqvallist NULL.Year length = 7,<br />
values == 2004 2008 2012 2016 2020 2024 2028<br />
The reserved keywords are generally the equivalent of ‘C’ type #define operations that are reserved<br />
by the compiler and not usable as user-defined variables. It is illegal to attempt to change the values for<br />
these keywords and the compiler will fail to build the VFR if this is attempted.<br />
4.3.1 DEFAULT<br />
This keyword is used primarily when defining flags settings for certain operations. This keyword will<br />
primarily be used when a user wants to revert to default settings.<br />
4.3.2 MANUFACTURING<br />
This keyword is used primarily when defining flags settings for certain operations. This keyword will<br />
primarily be used by a special utility to revert to the system settings to their manufacturing values.<br />
4.3.3 DYNAMIC<br />
**Limit to one-of, text, and string – any reason for other op-codes to be of this class?**<br />
37
Setup Design Guide<br />
DRAFT<br />
This keyword is used primarily when defining flags settings for certain operations. This keyword will<br />
primarily be used if a particular operation requires additional information from a hardware specific<br />
interface. The intention is that once the data is retrieved successfully, the bit will internally be turned<br />
off and a callback will not be done again. When doing a callback, a key will be passed to the driver<br />
who exported this data. The driver interprets the key and returns the appropriate data in an appropriate<br />
form. The compiler will ensure the key value specified is unique across the entire formset.<br />
A common scenario where this might be used is when a text op-code which prints CPU information is<br />
used and needs to print information like the CPU frequency. This obviously could not have been<br />
determined during the building of the VFR file.<br />
Example: text text = STR_CPU_FREQUENCY_TEXT,<br />
text = STR_CPU_DERIVED_TEXT,<br />
flags = DYNAMIC,<br />
key = CPU_FREQUENCY_KEY;<br />
More information about interacting with hardware is contained in section 2.6.<br />
4.3.4 INTERACTIVE<br />
**Limit to one-of, text, and string, and numeric – any reason for other op-codes to be of this<br />
class?**<br />
This keyword is used primarily when defining flags settings for certain operations. This keyword will<br />
primarily be used if a particular operation requires additional information from a hardware specific<br />
interface. The intention is that once the initial data is retrieved successfully, the DYNAMIC bit will<br />
internally be disabled. This assumes that the infrastructure now has sufficient data to display initial<br />
data to the screen.<br />
The INTERACTIVE flag is not compatible with exporting data to runtime since it assumes callbacks to<br />
a driver which may not exist in the O/S runtime space. The use of this flag should be relegated to preboot<br />
only utilities.<br />
Once a user makes a selection on a tag that is interactive, a callback will be made to retrieve the data<br />
from a driver. A common use for this flag might be the entering of a modem configuration string, and<br />
returning data based on the resulting status from the modem.<br />
Example: string<br />
endstring;<br />
varid = NULL.ModemString,<br />
prompt = STR_MODEM_STRING_PROMPT,<br />
help = STR_MODEM_STRING_HELP,<br />
minsize = 1,<br />
maxsize = 60,<br />
flags = INTERACTIVE,<br />
key = MODEM_STRING_KEY,<br />
In the above example, a user would select the modem string prompt. After typing in the modem string<br />
to send to the modem (i.e. ATE1M0), a callback to the driver would send this packet of data to the<br />
modem. The modem will give some return code to the called driver. The driver will return back to the<br />
38
Setup Design Guide<br />
DRAFT<br />
setup infrastructure with a particular return code and return packet. This packet (based on the keyword<br />
it is responding to) will contain some string data to print out. In the case of the above example, one<br />
might get returned a string stating “Modem Configured Without Errors”. The infrastructure will print<br />
that message, and return the user to the menu which contained the modem string prompt.<br />
More information about interacting with hardware is contained in section 2.6.<br />
39
Setup Design Guide<br />
DRAFT<br />
5<br />
User Interface Design<br />
The Setup described here is targeted at the following design goals<br />
1. Walk up and use interface – the user should not have to have training to use the user interface to<br />
successfully navigate the application. The user may or may not understand the actual fields<br />
presented.<br />
2. The driver should work in the firmware, with no reliance on rotating media or an operating system.<br />
It should use the fonts, strings, and forms as defined in the HII specification. Part of this<br />
development is to ensure that this support is sufficient.<br />
5.1 Home Page<br />
The root of the menu hierarchy (“the home page”) is the only page with no associated IFR. The page<br />
must be generated on the fly by the configuration driver. The page is the first presented to the user and<br />
has the following functions.<br />
1. Enables the user to choose an application to run. If three drivers exported data to the HII database,<br />
three different hyperlinks should be presented to choose from. Each of these hyperlinks may have<br />
several language versions to choose from.<br />
2. Allow the user by virtue of their choice of hyperlinks to pick a language to use.<br />
3. Allows the user to exit with or without updating the configuration.<br />
5.2 Subsequent Pages<br />
The format of subsequent pages is derived from the IFR representation of the corresponding form. The<br />
first form appearing in a form set is taken to be the root of the hierarchy represented by that form set.<br />
5.3 Key-based Navigation<br />
Setup is navigated by a series of keys. The bottom line of the screen is devoted to indicating the active<br />
keys at any time. In the UI lingo, this is known as ‘keys help’. The keys are used for navigation around<br />
the menus, and for modification of the configuration. The keys selected below are chosen because they<br />
do not change definition based on language and because they conform to several standards. The US<br />
English names of the keys are used for description.<br />
The keys used in Setup are:<br />
- Up Arrow, Down Arrow – move the highlight between fields on a menu. (Also Tab and<br />
Shift-Tab) The page is scrolled as necessary to display the next / previous prompt and<br />
option text.<br />
- PgUp, PgDn – scroll text. It is possible (although not likely) for string items (text, prompts,<br />
etc.) with no questions to fill the entire screen. PgUp and PgDn enable scrolling of the forms.<br />
If the currently selected option is not displayed on the page due to use of PgUp and PgDn,<br />
40
Setup Design Guide<br />
DRAFT<br />
input of either up or down arrow will cause the currently selected prompt and option to be<br />
displayed. The highlight will not move in this case.<br />
- Left Arrow, Right Arrow – Cycle through selections for one-of items.<br />
- Spacebar – selects or de-selects checkbox items.<br />
- 0, 1, …, 9 – Numeric entry<br />
- F1 – Scroll help.<br />
- F2 – Back (as in an internet browser. Path may be limited to an arbitrary number (e.g. 10) items or may<br />
be limited to reaching the main menu.<br />
- Esc – Return to parent menu discarding changes. If changes were made, a pop-up should require<br />
confirmation. Note that changes are not fully accepted until the user exits Setup or otherwise commits<br />
the changes..<br />
- Visible Keys – Passwords<br />
- Enter – Accept hyperlink or begin entering data on a question<br />
Per the walkup and use requirement, there is no help key because all help is presented to the user<br />
without request.<br />
5.4 Mouse Navigation<br />
A mouse may be used for navigation. Only the left mouse button is defined and only single clicks are<br />
supported.<br />
Where clicked<br />
Upper left corner (over<br />
F2=Back)<br />
Numeric, One-of,<br />
Password fields<br />
← and → to the left and<br />
right of one-of fields<br />
Check box<br />
5.5 Screen Format<br />
Action<br />
Return to previous (parent) menu<br />
Highlight field.<br />
Scroll through options<br />
Toggle check in box (X then space then X then space…)<br />
The screen is character oriented and divided vertically and horizontally into regions. Rows range from<br />
1 (the top line) to C max (the bottom line). Columns range from 1 (left-most) to R max (right most).<br />
Row 1 is the title line. The title is presented as centered on the line. On the first page, the title line is<br />
passed to the driver when it is invoked. On the remaining pages the title is derived from the Title IFR<br />
operand. Left and right arrows are displayed as the left most two character of all but the root title pages<br />
(for use with mouse navigation). They are used equivalently with the browser left and right arrows.<br />
Two options are also on the top line: “F2=Back” is flush left while “F3=Exit” is presented flush right<br />
(in positions similar to those on a browser).<br />
Row R max is used for keys help. The text for the keys help is carried by the Setup driver.<br />
41
Setup Design Guide<br />
DRAFT<br />
The area between the title screen and the keys help is known as the page body.<br />
The page body is divided into thirds. The leftmost block is known as the prompt block, the middle is<br />
the option block, and the rightmost column is the help block. The right two blocks (prompt block and<br />
option block) are collectively known as the question block.<br />
The question block is used to present subtitles and text. If they fit, question prompts reside in the<br />
prompt block. The currently selected option resides in the option block. The option column is<br />
separated from the help column by a scroll bar. If the IFR page is longer vertically than the page body,<br />
the appropriate arrows and block appear on the scroll bar.<br />
The currently selected input field is highlighted.<br />
Example (with fewer than normal rows):<br />
F2=Back<br />
Ersatz© 2003 Mega-SCSI<br />
▲<br />
Help:<br />
Interrupt . . . . . . . . . . . . . . ←PIRQ A→ │ SCAM (SCSI Configured<br />
Mode . . . . . . . . . . . . . . . . . ←Fast and Wide→ │ Automagically) will<br />
SCAM . . . . . . . . . . . . . . . . [X] ▒ automatically assign addresses<br />
← → toggles check box , ↑↓ moves highlight, F1 scrolls help<br />
│<br />
│<br />
▼<br />
to SCSI peripherals. Some<br />
old devices don’t work with<br />
SCAM.<br />
Note that the blank space between the prompt and the options is filled with dot+space pairs to provide<br />
horizontal visual reference. The dots do not necessarily align vertically. At least one space must appear<br />
after the prompt and before the option.<br />
5.6 Colors<br />
Colors are configurable via an optional protocol. If the optional protocol does not exist, a default<br />
palette is selected. The following areas are selectable<br />
Part of Screen<br />
Title background<br />
Default Color<br />
Dark Blue<br />
Title text<br />
Keys help background<br />
Keys help text<br />
Help Text<br />
Field background<br />
Field text (input prompt text, option<br />
White<br />
Black<br />
Light gray<br />
Dark Blue<br />
Light gray<br />
Black<br />
42
Setup Design Guide<br />
DRAFT<br />
text, text)<br />
Subtitle text<br />
Grayed-out text<br />
Suppressed text<br />
Highlight background<br />
Highlight text<br />
Inconsistency background<br />
Inconsistency text<br />
Black<br />
Dark Gray<br />
Not displayed<br />
White<br />
Black<br />
Yellow<br />
Black<br />
5.7 Pop-Ups<br />
Warnings (February cannot have 30 days) are displayed as pop-ups. The pop-ups are surrounded above<br />
and below by a blank field of the inconsistancy color and the message displayed<br />
5.8 Partial Language Availability<br />
It is quite possible that the language selected may only be available for a portion of the forms. If the<br />
currently selected language is not available for a given form, the default language shall be used.<br />
43
Setup Design Guide<br />
DRAFT<br />
6<br />
Setup Driver Considerations<br />
6.1 Pre-boot Operation versus Runtime Operation<br />
Due to the static nature of the data contained in the HII Database and the capacity to update NVRAM<br />
variables, the pre-boot configuration data can be effectively used during O/S runtime. This allows the<br />
same configuration mechanisms to be used in pre-boot as well as in runtime.<br />
Some thought needs to be given when designing the overall requirements associated with a setup<br />
application with regards to the type of data that is needed and it’s hardware interaction requirements.<br />
For additional information about hardware interaction see section 2.6. If some of the questions<br />
associated with a setup environment require a high level of hardware interaction, it might make sense to<br />
design the user interface flow in the VFR such that these types of questions are isolated. The reason for<br />
this is that when this data is exported to a runtime presence, it may not make any sense in that<br />
environment. For instance if there were a page which contained some diagnostic type of interactions<br />
which are not reasonable in a runtime environment the user experience of that page may not be<br />
desirable.<br />
6.2 How to allocate and steer data to NV storage<br />
The file which contains the global data primarily consists of a series of #define values and the definition<br />
of the NV mapping descriptors. This file is intended to be used as an include file both for VFR<br />
purposes as well as a ‘C’ syntax include file for drivers that are built to support the EFI setup<br />
infrastructure.<br />
There NV mapping descriptors take the form of structure declarations in this definition file. Each piece<br />
of data that can be changed in the configuration needs to be saved. For each of these data items, there<br />
will be a structure member.<br />
To support the ability to store data in multiple physical locations, one needs to be able to specify which<br />
data items will reside in which NV storage location. A common scenario would be that a developer<br />
might have the results of many questions reside in the systemboard NVRAM, yet some of the questions<br />
might reside in another NV storage location. To differentiate between which is the system store and<br />
which is the alternate store the VFR_NV_KEY macro is used in the structure definition.<br />
The VFR compiler will read the structure that has the macro with a 0 input as the system store<br />
descriptor. All structures with non-zero macro inputs are going to be considered to be non-system<br />
storage descriptors.<br />
A sample VFR entry which declares a system NV store descriptor might look like the following entry:<br />
nvstorage<br />
handle = NULL,<br />
devicepath = NULL,<br />
key = NvRamMapKey;<br />
A sample VFR entry which declares a non-system NV store descriptor might look like the following<br />
entry:<br />
nvstorage handle = 1,<br />
44
Setup Design Guide<br />
DRAFT<br />
devicepath = 1,<br />
key = RaidControllerNvDataKey;<br />
For additional information on the nvstorage command see section 4.2.7.<br />
The following snapshot is from the definition file containing the #define values as well as the NV<br />
structure definitions. This example shows a structure NvRamMap with the VFR_NV_KEY macro.<br />
The macro uses an NvRamMapKey which has a definition of 0. This then defines a system NV store<br />
structure. Followed immediately after it is a RaidControllerNvData structure definition with the same<br />
macro and the RaidControllerNvDataKey. Since the macro input evaluates to a non-zero value, it by<br />
definition is defining a non-system NV store structure.<br />
#define NvRamMapKey 0<br />
#define RaidControllerNvDataKey 1<br />
struct {<br />
UINT16<br />
SystemPassword[20];<br />
UINT16<br />
ModemInitializationString[60];<br />
UINT8<br />
SerialPortEnable;<br />
UINT16<br />
SamplePieceOfData;<br />
UINT32<br />
MyFavoriteNumber;<br />
} NvRamMap VFR_NV_KEY(NvRamMapKey);<br />
struct {<br />
UINT16<br />
SamplePieceOfData;<br />
UINT32<br />
MyFavoriteNumber;<br />
} RaidControllerNvData VFR_NV_KEY(RaidControllerNvDataKey);<br />
45
Setup Design Guide<br />
DRAFT<br />
7<br />
HII Database Interface<br />
7.1 EFI Human Interface Infrastructure Protocol<br />
Summary<br />
The EFI_HII_PROTOCOL manages the HII database, a repository for data having to do with fonts,<br />
strings, forms, keyboards, and other future human interface items.<br />
GUID<br />
#define EFI_HII_PROTOCOL_GUID \<br />
{ 0xb5f16136, 0x1144, 0x4d6a, 0xbb, 0xbb, 0x41, 0xf2, \<br />
0xff, 0x1e, 0x1d, 0x4 }<br />
Protocol Interface Structure<br />
typedef struct _EFI_HII_PROTOCOL {<br />
EFI_HII_NEW_PACK<br />
NewPack;<br />
EFI_HII_REMOVE_PACK<br />
RemovePack;<br />
EFI_HII_FIND_HANDLES<br />
FindHandles;<br />
EFI_HII_GET_GLYPH<br />
EFI_HII_GET_PRI_LANGUAGES<br />
EFI_HII_GET_SEC_LANGUAGES<br />
EFI_HII_NEW_STRING<br />
EFI_HII_GET_STRING<br />
EFI_HII_TEST_STRING<br />
EFI_HII_GET_LINE<br />
EFI_HII_GET_FORMS<br />
EFI_HII_UPDATE_FORM<br />
EFI_HII_GET_KEYBOARD_LAYOUT<br />
GetGlyph;<br />
GetPrimaryLanguages;<br />
GetSecondaryLanguages;<br />
NewString;<br />
GetString;<br />
TestString;<br />
GetLine;<br />
GetForms;<br />
UpdateForm;<br />
GetKeyboardLayout;<br />
} EFI_HII_PROTOCOL;<br />
Parameters<br />
NewPack<br />
RemovePack<br />
FindHandles<br />
Extracts the various packs from a package list. The descriptions of<br />
how each type of pack is processed are described in subsequent<br />
sections.<br />
Removes the package from the HII Database.<br />
Determines the handles that are currently active in the database.<br />
46
Setup Design Guide<br />
DRAFT<br />
GetGlyph<br />
GetPrimaryLanguages<br />
GetSecondaryLanguages<br />
NewString<br />
GetString<br />
TestString<br />
GetLine<br />
GetForms<br />
UpdateForm<br />
GetKeyboard<br />
Translates a Unicode character into the corresponding font glyph.<br />
This function allows a program to determine which primary<br />
languages are supported on a given handle.<br />
This function allows a program to determine which secondary<br />
languages are supported on a given handle for a given primary<br />
language.<br />
This function allows a new String to be added to an already existing<br />
String Package.<br />
This function extracts a string from a package already registered with<br />
the HII database.<br />
Test if all of the characters in a string have corresponding font<br />
characters.<br />
This function allows a program to extract a part of a string of not<br />
more than a given width.<br />
This function allows a program to extract a form or form package<br />
that has previously been registered with the EFI HII database.<br />
This function allows the caller to update a form or form package that<br />
has previously been registered with the EFI HII database.<br />
This function provides the caller with the current keyboard layout<br />
definitions that is registered with the HII Database.<br />
Description<br />
Extracts the various packs from a package list. The descriptions of how each type of pack is processed<br />
are described in subsequent sections.<br />
47
Setup Design Guide<br />
DRAFT<br />
Related Definitions<br />
typedef UINT16 RELOFST<br />
typedef UINT16 STRING_REF<br />
RELOFST is a 16-bit word offset relative to the start of the encompassing String Pack structure, thus<br />
providing position independence for the entire structure.<br />
STRING_REF is a variable that can contain a STRING_TOKEN. When used in programs, string<br />
tokens are fundamentally constants.<br />
typedef UINTN EFI_HII_HANDLE;<br />
typedef CHAR16 * EFI_STRING;<br />
typedef UINT16 EFI_FORM_ID;<br />
typedef UINT16 EFI_FORM_LABEL;<br />
//<br />
// The following types are currently defined:<br />
//<br />
#define EFI_HII_FONT 1<br />
#define EFI_HII_STRING 2<br />
#define EFI_HII_IFR 3<br />
#define EFI_HII_KEYBOARD 4<br />
typedef struct {<br />
UINT32 Length;<br />
UINT16 Type;<br />
} EFI_HII_PACK_HEADER;<br />
//<br />
// A string package is used to localize strings to a particular<br />
// language. The package is associated with a particular driver<br />
// or set of drivers. Tools are used to associate tokens with<br />
// string references in forms and in programs. These tokens are<br />
// language agnostic. When paired with a language pack (directly<br />
// or indirectly), the string token resolves into an actual<br />
// UNICODE string.<br />
//<br />
//<br />
// LanguageNameString The string containing one or more ISO 639-2<br />
// three character designator of the language or languages whose<br />
// translations are contained in this language pack. The first<br />
// designator indicates the primary language while the others are<br />
// secondary languages.<br />
//<br />
// PrintableLanguageName Contains the offset into this structure<br />
48
Setup Design Guide<br />
DRAFT<br />
// of a printable name of the language for use when prompting the<br />
// user. The language printed is to be the primary language.<br />
//<br />
//<br />
// String attributes<br />
//<br />
#define LANG_RIGHT_TO_LEFT 0x00000001<br />
LANG_RIGHT_TO_LEFT: If on, the language is intended to be printed right to left. The default (off)<br />
is to print left to right.<br />
//<br />
// StringPointers Are relative offsets from the beginning of the<br />
// package to each corresponding string. This<br />
// list of pointers will be null-terminated.<br />
//<br />
typedef struct {<br />
EFI_HII_PACK_HEADER Header;<br />
RELOFST LanguageNameString;<br />
RELOFST PrintableLanguageName;<br />
UINT32 Attributes;<br />
RELOFST StringsPointers[1];<br />
STRING Strings[1];<br />
} EFI_HII_STRING_PACK;<br />
//<br />
// Glyph Attributes<br />
//<br />
#define GLYPH_NON_SPACING 1<br />
#define GLYPH_NON_BREAKING 2<br />
Unicode defines several non-spacing characters which are generally used to implement uncommon<br />
accents, etc (as in Vietnamese). The idea is to ‘or’ the non-spacing character over the succeeding<br />
character.<br />
typedef struct {<br />
CHAR16<br />
UnicodeWeight;<br />
UINT8<br />
Attributes;<br />
UINT8<br />
GlyphCol1[19];<br />
} EFI_NARROW_GLYPH;<br />
typedef struct {<br />
CHAR16 UnicodeWeight;<br />
UINT8<br />
Attributes;<br />
UINT8<br />
GlyphCol1[19], GlyphCol2[19];<br />
UINT8<br />
Pad[3];<br />
} EFI_WIDE_GLYPH;<br />
49
Setup Design Guide<br />
DRAFT<br />
//<br />
// A font list consists of a font header followed by a series<br />
// of glyph structures. Note that fonts are not language specific.<br />
//<br />
typedef struct {<br />
EFI_HII_PACK_HEADER Header;<br />
UINT16<br />
NumberOfNarrowGlyphs;<br />
UINT16<br />
NumberOfWideGlyphs;<br />
EFI_NARROW_GLYPH NarrowGlyphs[1];<br />
EFI_WIDE_GLYPH WideGlyphs[1];<br />
} EFI_HII_FONT_PACK;<br />
//<br />
// A form list consists of a large variety of structure<br />
// possibilities so to represent the binary blob of data<br />
// associated with a package of forms, we will assume a<br />
// pointer to a self-describing data buffer.<br />
//<br />
typedef struct {<br />
EFI_HII_PACK_HEADER Header;<br />
VOID<br />
*IfrData;<br />
} EFI_HII_IFR_PACK;<br />
typedef enum {<br />
EfiKeyLCtrl, EfiKeyA0, EfiKeyLAlt, EfiKeySpaceBar,<br />
EfiKeyA2, EfiKeyA3, EfiKeyA4, EfiKeyRCtrl, EfiKeyLeftArrow,<br />
EfiKeyDownArrow, EfiKeyRightArrow, EfiKeyZero,<br />
EfiKeyPeriod, EfiKeyEnter, EfiKeyLShift, EfiKeyB0,<br />
EfiKeyB1, EfiKeyB2, EfiKeyB3, EfiKeyB4, EfiKeyB5, EfiKeyB6,<br />
EfiKeyB7, EfiKeyB8, EfiKeyB9, EfiKeyB10, EfiKeyRshift,<br />
EfiKeyUpArrow, EfiKeyOne, EfiKeyTwo, EfiKeyThree,<br />
EfiKeyCapsLock, EfiKeyC1, EfiKeyC2, EfiKeyC3, EfiKeyC4,<br />
EfiKeyC5, EfiKeyC6, EfiKeyC7, EfiKeyC8, EfiKeyC9,<br />
EfiKeyC10, EfiKeyC11, EfiKeyC12, EfiKeyFour, EfiKeyFive,<br />
EfiKeySix, EfiKeyPlus, EfiKeyTab, EfiKeyD1, EfiKeyD2,<br />
EfiKeyD3, EfiKeyD4, EfiKeyD5, EfiKeyD6, EfiKeyD7, EfiKeyD8,<br />
EfiKeyD9, EfiKeyD10, EfiKeyD11, EfiKeyD12, EfiKeyD13,<br />
EfiKeyDel, EfiKeyEnd, EfiKeyPgDn, EfiKeySeven, EfiKeyEight,<br />
EfiKeyNine, EfiKeyE0, EfiKeyE1, EfiKeyE2, EfiKeyE3,<br />
EfiKeyE4, EfiKeyE5, EfiKeyE6, EfiKeyE7, EfiKeyE8, EfiKeyE9,<br />
EfiKeyE10, EfiKeyE11, EfiKeyE12, EfiKeyBackSpace,<br />
EfiKeyIns, EfiKeyHome, EfiKeyPgUp, EfiKeyNLck, EfiKeySlash,<br />
EfiKeyAsterisk, EfiKeyMinus, EfiKeyEsc, EfiKeyF1, EfiKeyF2,<br />
EfiKeyF3, EfiKeyF4, EfiKeyF5, EfiKeyF6, EfiKeyF7, EfiKeyF8,<br />
EfiKeyF9, EfiKeyF10, EfiKeyF11, EfiKeyF12, EfiKeyPrint,<br />
EfiKeySLck, EfiKeyPause<br />
50
Setup Design Guide<br />
DRAFT<br />
} EFI_KEY;<br />
Figure 1<br />
typedef struct {<br />
EFI_KEY<br />
CHAR16<br />
CHAR16<br />
CHAR16<br />
CHAR16<br />
UINT16<br />
} EFI_KEY_DESCRIPTOR;<br />
Key;<br />
Unicode;<br />
ShiftedUnicode;<br />
AltGrUnicode;<br />
ShiftedAltGrUnicode;<br />
Modifier;<br />
//<br />
// This structure allows a sparse set of keys to be redefined<br />
// or a complete redefinition of the keyboard layout. Most<br />
// keyboards have a lot of commonality in their layouts, therefore<br />
// only defining those keys that need to change from the default<br />
// minimizes the passed in information.<br />
//<br />
// Additionally, when an update occurs, the active keyboard layout<br />
// will be switched to the newly updated keyboard layout. This<br />
// allows for situations that when a keyboard layout driver is<br />
// loaded as part of system initialization, the system will default<br />
// the keyboard behavior to the new layout.<br />
//<br />
// Each call to update the keyboard mapping should contain the<br />
// complete set of key descriptors to be updated, since every<br />
// call to the HII which contains an EFI_HII_KEYBOARD_PACK will<br />
// wipe the previous set of overrides. A call to<br />
//<br />
typedef struct {<br />
EFI_HII_PACK_HEADER Header;<br />
EFI_KEY_DESCRIPTOR *Descriptor;<br />
UINTN<br />
DescriptorCount;<br />
} EFI_HII_KEYBOARD_PACK;<br />
typedef union {<br />
EFI_HII_IFR_PACK<br />
EFI_HII_FONT_PACK<br />
EFI_HII_STRING_PACK<br />
EFI_HII_KEYBOARD_PACK<br />
} EFI_HII_PACK_LIST;<br />
*IfrPack;<br />
*FontPack;<br />
*StringPack;<br />
*KeyboardPack;<br />
51
Setup Design Guide<br />
DRAFT<br />
7.1.1 EFI_HII_PROTOCOL.NewPack()<br />
Summary<br />
Extracts the various packs from a package list.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_HII_NEW_PACK) (<br />
IN EFI_HII_PROTOCOL<br />
IN EFI_HII_PACK_LIST<br />
OUT EFI_HII_HANDLE<br />
);<br />
*This,<br />
*Package,<br />
*Handle<br />
Parameters<br />
This<br />
PackageList<br />
Handle<br />
A pointer to the EFI_HII_PROTOCOL instance.<br />
A pointer to an EFI_HII_PACK_LIST package instance.<br />
A pointer to the EFI_HII_HANDLE instance.<br />
Description<br />
With the exception of font and keyboard data, this function adds the contents of the package list to the<br />
database and returns a handle back to the data. Font and keyboard data is kept in a common pool and<br />
will have a NULL handle associated with them. In the case where a PackageList contains both<br />
pooled data and database data, a valid handle will be returned upon the addition of the appropriate data<br />
into the database.<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_INVALID_PARAMETER<br />
Data was extracted from the Package, Database was updated with<br />
the data, and Handle returned successfully.<br />
The content of the Package was invalid.<br />
52
Setup Design Guide<br />
DRAFT<br />
7.1.2 EFI_HII_PROTOCOL.RemovePack()<br />
Summary<br />
Remove a package from the HII Database.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_HII_REMOVE_PACK) (<br />
IN EFI_HII_PROTOCOL<br />
IN EFI_HII_HANDLE<br />
);<br />
*This,<br />
Handle<br />
Parameters<br />
This<br />
Handle<br />
A pointer to the EFI_HII_PROTOCOL instance.<br />
The handle that was registered to the data that is being requested to<br />
be removed.<br />
Description<br />
This function removes the string and/or form data associated with a handle from the HII database. This<br />
function has no effect on keyboard or font data that may have been registered with the NewPack<br />
function.<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_INVALID_PARAMETER<br />
The data associated with the Handle was removed from the HII<br />
Database.<br />
The Handle was not valid.<br />
53
Setup Design Guide<br />
DRAFT<br />
7.1.3 EFI_HII_PROTOCOL.FindHandles()<br />
Summary<br />
Determines the handles that are currently active in the database.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_HII_FIND_HANDLES) (<br />
IN EFI_HII_PROTOCOL *This,<br />
IN OUT UINT16<br />
*HandleBufferLength,<br />
OUT EFI_HII_HANDLE *Handle<br />
);<br />
Parameters<br />
This<br />
HandleBufferLength<br />
Handle<br />
A pointer to the EFI_HII_PROTOCOL instance.<br />
A pointer to the length of the handle buffer on input. On output the<br />
actual number of handles.<br />
An array of EFI_HII_HANDLE instances returned.<br />
Description<br />
Determines the handles that are currently active in the database. As an example of use, a program<br />
wishing to create a Setup-like configuration utility would use this call to determine the handles<br />
available. It would then use calls defined in the forms section below to extract forms and then interpret<br />
them.<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_BUFFER_TOO_SMALL<br />
Handles[] updated successfully.<br />
The HandleBufferLength parameter indicates that Handle[] is too<br />
small to support the number of handles. HandleBufferLength is<br />
updated with a value that will enable the data to fit.<br />
54
Setup Design Guide<br />
DRAFT<br />
7.1.4 EFI_HII_PROTOCOL.TestString()<br />
Summary<br />
Test if all of the characters in a string have corresponding font characters.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_HII_TEST_STRING) (<br />
IN EFI_HII_PROTOCOL *This,<br />
IN CHAR16 *StringToTest,<br />
IN OUT UINT32<br />
*FirstMissing,<br />
OUT UINT32 *GlyphBufferSize<br />
);<br />
Parameters<br />
This<br />
StringToTest<br />
FirstMissing<br />
GlyphBufferSize<br />
A pointer to the EFI_HII_PROTOCOL instance.<br />
A pointer to a Unicode string.<br />
A pointer to an index into the string. On input, the index of the first<br />
character in the StringToTest to examine. On exit, the index of<br />
the first character encountered for which a glyph is unavailable. If all<br />
glyphs in the string are available, the index is the index of the<br />
terminator of the string.<br />
A pointer to a value. On output, if the function returns<br />
EFI_SUCCESS, this contains the amount of memory required to<br />
store the string’s glyph equivalent.<br />
Description<br />
This function may be repeatedly called to determine subsequent missing characters. Note that the index<br />
pointed to by FirstMissing must be incremented between calls. Line separator characters are<br />
ignored.<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_NOT_FOUND<br />
All glyphs are available. (Note that an empty string always returns<br />
this value.)<br />
A glyph was not found for a character.<br />
55
Setup Design Guide<br />
DRAFT<br />
7.1.5 EFI_HII_PROTOCOL.GetGlyph()<br />
Summary<br />
Translates a Unicode character into the corresponding font glyph.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_HII_GET_GLYPH) (<br />
IN EFI_HII_PROTOCOL *This,<br />
IN CHAR16 *Source,<br />
IN OUT UINT16<br />
*<strong>Index</strong>,<br />
OUT UINT8 *GlyphBuffer,<br />
OUT UINT16 *BitWidth,<br />
IN OUT UINT32<br />
*InternalStatus<br />
);<br />
Parameters<br />
This<br />
Source<br />
<strong>Index</strong><br />
GlyphBuffer<br />
BitWidth<br />
InternalStatus<br />
A pointer to the EFI_HII_PROTOCOL instance.<br />
A pointer to a Unicode string.<br />
On input, the offset into the string to fetch the character from. On<br />
successful completion, the index is updated to the first character past<br />
the character(s) making up the just extracted glyph.<br />
Pointer to an array where the glyphs corresponding to the characters<br />
in the Source may be stored. GlyphBuffer is assumed to be wide<br />
enough to accept a wide glyph character.<br />
If EFI_SUCCESS was returned, the UINT16 pointed to by this<br />
value is filled with the length of the glyph in pixels. Unchanged if<br />
the call was unsuccessful.<br />
To save the time required to read the string from the beginning on<br />
each glyph extraction (to ensure that e.g. the narrow versus wide<br />
glyph mode is correct), this value is updated each time the function is<br />
called with status local to the call. The cell pointed to by this<br />
parameter must be initialized to 0 prior to invoking the call the first<br />
time for any string.<br />
Description<br />
The data returned is the format required for input to the UGA BLT routines.<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
It worked.<br />
EFI_NOT_FOUND<br />
A glyph for a character was not found.<br />
56
Setup Design Guide<br />
DRAFT<br />
7.1.6 EFI_HII_PROTOCOL.NewString()<br />
Summary<br />
This function allows a new String to be added to an already existing String Package.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_HII_NEW_STRING) (<br />
IN EFI_HII_PROTOCOL *This,<br />
IN CHAR16<br />
*Language,<br />
IN EFI_HII_HANDLE Handle,<br />
IN STRING_REF<br />
*Reference,<br />
IN CHAR16<br />
*NewString<br />
);<br />
Parameters<br />
This<br />
Language<br />
Handle<br />
A pointer to the EFI_HII_PROTOCOL instance.<br />
Pointer to a NULL-terminated string containing a single ISO-639-2<br />
language identifier, indicating the language the string is translated<br />
in. A string consisting of all spaces indicates that the string is<br />
applicable to all languages.<br />
The handle of the language pack to which the string is to be added.<br />
Reference The identifier of the string to be added. If the reference value is 0,<br />
then the string will be assigned a new identifier on that handle for<br />
the Language specified. Otherwise, the string will be updated with<br />
the NewString Value.<br />
NewString<br />
Description<br />
The string to be added.<br />
This routine adds a new string to a string package already submitted via NewPack. This string<br />
effectively overwrites existing strings.<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_INVALID_PARAMETER<br />
String effectively registered.<br />
Unknown handle.<br />
57
Setup Design Guide<br />
DRAFT<br />
7.1.7 EFI_HII_PROTOCOL.GetPrimaryLanguages()<br />
Summary<br />
This function allows a program to determine what the primary languages that are supported on a given<br />
handle.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_HII_GET_PRI_LANGUAGES) (<br />
IN EFI_HII_PROTOCOL<br />
*This,<br />
IN EFI_HII_HANDLE<br />
Handle,<br />
OUT EFI_STRING<br />
*LanguageString<br />
);<br />
Parameters<br />
This<br />
Handle<br />
LanguageString<br />
A pointer to the EFI_HII_PROTOCOL instance.<br />
Handle on which the strings reside.<br />
A string allocated by GetPrimaryLanguages containing a list of<br />
all primary languages registered on the handle. The routine will not<br />
return the 3-spaces language identifier used in other functions to<br />
indicate non-language-specific strings.<br />
Description<br />
This routine is intended to be used by drivers to query the interface database for supported languages.<br />
This routine returns a string of concatenated 3 byte language identifiers one per string package<br />
associated with the handle.<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_INVALID_PARAMETER<br />
Correctly returned the LanguageString.<br />
Unknown handle.<br />
58
Setup Design Guide<br />
DRAFT<br />
7.1.8 EFI_HII_PROTOCOL.GetSecondaryLanguages()<br />
Summary<br />
This function allows a program to determine which secondary languages are supported on a given<br />
handle for a given primary language.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_HII_GET_SEC_LANGUAGES) (<br />
IN EFI_HII_PROTOCOL<br />
*This,<br />
IN EFI_HII_HANDLE<br />
Handle,<br />
IN CHAR16<br />
*PrimaryLanguage,<br />
OUT EFI_STRING<br />
*LanguageString<br />
);<br />
Parameters<br />
This<br />
Handle<br />
PrimaryLanguage<br />
LanguageString<br />
A pointer to the EFI_HII_PROTOCOL instance.<br />
Handle on which the strings reside.<br />
Pointer to a NULL-terminated string containing a single ISO-639-2<br />
language identifier, indicating the primary language.<br />
A string allocated by GetSecondaryLanguages containing a<br />
list of all secondary languages registered on the handle. The routine<br />
will not return the 3-spaces language identifier used in other<br />
functions to indicate non-language-specific strings, nor will it return<br />
the primary language. This function succeeds but returns a NULL<br />
LanguageString if there are no secondary languages associated<br />
with the input Handle and PrimaryLanguage pair.<br />
Description<br />
Each string package has associated with it a single primary language and zero or more secondary<br />
languages. This routine returns the secondary languages associated with a string package. The string<br />
package is identified by the package list handle and the (currently three character ISO-639-2 primary<br />
language identifier.<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_INVALID_PARAMETER<br />
Correctly returned the LanguageString.<br />
Unknown handle.<br />
59
Setup Design Guide<br />
DRAFT<br />
7.1.9 EFI_HII_PROTOCOL.GetString()<br />
Summary<br />
This function extracts a string from a package already registered with the EFI HII database.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_HII_GET_STRING) (<br />
IN EFI_HII_PROTOCOL *This,<br />
IN EFI_HII_HANDLE Handle,<br />
IN STRING_REF Token,<br />
IN BOOLEAN Raw,<br />
IN CHAR16 *LanguageString,<br />
IN OUT UINT16<br />
*BufferLength,<br />
OUT EFI_STRING *StringBuffer<br />
);<br />
Parameters<br />
This<br />
Handle<br />
Token<br />
Raw<br />
LanguageString<br />
BufferLength<br />
StringBuffer<br />
A pointer to the EFI_HII_PROTOCOL instance.<br />
Handle on which the string resides.<br />
The string token assigned to the string.<br />
If true, the string is returned unedited in the internal storage format<br />
described above. If false, the string returned is edited by replacing<br />
with and by removing special characters such as the<br />
prefix.<br />
Pointer to a NULL-terminated string containing a single ISO-639-2<br />
language identifier, indicating the language to print. If the<br />
LanguageString is empty (starts with a NULL) the default system<br />
language will be used to determine the language.<br />
Length of the StringBuffer. If the status reports that the buffer<br />
width is too small, this parameter is filled with the length of the<br />
buffer needed.<br />
The buffer designed to receive the characters in the string.<br />
Description<br />
This routine extracts a string from the package database. The string may be extracted in internal or<br />
external formats.<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_INVALID_PARAMETER<br />
EFI_BUFFER_TOO_SMALL<br />
StringBuffer is filled with a null-terminated string.<br />
Unknown handle or string token.<br />
The buffer provided was not large enough to allow the<br />
60
Setup Design Guide<br />
DRAFT<br />
entire string to be stored.<br />
61
Setup Design Guide<br />
DRAFT<br />
7.1.10 EFI_HII_PROTOCOL.GetLine()<br />
Summary<br />
This function allows a program to extract a part of a string of not more than a given width. With<br />
repeated calls, this allows a calling program to extract “lines” of text that fit inside columns. The effort<br />
of measuring the fit of strings inside columns is localized to this call.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_HII_GET_LINE) (<br />
IN EFI_HII_PROTOCOL *This,<br />
IN EFI_HII_HANDLE Handle,<br />
IN STRING_REF Token,<br />
IN OUT UINT16<br />
*<strong>Index</strong>,<br />
IN UINT16 LineWidth,<br />
IN CHAR16 *LanguageString,<br />
IN OUT UINT16<br />
*BufferLength,<br />
OUT EFI_STRING *StringBuffer<br />
);<br />
Parameters<br />
This<br />
Handle<br />
Token<br />
<strong>Index</strong><br />
LineWidth<br />
LanguageString<br />
BufferLength<br />
StringBuffer<br />
A pointer to the EFI_HII_PROTOCOL instance.<br />
Handle on which the string resides.<br />
The string token assigned to the string.<br />
On input, the offset into the string where the line is to start. On<br />
output, the index is updated to point to beyond the last character<br />
returned in the call. The interface is designed so that repeated calls<br />
will fill the buffer with subsequent parameters.<br />
The maximum width of the line in units of narrow glyphs. Specific<br />
line breaks (as in the case of two carriage returns) are still honored<br />
resulting in separate lines. The buffer is padded to the length in<br />
narrow spaces.<br />
Pointer to a NULL-terminated string containing a single ISO-639-2<br />
language identifier, indicating the language to print. If the<br />
LanguageString is empty (starts with a NULL) the default system<br />
language will be used to determine the language.<br />
Pointer to the Length of the StringBuffer. If the status reports<br />
that the buffer width is too small, this parameter is filled with the<br />
length of the buffer needed.<br />
The buffer designed to receive the characters in the string.<br />
Description<br />
62
Setup Design Guide<br />
DRAFT<br />
This function is used to extract parts of a string so that those parts of strings fit inside a column of a<br />
defined width. This is commonly used in menuing applications.<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_NOT_FOUND<br />
EFI_BUFFER_TOO_SMALL<br />
StringBuffer filled with characters that will fit on the<br />
line.<br />
The font glyph for at least one of the characters in the<br />
string is not in the font database.<br />
The buffer provided was not large enough to allow the<br />
entire string to be stored. Note that the BufferWidth<br />
may need to be larger than the LineWidth due to e.g.<br />
non-spacing characters.<br />
63
Setup Design Guide<br />
DRAFT<br />
7.1.11 EFI_HII_PROTOCOL.GetForms()<br />
Summary<br />
This function allows a program to extract a form or form package that has previously been registered<br />
with the EFI HII database.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_HII_GET_FORMS) (<br />
IN EFI_HII_PROTOCOL *This,<br />
IN EFI_HII_HANDLE Handle,<br />
IN EFI_FORM_ID FormId,<br />
IN OUT UINT16<br />
*BufferLength,<br />
OUT UINT8 *Buffer<br />
);<br />
Parameters<br />
This<br />
Handle<br />
FormId<br />
BufferLength<br />
Buffer<br />
A pointer to the EFI_HII_PROTOCOL instance.<br />
Handle on which the form resides.<br />
The id of the form to return. If the id is zero, the entire form package<br />
is returned.<br />
On input, the length of the Buffer. On output, the length of the<br />
returned buffer, if the length was sufficient and, if it was not, the<br />
length that is required to fit the requested form(s).<br />
The buffer designed to receive the form(s).<br />
Description<br />
This function is used to extract a form or forms<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_INVALID_PARAMETER<br />
EFI_NOT_FOUND<br />
EFI_BUFFER_TOO_SMALL<br />
Buffer filled with the requested forms.<br />
BufferLength updated.<br />
Unknown handle.<br />
A form on the requested handle cannot be found with the<br />
requested FormId.<br />
The buffer provided was not large enough to allow the<br />
form to be stored.<br />
64
Setup Design Guide<br />
DRAFT<br />
7.1.12 EFI_HII_PROTOCOL.UpdateForm()<br />
Summary<br />
This function allows the caller to update a form or form package that has previously been registered<br />
with the EFI HII database.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_HII_UPDATE_FORM) {<br />
IN EFI_HII_PROTOCOL *This,<br />
IN EFI_HII_HANDLE Handle,<br />
IN EFI_FORM_LABEL Label,<br />
IN UINT16<br />
BufferLength,<br />
IN UINT8<br />
*Buffer<br />
};<br />
Parameters<br />
This<br />
Handle<br />
Label<br />
BufferLength<br />
Buffer<br />
A pointer to the EFI_HII_PROTOCOL instance.<br />
Handle of the package where the form to be updated resides.<br />
The label inside the form package where the update is to take place.<br />
The length of the Buffer.<br />
The buffer containing the new tags to insert before Label.<br />
Description<br />
This function allows a program to update a form at runtime. The form must have been built expecting<br />
the update, as a labÄel tag is required. The tags in Buffer are inserted into the form just prior to the<br />
label tag.<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_INVALID_PARAMETER<br />
EFI_NOT_FOUND<br />
The Form was updated with the new tags.<br />
The buffer for the buffer length does not contain an integral<br />
number of tags.<br />
The Handle, Label, or FormId was not found.<br />
65
Setup Design Guide<br />
DRAFT<br />
7.1.13 EFI_HII_PROTOCOL.GetKeyboardLayout()<br />
Summary<br />
This function allows a program to retrieve the keyboard layout data that has previously been registered<br />
with the EFI HII database.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_HII_GET_KEYBOARD_LAYOUT) (<br />
IN EFI_HII_PROTOCOL *This,<br />
IN OUT UINT16<br />
DescriptorCount,<br />
OUT EFI_KEY_DESCRIPTOR *Descriptor<br />
);<br />
Parameters<br />
This<br />
DescriptorCount<br />
Descriptor<br />
A pointer to the EFI_HII_PROTOCOL instance.<br />
On input, the number of Descriptor entries the buffer can hold.<br />
On output, the number of entries of the returned buffer, if the length<br />
was sufficient and, if it was not, the number of entries that is required<br />
to fit the requested keyboard layout data.<br />
The pointer to the buffer designed to receive the keyboard layout<br />
data.<br />
Description<br />
This function is used to extract the keyboard layout. The returned buffer will contain the current default<br />
system descriptor data merged with any override keyboard data. For example, if the firmware default<br />
keyboard is the U.S. keyboard and a driver added via NewPack a keyboard descriptor set for a<br />
Germany keyboard, the layout which is retrieved will reflect the U.S. keyboard with the Germany<br />
overrides.<br />
If a program needed to acquire the base keyboard layout, it could do the following: Issue a<br />
GetKeyboardLayout and cache the results. Issue a NewPack with a keyboard descriptor count of<br />
zero to wipe out the keyboard overrides. Issue a GetKeyboardLayout to get the base keyboard<br />
layout, and update via NewPack the original overrides.<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_BUFFER_TOO_SMALL<br />
KeyDescriptor filled with the requested keyboard<br />
layout. KeyDescriptorCount updated.<br />
The buffer provided was not large enough to allow the<br />
form to be stored.<br />
66
Setup Design Guide<br />
DRAFT<br />
7.2 EFI Form Configuration Protocol<br />
Summary<br />
The EFI_FORM_CONFIGURATION_PROTOCOL is the interface to the EFI Configuration Driver.<br />
This will allow the caller to direct the configuration driver to use either the HII database or use the<br />
passed in packet of data. This will also allow the caller to post messages into the configuration drivers<br />
internal mailbox.<br />
GUID<br />
#define EFI_FORM_CONFIGURATION_PROTOCOL_GUID \<br />
{ 0xe5a1333e, 0xe1b4, 0x4d55, 0xce, 0xeb, 0x35, 0xc3, \<br />
0xef, 0x13, 0x34, 0x43 }<br />
Protocol Interface Structure<br />
typedef struct _EFI_FORM_CONFIGURATION_PROTOCOL {<br />
EFI_SEND_FORM<br />
SendForm;<br />
EFI_SEND_MESSAGE<br />
SendMessage;<br />
} EFI_FORM_CONFIGURATION_PROTOCOL;<br />
Parameters<br />
SendForm<br />
SendMessage<br />
This function provides direction to the configuration driver whether<br />
to use the HII database or to use a passed-in set of data. This also<br />
establishes a pointer to the calling driver’s callback interface.<br />
This function allows the caller to put data into the configuration<br />
driver’s internal mailbox. This has the effect of allowing data to be<br />
posted as a key/value pair and have information be updated as an<br />
out-of-band transaction.<br />
Description<br />
This is the interface to call for drivers to leverage the EFI Configuration Driver interface.<br />
Related Definitions<br />
67
Setup Design Guide<br />
DRAFT<br />
7.2.1 EFI_FORM_CONFIGURATION_PROTOCOL.SendForm()<br />
Summary<br />
This function provides direction to the configuration driver whether to use the HII database or to use a<br />
passed-in set of data. This also establishes a pointer to the calling driver’s callback interface.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_SEND_FORM) (<br />
IN EFI_FORM_CONFIGURATION_PROTOCOL *This,<br />
IN BOOLEAN<br />
UseDatabase,<br />
IN EFI_IFR_PACKET<br />
*Packet,<br />
IN EFI_HANDLE<br />
CallbackHandle<br />
);<br />
Parameters<br />
This<br />
UseDatabase<br />
Packet<br />
CallbackHandle<br />
A pointer to the EFI_FORM_CONFIGURATION_PROTOCOL<br />
instance.<br />
Determine whether or not the HII database is to be used to gather<br />
information. If the value is FALSE then the configuration driver<br />
will get the information provided in the passed in Packet or<br />
Message parameters.<br />
A pointer to a set of data containing pointers to IFR, and/or String<br />
data.<br />
The handle to the calling driver’s callback interface.<br />
Related Definitions<br />
#define EFI_HII_FONT 1<br />
#define EFI_HII_STRING 2<br />
#define EFI_HII_IFR 3<br />
#define EFI_HII_KEYBOARD 4<br />
typedef struct _EFI_HII_PACKET {<br />
UINT32<br />
Length;<br />
UINT16<br />
Type;<br />
} EFI_HII_PACKET;<br />
typedef struct {<br />
EFI_HII_PACKET<br />
EFI_HII_PACKET<br />
} EFI_IFR_PACKET;<br />
*IfrData;<br />
*StringData;<br />
68
Setup Design Guide<br />
DRAFT<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_NOT_FOUND<br />
EFI_BUFFER_TOO_SMALL<br />
EFI_INVALID_PARAMETER<br />
EFI_DEVICE_ERROR<br />
The function completed successfully<br />
The variable was not found.<br />
The DataSize is too small for the result. DataSize has<br />
been updated with the size needed to complete the<br />
request.<br />
One of the parameters has an invalid value.<br />
The variable could not be saved due to a hardware failure.<br />
69
Setup Design Guide<br />
DRAFT<br />
7.2.2 EFI_FORM_CONFIGURATION_PROTOCOL.SendMessage()<br />
Summary<br />
This function allows the caller to put data into the configuration driver’s internal mailbox. This has the<br />
effect of allowing data to be posted as a key/value pair and have information be updated as an out-ofband<br />
transaction.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_SEND_MESSAGE) (<br />
IN EFI_FORM_CONFIGURATION_PROTOCOL *This,<br />
IN UINT16<br />
MessageKey,<br />
IN VOID<br />
*MessageData,<br />
IN UINTN<br />
MessageDataLength<br />
);<br />
Parameters<br />
This<br />
MessageKey<br />
MessageData<br />
MessageDataLength<br />
A pointer to the EFI_FORM_CONFIGURATION_PROTOCOL<br />
instance.<br />
A unique value which will have be associated with a particular opcode.<br />
The messaging services are typically to be used in an<br />
Interactive or Dynamic mode situation where a periodic event may<br />
occur that requires certain pieces of data to be updated. For<br />
instance, temperature sensor data might get dynamically updated<br />
based on events from the calling driver.<br />
A pointer to the data associated with the MessageKey.<br />
The length of the data in MessageData.<br />
Related Definitions<br />
The MessageData format will be based on the op-code type that the<br />
MessageKey references.<br />
If OneOf command:<br />
An array of option encodings.<br />
Each encoding is as follows:<br />
typedef struct _EFI_IFR_OP_HEADER {<br />
UINT8<br />
OpCode;<br />
UINT8<br />
Length;<br />
} EFI_IFR_OP_HEADER;<br />
typedef struct {<br />
EFI_IFR_OP_HEADER<br />
Header;<br />
70
Setup Design Guide<br />
DRAFT<br />
STRING_REF Option; // The string token describing the option<br />
UINT16 Value; // The value associated with this option that is stored in<br />
// the NVRAM if chosen<br />
UINT8 Flags; // For now, if non-zero, means that it is the default<br />
// option, - further definition likely above<br />
UINT16 Key; // Value to be passed to caller to identify this particular<br />
// op-code<br />
} EFI_IFR_ONE_OF_OPTION;<br />
If Text command:<br />
An update for the second text parameter<br />
Each encoding is as follows:<br />
CHAR16<br />
*UpdateString<br />
If StringOp command:<br />
Each encoding is as follows:<br />
typedef struct {<br />
CHAR16 *UpdateString; // String to print as a status (May be NULL)<br />
BOOLEAN PopUp; // Create a PopUp box for the UpdateString<br />
} EFI_IFR_STRING_MESSAGE;<br />
If NumericOp command:<br />
Each encoding is as follows:<br />
UINT16<br />
NumericValue;<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_NOT_FOUND<br />
EFI_BUFFER_TOO_SMALL<br />
EFI_INVALID_PARAMETER<br />
EFI_DEVICE_ERROR<br />
The function completed successfully<br />
The variable was not found.<br />
The DataSize is too small for the result. DataSize has<br />
been updated with the size needed to complete the<br />
request.<br />
One of the parameters has an invalid value.<br />
The variable could not be saved due to a hardware failure.<br />
•<br />
71
Setup Design Guide<br />
DRAFT<br />
7.3 EFI Form Callback Protocol<br />
Summary<br />
The EFI_FORM_CALLBACK_PROTOCOL is the defined interface for access to custom NV storage<br />
devices as well as communication of user selections in a more interactive environment. This protocol<br />
should be published by hardware specific drivers which want to export access to custom hardware<br />
storage or publish IFR which has a requirement to call back the original driver.<br />
GUID<br />
#define EFI_FORM_CALLBACK_PROTOCOL_GUID \<br />
{ 0xf3e4543d, 0xcf35, 0x6cef, 0x35, 0xc4, 0x4f, 0xe6, \<br />
0x34, 0x4d, 0xfc, 0x54 }<br />
Protocol Interface Structure<br />
typedef struct _EFI_FORM_CALLBACK_PROTOCOL {<br />
EFI_NV_READ<br />
NvRead;<br />
EFI_NV_WRITE<br />
NvWrite;<br />
EFI_FORM_CALLBACK<br />
Callback;<br />
} EFI_FORM_CALLBACK_PROTOCOL;<br />
Parameters<br />
Read<br />
Write<br />
Callback<br />
This is the read operation to access the NV data serviced by a<br />
hardware specific driver.<br />
This is the write operation to access the NV data serviced by a<br />
hardware specific driver.<br />
This is the function that is called from the configuration browser to<br />
communicate key value pairs.<br />
Description<br />
This is the interface that is provided by hardware specific drivers that control access to non-system NV<br />
storage and support callbacks from the browser or HII.<br />
72
Setup Design Guide<br />
DRAFT<br />
7.3.1 EFI_FORM_CALLBACK_PROTOCOL.NvRead()<br />
Summary<br />
Returns the value of a variable.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_NV_READ) (<br />
IN EFI_FORM_CALLBACK_PROTOCOL *This,<br />
IN CHAR16<br />
*VariableName,<br />
IN EFI_GUID<br />
*VendorGuid,<br />
OUT UINT32<br />
*Attributes OPTIONAL,<br />
IN OUT UINTN<br />
*DataSize,<br />
OUT VOID<br />
*Buffer<br />
);<br />
Parameters<br />
This<br />
VariableName<br />
VendorGuid<br />
Attributes<br />
DataSize<br />
Buffer<br />
A pointer to the EFI_FORM_CALLBACK_PROTOCOL instance.<br />
A Null-terminated Unicode string that is the name of the vendor’s<br />
variable.<br />
A unique identifier for the vendor.<br />
If not NULL, a pointer to the memory location to return the attributes<br />
bit-mask for the variable. See “Related Definitions”.<br />
The size in bytes of the Buffer. A size of zero causes the variable<br />
to be deleted.<br />
The buffer to return the contents of the variable.<br />
Related Definitions<br />
//*********************************************************<br />
// Variable Attributes<br />
//*********************************************************<br />
#define EFI_VARIABLE_NON_VOLATILE<br />
0x0000000000000001<br />
#define EFI_VARIABLE_BOOTSERVICE_ACCESS 0x0000000000000002<br />
#define EFI_VARIABLE_RUNTIME_ACCESS<br />
0x0000000000000004<br />
Description<br />
Each vendor may create and manage its own variables with the risk of name conflicts by using a unique<br />
VendorGuid. When a variable is set its Attributes are supplied to indicate how the data variable<br />
should be stored and maintained by the system. Any attempts to access a variable that does not have<br />
the attribute set for runtime access will yield the EFI_NOT_FOUND error.<br />
Status Codes Returned<br />
73
Setup Design Guide<br />
DRAFT<br />
EFI_SUCCESS<br />
EFI_NOT_FOUND<br />
EFI_BUFFER_TOO_SMALL<br />
EFI_INVALID_PARAMETER<br />
EFI_DEVICE_ERROR<br />
The function completed successfully<br />
The variable was not found.<br />
The DataSize is too small for the result. DataSize has<br />
been updated with the size needed to complete the<br />
request.<br />
One of the parameters has an invalid value.<br />
The variable could not be saved due to a hardware failure.<br />
74
Setup Design Guide<br />
DRAFT<br />
7.3.2 EFI_FORM_CALLBACK_PROTOCOL.NvWrite()<br />
Summary<br />
Sets the value of a variable.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_NV_WRITE) (<br />
IN EFI_FORM_CALLBACK_PROTOCOL *This,<br />
IN CHAR16<br />
*VariableName,<br />
IN EFI_GUID<br />
*VendorGuid,<br />
OUT UINT32<br />
*Attributes OPTIONAL,<br />
IN OUT UINTN<br />
*DataSize,<br />
OUT VOID<br />
*Buffer<br />
);<br />
Parameters<br />
This<br />
VariableName<br />
VendorGuid<br />
A pointer to the EFI_FORM_CALLBACK_PROTOCOL instance.<br />
A Null-terminated Unicode string that is the name of the vendor’s<br />
variable. Each VariableName is unique for each VendorGuid.<br />
A unique identifier for the vendor.<br />
Attributes Attributes bitmask to set for the variable. See section 7.3.1<br />
DataSize<br />
Buffer<br />
Description<br />
The size in bytes of the Buffer. A size of zero causes the variable<br />
to be deleted.<br />
The buffer to return the contents of the variable.<br />
Variables are stored by the firmware and may maintain their values across power cycles. Each vendor<br />
may create and manage its own variables without the risk of name conflicts by using a unique<br />
VendorGuid.<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_INVALID_PARAMETER<br />
EFI_OUT_OF_RESOURCES<br />
EFI_DEVICE_ERROR<br />
The firmware has successfully stored the variable and its<br />
data as defined by the Attributes.<br />
An invalid combination of Attribute bits was supplied, or<br />
the DataSize exceeds the maximum allowed.<br />
Not enough storage is available to hold the variable and its<br />
data.<br />
The variable could not be saved due to a hardware failure.<br />
75
Setup Design Guide<br />
DRAFT<br />
7.3.3 EFI_FORM_CALLBACK_PROTOCOL.CallBack()<br />
Summary<br />
This is the function that is called to provide results data to the driver. This data consists of a unique key<br />
which is used to identify what data is either being passed back or being asked for.<br />
Prototype<br />
EFI_STATUS<br />
(EFIAPI *EFI_FORM_CALLBACK) (<br />
IN EFI_FORM_CALLBACK_PROTOCOL *This,<br />
IN UINT16<br />
KeyValue,<br />
IN VOID<br />
*Data<br />
);<br />
Parameters<br />
This<br />
KeyValue<br />
Data<br />
A pointer to the EFI_NV_ACCESS_PROTOCOL instance.<br />
A unique value which is sent to the original exporting driver so that<br />
it can identify the type of data to expect. The format of the data<br />
tends to vary based on the op-code that generated the callback.<br />
A pointer to the data being sent to the original exporting driver.<br />
Related Definitions<br />
The Data format will be based on the op-code type that the KeyValue<br />
references.<br />
If OneOf op-code the following is being passed in the Data pointer:<br />
UINT16<br />
Value<br />
If Text op-code there is no user initiated data to be sent other<br />
than the KeyValue. There should be a reasonable expectation that a<br />
response to this callback will be that a message gets posted with a<br />
particular key value and string. This would be done in the<br />
EFI_FORM_CONFIGURATION_PROTOCOL.<br />
NULL<br />
If String op-code the following is being passed in the Data pointer:<br />
CHAR16<br />
*String<br />
If Numeric op-code the following is being passed in the Data<br />
pointer:<br />
UINT16<br />
Value<br />
76
Setup Design Guide<br />
DRAFT<br />
Status Codes Returned<br />
EFI_SUCCESS<br />
EFI_INVALID_PARAMETER<br />
EFI_OUT_OF_RESOURCES<br />
EFI_DEVICE_ERROR<br />
The firmware has successfully stored the variable and its<br />
data as defined by the Attributes.<br />
An invalid combination of Attribute bits was supplied, or<br />
the DataSize exceeds the maximum allowed.<br />
Not enough storage is available to hold the variable and its<br />
data.<br />
The variable could not be saved due to a hardware failure.<br />
77
Setup Design Guide<br />
DRAFT<br />
8<br />
Simple Input Modification<br />
Modifications have been made in the SIMPLE_INPUT protocol to support additional keys.<br />
8.1 Extending Simple Input<br />
The SIMPLE_INPUT protocol has some extensions that are being added. The following is a modified<br />
version of the Control Characters and EFI Scan Codes for the SIMPLE_INPUT protocol.<br />
The SIMPLE_INPUT protocol defines an input stream that contains Unicode characters and required<br />
EFI scan codes. Only the control characters defined in Table 3-1 have meaning in the Unicode input or<br />
output streams. The input stream does not support any software flow control.<br />
Table 3-1.<br />
Supported Unicode Control Characters<br />
Mnemonic Unicode Description<br />
Null U+0000 Null character ignored when received.<br />
BS U+0008 Backspace. Moves cursor left one column. If the cursor is at the left<br />
margin, no action is taken.<br />
TAB U+0x0009 Tab.<br />
LF U+000A Linefeed. Moves cursor to the next line.<br />
CR U+000D Carriage Return. Moves cursor to left margin of the current line.<br />
The input stream supports Scan Codes in addition to Unicode characters. If the Scan Code is set to<br />
0x00 then the Unicode character is valid and should be used. If the Scan Code is set to a non-0x00<br />
value it represents a special key as defined by Table 3-2.<br />
Table 3-2.<br />
EFI Scan Codes for SIMPLE_INPUT_INTERFACE<br />
EFI Scan Code<br />
0x0000<br />
0x0001<br />
0x0002<br />
0x0003<br />
0x0004<br />
0x0005<br />
0x0006<br />
0x0007<br />
0x0008<br />
0x0009<br />
0x000a<br />
Description<br />
Null scan code.<br />
Move cursor up 1 row.<br />
Move cursor down 1 row.<br />
Move cursor right 1 column.<br />
Move cursor left 1 column.<br />
Home.<br />
End.<br />
Insert.<br />
Delete.<br />
Page Up.<br />
Page Down.<br />
78
Setup Design Guide<br />
DRAFT<br />
Table 3-2. EFI Scan Codes for SIMPLE_INPUT_INTERFACE (continued)<br />
EFI Scan Code Description<br />
0x000b Function 1.<br />
0x000c Function 2.<br />
0x000d Function 3.<br />
0x000e Function 4.<br />
0x000f Function 5.<br />
0x0010 Function 6.<br />
0x0011 Function 7.<br />
0x0012 Function 8.<br />
0x0013 Function 9.<br />
0x0014 Function 10.<br />
0x0015 Function 11. (Newly Proposed)<br />
0x0016 Function 12. (Newly Proposed)<br />
0x0017 Escape.<br />
Table 3- 3 Additional EFI Scan Codes for SIMPLE_INPUT_INTERFACE<br />
0x2000 Shift. (Newly Proposed)<br />
0x4000 Control. (Newly Proposed)<br />
0x8000 Alternate. (Newly Proposed)<br />
The following example shows the new definitions for the EFI Scan Codes, and provides the facility to<br />
export varying modifier states on non-printing characters.<br />
#define SCAN_F11<br />
#define SCAN_F12<br />
0x0015<br />
0x0016<br />
//<br />
// Bit 13 on = Shift<br />
// Bit 14 on = Control<br />
// Bit 15 on = Alt<br />
//<br />
// This allows for interpretation of Shift F10 for<br />
// the scan code by seeing a scan code of 0x2014<br />
// As it allows a Shift-Alt-F10 yielding a scan code of 0xA014<br />
//<br />
// Additionally, a Shift-Tab would be interpreted by reading<br />
// the EFI Scan code as a 0x2000, and a Unicode value of 0x0009.<br />
//<br />
#define SCAN_SHIFT<br />
0x2000<br />
#define SCAN_CONTROL<br />
0x4000<br />
#define SCAN_ALT<br />
0x8000<br />
79
Setup Design Guide<br />
DRAFT<br />
9<br />
HII Keyboard Support<br />
9.1 Keyboard Mapping<br />
The keyboard mapping that is defined in EFI is loosely based on ISO 9995. The naming mechanism is<br />
illustrated in Figure 2. The keys that are highlighted in red are the keys that almost all keyboard layouts<br />
use for customizations. That does not necessarily mean that all the keys are different. In fact, most of<br />
the keys are likely to be the same, however when modifying the mapping one can normally reference<br />
the keys in red as the likely candidates to create modifications for.<br />
Instead of referencing keys in hardware specific ways such as scan codes or HID entries, EFI now<br />
defines an EFI_KEY enumeration that allows for a simple way to reference this hardware abstraction.<br />
It also provides a way to update the keyboard layout with a great deal of flexibility. Any of the keys<br />
can be mapped to any Unicode value or control code value.<br />
Esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12<br />
Print SLck<br />
Pause<br />
E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 E10 E11 E12<br />
Backspace<br />
Ins<br />
Home PgUp<br />
NLck / *<br />
-<br />
Tab D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13*<br />
CapsLock C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12* Enter<br />
Del End PgDn<br />
7 8 9<br />
4 5 6<br />
+<br />
LShift B0* B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 RShift<br />
LCtrl A0 LAlt Space Bar A2 A3 A4 RCtrl<br />
1 2 3<br />
0 .<br />
Enter<br />
Figure 2<br />
When defining the values for a particular key, there are five elements that are pertinent to the key.<br />
Key Name:<br />
Unicode Value:<br />
The EFI_KEY enumeration (see Figure 1) defines the names of the above<br />
keys.<br />
This defines the Unicode value (if any) of the named key.<br />
Shifted Unicode Value: This defines the Unicode value (if any) of the named key while the shift<br />
modifier key is being pressed<br />
Alt-GR Unicode Value: This defines the Unicode value (if any) of the named key while the<br />
modifier key (if any) is being pressed.<br />
Alt-GR<br />
Shifted Alt-GR Unicode Value: This defines the Unicode value (if any) of the named key while the<br />
Shift and Alt-GR modifier key (if any) is being pressed.<br />
80
Setup Design Guide<br />
DRAFT<br />
Modifier Key Value:<br />
This defines the non-printable special function this key has assigned to it.<br />
Under normal circumstances, a key that has any Unicode definitions generally has a Control key value<br />
of SCAN_NULL. This means the key has no special function other than the printing of a character. If<br />
any of the Unicode values have a value of 0xFFFF this is the exception to the rule. Though rarely used,<br />
this is the one case which a key might have both a printable character and an active Control key value.<br />
An example of this would be the numeric keypad’s insert key. The definition for this key on a standard<br />
US keyboard is as follows:<br />
Key Name = ZERO_KEY<br />
Unicode Value = 0x0030 (basically a ‘0’)<br />
Shifted Unicode Value = 0xFFFF (the exception to the rule)<br />
Alt-GR Unicode Value = 0x0000<br />
Shifted Alt-GR Unicode Value = 0x0000<br />
Modifier Key Value = SCAN_INSERT<br />
This is one of the few keys that under normal circumstances prints something out, but also has a special<br />
function. These are generally limited to the numeric keypad, however this does not prevent someone<br />
from having the flexibility to define these types of variations.<br />
(Assuming for the implementation that the state of CapsLock and NumLock, etc will correctly handle<br />
the shift states since they do it already……just wanted to mention it and it was thought about)<br />
9.2 Modifier Key Definitions<br />
Modifier keys are defined to allow for special functionality that is not necessarily accomplished by a<br />
printable character. Many of these modifier keys are flags to toggle certain state bits on and off inside<br />
of a keyboard driver. An example is CAPS_LOCK_MODIFIER. This state being active could alter<br />
what the typing of a particular key produces. Other control keys affect the position of the cursor like<br />
LEFT_ARROW_MODIFIER, END_MODIFIER, etc. One modifier key is likely unfamiliar to most<br />
people who exclusively use US keyboards, and that key is the ALT_GR_MODIFIER key. This key’s<br />
primary purpose is to activate a secondary type of shift modifier that exposes additional printable<br />
characters on certain keys. In some keyboard layouts this key does not exist and is normally the<br />
RIGHT_ALT_MODIFIER key. None of the other modifier key functions should be a mystery to<br />
someone familiar with the usage of a standard computer keyboard.<br />
An example of a few descriptor entries would be as follows:<br />
Layout = {<br />
EfiKeyLCtrl,0,0,0,0,LEFT_CONTROL_MODIFIER, //(Left control key)<br />
EfiKeyA0,0,0,0,0,NULL_MODIFIER,<br />
//(Not defined windows key)<br />
EfiKeySpaceBar,0x0020,0x0020,0x0020,0x0020,NULL_MODIFIER //(Space Bar)<br />
}<br />
//<br />
// Define the Control modifier value information<br />
81
Setup Design Guide<br />
DRAFT<br />
//<br />
#define NULL_MODIFIER<br />
#define LEFT_CONTROL_MODIFIER<br />
#define RIGHT_CONTROL_MODIFIER<br />
#define LEFT_ALT_MODIFIER<br />
#define RIGHT_ALT_MODIFIER<br />
#define ALT_GR_MODIFIER<br />
#define INSERT_MODIFIER<br />
#define DELETE_MODIFIER<br />
#define PAGE_DOWN_MODIFIER<br />
#define PAGE_UP_MODIFIER<br />
#define HOME_MODIFIER<br />
#define END_MODIFIER<br />
#define LEFT_SHIFT_MODIFIER<br />
#define RIGHT_SHIFT_MODIFIER<br />
#define CAPS_LOCK_MODIFIER<br />
#define SHIFT_LOCK_MODIFIER<br />
#define NUM_LOCK _MODIFIER<br />
#define LEFT_ARROW_MODIFIER<br />
#define RIGHT_ARROW_MODIFIER<br />
#define DOWN_ARROW_MODIFIER<br />
#define UP_ARROW_MODIFIER<br />
0x0000<br />
0x0001<br />
0x0002<br />
0x0003<br />
0x0004<br />
0x0005<br />
0x0006<br />
0x0007<br />
0x0008<br />
0x0009<br />
0x000A<br />
0x000B<br />
0x000C<br />
0x000D<br />
0x000E<br />
0x000F<br />
0x0010<br />
0x0011<br />
0x0012<br />
0x0013<br />
0X0014<br />
//<br />
// For further explanations on Dead Keys see section 9.4<br />
//<br />
#define DEAD_KEY_MODIFIER<br />
0x0015<br />
#define DEAD_KEY_DEPENDENCY_MODIFIER 0x0016<br />
#define FUNCTION_KEY_ONE_MODIFIER 0x0017<br />
#define FUNCTION_KEY_TWO_MODIFIER 0x0018<br />
#define FUNCTION_KEY_THREE_MODIFIER 0x0019<br />
#define FUNCTION_KEY_FOUR_MODIFIER 0x001A<br />
#define FUNCTION_KEY_FIVE_MODIFIER 0x001B<br />
#define FUNCTION_KEY_SIX_MODIFIER 0x001C<br />
#define FUNCTION_KEY_SEVEN_MODIFIER 0x001D<br />
#define FUNCTION_KEY_EIGHT_MODIFIER 0x001E<br />
#define FUNCTION_KEY_NINE_MODIFIER 0x001F<br />
#define FUNCTION_KEY_TEN_MODIFIER 0x0020<br />
#define FUNCTION_KEY_ELEVEN_MODIFIER 0x0021<br />
#define FUNCTION_KEY_TWELVE_MODIFIER 0x0022<br />
//<br />
// Keys which have multiple Control functions based on modifier<br />
// settings are handled in the keyboard driver implementation.<br />
// For instance PRINT_KEY might have a modifier held down and<br />
// is still a non-printing character, but might have an alternate<br />
82
Setup Design Guide<br />
DRAFT<br />
// control function like SYSREQUEST<br />
//<br />
#define PRINT_MODIFIER<br />
#define SYS_REQUEST_MODIFIER<br />
#define SCROLL_LOCK_MODIFIER<br />
#define PAUSE_MODIFIER<br />
#define BREAK_MODIFIER<br />
0x0023<br />
0x0024<br />
0x0025<br />
0x0026<br />
0x0027<br />
9.3 Keyboard Layout Switching<br />
The need for switching from one keyboard layout to another is a very common implementation. A<br />
typical example would be for a user who needed to type in a language that did not have certain keys<br />
exposed (e.g. Typical Hebrew layout has no Latin characters). For these types of configurations, it<br />
would be common for the system to be aware of two completely different keyboard layouts and allow a<br />
hot key to switch between the default and the alternate layout.<br />
The way this would work in our given implementation would be that the firmware has some built-in<br />
keyboard layout. A driver installs the Hebrew layout. The user needs to switch modes and hits a hot<br />
key that forces the keyboard driver to switch from the Hebrew layout to the firmware’s Default layout.<br />
Hit the hot key again and the user mode switches again and the keyboard driver is now pointing to the<br />
Hebrew layout.<br />
//<br />
// To enable the ability to define what key combinations<br />
// designate a special function one could do some of the<br />
// following to allow for this flexibility.<br />
//<br />
//<br />
// This assumes that the driver implementation will not<br />
// assign a key definition if one of the following modifier<br />
// values is presented.<br />
//<br />
#define LAYOUT_SWITCH_MODIFIER<br />
0x0028<br />
#define LAYOUT_SWITCH_DEPENDENCY_MODIFIER 0x0029<br />
Layout = {<br />
EfiKeyLCtrl, 0, 0, 0, 0, LAYOUT_SWITCH_MODIFIER,<br />
EfiKeyLShift, 0, 0, 0, 0, LAYOUT_SWITCH_DEPENDENCY_MODIFIER<br />
}<br />
9.4 Dead Keys<br />
Dead keys are a concept that provides the ability to OR together an accent key and another printable<br />
character. Dead keys would be defined as a special type of Modifier character. They are typically<br />
83
Setup Design Guide<br />
DRAFT<br />
accent keys that do not advance the cursor and in essence are a type of modifier key in that they<br />
maintain some level of state.<br />
The way a person uses a dead key is that the dead key that maybe has the function of overlaying an<br />
umlaut (two dots) onto whatever the next character might be. The user presses the umlaut dead key and<br />
follows it with a capital A. This yields a “Ä”<br />
//<br />
// If it’s a dead key, we need to pass a list of physical key<br />
// names… each with a unicode, shifted, altgr, shiftedaltgr<br />
// value. Each key name will have a Modifier value of<br />
// DEAD_KEY_MODIFIER for first entry, and then the list of<br />
// DEAD_KEY_DEPENDENCY_MODIFIER physical key descriptions.<br />
// This eventually will lead to the next normal non-dead-key<br />
// definition.<br />
//<br />
// This requires defining an additional Modifier value of<br />
// DEAD_KEY_DEPENDENCY_MODIFIER to signify DEAD_KEY_MODIFIER<br />
// children definitions.<br />
//<br />
// The keyboard driver (consumer of the layouts) will know that<br />
// any key definitions with the DEAD_KEY_DEPENDENCY_MODIFIER<br />
// modifier do not redefine the value of the specified EFI_KEY.<br />
// They are simply used as a special case augmentation to the<br />
// original DEAD_KEY_MODIFIER.<br />
//<br />
// It is an error condition to define a DEAD_KEY_MODIFIER<br />
// without having all the DEAD_KEY_DEPENDENCY_MODIFIER<br />
// keys defined serially.<br />
//<br />
Layout = {<br />
EfiKeyE0, 0, 0, 0, 0, DEAD_KEY_MODIFIER,<br />
EfiKeyC1, 0x00E2, 0x00C2, 0, 0, DEAD_KEY_DEPENDENCY_MODIFIER,<br />
EfiKeyD3, 0x00EA, 0x00CA, 0, 0, DEAD_KEY_DEPENDENCY_MODIFIER,<br />
EfiKeyD8, 0x00EC, 0x00CC, 0, 0, DEAD_KEY_DEPENDENCY_MODIFIER,<br />
EfiKeyD9, 0x00F4, 0x00D4, 0, 0, DEAD_KEY_DEPENDENCY_MODIFIER,<br />
EfiKeyD7, 0x00FB, 0x00CB, 0, 0, DEAD_KEY_DEPENDENCY_MODIFIER,<br />
}<br />
In the above example, a key located at E0 is designated as a Dead Key. Using a common German<br />
keyboard layout as the example, at the E0 location a circumflex accent “^” is defined as a dead key.<br />
The valid keys that can be pressed after the dead key which will produce valid printable characters are<br />
the A, E, I, O, and U characters. These are located at C1, D3, D8, D9, and D7 respectively.<br />
The results of the Layout definition provided above would allow for the production of the following<br />
characters: âÂêÊîÎôÔûÛ.<br />
84
Setup Design Guide<br />
DRAFT<br />
9.4.1 Bi-directional Input (Reserved for future implementation)<br />
Many languages have left-to-right orientation, however some use right-to-left orientation for keyboard<br />
input. This requires the ability to handle both types of input. There are several issues to deal with<br />
when it comes to bi-directional input.<br />
There are some issues when it comes to the ability to type things in one orientation and in the middle of<br />
a set of words change directionality. This is common when typing in a right-to-left oriented language<br />
such as Hebrew and a word only makes sense to be typed in a non-right-to-left language.<br />
For instance, to type, “I love Intel too” one might type in Hebrew, גמ כן" Intel אחוב ."אני To provide the<br />
ability to do switch orientation like this one needs to focus on some of the elements of bi-directional<br />
typing.<br />
9.4.1.1 Bi-directional segments<br />
Bi-directional text may consist of a main part that has one orientation (e.g. Hebrew text written from<br />
right-to-left), and portions that have opposite orientation (e.g. English text written left-to-right). The<br />
portion of text with different orientation is called a segment. Bi-directional text may have a body of<br />
right-to-left text with embedded left-to-right segments.<br />
There are two methods which support global orientation switching. One method requires manual<br />
intervention to switch between right-to-left and left-to-right, and the other automatically handles rightto-left<br />
orientation for characters that require them (e.g. Hebrew, Arabic, etc) and switch modes<br />
automatically for characters that require left-to-right handling (e.g. Arabic Numbers, English letters,<br />
etc.)<br />
For the EFI implementation, we will only support a manual method of orientation switching.<br />
9.4.1.2 Orientation Hot Keys<br />
For the EFI implementation, a hot key would be created to enable switching of keyboard orientation.<br />
When switching orientation this is called going into “Push” mode.<br />
The switching of orientation modes affects input direction. However we need to give some thought to<br />
the saving of text information in such a way as to allow for the appropriate readability when loaded in<br />
at a later time. One proposal might be that when typing from right to left, the data being saved is<br />
orientation agnostic. Meaning, that if I typed one through 4 and it displayed “4321” when that<br />
information is saved or redirected to a file it is stored as it is typed, not as it was displayed.<br />
The ability to switch orientations should be an easy task that allows for the minimum of effort. A<br />
simple two-key combination of two untranslatable keys would be the appropriate methodology. The<br />
suggested hot key combination would be holding down the EfiKeyRCtrl and the EfiKeyRShift<br />
to enable the orientation toggle.<br />
9.4.1.2.1 Push Mode<br />
When the orientation hot key is pressed the user enters push mode. Push mode is a keyboard input<br />
mode in which characters are “pushed” in the direction opposite to the base direction of the segment.<br />
The cursor does not move. When the orientation hot key is pressed again, the user enters into the<br />
previous bi-directional mode.<br />
אחוב“ was typed the user would have typed ”אני אחוב Intel גמ כן“ An example of this is when the phrase<br />
then they would have pressed the orientation hot key to enable push mode. This would have ”אני<br />
85
Setup Design Guide<br />
DRAFT<br />
proceeded to “push” the characters already typed to the right keeping the cursor in the same relative<br />
position to the originally typed phrase. The user would then press the orientation hot key again to<br />
enable left-to-right mode and then type Intel. This would yield the “Intel אחוב ”אני with the cursor<br />
between the word “Intel” and the phrase אחוב“ .”אני The user would then press the orientation hot key<br />
again to switch off the push mode and likely hit the END key to go to the end of the line (in right-to-left<br />
.”אני אחוב Intel גמ כן“ orientation) and proceed to complete typing the complete phrase of<br />
86
