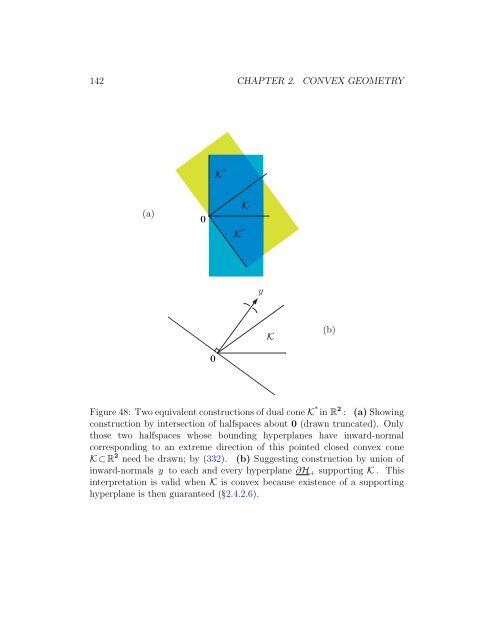

142 CHAPTER 2. CONVEX GEOMETRY K ∗ (a) 0 K ∗ K y K (b) 0 Figure 48: Two equivalent constructions of dual cone K ∗ in R 2 : (a) Showing construction by intersection of halfspaces about 0 (drawn truncated). Only those two halfspaces whose bounding hyperplanes have inward-normal corresponding to an extreme direction of this pointed closed convex cone K ⊂ R 2 need be drawn; by (332). (b) Suggesting construction by union of inward-normals y to each and every hyperplane ∂H + supporting K . This interpretation is valid when K is convex because existence of a supporting hyperplane is then guaranteed (2.4.2.6).
2.13. DUAL CONE & GENERALIZED INEQUALITY 143 R 2 R 3 1 0.8 (a) 0.6 0.4 0.2 0 ∂K ∗ K ∂K ∗ K (b) −0.2 −0.4 −0.6 K ∗ −0.8 −1 −0.5 0 0.5 1 1.5 x ∈ K ⇔ 〈y , x〉 ≥ 0 for all y ∈ G(K ∗ ) (329) Figure 49: Dual cone construction by right angle. Each extreme direction of a proper polyhedral cone is orthogonal to a facet of its dual cone, and vice versa, in any dimension. (2.13.6.1) (a) This characteristic guides graphical construction of dual cone in two dimensions: It suggests finding dual-cone boundary ∂ by making right angles with extreme directions of polyhedral cone. The construction is then pruned so that each dual boundary vector does not exceed π/2 radians in angle with each and every vector from polyhedral cone. Were dual cone in R 2 to narrow, Figure 50 would be reached in limit. (b) Same polyhedral cone and its dual continued into three dimensions. (confer Figure 56)
- Page 91 and 92: 2.7. CONES 91 2.7.2 Convex cone We
- Page 93 and 94: 2.7. CONES 93 Then a pointed closed
- Page 95 and 96: 2.7. CONES 95 A pointed closed conv
- Page 97 and 98: 2.8. CONE BOUNDARY 97 So the ray th
- Page 99 and 100: 2.8. CONE BOUNDARY 99 2.8.1.1 extre
- Page 101 and 102: 2.8. CONE BOUNDARY 101 2.8.2 Expose
- Page 103 and 104: 2.8. CONE BOUNDARY 103 From Theorem
- Page 105 and 106: 2.9. POSITIVE SEMIDEFINITE (PSD) CO
- Page 107 and 108: 2.9. POSITIVE SEMIDEFINITE (PSD) CO
- Page 109 and 110: 2.9. POSITIVE SEMIDEFINITE (PSD) CO
- Page 111 and 112: 2.9. POSITIVE SEMIDEFINITE (PSD) CO
- Page 113 and 114: 2.9. POSITIVE SEMIDEFINITE (PSD) CO
- Page 115 and 116: 2.9. POSITIVE SEMIDEFINITE (PSD) CO
- Page 117 and 118: 2.9. POSITIVE SEMIDEFINITE (PSD) CO
- Page 119 and 120: 2.9. POSITIVE SEMIDEFINITE (PSD) CO
- Page 121 and 122: 2.9. POSITIVE SEMIDEFINITE (PSD) CO
- Page 123 and 124: 2.9. POSITIVE SEMIDEFINITE (PSD) CO
- Page 125 and 126: 2.9. POSITIVE SEMIDEFINITE (PSD) CO
- Page 127 and 128: 2.10. CONIC INDEPENDENCE (C.I.) 127
- Page 129 and 130: 2.10. CONIC INDEPENDENCE (C.I.) 129
- Page 131 and 132: 2.10. CONIC INDEPENDENCE (C.I.) 131
- Page 133 and 134: 2.12. CONVEX POLYHEDRA 133 It follo
- Page 135 and 136: 2.12. CONVEX POLYHEDRA 135 Coeffici
- Page 137 and 138: 2.12. CONVEX POLYHEDRA 137 2.12.3 U
- Page 139 and 140: 2.12. CONVEX POLYHEDRA 139
- Page 141: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 145 and 146: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 147 and 148: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 149 and 150: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 151 and 152: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 153 and 154: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 155 and 156: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 157 and 158: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 159 and 160: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 161 and 162: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 163 and 164: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 165 and 166: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 167 and 168: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 169 and 170: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 171 and 172: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 173 and 174: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 175 and 176: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 177 and 178: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 179 and 180: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 181 and 182: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 183 and 184: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 185 and 186: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 187 and 188: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 189 and 190: 2.13. DUAL CONE & GENERALIZED INEQU
- Page 191 and 192: 2.13. DUAL CONE & GENERALIZED INEQU
142 CHAPTER 2. CONVEX GEOMETRY<br />
K ∗<br />
(a)<br />
0<br />
K ∗<br />
K<br />
y<br />
K<br />
(b)<br />
0<br />
Figure 48: Two equivalent constructions of dual cone K ∗ in R 2 : (a) Showing<br />
construction by intersection of halfspaces about 0 (drawn truncated). Only<br />
those two halfspaces whose bounding hyperplanes have inward-normal<br />
corresponding to an extreme direction of this pointed closed convex cone<br />
K ⊂ R 2 need be drawn; by (332). (b) Suggesting construction by union of<br />
inward-normals y to each and every hyperplane ∂H + supporting K . This<br />
interpretation is valid when K is convex because existence of a supporting<br />
hyperplane is then guaranteed (2.4.2.6).
