Miroslav Lávička of this article is to figure some applications of Möbius geometry on chosen problems of geometric modelling (Computer Aided Geometric Design, CAGD) and through this to show that classical geometries still survive and in addition, they bring remarkable new results and algorithms. 2 Projective model of Möbius geometry Möbius geometry is a classical sphere geometry called after famous German mathematician August Ferdinand Möbius (1790–1868). According to Felix Klein and its Erlangen programme (1872), the content of Möbius geometry is the study of those properties which are invariant under Möbius transformations of Möbius space M n (where M n = E n ∪ {∞} is the conformal closure of the Euclidean space E n completed with the ideal point ∞ lying on every hyperplane but outside every hypersphere — both Euclidean hyperspheres and hyperplanes completed with ∞ are called Möbius hyperspheres). Then, Möbius transformations are such bijections that preserve non-oriented Möbius hyperspheres in M n . All Möbius transformations in M n form a group which is generated by inversions, i.e. reflections in hyperspheres (thus, Euclidean geometry can be obtained as a subgeometry of Möbius geometry when restricted to reflections in hyperplanes). Just introduced model is called a standard or classical model. In this article, we will work with further model. Let n-dimensional Euclidean space is immersed into Euclidean space E n+1 as the hyperplane x n+1 = 0 and let P n+1 denote the projective extension of E n+1 equipped with homogenous coordinates (x 0 , x 1 , . . . , x n+1 ) T ∈ R n+2 . We consider the unit n-sphere Σ ⊂ P n+1 described by the equation Σ : −x 2 0 + x 2 1 + . . . + x 2 n+1 = x T · E M · x = 0, (1) where E M = diag(−1, 1, . . . , 1) and an indefinite bilinear form 〈x, y〉 M = x T · E M · y = −x 0 y 0 + x 1 y 1 + . . . + x n+1 x n+1 (2) is called M-scalar product. Hence, the hypersphere Σ is described by the equation 〈x, x〉 M = 0, similarly we denote Σ + : 〈x, x〉 M > 0 (the exterior of Σ) and Σ − : 〈x, x〉 M < 0 (the interior of Σ). Thus P n+1 = Σ − ∪ Σ ∪ Σ + . If we apply so called extended stereographic projection with respect to n-sphere Σ and northpole n = (1, 0, ..., 0, 1) T we get one-to-one correspondence between points in P n+1 and Möbius hyperspheres in M n . 136
PROJECTIVE MODEL OF MÖBIUS GEOMETRY . . . What kind of mapping is the extended stereographic projection Ψ Shortly said, Ψ is a combination of the polarity Π : P n+1 → P ∗ n+1 induced by n-sphere Σ (an arbitrary point s ∈ P n+1 is mapped onto its polar hyperplane Π(s) ∈ P ∗ n+1 where P ∗ n+1 denotes a dual space to P n+1 ) and the standard stereographic projection σ : Σ → M n = = E n ∪ {∞} (the intersection of Π(s) with Σ is then mapped onto the Möbius hypersphere S of M n ) — the principle is seen in Fig. 1. This model is called a projective model. n=(1,0,...,0,1) s Figure 1: Extended stereographic projection Ψ : s ↦→ S. We can easily derive the analytic expression of the extended stereographic projection Ψ. Let s = (s 0 , s 1 , . . . , s n+1 ) T ∈ P n+1 then (i) if s 0 = s n+1 (i.e. s ∈ ν : x 0 − x n+1 = 0, where ν is the tangent hyperplane of Σ at the northpole n — so called north hyperplane) then Ψ(s) : −s 0 + s 1 x 1 + s 2 x 2 + . . . + s n x n = 0 (3) which is a hyperplane in M n ; (ii) if s 0 ≠ s n+1 (i.e. s ∉ ν) then Ψ(s) is a hypersphere S(m, r) ⊂ ⊂ M n with midpoint m and radius r where m = 1 s 0 − s n+1 · (s 1 , . . . , s n ) T , r 2 = −s2 0 + s 2 1 + . . . + s 2 n+1 (s 0 − s n+1 ) 2 (4) or with the help of M-scalar product (2) m = −1 〈s, n〉 M · (s 1 , . . . , s n ) T , r 2 = 〈s, s〉 M ( 〈s, n〉M ) 2 . (5) From (5) it is seen that points x ∈ P n+1 fulfilling the condition 〈x, x〉 M > 0 (points lying in Σ + ) are mapped onto real hyperspheres, 137
- Page 86 and 87: ÊÓÑÒÀõ ÃõÒÐÓÝ´ÚÞÇÖ
- Page 88 and 89: ÊÓÑÒÀõ ÈÖÓÖÑÓÒ ÒÑÞ
- Page 90 and 91: Oldřich Hykš foundations and simp
- Page 92 and 93: Oldřich Hykš The choice of the tr
- Page 94 and 95: Oldřich Hykš discussed together w
- Page 96 and 97: Petr Kahánek, Alexej Kolcun 2 Tria
- Page 98 and 99: Petr Kahánek, Alexej Kolcun of thi
- Page 100 and 101: Petr Kahánek, Alexej Kolcun Now we
- Page 102 and 103: Petr Kahánek, Alexej Kolcun In the
- Page 104 and 105: Mária Kmeťová Bernsteinove polyn
- Page 106 and 107: Mária Kmeťová H 0 O H 1 V 1 V 2
- Page 108 and 109: Mária Kmeťová Na obrázku 5 je k
- Page 110 and 111: Mária Kmeťová 6 Záver Program E
- Page 112 and 113: Milada Kočandrlová Pro body X eli
- Page 114 and 115: Milada Kočandrlová Podmínku cykl
- Page 116 and 117: Milada Kočandrlová 6 Homotetický
- Page 118 and 119: Jiří Kosinka medial axis transfor
- Page 120 and 121: Jiří Kosinka Figure 3: Asymptotic
- Page 122 and 123: Jiří Kosinka a) b) Figure 4: a) F
- Page 124 and 125: Iva Křivková • body (např. Bri
- Page 126 and 127: Iva Křivková V trojrozměrném eu
- Page 128 and 129: Iva Křivková asymptoty). V tomto
- Page 130 and 131: Karolína Kundrátová myslíme roz
- Page 132 and 133: Karolína Kundrátová Bázové fun
- Page 134 and 135: Karolína Kundrátová Obr. 2: Kři
- Page 138 and 139: Miroslav Lávička if 〈x, x〉 M
- Page 140 and 141: Miroslav Lávička n: x - x = 0 0 4
- Page 142 and 143: Miroslav Lávička 5 Conclusion In
- Page 144 and 145: Pavel Leischner Věta 1 (ptolemaiov
- Page 146 and 147: Pavel Leischner Věta 2 (Ptolemaiov
- Page 148 and 149: Pavel Leischner Literatura [1] Enge
- Page 150 and 151: Ivana Linkeová Je-li hodnota výra
- Page 152 and 153: Ivana Linkeová jednotkové váhy.
- Page 154 and 155: Ivana Linkeová funkce jsou pro u 0
- Page 156 and 157: Dalibor Martišek systémech, je po
- Page 158 and 159: Dalibor Martišek Zvládneme-li pra
- Page 160 and 161: Dalibor Martišek (což je jednoduc
- Page 162 and 163: Katarína Mészárosová vedcov nov
- Page 164 and 165: Katarína Mészárosová Obrázok 1
- Page 166 and 167: Katarína Mészárosová Analogicky
- Page 168 and 169: Katarína Mészárosová pocit krá
- Page 170 and 171: Martin Němec do databáze, popří
- Page 172 and 173: Martin Němec Obrázek 3: Modul pro
- Page 174 and 175: Martin Němec Literatura [1] J. Ziv
- Page 176 and 177: Stanislav Olivík 2 Hledání odraz
- Page 178 and 179: Stanislav Olivík S 1 Q i+2 P Q Q i
- Page 180 and 181: Stanislav Olivík Metoda popsaná v
- Page 182 and 183: Anna Porazilová Table 1 shows the
- Page 184 and 185: Anna Porazilová respective sum of

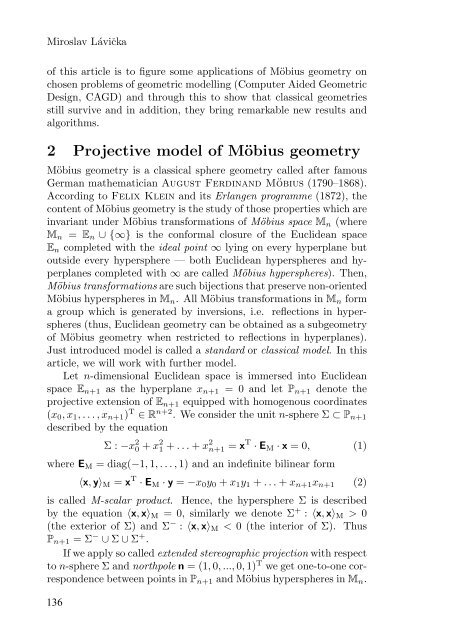

Miroslav Lávička<br />
of this article is to figure some applications of Möbius geometry on<br />
chosen problems of geometric modelling (Computer Aided Geometric<br />
Design, CAGD) and through this to show that classical geometries<br />
still survive and in addition, they bring remarkable new results and<br />
algorithms.<br />
2 Projective model of Möbius geometry<br />
Möbius geometry is a classical sphere geometry called after famous<br />
German mathematician August Ferdinand Möbius (1790–1868).<br />
According to Felix Klein and its Erlangen programme (1872), the<br />
content of Möbius geometry is the study of those properties which are<br />
invariant under Möbius transformations of Möbius space M n (where<br />
M n = E n ∪ {∞} is the conformal closure of the Euclidean space<br />
E n completed with the ideal point ∞ lying on every hyperplane but<br />
outside every hypersphere — both Euclidean hyperspheres and hyperplanes<br />
completed with ∞ are called Möbius hyperspheres). Then,<br />
Möbius transformations are such bijections that preserve non-oriented<br />
Möbius hyperspheres in M n . All Möbius transformations in M n form<br />
a group which is generated by inversions, i.e. reflections in hyperspheres<br />
(thus, Euclidean geometry can be obtained as a subgeometry<br />
of Möbius geometry when restricted to reflections in hyperplanes).<br />
Just introduced model is called a standard or classical model. In this<br />
article, we will work with further model.<br />
Let n-dimensional Euclidean space is immersed into Euclidean<br />
space E n+1 as the hyperplane x n+1 = 0 and let P n+1 denote the<br />
projective extension of E n+1 equipped with homogenous coordinates<br />
(x 0 , x 1 , . . . , x n+1 ) T ∈ R n+2 . We consider the unit n-sphere Σ ⊂ P n+1<br />
described by the equation<br />
Σ : −x 2 0 + x 2 1 + . . . + x 2 n+1 = x T · E M · x = 0, (1)<br />
where E M = diag(−1, 1, . . . , 1) and an indefinite bilinear form<br />
〈x, y〉 M = x T · E M · y = −x 0 y 0 + x 1 y 1 + . . . + x n+1 x n+1 (2)<br />
is called M-scalar product. Hence, the hypersphere Σ is described<br />
by the equation 〈x, x〉 M = 0, similarly we denote Σ + : 〈x, x〉 M > 0<br />
(the exterior of Σ) and Σ − : 〈x, x〉 M < 0 (the interior of Σ). Thus<br />
P n+1 = Σ − ∪ Σ ∪ Σ + .<br />
If we apply so called extended stereographic projection with respect<br />
to n-sphere Σ and northpole n = (1, 0, ..., 0, 1) T we get one-to-one correspondence<br />
between points in P n+1 and Möbius hyperspheres in M n .<br />
136
