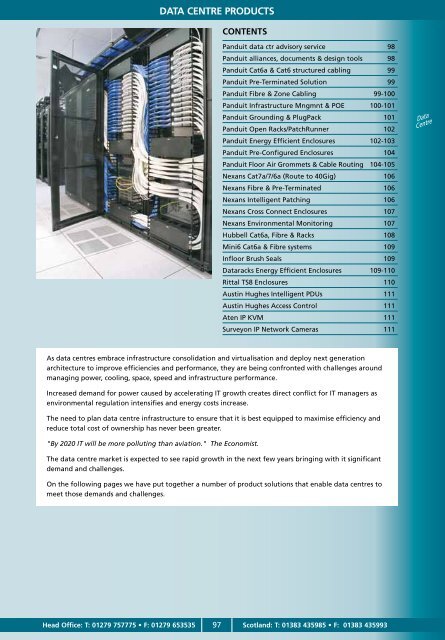

Data Centre PRODUCTS

contents

Panduit data ctr advisory service 98

Panduit alliances, documents & design tools 98

Panduit Cat6a & Cat6 structured cabling 99

Panduit Pre-Terminated Solution 99

Panduit Fibre & Zone Cabling 99-100

Panduit Infrastructure Mngmnt & POE 100-101

Panduit Grounding & PlugPack 101

Panduit Open Racks/PatchRunner 102

Panduit Energy Efficient Enclosures 102-103

Panduit Pre-Configured Enclosures 104

Panduit Floor Air Grommets & Cable Routing 104-105

Nexans Cat7a/7/6a (Route to 40Gig) 106

Nexans Fibre & Pre-Terminated 106

Nexans Intelligent Patching 106

Nexans Cross Connect Enclosures 107

Nexans Environmental Monitoring 107

Hubbell Cat6a, Fibre & Racks 108

Mini6 Cat6a & Fibre systems 109

Infloor Brush Seals 109

Dataracks Energy Efficient Enclosures 109-110

Rittal TS8 Enclosures 110

Austin Hughes Intelligent PDUs 111

Austin Hughes Access Control 111

Aten IP KVM 111

Surveyon IP Network Cameras 111

As data centres embrace infrastructure consolidation and virtualisation and deploy next generation

architecture to improve efficiencies and performance, they are being confronted with challenges around

managing power, cooling, space, speed and infrastructure performance.

Increased demand for power caused by accelerating IT growth creates direct conflict for IT managers as

environmental regulation intensifies and energy costs increase.

The need to plan data centre infrastructure to ensure that it is best equipped to maximise efficiency and

reduce total cost of ownership has never been greater.

"By 2020 IT will be more polluting than aviation." The Economist.

The data centre market is expected to see rapid growth in the next few years bringing with it significant

demand and challenges.

On the following pages we have put together a number of product solutions that enable data centres to

meet those demands and challenges.

Head Office: T: 01279 757775 • F: 01279 653535 97 Scotland: T: 01383 435985 • F: 01383 435993

Panduit Data Centre Systems

Panduit Data Centre Advisory Services

Panduit Professional Services help you make certain

that physical & logical infrastructure are effectively

integrated in the optimum framework. Panduit's

expertise is in the physical layer. Not glamorous

- just critical. Panduit covers the entire physical

landscape with assessment, design & maintenance

methodology by partnering with global industry

leaders to ensure infrastructure is designed to

handle emerging technologies.

Panduit Alliances

Panduit has established long-term strategic

alliances with top global industry leaders such as

Cisco Systems, EMC, HP, IBM, Liebert and Rockwell

Automation to develop and integrate innovative,

holistic solutions for customers. Panduit continually

invests in relationships and resources for solving

customers’ greatest business challenges.

Software Design Tools

Data Centre Viso Layout Tool & Design Tool For

AutoCad:

• Both feature drag & drop functionality

• Both with automated BOM generator

• Viseo designs in 2D (stencils for 3 different views

provided).

• AutoCad designs in 2D & 3D

• Viseo is a free download from www.panduit.com

for AutoCad ask for free CD ref SA-FRCD02.

Support Documents

Panduit have many white papers, technical papers

& brochures related to the data centre market

detailing technology considerations, physical

infrastructure & design. See the "Solutions" &

"Support" sections at www.panduit.com

sales@minitran.co.uk

98

www.minitran.co.uk


Based on a Unified Physical Infrastructure (UPI) Panduit's

high speed data transport solutions deliver maximum

flexibility during planning, designing commissioning &

operation of the data centre that is both protocol & media diagnostic. Copper & fibre systems address the

needs for network throughput, latency, thermal management, power consumption & operational efficiency.

Panduit have developed the industries most comprehensive & holistic approach to a Unified Physical

Infrastructure (UPI) & can help enterprises align, converge & optimise critical systems - communications,

computing, control, power & security - to build a smarter, unified business foundation.

See www.panduit.com for data ctr related white papers, brochures and solutions.

Cat6 & Cat6a Structured Cabling

Patent pending matrix technology in Panduit's

Cat6a cable & advanced connector design ensures

channel bandwidth performance above industry

standards.

• Cat6a & Cat6 shielded & UTP systems

• Standard & high density panels with up to 48 ports

in a 1U panel

See page 40 onwards

QuickNet PreTerminated Copper & Fibre

• Cat6a, Cat6 & fibre solutions

• Quick network deployment & increased reliability.

• Can be installed in 75% less time than field

termination methods.

• 100% factory tested pre-terminated assemblies

supplied with test results.

See page 47

Fibre Solutions

• OM3 system features the highest quality laser

optimised fibre to support transmission speeds up

to 10Gbs for link lengths up to 300Mtrs.

• OM4 system delivers unmatched reliability,

scalability & performance at an extended reach of

550Mtrs.

• High density panels with up to 96 fibres in 1U or

192 fibres in 2U.

See pages 50-52



In Ceiling Zone Cabling Enclosures

Active & Passive In-Ceiling Enclosures allow network

equipment to be located in the air handling

space above a drop ceiling. Thermal management

systems within the enclosure support high heat

load applications, including PoE enabled network

switches & UPSs.

See www.panduit.com

Overhead Zone Cabling Distribution Racks

Provides additional 2, 4 or 6U rack space above a

rack or cabinet to maximise space utilisation in a

data centre or telecommunications room.


Underfloor Consolidation Points

Can be used under floor or wall mounted

horizontally or vertically.

See page 44

Physical Infrastructure Management

Panduit's Physical Infrastructure Manager (PIM)

platform tracks the allocation & utilisation of critical

IT assets within the data centre. The software

provides an end to end view of your data centre. It

provides a real time representation of assets space/

port availability & power/environmentals ensuring

effective management.



100

www.minitran.co.uk


PoE Systems

POE patch panels supply ample power for seamless integration to VoIP, wireless access

points, IP cameras & other converged network applications. DPoE systems are supplied

with management software that allows remote control of port power & configuration

plus real time access to port status & power consumption information.

Panduit PoE see

www.panduit.com.

Surveyon PoE IP Cameras:

page 243

Grounding Systems

Correct grounding is often overlooked but of critical

importance in data centres & other applications.

Panduit's Structured Ground system for data

ctrs provides a high quality, visually verifiable &

dedicated grounding path to maintain system

performance, improve network reliability & protect

equipment & personnel.

Contact us for details.

QuickNet Plug Pack Housings

Allows multiple patch cords to be simultaneously

connected/disconnected with one hand for speed

of deployment. Patch leads snap into plug pack

housing. Standard versions compatible with Cisco

Catalyst 6500 & 4500 series switches. Recessed

versions compatible with Cisco Nexus 7000 series

switches.

See page 54



PatchRunner Systems

Manages high density network cabling in up to

half the area required by traditional rack/cable

management systems. Eliminates the need for

horizontal cable mngmnt when used with angled

panels by taking cables out to the side channels.

Frees up rack space for additional panels or

equipment & reduces the overall number of racks

required. Can be used with 2/4 post racks.

See page 60

Net-Access Energy Efficient Data Centre Cabinet System

Net-Access cabs include innovative thermal designs

to maintain hot/cold air separation for improved

cooling & reduced energy consumption. Superior

cable management, inset frame & in cabinet ducting

options ensure proper airflow.

Net Access cabs have been designed around Cisco

switches & have been verified by Cisco as meeting

their Nexus 7000 series requirements.


Room Level Computational Fluid Dynamics Analysis Of Data Centre Thermal Characteristics.

See next page.


102

www.minitran.co.uk


Room Level Computational Fluid Dynamics Analysis Of Data Centre

Thermal Characteristics

Typical Data Centre

Above Ceiling Hot Air Return

Data Centre using Panduit Thermal Solutions:

Above Ceiling Hot Air Return

Cold Aisle

Hot

Aisle

Cold

Aisle

Hot

Aisle

Cold Aisle

Cold Aisle

Hot

Aisle

Cold

Aisle

Hot

Aisle

Cold Aisle

Raised Floor Cold Air Supply

Raised Floor Cold Air Supply

Typical Data Centre:

• Cool air does not reach top portions of the

cabinets making servers in the top racks vulnerable

to overheating.

• Hot air exhaust follows complex airflow path back

to CRAH units.

• Mixing of hot & cold air reduces the thermal

efficiency of cooling system.

Data Ctr Using Panduit Thermal Solutions:

• Uniform distribution of cool air reaching the top

of the cabinet.

• Hot exhaust air is isolated & ducted directly to

CRAH units.

• Segregation of hot & cool air improves the overall

thermal efficiency of the cooling system & makes

the environment more predictable & scaleable.

See the Panduit "Energy Efficient Data Ctr Cabinet Systems" brochure for full details.

Net-Serv Cabinets

Net-Serv cabinets are designed to provide the best combination of space utilisation &

thermal management for server applications. They complement the Net-Access cabs &

provide a complete infrastructure solution. See page 56



Pre-Configured Infrastructure Enclosures

Panduit & Cisco have created a data ctr solution

that has the physical infrastructure systems needed

in a pre-configured enclosure that arrives on site

ready to be deployed.

Suitable for Cisco Nexus 7010, UCS & Catalyst

6509 platforms. Pre -configured enclosures have

all the scalability and optimised power & thermal

management features described in the Net-Access

enclosures.

Includes all the necessary systems, pre-configured

to deploy Cisco platforms including thermal

management, copper & fibre cabling, cable

management, grounding & bonding.

See page 57

Cool Boot Raised Floor Air Sealing Grommet

For hot isle/cold isle environments in data centres

where cables pass through a cutout in a raised floor.

• Airtight design reduces bypass airflow cooling

network equipment.

• Prevents debris falling below floor

• Utilised with cable bundles

• Flame retardant materials

See page 58

GridRunner Underfloor Cable Routing System

Panduit GridRunner is a versatile pathway designed

to route & manage data & power cable beneath the

raised floor in a data centre. Basket sections simply

drop in between the floor stringers & attach to

pedestal baskets for fast assembly. Includes integral

bonding, waterfall, brackets, offset sections. Can be

integrated with FibreRunner overhead system.


FibreRunner Overhead Cable Tray Routing System

FibreRunner provides an integrated cable routing

solution to segregate, route and protect fibre and

copper cabling to, between and above racks within

an equipment room or facility. Available in various

sizes and colours with hinged covers and multiple

spill out options.



104

www.minitran.co.uk


Wyr Grid Overhead Cable Tray Routing System

Fast assembly & greater strength for load bearing.

Snap on side walls eliminate cutting sidewalls at

intersections. Traditional cable tray requires side

wall to be removed at intersections compromising

strength & load carrying capability. Wyr-Grid

eliminates that risk. With integral bonding,

waterfall, brackets. Can be integrated with

FibreRunner overhead system.


Panduit Demonstration Facility

Panduit's cabling systems, racks, cable routing

systems and accessories can all be viewed at

Panduit's demonstration and briefing centre,

opposite Liverpool St Station in London.



nexans Data Centre Systems

Migration Path to 40 Gigabit

Independent data shows that 10Gig Ethernet will only be useful for about five more years. Cabling from

access layer to server layer will soon reach 40G.

Cat6a copper cabling cannot support 40G. Nexans LANmark-7A copper cabling system has proven it's

capability of supporting 40G & is backward compatible with RJ45 systems. See discussions at IEEE about

40/100Gbps. Lanmark-7A Cat7a system has an ACR up to 1200Mhz. Due to its high shielding & EMC

performance Cat7a offers potential power reduction consumption compared to Cat6a. Particularly

important in data centres where carbon reduction is being looked at.

For Nexans Cat7a as well as Cat7 and Cat6a systems see page 27

Fibre

• New pre-loaded high density patch panel is

specifically designed for installation in data

centres.

• MPO fibre connectivity for 10G & 40G

• Fibre cable for OM4 & OS2

See www.nexans.co.uk/lansystems

Pre terminated cabling systems in Cat6, Cat6a, Cat7,

Cat7a as well as OM1-2-3-4 and OS2 fibre.

Fibre MPO connectivity for 10G & 40G.


LANsense Intelligent Patching

LANsense is a hardware & software system for

cabling infrastructure management.

• Real time cabling & IP traffic monitoring

• Ideal for alerts, documentation & reporting.

• Specific platform for data centres.

• Automatically detects & identifies devices &

provides security alerts for unauthorised changes.



106

www.minitran.co.uk

nexans Data Centre Systems

LANmark Overhead Patching Frame

4U overhead patching frame for 19" patch panels

saves rack space in expensive data centre cabinets.

Brackets enable vertical fitting under, along & over

cable tray & can be angled up to 20 degrees.

A 1U cable guide can be added horizontally

underneath.

See page 29

LANmark High Density Cross Connect Cabinet

Designed to host dense passive cross connects in

data centres. Specific attention has been given to

cooling & space scarcity.

• Open frame for excellent all round access

• Management fingers each side of front profiles.

• Top panel with adjustable cable entries & brushes

• Rear L shaped cable trays accommodate large

cable bundles without interfering with hardware.

• Cable troughs top & bottom

• Carrying capacity 1000kg

See page 32

Environmental Monitoring

A Nexans EMAC solution may include some or

all of the following features controlled by a rack

manager.

• Power management with intelligent PDU's

• Temperature sensing

• Humidity sensing

• Access control


Support Documents

Nexans have white papers, technical papers

& brochures related to the data centre

market detailing current & future technology

considerations behind their copper & fibre cabling

systems.



hubbell Data Centre Systems

Cat6a Structured Cabling System

The Hubbell Cat6a 10G cabling system is available in

shielded & UTP versions.

• 10Gbe channel tested delivering 3Db of

headroom

• Snaps into Hubbell modular panels, modules &

surface boxes

See page 66

OM3 & OM4 Fibre Systems

Hubbell's new 144 port 1U ultra high density fibre

patch panel is ideal for data centre applications. The

panel features 3 drawers that each accept 4 ultra

compact12 port LC -MPO cassette modules which

are available in OM3, OM4 & singlemode.

Hubbell have an extensive range of high density

fibre panels and OM3/4 patch leads.

For details of this panel & the Hubbell MPO rapid

deployment fibre system please contact our sales

department.

I-Frame 45U 2 post Pack

• Designed to align with two foot data centre floor

tiles & dropped ceiling floor grid

• Eleven I-Frame racks fits into the space of ten

conventional racks

• Cables run within each vertical column

See page 70


108

www.minitran.co.uk

Data Centre Systems

Mini6 Cat6a Structured Cabling System

The Mini6 Cat6a shielded cabling system offers

10Gbit high speed transmission at an affordable

price.

Mini6 have partnered with Acome who are a major

European manufacturer of cable to offer a high

performance, reliable system.

See page 10 for the Cat6a jack

Mini5 OM3 & OM4 Fibre

Fibre patch leads & high density panels in OM3 &

OM4 versions for data centre applications.

See pages 122-128 &134

In-Floor Brush Seals

• Prevents leakage of pressurised air around power

& data cables

• Built in edge guards protect cable

• Thin flexible membrane provides an almost

impenetrable air barrier

See page 180 & 182

Dataracks 3 into 2 & Co-Location Enclosures

3 into 2

Co-Location

• 600 or 800 wide with depths of 1000 or 1200mm

• Lockable glass or vented steel front door

• Unique space saving 3 into 2 solution available: Three 19" bays in

two 800mm wide cabinets bayed together

• Co-Location enclosures offering effective use of floor space also

available.

• Frameless construction for all round access

See page 214 & contact us for details of 3 into 2 and

Co-Location solutions.



Dataracks 303 EcoRack

EcoRack is the first enclosure to meet the best

practice recommendations of the EU Code Of

Conduct on Energy Efficiency for Data Centres.

EcoRack maximises airflow management &

enhances the benefit of free air-cooling.

This ensures that cooled air does not by-pass the

server and goes through the server fans where it is

needed, so rack density can be maximised. Its sleek

white finish reflects heat and increases light levels

within the data centre, further reducing the need

for power.

Airflow management reduces energy consumption.

When combined with Cold Aisle Containment (CAC)

it will typically save 20% or more in energy costs.

Clients report reduced hardware failures, improved

control over temperature & humidity.

Contact Minitran for details.

Rittall TS8 Enclosures

• High level of structural integrity & stability up to

1000kg

• Server cabs have perforated vented front door &

split perforated vented rear

• Server cab perforated doors have 82% open

surface area to aid airflow front to rear.

• Networking cabs have glass framed front door &

steel rear door.

• Frame offers baying on all sides

• 4 point locking system on front & rear doors

See page 213


110

www.minitran.co.uk


IP Switched & Monitored PDUs

Rack mount PDUs for critical data centre &

remote install sites. Allows remote outlet

control/cycling of individual on/off power

sockets via a simple secure web based GUI

management interface.


InfraSolution Access Control & Monitoring

Enhances rack level security & equipment efficiency

by using remote rack IP door access with swipe

card control, temperature & humidity monitoring

including integrated monitored & switched PDUs.

Allows cabinet control of door handles, switching

& monitoring of smart PDUs as well as control of

InfraCool fan units, temperature & humidity up to

200 cabinets over a local or wide area network.

See page 238

IP KVM

The new generation of KVM over the Net switches

allows local & remote operators to monitor & access

the entire enterprise data centre over the Internet

using a web-based browser.

Aten now support blade servers & chassis with the

KN2124/2140 series IP KVMs.

Capabilities further include: Message Board, Panel

Array Mode, Mouse DynaSync, Adapter ID, & Virtual

Media. With dual on-board NICs & dual power

supplies, these switches have been built for 24/7

reliability. See pages 196-197

Megapixel IP Network Cameras

Surveon offers a full line of box, bullet, dome, PTZ

and speed-dome cameras with resolutions ranging

from D1 to megapixel, including advanced day/

night, WDR, wide-temperature, weatherproof IP66

models, NVRs & software.

All cameras are backed by a 3 year warranty.

to view Data Centre Cabling products - Minitran

Create successful ePaper yourself

Delete template?

Save as template?
