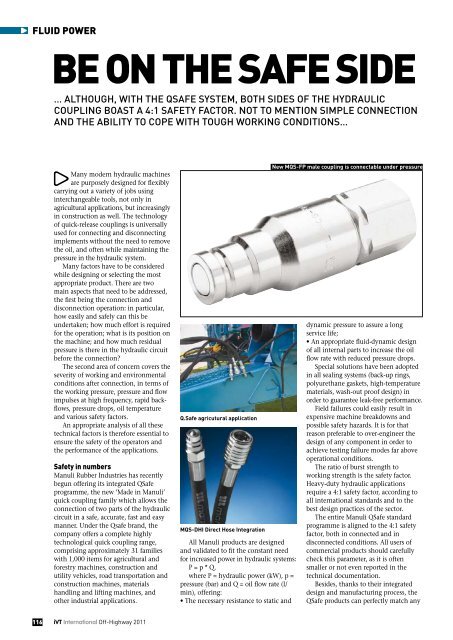

FLUID POWER<br />
116<br />
bE On thE SaFE SIDE<br />
… although, with the qsafe system, both sides of the hydraulic<br />
coupling boast a 4:1 safety factor. not to mention simple connection<br />
and the ability to cope with tough working conditions…<br />
Many modern hydraulic machines<br />
are purposely designed for flexibly<br />
carrying out a variety of jobs using<br />
interchangeable tools, not only in<br />
agricultural applications, but increasingly<br />
in construction as well. The technology<br />
of quick-release couplings is universally<br />
used for connecting and disconnecting<br />
implements without the need to remove<br />
the oil, and often while maintaining the<br />
pressure in the hydraulic system.<br />
Many factors have to be considered<br />
while designing or selecting the most<br />
appropriate product. There are two<br />
main aspects that need to be addressed,<br />
the first being the connection and<br />
disconnection operation: in particular,<br />
how easily and safely can this be<br />
undertaken; how much effort is required<br />
for the operation; what is its position on<br />
the machine; and how much residual<br />
pressure is there in the hydraulic circuit<br />
before the connection?<br />
The second area of concern covers the<br />
severity of working and environmental<br />
conditions after connection, in terms of<br />
the working pressure, pressure and flow<br />
impulses at high frequency, rapid backflows,<br />
pressure drops, oil temperature<br />
and various safety factors.<br />
An appropriate analysis of all these<br />
technical factors is therefore essential to<br />
ensure the safety of the operators and<br />
the performance of the applications.<br />
Safety in numbers<br />
<strong>Manuli</strong> Rubber Industries has recently<br />
begun offering its integrated QSafe<br />
programme, the new ‘Made in <strong>Manuli</strong>’<br />
quick coupling family which allows the<br />
connection of two parts of the hydraulic<br />
circuit in a safe, accurate, fast and easy<br />
manner. Under the Qsafe brand, the<br />
company offers a complete highly<br />
technological quick coupling range,<br />
comprising approximately 31 families<br />
with 1,000 items for agricultural and<br />
forestry machines, construction and<br />
utility vehicles, road transportation and<br />
construction machines, materials<br />
handling and lifting machines, and<br />
other industrial applications.<br />
iVT International Off-Highway 2011<br />
Q.Safe agricutural application<br />
MQS-DHI Direct Hose Integration<br />
All <strong>Manuli</strong> products are designed<br />
and validated to fit the constant need<br />
for increased power in hydraulic systems:<br />
P = p * Q,<br />
where P = hydraulic power (kW), p =<br />
pressure (bar) and Q = oil flow rate (l/<br />
min), offering:<br />
• The necessary resistance to static and<br />
New MQS-FP male coupling is connectable under pressure<br />
dynamic pressure to assure a long<br />
service life;<br />
• An appropriate fluid-dynamic design<br />
of all internal parts to increase the oil<br />
flow rate with reduced pressure drops.<br />
Special solutions have been adopted<br />
in all sealing systems (back-up rings,<br />
polyurethane gaskets, high-temperature<br />
materials, wash-out proof design) in<br />
order to guarantee leak-free performance.<br />
Field failures could easily result in<br />
expensive machine breakdowns and<br />
possible safety hazards. It is for that<br />
reason preferable to over-engineer the<br />
design of any component in order to<br />
achieve testing failure modes far above<br />
operational conditions.<br />
The ratio of burst strength to<br />
working strength is the safety factor.<br />
Heavy-duty hydraulic applications<br />
require a 4:1 safety factor, according to<br />
all international standards and to the<br />
best design practices of the sector.<br />
The entire <strong>Manuli</strong> QSafe standard<br />
programme is aligned to the 4:1 safety<br />
factor, both in connected and in<br />
disconnected conditions. All users of<br />
commercial products should carefully<br />
check this parameter, as it is often<br />
smaller or not even reported in the<br />
technical documentation.<br />
Besides, thanks to their integrated<br />
design and manufacturing process, the<br />
QSafe products can perfectly match any
The Q.Safe range<br />
<strong>Manuli</strong> hydraulic connector (compatible<br />
materials strength, pressure performance,<br />
tolerance chain, surface finish, etc),<br />
extending the reliability and safety<br />
requirements of individual components to<br />
the whole port to port connection string.<br />
The <strong>Manuli</strong> integrated approach can<br />
really add to new solutions where the<br />
performance of traditional separated<br />
components can be compacted and<br />
enhanced in innovative products. This<br />
is the case of the new DHI QSafe family,<br />
where the connect/disconnect function<br />
has been integrated in the hose fitting<br />
(Direct to Hose Integration), creating a<br />
new patented product line that can offer<br />
innovative features in terms of lightness,<br />
compactness and fast assembly.<br />
As part of <strong>Manuli</strong> Rubber Industries,<br />
<strong>Manuli</strong> <strong>Hydraulics</strong> is also active in the<br />
design, manufacture and sale of a wide<br />
range of hoses, connectors and<br />
machines for conveying power in high-<br />
and very high-pressure hydraulic circuits<br />
and fluids in refrigeration units. iVT<br />
Paolo Seghi is CIO at <strong>Manuli</strong> Rubber with 30<br />
years’ experience in the industry; Giuseppe Rusconi<br />
works in Connectors Technical Marketing<br />
and is experienced in the design<br />
of quick coupling products<br />
FLUID POWER<br />
PaOLO SEghI & gIUSEPPE RUScOnI<br />
New MQS-ARB push-pull – ideal for agriculture<br />
MQS-DHI ISO A male coupling<br />
