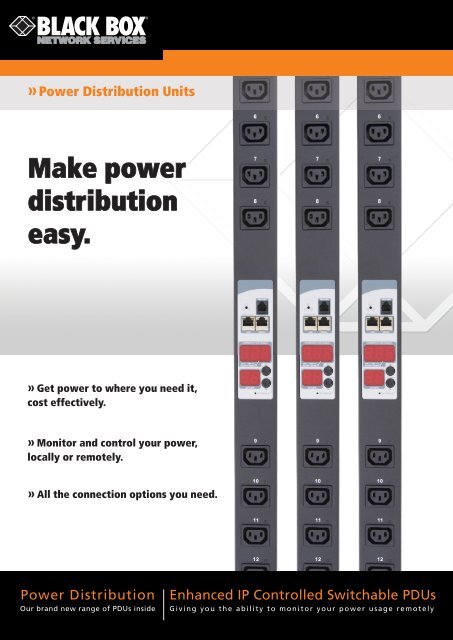

›› Power Distribution Units<br />
Make power<br />
distribution<br />
easy.<br />
›› Get power to where you need it,<br />
cost effectively.<br />
›› Monitor and control your power,<br />
locally or remotely.<br />
›› All the connection options you need.<br />
Power Distribution<br />
Our brand new range of PDUs inside<br />
Enhanced IP Controlled Switchable PDUs<br />
G i v i n g y o u t h e a b i l i t y t o m o n i t o r y o u r p o w e r u s a g e r e m o t e l y
Introduction<br />
Find everything you need for your<br />
server room or data<br />
centre, and more!<br />
With more than 12,000 products, there’s no need to go anywhere else.<br />
Whether you’re a small office that wants a small cabinet to house your server or a large<br />
enterprise that needs multiple data centres throughout the world, <strong>Black</strong> <strong>Box</strong> has the<br />
technology, product selection and know-how to make it happen. We’re your one-company,<br />
complete-solution provider. At <strong>Black</strong> <strong>Box</strong>, you’ll find everything you need to deliver end-to-end<br />
solutions. Our selection includes:<br />
Infrastructure<br />
- Copper<br />
CAT7, CAT6, CAT5e<br />
- Fibre Optic<br />
Distribution Style<br />
Indoor/Outdoor<br />
Interlocking Fibre<br />
- USB<br />
- SCSI<br />
- Audio/Video/Keyboard/Mouse<br />
- Serial & Parallel.<br />
- Patch Panels<br />
- Jacks, Wallplates, Modules<br />
Cabinets & Racks<br />
- Freestanding Cabinets<br />
- Wallmount Cabinets<br />
- Racks & Enclosures<br />
- Cable Management<br />
- Accessories<br />
KVM ServSwitch TM<br />
- Local and Remote Switches<br />
- IP KVM Solutions<br />
- Copper & Fibre Extenders<br />
- KVM Console Trays<br />
- Cables & Accessories<br />
Digital Signage<br />
- Video Extenders<br />
- Video Splitters<br />
- Video Switches<br />
- Media Players<br />
- Plasma & LCD Displays<br />
- Digital Signage Software<br />
Power & Environment<br />
- Power Strips<br />
- UPSs<br />
- Power Management<br />
- Surge Supression<br />
- Environmental Monitoring<br />
Networking<br />
- Media Converters<br />
- Switches<br />
- Routers<br />
- Network Security<br />
- Ethernet Extenders<br />
- Serial and Console Servers<br />
- Print Servers<br />
Testers and Tools<br />
- Copper & Fibre Tools<br />
- Copper & Fibre Testers<br />
- General Tool Kits<br />
Server & Desktop<br />
- Hubs<br />
- Converters<br />
- Extenders<br />
- Switches<br />
- Cables<br />
Te c h S u p p o r t 0 1 1 8 9 6 5 6 0 0 0 • S a l e s 0 1 1 8 9 6 5 6 1 5 0
Contents<br />
White<br />
with<br />
5th black<br />
diamond<br />
›› Tech Support: 0118 965 6000<br />
We make it easy to do business.<br />
Pricematch programme<br />
Submit your quote to us and we’ll<br />
do our best to beat it with one of<br />
our own <strong>Black</strong> <strong>Box</strong> branded<br />
solutions. Try it today!<br />
›› Basic PDUs (Buyer’s Guide)...............................2-3<br />
›› Basic PDUs..........................................................4-5<br />
››Enhanced PDUs (Buyer’s Guide)...........................6<br />
››Enhanced PDUs.................................................7-12<br />
››Enhanced IP Controlled PDUs (Buyer’s Guide)..13<br />
FREE 24/7 Technical Support<br />
Speak with our of our technical<br />
experts on the phone, or let us<br />
call you back by visiting<br />
www.blackbox.co.uk and<br />
requesting a call back.<br />
Proven Quality<br />
<strong>Black</strong> <strong>Box</strong> is ISO9001:2008<br />
certified and follows the same<br />
proven quality procedures that<br />
we have been practising for 17<br />
years of ISO accreditation.<br />
››Enhanced IP Controlled PDUs............................13<br />
Connection Key<br />
See our handy connection guide throughout this<br />
brochure to show you exactly which types of input<br />
and output are available on each product range.<br />
C13<br />
C14<br />
<strong>UK</strong> Plug (Female)<br />
<strong>UK</strong> Plug (Male)<br />
Educational Resources<br />
As well as our FREE 24/7 Tech<br />
Support, we also have great<br />
technical resources online,<br />
including technology overviews,<br />
<strong>Black</strong> <strong>Box</strong> explains, product<br />
datasheets and more.<br />
C19<br />
C20<br />
BS4343 2P+E (16A)<br />
Commando<br />
BS4343 2P+E (32A)<br />
Commando<br />
Custom Solutions<br />
If you can’t find what you are<br />
looking for in our 12,000 off-theshelf<br />
products, don’t despair<br />
because chances are, we can<br />
build it!<br />
Introducing<br />
The single-port and four-port power switches.<br />
Available as standalone & rackmount.<br />
www.blackbox.co.uk<br />
Our website offers thousands of<br />
products, technical guides,<br />
company information and much<br />
more!<br />
i n f o @ b l a c k b o x . c o . u k • w w w. b l a c k b o x . c o . u k 1
Power Distribution Units<br />
Basic Power Distribution Units | Buyer’s Guide<br />
No. of C13<br />
sockets<br />
No. of C19<br />
sockets<br />
No. of <strong>UK</strong><br />
sockets<br />
Max. Current<br />
U Size<br />
Cable Exit<br />
Direction<br />
V. Height Phase Partcode<br />
3 6 - 16A - Straight Short 3Phase PDU7555-16A<br />
3 6 - 32A - Straight Short 3Phase PDU7555<br />
- - 4 13A 1 Straight - Single PDUT/4H<br />
- - 4 13A 2 Straight - Single PDUD13-4H<br />
- - 4 13A - Right Short Single PDUSL/4RH<br />
- - 4 13A - Left Short Single PDUSL/4LH<br />
4 - - 13A 1 Straight - Single PDUIEC/4<br />
4 - - 10A - Straight Short Single PDUIEC/4V<br />
- 4 - 13A - Straight Short Single PDUC19/4V<br />
- 4 - 13A - Straight - Single PDUC19/4H<br />
- - 5 13A 1 Straight - Single PDUT/5H<br />
- - 5 13A 2 Straight - Single PDUD13-5H<br />
- - 5 13A - Right Short Single PDUSL/5RH<br />
- - 5 13A - Left Short Single PDUSL/5LH<br />
- 5 - 13A - Straight Short Single PDUC19/5V<br />
- 5 - 13A 1 Straight - Single PDUC19/5H<br />
- - 6 13A 1 Straight - Single PDUT/6H<br />
- - 6 13A 2 Straight - Single PDUD13-6H<br />
- - 6 13A - Right Short Single PDUSL/6RH<br />
- - 6 13A - Left Short Single PDUSL/6LH<br />
6 - - 13A 1 Straight - Single PDUIEC/6<br />
6 - - 10A - Straight Short Single PDUIEC/6V<br />
- 6 - 13A - Straight Short Single PDUC19/6V<br />
- 6 - 13A 1 Straight - Single PDUC19/6H<br />
- - 7 13A 1 Straight - Single PDUT/7H<br />
- - 7 13A 2 Straight - Single PDUD13-7H<br />
- - 7 13A - Right Short Single PDUSL/7RH<br />
- - 7 13A - Left Short Single PDUSL/7LH<br />
- - 8 13A 1 Straight - Single PDUT/8H<br />
- - 8 13A 2 Straight - Single PDUD13-8H<br />
- - 8 13A - Right Short Single PDUSL/8RH<br />
- - 8 13A - Left Short Single PDUSL/8LH<br />
8 - - 13A 1 Straight - Single PDUIEC/8<br />
8 - - 10A - Straight Short Single PDUIEC/8V<br />
- 8 - 13A - Straight Short Single PDUC19/8V<br />
- 8 - 13A 1 Straight - Single PDUC19/8H<br />
- - 10 13A 3 Straight - Single PDUD13/10H<br />
- - 10 13A - Right Medium Single PDUSL/10RH<br />
- - 10 13A - Left Medium Single PDUSL/10LH<br />
10 - - 13A 1 Straight - Single PDUIEC/10<br />
10 - - 10A - Straight Medium Single PDUIEC/10V<br />
2<br />
Te c h S u p p o r t 0 1 1 8 9 6 5 6 0 0 0 • S a l e s 0 1 1 8 9 6 5 6 1 5 0
Power Distribution Units<br />
Basic Power Distribution Units | Buyer’s Guide (continued)<br />
No. of C13<br />
sockets<br />
No. of C19<br />
sockets<br />
No. of <strong>UK</strong><br />
sockets<br />
Max. Current<br />
U Size<br />
Cable Exit<br />
Direction<br />
V. Height Phase Partcode<br />
- 10 - 13A - Straight Medium Single PDUC19/10V<br />
- 10 - 13A 1 Straight - Single PDUC19/10H<br />
- - 12 13A 3 Straight - Single PDUD13/12H<br />
- - 12 13A - Right Medium Single PDUSL/12RH<br />
- - 12 13A - Left Medium Single PDUSL/12LH<br />
12 - - 13A 1 Straight - Single PDUIEC/12<br />
12 - - 10A - Straight Medium Single PDUIEC/12V<br />
- 12 - 13A - Straight Medium Single PDUC19/12V<br />
- 12 - 13A 1 Straight - Single PDUC19/12H<br />
- - 15 13A 3 Straight - Single PDUD13/15H<br />
- - 15 13A - Right Medium Single PDUSL/15RH<br />
- - 15 13A - Left Medium Single PDUSL/15LH<br />
- - 16 13A - Right Medium Single PDUSL/16RH<br />
- - 16 13A - Left Medium Single PDUSL/16LH<br />
16 4 - 16A - Straight Short Single PDU7501<br />
16 4 - 32A - Straight Short Single PDU7502<br />
16 - - 13A 1 Straight - Single PDUIEC/16<br />
16 - - 10A - Straight Medium Single PDUIEC/16V<br />
- 16 - 13A - Straight Medium Single PDUC19/16V<br />
20 4 - 16A - Straight Short Single PDU7551*<br />
20 4 - 16A - Straight Short Single PDU7552†<br />
20 4 - 32A - Straight Short Single PDU7553<br />
- - 20 13A - Right Long Single PDUSL/20RH<br />
- - 20 13A - Left Long Single PDUSL/20LH<br />
20 - - 10A - Straight Long Single PDUIEC/20V<br />
- - 24 13A - Right Long Single PDUSL/24RH<br />
- - 24 13A - Left Long Single PDUSL/24LH<br />
24 - - 10A - Straight Long Single PDUIEC/24V<br />
30 - - 10A - Straight Long Single PDUIEC/30V<br />
36 - - 10A - Straight Long Single PDUIEC/36V<br />
40 - - 10A - Straight Long Single PDUIEC/40V<br />
* PDU7551 is supplied with a BS43432P+E commando connector. † PDU7552 is supplied with an IEC C20 connector.<br />
The world’s premier technical support!<br />
If you still can’t find what you’re after<br />
Despite our huge range of options, you still might not be able to find the PDU you are after. If this<br />
is the case, don’t despair as we may still be able to source it for you or even make it ourselves! Call our<br />
FREE 24/7 Tech Support on 0118 965 6000 today, or e-mail us at techsupport@blackbox.co.uk, and<br />
one of our experts will be on hand to help you with your requirements.<br />
info@black box.co.uk • www.bla ckbo x.c o.uk 3
Power Distribution Units<br />
<strong>Black</strong> <strong>Box</strong> Basic C13 Power Strips<br />
Get your power to where it needs to be — cost effectively.<br />
The <strong>Black</strong> <strong>Box</strong> range of C13 power strips provide a cost effective<br />
method for providing power directly into cabinets and racks. All the<br />
PDUs in this range are supplied with a 3m mains lead, terminated in a<br />
standard <strong>UK</strong> 3-pin, 13-Amp, mains plug. There are two versions,<br />
horizontal PDUs which will take up either front or rear cabinet space<br />
(measured in ‘U’), or vertical PDUs which are typically mounted to one<br />
side at the rear of the cabinet.<br />
Built from mild steel, all the Basic C13 PDUs come complete with<br />
fixing brackets built-in. The Basic range also come with a suitable<br />
on/off switch complete with a neon light to show the status of the<br />
switch. These PDUs also include a built-in external metal eart stud to<br />
correctly bond the units to cabinets.<br />
Input<br />
Output<br />
PDUIEC/4V, PDUIEC/6V<br />
and PDUIEC/8V<br />
Item Code Price<br />
Horizontal<br />
1U, 4-way IEC C13 PDUIEC/4 £26.18<br />
1U, 6-way IEC C13 PDUIEC/6 £27.13<br />
1U, 8-way IEC C13 PDUIEC/8 £29.70<br />
1U, 10-way IEC C13 PDUIEC/10 £30.67<br />
1U, 12-way IEC C13 PDUIEC/12 £31.60<br />
1U, 16-way IEC C13 PDUIEC/16 £32.65<br />
Vertical<br />
4-way IEC C13 PDUIEC/4V £26.18<br />
6-way IEC C13 PDUIEC/6V £27.13<br />
8-way IEC C13 PDUIEC/8V £29.70<br />
10-way IEC C13 PDUIEC/10V £30.67<br />
12-way IEC C13 PDUIEC/12V £31.60<br />
16-way IEC C13 PDUIEC/16V £32.65<br />
20-way IEC C13 PDUIEC/20V £36.67<br />
24-way IEC C13 PDUIEC/24V £39.32<br />
30-way IEC C13 PDUIEC/30V £44.33<br />
36-way IEC C13 PDUIEC/36V £49.50<br />
40-way IEC C13 PDUIEC/40V £54.23<br />
* See Buyer’s Guide for configuration of sockets<br />
<strong>Black</strong> <strong>Box</strong> Basic C19 and C13/C19 Mixed Power Strips<br />
A cost effective solution to C19 and C13/C19 power requirements.<br />
• Easy to use, easy to install.<br />
• Built-in mounting kit.<br />
• Mild steel construction.<br />
• Available in horizontal and vertical versions.<br />
• Built-in earth stud.<br />
• Cost effective solution.<br />
• Units up to 16 Amps have a built-in mains switch and neon light.<br />
Available Inputs<br />
Available Outputs<br />
Item Code Price<br />
C19 Horizontal<br />
1U, 4-way IEC C19 PDUC19/4H £40.48<br />
1U, 5-way IEC C19 PDUC19/5H £42.70<br />
1U, 6-way IEC C19 PDUC19/6H £44.97<br />
1U, 8-way IEC C19 PDUC19/8H £49.42<br />
1U, 10-way IEC C19 PDUC19/10H £53.88<br />
1U, 12-way IEC C19 PDUC19/12H £58.33<br />
C19 Vertical<br />
4-way IEC C19 PDUC19/4V £40.48<br />
5-way IEC C19 PDUC19/5V £42.70<br />
6-way IEC C19 PDUC19/6V £44.97<br />
8-way IEC C19 PDUC19/8V £49.42<br />
10-way IEC C19 PDUC19/10V £53.88<br />
12-way IEC C19 PDUC19/12V £58.33<br />
16-way IEC C19 PDUC19/16V £66.83<br />
C13/C19 Mixed<br />
24-way C13/C19 PDU7551 £125.00<br />
24-way C13/C19 PDU7552 £125.00<br />
24-way C13/C19, 32A PDU7553 £158.33<br />
24-way C13/C19/<strong>UK</strong>, 16A PDU7501 £166.67<br />
24-way C13/C19/<strong>UK</strong>, 32A PDU7502 £183.33<br />
9-way C13/C19, 16A PDU7555-16A £233.33<br />
9-way C13/C19, 32A PDU7555 £266.67<br />
* See Buyer’s Guide for configuration of sockets<br />
The <strong>Black</strong> <strong>Box</strong> range of C19 and C13/C19 Mixed power strips provide<br />
a cost effective method for providing power directly into cabinets and<br />
racks. All the PDUs in this range are supplied with a 3m mains lead,<br />
terminated in a standard <strong>UK</strong> 3-pin, 13-Amp, mains plug. There are two<br />
versions, horizontal PDUs which will take up either front or rear cabinet<br />
space (measured in ‘U’), or vertical PDUs which are typically mounted to<br />
one side at the rear of the cabinet.<br />
Built from mild steel, all the Basic C13 PDUs come complete with<br />
fixing brackets built-in. The Basic range also comes with a suitable<br />
on/off switch complete with a neon light to show the status of the<br />
switch, as well as including a built-in external metal earth stud to<br />
correctly bond the units to cabinets.<br />
Te c h S u p p o r t 0 1 1 8 9 6 5 6 0 0 0 • S a l e s 0 1 1 8 9 6 5 6 1 5 0
Power Distribution Units<br />
<strong>Black</strong> <strong>Box</strong> Basic <strong>UK</strong> Power Strips<br />
Our best-selling PDUs at great low prices.<br />
Item Code Price<br />
<strong>UK</strong> Horizontal<br />
1U, 4-way, <strong>UK</strong> PDUT/4H £29.22<br />
1U, 5-way, <strong>UK</strong> PDUT/5H £31.25<br />
1U, 6-way, <strong>UK</strong> PDUT/6H £33.27<br />
1U, 7-way, <strong>UK</strong> PDUT/7H £34.28<br />
1U, 8-way, <strong>UK</strong> PDUT/8H £36.28<br />
2U, 4-way, <strong>UK</strong> PDUD13/4H £30.20<br />
2U, 5-way, <strong>UK</strong> PDUD13/5H £32.20<br />
2U, 6-way, <strong>UK</strong> PDUD13/6H £34.23<br />
2U, 7-way, <strong>UK</strong> PDUD13/7H £36.75<br />
2U, 8-way, <strong>UK</strong> PDUD13/8H £38.73<br />
3U, 10-way <strong>UK</strong> PDUD13/10H £44.12<br />
3U, 12-way <strong>UK</strong> PDUD13/12H £47.23<br />
3U, 15-way <strong>UK</strong> PDUD13/15H £58.97<br />
Right-hand <strong>UK</strong> Vertical<br />
4-way, <strong>UK</strong> PDUSL/4RH £29.73<br />
5-way, <strong>UK</strong> PDUSL/5RH £32.73<br />
6-way, <strong>UK</strong> PDUSL/6RH £34.88<br />
7-way, <strong>UK</strong> PDUSL/7RH £37.22<br />
8-way, <strong>UK</strong> PDUSL/8RH £39.88<br />
10-way, <strong>UK</strong> PDUSL/10RH £45.27<br />
12-way, <strong>UK</strong> PDUSL/12RH £50.30<br />
15-way, <strong>UK</strong> PDUSL/15RH £61.78<br />
16-way, <strong>UK</strong> PDUSL/16RH £63.75<br />
20-way, <strong>UK</strong> PDUSL/20RH £71.62<br />
24-way, <strong>UK</strong> PDUSL/24RH £92.07<br />
Left-hand <strong>UK</strong> Vertical<br />
4-way, <strong>UK</strong> PDUSL/4LH £29.73<br />
5-way, <strong>UK</strong> PDUSL/5LH £32.72<br />
6-way, <strong>UK</strong> PDUSL/6LH £34.88<br />
7-way, <strong>UK</strong> PDUSL/7LH £37.22<br />
8-way, <strong>UK</strong> PDUSL/8LH £39.88<br />
10-way, <strong>UK</strong> PDUSL/10LH £45.27<br />
12-way, <strong>UK</strong> PDUSL/12LH £50.30<br />
15-way, <strong>UK</strong> PDUSL/15LH £61.78<br />
16-way, <strong>UK</strong> PDUSL/16LH £63.75<br />
20-way, <strong>UK</strong> PDUSL/20LH £71.62<br />
24-way, <strong>UK</strong> PDUSL/24LH £92.07<br />
* See Buyer’s Guide for configuration of sockets<br />
• Mild steel construction.<br />
• Available in horizontal and vertical versions.<br />
• Easy to use, easy to install.<br />
• Cost effective solution.<br />
• Left- and Right-hand sockets make for easier cable management<br />
and tidier cabinets/racks.<br />
PDUT/4H<br />
PDUT/5H<br />
PDUT/6H<br />
Input<br />
Output<br />
The <strong>Black</strong> <strong>Box</strong> range of <strong>UK</strong> power strips provide a cost-effective<br />
method for providing power directly into cabinets and racks. All the<br />
PDUs in this range are provided with a 3m mains lead, terminated in a<br />
standard <strong>UK</strong>, 13-Amp mains plug.<br />
Available as either 1U, 2U or 3U horizontally mounted units, or<br />
available as right-hand cable exit or left-hand cable exit vertically<br />
mounted units to save space and provide ease of access for all mains<br />
cabling.<br />
Built from mild steel, all the <strong>UK</strong> PDUs come complete with fixing<br />
brackets built in. The Basic range also come with a suitable on/off<br />
switch complete with a neon light to show the status of the switch.<br />
These PDUs also include a built-in external metal stud to correctly bond<br />
the units to cabinets.<br />
<strong>Black</strong> <strong>Box</strong> Explains<br />
Left- and Right-Hand Cable Exits.<br />
For most people, a PDU will have<br />
standard straight cable exits, so that<br />
when your equipment is plugged in the<br />
power leads will always come out of the<br />
PDU at a 90 O angle. For a lot of<br />
applications, this is absolutely fine and<br />
doesn’t cause a problem.<br />
However, over the years we have<br />
discovered that there are many scenarios<br />
where this is not suitable or convenient,<br />
as the lack of bend in the cable —<br />
particularly where it joins the plug —<br />
will mean that the PDU cannot be<br />
pushed tight up against something to<br />
save space or keep things tidy.<br />
For instance, when running a PDU down the side of your cabinet<br />
there may not be sufficient space if the cables are not able to sit<br />
flush against the side (something that is not possible with a<br />
traditional standard PDU’s cable exit of 90 O ). By using a PDU with a<br />
left- or right-hand cable exit it is possible to eliminate this problem,<br />
as power leads will now leave the PDU at a 45 O angle, meaning that<br />
they can run alongside the edge of the PDU as well as not putting<br />
any strain on the connection where the lead meets the plug.<br />
Coming Soon...<br />
Our brand new guide to Environmental Monitoring,<br />
featuring 20 pages of complete products, solutions<br />
and how to implement them.<br />
Call our FREE 24/7 Tech support on 0118 965 6000 to find out more.<br />
i n f o @ b l a c k b o x . c o . u k • w w w. b l a c k b o x . c o . u k 5
Power Distribution Units<br />
Enhanced Power Distribution Units | Buyer’s Guide<br />
No. of C13<br />
Sockets<br />
No. of C19<br />
Sockets<br />
No. of <strong>UK</strong><br />
Sockets<br />
Max. Current U Size V. Height Phase<br />
Per Socket<br />
Monitoring<br />
Partcode<br />
1 - - 10A 1 - Single - PSE501-<strong>UK</strong><br />
4 - - 10A 1 - Single - PSE504-<strong>UK</strong><br />
4 - - 10A 1 - Single - PSE506-<strong>UK</strong><br />
4 - - 10A 1 - Single - PSE514-<strong>UK</strong><br />
4 - - 10A 1 - Single - PSE510MA-<strong>UK</strong><br />
4 - - 10A/Load 1 - Single - PSE518MA<br />
4 - - 10A/Load 1 - Single - PSE518SA<br />
8 - - 16A - - Single - PDU7921<br />
8 - - 16A - - Single ̌ PDU7921+<br />
12 4 6 32A - Long Single - PDU7903<br />
12 6 6 16A - Long 3Phase - PDU-3P7805<br />
12 6 6 32A - Long 3Phase - PDU-3P7806<br />
16 - - 32A - - Single - PDU7935<br />
16 4 4 16A - Long Single - PDU7801<br />
16 4 4 32A - Long Single - PDU7802<br />
20 4 - 16A - Long Single - PDU7901<br />
20 4 - 32A - Long Single - PDU7902<br />
20 4 - 16A - Long Single - PDU7851<br />
20 4 - 32A - Long Single - PDU7853<br />
20 4 - 16A - Long Single ̌ PDU7803<br />
20 4 - 32A - Long Single ̌ PDU7804<br />
21 3 - 16A - Long Single - PDU7951<br />
21 3 - 32A - Long Single - PDU7953<br />
<strong>Black</strong> <strong>Box</strong> Explains<br />
Remote Power Control.<br />
Simply put, remote power control is the ability to reset or reboot<br />
PC, LAN, telecom and other computer equipment without being at<br />
the equipment’s location.<br />
Who needs remote power control Any organisation with a<br />
network that reaches remote sites. When equipment locks up at<br />
remote sites, it’s usually up to the system manager at the<br />
headquarters to reset it. Remote power control enables the system<br />
manager to take care of problems at the office, saving travelling time<br />
and minimising downtime. This can be done with modems or existing<br />
or special phone lines. The ideal systems uses “out-of-band<br />
management”, an alternate path over an ordinary dialup line that<br />
doesn’t interfere with the network equipment.<br />
An effective remote power control systems incorporates the<br />
following:<br />
• An existing phone line, such as a line being used for a fax,<br />
modem or phone.<br />
• Transparent operation. The system shouldn’t interfere with or be<br />
affected by normal calls.<br />
• Security features. The system should prevent unauthorised access<br />
to network equipment.<br />
• Flexibility. System managers should be able to dial in from<br />
anywhere and control multiple devices with one call.<br />
6<br />
Te c h S u p p o r t 0 1 1 8 9 6 5 6 0 0 0 • S a l e s 0 1 1 8 9 6 5 6 1 5 0
Power Distribution Units<br />
Power Switch<br />
Remote power control over web or serial.<br />
Input<br />
Output<br />
• 1- or 4-port versions, IEC or countryspecific<br />
socket.<br />
• Each model can be controlled via a serial<br />
RS-232/V.34 interface or Web browser.<br />
• Auto-reboot feature based on “ping”<br />
monitoring.<br />
• High-quality switching electronics.<br />
• All units include 1.8-m <strong>UK</strong> 3-pin mains<br />
plug to C13 power cable.<br />
The Power Switch series provides remote<br />
control of power outlets. Each product in the<br />
series has a built-in Web server and Ethernet<br />
and a serial RS-232/V.24 connections. The<br />
on/off/reboot capability of these devices is<br />
ideal for rebooting locked-up servers or<br />
controlling the power distribution of<br />
electrical equipment via an intranet or over a<br />
LAN.<br />
Easy and flexible configuration<br />
Configuring the Power Switch is extremely<br />
simple and fast — just set an IP address and a<br />
password through the RS-232/V.24 serial port<br />
of a PC or directly over an IP LAN segment<br />
using a configuration tool (for selected<br />
models) You can freely assign a name to each<br />
socket and to the Power Switch itself in order<br />
to avoid any confusion during commands.<br />
After switching on or after a power failure,<br />
the Power Switch automatically restores its<br />
PSE504A-<strong>UK</strong><br />
configuration and the electrical state of the<br />
sockets according to the values saved in it’s<br />
non-volatile memory.<br />
Secure access for powerful command<br />
You can define a password to protect<br />
access to the Power Switch as well as being<br />
able to restrict Web access to an IP address<br />
table. Another feature, exclusive to the Power<br />
Switch, is that it automatically disconnects the<br />
user after two minutes of inactivity.<br />
The outlets can be controlled either<br />
interactively through a Web browser or via<br />
commands to be integrated in an applicaiton<br />
program.<br />
Applications<br />
There are many applications including,<br />
remote restart of servers, workstations and<br />
networking equipment, and switching on or<br />
off printers, lighting, heating etc...<br />
<strong>Black</strong> <strong>Box</strong> Explains<br />
PSE501A-<strong>UK</strong><br />
Server Re-Booting.<br />
When installing an intelligent PDU to<br />
ensure the remote re-booting of servers, it<br />
is critical to remember that the BIOS settings<br />
of each server or PC, need to be configured<br />
for the server to automatically<br />
power on when it receives power. Without<br />
this facility being switched on in BIOS, even<br />
intelligent PDUs will not be able to power<br />
up the servers, they will only be able to<br />
power them down.<br />
Connections:<br />
Inlets — All models: 230 VAC, 50Hz;<br />
PSE501-<strong>UK</strong>, PSE504-<strong>UK</strong>: (1) IEC 320 C14;<br />
PSE506-<strong>UK</strong>: (1) power cord<br />
Outlets — All models: 230 VAC, 50Hz;<br />
PSE501-<strong>UK</strong>: (1) IEC 320 C13;<br />
PSE504-<strong>UK</strong>: (4) IEC 320 C13;<br />
PSE506-<strong>UK</strong>: (4) country-specific AC sockets<br />
Max. Total Load — 10A<br />
Serial — (1) DB9 F, RS-232/V.24<br />
Network — All models: (1) RJ-45, 10BASE-T<br />
T E C H S P E C S Item Code Price<br />
Management:<br />
Indicators — All models: (1) LED Power ON/LAN activity,<br />
(1) per port power outlet status<br />
Security — User/admin rights, password, IP address<br />
table, configurable HTTP port, exclusive HTTP<br />
session, auto-logoff (timeout)<br />
Operation:<br />
Port Command and Control — Serial or over IP<br />
(HTTP); delayed reboot; default power-up state per<br />
port; PSE501-<strong>UK</strong>, PSE504-<strong>UK</strong>; automatic reboot by<br />
PING or port sacn timeout (configurable).<br />
Physical and Environmental:<br />
Operating Temperature — 0 to 50 O C<br />
Rackmount Kit — PSE506-<strong>UK</strong>: Included (1U)<br />
Power Switch Maverick<br />
1-Port Standalone PSE501-<strong>UK</strong> £278.00<br />
4-Port Standalone PSE504-<strong>UK</strong> £369.00<br />
4-Port, 19” Rackmountable<br />
PSE506-<strong>UK</strong> £353.00<br />
* See Buyer’s Guide for configuration of sockets<br />
For a closer look…see the Web,<br />
request datasheet: 40683<br />
Solution Profile<br />
Stay in bed<br />
A large web-based retail company were having problems with servers occasionally ‘hanging’ or<br />
‘freezing’ during the night. Engineers were being called out to go and restart the servers to ensure<br />
continued operation. The engineers were become increasingly frustrated at being dragged out of<br />
bed at 2.00 am to go and restart a server for five minutes. The customer already had a <strong>Black</strong> <strong>Box</strong><br />
KVM solution installed, which gave remote access, however, this did not help when a server had<br />
locked up.<br />
<strong>Black</strong> <strong>Box</strong> recommended the Secure Power Switch. This eight port, dual-fed, IP controlled PDU<br />
provided a secure IP link via SSL, allowing the engineers to connect and communicate with each<br />
PDU, and to re-boot servers that had crashed. After logging in through an http page, a user name<br />
and password would be entered by the engineer, which would denote which power ports, and<br />
therefore which servers, that particular engineer had access rights to. As well as saving a lot of time,<br />
the PDU also saved all the travelling costs associated with engineer’s journeys, and provided an<br />
in-band solution that integrated with the existing KVM solution. Now the engineers need only to<br />
log in to the KVM system, and each server can be controlled through the one interface. Simplicity in<br />
action.<br />
i n f o @ b l a c k b o x . c o . u k • w w w. b l a c k b o x . c o . u k 7
Power Distribution Units<br />
Secure Power Switch<br />
Control the power in your data centre from anywhere with highest security.<br />
Input<br />
Output<br />
• Secure remote power control over IP with SSL encryption or<br />
through RS-232/V.24 or RS-485 port.<br />
• Controls 8 devices per unit or up to 136 devices as a<br />
cascaded system.<br />
• Dual input and twin output control for redundant power supply<br />
systems.<br />
• PING and port scan-based auto-reboot.<br />
• Warnings and alarms over e-mail.<br />
• Built-in scheduler with SNTP-synchronised clock.<br />
PSE518MA<br />
The new Secure Power Switch is the secure solution for applications<br />
in which you need to control power remotely. It offers HTTPS control<br />
from its built-in Web server and 10/100 Ethernet connection, plus serial<br />
control through the RS-232/V.24 or RS-485 ports (only for Satellite<br />
units). The On/Off/Reboot functions are ideal for restarting crashed<br />
servers or networking equipment (routers, switches) that no longer<br />
respond, as well as remotely controlling the power of virtually any<br />
device.<br />
The Secure Power Switch is a scalable system that you can expand<br />
up to 136 ports (1 Master and 16 Satellites). Each unit supports a<br />
maximum load of 2x10A through its 2 inputs. You can control the<br />
outputs in pairs (or higher amounts) - ideal for equipment using<br />
redundant power supplies.<br />
Installation and setup in a few minutes<br />
You can do the network configuration of the Master unit over your<br />
LAN using the dedicated Windows ® Finder tool or serially over the RS-<br />
232/V.24 port with terminal emulation software. It is very fast and easy.<br />
You can custom label each unit and assign a user-defined name to each<br />
port. The configuration is saved in a nonvolatile internal memory.<br />
Plenty of control options<br />
You can control each port individually, or assign it to one or more<br />
groups for simultaneous command. A group can contain different<br />
ports on different units that are interconnected.<br />
The switch enables you to monitor IP hosts, either using the ICMP<br />
PING protocol or a port scan. If the queried device doesn’t respond<br />
after a predefined amount of attempts or wait time, the switch can<br />
reboot the appropriate output.<br />
You can connect external temperature and humidity sensors to the<br />
power switch, and the administrator can define different rules for<br />
turning on or off certain outputs based on the measured<br />
environmental changes. The switch supports a total of 255 rules per<br />
system.<br />
Each port can turn on and off scheduled events, based on the builtin<br />
real-time clock, which can be periodically synchronised with up to<br />
two different (one primary and one backup) external time references<br />
over the SNTP protocol.<br />
You can also use eight dry contact inputs to create power control<br />
rules based on events and alerts generated by third-party products<br />
compatible with the dry contact electrical interface. Four dry-contact<br />
outputs can control external appliances based on changes on the<br />
power status.<br />
For applications where no IP control is required, use one or more<br />
cascaded satellites to build a system with up to 128 outputs, which can<br />
be controlled over RS-232/V.24 or RS-485 terminal connection with a<br />
PC, KVM switch or console server.<br />
Secure as a Swiss bank<br />
For maximum security, the switch can be accessed through HTTPS,<br />
an SSL-encrypted IP connection. An administrator account is built-in<br />
and up to 8 additional users can be defined, each having a password<br />
and a list of allowed outputs or groups for remote control. Each<br />
power-related event is logged internally and can also be sent<br />
simultaneously to up to two external syslog servers.<br />
The master unit has triple redundancy for the power supply system<br />
of the built-in electronics.<br />
Connections:<br />
Inputs — PSE514-<strong>UK</strong>: (1) IEC320 C14;<br />
PSE518MA/SA: (2) IEC320 C14<br />
Outputs — PSE514-<strong>UK</strong>: (4) IEC320 C13;<br />
PSE518MA/SA: (8) IEC320 C13<br />
Serial — PSE518MA/SA: (1) DB9 F,<br />
RS-232/V.24<br />
Cascade — PSE518MA: (1) RJ-45 F,<br />
RS-485; PSE518SA: (2) RJ-45 F, RS-485<br />
Network — PSE514-<strong>UK</strong>, PSE518MA: (1)<br />
RJ-45 F 10BASE-T/100BASE-TX<br />
autosense<br />
Other — PSE514-<strong>UK</strong>: (1) terminal block<br />
with 4 dry contact inputs;<br />
PSE518MA: (1) DB25 F with 8 drycontact<br />
inputs and 4 outputs;<br />
PSE518SA: (1) 2.4 mm jack for<br />
external PSU<br />
Engine:<br />
Power Switching Circuit — Only the<br />
live wire<br />
Power Switching Logic —<br />
Microprocessor controlled,<br />
proprietary<br />
Power Switching System — Relaybased,<br />
in-rush current: 120A / 20 ms<br />
T E C H S P E C S<br />
Management:<br />
Indicators — (2) input status, (8)<br />
output status, (1) Ethernet speed (10<br />
or 100 Mbps), (1) LAN activity, (4) dry<br />
contact output status<br />
Configuration and Operation:<br />
Port Command and Control — Over<br />
IP (HTTP or HTTPS) for the Master<br />
and Serial RS-232/V.24 or RS-485 for<br />
the satellite(s); automatic reboot by<br />
PING or port scan timeout<br />
(configurable); delayed reboot<br />
scheduler<br />
Users — (1) Admin, (225) Users handled<br />
by the Master Unit<br />
Security — User password, SSLencrypted<br />
HTTPS session, automatic<br />
logoff (timeout)<br />
Environmental:<br />
Chassis — Metal case<br />
Convection — No cooling required,<br />
passive<br />
Humidity — 10 to 80% noncondesing<br />
Operating Temperature — 0 to 40 O C<br />
Rackmount Kit — Included<br />
Dimensions —<br />
43.7(H) x 10.7(W) x 4.2(D) cm<br />
Weight — 2kg<br />
Item Code Price<br />
Secure Power Switch 4 PSE514-<strong>UK</strong> £774.00<br />
Secure Power Switch Master PSE518MA £985.00<br />
Secure Power Switch Satellite PSE518SA £527.00<br />
Remote Temperature Sensor PSE518-T £138.00<br />
Remote Temperature/Humidity Sensor<br />
PSE518-TH £204.00<br />
I/O Extension Board PSE518-IO £123.00<br />
Cable Manager, Horizontal PSE500-CMH £36.63<br />
Cable Manager, Wallmount PSE500-CMW £36.63<br />
For a closer look…see the Web, request datasheet: 40721<br />
8<br />
Te c h S u p p o r t 0 1 1 8 9 6 5 6 0 0 0 • S a l e s 0 1 1 8 9 6 5 6 1 5 0
Power Distribution Units<br />
Power Switch Twin Plus<br />
Cascadable remote power switch with auto-reboot.<br />
Input<br />
Output<br />
• Two IEC320 inputs and 2 x 4 IEC320 outputs.<br />
• Control the outputs via RS-232/V.24 or IP (HTTP).<br />
• Cascadable up to 40 ports.<br />
• Monitors and automatically restarts the attached servers and<br />
appliances.<br />
Power Switch Twin Plus is a power distribution and control unit that<br />
enables remote power management of eight devices over an intranet,<br />
the internet or locally through an RS-232/V.24 serial connection. The<br />
number of controlled power outlets can be extended up to 40 by<br />
cascading up to four Secure Power Switch Satellite (PSE518SA) models.<br />
Connections:<br />
Power Input — (2) IEC320 C14<br />
Power Output — (8) IEC320 C13<br />
Serial Management & Control —<br />
(1) DB9 F, RS-232/V.24<br />
Network Management & Control —<br />
(1) RJ-45 F, 10BASE-T<br />
Connection Bus — (1) RJ-45 F, RS-485<br />
Engine:<br />
Input Voltage — 230 VAC nominal<br />
Input Frequency — 50 Hz nominal<br />
Output Voltage — 230 VAC nominal<br />
Output Frequency — 50 Hz nominal<br />
Max. Total Load — 2 x 10A<br />
Max. Inrush Current — 120A / 25ms<br />
Power Switching — Realy-based, only<br />
for live wire<br />
Control Logic — Proprietary system<br />
Features — Delayed reboot, per port<br />
default power-up state, automatic<br />
reboot by PING or port scan timeout<br />
(configurable)<br />
Management:<br />
Indicators — (1) input status per input,<br />
(1) output status per output, (1) LAN<br />
speed, (1) power, (4) satellite<br />
connection status<br />
T E C H S P E C S<br />
Setup and Configuration —<br />
Windows ® configuration tool,<br />
RS-232/V.24 serial via terminal<br />
emulation, HTTP via web browser<br />
Output Control — RS-232/V.24, HTTP<br />
Features — Delayed rebbot, default<br />
power-up state, automatic reboot<br />
based on ping (ICMP echo request) or<br />
port scan timeout<br />
Notification and Alerts — Syslog<br />
Security — User/password protected<br />
access, admin/user, up to 40 users, IP<br />
address filtering, configurable HTTP<br />
port, auto-logoff<br />
Other Features — DHCP client<br />
Physical and Environmental:<br />
Power Supply — Internal, redundant<br />
Dimensions —<br />
10.7(H) x 43.7(W) x 4.2(D) cm<br />
Weight — 2 kg<br />
Operating Temperature Range —<br />
0 to 40 O C<br />
Operating Humidity Range —<br />
10 to 80% relative humidity,<br />
non-condensing<br />
Enclosure — Metal<br />
Convection — Passive<br />
For a closer look…see the Web, request datasheet: 42111<br />
Item Code Price<br />
Power Switch Twin Plus PSE510MA-<strong>UK</strong> £588.00<br />
* See Buyer’s Guide for configuration of sockets<br />
<strong>Black</strong> <strong>Box</strong> Explains<br />
Power problems.<br />
Threat Cause Effect<br />
Sags<br />
A sag is a decline in the voltage level. Also<br />
known as “brownouts”, sags are the most<br />
common power problem.<br />
<strong>Black</strong>outs<br />
A blackout is a total loss of power.<br />
Spikes<br />
A spike, also called an impulse, is an<br />
instantaneous, dramatic increase in<br />
voltage.<br />
Surges<br />
A surge is an increase in voltage lasting<br />
at least 1/120 of a second.<br />
Sags can be caused locally by the sart-up<br />
demands of electrical devices such as motors,<br />
compressors and elevators.<br />
Sags may also happen during periods of high<br />
electrical use, such as during a heat wave.<br />
<strong>Black</strong>outs are caused by excessive demand on<br />
the power grid, an act of nature such as<br />
lightning or an earthquake, or a human<br />
accident such as a car hitting a pylon or a<br />
backhoe digging in the wrong place.<br />
A spike is usually caused by a nearby<br />
lightning strike but may also occur when<br />
power is restored after a blackout.<br />
When high-powered equipment such as an<br />
air conditioner is powered off, the excess<br />
voltage is dissipated through the power line,<br />
causing a surge.<br />
Sags are often the cause of “unexplained”<br />
computer glitches such as system crashes.<br />
frozen keyboards and data loss.<br />
Sags can also reduce the efficiency and lifespan<br />
of electrical motors.<br />
Of course a blackout brings everything to a<br />
complete stop. You also lose any unsaved data<br />
stored in RAM and may even lose the total<br />
contents of your hard drive.<br />
A spike can damage or completely destroy<br />
electrical components and also cause data loss.<br />
Surges stress delicate electronic components,<br />
causing them to wear out before their time.<br />
Noise<br />
Electrical noise, more technically called<br />
electromagnetic interference (EMI) and<br />
radio frequency interference (RFI), interrupts<br />
the smooth sine wave expected from<br />
electrical power.<br />
Noise has many causes, including nearby<br />
lightning, load switching, industrial<br />
equipment and radio transmitters. It may<br />
be intermittent or chronic.<br />
Noise introduces errors into programs and data<br />
files.<br />
i n f o @ b l a c k b o x . c o . u k • w w w. b l a c k b o x . c o . u k 9
Power Distribution Units<br />
Enhanced <strong>UK</strong> Power Strips<br />
Get your power to where it needs to be, control and monitor it!<br />
• Full SNMP support.<br />
• Easy to use, easy to install.<br />
Available Inputs<br />
• Network manageable with built-in GUI.<br />
• Mild steel construction.<br />
• 16A or 32A options available.<br />
• 16A have a built-in neon light.<br />
• Monitors Volts, Amps and KWh.<br />
• Available in Single-Phase or 3Phase options.<br />
• 24 hour statistics available for download through XML or SNMP.<br />
Available Outputs<br />
The new enhanced range of <strong>Black</strong> <strong>Box</strong> PDUs offer the ability to<br />
monitor power consumption, on a per port and per PDU basis.<br />
Rather than assuming how much energy is consumed, you can now<br />
be sure by confirming, through the PDU, how many volts are being<br />
used and how many Amps are being drawn at any time. The PDU also<br />
stores the information and can export the data into SNMP or XML<br />
formats, producing graphs of usage over a 24 hour period, including<br />
the accumulated KWh value.<br />
For hosting companies this means that you can monitor customer’s<br />
cabinets to ensure you are providing the correct Amps/KWh, and that<br />
any additional equipment added into your customers cabinets can be<br />
planned for and managed. This may open up a new revenue stream by<br />
being able to accurately bill customers for their power consumption.<br />
For customers using third party hosting companies, you can confirm<br />
that the power you are paying for is provided and that the billing<br />
information is correct. You never need pay too much for your power<br />
again.<br />
For remote lights out data centres, you can confirm that the power<br />
is being provided correctly, assess the running costs of the site and also<br />
provide confirmation that the correct power has been provided for all<br />
your servers etc…<br />
Accessible through a 10/100Mbps Ethernet connection, presented<br />
on an RJ45 female, the unit is not password protected.<br />
All the PDUs in this range are provided with a 3m lead, terminated<br />
in a standard 16A or 32A BS4343 2P+E commando connector. These<br />
PDUs are ideal for large server or communication racks where Current<br />
(A) monitoring and remote alarms are a requirement. Monitoring is<br />
provided via an integrated RJ-45 connection using TCP/IP. An inbuilt<br />
web based GUI with HTTP/SNMP can provide either an XML or SNMP<br />
output. The SNMP MiB is downloaded directly from the PDU itself. No<br />
additional hardware or software is required.<br />
These PDUs come with both tool-less fixings as well as standard<br />
fixing wings. Built from mild steel, the enhanced range of up to 16<br />
Amps also come with a suitable on/off switch complete with a neon<br />
light to show the status of the switch. The 32 Amp PDUs so not have an<br />
on/off switch, but still feature a neon light to show the status. All the<br />
enhanced PDUs also include a built-in external metal earth stud to<br />
correctly bond the units to cabinets.<br />
Standards<br />
BS 7671: 16th Edition “Requirements for Electrical Installation”<br />
BS 60950:2006 “ Information Technology Equipment - Safety”<br />
BS5733:1995 “ General Requirements for Electrical Accessories”<br />
Item Code Price<br />
24-Way C13/C19, 16A, Vertical PDU7851 £308.50<br />
24-Way C13/C19, 32A, Vertical PDU7853 £333.50<br />
24-Way C13/C19/<strong>UK</strong>, 16A, Vertical PDU7801 £383.50<br />
24-Way C13/C19/<strong>UK</strong>, 32A, Vertical PDU7802 £399.00<br />
24-Way C13/C19/<strong>UK</strong>,16A, Vertical with per socket monitoring PDU7803 £535.00<br />
24-Way C13/C19/<strong>UK</strong>, 32A, Vertical with per socket monitoring PDU7804 £533.50<br />
24-Way C13/C19/<strong>UK</strong>, 32A, Vertical, 3Phase PDU-3P7805 £341.70<br />
24-Way C13/C19/<strong>UK</strong>, 32A, Vertical, 3Phase PDU-3P7806 £366.70<br />
* See Buyer’s Guide for configuration of sockets<br />
10<br />
Te c h S u p p o r t 0 1 1 8 9 6 5 6 0 0 0 • S a l e s 0 1 1 8 9 6 5 6 1 5 0
Power Distribution Units<br />
The world’s premier technical support!<br />
If you still can’t find what you’re after<br />
Despite our huge range of options, you still might not be able to find the PDU you are after. If this<br />
is the case, don’t despair as we may still be able to source it for you or even make it ourselves! Call our<br />
FREE 24/7 Tech Support on 0118 965 6000 today, or email us at techsupport@blackbox.co.uk, and<br />
one of our experts will be on hand to help you with your requirements.<br />
Solution Profile<br />
The host with the most<br />
A small, third-party hosting company were having problems with supplying the right amount of<br />
power into one of their customer’s cabinets. They had agreed to supply a 2KVA power feed, but the<br />
electronic circuit relays seemed to keep tripping for no apparent reason, so they asked <strong>Black</strong> <strong>Box</strong> to<br />
provide some consultancy to solve the issue. <strong>Black</strong> <strong>Box</strong> installed an intelligent IP controlled PDU<br />
with power monitoring facilities built-in.<br />
The hosting company discovered that although the original customer’s requirement had been for<br />
2KVA, more equipment had been installed out of hours into the customer’s cabinet which took the<br />
power requirement up to 2.5KVA. The end customer had not requested the additional power feed<br />
to supply the extra equipment and so the extra load was causing the cirucit breakers to trip out at<br />
peak load. The hosting company were able to upgrade the power feed to 3KVA, and this solved the<br />
problem. As a result of the accuracy of the power metering, they were able to bill the customer for<br />
the correct amount of power and are now able to interactively monitor all their customer’s cabinets<br />
to ensure the correct power feeds are supplied and the correct billing information is invoiced.<br />
Your single source for CAT5e and CAT6<br />
bulk copper cabling, from just £24.99<br />
per 305m box.<br />
From £24.99<br />
From £42.99<br />
Just £29.99<br />
Just £54.99<br />
Prices correct at time of going to print, but may vary in future.<br />
i n f o @ b l a c k b o x . c o . u k • w w w. b l a c k b o x . c o . u k 11
Power Distribution Units<br />
IP Controlled PDUs<br />
Get your power where it needs to be — and control it!<br />
Available Inputs<br />
Available Outputs<br />
• Local and Remote Monitoring.<br />
• Monitors for Total PDU Current (Amps).<br />
• Individual User Login.<br />
• Built-in SNMP.<br />
• Outputs SNMP and XML reports.<br />
• Aggregate PDU Current (Amps) Monitoring.<br />
• Aggregate PDU Power Monitoring (Volts / Amps / Power Factor &<br />
KW/hrs*).<br />
• Per Socket Control (On/Off / Timed Delayed / Reboot & Sequential<br />
Start-up).<br />
• Per Socket Monitoring (Amps)*.<br />
• Automated alarms with thresholds for High/Low values of each<br />
monitored component using e-mail and SNMP.<br />
• Support of public and private SNMP with Get/Set & Trap<br />
commands.<br />
• Support for viewing with a PDA and through a WAP enabled<br />
device.<br />
* Some models only<br />
The Enhanced IP Controlled PDU range offers the ability to control<br />
power on a per port basis, all from the built-in web based GUI, support<br />
HTTP. The range offers the ability to power cycle each port (Off / On /<br />
Time Delayed / Reboot and Sequence start up) as well as offer power<br />
monitoring – all from a web browser.<br />
These PDUs also offer the ability monitor power consumption, on a<br />
per port and per PDU basis.<br />
Rather than assuming how much energy is consumed, you can now<br />
be sure by confirming through the PDU, how many volts are being<br />
used and how many Amps are being drawn at any time. The PDU also<br />
stores the information and can export the data into SNMP or XML<br />
formats, producing graphs of usage over a 24 hour period, including<br />
the accumulated KWh value.<br />
The PDU offers three levels of access which are identified by<br />
entering a user name and a password:<br />
- Viewer, User and an Administrator<br />
- Viewer – Can view the current, voltage and KWh of the PDU<br />
- User – Can view as above and also control each PDU socket<br />
Administrator – Can View as above, and control each PDU socket as<br />
per the User, and in addition can set up the users, network settings and<br />
SNMP settings.<br />
These options are accessible through a 10/100Mbps Ethernet<br />
connection, presented on an RJ45 female.<br />
Item Code Price<br />
Horizontal<br />
8-Way C13, 16A, Horizontal PDU7921 £500.00<br />
8-Way C13, 32A, Horizontal with per socket monitoring<br />
PDU7921+ £550.00<br />
Vertical<br />
24-Way C13/C19, 16A, Vertical PDU7951 £785.00<br />
24-Way C13/C19, 32A, Vertical PDU7953 £800.00<br />
24-Way C13/C19,16A, Vertical PDU7901 £770.00<br />
24-Way C13/C19, 32A, Vertical PDU7902 £785.00<br />
22-Way C13/C19/<strong>UK</strong>, 32A, Vertical<br />
PDU7903 £785.00<br />
* See Buyer’s Guide for configuration of sockets<br />
12<br />
Te c h S u p p o r t 0 1 1 8 9 6 5 6 0 0 0 • S a l e s 0 1 1 8 9 6 5 6 1 5 0
Power Distribution Units<br />
Enhanced IP Controlled Switchable PDUs | Buyer’s Guide<br />
No. Of C13 Sockets Max. Current U Size V. Height Phase Partcode<br />
8 16A 1 - Single PSIH-8-16<br />
12 16A 0 Medium Single PSIV-12-16<br />
20 16A 2 - Single PSIH-20-16<br />
20 16A 0 Long Single PSIV-20-16<br />
20 32A 2 - Single PSIH-20-32<br />
20 32A 0 Long Single PSIV-20-32<br />
Enhanced IP Controlled Switchable PDUs<br />
Improve uptime, capacity planning and power use efficiency.<br />
Inputs Available Output<br />
• Metering of each outlet and the complete<br />
PDU.<br />
• Remote access and switching via web<br />
browser.<br />
• Secure access through 256-bit AES<br />
encryption.<br />
• Staggered power switching to relieve<br />
surges.<br />
• Power consumption monitoring through<br />
the LCD screen.<br />
• Warranty — 1 Year.<br />
PSIV-12-16<br />
The new <strong>Black</strong> <strong>Box</strong> range of intelligent power distribution units<br />
give you the ability to manage all your power requirements from the<br />
comfort of your desk. These PDU's have an IP browser interface builtin,<br />
allowing the user to switch on, switch off or power cycle each<br />
socket individually. Featuring both serial access as well as IP access,<br />
these PDU's give you the connectivity and control you need. But more<br />
than that, these PDU's also feature real time power usage display<br />
through both the built-in LCD screen via push buttons, and via the web<br />
browser interface. Information on voltage, current drawn etc is<br />
available on a per port, and a per PDU basis. This information can really<br />
improve capacity planning with in both the individual cabinet, and<br />
throughout the entire data centre, simplifying the process of ensuring<br />
adequate power supply and also providing remote access. By<br />
employing a user configurable time delay per port, a PDU can<br />
intelligently avoid brown-outs and black-outs. This feature can also be<br />
used to provide power sequencing to a cabinet or rack.<br />
Security<br />
To reassure the data centre manager, access to the web browser<br />
interface is protected by 256-bit AES encryption and strong passwords.<br />
These PDU's also support advanced external permission management<br />
by employing LDAP/S, RADIUS, and Active Directory ® , where required.<br />
The browser interface supports HTTP, HTTPS, IPMI, SMASH-CLP, SH,<br />
Telnet and SNMP.<br />
Applications<br />
• Servers can be re-booted remotely - eliminating the need for<br />
travel to the data centre.<br />
• Power utilisation figures simplify the task of managing power<br />
distribution within the cabinet and data centre.<br />
• Configurable alarm parameters can be set on a per port purchase.<br />
• Individual user rights, secure access on a per port basis.<br />
Other options available, please contact us for more information.<br />
Item Code Price<br />
Enhanced IP Controlled Switchable PDUs<br />
1U Horizontal PDU-8, 16 Amp<br />
PSIH-8-16<br />
CALL<br />
2U Horizontal PDU-20, 16 Amp<br />
PSIH-20-16<br />
CALL<br />
2U Horizontal PDU-20, 32 Amp<br />
PSIH-20-32<br />
CALL<br />
0U Vertical PDU-12, 16 Amp<br />
PSIV-12-16<br />
CALL<br />
0U Vertical PDU-20, 16 Amp<br />
PSIV-20-16<br />
CALL<br />
0U Vertical PDU-20, 32 Amp<br />
PSIV-20-32<br />
CALL<br />
* See Buyer’s Guide for configuration of sockets<br />
T E C H S P E C S<br />
Controllable Outlets — PSIH-8-16: (8) IEC 60320 C13; PSIH-20-16: (20) IEC 60320<br />
PSIH-20-32: (20) IEC 60320 C13; PSIH-8-16: (8) IEC 60320 C13; PSIV-12-16: (12) IEC<br />
60320 C13; PSIV-20-16: (20) IEC 60320 C13; PSIV-20-32: (20) IEC 60320 C13<br />
Input Voltage — 230VAC, 1PH<br />
Maximum Amperage — PSIH-20-32, PSIV-20-32: 32 Amps;<br />
PSIH-8-16, PSIH-20-16, PSIV-12-16, PSIV-20-16: 16 Amps<br />
Rack Space — PSIH-20-16, PSIH-20-32: 2U, PSIH-8-16: 1U,<br />
PSIV-12-16, PSIV-20-16, PSIV-20-32: Zero U<br />
Plug Type — IEC60309 6H-P<br />
Dimensions — PSIH-8-16: 4.4(H) x 44(W) x 16.7(D) cm,<br />
PSIH-20-16: 8.8(H) x 44(W) x 27.4(D) cm, PSIH-20-32: 8.8(H) x 44(W) x 27.4(D) cm,<br />
PSIV-12-16: 125.3(H) x 5.7(W) x 5(D) cm, PSIV-20-16: 179.8(H) x 5.7(W) x 5(D) cm,<br />
PSIV-20-32: 186.9(H) x 5.7(W) x 5(D) cm<br />
Weight — PSIH-8-16, PSIH-20-16: 3.6 kg, PSIH-20-32: 6.08 kg, PSIV-12-16: 3.48 kg,<br />
PSIV-20-16: 5.08 kg, PSIV-20-32: 5.36 kg<br />
See our full range of<br />
››<br />
PDUs online at<br />
www.blackbox.co.uk.<br />
i n f o @ b l a c k b o x . c o . u k • w w w. b l a c k b o x . c o . u k 13
Why choose <strong>Black</strong> <strong>Box</strong><br />
1<br />
2<br />
3<br />
4<br />
5<br />
Over thirty years experience<br />
The industry’s experts for more than three decades.<br />
Expert Tech Support<br />
Free 24/7/365 Tech Support by phone and on-line.<br />
Multiple locations<br />
Global coverage with a local focus.<br />
Wide product range<br />
More than 12,000 off-the-shelf products, plus custom products.<br />
The Best warranties<br />
Guarantees for complete satisfaction on products and services.<br />
w w w . b l a c k b o x . c o . u k<br />
464 Basingstoke Road<br />
Reading<br />
Berkshire<br />
RG2 0BG<br />
Tech Support: 0118 965 6000<br />
Sales: 0118 965 6150<br />
Installation: 0118 965 6088<br />
Email: info@blackbox.co.uk
