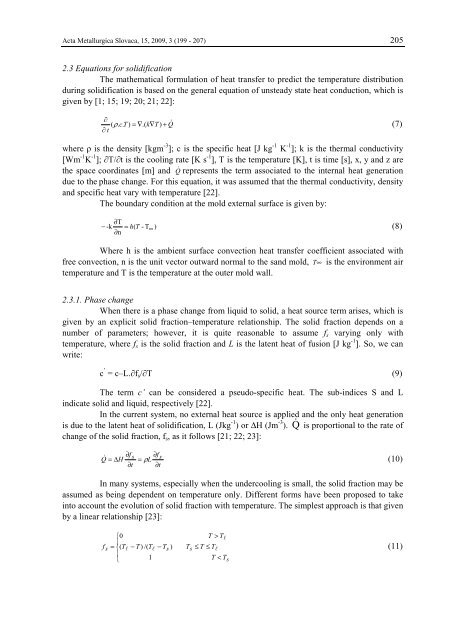

<strong>Acta</strong> Metallurgica Slovaca, 15, 2009, 3 (<strong>199</strong> - 207) 205<br />
2.3 Equations for <strong>solidification</strong><br />
The <strong>mathematical</strong> formulation <strong>of</strong> heat transfer to predict the temperature distribution<br />
during <strong>solidification</strong> is based on the general equation <strong>of</strong> unsteady state heat conduction, which is<br />
given by [1; 15; 19; 20; 21; 22]:<br />
∂ ( ρ . c.<br />
T ) = ∇.(<br />
k∇T<br />
) + Q&<br />
(7)<br />
∂ t<br />
where ρ is the density [kgm -3 ]; c is the specific heat [J kg -1 K -1 ]; k is the thermal conductivity<br />
[Wm -1 K -1 ]; ∂T/∂t is the cooling rate [K s -1 ], T is the temperature [K], t is time [s], x, y <strong>and</strong> z are<br />
the space coordinates [m] <strong>and</strong> Q & represents the term associated to the internal heat generation<br />
due to the phase change. For this equation, it was assumed that the thermal conductivity, density<br />
<strong>and</strong> specific heat vary with temperature [22].<br />
The boundary condition at the <strong>mold</strong> external surface is given by:<br />
∂T<br />
− -k = h ( T - T∞<br />
)<br />
(8)<br />
∂n<br />
Where h is the ambient surface convection heat transfer coefficient associated with<br />
free convection, n is the unit vector outward normal to the s<strong>and</strong> <strong>mold</strong>, T ∞ is the environment air<br />
temperature <strong>and</strong> T is the temperature at the outer <strong>mold</strong> wall.<br />
2.3.1. Phase change<br />
When there is a phase change from liquid to solid, a heat source term arises, which is<br />
given by an explicit solid fraction–temperature relationship. The solid fraction depends on a<br />
number <strong>of</strong> parameters; however, it is quite reasonable to assume f s varying only with<br />
temperature, where f s is the solid fraction <strong>and</strong> L is the latent heat <strong>of</strong> fusion [J kg -1 ]. So, we can<br />
write:<br />
c ’ = c–L.∂f s /∂T (9)<br />
The term c’ can be considered a pseudo-specific heat. The sub-indices S <strong>and</strong> L<br />
indicate solid <strong>and</strong> liquid, respectively [22].<br />
In the current system, no external heat source is applied <strong>and</strong> the only heat generation<br />
is due to the latent heat <strong>of</strong> <strong>solidification</strong>, L (Jkg -1 ) or ∆H (Jm -3 ). Q & is proportional to the rate <strong>of</strong><br />
change <strong>of</strong> the solid fraction, f s , as it follows [21; 22; 23]:<br />
f f<br />
Q & ∂<br />
H<br />
s ∂<br />
= ∆ = ρL<br />
s<br />
(10)<br />
∂t<br />
∂t<br />
In many systems, especially when the undercooling is small, the solid fraction may be<br />
assumed as being dependent on temperature only. Different forms have been proposed to take<br />
into account the evolution <strong>of</strong> solid fraction with temperature. The simplest approach is that given<br />
by a linear relationship [23]:<br />
f s<br />
⎧0<br />
⎪<br />
= ⎨(<br />
Tl<br />
⎪<br />
⎩<br />
− T ) /( Tl<br />
− Ts<br />
)<br />
1<br />
T > Tl<br />
Ts<br />
≤ T ≤ Tl<br />
T < Ts<br />
(11)
