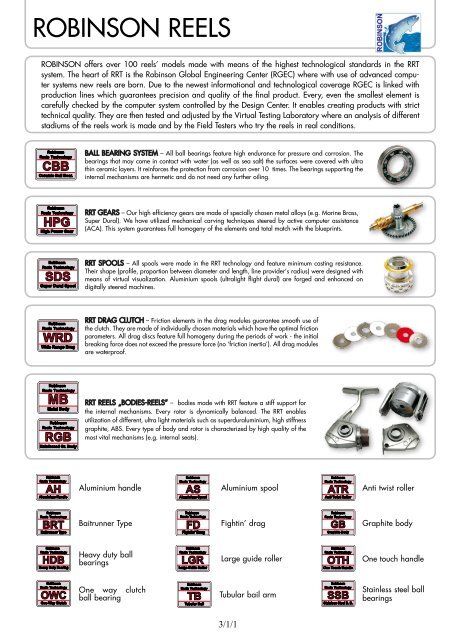

<strong>ROBINSON</strong> <strong>REELS</strong><br />
<strong>ROBINSON</strong> offers over 100 reels’ models made with means of the highest technological standards in the RRT<br />
system. The heart of RRT is the Robinson Global Engineering Center (RGEC) where with use of advanced computer<br />
systems new reels are born. Due to the newest informational and technological coverage RGEC is linked with<br />
production lines which guarantees precision and quality of the final product. Every, even the smallest element is<br />
carefully checked by the computer system controlled by the Design Center. It enables creating products with strict<br />
technical quality. They are then tested and adjusted by the Virtual Testing Laboratory where an analysis of different<br />
stadiums of the reels work is made and by the Field Testers who try the reels in real conditions.<br />
Ball Bearing System – All ball bearings feature high endurance for pressure and corrosion. The<br />
bearings that may come in contact with water (as well as sea salt) the surfaces were covered with ultra<br />
thin ceramic layers. It reinforces the protection from corrosion over 10 times. The bearings supporting the<br />
internal mechanisms are hermetic and do not need any further oiling.<br />
RRT Gears – Our high efficiency gears are made of specially chosen metal alloys (e.g. Marine Brass,<br />
Super Dural). We have utilized mechanical carving techniques steered by active computer assistance<br />
(ACA). This system guarantees full homogeny of the elements and total match with the blueprints.<br />
RRT Spools – All spools were made in the RRT technology and feature minimum casting resistance.<br />
Their shape (profile, proportion between diameter and length, line provider’s radius) were designed with<br />
means of virtual visualization. Aluminium spools (ultralight flight dural) are forged and enhanced on<br />
digitally steered machines.<br />
RRT Drag Clutch – Friction elements in the drag modules guarantee smooth use of<br />
the clutch. They are made of individually chosen materials which have the optimal friction<br />
parameters. All drag discs feature full homogeny during the periods of work - the initial<br />
breaking force does not exceed the pressure force (no ‘friction inertia’). All drag modules<br />
are waterproof.<br />
RRT Reels „Bodies-Reels” – bodies made with RRT feature a stiff support for<br />
the internal mechanisms. Every rotor is dynamically balanced. The RRT enables<br />
utilization of different, ultra light materials such as superduraluminium, high stiffness<br />
graphite, ABS. Every type of body and rotor is characterized by high quality of the<br />
most vital mechanisms (e.g. internal seats).<br />
Aluminium handle<br />
Aluminium spool<br />
Anti twist roller<br />
Baitrunner Type<br />
Fightin’ drag<br />
Graphite body<br />
Heavy duty ball<br />
bearings<br />
Large guide roller<br />
One touch handle<br />
One way clutch<br />
ball bearing<br />
Tubular bail arm<br />
Stainless steel ball<br />
bearings<br />
3/1/1
Front drag spinning reels<br />
Spinning reels should, first of all, be highly durable – from the rotor and bail to the handle. During the<br />
haul, with every opening and closing, these elements are exposed to heavy loads. Robinson engineers<br />
used the most durable Japanese elements when designing models of this series. Excellent fitting and<br />
support with the means of ball bearings resulted in top quality and durability. The Robinson spinning<br />
reels are combination of durability and perfection. The best 2013 proposition!<br />
PROFFI 306<br />
Proffi is the first model of Van Den Eynde Robinson Team series.<br />
Together with highest quality tournament pole rods, seats and accessories<br />
is sold by our company across Europe. Proffi is an outstanding<br />
quality reel, the best choice for many fishing styles. It is not to large, and<br />
astonishing lightweight. Innovative technical solutions of handle gives<br />
comfort and ergonomics. Other feature are: very precise front drag,<br />
wide line roller and modern bail arm. The reel comes with 2 aluminum<br />
spools of different capacities + 1 graphite spare spool.<br />
5 ball bearings • one way ball bearing • body and rotor made of „Reny<br />
Mitsubishi” Japanese graphite • Aluminum handle • soft rubber knob • 2 aluminum<br />
main spools with different capacities • graphite spare spool • Multipoint<br />
drag system<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23P-VD-P20 206 5+1 0,20 mm – 180 m 0,18 mm – 150 m 5,2:1<br />
23P-VD-P25 256 5+1 0,25 mm – 175 m 0,20 mm – 200 m 5,2:1<br />
23P-VD-P30 306 5+1 0,30 mm – 165 m 0,23 mm – 170 m 5,2:1<br />
Slim type body<br />
Aluminum spare spool.<br />
Metalized graphite spare spool.<br />
3/2/1
Superb spinning reel, a triumph of the RRT technology! The rotor and<br />
body were made of light duraluminum alloy. All ball bearing seats were<br />
carefully forged what guarantees sure fitting of all rotation mechanisms.<br />
Forged gear is made of brass plus Super Dural. Due to the implementation<br />
of high-tech Japanese ball bearings with ceramic cover the reel works<br />
smoothly with full vibration amortization – the leader of the spool mechanism<br />
works on mini ball bearing. Ultralight, forged spool precisely fitted<br />
on the main axis of the reel (ball bearing). Bail made of super thin steel<br />
tube, new type line roller – FAT (Full Anti Twist). Stylish and comfortable<br />
handle of forged aluminium.<br />
ALUMINIUM<br />
• body made of flight duraluminum • 11 Japanese ball bearings • 4 ball bearings<br />
with ceramic cover • flight duraluminum spool • digitally designed and<br />
forged gear • forged handle • one-way clutch ball bearing • multilayer waterproof<br />
drag • spare aluminium spodl<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23P-MA-020 1120 10+1 0,20 mm - 215 m 4,8:1<br />
23P-MA-025 1125 10+1 0,25 mm - 160 m 4,8:1<br />
23P-MA-030 1130 10+1 0,30 mm - 155 m 5,14:1<br />
Pro Spin<br />
The series of highest quality reels made of top class materials. Modern and<br />
precisely crafted construction proceeded with the help of newest technologies<br />
ensure outstanding and smooth work. Because of very precise fitting all elements<br />
of the reel, we get extra smooth work. Body and rotor are made of Japanese<br />
‘Reny Mitsubishi‘ graphite, and 10 top quality ball bearings let enjoying this reel<br />
without any problems for very long time. The reel comes in 4 sizes, giving you<br />
the choice depending how large lures you prefer.<br />
Pro Spin<br />
10 ball bearings • One way clutch ball bearing • Body and rotor made of Japanese „Reny<br />
Mitsubishi” graphite • Rubber gasket protecting drag system and main gear • CNC aluminum<br />
handle • „Soft rubber” handle knob • 2 various capacities aluminum spools suitable<br />
for spinning fishing • Micro adjustable drag system<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23P-QS-020 2009 8+1 0,20 mm – 180 m 0,18 mm – 150 m 5,40:1<br />
23P-QS-025 2510 9+1 0,25 mm – 150 m 0,20 mm – 150 m 5,20:1<br />
23P-QS-030 3010 9+1 0,30 mm – 150 m 0,25 mm – 150 m 5,20:1<br />
23P-QS-040 4010 9+1 0,35 mm – 150 m * 4,86:1<br />
* Quartz pro Spin 4010 has 2 spools with standard line capacity<br />
ALUMINIUM<br />
Pro Match<br />
Pro Match<br />
This reel is a perfect choice for match anglers. It was tested by the best known European competition<br />
fishermen. The opinions are everywhere the same: ‘just great!’ The mechanism works<br />
silently and smooth. Rotor was computer balanced, and the same as body they are made of<br />
Japanes graphite „Reny Mitshubishi”. 8 best class ball bearings make the work smooth and<br />
give you true pleasure of fishing. It comes in 2 sizes. This gives you possibility to use all sizes<br />
lines depending on your choice.<br />
8 ball bearings • One way clutch ball bearing • Body and rotor made of Japanese<br />
„Reny Mitsubishi” graphite • Rubber gasket protecting drag system and main gear<br />
• Aluminum handle • „Soft rubber” handle knob • 2 various capacities aluminum<br />
spools suitable for match fishing • Micro adjustable drag system<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23P-QM-025 2508 7+1 0,22 mm – 150 m 0,18 mm – 150 m 5,20:1<br />
23P-QM-030 3008 7+1 0,25 mm – 150 m 0,20 mm – 150 m 5,20:1<br />
ALUMINIUM<br />
3/2/2
This exceptionally nice model is intended mainly for spinning anglers.<br />
Thanks to precise assembling the mechanism it works ideally smooth.<br />
The reel is made of the best quality materials: main gear – brass/<br />
aluminum, ball bearings with ceramic cover. The reel is designed in<br />
Slim Body system what makes it light and especially usable for delicate<br />
spinning. Great look and its nice feature makes this reel a brilliant item<br />
in our range.<br />
Lightweight graphite body • 7 ball bearings • one way ball bearing<br />
• Left/right handle • Multipoint drag system • Aluminum main spool<br />
• Graphite spare spool • Brass main gear • Computer balanced rotor<br />
• EVA knob handle<br />
NEW<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23P-AD-207 207 6+1 0,20 mm – 195 m 5,5:1<br />
23P-AD-257 257 6+1 0,25 mm – 185 m 5,5:1<br />
23P-AD-307 307 6+1 0,30 mm – 170 m 5,2:1<br />
Slim body<br />
construction<br />
Graphite spare spool<br />
Together with its aesthetical look the reel works smooth and noiseless thanks to<br />
6 high class ball bearings used in its mechanism, and ideal fitting all elements.<br />
One way clutch ball bearing, bail arm made of thin tube, comfortable handle<br />
knob make its value even more. The reel has specially computer developed<br />
system of line winding, what effects with larger casting possibilities during the<br />
fishing. This model we recommend for all spinning applications, and for other<br />
ones that needs solid and fine tackle. It comes with 2 spools: one aluminum and<br />
one graphite.<br />
6 ball bearings • One way clutch ball bearing • Light graphite construction<br />
• Left/right versatile handle • Micro adjustable drag system • Aluminum spool<br />
• Graphite spare spool • Strong main gear • Computer balanced rotor<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23P-JA-206 206 5+1 0,20 mm – 175 m 5,5:1<br />
23P-JA-256 256 5+1 0,25 mm – 125 m 5,5:1<br />
23P-JA-306 306 5+1 0,30 mm – 170 m 5,2:1<br />
23P-JA-406 406 5+1 0,40 mm – 110 m 5,2:1<br />
GRAPHITE<br />
3/2/3
REAR DRAG <strong>REELS</strong><br />
Silver will surely join our market hit models like Marshall, Quartz<br />
range, Freerunner or Maxim thanks to the best quality materials<br />
and the most modern technical solutions used for production.<br />
The aluminum body, hybrid aluminum-carbon spool, 10 perfect<br />
Japanese ceramic covered ball bearings + one way ball bearing<br />
make this model highly recognizable. All parts ideally assembled<br />
– this was proved during the harsh spinning tests in Scandinavia<br />
and coarse barbell fishing in big rivers of Central Europe. In<br />
both cases the multipoint drag system and internal gears worked<br />
without any fail. The reel as a whole is very elegant and has 5<br />
years warranty.<br />
• Lightweight aluminum body and rotor • 11 Japanese ball bearings • Left/<br />
right handle • Multipoint drag system • Aluminum main spool • Aluminum<br />
spare spool • Brass main gear • Computer balanced rotor • EVA knob<br />
handle<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23T-SI-020 2011 10+1 0,20 mm – 195 m 5,2:1<br />
23T-SI-025 2511 10+1 0,25 mm – 185 m 5,2:1<br />
23T-SI-030 3011 10+1 0,30 mm – 170 m 5,2:1<br />
ALUMINIUM<br />
NEW<br />
hybrid aluminum-carbon spool<br />
Cannon Spin<br />
Cannon Spin<br />
Series of good, all-round reels usable for almost all fishing styles.<br />
Good quality raw materials used for production of all internal parts of<br />
mechanism, their careful assembling and stylish design draw attention,<br />
making this reel top choice among all-round range models.<br />
Graphite body and rotor • Super-durable line roller • Aluminum main<br />
spool • Folding handle • 7 new generation Japanese ball bearings<br />
• Nice finishing • Real multipoint drag • Graphite spare spool<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23T-CS-207 207 6+1 0,20 mm – 175 m 5,5:1<br />
23T-CS-257 257 6+1 0,20 mm – 195 m 5,5:1<br />
23T-CS-307 307 6+1 0,30 mm – 170 m 5,2:1<br />
23T-CS-407 407 6+1 0,35 mm – 145 m 5,2:1<br />
GRAPHITE<br />
3/3/1
Hi class reel with typical “shallow” aluminum spool and special handle<br />
for match method. The reel is designed exactly in accordance to RRT<br />
standard – this means that only the highest grade materials were used<br />
in this construction. All parts of the mechanism are perfectly fitted, so it<br />
works silky. Very precise rear drag enables using even the thinnest lines.<br />
• 6 ball bearings • One way clutch ball bearing • Light graphite<br />
construction • Left/right versatile handle • Micro adjustable drag<br />
system • Aluminum match spool • Graphite spare spool • Strong main<br />
gear • Computer balanced rotor<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
GRAPHITE<br />
23T-CH-256 256 5+1 0,25 mm – 125 m 0,18 mm – 190 m 5,5:1<br />
23T-CH-306 306 5+1 0,30 mm – 170 m 0,20 mm – 170 m 5,2:1<br />
23T-CH-406 406 5+1 0,35 mm – 145 m 0,25 mm – 125 m 5,2:1<br />
The series of fantastic, all-round spinning reels. High quality of mechanism details,<br />
precise assembling and stylish design are the most important feature of the range.<br />
Tests carried out on famous European waters confirmed the high quality and<br />
outstanding durability.<br />
• Graphite body and rotor<br />
• Super-durable bail arm • Aluminum spool<br />
GRAPHITE<br />
• 3 Japanese ball bearings • One way clutch ball bearing • Stylish design<br />
• Precise rear drag • Graphite spare spool<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23T-BL-204 204 3+1 0,20 mm – 165 m 5,2:1<br />
23T-BL-304 304 3+1 0,25 mm – 195 m 5,2:1<br />
GRAPHITE<br />
Quite renewed construction of Gravitex will satisfy all anglers preferring<br />
rear drag reels. There are 6 models in this selection, so one can<br />
chose the size fitting best to the style of fishing and size of fish. Solid<br />
gears for very good price!<br />
• Lightweight graphite construction • Super-durable line roller • 4 new<br />
generation ball bearings • One way ball bearing • Computer balanced rotor<br />
• Rear multipoint drag • graphite • Metalized main spool long cast type<br />
• Graphite spare spool<br />
NEW<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23T-GV-204 204 3+1 0,18 mm – 240 m 5,5:1<br />
23T-GV-254 254 3+1 0,20 mm – 290 m 5,5:1<br />
23T-GV-304 304 3+1 0,25 mm – 245 m 5,2:1<br />
23T-GV-404 404 3+1 0,30 mm – 240 m 5,2:1<br />
23T-GV-504 504 3+1 0,40 mm – 150 m 4,4:1<br />
23T-GV-604 604 3+1 0,45 mm – 160 m 4,4:1<br />
3/3/2
Tracker reel can be successfully used both for spinning and coarse<br />
fishing as well. 6 high class ball bearings and computer balanced<br />
rotor assure smooth work. Precise rear drag will not fail when the fish<br />
is hooked. The reels come with main aluminum spool and graphite<br />
spare spool.<br />
• 6 ball bearings • Light graphite construction • Left/right handle • multidisc<br />
drag • Aluminum main spool • Graphite spare spool • Strong main gear<br />
• Computer balanced rotor<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23T-TR-206 206 6 0,20 mm – 165 m 5,2:1<br />
23T-TR-306 306 6 0,25 mm – 195 m 5,2:1<br />
GRAPHITE<br />
GRAPHITE<br />
Very light 3 ball bearing reels for all-round use. Ergonomic profile<br />
and great balance give brilliant comfort during the fishing. Rear drag<br />
based on WRD technology works faultlessly in whole range of adjustment.<br />
Body and spools made of graphite.<br />
• 3 ball bearings • Light graphite construction • Left/right handle • Multidisc<br />
drag • Metalized graphite main spool • Graphite spare spool • Computer<br />
balanced rotor<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23T-CA-203 203 3 0,20 mm – 165 m 5,2:1<br />
23T-CA-303 303 3 0,25 mm – 195 m 5,2:1<br />
Universal reels of graphite body are incredibly light and durable.<br />
Folding handle, multilayer rear drag, powerful gear guarantee durability<br />
and reliable work.<br />
1 ball bearing • Light graphite construction • Left/right versatile handle<br />
• Graphite spare spool<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23T-FO-201 201 1 0,20 mm – 185 m 5,2:1<br />
23T-FO-301 301 1 0,25 mm – 150 m 5,2:1<br />
GRAPHITE<br />
3/3/3
Carp reels<br />
The Robinson carp reels have become a traditional part of our catalogue.During that time many large specimens were caught with<br />
these reels on the waters of Spain, France, Germany and Great Britain. Maxim, Vortex are the models with long tradition, yet<br />
they could be quite amazing when used to haul catfish or black carp on the Russian waters or troll sea predators in Scandinavia.<br />
Constantly upgraded according to the wishes of our clients, they have become almost invincible. All models feature powerful gears,<br />
able to bear the largest of loads, wide, spacious spools designed for long casts are able to hold much line. The proper construction<br />
of the rollers and bails guarantees the line won’t tangle and hitch. All models also feature bait runner which helps with hauling and<br />
hooking without the need of regulating the drag.<br />
TAURUS PRO Carp is an ultra-innovative<br />
reel designed for carp<br />
and coarse fishing. It is supplied<br />
with super bait runner system. This<br />
feature make easier fishing in all<br />
conditions as in fact eliminates<br />
possibility of self-turning on the free<br />
spool. The reel has indestructible<br />
main gear, water-resistant drag<br />
system, ergonomic knob and handle<br />
– all these details give great<br />
comfort of fishing. Profiled “long<br />
cast’ spool enables very far casts.<br />
• RG graphite construction<br />
• Super strong gear • Long cast<br />
spool • 5 ball bearings of the new<br />
generation • Bait runner • Spare<br />
graphite spool<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23K-TA-305 305 4+1 0,25 mm – 195 m 5,2:1<br />
23K-TA-405 405 4+1 0,30 mm – 155 m 5,2:1<br />
23K-TA-505 505 4+1 0,35 mm – 180 m 5,2:1<br />
23K-TA-605 605 4+1 0,40 mm – 145 m 5,2:1<br />
ALUMINIUM<br />
3/4/1
Ultra modern, free spool system reel. Excellent in case of carp, sea, dead or live<br />
bait and heavy bottom fishing. Thanks to use of RG graphite, the body and rotor<br />
are stiff and non-deforming even under extra high loads. Aluminum, forged and<br />
machined, ported spool and extra hard lip. Free spool mechanism with precise<br />
drag adjustment. Long, hi-power handle, made of forged aluminum, equipped<br />
with comfortable knob. Line twisting reduced thanks to large roller guide. 8 high<br />
grade ball bearings result in smooth gear work. Multidisc, sure drag.<br />
8 Japanese ball bearings • One way clutch ball bearing • Machine cut<br />
handle • Dural forged spool • Hyper strong main gear • Free run gear<br />
with a preciser • Graphite spare spool<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23K-MA-208 208 7+1 0,25 mm – 175 m 5,14:1<br />
23K-MA-308 308 7+1 0,28 mm – 155 m 5,14:1<br />
23K-MA-408 408 7+1 0,35 mm – 200 m 5,14:1<br />
23K-MA-508 508 7+1 0,40 mm – 180 m 5,14:1<br />
23K-MA-608 608 7+1 0,45 mm – 160 m 5,14:1<br />
GRAPHITE<br />
This extra modern model was hit on the market in 2010 season among carp<br />
anglers and the ones, which prefer heavy coarse methods as well. It comes in<br />
4 sizes. The reel was supplied with ‘super bait runner’ system, what facilitates<br />
fishing in all environmental conditions and in fact eliminates possibility of self<br />
- turning off the free run gear. Superstrong main gear, waterproof drag, comfortable<br />
handle and ballbearings with ceramic cover extend very much reel’s life.<br />
6 ball bearings • One way clutch ball bearing • Free spool „super<br />
bait runner” system • Computer balanced rotor • Aluminum spool<br />
• Graphite spare spool • Precise drag • 2 handles: standard and<br />
double<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23K-FR-306 306 5+1 0,30 mm – 170 m 5,2:1<br />
23K-FR-406 406 5+1 0,35 mm – 145 m 5,2:1<br />
23K-FR-506 506 5+1 0,40 mm – 210 m 5,2:1<br />
23K-FR-606 606 5+1 0,45 mm – 195 m 5,2:1<br />
GRAPHITE<br />
2 handles attached:<br />
single and double<br />
3/4/2
SteelGray is intended mainly for carp and coarse anglers. It is available in 2 sizes<br />
and it is supplied with super bait runner system. This feature make easier fishing in all<br />
conditions as in fact eliminates possibility of self-turning on the free spool. The reel has<br />
indestructible main gear, water-resistant drag system, ergonomic knob and handle and<br />
ceramic cover ball bearings – all these details give great comfort of fishing.<br />
• 4 ball bearings • one-way clutch ball bearing • computer balanced rotor<br />
• super bait runner system • aluminum spool • graphite spare spool • light<br />
graphite construction • precise drag • left/right handle • bail arm made of<br />
steel pipe<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23K-ST-504 504 3+1 0,28 mm – 270 m 5,2:1<br />
23K-ST-604 604 3+1 0,35 mm – 220 m 5,2:1<br />
GRAPHITE<br />
Luxor<br />
Luxor<br />
It will be extremely hard to find on the market bait runner<br />
reel at such economical level of price. Its significant size and<br />
solid construction allow to count this reel among gears usable<br />
firstly for carp fishing and other coarse a methods and even<br />
for sea fishing as well.<br />
• 1 ball bearing • super bait runner system • computer balanced rotor<br />
• metalized graphite main spool • graphite spare spool • lightweight graphite<br />
construction • precise drag • left/right handle<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23K-LU-501 501 1 0,35 mm – 195 m 5,2:1<br />
23K-LU-601 601 1 0,45 mm – 160 m 5,2:1<br />
GRAPHITE<br />
3/4/3
SEA <strong>REELS</strong><br />
Specialist reels ideal for sea boat fishing and surfcasting. With their extreme durability and power they able to<br />
bear the heaviest loads due to the digitally designed main gear made of special alloys. Carefully fitted rotor and<br />
body guarantee comfort and flawless work on the line of battle. Ball bearings are protected from salt water, the<br />
spools were designed to hold large amounts of line and cooperate with the drags.<br />
Worm-Tech is a very modern, and exceptionally solid sea reel. I has very durable<br />
brass main gear and 9 Japanese ball bearings. It passed easily very difficult tests at<br />
Norwegian waters. The reel is designed in a special way. In spite its significant size, its<br />
weight is quite low, what has importance when you need to spend several hours with<br />
tackle in your hands. The shape of the spool assures its large line capacity and quick<br />
line release – quite useful feature when used pilkers on very deep places. Undoubtedly<br />
the reel can also be used for fresh water fishing for big species.<br />
• 8 ball bearings • one way ball bearing • computer balanced rotor • aluminum<br />
main spool • aluminum spare spool • lightweight graphite construction • precise<br />
multipoint drag • left/right handle • brass worm shaft • EVA knob<br />
ALUMINIUM<br />
Brass worm shaft.<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23M-WT-609 609 8+1 0,40 mm – 140 m 5,2:1<br />
NEW<br />
3/5/1
Blackmoor is a new reel for coarse and sea fishing. Its body is made of very<br />
stiff graphite what let all the details of gear mechanism to be positioned most<br />
correctly. Main gear works together with modern ball bearings protected<br />
from salt and water. Ergonomic knob and elongated handle gives utmost<br />
comfort during the fishing. It played great when tested on heavy coarse<br />
fishing with catfish, carps and cods at big depths. Precise drag assures wide<br />
scale of fine-tuning.<br />
• 8 ball bearings • One-way clutch ball bearing • Computer balanced rotor<br />
• Aluminum spool • Graphite spare spool • Light graphite construction • Precise<br />
drag • left/right handle • Brass main gear<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23M-BL-608 608 7+1 0,30 mm – 250 m 5,2:1<br />
23M-BL-708 708 7+1 0,35 mm – 210 m 5,2:1<br />
GRAPHITE<br />
Pro Sea<br />
Pro Sea<br />
The highest-class reel with large spool<br />
capacity. It is perfectly suitable for sea<br />
fishing and for surfcasting as well.<br />
Precisely fitted parts of its mechanism<br />
ensure stable work even at the harshest<br />
loads. Salt water resistant ball bearings<br />
and additional rubber ring protect the<br />
drag mechanism and main gear from<br />
salt. Multipoint front drag with large<br />
range guarantees making you easy even<br />
during the meeting with „fish of your life”.<br />
ALUMINIUM<br />
4 ball bearings • One way clutch ball<br />
bearing • Body and rotor made of<br />
Japanese „Reny Mitsubishi” graphite<br />
• Rubber gasket protecting drag system<br />
and main gear • CNC aluminum handle<br />
• „Soft rubber” handle knob 2 aluminum<br />
•<br />
spools • Micro adjustable drag system<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23M-QS-050 5006 5+1 0,40 mm – 150 m 4,90:1<br />
3/5/2
An exceptional reel for cod angling from fishing boat. Super strong gear based<br />
on the newest salt water-proof ball bearings. The body made of very stiff<br />
graphite grants ideal placing of the gear elements even under heaviest loads.<br />
Ergonomic knob combined with a longer handle (forged aluminium) grants<br />
optimal comfort of angling with heavy pilkers and for deep water fishing.<br />
Large diameter drag module in spacious, aluminium spool enables wide range<br />
of adjusting the breaking power.<br />
GRAPHITE<br />
Unbendable graphite cover and rotor • 6 ball bearings • 2 heavy-duty<br />
sea water-proof ball bearings • Hi-Power gear • Long comfortable<br />
handle • Profiled spool with reinforced edge • Spare graphite spool<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23M-GL-506 506 5+1 0,40 mm – 210 m 5,2:1<br />
23M-GL-606 606 5+1 0,45 mm – 195 m 5,2:1<br />
23M-GL-806 806 5+1 0,50 mm – 205 m 4,5:1<br />
GRAPHITE<br />
This very strong reel is ideal for the sea fishing. Great for<br />
cod fishermen and surfcasting as well. Body and rotor covers<br />
are made of graphite while super strong gear is forged of<br />
pressure resistant metals. Long and comfortable handle with<br />
T-shaped knob and strong, multidisc wide-range drag give<br />
you necessary comfort during the fishing.<br />
Body made of super durable graphite • Line guide roller preventing<br />
line tangling • Roomy spool • 4 salt and corrosion-proof Japanese<br />
„heavy-duty” ball bearings • Powerful drag • Long, comfortable handle<br />
• Aluminum spool, spare graphite spool<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23M-SH-504 504 3+1 0,40 mm – 190 m 5,14:1<br />
23M-SH-604 604 3+1 0,45 mm – 245 m 4,1:1<br />
3/5/3
Trolling Reeels<br />
Special series of trolling reels is an excellent addition to the Robinson offer. In recent years sea fishing has become more<br />
and more popular. This fact made us design solid equipment for the sea conditions. Precise gears and careful line placement<br />
make more people use this type of reels. After Kadmos and Eminent, with which many Baltic cod were caught, the offer was<br />
enlarged with low-profile Arcan, ideal for spinning. Precise spool setting, excellent drags and durability are a great addition<br />
to its casting abilities.<br />
Very good casting reel designed for light and medium lures. Very<br />
handy, fits the hand – its construction allows the angler to cast at<br />
long distance. Six high-class ball bearings guarantee sure, unfailing<br />
performance. 6,2:1 gear ratio keeps the line untangled and<br />
allow you to concentrate on the lure.<br />
6 high-class ball bearings • 1 roller ball bearing • one way<br />
ball bearing supporting POWER LOCK system • high quality,<br />
corrosion resistant graphite construction and side plates<br />
• Quick Spool Release system • magnetic cast control system<br />
• carbon drag washer • solid, precise, brass main gear<br />
• 2 color anodized, light, aluminum spool • powerful light anodized<br />
handle with comfortable knob • left hand model<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23U-LT-207 207 6+1 0,25 mm – 185 m 6,2:1<br />
A strong trolling reel designed for the heaviest sets. Solid main gear gives you<br />
the power needed while hauling a big catfish or twenty-kilos cod out of pretty<br />
deep place. An inbuilt meter shows the exact depth of the lure.<br />
3 stainless-steel ball bearings • Depth meter • Precise gear • Strong aluminum<br />
spool • Strong graphite body • Light and durable design<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
22-EI-203 203 3 0,40 mm – 295 m 4,4:1<br />
3/6/1
FLY <strong>REELS</strong><br />
The Robinson fly reels offer encompasses two<br />
models selected in such manner to satisfy the<br />
needs of the pros and amateurs. First Cast is an<br />
ideal beginner model, especially for those who<br />
want to start with 5, 6 or 7 class models. The<br />
WA model is a high-class aluminium reel with a<br />
Wide Arbour spool – meant for the experienced<br />
fly fishermen.<br />
Fine reel intended mainly for beginners.<br />
Lightweight, graphite construction guarantees<br />
comfortable time while fishing<br />
Light graphite design • Graphite<br />
spool • Precise drag<br />
Catalogue<br />
number<br />
22-FX-056<br />
22-FX-067<br />
Model<br />
5/6 AFTM<br />
6/7 AFTM<br />
Made of light aluminum alloy, this reel has<br />
wide, ventilated ‘Large Arbour’ spool. It works<br />
with 3 ball bearings, has one-way ball bearing<br />
and very precise drag. Its fluent work gives<br />
a lot of satisfaction to the angler.<br />
Wide „Large Arbour” spool 3 stainlesssteel<br />
ball bearings • One-way ball bearing<br />
•<br />
• Body and spool made of light aluminium<br />
alloy • Precise drag<br />
Catalogue Model Bearing<br />
number<br />
qty<br />
22-FZ-045 4/5 AFTM 3<br />
22-FZ-056 5/6 AFTM 3<br />
3/7/1
ICE <strong>REELS</strong><br />
NANSEN<br />
NANSEN<br />
It is high-class reel – simply ideal for ice fishing. 3 ball bearings,<br />
well built-in all points of the mechanism and precise drag guarantee<br />
stable work even at the low temperature.<br />
3 ball bearings • Llight graphite construction • Left/right versatile<br />
handle • Precise drag • Aluminum spool • Graphite spare spool<br />
• Computer balanced rotor<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23X-NA-103 103 3 0,18 mm – 165 m 5,2:1<br />
GRAPHITE<br />
Small size and graphite body with front drag make this reel especially<br />
suitable for delicate spinning and ice fishing as well. Solid construction<br />
based on good materials and careful fitting all parts make this reel<br />
ideal for beginners.<br />
1 ball bearing • Light graphite construction • Left/right versatile<br />
handle • Precise front drag • Graphite metal plated spool • Computer<br />
balancedrotor<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23P-DE-101 101 1 0,18 mm – 165 m 5,2:1<br />
Polaris<br />
Polaris<br />
Very economic ice fishing reel. Its internal mechanism is prepared for<br />
working in low temperatures. Very good quality drag, comfortable handle<br />
and small size make it first choice for ice fishing.<br />
• 1ball bearing • lightweight graphite construction • balanced left/right handle<br />
• precise rear drag • graphite metallized spool • graphite spare spool<br />
• computer balanced rotor<br />
Catalogue Model Bearing Spool Gear<br />
number qty capacity<br />
23X-PO-101 101 1 0,18 mm – 165 m 5,2:1<br />
GRAPHITE<br />
3/8/1
