A numerical study on the thermal expansion coefficients of fiber
A numerical study on the thermal expansion coefficients of fiber A numerical study on the thermal expansion coefficients of fiber
39 expect the coefficient of thermal expansion of a composite to follow simple law of mixtures given by: α = α υ + α υ (3.6) c f f m m where α c , α f , α m are thermal expansion coefficients of the composite, filler and matrix respectively and υ f and υ m are the volumetric fractions of the filler and the matrix. Because of the differences in the thermal expansivities of the phases a state of micro-stress often exists between them. These stresses influence the thermal expansion behavior of the body. Thus, its thermal expansion coefficient does not follow the rule of mixtures. 3.4.1.2 Equation of Thomas as Thomas (Sideridis, 1994) put forward an empirical solution which can be written α = α υ + α υ (3.7) a c a f f a m m where a may vary from -1 to +1, and γ is the volumetric thermal expansion coefficient which is defined as α c = 3α for an isotropic composite. However, for a unidirectional composite, which is isotropic in the two transverse directions, the relation between volumetric thermal expansion coefficient and longitudinal and transverse thermal expansion coefficients can be written as α = α + 2α (3.8) c 1 2 where α 1 is the thermal expansion coefficient in the longitudinal direction and α 2 is the thermal expansion coefficient in the transverse direction. The empirical nature of the equation makes it suitable for most filed systems by the correct use of the adjustable constant.
40 3.4.1.3 Equation of Van Fo Fy In a series of articles by Van Fo Fy (1965), thermal expansion coefficients for matrices reinforced by continuous fibers are developed by means of a detailed stress analysis. As a result of this work, the thermal expansion coefficient in the longitudinal direction (α 1 ) is α 1 m ( ) ( 1+ ν ) ( )( ) m E f υf − 1+ ν f12 E1 − E mυm α m − αf ( ν m − ν f12 ) E 1 = α − (3.9) and the thermal expansion coefficient in the transverse direction (α 2 ) is α 2 ( α − α ) ν − ( α − α )( 1+ ν ) − ν m 12 = α m + m 1 12 m f f12 (3.10) ν m − ν f12 ν where E f , E m are elastic moduli and ν f , ν m are the Poisson’s ratios of fiber and matrix respectively. E 1 is the elastic modulus for the longitudinal direction of composite and ν 12 is the Poisson’s ratio of the composite. However, the values predicted by these expressions are very sensitive to variations in E 1 and deviations arose by the experimental error may cause considerable discrepancies. E 1 can be found, using the simple rule of mixtures, as E = + (3.11) 1 E f υf E mυ m 3.4.1.4 Equation of Cribb Cribb (Sideridis, 1994) adopted an approach in which no limitations are made on the shape or size of the fillers. The phases are assumed to be homogeneous, isotropic and linearly elastic. The equation is given as α = θ α + θ α (3.12) c 1 m 2 f
- Page 1 and 2: DOKUZ EYLÜL UNIVERSITY GRADUATE SC
- Page 3 and 4: M.Sc THESIS EXAMINATION RESULT FORM
- Page 5 and 6: A NUMERICAL STUDY ON THE THERMAL EX
- Page 7 and 8: CONTENTS Page THESIS EXAMINATION RE
- Page 9 and 10: 4.2.1 Geometry Creation............
- Page 11 and 12: 2 coefficients of thermal expansion
- Page 13 and 14: 4 coefficients coincide to give res
- Page 15 and 16: 6 concentration from pure metal to
- Page 17 and 18: 8 high strength-to-weight and stiff
- Page 19 and 20: 10 polymers. Thermosetting polymers
- Page 21 and 22: 12 Metals are strong and tough. The
- Page 23 and 24: 14 Table 2.1 Properties of reinforc
- Page 25 and 26: 16 2.2.2.2 Carbon Fibers Carbon is
- Page 27 and 28: 18 use is in aircraft industry foll
- Page 29 and 30: 20 strength and a reasonable Young
- Page 31 and 32: 22 1. Processing the conventional f
- Page 33 and 34: 24 (orthorhombic) of polyethylene h
- Page 35 and 36: 26 Whiskers are monocrystalline sho
- Page 37 and 38: 28 3.2 Factors Affecting the Coeffi
- Page 39 and 40: 30 3.2.4 Thermal Cycling The primar
- Page 41 and 42: 32 3.3.1 Mechanical Dilatometry Thi
- Page 43 and 44: 34 absolute accuracy of about ± 0.
- Page 45 and 46: 36 3.3.3 Strain Gauges This relativ
- Page 47: 38 • The composite is macroscopic
- Page 51 and 52: 42 and the thermal expansion coeffi
- Page 53 and 54: 44 P P 11 33 2 A 22 − A = Det A A
- Page 55 and 56: 46 • A perfect bonding exists at
- Page 57 and 58: CHAPTER FOUR FINITE ELEMENT METHOD
- Page 59 and 60: 50 No matter how the geometry is cr
- Page 61 and 62: 52 displacements and/or rotations a
- Page 63 and 64: CHAPTER FIVE MICROMECHANICAL ANALYS
- Page 65 and 66: 56 5.2 Mesh Creation 10-node tetrah
- Page 67 and 68: 58 carbon fibers were assumed to ha
- Page 69 and 70: 60 Figure 5.6 The displacement fiel
- Page 71 and 72: 62 small differences between these
- Page 73 and 74: 64 Table 6.1 Comparison of the expe
- Page 75 and 76: 66 Longitudinal CTE (1/°C) 2.25E-0
- Page 77 and 78: 68 Longitudinal CTE (1/°C) 2.00E-0
- Page 79 and 80: 70 Longitudinal CTE (1/°C) 4.00E-0
- Page 81 and 82: 72 Longitudinal CTE (1/°C) 1.00E-0
- Page 83 and 84: 74 Ishikava, T., Koyama, K., & Koba

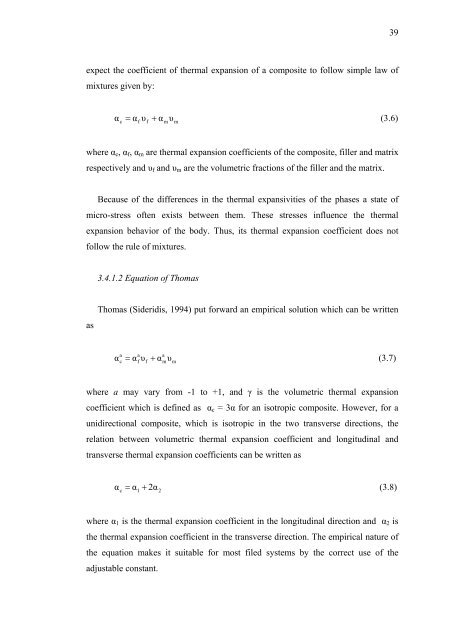

39<br />
expect <strong>the</strong> coefficient <strong>of</strong> <strong>the</strong>rmal expansi<strong>on</strong> <strong>of</strong> a composite to follow simple law <strong>of</strong><br />
mixtures given by:<br />
α = α υ + α υ<br />
(3.6)<br />
c<br />
f<br />
f<br />
m<br />
m<br />
where α c , α f , α m are <strong>the</strong>rmal expansi<strong>on</strong> <strong>coefficients</strong> <strong>of</strong> <strong>the</strong> composite, filler and matrix<br />
respectively and υ f and υ m are <strong>the</strong> volumetric fracti<strong>on</strong>s <strong>of</strong> <strong>the</strong> filler and <strong>the</strong> matrix.<br />
Because <strong>of</strong> <strong>the</strong> differences in <strong>the</strong> <strong>the</strong>rmal expansivities <strong>of</strong> <strong>the</strong> phases a state <strong>of</strong><br />
micro-stress <strong>of</strong>ten exists between <strong>the</strong>m. These stresses influence <strong>the</strong> <strong>the</strong>rmal<br />
expansi<strong>on</strong> behavior <strong>of</strong> <strong>the</strong> body. Thus, its <strong>the</strong>rmal expansi<strong>on</strong> coefficient does not<br />
follow <strong>the</strong> rule <strong>of</strong> mixtures.<br />
3.4.1.2 Equati<strong>on</strong> <strong>of</strong> Thomas<br />
as<br />
Thomas (Sideridis, 1994) put forward an empirical soluti<strong>on</strong> which can be written<br />
α = α υ + α υ<br />
(3.7)<br />
a<br />
c<br />
a<br />
f<br />
f<br />
a<br />
m<br />
m<br />
where a may vary from -1 to +1, and γ is <strong>the</strong> volumetric <strong>the</strong>rmal expansi<strong>on</strong><br />
coefficient which is defined as α c = 3α for an isotropic composite. However, for a<br />
unidirecti<strong>on</strong>al composite, which is isotropic in <strong>the</strong> two transverse directi<strong>on</strong>s, <strong>the</strong><br />
relati<strong>on</strong> between volumetric <strong>the</strong>rmal expansi<strong>on</strong> coefficient and l<strong>on</strong>gitudinal and<br />
transverse <strong>the</strong>rmal expansi<strong>on</strong> <strong>coefficients</strong> can be written as<br />
α = α + 2α<br />
(3.8)<br />
c<br />
1<br />
2<br />
where α 1 is <strong>the</strong> <strong>the</strong>rmal expansi<strong>on</strong> coefficient in <strong>the</strong> l<strong>on</strong>gitudinal directi<strong>on</strong> and α 2 is<br />
<strong>the</strong> <strong>the</strong>rmal expansi<strong>on</strong> coefficient in <strong>the</strong> transverse directi<strong>on</strong>. The empirical nature <strong>of</strong><br />
<strong>the</strong> equati<strong>on</strong> makes it suitable for most filed systems by <strong>the</strong> correct use <strong>of</strong> <strong>the</strong><br />
adjustable c<strong>on</strong>stant.
