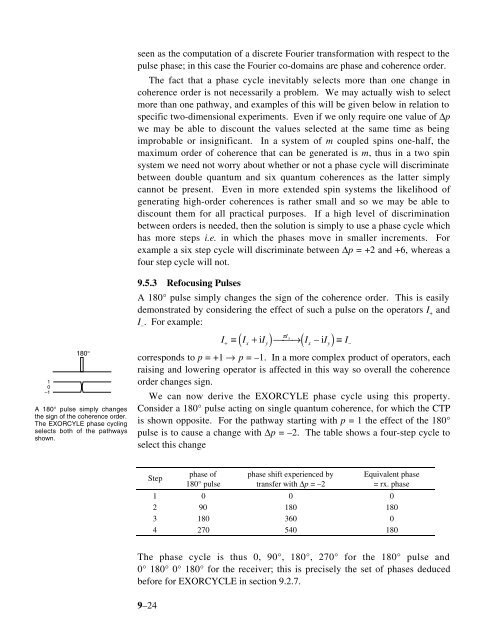

seen as the computation of a discrete Fourier transformation with respect to the<br />
pulse phase; in this case the Fourier co-domains are phase <strong>and</strong> coherence order.<br />
<strong>The</strong> fact that a phase cycle inevitably selects more than one change in<br />
coherence order is not necessarily a problem. We may actually wish to select<br />
more than one pathway, <strong>and</strong> examples of this will be given below in relation to<br />
specific two-dimensional experiments. Even if we only require one value of ∆p<br />
we may be able to discount the values selected at the same time as being<br />
improbable or insignificant. In a system of m coupled spins one-half, the<br />
maximum order of coherence that can be generated is m, thus in a two spin<br />
system we need not worry about whether or not a phase cycle will discriminate<br />
between double quantum <strong>and</strong> six quantum coherences as the latter simply<br />
cannot be present. Even in more extended spin systems the likelihood of<br />
generating high-order coherences is rather small <strong>and</strong> so we may be able to<br />
discount them for all practical purposes. If a high level of discrimination<br />
between orders is needed, then the solution is simply to use a phase cycle which<br />
has more steps i.e. in which the phases move in smaller increments. For<br />
example a six step cycle will discriminate between ∆p = +2 <strong>and</strong> +6, whereas a<br />
four step cycle will not.<br />
1<br />
0<br />
–1<br />
180°<br />
A 180° pulse simply changes<br />
the sign of the coherence order.<br />
<strong>The</strong> EXORCYLE phase cycling<br />
selects both of the pathways<br />
shown.<br />
9.5.3 Refocusing <strong>Pulses</strong><br />
A 180° pulse simply changes the sign of the coherence order. This is easily<br />
demonstrated by considering the effect of such a pulse on the operators I +<br />
<strong>and</strong><br />
I –<br />
. For example:<br />
I ≡ I +<br />
πI<br />
x<br />
+ ( x<br />
iIy)⎯⎯ →( Ix<br />
– iIy)≡<br />
I–<br />
corresponds to p = +1 → p = –1. In a more complex product of operators, each<br />
raising <strong>and</strong> lowering operator is affected in this way so overall the coherence<br />
order changes sign.<br />
We can now derive the EXORCYLE phase cycle using this property.<br />
Consider a 180° pulse acting on single quantum coherence, for which the CTP<br />
is shown opposite. For the pathway starting with p = 1 the effect of the 180°<br />
pulse is to cause a change with ∆p = –2. <strong>The</strong> table shows a four-step cycle to<br />
select this change<br />
Step<br />
phase of<br />
180° pulse<br />
phase shift experienced by<br />
transfer with ∆p = –2<br />
Equivalent phase<br />
= rx. phase<br />
1 0 0 0<br />
2 90 180 180<br />
3 180 360 0<br />
4 270 540 180<br />
<strong>The</strong> phase cycle is thus 0, 90°, 180°, 270° for the 180° pulse <strong>and</strong><br />
0° 180° 0° 180° for the receiver; this is precisely the set of phases deduced<br />
before for EXORCYCLE in section 9.2.7.<br />
