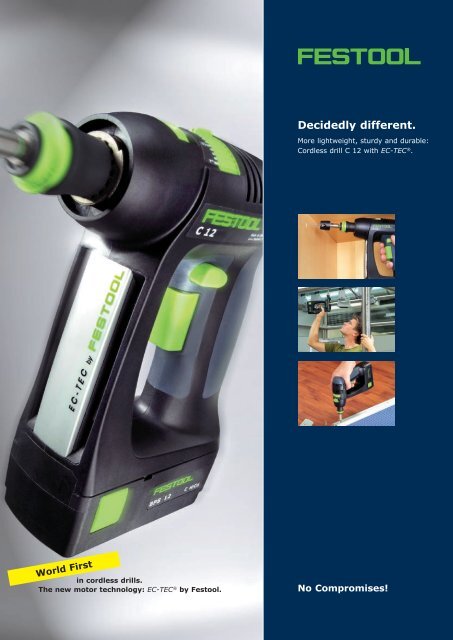

Decidedly different.<br />
More lightweight, sturdy and durable:<br />
Cordless drill C 12 with EC-TEC ® .<br />
World First<br />
in cordless drills.<br />
The new motor technology: EC-TEC ® by Festool.<br />
No Compromises!<br />
18_ENG_AUS_C12_240205.indd 1 24.02.2005 16:30:21
Cordless Drill C 12 with EC-TEC ® by Festool<br />
Unbeatable with the EC-TEC ® by Festool.<br />
The C 12 is decidedly different, ...<br />
… be<br />
Never has a cordless drill had an interior mechanism like this:<br />
the advanced EC-TEC motor by Festool. It presents you with<br />
previously unimagined advantages and possibilities. You can<br />
benefit from its superior degree of efficiency and outstanding<br />
endurance.<br />
This is due to its well-designed concept: the electronic induction-type<br />
motor is electronically commutated*, operates<br />
without carbon brushes and produces virtually no mechanical<br />
wear. This minimises power loss and increases the service<br />
life considerably.<br />
The new EC-TEC motor is extremely powerful and durable.<br />
It just keeps on going: and increases the screwing capacity<br />
of each battery by up to 55 %.<br />
The EC-TEC motor is extremely compact. As a result, the C 12<br />
is particularly lightweight and impresses with its outstanding<br />
manoeuvrability. The C 12 is up to 35 % more lightweight.<br />
Service life, 1st place<br />
Screwing capacity, 1st place<br />
Weight, 1st place<br />
EC-TEC ® always delivers a brilliant performance.<br />
1 The C 12 is the top performer, achieving 55 % more<br />
screwing capacity with its standard S NiCd battery pack .<br />
The EC-TEC ® motor has a<br />
longer service life.<br />
400<br />
Screwing capacity in no. of pcs**<br />
155%<br />
350<br />
300<br />
250<br />
C 12 C NiCd<br />
Competitor A<br />
Competitor B<br />
Competitor C<br />
Competitor D<br />
Competitor E<br />
Competitor F<br />
Top performer<br />
1<br />
C 12 S NiCd<br />
100%<br />
= 240<br />
Quantity of screws**<br />
440,000<br />
(test date,<br />
December 2004)<br />
310,000<br />
EC-TEC ® motor<br />
10<br />
15<br />
20<br />
25<br />
30<br />
35<br />
2<br />
Weight champion<br />
Weight savings in %**<br />
0 =<br />
heaviest<br />
competitor<br />
products,<br />
A and C<br />
180,000<br />
(End of life cycle)<br />
120,000<br />
(2nd brush change)<br />
60,000<br />
(1st brush change)<br />
Motor with carbon brushes<br />
* Electronically Commutated = EC<br />
EC-TEC ® allows for less weight.<br />
** Source: Festool Test Workshop 12/2004<br />
2 The C 12 with its compact S NiCd battery pack<br />
is 35 % lighter than comparative models.<br />
– Screwdriving applications standardised<br />
to 2.0 Ah battery capacity. Spax 5 x 40 mm<br />
in pine.<br />
2<br />
18_ENG_AUS_C12_240205.indd 2 24.02.2005 16:40:11
ecause its EC-TEC ® motor is<br />
… more powerful.<br />
... more lightweight.<br />
… more sturdy.<br />
… more durable.<br />
... electronically<br />
controlled and<br />
monitored.<br />
m<br />
Actual size<br />
3<br />
18_ENG_AUS_C12_240205.indd 3 24.02.2005 16:30:30
Cordless Drill C 12 with EC-TEC ® by Festool<br />
All the benefits at a glance.<br />
The C 12 has so much more to offer.<br />
The new cordless drill C 12 is decidedly different to all other<br />
cordless drills that have been available up to now. No other<br />
drill has a powerful EC-TEC motor, a compact gear mechanism<br />
and a unique, ergonomic design.<br />
The C 12 provides the solutions to many technical problems.<br />
The resulting benefits make your daily work much easier and<br />
less strenuous.<br />
CENTROTEC ® tool chuck.<br />
50% more compact and 80%<br />
lighter than standard drill chucks,<br />
the CENTROTEC tool chuck with<br />
Fastfix gives true-running precision<br />
that is ten times more accurate<br />
than a bit holder.<br />
Practical bit store.<br />
The magnets in the retaining grooves<br />
hold up to six bits in position, ready<br />
for use at all times.<br />
Reliable contact.<br />
The spring contacts are cleaned<br />
automatically every time the battery pack<br />
is slotted into position. This ensures that<br />
the battery pack has a long service life<br />
and remains reliable.<br />
International<br />
Design Award 2005<br />
Durable, not bulky.<br />
The new compact C NiCd battery has<br />
sufficient power to insert up to 240<br />
screws 1) . With a standard-sized S NiMH<br />
battery pack, the C 12 can insert up to<br />
560 screws 1) , without recharging.<br />
New<br />
4<br />
1)<br />
Source: Festool Test Workshop 12/2004,<br />
Spax 5 x 40 mm in pine.<br />
18_ENG_AUS_C12_240205.indd 4 24.02.2005 16:30:41
Delicate work.<br />
42 torque stages (2 x 21) allow<br />
the tightening torque to be<br />
adapted perfectly to both large<br />
and small screws. Torque cut-out<br />
is activated electronically – with<br />
virtually no mechanical wear.<br />
A World First 2)<br />
EC-TEC ® Motor.<br />
Outstanding efficiency, low<br />
weight, long service life and<br />
durability make the C 12 a<br />
real bundle of energy.<br />
Compact and effective.<br />
The torque cut-out is integrated<br />
in the patented compact gear<br />
mechanism. This saves space<br />
and achieves maximum power<br />
transmission.<br />
Ergonomically perfected.<br />
The slim handle with Softgrip sits<br />
perfectly in your hand while work<br />
is carried out in any position.<br />
The handy size, low weight and<br />
optimum centre of gravity make<br />
work easier and limit the stress<br />
on your arm and joints.<br />
Charged in a flash.<br />
The technology of the LC charger<br />
ensures controlled, rapid, conservation<br />
charging and guarantees a long service<br />
life for the battery pack.<br />
2)<br />
in cordless drills.<br />
5<br />
18_ENG_AUS_C12_240205.indd 5 24.02.2005 16:30:51
Cordless Drill C 12 with EC-TEC ® by Festool<br />
All the benefits at a glance.<br />
Decidedly Different –<br />
technology and ergonomics.<br />
EC-TEC ® : Reliable<br />
EC-TEC ® : The right choice for every application<br />
For the toughest applications –<br />
even in series production.<br />
Series production really sorts the men out from the boys.<br />
Cordless drills used in series production require a high level<br />
of technical reliability and durability.<br />
EC-TEC ® with integral life assurance.<br />
The C 12 meets the toughest demands thanks to its extremely<br />
wear-resistant EC technology. In addition, a thermosensor and<br />
electronic low voltage control ensure that the motor and battery<br />
pack have a long service life. If the motor overheats in extreme<br />
cases or the voltage in the batteries is too low, the motor cuts out.<br />
Complete battery pack discharge is a thing of the past.<br />
Compact drill with outstanding power.<br />
The EC-TEC motor and gear mechanism are the main reasons why<br />
the C 12 is so compact. These two factors combined have allowed<br />
for a slim softgrip design so that the C 12 rests perfectly in your<br />
hand. The C 12 is lighter, more comfortable to use and more<br />
powerful.<br />
Lightweight with both compact and<br />
standard batteries.<br />
The new C 12 series is characterised by low weight and high<br />
efficiency: decide whether you would prefer to work with the<br />
super-lightweight compact battery pack and benefit from a high<br />
screwing capacity or the lightweight standard battery pack and<br />
enjoy maximum screwing capacity.<br />
Thermosensor<br />
Temperature<br />
120°C<br />
105°C<br />
90°C<br />
Load<br />
EC-TEC issues 3 signals<br />
and switches off the<br />
motor well before it<br />
overheats.<br />
C 12 with compact<br />
battery pack:<br />
for minimum weight and<br />
high screwing capacity.<br />
approx.<br />
240<br />
C 12 with standard battery pack:<br />
for maximum screwing capacity,<br />
still very lightweight.<br />
approx.<br />
560<br />
approx.<br />
450<br />
Low voltage control<br />
Voltage<br />
1.2 V<br />
Rated voltage<br />
0.6 V<br />
Cut-out voltage<br />
Number of screws<br />
EC-TEC issues 1 signal<br />
and switches off the<br />
motor well before the<br />
battery reaches critical<br />
low voltages.<br />
1.5 kg with<br />
C NiCd<br />
1.7 kg with<br />
S NiCd<br />
Source for graph: Festool Test Workshop 12/2004<br />
Battery capacity from left to right: 1.3 Ah, 2.4 Ah, 3.0 Ah<br />
Spax 5 x 40 in pine.<br />
1.7 kg with<br />
S NiMH<br />
6<br />
18_ENG_AUS_C12_240205.indd 6 24.02.2005 16:30:58
Ergonomic<br />
Versatile<br />
Work comfortably in any position.<br />
Because of its ergonomic shape, the C 12 rests particularly snugly<br />
in your hand and is perfectly balanced in any position. This reduces<br />
the effort required for any task, whether you are working on the<br />
floor, the wall or the ceiling.<br />
The shape of the C 12 enables you<br />
to apply pressure directly onto the<br />
drilling axis – for powerful screwing<br />
and drilling.<br />
As versatile as your work.<br />
You can work quickly and easily on a wide range of applications<br />
with the C 12:<br />
Window installation, on-site assembly, trade fair construction,<br />
electrical installations, interior vehicle fitting and many other areas.<br />
You can rely on the C 12.<br />
The drill‘s perfect weight<br />
distribution allows you to<br />
transfer pressure directly<br />
along the drilling axis.<br />
Even in tricky positions, working<br />
with the C 12 is almost completely<br />
effortless: in tight spaces, around<br />
corners or near edges. Its extremely<br />
compact design and FastFix system<br />
attachments offer many benefits.<br />
The C 12 will help you finish off any task with minimum effort and in no time at all.<br />
7<br />
18_ENG_AUS_C12_240205.indd 7 24.02.2005 16:31:21
Cordless Drill C 12 with EC-TEC ® by Festool<br />
CENTROTEC ® , FastFix ® and equipment options.<br />
Decidedly Different –<br />
with system.<br />
CENTROTEC ® – versatile, quick and precise<br />
FastFix ® attachments<br />
The FastFix interface is an indispensable component of all Festool<br />
cordless drills. Attaching the correct system accessories turns the<br />
cordless drill into a variety of tools suitable for almost every task.<br />
Bit inserted directly in the shaft<br />
Jack of all trades.<br />
The revolutionary CENTROTEC rapid<br />
tool-change system replaces chucks and<br />
bit holders. It saves valuable time with<br />
tasks involving screwing and drilling when<br />
tools need to be changed frequently.<br />
CENTROTEC weighs 80 % less than a<br />
standard drill chuck and is 50 % shorter,<br />
but still offers 100 % performance.<br />
It doesn‘t get much shorter than this.<br />
When the bit is inserted in the direct<br />
drill holder, the C 12 is only 15 cm long.<br />
You can easily reach into small areas<br />
and work in positions with limited space.<br />
CENTROTEC ® tool chuck<br />
Extremely lightweight at only 50 grams,<br />
CENTROTEC tools can be changed<br />
quickly - maximum true-running<br />
precision guaranteed. Reliable power<br />
transmission when drilling, no slipping<br />
or damage to drill shank.<br />
Noticeably lighter.<br />
With its compact design and CENTROTEC tool chuck, the new<br />
C 12 cordless drill weighs up to 800 grams less than many of<br />
its competitors. A noticable difference, especially when working<br />
above head height.<br />
FastFix ® keyless chuck<br />
Attached in a flash when the need arises.<br />
For example, when drilling holes with<br />
large diameters, using hole cutters,<br />
Forstner drill bits or standard accessories.<br />
FastFix ® elbow adapter<br />
For drilling and screwing “around the<br />
corner”. Can be rotated 360° and<br />
adapted to any working position.<br />
Drilling Counterboring Screwing<br />
FastFix ® eccentric adapter<br />
For screwing near edges without<br />
slipping, as sometimes occurs when<br />
fitting eg brackets.<br />
The three main tasks in assembly: tool changes at the flick of a wrist.<br />
8<br />
18_ENG_AUS_C12_240205.indd 8 24.02.2005 16:31:38
C 12 – More lightweight, sturdy and durable.<br />
C 12 – In the flexible FastFix ® set.<br />
Applications<br />
• Furniture and kitchen installation<br />
• Joiners and interior fittings<br />
• Trade fair construction and shopfitting<br />
• Painters and interior decorators<br />
• Bodyshops and paintshops<br />
• Continuous use in industrial applications<br />
Additional advantages of the Set package<br />
• FastFix elbow adapter<br />
• FastFix eccentric adapter<br />
• Well equipped for every task<br />
• Other sets may be available – please check with your<br />
Festool dealer.<br />
Features<br />
• Capacity to insert large quantities of screws,<br />
minimum weight with the compact C NiCd battery pack<br />
• Maximum screwing capacity and low weight with<br />
the standard S NiCd/S NiMH battery packs<br />
• Wear-resistant EC-TEC motor for a long service life<br />
• FastFix interface for all FastFix attachments and<br />
CENTROTEC rapid tool-change system<br />
• Impressive ergonomics: compact, lightweight and<br />
perfectly balanced<br />
• Compact gear mechanism with electronic cut-out,<br />
minimal stress and mechanical wear<br />
Technical data<br />
Battery voltage<br />
Idling speed<br />
Idling speed<br />
Drilling power for steel/wood<br />
Max. torque,<br />
Max. torque,<br />
Chuck range<br />
Battery power<br />
Battery power<br />
Charging time<br />
Charging time<br />
Weight with C NiCd<br />
Weight with S NiCd / S NiMH<br />
1st gear<br />
2nd gear<br />
hard (metal)<br />
soft (wood)<br />
C NiCd<br />
S NiCd / S NiMH<br />
C NiCd approx.<br />
S NiCd / S NiMH approx.<br />
12 V<br />
0–450 rpm<br />
0–1500 rpm<br />
14/25 mm<br />
30 Nm<br />
18 Nm<br />
1 – 13 mm<br />
1.3 Ah<br />
2.4 / 3.0 Ah<br />
25 min<br />
50 / 70 min<br />
1.5 kg<br />
1.7 kg<br />
ELECTRONIC<br />
Cordless drill C 12 – The various models. (Other sets may be available - please check with your Festool dealer).<br />
Scope of delivery: CENTROTEC tool chuck, 13 mm FastFix chuck, CENTROTEC spiral wood drill bit D 4,<br />
CENTROTEC bit holder with PZ 2 bit, LC 45 charger, in Systainer 1,<br />
Model Also included in scope of delivery Order no.<br />
C 12 CE-NC-C45-Plus<br />
C 12 CE-NC45-Plus<br />
C 12 CE-MH45-Plus<br />
C 12 CE-NC-C45 set<br />
C 12 CE CE-MH45 set<br />
Spare battery pack BPS 12 C NiCd<br />
Spare battery pack BPS 12 S NiCd<br />
Spare battery pack BPS 12 S NiMH<br />
Spare battery pack BPS 12 C NiCd,<br />
with FastFix elbow adapter and FastFix eccentric adapter<br />
Spare battery pack BPS 12 C NiMH,<br />
with FastFix elbow adapter and FastFix eccentric adapter<br />
564142<br />
564164<br />
564165<br />
564166<br />
564167<br />
9<br />
18_ENG_AUS_C12_240205.indd 9 24.02.2005 16:42:01
Cordless drill C 12 with EC-TEC ® by Festool<br />
Our comprehensive accessories programme.<br />
C 12 – Work efficiently and with a system.<br />
1)<br />
10<br />
9<br />
8<br />
5<br />
1<br />
6<br />
7<br />
2<br />
11<br />
15<br />
3<br />
12<br />
13<br />
4<br />
14<br />
16<br />
C 12 – System accessories.<br />
Product<br />
Order no.<br />
Battery pack BPS 12 C NiCd<br />
For cordless drills C 12 and TDK 12,<br />
Capacity: 1.3 Ah, voltage: 12 V, weight: 560 g<br />
493348<br />
Battery pack BPS 12 S NiCd<br />
For cordless drills C 12 and TDK 12,<br />
Capacity: 2.4 Ah, voltage: 12 V, weight: 760 g<br />
492268<br />
Battery pack BPS 12 S NiMH<br />
For cordless drills C 12 and TDK 12,<br />
Capacity: 3.0 Ah, voltage: 12 V, weight: 760 g<br />
491821<br />
Super-fast charger LC 45<br />
Impulse charging: max. 3 A, voltage: 220 V - 240 V<br />
491820<br />
1<br />
2<br />
CENTROTEC ® tool chuck<br />
For CENTROTEC bit holder, bits and drilling tools for cordless drills C 12,<br />
TDK, CDD-FX and TDD-FX<br />
FastFix ® keyless chuck<br />
For cordless drills C 12, TDK, CDD-FX and TDD-FX, clamping range 1-10 mm<br />
492135<br />
491350<br />
For cordless drills C 12, TDK, CDD-FX and TDD-FX, clamping range 1.5-13 mm<br />
490698<br />
3<br />
FastFix ® eccentric adapter<br />
For cordless drills C 12, TDK, CDD-FX and TDD-FX<br />
490294<br />
4<br />
FastFix ® elbow adapter<br />
For cordless drills C 12, TDK, CDD-FX and TDD-FX<br />
490293<br />
1)<br />
Please visit www.festool.com.au, consult your local specialist dealer or pick up a copy of the Festool main catalogue for a more comprehensive overview<br />
of cordless drill accessories.<br />
10<br />
18_ENG_AUS_C12_240205.indd 10 24.02.2005 16:32:22
CENTROTEC ® – Screwing, drilling and special tools.<br />
Designation Pcs mm Model Order no.<br />
5<br />
6<br />
7<br />
CENTROTEC ® Pozidriv HiQ bit<br />
Size: PZ 1 2 100 PZ 1-100/2 CE<br />
Size: PZ 2 2 100 PZ 2-100/2 CE<br />
Size: PZ 3 2 100 PZ 3-100/2 CE<br />
CENTROTEC ® Phillips HiQ bit<br />
Size: PH 1 2 100 PH 1-100/2 CE<br />
Size: PH 2 2 100 PH 2-100/2 CE<br />
Size: PH 3 2 100 PH 3-100/2 CE<br />
CENTROTEC ® TX HIQ bit<br />
Size: TX 15 2 100 TX 15-100/2 CE<br />
Size: TX 20 2 100 TX 20-100/2 CE<br />
Size: TX 25 2 100 TX 25-100/2 CE<br />
Size: TX 30 2 100 TX 30-100/2 CE<br />
492527<br />
492528<br />
492529<br />
492530<br />
492531<br />
492532<br />
492533<br />
492534<br />
492535<br />
492536<br />
Pozidriv bit box<br />
Contents, 10 pieces: 2x PZ 1, 5x PZ 2, 2x PZ 3,<br />
CENTROTEC magnetic bit holder BH 60 CE<br />
493260<br />
Torx bit box<br />
Contents, 10 pieces: 1x TX 10, 2x TX 15, 3x TX 20, 2x TX 25, 1x TX 30,<br />
CENTROTEC magnetic bit holder BH 60 CE<br />
493261<br />
8<br />
9<br />
10<br />
11<br />
Mix bit box<br />
Contents, 10 pieces: 1x PH 1, PH 2, PZ 1, PZ 2, PZ 3, TX 15, TX 20, TX 25, SZ 0.5 x 55,<br />
CENTROTEC magnetic bit holder BH 60 CE<br />
CENTROTEC ® bit holder<br />
for standard hexagon bits 1 60 BH 60 CE<br />
CENTROTEC ® rapid change bit holder<br />
for standard hexagon bits 1 65 BHS 65 CE<br />
CENTROTEC ® bit extension, 150 mm<br />
for standard hexagon bits 1 150 BV 150 CE<br />
CENTROTEC ® spiral wood drill bit storage box, 7-piece<br />
1 BKS D 3-10 CE/W<br />
The CENTROTEC spiral wood drill bits in this storage box are also available individually 1) .<br />
493262<br />
492539<br />
492648<br />
492540<br />
492519<br />
12<br />
CENTROTEC ® countersink bit<br />
1 QLS D 2-8 CE<br />
1 QLS D 5-15 CE<br />
492520<br />
492521<br />
13<br />
14<br />
15<br />
CENTROTEC ® drill bit with depth stop<br />
1 BTA HW D 5 CE<br />
CENTROTEC ® counterbore with depth stop<br />
1 BSTA HS D 3.5 CE<br />
1 BSTA HS D 4.5 CE<br />
CENTROTEC ® centring drill<br />
With depth limiter for 5 mm Euro screws<br />
1 ZB HS D 5 EURO CE<br />
492522<br />
492523<br />
492524<br />
492525<br />
16<br />
CENTROTEC ® hook rotator<br />
1 HD D 18 CE<br />
492526<br />
CENTROTEC tools are compatible with CENTROTEC tool chucks on all Festool cordless drills/screwdrivers with a FastFix interface.<br />
11<br />
18_ENG_AUS_C12_240205.indd 11 24.02.2005 16:32:30
www.festool.com.au<br />
Your link to more information…<br />
News and promotions<br />
Online product catalogue<br />
Online shop<br />
Dealer search<br />
Test reports<br />
On the Festool site you can find<br />
information about<br />
• new products<br />
• helpful application examples<br />
• our comprehensive after-sales service<br />
• the complete product range<br />
• product features in detail<br />
And all of this at your leisure.<br />
Service<br />
Application examples<br />
3D animations<br />
Order around the clock from your<br />
Festool System Partner Dealer.<br />
It‘s easy: just visit www.festool.com.au<br />
www.festool.com.au<br />
Three years guarantee – that means<br />
three years security.<br />
TTS Tooltechnic Systems (AUST) P/L<br />
63-65 Quantum Close/PO Box 3075<br />
Dandenong VIC 3175<br />
Phone 03 9799 9733<br />
Fax: 03 9766 9766<br />
Service Hotline 1800 063 900<br />
E-mail: festool@festool.com.au<br />
New Zealand<br />
Eurotooltechnic Limited<br />
26 Greenmount Drive<br />
East Tamaki<br />
Auckland<br />
New Zealand<br />
Phone 64 9 272 2220<br />
Fax 64 9 272 2230<br />
E-mail: sales@tooltechnic.co.nz<br />
www.festool.co.nz<br />
Festool grants a 1 year guarantee from<br />
the date of purchase, as long as the tool<br />
has been used correctly. This guarantee is<br />
automatically extended by a further two<br />
years, provided that the warranty form<br />
with every new tool is completed correctly<br />
and returned to Festool Australia within<br />
30 days of the date of purchase.<br />
Subject to alterations and errors. All illustrations are non-binding. Created for TTS Tooltechnic Systems AG & Co. KG, DE - 73240 Wendlingen, 03/2005<br />
Dealer<br />
Faster. Easier. Better.<br />
For more information, visit www.festool.com.au<br />
18_ENG_AUS_C12_240205.indd 12 24.02.2005 16:32:31
