276 CHAPTER 9. BLACK HOLES Some of the researchers who originally worked this out have put together a nice readable website that you might enjoy. It is located at (http://wwwtheorie.physik.unizh.ch/∼droz/inside/). Actually, I have to admit that no one believes that real black holes in nature will have a significant electric charge. The point is that a black hole with a significant (say, positive charge) will attract other (negative) charges, which fall in so that the final object has zero total charge. However, real black holes do have one property that turns out to make them quite different from Schwarzschild black holes: they are typically spinning. Spinning black holes are not round, but become somewhat disk shaped (as do all other spinning objects....). As a result, they are not described by the Schwarzschild metric. The spacetime that describes a rotating black hole is called the Kerr metric. There is also of course a generalization that allows both spin and charge and which is called the Kerr-Newman metric. It turns out that the Penrose diagram for a rotating black hole is much the same as that of an RN black hole, but with the technical complication that rotating black holes are not round. One finds the same story about an unstable inner horizon in that context as well, with much the same resolution. I would prefer not to go into a discussion of the details of the Kerr metric because of the technical complications involved, but it is good to know that things basically work just the same as for the RN metric above. 9.6.4 Some Cool Stuff Other Relativity links: In case you haven’t already discovered them, the SU Relativity Group (the group that does research in Relativity) maintains a page of Relativity Links at (http://physics.syr.edu/research/relativity/RELATIVITY.html). The ones under ‘Visualizing Relativity’ (http://physics.syr.edu/research/relativity/RELATIVITY.html#VisualizingRelativity) can be a lot of fun.

9.7. HOMEWORK PROBLEMS 277 9.7 Homework Problems Fun with the Schwarzschild Metric: In the first few problems below, you will explore the Schwarzschild metric – the metric that describes the gravitational field (that is, the shape of spacetime) outside of any spherically symmetric distribution of matter. Thus, this same metric describes the shape of spacetime outside of round planets, round starts, round neutron stars, and round black holes!!! The only differences between these objects are 1) the value of the mass M and 2) how close you can get to the object before you hit the surface of the matter (so that the Schwarzschild metric no longer applies). In it’s full glory, the Schwarzschild metric is: ( ds 2 = − 1 − R ) s dt 2 + dr2 r 1 − Rs r where R S = 2MG/c 2 . + r 2 dθ 2 + r 2 sin 2 θ dφ 2 , (9.48) Here, θ and φ are coordinates on a sphere as shown below. θ is similar to latitude – it is the angle between your position on the sphere and the north pole – thus, θ goes from zero (at the north pole) to π at the south pole. φ is like longitude, running from 0 to 2π around the sphere. These are the standard spherical coordinates used by physicists; however, they are ‘backwards’ from the coordinates used in many calculus classes (that is, θ and φ have been switched). The point p below has coordinates θ, φ: North Pole p θ φ 1. Consider a static clock at some value of r. (a) In terms of the radial position r, how fast does a static clock run relative to a clock far away (at r = ∞)? Hint: calculate the proper time dτ measured by such a clock. (b) Suppose that you are standing on the surface of the Sun. How fast does your clock run relative to a clock far away (at r = ∞)? (i.e., calculate the relevant number.) Note that M sun = 2 × 10 30 kg, G = 6.7 × 10 −11 Nm 2 /kg 2 , and c = 3 × 10 8 m/s. Also, at the surface of the sun, r = 7 × 10 8 m.

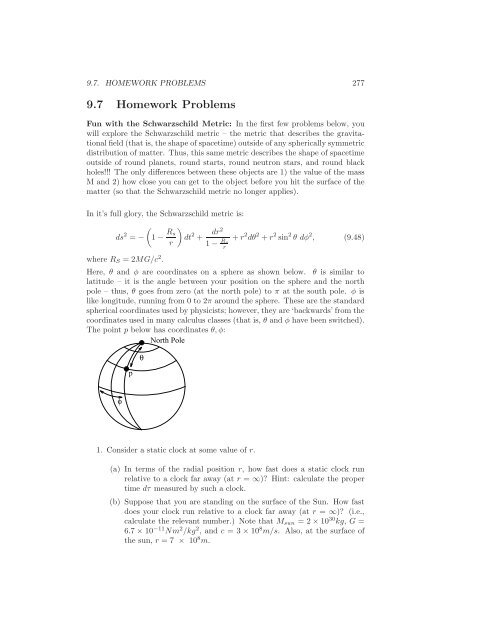

9.7. HOMEWORK PROBLEMS 277<br />

9.7 Homework Problems<br />

Fun with the Schwarzschild Metric: In the first few problems below, you<br />

will explore the Schwarzschild metric – the metric that describes the gravitati<strong>on</strong>al<br />

field (that is, the shape of spacetime) outside of any spherically symmetric<br />

distributi<strong>on</strong> of matter. Thus, this same metric describes the shape of spacetime<br />

outside of round planets, round starts, round neutr<strong>on</strong> stars, <strong>and</strong> round black<br />

holes!!! The <strong>on</strong>ly differences between these objects are 1) the value of the mass<br />

M <strong>and</strong> 2) how close you can get to the object before you hit the surface of the<br />

matter (so that the Schwarzschild metric no l<strong>on</strong>ger applies).<br />

In it’s full glory, the Schwarzschild metric is:<br />

(<br />

ds 2 = − 1 − R )<br />

s<br />

dt 2 + dr2<br />

r 1 − Rs<br />

r<br />

where R S = 2MG/c 2 .<br />

+ r 2 dθ 2 + r 2 sin 2 θ dφ 2 , (9.48)<br />

Here, θ <strong>and</strong> φ are coordinates <strong>on</strong> a sphere as shown below. θ is similar to<br />

latitude – it is the angle between your positi<strong>on</strong> <strong>on</strong> the sphere <strong>and</strong> the north<br />

pole – thus, θ goes from zero (at the north pole) to π at the south pole. φ is<br />

like l<strong>on</strong>gitude, running from 0 to 2π around the sphere. These are the st<strong>and</strong>ard<br />

spherical coordinates used by physicists; however, they are ‘backwards’ from the<br />

coordinates used in many calculus classes (that is, θ <strong>and</strong> φ have been switched).<br />

The point p below has coordinates θ, φ:<br />

North Pole<br />

p<br />

θ<br />

φ<br />

1. C<strong>on</strong>sider a static clock at some value of r.<br />

(a) In terms of the radial positi<strong>on</strong> r, how fast does a static clock run<br />

relative to a clock far away (at r = ∞)? Hint: calculate the proper<br />

time dτ measured by such a clock.<br />

(b) Suppose that you are st<strong>and</strong>ing <strong>on</strong> the surface of the Sun. How fast<br />

does your clock run relative to a clock far away (at r = ∞)? (i.e.,<br />

calculate the relevant number.) Note that M sun = 2 × 10 30 kg, G =<br />

6.7 × 10 −11 Nm 2 /kg 2 , <strong>and</strong> c = 3 × 10 8 m/s. Also, at the surface of<br />

the sun, r = 7 × 10 8 m.
