244 CHAPTER 9. BLACK HOLES Well, our diagram is exactly the same on the right as on the left, so there seems to be a symmetry. In fact, you can check that the Schwarzschild metric is unchanged if we replace t by −t. So, both directions must behave identically. If any calculation found that the worldline bends to the left, then there would be an equally valid calculation showing that the worldline bends to the right. As a result, the freely falling worldline will not bend in either direction and will remain at a constant value of t. Now, how long does it take to reach r = 0? We can compute the proper time by using the freely falling worldline with dt = 0. For such a worldline the metric yields: dτ 2 = −ds 2 = dr 2 R s /r − 1 = r R s − r dr2 . (9.18) Integrating, we have: τ = √ r dr R s R s − r . (9.19) ∫ 0 It is not important to compute this answer exactly. What is important is to notice that the answer is finite. We can see this from the fact that, near r ≈ R s the integral is much like √ dx x near x = 0. This latter integral integrates to √ x and is finite at x = 0. Also, near r = 0 the integral is much like x R s dx, which clearly gives a finite result. Thus, our observer measures a finite proper time between r = R s and r = 0 and the throat does collapse to zero size in finite time. 9.3.2 The Singularity This means that we should draw the line r = 0 as one of the hyperbolae on our digram. It is clearly going to be a ‘rather singular line’ (to paraphrase Sherlock Holmes again), and we will mark it as special by using a jagged line. As you can see, this line is spacelike and so represents a certain time. We call this line the singularity. Note that this means that the singularity of a black hole is not a place at all! The singularity is most properly thought of as being a very special time, at which the entire interior of the black hole squashes itself (and everything in it) to zero size. Note that, since it cuts all of the way across the future light cone of any events in the interior (such as event A below), there is no way for any object in the interior to avoid the singularity.
9.3. BEYOND THE HORIZON 245 r = 0 r = R s A r oo r = R s By the way, this is a good place to comment on what would happen to you if you tried to go from the right exterior to the left exterior through the wormhole. Note that, once you leave the right exterior, you are in the future interior region. From here, there is no way to get to the left exterior without moving faster than light. Instead, you will encounter the singularity. What this means is that the wormhole pinches off so quickly that even a light ray cannot pass through it from one side to the other. It turns out that this behavior is typical of wormholes. Let’s get a little bit more information about the singularity by studying the motion of two freely falling objects. As we have seen, some particularly simple geodesics inside the black hole are given by lines of constant t. I have drawn two of these (at t 1 and t 2 ) on the diagram below. t = t 1 t = t 2 r = R s r = 0 r oo r = R s One question that we can answer quickly is how far apart these lines are at each r (say, measured along the line r = const). That is, “What is the proper length of the curve at constant r from t = t 1 to t = t 2 ?” Along such a curve, dr = 0 and we have ds 2 = (R s /r −1)dt 2 . So, s = (t 1 −t 2 ) √ R s /r − 1. As r → 0, the separation becomes infinite. Since a freely falling object reaches r = 0 in
- Page 194 and 195: 194 CHAPTER 8. GENERAL RELATIVITY A
- Page 196 and 197: 196 CHAPTER 8. GENERAL RELATIVITY A
- Page 198 and 199: 198 CHAPTER 8. GENERAL RELATIVITY A
- Page 200 and 201: 200 CHAPTER 8. GENERAL RELATIVITY A
- Page 202 and 203: 202 CHAPTER 8. GENERAL RELATIVITY A
- Page 204 and 205: 204 CHAPTER 8. GENERAL RELATIVITY A
- Page 206 and 207: 206 CHAPTER 8. GENERAL RELATIVITY A
- Page 208 and 209: 208 CHAPTER 8. GENERAL RELATIVITY A
- Page 210 and 211: 210 CHAPTER 8. GENERAL RELATIVITY A
- Page 212 and 213: 212 CHAPTER 8. GENERAL RELATIVITY A
- Page 214 and 215: 214 CHAPTER 8. GENERAL RELATIVITY A
- Page 216 and 217: 216 CHAPTER 8. GENERAL RELATIVITY A
- Page 218 and 219: 218 CHAPTER 8. GENERAL RELATIVITY A
- Page 220 and 221: 220 CHAPTER 8. GENERAL RELATIVITY A
- Page 222 and 223: 222 CHAPTER 8. GENERAL RELATIVITY A
- Page 224 and 225: 224 CHAPTER 8. GENERAL RELATIVITY A
- Page 226 and 227: 226 CHAPTER 8. GENERAL RELATIVITY A
- Page 228 and 229: 228 CHAPTER 9. BLACK HOLES of gravi
- Page 230 and 231: 230 CHAPTER 9. BLACK HOLES However,
- Page 232 and 233: 232 CHAPTER 9. BLACK HOLES require
- Page 234 and 235: 234 CHAPTER 9. BLACK HOLES √ dr r
- Page 236 and 237: 236 CHAPTER 9. BLACK HOLES Future I
- Page 238 and 239: 238 CHAPTER 9. BLACK HOLES r = R s
- Page 240 and 241: 240 CHAPTER 9. BLACK HOLES r < R s
- Page 242 and 243: 242 CHAPTER 9. BLACK HOLES this: Fi
- Page 246 and 247: 246 CHAPTER 9. BLACK HOLES finite p
- Page 248 and 249: 248 CHAPTER 9. BLACK HOLES r = R s
- Page 250 and 251: 250 CHAPTER 9. BLACK HOLES Now that
- Page 252 and 253: 252 CHAPTER 9. BLACK HOLES the firs
- Page 254 and 255: 254 CHAPTER 9. BLACK HOLES through
- Page 256 and 257: 256 CHAPTER 9. BLACK HOLES this lin
- Page 258 and 259: 258 CHAPTER 9. BLACK HOLES Believe
- Page 260 and 261: 260 CHAPTER 9. BLACK HOLES you tie
- Page 262 and 263: 262 CHAPTER 9. BLACK HOLES universe
- Page 264 and 265: 264 CHAPTER 9. BLACK HOLES way that
- Page 266 and 267: 266 CHAPTER 9. BLACK HOLES Now, an
- Page 268 and 269: 268 CHAPTER 9. BLACK HOLES 9.6 Blac
- Page 270 and 271: 270 CHAPTER 9. BLACK HOLES The poin
- Page 272 and 273: 272 CHAPTER 9. BLACK HOLES r = 0 r
- Page 274 and 275: 274 CHAPTER 9. BLACK HOLES In this
- Page 276 and 277: 276 CHAPTER 9. BLACK HOLES Some of
- Page 278 and 279: 278 CHAPTER 9. BLACK HOLES (c) In t
- Page 280 and 281: 280 CHAPTER 9. BLACK HOLES r = R s
- Page 282 and 283: 282 CHAPTER 9. BLACK HOLES (c) What
- Page 284 and 285: 284 CHAPTER 10. COSMOLOGY Well, the
- Page 286 and 287: 286 CHAPTER 10. COSMOLOGY 3. The th
- Page 288 and 289: 288 CHAPTER 10. COSMOLOGY a a = 1 T
- Page 290 and 291: 290 CHAPTER 10. COSMOLOGY -1 -2 0 1
- Page 292 and 293: 292 CHAPTER 10. COSMOLOGY ( ) 2 3 d

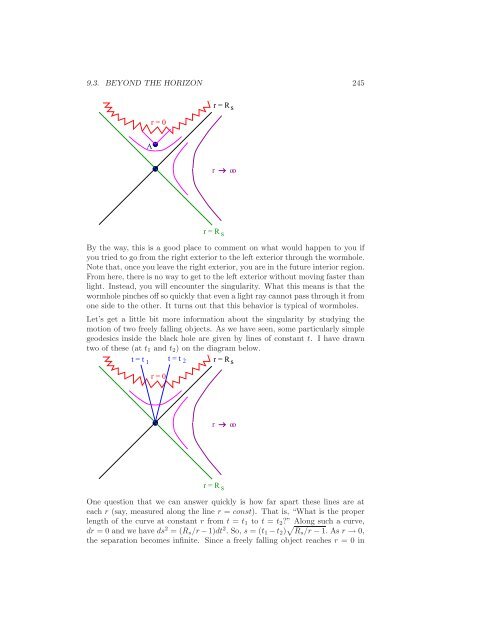

9.3. BEYOND THE HORIZON 245<br />
r = 0<br />
r = R s<br />
A<br />
r<br />
oo<br />
r = R s<br />
By the way, this is a good place to comment <strong>on</strong> what would happen to you if<br />
you tried to go from the right exterior to the left exterior through the wormhole.<br />
Note that, <strong>on</strong>ce you leave the right exterior, you are in the future interior regi<strong>on</strong>.<br />
From here, there is no way to get to the left exterior without moving faster than<br />
light. Instead, you will encounter the singularity. What this means is that the<br />
wormhole pinches off so quickly that even a light ray cannot pass through it from<br />
<strong>on</strong>e side to the other. It turns out that this behavior is typical of wormholes.<br />
Let’s get a little bit more informati<strong>on</strong> about the singularity by studying the<br />
moti<strong>on</strong> of two freely falling objects. As we have seen, some particularly simple<br />
geodesics inside the black hole are given by lines of c<strong>on</strong>stant t. I have drawn<br />
two of these (at t 1 <strong>and</strong> t 2 ) <strong>on</strong> the diagram below.<br />
t = t 1<br />
t = t 2 r = R s<br />
r = 0<br />
r<br />
oo<br />
r = R s<br />
One questi<strong>on</strong> that we can answer quickly is how far apart these lines are at<br />
each r (say, measured al<strong>on</strong>g the line r = c<strong>on</strong>st). That is, “What is the proper<br />
length of the curve at c<strong>on</strong>stant r from t = t 1 to t = t 2 ?” Al<strong>on</strong>g such a curve,<br />
dr = 0 <strong>and</strong> we have ds 2 = (R s /r −1)dt 2 . So, s = (t 1 −t 2 ) √ R s /r − 1. As r → 0,<br />
the separati<strong>on</strong> becomes infinite. Since a freely falling object reaches r = 0 in
