216 CHAPTER 8. GENERAL RELATIVITY AND CURVED SPACETIME When an object is perfectly round (spherical), the high symmetry of the situation simplifies the mathematics. The point is that if the object is round, and if the object completely determines the gravitational field, then the gravitational field must be round as well. So, the first simplification we will perform is to assume that our gravitational field (i.e., our spacetime) is spherically symmetric. The second simplification we will impose is to assume that there is no matter (just empty spacetime), at least in the region of spacetime that we are studying. In particular, the energy, momentum, etc., of matter are equal to zero in this region. As a result, we will be describing the gravitational field of an object (the earth, a star, etc.) only in the region outside of the object. This would describe the gravitational field well above the earth’s surface, but not down in the interior. For this case, the Einstein equations were solved by a young German mathematician named Schwarzschild. There is an interesting story here, as Schwarzschild solved these equations during his spare time while he was in the trenches fighting (on the German side) in World War I. I believe the story is that Schwarzschild got his calculations published but, by the time this happened, he had been killed in the war. Because of the spherical symmetry, it was simplest for Schwarzschild to use what are called spherical coordinates (r, θ, φ) as opposed to Cartesian Coordinates (x, y, z). Here, r tells us how far out we are, and θ, φ are latitude and longitude coordinates on the sphere at any value of r. Object r=10 r = 20 Schwarzschild found that, for any spherically symmetric spacetime and outside of the matter, the metric takes the form: ( ds 2 = − 1 − R ) s dt 2 + dr2 r 1 − Rs r + r 2 (dθ 2 + sin 2 θdφ 2 ). (8.17) Here, the parameter R s depends on the total mass of the matter inside. In particular, it turns out that R s = 2MG/c 2 . The last part of the metric, r 2 (dθ 2 +sin 2 θdφ 2 ), is just the metric on a standard sphere of radius r. This part follows just from the spherical symmetry itself. Recall that θ is a latitude coordinate and φ is a longitude coordinate. The factor
8.5. EXPERIMENTAL VERIFICATION OF GR 217 of sin 2 θ encodes the fact that circles at constant θ (i.e., with dθ = 0) are smaller near the poles (θ = 0, π) than at the equator (θ = π/2). North Pole p θ φ 8.5 The experimental verification of General Relativity Now that the Schwarzschild metric (8.17) is in hand, we know what is the spacetime geometry around any round object. Now, what can we do with it? Well, in principle, one can do just about anything. The metric encodes all of the information about the geometry, and thus all of the information about geodesics. Recall that any freely falling worldline (like, say, that of an orbiting planet) is a geodesic. So, one thing that can be done is to compute the orbits of the planets. Another would be to compute various gravitational time dilation effects. Having arrived at the Schwarzschild solution, we are finally at the point where Einstein’s ideas have a lot of power. They now predict the curvature around any massive object (the sun, the earth, the moon, etc.). So, Einstein started looking for predictions that could be directly tested by experiment to check that he was actually right. This makes an interesting contrast with special relativity, in which quite a bit of experimental data was already available before Einstein constructed the theory. In the case of GR, Einstein was guided for a long time by a lot of intuition (i.e., guesswork) and, for the most part, the experiments would only be done later, after he had constructed the theory. Recall that although we have mentioned a few pieces of experimental evidence already (such as the Pound-Rebke and GPS experiments) these occurred only in 1959 and in the 1990’s! Einstein finished developing General Relativity in 1916 and certainly wanted to find an experiment that could be done soon after. 8.5.1 The planet Mercury We have seen that Einstein’s theory of gravity agrees with Newton’s when the gravitational fields are weak (i.e., far away from any massive object). But, the discrepancy increases as the field gets stronger. So, the best place (around
- Page 166 and 167: 166 CHAPTER 6. DYNAMICS: ENERGY AND
- Page 168 and 169: 168 CHAPTER 7. RELATIVITY AND THE G
- Page 170 and 171: 170 CHAPTER 7. RELATIVITY AND THE G
- Page 172 and 173: 172 CHAPTER 7. RELATIVITY AND THE G
- Page 174 and 175: 174 CHAPTER 7. RELATIVITY AND THE G
- Page 176 and 177: 176 CHAPTER 7. RELATIVITY AND THE G
- Page 178 and 179: 178 CHAPTER 7. RELATIVITY AND THE G
- Page 180 and 181: 180 CHAPTER 7. RELATIVITY AND THE G
- Page 182 and 183: 182 CHAPTER 7. RELATIVITY AND THE G
- Page 184 and 185: 184 CHAPTER 7. RELATIVITY AND THE G
- Page 186 and 187: 186 CHAPTER 7. RELATIVITY AND THE G
- Page 188 and 189: 188 CHAPTER 7. RELATIVITY AND THE G
- Page 190 and 191: 190 CHAPTER 7. RELATIVITY AND THE G
- Page 192 and 193: 192 CHAPTER 7. RELATIVITY AND THE G
- Page 194 and 195: 194 CHAPTER 8. GENERAL RELATIVITY A
- Page 196 and 197: 196 CHAPTER 8. GENERAL RELATIVITY A
- Page 198 and 199: 198 CHAPTER 8. GENERAL RELATIVITY A
- Page 200 and 201: 200 CHAPTER 8. GENERAL RELATIVITY A
- Page 202 and 203: 202 CHAPTER 8. GENERAL RELATIVITY A
- Page 204 and 205: 204 CHAPTER 8. GENERAL RELATIVITY A
- Page 206 and 207: 206 CHAPTER 8. GENERAL RELATIVITY A
- Page 208 and 209: 208 CHAPTER 8. GENERAL RELATIVITY A
- Page 210 and 211: 210 CHAPTER 8. GENERAL RELATIVITY A
- Page 212 and 213: 212 CHAPTER 8. GENERAL RELATIVITY A
- Page 214 and 215: 214 CHAPTER 8. GENERAL RELATIVITY A
- Page 218 and 219: 218 CHAPTER 8. GENERAL RELATIVITY A
- Page 220 and 221: 220 CHAPTER 8. GENERAL RELATIVITY A
- Page 222 and 223: 222 CHAPTER 8. GENERAL RELATIVITY A
- Page 224 and 225: 224 CHAPTER 8. GENERAL RELATIVITY A
- Page 226 and 227: 226 CHAPTER 8. GENERAL RELATIVITY A
- Page 228 and 229: 228 CHAPTER 9. BLACK HOLES of gravi
- Page 230 and 231: 230 CHAPTER 9. BLACK HOLES However,
- Page 232 and 233: 232 CHAPTER 9. BLACK HOLES require
- Page 234 and 235: 234 CHAPTER 9. BLACK HOLES √ dr r
- Page 236 and 237: 236 CHAPTER 9. BLACK HOLES Future I
- Page 238 and 239: 238 CHAPTER 9. BLACK HOLES r = R s
- Page 240 and 241: 240 CHAPTER 9. BLACK HOLES r < R s
- Page 242 and 243: 242 CHAPTER 9. BLACK HOLES this: Fi
- Page 244 and 245: 244 CHAPTER 9. BLACK HOLES Well, ou
- Page 246 and 247: 246 CHAPTER 9. BLACK HOLES finite p
- Page 248 and 249: 248 CHAPTER 9. BLACK HOLES r = R s
- Page 250 and 251: 250 CHAPTER 9. BLACK HOLES Now that
- Page 252 and 253: 252 CHAPTER 9. BLACK HOLES the firs
- Page 254 and 255: 254 CHAPTER 9. BLACK HOLES through
- Page 256 and 257: 256 CHAPTER 9. BLACK HOLES this lin
- Page 258 and 259: 258 CHAPTER 9. BLACK HOLES Believe
- Page 260 and 261: 260 CHAPTER 9. BLACK HOLES you tie
- Page 262 and 263: 262 CHAPTER 9. BLACK HOLES universe
- Page 264 and 265: 264 CHAPTER 9. BLACK HOLES way that

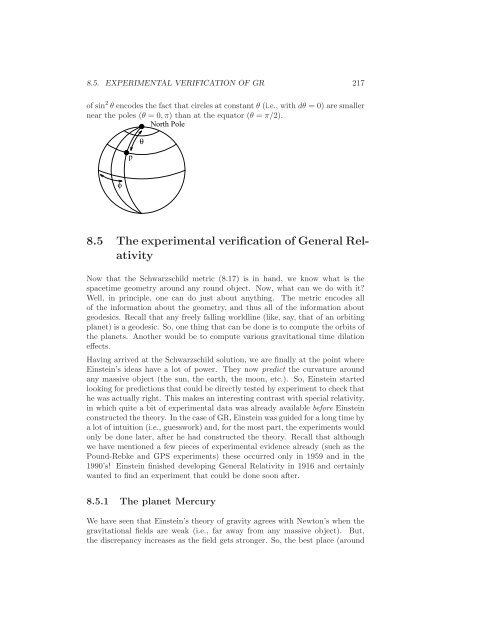

8.5. EXPERIMENTAL VERIFICATION OF GR 217<br />
of sin 2 θ encodes the fact that circles at c<strong>on</strong>stant θ (i.e., with dθ = 0) are smaller<br />
near the poles (θ = 0, π) than at the equator (θ = π/2).<br />
North Pole<br />
p<br />
θ<br />
φ<br />
8.5 The experimental verificati<strong>on</strong> of General <strong>Relativity</strong><br />
Now that the Schwarzschild metric (8.17) is in h<strong>and</strong>, we know what is the<br />
spacetime geometry around any round object. Now, what can we do with it?<br />
Well, in principle, <strong>on</strong>e can do just about anything. The metric encodes all<br />
of the informati<strong>on</strong> about the geometry, <strong>and</strong> thus all of the informati<strong>on</strong> about<br />
geodesics. Recall that any freely falling worldline (like, say, that of an orbiting<br />
planet) is a geodesic. So, <strong>on</strong>e thing that can be d<strong>on</strong>e is to compute the orbits of<br />
the planets. Another would be to compute various gravitati<strong>on</strong>al time dilati<strong>on</strong><br />
effects.<br />
Having arrived at the Schwarzschild soluti<strong>on</strong>, we are finally at the point where<br />
Einstein’s ideas have a lot of power. They now predict the curvature around<br />
any massive object (the sun, the earth, the mo<strong>on</strong>, etc.). So, Einstein started<br />
looking for predicti<strong>on</strong>s that could be directly tested by experiment to check that<br />
he was actually right. This makes an interesting c<strong>on</strong>trast with special relativity,<br />
in which quite a bit of experimental data was already available before Einstein<br />
c<strong>on</strong>structed the theory. In the case of GR, Einstein was guided for a l<strong>on</strong>g time by<br />
a lot of intuiti<strong>on</strong> (i.e., guesswork) <strong>and</strong>, for the most part, the experiments would<br />
<strong>on</strong>ly be d<strong>on</strong>e later, after he had c<strong>on</strong>structed the theory. Recall that although<br />
we have menti<strong>on</strong>ed a few pieces of experimental evidence already (such as the<br />
Pound-Rebke <strong>and</strong> GPS experiments) these occurred <strong>on</strong>ly in 1959 <strong>and</strong> in the<br />
1990’s! Einstein finished developing General <strong>Relativity</strong> in 1916 <strong>and</strong> certainly<br />
wanted to find an experiment that could be d<strong>on</strong>e so<strong>on</strong> after.<br />
8.5.1 The planet Mercury<br />
We have seen that Einstein’s theory of gravity agrees with Newt<strong>on</strong>’s when the<br />
gravitati<strong>on</strong>al fields are weak (i.e., far away from any massive object). But,<br />
the discrepancy increases as the field gets str<strong>on</strong>ger. So, the best place (around
