124 CHAPTER 5. ACCELERATING REFERENCE FRAMES . . . where the E-subscripts remind us that this is to be computed in the momentarily co-moving inertial frame at event E. Notice the analogy with the definition of proper time along a worldline, which says that the proper time is the time as measured in a co-moving inertial frame (i.e., a frame in which the worldline is at rest). An important point is that, although our computation of α(E) involves a discussion of certain reference frames, α(E) is a quantity that is intrinsic to the motion of the rocket and does not depend on choosing of some particular inertial frame from which to measure it. Thus, it is not necessary to specify an inertial frame in which α(E) is measured, or to talk about α(E) “relative” to some frame. As with proper time, we use a Greek letter (α) to distinguish proper acceleration from the more familiar frame-dependent acceleration a. We should also point out that the notion of proper acceleration is also just how the rocket would naturally measure its own acceleration (relative to inertial frames). For example, a person in the rocket might decide to drop a rock out the window at event E. If the rock is gently released at event E, it will initially have no velocity relative to the rocket – its frame of reference will be the momentarily co-moving inertial frame at event E. Of course, the rock will then begin to be left behind. If the observer in the rocket measures the relative acceleration between the rock and the rocket, this will be the same size (though in the opposite direction) as the acceleration of the rocket as measured by the (inertial and momentarily co-moving) rock. In other words, it will be the proper acceleration α of the rocket. 5.1.2 Uniform Acceleration and Boost Parameters So, now we know what we mean by uniform acceleration. But, it would be useful to know how to draw this kind of motion on a spacetime diagram (in some inertial frame). In other words, we’d like to know what sort of worldline this rocket actually follows through spacetime. There are several ways to approach this question, but I want to use some of the tools that we’ve been developing. As we have seen, uniform acceleration is a very natural notion that is not tied to any particular reference frame. We also know that, in some sense, it involves a change in velocity and a change in time. One might expect the discussion to be simplest if we measure each of these in the most natural way possible, without referring to any particular reference frame. What do you think is the natural measure of velocity (and the change in velocity)? By natural, I mean something associated with the basic structure (geometry!) of spacetime. What do you think is a natural measure of the passage time? Stop reading for a moment and think about this. As we discussed last week, the natural way to describe velocity (in terms of, say, Minkowskian geometry) is in terms of the associated boost parameter θ. Recall that boost parameters really do add together (eq. 4.17) in the simple, natural way. This means that when we consider a difference of two boost parameters (like, say, in ∆θ or dθ), this difference is in fact independent of the reference
5.1. THE UNIFORMLY ACCELERATING WORLDLINE 125 frame in which it is computed. The boost parameter of the reference frame itself just cancels out. What about measuring time? Well, as we have discussed, the ‘natural’ measure of time along a worldline is the proper time. The proper time is again independent of any choice of reference frame. OK, so how does this relate to our above discussion? Let’s again think about computing the proper acceleration α(E) at some event E using the momentarily co-moving inertial frame. We have α(E) = dv E dt E . (5.2) What we want to do is to write dv E and dt E in terms of the boost parameter (θ) and the proper time (τ). Let’s start with the time part. Recall that the proper time τ along the rocket’s worldline is just the time that is measured by a clock on the rocket. Thus, the question is just “How would a small time interval dτ measured by this clock (at event E) compare to the corresponding time interval dt E measured in the momentarily co-moving inertial frame?” But we are interested only in the infinitesimal time around event E where there is negligible relative velocity between these two clocks. Clocks with no relative velocity measure time intervals in exactly the same way. So, we have dt E = dτ. Now let’s work in the boost parameter, using dθ to replace the dv E in equation (5.1). Recall that the boost parameter θ is just a function of the velocity v/c = tanhθ. So, let’s try to compute dv E /dt E using the chain rule. You can use the definition of tanh to check that Thus, we have dv dθ = dv dτ = dv dθ dθ dτ = c cosh 2 θ . c cosh 2 θ dθ dτ . (5.3) Finally, note that at event E, the boost parameter θ of the rocket relative to the momentarily co-moving inertial frame is zero. So, if we want dvE dτ we should substitute θ = 0 into the above equation 1 : In other words, α = dv E dτ = c dθ cosh 2 ∣ θ θ=0 dτ = cdθ dτ . (5.4) dθ dτ = α/c. (5.5) 1 Note that this means that our chain rule calculation (5.3) has in fact shown that, for small velocities, we have approximately θ ≈ v/c. This may make you feel even better about using boost parameters as a measure of velocity.
- Page 74 and 75: 74 CHAPTER 3. EINSTEIN AND INERTIAL
- Page 76 and 77: 76 CHAPTER 3. EINSTEIN AND INERTIAL
- Page 78 and 79: 78 CHAPTER 3. EINSTEIN AND INERTIAL
- Page 80 and 81: 80 CHAPTER 3. EINSTEIN AND INERTIAL
- Page 82 and 83: 82 CHAPTER 3. EINSTEIN AND INERTIAL
- Page 84 and 85: 84 CHAPTER 3. EINSTEIN AND INERTIAL
- Page 86 and 87: 86 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 88 and 89: 88 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 90 and 91: 90 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 92 and 93: 92 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 94 and 95: 94 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 96 and 97: 96 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 98 and 99: 98 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 100 and 101: 100 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 102 and 103: 102 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 104 and 105: 104 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 106 and 107: 106 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 108 and 109: 108 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 110 and 111: 110 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 112 and 113: 112 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 114 and 115: 114 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 116 and 117: 116 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 118 and 119: 118 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 120 and 121: 120 CHAPTER 4. MINKOWSKIAN GEOMETRY
- Page 122 and 123: 122 CHAPTER 5. ACCELERATING REFEREN
- Page 126 and 127: 126 CHAPTER 5. ACCELERATING REFEREN
- Page 128 and 129: 128 CHAPTER 5. ACCELERATING REFEREN
- Page 130 and 131: 130 CHAPTER 5. ACCELERATING REFEREN
- Page 132 and 133: 132 CHAPTER 5. ACCELERATING REFEREN
- Page 134 and 135: 134 CHAPTER 5. ACCELERATING REFEREN
- Page 136 and 137: 136 CHAPTER 5. ACCELERATING REFEREN
- Page 138 and 139: 138 CHAPTER 5. ACCELERATING REFEREN
- Page 140 and 141: 140 CHAPTER 5. ACCELERATING REFEREN
- Page 142 and 143: 142 CHAPTER 5. ACCELERATING REFEREN
- Page 144 and 145: 144 CHAPTER 6. DYNAMICS: ENERGY AND
- Page 146 and 147: 146 CHAPTER 6. DYNAMICS: ENERGY AND
- Page 148 and 149: 148 CHAPTER 6. DYNAMICS: ENERGY AND
- Page 150 and 151: 150 CHAPTER 6. DYNAMICS: ENERGY AND
- Page 152 and 153: 152 CHAPTER 6. DYNAMICS: ENERGY AND
- Page 154 and 155: 154 CHAPTER 6. DYNAMICS: ENERGY AND
- Page 156 and 157: 156 CHAPTER 6. DYNAMICS: ENERGY AND
- Page 158 and 159: 158 CHAPTER 6. DYNAMICS: ENERGY AND
- Page 160 and 161: 160 CHAPTER 6. DYNAMICS: ENERGY AND
- Page 162 and 163: 162 CHAPTER 6. DYNAMICS: ENERGY AND
- Page 164 and 165: 164 CHAPTER 6. DYNAMICS: ENERGY AND
- Page 166 and 167: 166 CHAPTER 6. DYNAMICS: ENERGY AND
- Page 168 and 169: 168 CHAPTER 7. RELATIVITY AND THE G
- Page 170 and 171: 170 CHAPTER 7. RELATIVITY AND THE G
- Page 172 and 173: 172 CHAPTER 7. RELATIVITY AND THE G

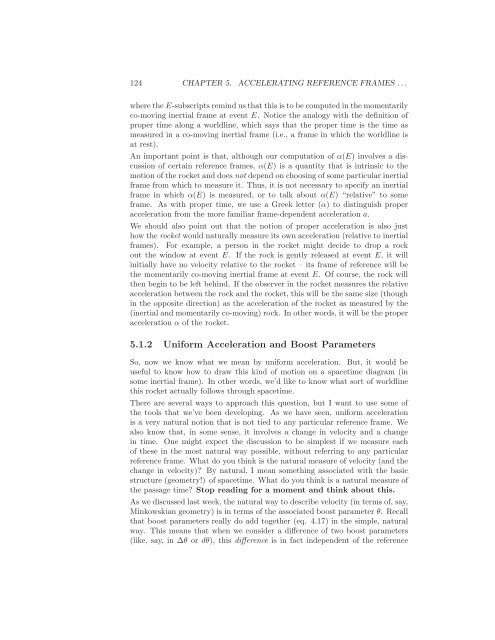

124 CHAPTER 5. ACCELERATING REFERENCE FRAMES . . .<br />
where the E-subscripts remind us that this is to be computed in the momentarily<br />
co-moving inertial frame at event E. Notice the analogy with the definiti<strong>on</strong> of<br />
proper time al<strong>on</strong>g a worldline, which says that the proper time is the time as<br />
measured in a co-moving inertial frame (i.e., a frame in which the worldline is<br />
at rest).<br />
An important point is that, although our computati<strong>on</strong> of α(E) involves a discussi<strong>on</strong><br />
of certain reference frames, α(E) is a quantity that is intrinsic to the<br />
moti<strong>on</strong> of the rocket <strong>and</strong> does not depend <strong>on</strong> choosing of some particular inertial<br />
frame from which to measure it. Thus, it is not necessary to specify an inertial<br />
frame in which α(E) is measured, or to talk about α(E) “relative” to some<br />
frame. As with proper time, we use a Greek letter (α) to distinguish proper<br />
accelerati<strong>on</strong> from the more familiar frame-dependent accelerati<strong>on</strong> a.<br />
We should also point out that the noti<strong>on</strong> of proper accelerati<strong>on</strong> is also just<br />
how the rocket would naturally measure its own accelerati<strong>on</strong> (relative to inertial<br />
frames). For example, a pers<strong>on</strong> in the rocket might decide to drop a rock<br />
out the window at event E. If the rock is gently released at event E, it will<br />
initially have no velocity relative to the rocket – its frame of reference will be<br />
the momentarily co-moving inertial frame at event E. Of course, the rock will<br />
then begin to be left behind. If the observer in the rocket measures the relative<br />
accelerati<strong>on</strong> between the rock <strong>and</strong> the rocket, this will be the same size (though<br />
in the opposite directi<strong>on</strong>) as the accelerati<strong>on</strong> of the rocket as measured by the<br />
(inertial <strong>and</strong> momentarily co-moving) rock. In other words, it will be the proper<br />
accelerati<strong>on</strong> α of the rocket.<br />
5.1.2 Uniform Accelerati<strong>on</strong> <strong>and</strong> Boost Parameters<br />
So, now we know what we mean by uniform accelerati<strong>on</strong>. But, it would be<br />
useful to know how to draw this kind of moti<strong>on</strong> <strong>on</strong> a spacetime diagram (in<br />
some inertial frame). In other words, we’d like to know what sort of worldline<br />
this rocket actually follows through spacetime.<br />
There are several ways to approach this questi<strong>on</strong>, but I want to use some of<br />
the tools that we’ve been developing. As we have seen, uniform accelerati<strong>on</strong><br />
is a very natural noti<strong>on</strong> that is not tied to any particular reference frame. We<br />
also know that, in some sense, it involves a change in velocity <strong>and</strong> a change<br />
in time. One might expect the discussi<strong>on</strong> to be simplest if we measure each<br />
of these in the most natural way possible, without referring to any particular<br />
reference frame. What do you think is the natural measure of velocity (<strong>and</strong> the<br />
change in velocity)? By natural, I mean something associated with the basic<br />
structure (geometry!) of spacetime. What do you think is a natural measure of<br />
the passage time? Stop reading for a moment <strong>and</strong> think about this.<br />
As we discussed last week, the natural way to describe velocity (in terms of, say,<br />
Minkowskian geometry) is in terms of the associated boost parameter θ. Recall<br />
that boost parameters really do add together (eq. 4.17) in the simple, natural<br />
way. This means that when we c<strong>on</strong>sider a difference of two boost parameters<br />
(like, say, in ∆θ or dθ), this difference is in fact independent of the reference
