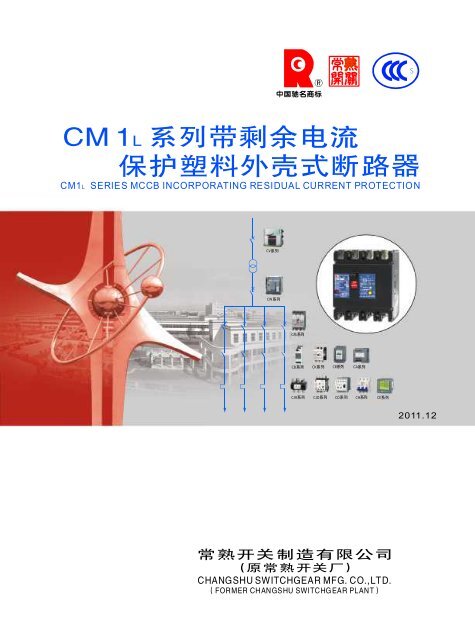

S<br />
CM1 L 系 列 带 剩 余 电 流<br />
保 护 塑 料 外 壳 式 断 路 器<br />
CM1<br />
L<br />
SERIESMCCB INCORPORATING RESIDUALCURRENT PROTECTION<br />
CV 系 列<br />
CW 系 列<br />
CM 系 列<br />
CB 系 列<br />
CK 系 列 CR 系 列 CA 系 列<br />
CJR 系 列 CJD 系 列 CD 系 列 CH 系 列 CE 系 列<br />
2011.12<br />
常 熟 开 关 制 造 有 限 公 司<br />
( 原 常 熟 开 关 厂 )<br />
CHANGSHUSWITCHGEARMFG. CO.,LTD.<br />
(FORMER CHANGSHU SWITCHGEARPLANT)
NationalEnterprise TechnologyCenter<br />
StateTorch Plan KeyHigh-tech<br />
Enterprise<br />
ChinaWell-knownTrademark<br />
Quality Management System Certificate<br />
Environmental Management<br />
System Certificate<br />
National InnovativePilot Enterprise<br />
Postdoctoral Programme<br />
OccupationalHealthAndSafety<br />
ManagementSystem Certificate<br />
Certificate Of Conformity For<br />
MeasurementManagementSystems
公 司 简 介<br />
Introduction<br />
常 熟 开 关 制 造 有 限 公 司 是 国 有 资 产 参 股 的 电 器 制 造 企 业 、“ 国 家 重 点 高 新 技 术 企<br />
业 ”, 占 地 约 300 亩 , 员 工 1685 人 。 主 要 生 产 中 低 压 电 器 元 件 、 工 控 产 品 、 太 阳 能 光 伏<br />
逆 变 器 、 成 套 装 置 等 , 可 以 为 您 提 供 “ 智 能 配 电 系 统 三 位 一 体 完 整 的 解 决 方 案 ”。<br />
公 司 建 有 博 士 后 科 研 工 作 站 、 省 级 企 业 技 术 中 心 和 江 苏 省 电 器 控 制 工 程 中 心 , 具<br />
有 一 支 以 博 士 、 硕 士 、 本 科 生 为 主 的 多 层 次 研 发 队 伍 , 工 程 技 术 人 员 占 企 业 员 工 总 数<br />
的 50% 左 右 。 公 司 拥 有 先 进 的 模 具 制 造 、 零 部 件 自 动 化 生 产 、 断 路 器 装 配 自 动 检 测 流<br />
水 线 等 一 大 批 先 进 的 制 造 和 试 验 检 测 设 备 ; 实 施 以 ERP 管 理 为 重 点 的 信 息 化 、 网 络 化<br />
管 理 ; 完 善 质 量 / 环 境 / 职 业 健 康 安 全 体 系 , 确 保 为 用 户 提 供 优 质 、 安 全 、 可 靠 的 产<br />
品 。 公 司 “<br />
” 商 标 被 国 家 工 商 行 政 管 理 总 局 认 定 为 中 国 驰 名 商 标 ,CM 系 列 塑 料 外 壳<br />
式 断 路 器 、CW 系 列 智 能 型 万 能 式 断 路 器 曾 双 双 被 评 为 中 国 名 牌 产 品 。<br />
Changshu Switchgear Mfg. Co., Ltd. (Former Changshu Switchgear Plant), an enterprise with stateowned<br />
equity, covered an area of 200,000 m, with 1685 staffs, is a "National Key New High-tech<br />
2<br />
Enterprise" and mainly produces HV and LV electrical components, industry control products, solar<br />
photovoltaic inverters and complete sets of equipment etc, all of which could provide trinity and<br />
complete solutions for intelligent power distribution system.<br />
Post - doctoral scientific research station, Province Enterprise Technique Center and Jiangsu<br />
Province Electrical Apparatus Control Engineering Research Center have been established and a multilevel<br />
professional technique team has been formed consisting of PHD candidates, postgraduates and<br />
university graduates. Engineers and technicians have covered 50% of all staffs.<br />
Advanced mould manufacturing equipments, automation producing equipments for spare parts, assembling<br />
and inspecting lines for breakers and test equipments have been brought in. Meanwhile, information and<br />
network management, taking ERP management as the focal point, has been applied and quality environmental<br />
systems (ISO9001/ISO14001/OHSMS18001) have also been established and perfected to ensure reliability and<br />
safety for customers.<br />
The registered trademark has been recognized as Famous Trademark of China by State Administration<br />
for Industry and Commerce of China. And CM Series Moulded Case Circuit Breaker and CW Series Intelligent<br />
Air Circuit Breaker are both China Top Brand products.
常 熟 开 关 制 造 有 限 公 司<br />
为 您 提 供 电 气 系 统 完 整 的 解 决 方 案<br />
CV1-12 系 列<br />
高 压 真 空 断 路 器<br />
CV2-12 系 列<br />
高 压 真 空 断 路 器<br />
CV1-24 系 列<br />
高 压 真 空 断 路 器<br />
CV1-40.5 系 列<br />
高 压 真 空 断 路 器<br />
CW1 系 列<br />
智 能 型 万 能 式 断 路 器<br />
CW2 系 列<br />
智 能 型 万 能 式 断 路 器<br />
CW3 系 列<br />
智 能 型 万 能 式 断 路 器<br />
CW3V 系 列<br />
智 能 型 真 空 万 能 式 断 路 器<br />
CM1 系 列<br />
塑 料 外 壳 式 断 路 器<br />
CM1 E系 列<br />
电 子 式 塑 壳 断 路 器<br />
CM1 Z系 列<br />
智 能 型 断 路 器<br />
CM1 L系 列<br />
带 剩 余 电 流 保 护 塑 壳 断 路 器<br />
CM1 EL系 列<br />
带 剩 余 电 流 保 护<br />
电 子 可 调 式 断 路 器<br />
CM2 系 列<br />
塑 料 外 壳 式 断 路 器<br />
CM2Z 系 列<br />
智 能 型 塑 壳 断 路 器<br />
CM2L 系 列<br />
带 剩 余 电 流 保 护 塑 壳 断 路 器<br />
CM3 系 列<br />
塑 料 外 壳 式 断 路 器<br />
CM5 系 列<br />
塑 料 外 壳 式 断 路 器<br />
CM5Z 系 列<br />
塑 料 外 壳 式 断 路 器<br />
CA1 系 列 自 动<br />
转 换 开 关 (CB 级 )<br />
CAP1 系 列 自 动<br />
转 换 开 关 (PC 级 )<br />
CAP2 系 列 自 动<br />
转 换 开 关 (PC 级 )<br />
CK3 系 列 接 触 器<br />
CJR3 系 列<br />
热 过 载 继 电 器<br />
CJD3 系 列<br />
电 子 过 载 继 电 器<br />
CLJ3 剩 余 电 流<br />
动 作 继 电 器
常 熟 开 关 制 造 有 限 公 司<br />
为 您 提 供 电 气 系 统 完 整 的 解 决 方 案<br />
CR1 系 列<br />
电 动 机 软 起 动 器<br />
CR2 系 列<br />
电 动 机 软 起 动 器<br />
CD1 系 列<br />
电 动 机 保 护 器<br />
CD4 系 列<br />
智 能 马 达 保 护 器<br />
CB1 系 列<br />
控 制 和 保 护 开 关 电 器 (CPS)<br />
CF1 系 列<br />
通 用 变 频 器<br />
CS1G 系 列 三 相 并 网 型<br />
光 伏 发 电 逆 变 器<br />
CW3G 系 列<br />
隔 离 开 关 (AC,DC)<br />
CM3DC 系 列<br />
塑 料 外 壳 式 断 路 器<br />
CH 系 列 小 型 断 路 器<br />
CE1 系 列<br />
智 能 型 电 力 仪 表<br />
CI1 系 列<br />
远 程 智 能 I/O 模 块<br />
CN1DP-MP<br />
CN1DP-MD<br />
CN1DP-MC<br />
通 信 适 配 器<br />
CN1EG 以 太 网<br />
适 配 器<br />
FDM3<br />
短 消 息 通 知 模 块<br />
FWB1 温 度 报 警 模 块<br />
CSJ1 系 列 剩 余 电 流 式 电 气<br />
火 灾 监 控 探 测 器 ( 独 立 式 )<br />
CMSJ2 系 列 剩 余 电 流 式 电 气<br />
火 灾 监 控 探 测 器 ( 非 独 立 式 )<br />
CSX1 电 气 火 灾 监 控 设 备<br />
●Riyear-PowerNet 配 电 监 控 系 统<br />
●FCX3 智 能 配 电 监 控 器
优 秀 特 色<br />
具 备 TH 型 断 路 器 , 满 足 湿 热 带 地 区 使 用 要 求<br />
通 过 了 德 国 莱 茵 公 司 CE 认 证<br />
获 得 国 际 认 可 的 CB 证 书<br />
具 有 体 积 小 、 分 断 高 、 带 隔 离 等 特 点<br />
额 定 极 限 短 路 分 断 能 力 Icu:400V:50kA~100kA<br />
额 定 运 行 短 路 分 断 能 力 Ics:400V:35kA~65kA<br />
剩 余 电 流 保 护 三 相 取 电 : 常 规 的 带 剩 余 电 流 保 护 断 路 器 的 漏 电 保 护 模 块 工 作 电 源 取 样 为<br />
二 相 , 本 系 列 断 路 器 为 三 相 , 若 缺 任 一 相 , 断 路 器 漏 电 保 护 模 块 仍 能 正 常 工 作<br />
根 据 使 用 场 合 , 可 提 供 AC 型 ( 交 流 场 合 ) 和 A 型 ( 交 流 叠 加 脉 动 直 流 场 合 ) 剩 余 电 流 断 路 器<br />
提 供 不 同 剩 余 电 流 动 作 脱 扣 器 可 选 , 应 用 范 围 可 从 30mA~30A 进 行 整 定 , 动 作 时 间 可 调<br />
额 定 剩 余 动 作 电 流 I△<br />
n(A):0.03/0.1/0.3/0.5、 0.1/0.3/0.5、 0.3/0.5/1、 0.3/1/3/10、<br />
1/3/10/30 可 调<br />
5I△n 最 大 断 开 时 间 △t(s):<br />
瞬 动 /0.25/0.9/1.9 可 调<br />
具 有 较 强 功 能 扩 展 性 , 可 增 选 剩 余 电 流 报 警 模 块 , 实 现 脱 扣 报 警 输 出 或 不 脱 扣 报 警 输 出<br />
可 配 FWB1 温 度 报 警 模 块 , 实 现 连 接 点 在 线 超 温 报 警
目 录<br />
R<br />
概<br />
述<br />
1<br />
型 号 及 含 义 、 分 类<br />
适 用 工 作 环 境 及 安 装 条 件<br />
结 构 简 介<br />
脱 扣 器 方 式 及 内 部 附 件 代 号<br />
四 极 断 路 器 规 格<br />
主 要 技 术 指 标<br />
功 率 损 耗 及 降 容 系 数<br />
高 海 拔 降 容<br />
保 护 特 性<br />
断 路 器 特 性 曲 线<br />
剩 余 电 流 保 护 特 性 曲 线<br />
外 形 尺 寸 及 安 装 尺 寸<br />
断 路 器 安 装 安 全 间 隙<br />
内 外 部 附 件<br />
不 同 额 定 电 流 的 连 接 导 线 参 考 截 面<br />
接 线 端 子 型 号<br />
FWB1 温 度 报 警 模 块<br />
TEMPERATUREALARM MODULE<br />
注 意 事 项<br />
订 货 须 知<br />
2<br />
3<br />
4<br />
5<br />
6<br />
7<br />
8<br />
9<br />
9<br />
10<br />
14<br />
15<br />
23<br />
24<br />
34<br />
34<br />
36<br />
37<br />
38
概 述 General<br />
CM1 L系 列 带 剩 余 电 流 保 护 塑 料 外 壳 式 断 路 器<br />
( 以 下 简 称 断 路 器 ), 是 公 司 采 用 先 进 的<br />
CAD/CAM/CAE 设 计 、 制 造 技 术 , 研 制 、 开 发 的 新<br />
型 断 路 器 之 一 。 其 额 定 绝 缘 电 压 为 800V, 适 用 于<br />
交 流 50Hz/60Hz, 额 定 工 作 电 压 400V, 额 定 电 流 至<br />
630A 的 电 路 中 作 不 频 繁 转 换 及 电 动 机 保 护 之 用 。<br />
断 路 器 具 有 过 载 、 短 路 和 欠 电 压 保 护 功 能 , 能 保 护<br />
线 路 和 电 源 设 备 不 受 损 坏 , 同 时 , 可 对 人 提 供 间 接<br />
接 触 保 护 , 还 可 以 对 过 电 流 保 护 不 能 检 测 出 的 长 期<br />
存 在 的 接 地 故 障 可 能 引 起 火 灾 危 险 提 供 保 护 。 在 其<br />
它 保 护 装 置 失 灵 时 , 额 定 剩 余 动 作 电 流 为 30mA 的<br />
CM1 L断 路 器 可 对 直 接 接 触 起 附 加 保 护 作 用 。VA 型<br />
剩 余 电 流 脱 扣 器 断 路 器 在 接 地 故 障 电 流 含 有 直 流 分<br />
量 的 情 况 下 提 供 间 接 接 触 保 护 。<br />
断 路 器 按 照 其 额 定 极 限 短 路 分 断 能 力 (Icu)<br />
的 高 低 , 分 为 M 型 ( 较 高 分 断 型 )、H 型 ( 高 分 断<br />
型 ) 二 类 。 该 断 路 器 具 有 体 积 小 、 分 断 高 、 飞 弧<br />
短 , 抗 振 动 等 特 点 。<br />
断 路 器 可 垂 直 安 装 ( 即 竖 装 ), 亦 可 水 平 安<br />
装 ( 即 横 装 )。<br />
断 路 器 不 可 倒 进 线 , 即 只 允 许 1、3、5 接 电<br />
源 线 ,2、4、6 接 负 载 线 。<br />
断 路 器 适 用 于 隔 离 , 符 号 表 示 为 “ ”<br />
。<br />
断 路 器 产 品 符 合 下 列 标 准 :<br />
IEC60947-1 及 GB14048.1-2006 总 则<br />
IEC60947-2 及 GB14048.2-2008 断 路 器 及 附<br />
录 B 具 有 剩 余 电 流 保 护 的 断 路 器<br />
IEC60947-4-1 及 GB14048.4 机 电 式 接 触 器 和<br />
电 动 机 起 动 器<br />
断 路 器 获 国 家 强 制 性 产 品 认 证 “CCC” 标<br />
志 。<br />
CM1L<br />
series MCCB with residual current protection<br />
(hereafter simply reffered to as breakers) are one of the<br />
new type breakers which have been developed by the<br />
company using advanced CAD/CAM/CAE design and<br />
manufacturing technology.The rated insulation voltage of<br />
the breakers is 800V, suitable for turn-on or turn-off not<br />
frequently and starting a motor not frequently in the<br />
circuit of AC50Hz/60Hz, ratedworking voltage 400V and<br />
rated current up to 630A.The breakers have<br />
overload,short-circuit and under voltage protection<br />
devices, so as to protect the circuit and the power<br />
equipment against damage.Synchronously, the breakers<br />
provide indirect contact protection for man, and protect<br />
the fire damage may caused by long-term existed earth<br />
fault, which can't be examined by the over-current<br />
protection device. Additionally,when other protective<br />
devices fail to function, CM1L<br />
breakers with the rated<br />
residual operating current of 30mA can protect man from<br />
the direct contact. The breaker of VA type residual<br />
current release can provide in direct contact protectionin<br />
case of anearthfault comprisingad.c.component.<br />
According totherated ultimate short-circuit breaking<br />
capacity(Icu), the breakers are classfied into two kinds of<br />
types: M(second high breaking type), H(high breaking<br />
type). The breakers are of the following<br />
characteristics:compact size, high breaking capacity,<br />
short arc-overdistanceandshakeproof,etc.<br />
The breakers couldbe installed vertically(upright) or<br />
horizontally(transverse).<br />
Thebreakerscan't be fed inversely,only allowing 1, 3,<br />
5connect with power supply wires, 2, 4, 6connect with<br />
loadwires.<br />
The breakers are applicable to isdation, its<br />
corresponding symbol isshownas“ ”.<br />
The breakers comply with the demands of the<br />
followingstandards:<br />
IEC60947-1and GB14048.1-2006Generalrules<br />
IEC60947-2 and GB14048.2-2008 circuit breakers<br />
and annex B circuit-breakers incorporating residual<br />
currentprotection<br />
IEC60947-4-1 and GB14048.4 Electrome-chanical<br />
contactors and motor starters<br />
The breakers acquired the “ CCC” certificates<br />
approvedby CQC(ChinaQuality Certification Centre).<br />
1
型 号 及 含 义 、 分 类<br />
TYPE AND ITSMEANING,CLASSIFY<br />
型 号 及 其 含 义 如 下 : Type and Its Meaning,Classify<br />
C M 1 L<br />
/<br />
5)<br />
操 作 方 式<br />
湿 热 带 型 代 号 :TH<br />
Humidtropical code:TH<br />
1)<br />
漏 电 报 警 单 元 模 块<br />
Creepagealarm unitmodule 1)<br />
2)<br />
剩 余 电 流 脱 扣 器 型 式<br />
Residualcurrentrelease pattern 2)<br />
四 极 产 品 代 号<br />
用 途 代 号<br />
3)<br />
Fourpoles productscode 3)<br />
4)<br />
Application code 4)<br />
脱 扣 方 式 及 附 件 代 号<br />
Release patternand accessories code<br />
极 数 Pole number<br />
Operationpattern 5)<br />
额 定 极 限 短 路 分 断 能 力 级 别<br />
Gradeoftherated ultimateshort-circuit breaking capacity<br />
壳 架 等 级 额 定 电 流 Rated framegradedcurrent<br />
带 剩 余 电 流 保 护 Residualcurrentprotection<br />
设 计 代 号<br />
Design code<br />
塑 料 外 壳 式 断 路 器 Moulded casecircuitbreaker<br />
常 熟 开 关 制 造 有 限 公 司 ( 原 常 熟 开 关 厂 )<br />
Changshu SwitchgearMfg.Co.,Ltd(FormerChangshu SwitchgearPlant)<br />
注 :1) 不 带 漏 电 报 警 单 元 模 块 无 代 号 ; 带 漏 电 报 警 单 元 模 块<br />
并 在 工 作 方 式 一 时 用 Ⅰ 表 示 , 在 工 作 方 式 二 时 用 Ⅱ 表 示 ( 详 见<br />
P25)。<br />
2) 剩 余 电 流 脱 扣 器 型 号 分 U 型 、V 型 、W 型 、VA 型 ( 详 见<br />
P7),V 型 为 标 准 型 , 订 货 时 不 必 注 明 。<br />
作 用 Z 表 示 。<br />
3) 三 极 产 品 无 代 号 , 四 极 时 分 A、B、C、D。<br />
4) 配 电 用 断 路 器 无 代 号 , 保 护 电 动 机 用 断 路 器 以 2 表 示 。<br />
5) 手 柄 直 接 操 作 无 代 号 ; 电 动 操 作 用 P 表 示 ; 转 动 手 柄 操<br />
按 产 品 极 数 分 为 三 极 与 四 极 。 四 极 产 品 中 中<br />
性 极 (N 极 ) 的 形 式 分 四 种 :<br />
A 型 :N 极 不 安 装 过 电 流 脱 扣 元 件 , 且 N 极 始<br />
终 接 通 , 不 与 其 它 三 极 一 起 合 分 ;<br />
B 型 :N 极 不 安 装 过 电 流 脱 扣 元 件 , 且 N 极 与<br />
其 它 三 极 一 起 合 分 ;(N 极 先 合 后 分 )<br />
C 型 :N 极 安 装 过 电 流 脱 扣 元 件 , 且 N 极 与 其<br />
它 三 极 一 起 合 分 ;(N 极 先 合 后 分 )<br />
D 型 :N 极 安 装 过 电 流 脱 扣 元 件 , 且 N 极 始 终<br />
接 通 , 不 与 其 它 三 极 一 起 合 分 。<br />
注 : 建 筑 物 内 实 施 等 电 位 联 结 的 TN-C-S 和 TN-S 系 统 , 且<br />
不 在 电 源 转 换 处 的 CM1 L四 极 断 路 器 , 中 性 极 形 式 推 荐 采 用 A 型 或<br />
D 型 。<br />
Note:1) No code for no creepage alarm unit module; Ⅰfor creepage<br />
alarm unitmodule under operation mode one, Ⅱ for under operation mode<br />
two(particularlyshowninP25).<br />
2) The residualcurrentreleasetypeis classified intothree types:<br />
typeU, type V,type W,typeVA(particularlyshown inP7).type Vis standard<br />
type. and notnecessarytomentioninthe ordering note.<br />
3) No code for three poles breakers. Four poles breakers are<br />
classified intoA,B, C,D.<br />
4) No code for powerdistribution, 2meansfor motor protection.<br />
5) No code for operating directly with handle, Pfor motor<br />
operating andZforrotaryhandle operating.<br />
According to the pole number of product, it is classifies into<br />
three poles and four poles. The neutral pole(N-pole) of the fourpoles<br />
productshas fourtypes:<br />
Type A: N-pole without over-current release unit, it hasbeen<br />
connected all along, and dose not act with other three poles to turn<br />
on oroff.<br />
Type B: N-pole without over-current release unit, it could act<br />
with other threepoles.(N-pole turns-on priortoturns-off).<br />
Type C: N-pole fixed with over-current release unit, it could<br />
actwith other threepoles.(N-poleturns-on prior toturns-off).<br />
Type D: N-pole fixed with over-current release unit, it has<br />
been connected all along, and dose not act with otherthreepoles to<br />
turn on or off.<br />
Note: The neutral pole type of CM1Lfour-pole circuit breaker which<br />
used in equal potential TN-C-S and TN-S system and not installed power<br />
supplychangeoverplaceis recommended toadopt typeAortype D<br />
2
型 号 及 含 义 、 分 类 TYPE AND ITSMEANING,CLASSIFY<br />
按 额 定 电 流 (A) 分 :CM1L-100 为 10、16、<br />
20、 25、 32、 40、 50、 63、 80、 100A 十 级 ;<br />
CM1L-225 为 100、 125、 140、 160、 180、 200、<br />
225A 七 级 ; CM1L-00 4 为 225、 250、 315、 350、<br />
400A五 级 ; CM1L-630为 400、 500、 630A三 级 。<br />
按 连 接 方 式 分 为 板 前 接 线 、 板 后 接 线 、 插 入<br />
式 板 前 接 线 、 插 入 式 板 后 接 线 、 抽 出 式 接 线 五 种 。<br />
按 过 电 流 脱 扣 器 型 式 分 为 热 动 - 电 磁 ( 复<br />
式 ) 型 、 电 磁 ( 瞬 时 ) 型 两 种 。<br />
按 断 路 器 是 否 带 附 件 分 带 附 件 和 不 带 附 件 两<br />
种 : 附 件 分 内 部 附 件 和 外 部 附 件 : 内 部 附 件 有 分<br />
励 脱 扣 器 、 欠 电 压 脱 扣 器 、 漏 电 报 警 单 元 模 块 、<br />
辅 助 触 头 和 报 警 触 头 五 种 ; 外 部 附 件 有 手 动 操 作<br />
机 构 、 电 动 操 作 机 构 、 FWB1温 度 报 警 模 块 。<br />
Classification according to rated current: CM1L-100<br />
has ten grades:10, 16, 20, 25, 32, 40, 50, 63, 80, 100A;<br />
CM1L-225has seven:100,125,140, 160, 180,200,225A;<br />
CM1L-400has five:225,250, 315,350,400A;CM1L-630<br />
has three:400, 500, 630A.<br />
The connected method has five:front connected、<br />
Rear connected、plug-in front connected、plug-in rear<br />
connectedand draw-outconnected.<br />
According tothe over-current release pattern, it would<br />
be divided two types thermo-electromagnetic(double)<br />
type andelectromagnetic(instantaneous)type.<br />
According to the outfit, it also has two types: with or<br />
without outfit.The outfit include inner accessories and<br />
outside accessories:The inner accessories have shunt<br />
release,under-voltage release,leakagealarm unit module,<br />
auxiliary contacts and alarm contacts five kinds. The<br />
outside accessories are rotary handle operator motor<br />
operator、FWB1temperature alarm module.<br />
适 用 工 作 环 境 及 安 装 条 件<br />
APPLICATIONCONDITIONS FOR<br />
OPERATION ANDINSTALLATION<br />
安 装 地 点 的 海 拔 2000m 及 以 下 ;<br />
周 围 介 质 温 度 不 高 于 +40℃ 和 不 低 于 -5℃;<br />
且 24 小 时 平 均 值 不 超 过 35℃( 特 殊 订 货 除 外 );<br />
安 装 地 点 的 空 气 相 对 湿 度 在 最 高 温 度 为<br />
+40℃ 时 不 超 过 50%; 在 较 低 温 度 下 可 以 有 较 高 的<br />
相 对 湿 度 , 例 如 20℃ 时 达 90%, 对 由 于 温 度 变 化<br />
偶 尔 产 生 的 凝 露 应 采 取 特 殊 的 措 施 ;<br />
湿 热 带 型 断 路 器 空 气 相 对 湿 度 在 +25℃ 时 不<br />
超 过 95%;<br />
污 染 等 级 为 3 级 ;<br />
断 路 器 主 电 路 的 安 装 类 别 为 Ⅲ, 不 接 至 主 电<br />
路 的 辅 助 电 路 和 控 制 电 路 , 安 装 类 别 为 Ⅱ;<br />
断 路 器 适 用 于 电 磁 环 境 A;<br />
湿 热 带 断 路 器 能 耐 受 湿 热 、 盐 雾 、 霉 菌 的 影<br />
响 ;<br />
断 路 器 应 安 装 在 无 爆 炸 危 险 和 无 导 电 尘 埃 、<br />
无 足 以 腐 蚀 金 属 和 破 坏 绝 缘 的 地 方 ;<br />
在 没 有 雨 雪 侵 袭 的 地 方 ;<br />
断 路 器 应 按 产 品 的 使 用 说 明 书 安 装 。<br />
Elevation of installation site: ≤ 2000m.<br />
Ambient temperature: -5 ℃ ~+40 ℃ ,and average<br />
temperature in 24 hours below +35 ℃ (except special<br />
ordering).<br />
Relative humidity:not exceeding 50%at themaximum<br />
ambient temperature of +40 ℃ .With lower temperature,<br />
higher humidity would be permitted, for example,reaches<br />
90% at the temperature of +20 ℃ ,and special measures<br />
should be taken considering the dews on product surface<br />
due to temperature change.<br />
Relative humidity of the humidtropical area breakers<br />
isn't exceeding 95%at the temperatureof+25 ℃ .<br />
Pollution protection: 3grade.<br />
Installing categories: Ⅲ for breakers' main circuits;<br />
Ⅱ for auxiliary circuit and control circuit without<br />
connecting withmain circuit.<br />
The breakers are suitable in electromagnetic<br />
environment A.<br />
The breakers used in humid tropical area can work<br />
normally without influence of humid air, salt fog and<br />
mildew.<br />
There must be not any explosive medium, and there<br />
must be not any gas which would corrode metal or any<br />
conducting dustwhich would destroy theinsulation.<br />
Theplace wouldnotbe invadedbyrainandsnow.<br />
The breaker should be installed according to<br />
stipulations in operationmanual.<br />
3
结 构 简 介<br />
SYNOPSIS OF STRUCTURE<br />
额 定 剩 余 动 作 电 流 调 整 旋 钮<br />
Adjusting knob of rated residualoperating current<br />
1<br />
3<br />
5<br />
非 延 时 和 延 时 调 整 旋 钮<br />
Non-time-delay andtime-delayadjusting knob<br />
脱 扣 按 钮<br />
Trip button<br />
带 剩 余 电 流 保 护<br />
R 断 路 器<br />
CM1L 100<br />
额 定 工 作 电 压 Ue AC 400V<br />
额 定 绝 缘 电 压 Ui 800V<br />
额 定 冲 击 耐 受 电 压 Uimp 8kV<br />
额 定 频 率<br />
50Hz/60Hz<br />
额 定 电 流 In 100 A<br />
使 用 类 别<br />
A<br />
瞬 时 脱 扣 整 定 电 流 10In<br />
整 定 温 度<br />
+40 C<br />
符 合 标 准<br />
GB14048.2<br />
IEC60947-2<br />
20<br />
PUSHTOTRIP<br />
年 月<br />
常 熟 开 关 制 造 有 限 公 司<br />
( 原 常 熟 开 关 厂 )<br />
ON<br />
OFF<br />
AC Icu Ics<br />
400V 50kA 35kA<br />
额 定 剩 余 500<br />
动 作 电 流 300 500<br />
I n(mA)<br />
100<br />
1.9<br />
延 时 型 : 5I<br />
n 0.9<br />
非 延 时<br />
最 大 断 开 时 间 (s)<br />
0.25<br />
漏 电 指 示 钮<br />
2I<br />
n 极 限 不 驱 动 时 间 t<br />
0.1 0.5 1s<br />
漏 电 试 验 按 钮<br />
T<br />
N<br />
漏 电 指 示 钮<br />
Leakage indicating button<br />
漏 电 试 验 按 钮<br />
Leakagetest button<br />
2<br />
4<br />
6<br />
4
脱 扣 器 方 式 及 内 部 附 件 代 号<br />
RELEASEPATTERNAND<br />
ACCESSORIES CODE<br />
脱 扣 器 方 式 及 内 部 附 件 代 号 见 表 一<br />
ReleasepatternandaccessoriescodeseefollowingTable1please<br />
左 面 安 装<br />
Leftmounting<br />
手 柄 Handle<br />
右 面 安 装<br />
Rightmounting<br />
表 一 Table 1<br />
报 警 触 头<br />
辅 助 触 头<br />
Alarm contact<br />
Auxiliary contact<br />
分 励 脱 扣 器 Shunt release<br />
欠 电 压 脱 扣 器 Undervoltage release<br />
引 线 方 向 Leaddirection<br />
脱 扣 器<br />
方 式 及 内<br />
部 附 件 代 号<br />
Release pattern<br />
and accessories code<br />
208、308 ▲<br />
210、310 ▲<br />
220、320 ▲<br />
230、330 ▲<br />
240、340<br />
250、350<br />
附 件 名 称<br />
Accessories<br />
name<br />
报 警 触 头<br />
Alarm contact<br />
分 励 脱 扣 器<br />
Shuntrelease<br />
极 数 及 N 极 形 式<br />
辅 助 触 头<br />
Auxiliarycontact<br />
欠 电 压 脱 扣 器<br />
Undervoltage release<br />
型 号 Type<br />
Polenumber and<br />
N-pole type<br />
分 励 脱 扣 器 辅 助 触 头<br />
Shuntrelease,auxiliary contact<br />
分 励 脱 扣 器 欠 电 压 脱 扣 器<br />
Shutrelease,undervoltage release<br />
CM1L-100<br />
CM1L<br />
-225<br />
3 极 ,4 极 A、<br />
Three poles,<br />
B、C、D 型<br />
Type A、B、C、D<br />
of four poles<br />
4 极 B、C 型<br />
Type Band C<br />
offourpoles<br />
3 极 ,4 极 A、<br />
Three poles,<br />
B、C、D 型<br />
Type A、B、C、D<br />
of four poles<br />
CM1L-400<br />
CM1L<br />
-630<br />
4 极 B、C 型<br />
Type Band C<br />
offour poles<br />
3 极 ,4 极 A、<br />
Three poles,<br />
B、C、D 型<br />
Type A、B、C、D<br />
of four poles<br />
4 极 B、C 型<br />
Type Band C<br />
offour poles<br />
260、360<br />
270、370<br />
218、318<br />
228、328 ▲<br />
238、338<br />
248、348<br />
268、368<br />
278、378<br />
▲<br />
二 组 辅 助 触 头<br />
Two groupof auxiliary contact<br />
辅 助 触 头 欠 电 压 脱 扣 器<br />
Auxiliarycontact,undervoltage release<br />
分 励 脱 扣 器 报 警 触 头<br />
Shuntrelease,alarm contact<br />
辅 助 触 头 报 警 触 头<br />
Auxiliarycontact,alarm contact<br />
欠 电 压 脱 扣 器 报 警 触 头<br />
Undervoltagerelease,alarm contact<br />
分 励 脱 扣 器 辅 助 触 头 报 警 触 头<br />
Shuntrelease,auxiliary contact,<br />
alarm contact<br />
二 组 辅 助 触 头 报 警 触 头<br />
Twogroup ofauxiliary contact,<br />
alarm contact<br />
辅 助 触 头 欠 电 压 脱 扣 器 报 警 触 头<br />
Auxiliary contact,Undervoltage release,<br />
alarmcontact<br />
注 :1 脱 扣 器 方 式 及 内 部 附 件 代 号 首 位 数 字 2 表 示 电 磁 ( 瞬 时 ) 脱 扣 器 ,3 表 示 热 动 - 电 磁 ( 复 式 ) 脱 扣 器 ; 后 两 位 数 字 表 示 内 部 附 件 代 号 , 如 无 附 件 则 用 00表 示 。<br />
2 CM1L-400、 630中 228、 328、 248、 348规 格 辅 助 触 头 为 一 对 触 头 ( 即 一 常 开 , 一 常 闭 ), 268、 368规 格 辅 助 触 头 为 三 对 触 头 ( 即 三 常 开 , 三 常 闭 ); 其 余<br />
规 格 辅 助 触 头 数 量 按 第 27页 表 中 配 置 。<br />
3 CM1L-100、225 中 220、320、240、340 规 格 辅 助 触 头 可 提 供 二 对 触 头 ( 即 二 常 开 , 二 常 闭 ), 但 须 在 订 货 时 注 明 。<br />
4 CM1 L系 列 如 带 漏 电 报 警 单 元 模 块 , 则 附 件 只 提 供 带 ▲ 规 格 。<br />
Note: 1Release pattern and accessories codes' premier number 2for electromagnetic (instantaneous) releasepattern,3 for thermo-electromagnetic(double)<br />
releasepattern.Lasttwo numbers standfor accessoriescode,twozeroaccessoriescode.<br />
2CM1L-400 and CM1L-630,codes 228,328,248 and 348 have one pairs ofauxiliary contacts(onenormally-opened,one normally closed),but 268,368<br />
have threepairsofauxiliary contacts;whiletheamountofauxiliary contacts intermsofotherspecificationsis disposedaccordingto thediagramson page 27.<br />
3CM1L-100,225,codes220,320,240 and 340 can provide two pairs of auxiliarys contacts (two normally opened,two normallyclosed),butnotewhen<br />
makingorder.<br />
4Accesories codewith"▲"is provided forleakage alarmunitmodule.<br />
5
四 极 断 路 器 规 格<br />
SPECIFICATION OFFOUR-POLESBREAKER<br />
四 极 断 路 器 中 性 极 (N) 设 在 产 品 右 侧 , 其 额 定 电 流 见 表 二<br />
The N-poleof four-poles breaker is sited at therightsideoftheproduct,see following Table 2please.<br />
表 二<br />
Table2<br />
壳 架 等 级 额 定 电 流 Inm(A)<br />
RatedframegradedcurrentInm(A)<br />
断 路 器 额 定 电 流 In(A)<br />
Rated current of breaker In(A)<br />
断 路 器 中 性 极 (N) 额 定 电 流 (A)<br />
Rated current of breakers' N-pole(A)<br />
10 10<br />
16 16<br />
20 20<br />
25 25<br />
100<br />
32 32<br />
40 40<br />
50 50<br />
63 63<br />
80<br />
100<br />
63<br />
63<br />
100 100<br />
225<br />
125<br />
140<br />
160<br />
180<br />
200<br />
100<br />
100<br />
100<br />
100<br />
100<br />
225 125<br />
400<br />
630<br />
225<br />
250<br />
315<br />
350<br />
400<br />
400<br />
500<br />
630<br />
225<br />
225<br />
225<br />
250<br />
250<br />
400<br />
400<br />
400<br />
注 : 如 用 户 需 要 , 本 公 司 可 提 供 中 性 极 (N) 额 定 电 流 等 于 相 极 额 定 电 流 的 断 路 器 。<br />
Note:We cansupplybreakers withthe N-polerated currentequaltophasepole ratedcurrent,tosatisfy theusers.<br />
6
主 要 技 术 指 标<br />
MAINTECHNICAL PARAMETER<br />
技 术 性 能 指 标 见 表 三 、 表 四<br />
Thetechnical-performanceindexseefollowingtable3、4please<br />
表 三 Table3<br />
型 号 Type<br />
CM1L-100<br />
CM1L-400<br />
CM1-630 L<br />
壳 架 电 流 Inm (A) Frame Current<br />
100<br />
225<br />
400 630<br />
额 定 电 流 In(A) RatedCurrent<br />
10、16、20、25、32、 100、125、140、160 225、250、315<br />
40、50、63、80、100 180、200、225 350、400<br />
400、500、630<br />
极 数 Pole Number<br />
3 4 3 4 3 4 3 4<br />
额 定 绝 缘 电 压 Ui(V)RatedInsulation Voltage<br />
AC800<br />
额 定 工 作 电 压 Ue(V)RatedoperationalVoltage<br />
AC400<br />
AC400<br />
AC400<br />
AC400<br />
额 定 冲 击 耐 受 电 压 Uimp(V) Ratedimpulse Withstand Voltage<br />
飞 弧 距 离 (mm) Arc-over Distance<br />
分 断 能 力 级 别 Classofthe Breaking capacity<br />
极 限 短 路 分 断 能 力 Icu(kA)<br />
Ultimate Short-circuitBreaking capacity<br />
运 行 短 路 分 断 能 力 Ics(kA)<br />
Seviceshort-circuit Breakingcapacity<br />
使 用 类 别 Utilizationcategory<br />
额 定 剩 余<br />
动 作 电 流<br />
I△n(A)<br />
Rated Residual<br />
Working Current<br />
AC 型 剩 余 电 流 断 路 器<br />
AC residual<br />
currentbreaker<br />
A 型 剩 余 电 流 断 路 器<br />
Aresidualbreaker<br />
U 型 , 非 延 时<br />
Type U,non-time-delay<br />
V 型 , 非 延 时 、 延 时 可 调<br />
Type V,non-time-delay、time-delay adjustable<br />
W 型 , 非 延 时 、 延 时 可 调<br />
Type W,non-time-delay、time-delay adjustable<br />
8000 8000<br />
≯50(0)**<br />
AC400V 50 85<br />
AC400V 35 50<br />
VA 型 , 非 延 时 、 延 时 可 调<br />
Type VA,non-time-delay、time-delay adjustable<br />
额 定 剩 余 不 动 作 电 流 I△n(mA)<br />
0<br />
Rated Residual Non-operating Current<br />
额 定 剩 余 短 路 接 通 ( 分 断 ) 能 力 I△m(kA)<br />
Rated Residual Short-circuitmaking(Breaking) capacity<br />
电 气 寿 命 *( 次 times)Electricaldurability<br />
50<br />
35<br />
0.03/0.1/0.3/0.5<br />
50<br />
35<br />
≯50(0)**<br />
M H M H M H M H<br />
85<br />
50<br />
50<br />
35<br />
0.03/0.1/0.3/0.5<br />
8000<br />
≯100(0)**<br />
8000<br />
≯100<br />
65 100 65 65 100 65<br />
42 65 42 42 65 42<br />
0.1/0.3/0.5 0.1/0.3/0.5 0.1/0.3/0.5 0.3/0.5/1<br />
0.3/1/3/10 0.3/1/3/10 1/3/10/30 1/3/10/30<br />
8000 8000<br />
A<br />
0.1/0.3/0.5 0.1/0.3/0.5 0.1/0.3/0.5 0.3/0.5/1<br />
1<br />
2 I△n<br />
1<br />
4 Icu<br />
7500 7500<br />
机 械 寿 命 *( 次 times)<br />
Mechanicaldurability<br />
免 维 护 Free maintenance<br />
有 维 护 Maintenance<br />
20000 20000<br />
10000 10000<br />
W 92 122 107 142<br />
150<br />
198 210 280<br />
L 150 150 165 165<br />
257<br />
257 280 280<br />
W<br />
H<br />
H 92 92 90 90<br />
106.5<br />
106.5 115.5 115.5<br />
分 励 脱 扣 器<br />
Shunt Release<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
欠 电 压 脱 扣 器 Under-voltagerelease<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
漏 电 报 警 单 元 模 块 Leakage alarm unitmodule<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
辅 助 触 头 AuxiliaryContact<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
报 警 触 头 Alarm contact<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
电 动 操 作 机 构 Motoroperator<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
○<br />
手 动 操 作 机 构 Rotaryhandlyoperator<br />
注 :1. 极 限 分 断 与 飞 弧 距 离 包 含 横 装 与 竖 装 ;<br />
2. 本 系 列 三 极 断 路 器 接 三 相 负 载 时 , 负 载 不 能 带 中 性 线 , 包 括<br />
取 自 断 路 器 负 载 端 的 负 载 控 制 回 路 电 源 也 不 能 带 中 性 线 , 否 则 该<br />
断 路 器 会 产 生 误 动 作 ;<br />
3. 本 系 列 三 极 和 四 极 断 路 器 接 单 相 负 载 时 , 相 线 接 A 极 , 中 性<br />
线 接 C 极 , 不 要 接 B 极 。<br />
* 注 : 根 据 GB14048.1-2006, 术 语 “ 寿 命 ” 表 示 电 器 在 修 理 或 更<br />
换 部 件 前 完 成 的 操 作 循 环 次 数 的 概 率 。<br />
** 注 : CM1L<br />
-100、 225、 400 分 别 选 装 高 为 6mm、 7.5mm、<br />
9.3mm 的 零 飞 弧 罩 , 实 现 零 飞 弧<br />
○<br />
7<br />
○<br />
○<br />
○<br />
Note: 1.Limiting breaking and arc-over distance can be<br />
vertically andhorizontally installed.<br />
2.The load can't have neutral wire,including the power<br />
supply of the load monitor circuit from the breakers' load<br />
terminals,when this series three phases breakers connecting with<br />
three-phases load,orthe breakerswill be misoperation.<br />
3.When thisseriesthree-poles and four-poles breakers<br />
connecting with single phase load,the phase wire connects with A<br />
pole,andneutralwire connects with Cpole,withBpole empty.<br />
*Note:for GB14048.1-2006, the term"durability"expresses the<br />
expectancy of the number of operating cycles which can be<br />
performed by the equipmentbefore repairorreplacement of parts.<br />
**note:Can be zero arcventing byinstalling arc coverof 6mm,<br />
7.5mm, 9.3mmforCM1L<br />
-100,225,400.<br />
○<br />
○<br />
○<br />
○
主 要 技 术 指 标<br />
MAIN TECHNICALPARAMETER<br />
表 四 剩 余 电 流 保 护 动 作 时 间<br />
Table4operatingtime oftheresidual currentprotection<br />
非 延 时<br />
Non-time-delay<br />
延 时<br />
Time-delay<br />
剩 余 电 流<br />
Residualcurrent<br />
最 大 断 开 时 间 (s)<br />
Maximumbreak time<br />
最 大 断 开 时 间 (s)<br />
Maximumbreak time<br />
极 限 不 驱 动 时 间 △t(s)<br />
Limiting non-actuating time<br />
I△n<br />
2I△n<br />
0.1/0.5/1<br />
5I△n<br />
10I△n<br />
0.08 0.08 0.04 0.04<br />
0.5/1.15/2.15 0.35/1/2 0.25/0.9/1.9 0.25/0.9/1.9<br />
功 率 损 耗 及 降 容 系 数<br />
POWER LOSS AND DERATING COEFFICIENT<br />
功 率 损 耗 见 表 五<br />
Power lossseefollowingTable 5<br />
表 五<br />
Table 5<br />
型 号<br />
Type<br />
通 电 电 流 (A)<br />
Withcurrent<br />
板 前 、 板 后 接 线<br />
Front/rearconnected<br />
三 极 / 四 极 总 功 率 损 耗 (W)<br />
The totalpowerlossofthree/four poles<br />
插 入 式 板 前 接 线<br />
Plug-infrontconneted<br />
插 入 式 板 后 接 线<br />
Plug-in rear conneted<br />
抽 出 式 接 线<br />
Draw-out connected<br />
CM1L-100<br />
直 热 式 (10A)<br />
Direct-heated<br />
10<br />
1.56<br />
1.56<br />
1.66<br />
CM1L-100<br />
间 热 式 (16~100A)<br />
Indirect-heated<br />
100<br />
15.6<br />
15.6<br />
15.8<br />
CM1L-225<br />
225<br />
32<br />
32<br />
32.2<br />
CM1L-400<br />
400<br />
67.2<br />
67.2<br />
67.4<br />
87.2<br />
CM1L-630<br />
630<br />
131<br />
131<br />
131.2<br />
151<br />
环 境 温 度 变 化 的 降 容 系 数 见 表 六<br />
Deratingcoefficientofambienttemperature changeseefollowing Table 6please.<br />
表 六 Table6<br />
型 号 Type<br />
环 境 温 度<br />
Temp.<br />
系 数<br />
Coefficient<br />
+40℃<br />
降 容 系 数<br />
Derating coefficient<br />
+45℃ +50℃ +55℃ +60℃<br />
降 容 系 数 降 容 系 数 降 容 系 数 降 容 系 数<br />
Derating coefficient Deratingcoefficient Deratingcoefficient Derating coefficient<br />
CM1L-100<br />
1In<br />
0.95In 0.89In 0.84In 0.76In<br />
CM1L-225<br />
1In<br />
0.96In<br />
0.91In<br />
0.87In<br />
0.82In<br />
CM1L-400<br />
1In<br />
0.94In<br />
0.87In<br />
0.81In<br />
0.73In<br />
CM1L-630<br />
1In<br />
0.93In<br />
0.88In<br />
0.83In<br />
0.76In<br />
8
高 海 拔 降 容<br />
ALTITUDE DERATING<br />
海 拔 超 过 适 用 工 作 环 境 的 2000m, 断 路 器 电 气 性 能 可 参 照 下 表 修 正 :<br />
If elevationexceedswork environment 2000m,electric property of circuit breakercan correct accordingtofollowing table:<br />
海 拔 (m)<br />
Altitude<br />
工 频 耐 压 (V)<br />
Power-frequencywithstandvoltage<br />
2000<br />
3000<br />
3000<br />
2500<br />
4000<br />
2000<br />
5000<br />
1800<br />
工 作 电 流 修 正 系 数<br />
Correctioncoefficientof operationalcurrent<br />
1<br />
0.94<br />
0.88<br />
0.83<br />
保 护 特 性<br />
PROTECTION<br />
FEATURE<br />
断 路 器 热 动 型 脱 扣 器 具 有 反 时 限 特 性 ; 电<br />
磁 脱 扣 器 为 瞬 时 动 作 , 特 性 见 表 七 ( 配 电<br />
用 )、 表 八 ( 保 护 电 动 机 用 )。<br />
The thermodynamic release of a circuit breaker<br />
provides the feature of inverse time-delay,while the<br />
magnetic release feature of instantaneous operation<br />
as shown on table 7(distribution circuit breaker)and<br />
table 8(motorprotection circuit breakers)<br />
表 七 ( 配 电 用 )<br />
Table7(For Power Distribution)<br />
脱 扣 器 额 定 电 流<br />
Rated current<br />
ofrelease<br />
(A)<br />
10≤In≤63<br />
63
断 路 器 特 性 曲 线<br />
CHARACTERISTIC CURVE OF THE BREAKER<br />
CM1L-100M、H 时 间 / 电 流 特 性 曲 线 ( 配 电 )<br />
CM1L-100M、HTime/CurrentCharacteristiccurve(power distribution)<br />
10000<br />
5000<br />
2000<br />
电 流 - 温 度 特 性<br />
Current-temperatureCharacteristic<br />
1000<br />
500<br />
200<br />
额<br />
定<br />
电<br />
流<br />
(%)<br />
130<br />
120<br />
110<br />
10A<br />
16~100A<br />
100<br />
50<br />
动<br />
作<br />
时 20<br />
间 10<br />
t(s)<br />
5<br />
2<br />
1<br />
最 小<br />
Minimum<br />
最 大<br />
Maximum<br />
0.5<br />
100<br />
0 10 20 30 40<br />
周 围 温 度 (℃)<br />
Ambient temperature<br />
0.2<br />
0.1<br />
0.05<br />
0.02<br />
0.01<br />
0.005<br />
瞬 动 电 流 范 围 ( 8~ 12)×<br />
In<br />
Instantaneous operationcurrentrange(8~12)×In<br />
0.002<br />
0.001<br />
0.5<br />
延 时 脱 扣<br />
Delay release<br />
瞬 时 脱 扣<br />
Instantaneousrelease<br />
0.6 0.8 1 2 3 4 5 6 8 10 20 30 40 50 60 80100 200 300<br />
× 额 定 电 流 In Rated current<br />
额<br />
定<br />
电<br />
流<br />
(%)<br />
电 流 - 温 度 特 性<br />
Current-temperatureCharacteristic<br />
130<br />
120<br />
110<br />
100<br />
0 10 20 30 40<br />
周 围 温 度 (℃)<br />
Ambienttemperature<br />
CM1L-225M、H 时 间 / 电 流 特 性 曲 线 ( 配 电 )<br />
CM1L-225M、HTime/CurrentCharacteristiccurve(power distribution)<br />
10000<br />
5000<br />
2000<br />
1000<br />
500<br />
200<br />
100<br />
50<br />
动<br />
作<br />
20<br />
时<br />
间<br />
10<br />
t(s) 5<br />
2<br />
1<br />
0.5<br />
0.2<br />
0.1<br />
0.05<br />
0.02<br />
0.01<br />
0.005<br />
0.002<br />
0.001<br />
0.5<br />
最 小<br />
Minimum<br />
瞬 动 电 流 范 围<br />
(4~6)×In<br />
Instantaneous operation<br />
current range<br />
延 时 脱 扣<br />
Delay release<br />
延 时 脱 扣<br />
Delayrelease<br />
最 大<br />
Maximum<br />
瞬 动 电 流 范 围 (8~12)×In<br />
Instantaneousoperationcurrentrange<br />
瞬 时 脱 扣<br />
Instantaneous release<br />
瞬 时 脱 扣<br />
Instantaneousrelease<br />
0.6 0.8 1 2 3 4 5 6 8 10 20 30 40 50 60 80100 200 300<br />
× 额 定 电 流 In Rated current<br />
10
断 路 器 特 性 曲 线<br />
CHARACTERISTIC CURVE OF THE BREAKER<br />
CM1L -400M、H时 间 / 电 流 特 性 曲 线 ( 配 电 )<br />
CM1L-400M、H Time/CurrentCharacteristiccurve(power distribution)<br />
10000<br />
5000<br />
2000<br />
1000<br />
电 流 - 温 度 特 性<br />
Current-temperatureCharacteristic<br />
500<br />
200<br />
最 大<br />
Maximum<br />
额<br />
定<br />
电<br />
流<br />
(%)<br />
130<br />
120<br />
110<br />
100<br />
0 10 20 30 40<br />
周 围 温 度 (℃)<br />
Ambient temperature<br />
100<br />
50<br />
20<br />
动<br />
作 10<br />
时 5<br />
间<br />
t(s)<br />
2<br />
1<br />
0.5<br />
0.2<br />
0.1<br />
0.05<br />
0.02<br />
最 小<br />
Minimum<br />
瞬 动 电 流 范 围<br />
(~ 4 6)×<br />
In<br />
Instantaneous operation currentrange<br />
(4~ 6)×In<br />
瞬 动 电 流 范 围 ( 8~ 12)×<br />
In<br />
Instantaneousoperationcurrent range(8~12)×In<br />
0.01<br />
0.005<br />
延 时 脱 扣<br />
瞬 时 脱 扣<br />
Delay release<br />
Instantaneous release<br />
0.002<br />
延 时 脱 扣<br />
瞬 时 脱 扣<br />
0.001<br />
Delayrelease<br />
Instantaneous release<br />
0.5 0.6 0.8 1 2 3 4 5 6 8 10 20 30 40 5060 80 100 200 300<br />
× 额 定 电 流 In Rated current<br />
CM1L -630M、H时 间 / 电 流 特 性 曲 线 ( 配 电 )<br />
CM1L-630M、HTime/Current Characteristic curve(powerdistribution)<br />
10000<br />
5000<br />
额<br />
定<br />
电<br />
流<br />
(%)<br />
130<br />
120<br />
110<br />
电 流 - 温 度 特 性<br />
Current-temperatureCharacteristic<br />
100<br />
0 10 20 30 40<br />
周 围 温 度 (℃)<br />
Ambient temperature<br />
2000<br />
1000<br />
500<br />
200<br />
100<br />
50<br />
动<br />
作<br />
20<br />
时<br />
间<br />
10<br />
t(s) 5<br />
2<br />
1<br />
0.05<br />
0.02<br />
0.01<br />
0.005<br />
0.002<br />
0.001<br />
0.5<br />
最 小<br />
Minimum<br />
0.5<br />
瞬 动 电 流 范 围<br />
(~ 4 6)×<br />
In<br />
0.2 Instantaneousoperation currentrange<br />
(4~ 6)×In<br />
0.1<br />
延 时 脱 扣<br />
Delayrelease<br />
延 时 脱 扣<br />
Delayrelease<br />
最 大<br />
Maximum<br />
瞬 动 电 流 范 围 ( 8~ 12)×<br />
In<br />
Instantaneous operation current range(8~12)×In<br />
瞬 时 脱 扣<br />
Instantaneous release<br />
瞬 时 脱 扣<br />
Instantaneous release<br />
0.6 0.8 1 2 3 4 5 6 8 10 20 30 40 50 60 80 100 200 300<br />
× 额 定 电 流 In Rated current<br />
11
断 路 器 特 性 曲 线<br />
CHARACTERISTIC CURVE OF THE BREAKER<br />
电 流 - 温 度 特 性<br />
Current-temperatureCharacteristic<br />
CM1L-100M、H 时 间 / 电 流 特 性 曲 线 ( 电 动 机 )<br />
CM1L-100M、H Time/CurrentCharacteristic<br />
curve(motor)<br />
10000<br />
5000<br />
130<br />
2000<br />
1000<br />
额<br />
定<br />
电<br />
流<br />
(%)<br />
120<br />
110<br />
10A<br />
16~100A<br />
500<br />
200<br />
100<br />
50<br />
20<br />
最 大<br />
Maximum<br />
100<br />
0 10 20 30 40<br />
周 围 温 度 (℃)<br />
Ambienttemperature<br />
10<br />
动<br />
作 5<br />
时<br />
间 2<br />
t(s)<br />
1<br />
0.5<br />
最 小<br />
Minimum<br />
0.2<br />
0.1<br />
0.05<br />
瞬 动 电 流 范 围 ( 9.6~ 14.4)×<br />
In<br />
Instantaneous operationcurrent range(9.6~14.4)×In<br />
0.02<br />
0.01<br />
0.005<br />
0.002<br />
0.001<br />
0.5<br />
延 时 脱 扣<br />
Delay release<br />
瞬 时 脱 扣<br />
Instantaneous release<br />
0.6 0.8 1 2 3 4 5 6 8 10 20 30 40 50 60 80100 200 300<br />
× 额 定 电 流 In Rated current<br />
CM1L-225M、H 时 间 / 电 流 特 性 曲 线 ( 电 动 机 )<br />
CM1L-225M、H Time/Current Characteristiccurve(motor)<br />
10000<br />
5000<br />
2000<br />
1000<br />
电 流 - 温 度 特 性<br />
Current-temperatureCharacteristic<br />
500<br />
200<br />
100<br />
130<br />
50<br />
最 大<br />
Maximum<br />
额<br />
定<br />
电<br />
流<br />
(%)<br />
120<br />
110<br />
20<br />
10<br />
动 5<br />
作<br />
时 2<br />
间<br />
t(s) 1<br />
0.5<br />
最 小<br />
Minimum<br />
100<br />
0 10 20 30 40<br />
周 围 温 度 (℃)<br />
Ambienttemperature<br />
0.2<br />
0.1<br />
0.05<br />
0.02<br />
0.01<br />
0.005<br />
瞬 动 电 流 范 围 ( 9.6~ 14.4)×<br />
In<br />
Instantaneous operation current range(9.6~14.4)×In<br />
0.002<br />
0.001<br />
0.5<br />
延 时 脱 扣<br />
Delay release<br />
瞬 时 脱 扣<br />
Instantaneousrelease<br />
0.6 0.8 1 2 3 4 5 6 8 10 20 30 40 5060 80100 200 300<br />
× 额 定 电 流 In Rated current<br />
12
断 路 器 特 性 曲 线<br />
CHARACTERISTIC CURVE OF THE BREAKER<br />
CM1L -400M、H时 间 / 电 流 特 性 曲 线 ( 电 动 机 )<br />
CM1L-400M、HTime/CurrentCharacteristiccurve(motor)<br />
10000<br />
5000<br />
电 流 - 温 度 特 性<br />
Current-temperatureCharacteristic<br />
2000<br />
1000<br />
500<br />
额<br />
定<br />
电<br />
流<br />
(%)<br />
130<br />
120<br />
110<br />
动<br />
作<br />
时<br />
间<br />
t(s)<br />
200<br />
100<br />
50<br />
20<br />
10<br />
5<br />
2<br />
最 小<br />
Minimum<br />
最 大<br />
Maximum<br />
100<br />
0 10 20 30 40<br />
周 围 温 度 (℃)<br />
Ambienttemperature<br />
1<br />
0.5<br />
0.2<br />
0.1<br />
0.05<br />
瞬 动 电 流 范 围 ( 9.6~ 14.4)×<br />
In<br />
Instantaneousoperationcurrent range(9.6~14.4)×In<br />
0.02<br />
0.01<br />
0.005<br />
0.002<br />
0.001<br />
0.5<br />
延 时 脱 扣<br />
瞬 时 脱 扣<br />
Delayrelease<br />
Instantaneous release<br />
0.6 0.8 1 2 3 4 5 6 8 10 20 30 40 50 60 80100 200 300<br />
× 额 定 电 流 In Rated current<br />
CM1L -630M、H时 间 / 电 流 特 性 曲 线 ( 电 动 机 )<br />
CM1L-630M、HTime/Current Characteristic curve(motor)<br />
10000<br />
5000<br />
2000<br />
1000<br />
500<br />
电 流 - 温 度 特 性<br />
Current-temperatureCharacteristic<br />
200<br />
100<br />
50<br />
最 大<br />
Maximum<br />
额<br />
定<br />
电<br />
流<br />
(%)<br />
130<br />
120<br />
110<br />
100<br />
0 10 20 30 40<br />
周 围 温 度 (℃)<br />
Ambient temperature<br />
动<br />
作<br />
时<br />
间<br />
t(s)<br />
20<br />
10<br />
5<br />
2<br />
1<br />
0.5<br />
0.2<br />
0.1<br />
0.05<br />
0.02<br />
0.01<br />
0.005<br />
0.002<br />
0.001<br />
0.5<br />
最 小<br />
Minimum<br />
瞬 动 电 流 范 围 ( 9.6~ 14.4)×<br />
In<br />
Instantaneousoperationcurrent range(9.6~14.4)×In<br />
延 时 脱 扣<br />
瞬 时 脱 扣<br />
Delayrelease<br />
Instantaneous release<br />
0.6 0.8 1 2 3 4 5 6 8 10 20 30 40 50 60 80100 200 300<br />
× 额 定 电 流 In Rated current<br />
13
剩 余 电 流 保 护 特 性 曲 线<br />
RESIDUALCURRENT PROTECTION CHARACTERISTICCURVE<br />
I Δ n=0.03/0.1/0.3/0.5/1/3/10/30( A)<br />
非 延 时 剩 余 电 流 保 护 时 间 / 电 流 特 性 曲 线<br />
Time/currentcharacteristic curve ofnon-time-delay residualcurrent protection<br />
10000<br />
5000<br />
2000<br />
1000<br />
500<br />
I Δ n=0.1/0.3/0.5/1/3/10/30( A)<br />
延 时 剩 余 电 流 保 护 时 间 / 电 流 特 性 曲 线<br />
Time/temperature characteristic curveoftime-delay residualcurrentprotection<br />
10000<br />
5000<br />
2000<br />
1000<br />
500<br />
200<br />
100<br />
50<br />
200<br />
100<br />
50<br />
20<br />
动<br />
作 10<br />
时 5<br />
间<br />
t(s) 2<br />
1<br />
0.5<br />
动 20<br />
作<br />
10<br />
时<br />
间 5<br />
t(s)<br />
2<br />
1<br />
0.5<br />
2I Δn的 最 大 断 开 时 间 0.35s<br />
Maximum break time 0.35s of 2IΔn<br />
0.2<br />
0.1<br />
0.05<br />
5I Δn 最 大 断 开 时 间<br />
Maximum break time of5I Δn<br />
0.2<br />
0.1<br />
0.05<br />
极 限 不 驱 动 时 间 0.1s<br />
Limitingnon-actuatingtime 0.1s<br />
0.02<br />
0.01<br />
0.005<br />
0.02<br />
0.01<br />
0.005<br />
0.002<br />
0.001<br />
0.1 0.2 0.3 0.40.5<br />
0.6 0.8 1 2 3 4 5 6 8 10<br />
× 额 定 剩 余 动 作 电 流 IΔn Rated residualoperating current<br />
0.002<br />
0.001<br />
0.1 0.2 0.3 0.4 0.5 0.6 0.8 1 2 3 4 5 6 8 10<br />
× 额 定 剩 余 动 作 电 流 IΔn Rated residual operating current<br />
200 300<br />
I Δ n=0.1/0.3/0.5/1/3/10/30( A)<br />
延 时 剩 余 电 流 保 护 时 间 / 电 流 特 性 曲 线<br />
Time/currentcharacteristic curve oftime-delayresidualcurrentprotection<br />
10000<br />
5000<br />
2000<br />
1000<br />
500<br />
200<br />
100<br />
50<br />
I Δ n=0.1/0.3/0.5/1/3/10/30( A)<br />
延 时 剩 余 电 流 保 护 时 间 / 电 流 特 性 曲 线<br />
Time/currentcharacteristic curve oftime-delayresidualcurrentprotection<br />
10000<br />
5000<br />
2000<br />
1000<br />
500<br />
200<br />
100<br />
50<br />
20<br />
动<br />
10<br />
作<br />
时 5<br />
间<br />
t(s) 2<br />
1<br />
0.5<br />
0.2<br />
0.1<br />
2IΔn 的 最 大 断 开 时 间 1s<br />
Maximumbreaktime 1s of 2IΔn<br />
极 限 不 驱 动 时 间 0.5s<br />
Limitingnon-actuatingtime<br />
20<br />
动<br />
作 10<br />
时 5<br />
间<br />
t(s) 2<br />
1<br />
0.5<br />
0.2<br />
0.1<br />
2I Δn 的 最 大 断 开 时 间 2s<br />
Maximumbreak time2s of 2IΔn<br />
极 限 不 驱 动 时 间 1s<br />
Limitingnon-actuatingtime 1s<br />
0.05<br />
0.05<br />
0.02<br />
0.01<br />
0.02<br />
0.01<br />
0.005<br />
0.005<br />
0.002<br />
0.001<br />
0.1 0.2 0.3 0.40.5 0.6 0.8 1 2 3 4 5 6 8 10<br />
× 额 定 剩 余 动 作 电 流 IΔ<br />
n Rated residual operatingcurrent<br />
0.002<br />
0.001<br />
0.1 0.2 0.3 0.4 0.5 0.6 0.8 1 2 3 4 5 6 8 10<br />
× 额 定 剩 余 动 作 电 流 IΔn Rated residualoperatingcurrent<br />
14
外 形 尺 寸 及 安 装 尺 寸 OUTLINE DIMENSIONS AND MOUNTING DIMENSIONS<br />
CM1L-100 板 前 接 线 ( 三 极 、 四 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
Frontconnected(three/fourpoles)<br />
X-X、Y-Yasthecenterofthreepoles breaker<br />
Y<br />
122<br />
92<br />
60<br />
30<br />
28.5<br />
92<br />
110<br />
Y<br />
30<br />
1<br />
3<br />
22<br />
ON<br />
5<br />
N<br />
X<br />
X<br />
X<br />
X<br />
m<br />
2<br />
21.9<br />
OFF<br />
19<br />
32.6<br />
Φ9.5<br />
4 6<br />
4<br />
10<br />
4-φ4.5<br />
17.6<br />
Y<br />
M8<br />
相 间 隔 板<br />
Interphase barrier<br />
欠 电 压 脱 扣 器 厚 度 :<br />
C 型 m=21<br />
The thicknessofunder-voltage<br />
release:type C m=21<br />
板 前 接 线 安 装 板 开 孔 尺 寸<br />
Mountingplatecutoutdimensions of frontconnected<br />
Y<br />
CM1L-100 板 后 接 线 ( 三 极 、 四 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
Rearconnected (three/four poles)<br />
X-X、Y-Yas the centerofthree poles breaker<br />
A 35<br />
10<br />
A 向<br />
Direction A<br />
93<br />
53<br />
Y<br />
X<br />
60<br />
72( 三 极 ) Threepoles<br />
102( 四 极 ) Fourpoles<br />
φ5.5<br />
φ22<br />
X<br />
90<br />
板 后 接 线 安 装 板 开 孔 尺 寸<br />
Mounting platecutoutdimensions of rearconnected<br />
Y<br />
15
外 形 尺 寸 及 安 装 尺 寸 OUTLINE DIMENSIONS AND MOUNTING DIMENSIONS<br />
CM1L-100 插 入 式 板 前 接 线 ( 三 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
Plug-in frontconnected(three poles)<br />
X-X、Y-Yasthe centerofthreepolesbreaker<br />
Y<br />
60<br />
X<br />
94(min)<br />
60<br />
X<br />
4-Φ6.5<br />
3<br />
24<br />
36<br />
Y<br />
插 入 式 板 前 接 线 安 装 板 开 孔 尺 寸<br />
Mountingplate cutoutdimensions ofplug-in front connected<br />
CM1L-100 插 入 式 板 后 接 线 ( 三 极 、 四 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
Plug-in rear connected(three/fourpoles)<br />
X-X、Y-Yasthe centerofthreepolesbreaker<br />
17.5<br />
76<br />
64<br />
50<br />
Y<br />
X<br />
60( 三 极 )<br />
Threepoles<br />
φ6.5<br />
90( 四 极 )<br />
Fourpoles<br />
X<br />
M8<br />
94(min)( 三 极 )<br />
Threepoles<br />
125(min)( 四 极 )<br />
Four poles<br />
Y<br />
插 入 式 板 后 接 线 安 装 板 开 孔 尺 寸<br />
Mounting platecutoutdimensions ofplug-in rearconnected<br />
16
外 形 尺 寸 及 安 装 尺 寸 OUTLINE DIMENSIONS AND MOUNTING DIMENSIONS<br />
CM1L-225 板 前 接 线 ( 三 极 、 四 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
Frontconnected(three/fourpoles)<br />
X-X、Y-Yasthe center ofthreepolesbreaker<br />
20×5<br />
连 接 排 ( 选 购 件 )<br />
Connecting bar(Pickoutandbuy)<br />
Y<br />
105<br />
70<br />
35<br />
相 间 隔 板<br />
Interphasebarrier<br />
24<br />
110<br />
90<br />
Y<br />
35<br />
1<br />
3<br />
22<br />
ON<br />
5<br />
N<br />
X<br />
m<br />
2<br />
42.8<br />
OFF<br />
19<br />
37.65 Φ9.5<br />
4 6<br />
X<br />
4<br />
5<br />
X<br />
4-φ4.5<br />
X<br />
107<br />
142<br />
欠 电 压 脱 扣 器 厚 度 :<br />
C 型 m=21<br />
Thethickness ofunder-voltage<br />
release:typeC m=21<br />
Y<br />
M8<br />
板 前 接 线 安 装 板 开 孔 尺 寸<br />
Mountingplatecutoutdimensionsoffrontconnected<br />
Y<br />
CM1L-225 板 后 接 线 ( 三 极 、 四 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
Rear connected(three/four poles)<br />
X-X、Y-Yasthe center ofthreepolesbreaker<br />
A<br />
10<br />
35<br />
A 向<br />
Direction A<br />
100<br />
55<br />
Y<br />
M8<br />
13<br />
X<br />
70<br />
87( 三 极 )<br />
Threepoles<br />
122( 四 极 )<br />
Four poles<br />
φ5.5<br />
φ24<br />
X<br />
105<br />
Y<br />
板 后 接 线 安 装 板 开 孔 尺 寸<br />
Mountingplatecutoutdimensionsofrear connected<br />
17
外 形 尺 寸 及 安 装 尺 寸 OUTLINE DIMENSIONS AND MOUNTING DIMENSIONS<br />
CM1L-225 插 入 式 板 前 接 线 ( 三 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
Plug-in frontconnected (three poles)<br />
X-X、Y-Yasthecenter ofthreepolesbreaker<br />
Y<br />
70<br />
110(min)<br />
70<br />
4-Φ6.5<br />
X<br />
X<br />
4<br />
24<br />
41<br />
Y<br />
插 入 式 板 前 接 线 安 装 板 开 孔 尺 寸<br />
Mountingplatecutoutdimensionsofplug-in front connected<br />
CM1L-225 插 入 式 板 后 接 线 ( 三 极 、 四 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
Plug-in rear connected(three/fourpoles)<br />
X-X、Y-Yasthecenter ofthreepolesbreaker<br />
86.5<br />
71.5<br />
50<br />
17.5<br />
Y<br />
X<br />
70( 三 极 )<br />
Threepoles<br />
φ6.5<br />
105( 四 极 )<br />
Four poles<br />
X<br />
M8<br />
110(min)( 三 极 )<br />
Threepoles<br />
145(min)( 四 极 )<br />
Four poles<br />
Y<br />
插 入 式 板 后 接 线 安 装 板 开 孔 尺 寸<br />
Mounting platecutoutdimensions ofplug-inrearconnected<br />
18
外 形 尺 寸 及 安 装 尺 寸<br />
OUTLINE DIMENSIONS AND MOUNTING DIMENSIONS<br />
CM1L-400 板 前 接 线 ( 三 极 、 四 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
3.5<br />
Front connected(three/fourpoles)<br />
X-X、Y-Yas the centerof three poles breaker<br />
连 接 排 ( 选 购 件 )<br />
Connecting bar(Pickoutandbuy)<br />
φ13<br />
Y<br />
44<br />
相 间 隔 板<br />
Interphase barrier<br />
M10<br />
30×8<br />
38<br />
Y<br />
m<br />
1 3 5<br />
φ7<br />
65<br />
N<br />
X X<br />
X X<br />
57<br />
2 4 6<br />
49.5 Φ7.3<br />
19<br />
6<br />
3.5<br />
4-φ7<br />
11<br />
96<br />
144<br />
138<br />
150<br />
186<br />
198<br />
Y<br />
欠 电 压 脱 扣 器 厚 度 :<br />
C 型 m=21<br />
Thethicknessofunder-voltage<br />
release:typeC m=21<br />
CM1L-400 板 后 接 线 ( 三 极 、 四 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
4.5<br />
44<br />
106.5<br />
Y<br />
146.5<br />
板 前 接 线 安 装 板 开 孔 尺 寸<br />
Mountingplatecutoutdimensionsoffrontconnected<br />
Rear connected (three/fourpoles)<br />
X-X、Y-Yas the centerof three poles breaker<br />
A<br />
12<br />
37<br />
A 向<br />
Direction A<br />
Y<br />
108.5<br />
48.5<br />
124( 三 极 )<br />
Three poles<br />
172( 四 极 )<br />
Four poles<br />
φ10.5<br />
X<br />
φ6.5<br />
φ32<br />
X<br />
M10<br />
96<br />
144<br />
Y<br />
板 后 接 线 安 装 板 开 孔 尺 寸<br />
Mounting platecutoutdimensions ofrearconnected<br />
19
外 形 尺 寸 及 安 装 尺 寸<br />
OUTLINE DIMENSIONS AND MOUNTING DIMENSIONS<br />
CM1L-400 插 入 式 板 前 接 线 ( 三 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
Plug-in frontconnected(three poles)<br />
X-X、Y-Yasthecenter ofthreepoles breaker<br />
Y<br />
118<br />
152(min)<br />
X<br />
60<br />
4-Φ8.5<br />
X<br />
6<br />
38.3<br />
52<br />
Y<br />
插 入 式 板 前 接 线 安 装 板 开 孔 尺 寸<br />
Mountingplate cutoutdimensions ofplug-in frontconnected<br />
CM1L-400 插 入 式 板 后 接 线 ( 三 极 、 四 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
Plug-in rear connected(three/fourpoles)<br />
X-X、Y-Yasthecenter ofthreepoles breaker<br />
106.5<br />
83.5<br />
60<br />
Y<br />
152(min)( 三 极 )<br />
Threepoles<br />
X<br />
60( 三 极 )<br />
Three poles<br />
108( 四 极 ) Fourpoles<br />
φ8.5<br />
X<br />
21<br />
M10<br />
200(min)( 四 极 )<br />
插 入 式 板 后 接 线 安 装 板 开 孔 尺 寸<br />
Mounting platecutoutdimensions ofplug-inrearconnected<br />
Y<br />
Fourpoles<br />
20
外 形 尺 寸 及 安 装 尺 寸 OUTLINE DIMENSIONS AND MOUNTING DIMENSIONS<br />
CM1L-400 抽 出 式 接 线 ( 三 极 、 四 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
Draw-out connected(three/fourploes)<br />
X-X、Y-Y center forthree poles breaker<br />
Y<br />
Φ11<br />
板 后 接 线<br />
Wiring onback<br />
of the board<br />
板 前 接 线<br />
Wiring infront<br />
of theboard<br />
Y<br />
96( 三 极 threepoles)<br />
4-Φ6.5<br />
ON<br />
N<br />
X<br />
X<br />
X<br />
X<br />
OFF<br />
77<br />
48 48 48<br />
Y<br />
W<br />
极 数<br />
Pole<br />
W<br />
三 极<br />
Threepoles 223<br />
四 极<br />
Fourpoles 271<br />
CM1L-630 板 前 接 线 ( 三 极 、 四 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
17.5<br />
221<br />
Front connected(three/fourpoles)<br />
144( 四 极 four poles)<br />
抽 出 式 接 线 安 装 开 孔 尺 寸<br />
aperture dimensionsofthe sub-panel,<br />
wiring ofdraw-outconnection.<br />
X-X、Y-Yas the centerof three poles breaker<br />
Y<br />
φ14<br />
连 接 排 ( 选 购 件 )<br />
Connectingbar(Pickoutand buy)<br />
M12<br />
Y<br />
70<br />
相 间 隔 板<br />
Interphase barrier<br />
44×<br />
7<br />
41<br />
Y<br />
70<br />
4-φ7<br />
m<br />
1 3 5<br />
66<br />
φ7<br />
N<br />
X<br />
X<br />
X<br />
X<br />
53<br />
80 Φ7.3<br />
2 4 6<br />
19<br />
4.5<br />
4.5<br />
140<br />
198<br />
210<br />
210<br />
268<br />
280<br />
42<br />
8<br />
Y<br />
115.5<br />
155<br />
板 前 接 线 安 装 板 开 孔 尺 寸<br />
Mountingplatecutoutdimensionsoffrontconnected<br />
欠 电 压 脱 扣 器 厚 度 :<br />
C 型 m=0<br />
Thethickness ofunder-voltage<br />
release:typeC m=0<br />
Y<br />
21
外 形 尺 寸 及 安 装 尺 寸 OUTLINE DIMENSIONS AND MOUNTING DIMENSIONS<br />
CM1L-630 板 后 接 线 ( 三 极 、 四 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
Rearconnected(three/four poles)<br />
X-X、Y-Yasthecenterofthreepolesbreaker<br />
A<br />
12<br />
37<br />
A 向<br />
DirectionA<br />
84<br />
62<br />
Y<br />
140<br />
φ7<br />
178( 三 极 )<br />
Threepoles<br />
X<br />
248( 四 极 ) Fourpoles<br />
X<br />
φ48<br />
M12<br />
210<br />
Y<br />
板 后 接 线 安 装 板 开 孔 尺 寸<br />
Mountingplate cutoutdimensions ofrearconnected<br />
CM1L-630 插 入 式 板 后 接 线 ( 三 极 、 四 极 )<br />
X-X、Y-Y 为 三 极 断 路 器 中 心<br />
Plug-in rear connected(three/fourpoles)<br />
X-X、Y-Yasthecenterofthreepolesbreaker<br />
148<br />
97<br />
61<br />
M12<br />
36<br />
M12<br />
Y<br />
213(min)( 三 极 ) Threepoles<br />
18<br />
X<br />
140( 三 极 ) Threepoles<br />
210( 四 极 ) Fourpoles<br />
X<br />
16<br />
φ10<br />
283(min)( 四 极 ) Fourpoles<br />
Y<br />
插 入 式 板 后 接 线 安 装 板 开 孔 尺 寸<br />
Mountingplatecutoutdimensions of plug-inrearconnected<br />
22
外 形 尺 寸 及 安 装 尺 寸 OUTLINE DIMENSIONS AND MOUNTING DIMENSIONS<br />
CM1L-630 抽 出 式 接 线 ( 三 极 、 四 极 )draw-out connected (three /four poles)<br />
X-X、Y-Y 为 三 极 断 路 器 中 心 X-XY-Ycenterfor three polesbreaker<br />
Y<br />
Φ13<br />
板 后 接 线<br />
Wiring on back<br />
of theboard<br />
板 前 接 线<br />
Wiring infront<br />
of theboard<br />
Y<br />
140( 三 极 three poles) 4-Φ6.5<br />
ON<br />
N<br />
X<br />
X<br />
X<br />
X<br />
OFF<br />
73<br />
210( 四 极 four poles)<br />
70 70 70<br />
Y<br />
W<br />
极 数<br />
Pole<br />
三 极<br />
Three poles<br />
四 极<br />
Four poles<br />
W<br />
289<br />
359<br />
26<br />
210<br />
Y<br />
抽 出 式 接 线 安 装 开 孔 尺 寸<br />
aperture dimensionsof the sub-panel,<br />
wiringof draw-out connection.<br />
断 路 器 安 装 安 全 间 隙<br />
C<br />
C<br />
A: 到 导 电 回 路 ( 包 括 无 遮 挡 物 或 有 接 地 金 属 )<br />
B: 断 路 器 端 子 到 底 墙<br />
C: 断 路 器 侧 部 到 侧 墙 ( 包 括 无 遮 挡 物 或 有 接 地 金 属 )<br />
D: 到 非 导 电 部 件<br />
注 :E 为 相 间 隔 板 , 必 须 安 装 。<br />
A: Toconductive circuit(including withoutshetterorwithearthed metals)<br />
B: The terminals of the circuitbreakerto thebottomwall<br />
C: The side case ofthe circuit (breaker to the side wall (including without shelter or<br />
with earthedmetals)<br />
D: Tonon-conductive units<br />
E<br />
Note: E,theinterphasebarrier,shouldbe installed<br />
单 位 :mm<br />
Measurement<br />
型 号<br />
Type<br />
CM1L-100<br />
CM1L-225<br />
CM1L-400<br />
不 需 零 飞 弧 罩<br />
without zero arcventingcover<br />
50<br />
50<br />
100<br />
CM1L-630<br />
100<br />
A<br />
带 零 飞 弧 罩<br />
with zeroarcventing cover<br />
25<br />
25<br />
25<br />
B C D<br />
25 25 25<br />
25 25 25<br />
25 25 25<br />
25 25 25<br />
注 :CM1 -100、225、400 必 须 安 装 相 间 隔 板 或 零 飞 弧 罩 , 可 选 择 。<br />
L<br />
Note:Theinterphase barriersor zero arcventing coversshould beinstalled,may be selected.<br />
23
内 外 部 附 件<br />
INTERNAL/EXTERNALACCESSORIES<br />
1. 断 路 器 的 内 部 附 件<br />
根 据 用 户 需 要 断 路 器 附 件 可 直 接 导 线 引 出 ( 导 线 长 度 为<br />
50cm, 有 特 殊 要 求 订 货 时 说 明 ), 或 加 装 接 线 端 子 排 。<br />
欠 电 压 脱 扣 器 , 符 号 ○<br />
欠 电 压 脱 扣 器 为 C 型 :AC50Hz/60Hz 230V、400V。<br />
外 挂 欠 电 压 模 块 接 线 图<br />
( 虚 框 内 为 断 路 器 内 部 附 件 接 线 图 )<br />
1.The internal accessoriesof the breaker<br />
According to user's demands,accessories could<br />
lead to direct wire outcoming or flat terminals could<br />
be added.<br />
Under-voltagerelease<br />
type C for under-voltage release:AC50Hz/60Hz<br />
230V,400V<br />
Wiring diagram of the under-voltage module<br />
connected externally (inner accessories are indicated<br />
in the dottedsquare)<br />
C 型<br />
Type C<br />
X<br />
P1<br />
P2<br />
电 源 输 入<br />
Power supply<br />
符 号 说 明 :X 为 接 线 端 子 排<br />
Code description:"X"standsforflatterminals<br />
欠 电 压 脱 扣 器 功 率 见 表<br />
Power ofthe under-voltage release see Table<br />
欠 电 压 脱 扣 器 型 号<br />
Under-voltage releasetype<br />
配 用 断 路 器<br />
Fittingbreaker<br />
安 装 位 置<br />
Mounting position<br />
欠 电 压 脱 扣 器 功 率 (VA)<br />
Power ofthe under-voltage release<br />
AC230V<br />
AC400V<br />
QTCM1L<br />
-100Z<br />
CM1L-100 三 极 、 四 极 three/fourpoles<br />
左 面 left<br />
2.6 3.3<br />
QTCM1L<br />
-225Z<br />
CM1L-225 三 极 、 四 极 three/fourpoles<br />
左 面 left<br />
3.8 3.3<br />
QTCM1L-400Z<br />
CM1L-400 三 极 、 四 极 three/fourpoles<br />
左 面 left<br />
3.7<br />
2.7<br />
QTCM1L<br />
-630Z<br />
CM1L-630 三 极 、 四 极 three/fourpoles<br />
左 面 left<br />
2.5<br />
2.8<br />
在 额 定 控 制 电 源 电 压 的 35%~70% 时 , 欠 电 压<br />
脱 扣 器 应 可 靠 使 断 路 器 脱 扣 ;<br />
在 额 定 控 制 电 源 电 压 的 85%~110% 时 , 欠 电<br />
压 脱 扣 器 应 保 证 断 路 器 能 合 闸 ;<br />
在 额 定 控 制 电 源 电 压 低 于 35% 时 , 欠 电 压 脱<br />
扣 器 应 防 止 断 路 器 合 闸 。<br />
Under the voltage of 35% ~ 70% of the rated voltage,the<br />
under-voltage releaseshould make the breakertripcorrectly.<br />
Under the voltage of 85% ~110% of the rated voltage,the<br />
under-voltage releaseshould make the breakerclosereliably.<br />
In case of the operation voltage less than 35% of the rated<br />
voltage,the under-voltage should prevent the breaker from<br />
closing.<br />
! 敬 告 : 欠 电 压 脱 扣 器 必 须 先 通 电 , 断 路 器 才 能 再 扣 及 合 闸 。 否 则 将 损 坏 断 路 器 !<br />
Warming:Only the under-voltage release energized in advance,the breaker could be recramped and closed,otherwise<br />
the breaker will be damaged.<br />
24
内 外 部 附 件<br />
INTERNAL/EXTERNAL ACCESSORIES<br />
分 励 脱 扣 器 , 符 号 ● Shuntrelease<br />
接 线 图 ( 虚 框 内 为 断 路 器 内 部 附 件 )<br />
Schemeof wiring(the internal accessories inthe dottedframe)<br />
分 励 脱 扣 器 型 号<br />
Shunt release type<br />
FTCM1L<br />
-100Z<br />
FTCM1L<br />
-100YS<br />
FTCM1L<br />
-225Z<br />
FTCM1L<br />
-225YS<br />
FTCM1-400Z<br />
FTCM1-400Y<br />
FTCM1L<br />
-630Z<br />
FTCM1L<br />
-630Y<br />
配 用 断 路 器<br />
Fitting breaker<br />
CM1L<br />
-100 三 极 three poles, 四 极 A、B、C、D 型 type A、B、C、Dof four poles<br />
CM1L<br />
-100 四 极 B、C 型 type A、B、C、D offour poles<br />
CM1L -225 三 极 three poles, 四 极 A、B、C、D型 typeA、B、C、D<br />
of four poles<br />
CM1L<br />
-225 四 极 B、C 型 type A、B、C、D offour poles<br />
CM1L -400 三 极 three poles, 四 极 A、B、C、D型 type A、B、C、Dof four poles<br />
CM1L<br />
-400 四 极 B、C 型 type A、B、C、D offour poles<br />
CM1L -630 三 极 three poles, 四 极 A、B、C、D型 type A、B、C、Dof four poles<br />
CM1L<br />
-630 四 极 B、C 型 type A、B、C、D offour poles<br />
安 装 位 置<br />
Mounting position<br />
左 面 left<br />
右 面 right<br />
左 面 left<br />
右 面 right<br />
左 面 left<br />
右 面 right<br />
左 面 left<br />
右 面 right<br />
A1<br />
A2<br />
电 源 输 入<br />
powersupply<br />
K<br />
K: 分 励 脱 扣 器 内 部 与 线 圈 串 联 的 微 动 开 关 为 常 闭 触 头 , 当 断 路<br />
器 分 闸 后 , 该 触 头 自 行 断 开 , 合 闸 时 闭 合<br />
“K”is the slow motion switch normal-close contact conneted the coil in<br />
series in the shunt release.It turns-on or turns-off voluntarily as soon as<br />
thebreaker onoroff.<br />
电 压 规 格 :AC50Hz/60Hz 230V、400V;DC220V、24V。 Voltage rating:AC50Hz/60Hz 230Vor 400V;DC220V or 24V.<br />
在 额 定 控 制 电 源 电 压 Us 的 70~110% 之 间 时 , 分 励 脱 扣 器 应 可 靠 使 断 路 器 脱 扣 。<br />
The shunt release should makethe breaker tripreliably when the operation voltageis 70%~110% of the rated controlvoltage.<br />
注 : 当 额 定 控 制 电 源 电 压 为 DC24V 时 , 有 两 种 解 决 方 案 。<br />
方 案 1, 采 用 DC24V 分 励 脱 扣 器 , 但 应 满 足 如 下 条 件 。 铜 导 线 最 大 长 度 ( 两 根 导 线 中 每 根 长 度 ) 须 满 足 下 表 条 件 , 脱 扣<br />
器 接 线 端 处 的 电 源 功 率 须 满 足 最 小 50W 要 求 。<br />
Note:While selecting DC24V voltage ofthe rated controlpower-supply, selecting two project.<br />
Project1:Selecting DC24V release,but satisfy righttable,and min-power capacity is 50W.<br />
额 定 控 制 电 源 电 压 Us(DC24V)<br />
The ratedcontrolvoltage<br />
100%Us<br />
导 线 截 面 积<br />
Wire area<br />
1.5mm 2 2.5mm 2<br />
150m<br />
250m<br />
85%Us<br />
100m<br />
160m<br />
方 案 2, 采 用 DC24V 中 间 继 电 器 控 制 AC230V 或 400V 分 励 脱 扣 器 , 中 间 继 电 器 触 点 容 量 不 小 于 1A。<br />
Project2: Selecting theinter mediate relay ofDC24Vwith1Acurrentcapacity ofitscontactor.<br />
25
内 外 部 附 件<br />
INTERNAL/EXTERNAL ACCESSORIES<br />
漏 电 报 警 单 元 模 块 Leakagealarmunit module 接 线 图 ( 虚 框 内 为 漏 电 报 警 模 块 内 部 附 件 接 线 图 )<br />
漏 电 报 警 单 元 模 块 有 两 种 方 式 , 用 户 根 据 需<br />
Scheme ofwiring(the internal accessories'wiringscheme<br />
ofleakagealarm unit module inthe dottedframe)<br />
要 可 在 订 货 时 说 明 :<br />
方 式 一 ( 用 Ⅰ 表 示 ): 当 发 生 漏 电 , 漏 电 报 警 模<br />
块 发 出 信 号 , 同 时 断 路 器 脱 扣 ;<br />
P6<br />
方 式 二 ( 用 Ⅱ 表 示 ): 当 发 生 漏 电 , 漏 电 报<br />
P5<br />
警 模 块 发 出 信 号 , 但 断 路 器 不 脱 扣 。<br />
P4<br />
注 : 方 式 二 是 为 满 足 特 殊 场 合 需 要 , 用 户 在<br />
P3<br />
采 用 此 功 能 保 护 电 器 时 请 慎 重 考 虑 。<br />
Creepage alarm unit module has two patterns users<br />
canilluminate whenordering.<br />
Pattern one(as Ⅰ):leakage alarm unit module send<br />
out signals when leakage,meanwhile the breaker<br />
release.<br />
Pattern two(as Ⅱ):leakage alarm unit module send<br />
out signals when leakage but the breaker don't<br />
release.<br />
Note:Pattern two fits for special situation,please<br />
carefully consideration when using this protection<br />
electric products.<br />
P2<br />
P1<br />
规 格 :P5-P6 端 输 入 电 源 为 AC50Hz/60Hz 230V 或 400V。<br />
P1-P2、P3-P4 触 头 容 量 为 AC230V5A。<br />
Specification:The input power supply of terminal P5-P6<br />
is AC50Hz/60Hz 230V or400V.<br />
Thecontacts capacity of P1-P2,P3-P4isAC230V 5A.<br />
报 警 触 头 , 符 号 □ AlarmContact<br />
报 警 触 头 型 号<br />
alarm contacttype<br />
配 用 断 路 器<br />
Fitting breaker<br />
安 装 位 置<br />
Mounting position<br />
状 态<br />
status<br />
BCCM1L<br />
-100Z<br />
CM1L<br />
-100 三 极 、 四 极 three/four poles<br />
左 面 left<br />
B14<br />
B12<br />
B11<br />
BCCM1L<br />
-225Z<br />
BCCM1-400Z<br />
BCCM1L<br />
-630Z<br />
CM1L<br />
-225 三 极 、 四 极 three/four poles<br />
CM1L<br />
-400 三 极 、 四 极 three/four poles<br />
CM1L<br />
-630 三 极 、 四 极 three/four poles<br />
左 面 left<br />
左 面 left<br />
左 面 left<br />
图 示 为 断 路 器 处 于 “ 分 ” 或<br />
“ 合 ” 时 的 状 态 ,<br />
The status of the breaker in “off”<br />
or “on”,<br />
当 断 路 器 处 于 “ 脱 扣 ” 时 , 图 示<br />
状 态 转 换 。<br />
If breaker is “tripped”, the status<br />
is changovered.<br />
26
内 外 部 附 件<br />
辅 助 触 头 , 符 号 ■<br />
INTERNAL/EXTERNALACCESSORIES<br />
Auxiliary Contact<br />
触 头 型 号<br />
Auxiliary contact type<br />
配 用 断 路 器<br />
Fitting breaker<br />
安 装 位 置<br />
Mounting position<br />
状 态<br />
status<br />
FCCM1L<br />
-100Z<br />
FCCM1L<br />
-225Z<br />
CM1L -100 三 极 threepoles, 四 极 A、 B、<br />
C、 D型 typeA、 B、 C、<br />
Dof four poles<br />
CM1L -225 三 极 threepoles, 四 极 A、 B、<br />
C、 D型 typeA、 B、 C、<br />
Dof four poles<br />
左 面 left<br />
左 面 left<br />
F14<br />
F12<br />
F 11<br />
图 示 为 断 路 器 处 于 “ 分 ” 或 “ 脱<br />
扣 ” 时 的 状 态 , 当 断 路 器 处 于<br />
“ 合 ” 时 , 图 示 状 态 转 换 。<br />
The status of breaker is “ off” or<br />
“ tripped” ,if breaker is “ on”,<br />
thestatus is changovered.<br />
FCCM1L<br />
-100ZS<br />
FCCM1L<br />
-225ZS<br />
FCCM1-400ZS<br />
FCCM1-400YS<br />
FCCM1L<br />
-630ZS<br />
FCCM1L<br />
-630YS<br />
CM1L -100 三 极 threepoles, 四 极 A、 B、<br />
C、 D型 typeA、 B、 C、<br />
Dof four poles<br />
CM1L -225 三 极 threepoles, 四 极 A、 B、<br />
C、 D型 typeA、 B、 C、<br />
Dof four poles<br />
CM1L -400 三 极 threepoles, 四 极 A、 B、<br />
C、 D型 typeA、 B、 C、<br />
Dof four poles<br />
CM1L<br />
-400 四 极 B、C 型 typeBCof four poles<br />
CM1L -630 三 极 threepoles, 四 极 A、 B、<br />
C、 D型 typeA、 B、 C、<br />
Dof four poles<br />
CM1L<br />
-630 四 极 B、C 型 typeBCof four poles<br />
左 面 left<br />
左 面 left<br />
左 面 left<br />
右 面 right<br />
左 面 left<br />
右 面 right<br />
F24<br />
F22<br />
F14<br />
F12<br />
F 21<br />
F11<br />
图 示 为 断 路 器 处 于 “ 分 ” 或 “ 脱<br />
扣 ” 时 的 状 态 , 当 断 路 器 处 于<br />
“ 合 ” 时 , 图 示 状 态 转 换 。<br />
The status of breaker is “ off” or<br />
“ tripped” ,if breaker is “ on”,<br />
thestatus is changovered.<br />
辅 助 触 头 、 报 警 触 头 额 定 工 作 电 流 Ratedcurrent operationalof the auxiliarycontact,alarmcontact<br />
分 类<br />
Type<br />
壳 架 等 级 额 定 电 流 (A)<br />
Framesize ratedcurrent<br />
约 定 发 热 电 流 I th(A)<br />
Conventionalthermal current<br />
AC400V<br />
额 定 工 作 电 流 I(A) e<br />
Rated operationalcurrent<br />
DC220V<br />
辅 助 触 头<br />
Auxiliary contact<br />
Inm≤400<br />
Inm=630<br />
3<br />
3<br />
0.3 0.15<br />
0.4 0.15<br />
报 警 触 头<br />
Alarm contact<br />
辅 助 触 头 + 报 警 触 头 , 符 号<br />
辅 助 触 头 + 报 警 触 头 型 号<br />
Auxiliary and alarm contact type<br />
FBCM1L<br />
-100Z<br />
FBCM1L<br />
-225Z<br />
FBCM1 -400Z<br />
FBCM1L<br />
-630Z<br />
100≤Inm≤630<br />
3 0.3 0.15<br />
■<br />
□<br />
Auxiliary andalarm contacts<br />
配 用 断 路 器<br />
Fitting breaker<br />
CM1L<br />
-100 三 极 、 四 极 three/four poles<br />
CM1L<br />
-225 三 极 、 四 极 three/four poles<br />
CM1L<br />
-400 三 极 、 四 极 three/four poles<br />
CM1L<br />
-630 三 极 、 四 极 three/four poles<br />
27<br />
安 装 位 置<br />
Mounting position<br />
左 面 left<br />
左 面 left<br />
左 面 left<br />
左 面 left<br />
F14<br />
F12<br />
状 态<br />
status<br />
F 11<br />
图 示 为 断 路 器 处 于 “ 分 ” 或 “ 脱<br />
扣 ” 时 的 状 态 , 当 断 路 器 处 于<br />
“ 合 ” 时 , 图 示 状 态 转 换 。The<br />
status of breaker is “ off” or<br />
“ tripped” ,if breaker is “ on”,<br />
thestatus is changovered.<br />
B14<br />
B12<br />
B11<br />
图 示 为 断 路 器 处 于 “ 分 ” 或<br />
“ 合 ” 时 的 状 态 ,<br />
The status of the breaker in “off”<br />
or “on”,<br />
当 断 路 器 处 于 “ 脱 扣 ” 时 , 图 示<br />
状 态 转 换 。<br />
If breaker is “tripped”, the status<br />
is changovered.
内 外 部 附 件<br />
INTERNAL/EXTERNAL ACCESSORIES<br />
2、 断 路 器 的 外 部 附 件<br />
DCCM1 L 电 动 操 作 机 构<br />
Theexternalaccessoriesofthebreaker<br />
DCCM1L<br />
motoroperator<br />
电 动 操 作 机 构 接 线 图 ( 虚 框 内 为 电 动 操 作 机 构 内 部 接 线 图 )<br />
Wiring diagram ofmotor operator(Internal wiringdiagram ofmotoroperatorin the dotted frame)<br />
M<br />
电 源<br />
Power<br />
source<br />
控 制 电 路<br />
Controlling circuit<br />
电 压 规 格 :AC50Hz/60Hz110V、230V<br />
Voltagerating:<br />
DC24V、110V、220V<br />
X<br />
P1 P2 S1 S2 S4<br />
SB1( 合 ) Close<br />
SB2( 分 ) Open<br />
电 源 输 入<br />
Power supply<br />
符 号 说 明 :<br />
SB 1、SB 2操 作 按 钮 ( 用 户 自 备 )<br />
X 接 线 端 子 排<br />
P 1、P 2为 外 接 电 源 输 入<br />
Codedescription:<br />
SB1、SB2 standforpush button(providedby users<br />
themselves)<br />
P1、P2 stand forpowersupply.<br />
电 动 操 作 机 构 相 关 参 数 Parameter of motoroperator<br />
28
内 外 部 附 件<br />
INTERNAL/EXTERNALACCESSORIES<br />
电 动 操 作 机 构 型 号<br />
Motor operator type<br />
配 用 断 路 器<br />
Fittingbreaker<br />
动 作 电 流 (A)<br />
Action current(A)<br />
电 机 功 率 (VA)<br />
MotorPower(VA)<br />
寿 命 ( 次 )<br />
Durability(times)<br />
H(mm)<br />
DCCM1L<br />
-100<br />
CM1L-100<br />
≤0.5<br />
14<br />
20000<br />
89.5<br />
DCCM1L<br />
-225<br />
CM1L-225<br />
≤0.5<br />
14<br />
20000<br />
93<br />
DCCM1L<br />
-400<br />
CM1L-400<br />
≤2<br />
35<br />
10000<br />
142<br />
DCCM1L<br />
-630<br />
CM1L-630<br />
≤2<br />
35<br />
10000<br />
146<br />
注 : 断 路 器 脱 扣 跳 闸 后 , 电 动 操 作 机 构 必 须 先 使 断 路 器 再 扣 , 然 后 才 能 合 闸 。<br />
Note:Having released andtrippedthe breaker,motoroperatorshouldmake the breaker recramped first,then itcould beturned on.<br />
CZ L手 动 操 作 机 构<br />
型 号 含 义 :<br />
Type anditsmeaning<br />
操 作 机 构<br />
Operating mechanism<br />
配 用 于 CM1 L断 路 器<br />
FittingforCM1L<br />
breaker<br />
CZL<br />
rotaryhandle operator<br />
CZ L 100 C F<br />
转 动 手 柄 型 号<br />
Typeofrotary handly<br />
中 心 式 按 装<br />
Mountsymmetrically<br />
断 路 器 壳 架 等 级 额 定 电 流<br />
Framesize rated current ofthebreaker<br />
特 点 :<br />
该 操 作 机 构 采 用 独 特 的 设 计 和 传 动 结 构 , 通<br />
过 旋 转 手 柄 实 现 塑 壳 断 路 器 的 合 闸 、 分 闸 和 再<br />
扣 。 操 作 灵 活 、 平 稳 , 操 作 力 小 , 安 装 方 便 , 机<br />
构 的 整 体 性 能 和 质 量 均 优 于 其 它 同 类 产 品 。<br />
用 途 :<br />
本 机 构 专 用 于 CM1 L系 列 塑 壳 断 路 器 , 通 过 旋<br />
转 手 柄 实 现 抽 屉 柜 、 配 电 柜 、 动 力 箱 等 在 面 板 上<br />
操 作 的 要 求 , 并 保 证 断 路 器 处 于 合 闸 时 柜 体 门 板<br />
不 能 开 启 ( 即 与 门 联 锁 )。<br />
Feature:<br />
Adopting the unique design and transmitting<br />
structure,the operation mechanism can make the breaker<br />
close,open and recrampby turning the handle.Features of<br />
smooth and flexible operation,little force and convient<br />
mounting,performance and quality of the device is better<br />
thanothersimilarproducts.<br />
Usage:<br />
The mechanism is used specially in CM1L<br />
series<br />
moulded case breakers,to operate the draw-out<br />
panel,power distribution panel and power supply box<br />
outside the panel by turning the handle,and to ensure the<br />
door of panel would not be opened when the breaker<br />
being on(i.e.interlock withthe door)<br />
29
内 外 部 附 件<br />
INTERNAL/EXTERNALACCESSORIES<br />
外 形 及 尺 寸 : Outline anddimensions<br />
配 CM1L-100 三 极 、 四 极 的 操 作 机 构<br />
TheoperatingmechanismofCM1L-100three poles andfour poles<br />
11.5<br />
30<br />
30<br />
30<br />
CZL-100A<br />
配 CM1L-225 三 极 、 四 极 的 操 作 机 构<br />
Theoperating<br />
mechanism ofCM1L-225three poles and four poles<br />
31<br />
35<br />
30<br />
CZL-100B<br />
35<br />
CZL-100C<br />
35<br />
CZ-225A<br />
32<br />
CZL-225B<br />
CZL-225C<br />
配 CM1L<br />
-400 三 极 的 操 作 机 构<br />
Theoperating<br />
mechanismofCM1L-400three poles<br />
15<br />
138<br />
138<br />
CZL-400A<br />
CZL-400C<br />
30
内 外 部 附 件<br />
INTERNAL/EXTERNALACCESSORIES<br />
配 CM11L<br />
-400 四 极 的 操 作 机 构<br />
Theoperating<br />
mechanismof CM1L-400fourpoles<br />
15<br />
186<br />
186<br />
CZ-400B<br />
L<br />
CZL-400D<br />
配 CM1L<br />
-630 三 极 的 操 作 机 构<br />
Theoperating<br />
mechanismofCM1L-630three poles<br />
15<br />
198<br />
CZL-630A<br />
198<br />
210<br />
CZL-630C<br />
配 CM1L- 630 四 极 的 操 作 机 构<br />
Theoperating<br />
mechanism ofCM1L-630 fourpoles<br />
15<br />
99 169<br />
CZL-630B<br />
99<br />
280<br />
169<br />
CZL-630D<br />
31
内 外 部 附 件<br />
INTERNAL/EXTERNALACCESSORIES<br />
CZL 系 列 操 作 机 构 高 度<br />
Height oftheoperatingmechanism CZLtype<br />
H<br />
20<br />
操 作 机 构 型 号<br />
Type ofoperating<br />
mechanism<br />
CZL-100A/CZL-100B/CZL-100C<br />
CZL-225A/CZL-225B/CZL-225C<br />
CZL-400A/CZL-400B/CZL-400C/CZL-400D<br />
CZL-630A/CZL-630B/CZL-630C/CZL-630D<br />
H(mm)<br />
45/45/49<br />
47/47/55<br />
61/61/76/76<br />
55/55/68/68<br />
CZ L操 作 机 构 可 配 用 二 种 操 作 手 柄 : 一 种 为 “F” The operating mechanism can be equipped withtwo types<br />
型 方 形 手 柄 ; 另 一 种 为 “A” 型 圆 形 手 柄 , 其 门 板<br />
of operation handles:one is model "F" square handle,the<br />
other is model "A" round handle.Aperture dimension on<br />
开 孔 尺 寸 见 下 图 。<br />
the panel sheet seethe followingdrawings.<br />
操 作 手 柄 特 点 :<br />
Characteristics ofthe operationhandle:<br />
1. 当 断 路 器 在 合 闸 状 态 时 , 不 能 开 启 柜 门 ;<br />
1.The paneldoor can't be opened when thebreakeris<br />
2. 若 操 作 手 柄 或 操 作 机 构 在 合 闸 状 态 时 有 故<br />
障 , 可 通 过 操 作 手 柄 上 的 紧 急 解 锁 装 置 开 启 柜<br />
门 ;<br />
closed.<br />
2.Iffaulthappens whiletheoperationhandle orhanddrive<br />
mechanism is closed,the panel door can be opened<br />
3. 对 应 不 同 规 格 的 操 作 机 构 , 相 配 套 的 手 操 手<br />
by operating the emergency reliever on the operation<br />
柄 , 其 门 板 开 孔 一 致 。<br />
handle.<br />
3. For the operation handle fitting hand-drive<br />
mechanism of different specifications,the aperture on the<br />
panel sheet should be same.<br />
93<br />
4-φ4.5<br />
O<br />
φ42<br />
65<br />
“F” 型 方 形 手 柄 外 形 及 门 板 开 孔 尺 寸 ( 开 孔 中 心 离 铰 链 距 离 不 小 于 200mm)<br />
Contourofmodel"F" squarehandleandtheaperture dimension on thepanel sheet<br />
(distance from theaperture center tohingeofpaneldoor isn'tlessthan 200mm)<br />
32
内 外 部 附 件<br />
INTERNAL/EXTERNALACCESSORIES<br />
φ61<br />
2-φ5.5<br />
“A” 型 圆 形 手 柄 外 形 及 门 板 开 孔 尺 寸 ( 开 孔 中 心 离 铰 链 距 离 不 小 于 200mm)<br />
Contour ofmodel"A"roundhandleandthe aperture dimensiononthepanel sheet<br />
(distancefrom the aperturecenter tohingeofthe paneldoorisn'tless than 200mm)<br />
D<br />
紧 急 解 锁<br />
Emergencyreliever<br />
≤2.5<br />
柜 体 门 板<br />
Faceboardof cabinet<br />
注 :1. 方 轴 长 度 D=150, 长 度 大 于 150mm 时 , 在 订 货 时<br />
注 明 ;<br />
2. 操 作 机 构 配 用 “F” 型 手 柄 , 型 号 CZ L加 注<br />
“F”, 如 CZL-100C-F 即 可 ; 配 用 “A” 型 手 柄 , 型<br />
号 CZ L加 注 “A”, 如 CZL-100C-A。<br />
Note:1.Length ofthe square axis(D)is 150mm. In case of the length<br />
is morethan 150mm,pleasenotewhilemakingorders.<br />
2. While operating mechanism is equipped with model "F"<br />
handle,"F"would beput togetherwith"CZL",for examplewritten in<br />
"CZL-100C-F". While operation handle is equipped with the<br />
model "A" handle,"A" must be added,fox example written in<br />
"CZL-100C-A".<br />
敬 告 用 户 : 手 动 操 作 机 构 , 必 须 向 本 公 司 配 套 订 货 以 确 保 产 品 质 量 。 如 用 户 自 行<br />
购 买 , 安 装 装 配 后 发 生 的 一 切 不 良 后 果 本 公 司 不 负 责 任 。<br />
Advice to users:To insure the quility,rotary handly operator should beplacedorder with the company for complete set with<br />
the breaker.If bought byyourselves,andharmfuleffects took place after mounted,thecompanywouldbe notresponsible for<br />
it.<br />
33
不 同 额 定 电 流 的 连 接 导 线 参 考 截 面<br />
CROSS-SECTIONWIRINGCONDUCTOR<br />
CORRESPONDINGRATED CURRENT<br />
额 定 电 流 值 (A)<br />
Ratedcurrent<br />
10 16、20 25 32 40、50 63 80 100 125、140 160 180、200、225 250 315、350 400<br />
2<br />
导 线 截 面 积 (mm )<br />
Cross-section<br />
2.5<br />
2.5 4 6 10 16 25 35 50 70 95<br />
120 185 240<br />
额 定 电 流 值 (A)<br />
Rated current<br />
电 缆 Cable<br />
2<br />
截 面 积 (mm )<br />
Cross-section<br />
数 量<br />
Amount<br />
铜 排 Copperbar<br />
尺 寸 (mm×mm)<br />
Size<br />
数 量<br />
Amount<br />
500<br />
150<br />
2<br />
30×5<br />
2<br />
630<br />
185<br />
2<br />
40×5<br />
2<br />
2<br />
注 : 按 GB14048 标 准 ,CM1L-100 中 额 定 电 流 10A 采 用 1.5mm 导 线 连 接 满 足 温 升 要 求 。<br />
2<br />
Note: Rated 10A by1.5mm cableconnecting of CM1L-100is<br />
complied temperature-risesof GB14048 standrad.<br />
接 线 端 子 型 号<br />
TERMINALTYPE<br />
接 线 端 子 分 JGC 及 JBC 二 种 型 号 供 用 户 选 用<br />
Two typesof wiring terminals are supplied:JGCand JBC,chosen byusers.<br />
B<br />
B<br />
d<br />
d<br />
D<br />
90°<br />
D<br />
JGC 型<br />
JGC type<br />
JBC 型<br />
JBC type<br />
34
接 线 端 子 型 号<br />
TERMINALTYPE<br />
型 号<br />
Type<br />
电 流 (A)<br />
Current<br />
导 线 截 面 积 (mm 2 )<br />
Cross-section<br />
端 子 型 号<br />
Typeof Terminal<br />
B L L1 D d<br />
10、16、20 2.5 JBC2.5-8 15 24.5 8.5 φ2.6<br />
φ8.2<br />
25<br />
4 JBC4-8 13.4 20.4 9.2 φ2.8 φ8.2<br />
32 6 JBC6-8 15 24.5 10 φ3.5 φ8.2<br />
CM1L-100<br />
40、50 10 JBC10-8 15 24.5 11 φ4.5 φ8.2<br />
63 16 JGC16-8 12.5 41 33.5 φ6 φ8.2<br />
80 25 JGC25-8 14 46 38.5 φ7 φ8.2<br />
100 35 JGC35-8 15.5 52 44.5 φ8<br />
φ8.2<br />
100 35 JGC35-8 15.5 52 44.5 φ8 φ8.2<br />
CM1L-225<br />
125、140 50 JGC50-8 17 54 45<br />
φ10<br />
160 70 JGC70-8 21.6 61 52 φ11<br />
φ8.2<br />
φ8.2<br />
180、200、225 95 JGC95-8 22 66 57 φ13 φ8.2<br />
35
FWB1 温 度 报 警 模 块<br />
TEMPERATURE ALARM MODULE<br />
FWB1 温 度 报 警 模 块 采 用 FRG 热 传 感 器 直 接 安<br />
装 在 连 接 点 位 置 在 线 检 测 温 度 , 最 多 监 测 6 路 连 接<br />
位 置 温 度 ( 热 传 感 器 连 接 至 温 度 报 警 模 块 背 面 的 输<br />
入 端 子 分 别 为 1T、2T、3T、4T、5T、6T)。 当 监 测<br />
到 连 接 点 温 度 超 过 动 作 温 度 时 , 温 度 报 警 模 块 指<br />
示 灯 点 亮 发 出 相 应 报 警 指 示 , 并 且 内 置 的 继 电 器<br />
二 路 输 出 触 头 闭 合 ( 二 路 输 出 端 子 分 别 为 13、<br />
14,23、24), 可 发 出 远 方 报 警 信 号 或 使 断 路 器<br />
跳 闸 ; 当 监 测 到 连 接 点 温 度 降 至 复 位 温 度 时 , 温<br />
度 报 警 模 块 指 示 灯 熄 灭 并 且 二 路 输 出 触 头 断 开 。<br />
温 度 报 警 模 块 连 接 至 热 传 感 器 的 线 长 为 1.5 米 。<br />
测 温 范 围<br />
temperature detection range<br />
动 作 温 度 To<br />
actiontemperature<br />
复 位 温 度 Tr<br />
resettingtemperature<br />
精 度<br />
precision<br />
传 感 器 绝 缘 耐 压<br />
sensorinsulation withstand voltage<br />
测 温 点 数<br />
temperature detection points<br />
工 作 电 源<br />
operatiingcurrent<br />
输 出 触 头 容 量<br />
outputcontace capacity<br />
工 作 温 度<br />
operating temperature<br />
FWB1 temperature alarm module adopts online<br />
temperature detection that the FRG heat sensor directly<br />
mounted on the connection position.It can detect at<br />
most six points connection position(the input terminals<br />
onthe back ofthe temperature alarm module, which the<br />
heat sensot is connected to,are 1T、 2T、 3T、 4T、<br />
5T、 6T respectively).When detecting the temperature<br />
of the connection points is higher than action<br />
temperature, the temperature alarm module’ s<br />
directive lights are on and alarming,at that time,the<br />
inbuilt relay’s 2nd output contact will make(the 2nd<br />
output terminals are 13、 14, 23、 24<br />
respectively);when detecting the connection<br />
temperature dropping to resetting temperature, the<br />
temperature alarm module’ sdirective lights are off<br />
and the 2nd output contact will break.The connection<br />
wire between the temperature alarm module and the<br />
heat sensor isof 1.5m length.<br />
0~150℃<br />
100/110/120/130℃<br />
To-5℃<br />
±5℃<br />
AC3500V/1min<br />
最 多 6 路 6pointsatmost<br />
AC230V, 范 围 range195~253V<br />
3A/AC250V,3A/DC24V<br />
-20℃~+70℃<br />
FWB1 温 度 报 警 模 块 +FRG 热 传 感 器 FWB1 temperaturealarm module+FRGheatsensor<br />
48<br />
22 70<br />
FWB1 温 度 报 警 模 块<br />
Temperature alarmmodule<br />
36
FWB1 温 度 报 警 模 块<br />
TEMPERATURE ALARM MODULE<br />
d<br />
1<br />
30<br />
L<br />
FRG 热 传 感 器<br />
Hest sensor<br />
热 传 感 器 型 号<br />
heatsensortype<br />
B(mm)<br />
L(mm)<br />
d(mm)<br />
FRG-7<br />
12<br />
40<br />
φ7<br />
FRG-9<br />
14<br />
41<br />
φ9<br />
FRG-11<br />
16<br />
42<br />
φ11<br />
FRG-13<br />
18<br />
44<br />
φ13<br />
FRG-17<br />
22<br />
47<br />
φ17<br />
注 意 事 项<br />
MATTERS NEEDINGATTENTION<br />
断 路 器 各 种 特 性 由 制 造 厂 整 定 , 用 户 在 使 用<br />
中 不 可 随 意 调 整 ;<br />
断 路 器 的 额 定 剩 余 动 作 电 流 、 剩 余 电 流 动 作<br />
时 间 ( 非 延 时 和 延 时 ), 用 户 可 根 据 实 际 需 要 进<br />
行 调 整 ( 专 业 人 员 进 行 );<br />
在 主 电 路 通 电 状 态 下 , 对 额 定 剩 余 动 作 时 间<br />
为 非 延 时 的 断 路 器 , 手 按 模 拟 剩 余 电 流 动 作 试 验<br />
按 钮 应 立 即 脱 扣 。 对 延 时 的 断 路 器 , 手 按 试 验 按<br />
钮 且 保 持 所 调 的 延 时 时 间 值 , 断 路 器 才 脱 扣 ;<br />
断 路 器 漏 电 脱 扣 后 , 面 板 上 漏 电 指 示 按 钮 向<br />
外 凸 出 ;<br />
带 漏 电 报 警 单 元 模 块 的 断 路 器 , 当 发 生 漏 电<br />
报 警 后 , 必 须 对 模 块 上 的 复 位 按 钮 进 行 复 位 , 断<br />
路 器 漏 电 保 护 模 块 才 能 正 常 工 作 。<br />
Allthe performance of thebreakerhave been setby<br />
the company,and it could not be adjusted arbitrarily in<br />
use.<br />
The rated residual operating current and residual<br />
current operatingtime (undelay and delay) of thebreakers<br />
can be adjusted by the users according to actual<br />
needs(operated byprofessionals).<br />
As the main ciruit is energized,For the rated<br />
residual operating time of undelayed of the breaker,Press<br />
the button of simulating residual current working test<br />
should release immediately.For the delayed breaker,only<br />
while,press the test button and remain the adjusted delay<br />
timevalue,the breaker could release.<br />
After the breaker released due to creepage,the<br />
creepage indicating button on the panel should be outprotrude.<br />
The breaker with creepage alarmunit module must<br />
reset the return button when creepage alarmed,and the<br />
creepage protection module of the breaker can work as<br />
normal.<br />
37
订 货 须 知<br />
ORDERINGNOTICE<br />
( 一 ) 用 户 务 必 确 认 对 本 产 品 技 术 资 料 已 有 详 细 了<br />
解 , 并 应 根 据 断 路 器 将 来 使 用 的 场 合 , 按 “ 订 货 规 范 ” 表<br />
订 货 。<br />
( 二 ) 如 用 户 订 货 时 对 剩 余 电 流 保 护 参 数 不 作 要<br />
求 , 本 公 司 按 “ 剩 余 电 流 保 护 出 厂 整 定 值 ” 表 配 置 。<br />
( 三 ) 三 相 四 线 400V/230V 或 单 相 与 三 相 共 用 的 线<br />
路 , 应 选 用 四 极 断 路 器 。<br />
( 四 ) 建 筑 物 内 实 施 等 电 位 联 结 的 TN-C-S 和 TN-<br />
S 系 统 , 且 不 在 电 源 转 换 处 的 CM1 L四 极 断 路 器 , 中 性 极 形<br />
式 推 荐 采 用 A 型 或 D 型 。<br />
订 货 规 范<br />
用 户 单 位<br />
Name<br />
规<br />
连<br />
Wiring<br />
相 对 应 剩 余 电 流<br />
脱 扣 器 型 式 的 额<br />
定 剩 余 动 作 电 流<br />
IΔn<br />
Thecorrespondingrated<br />
residualoperating current IΔn<br />
of the residualcurrent<br />
release pattern<br />
附<br />
件<br />
格<br />
Specification<br />
接<br />
剩 余 电 流 动 作 时 间<br />
Ratedresidualcurrent<br />
operating time<br />
Accessories<br />
备<br />
Note<br />
注<br />
配 电 型<br />
Power distribution<br />
电 动 机 保 护 型<br />
Motorprotection<br />
U 型 ( 非 延 时 )<br />
Type U(non-time-delay)<br />
V 型 ( 非 延 时 、<br />
延 时 可 调 )<br />
( 标 准 型 )<br />
Type V(non-time-delay,<br />
time-delayadjustable)<br />
(typicaltype)<br />
W 型 ( 非 延 时 、<br />
延 时 可 调 )<br />
TypeW(non-time-delay,<br />
time-delayadjustable)<br />
分 励 脱 扣 器<br />
Shuntrelease<br />
欠 电 压 脱 扣 器<br />
Under-voltage release<br />
漏 电 报 警 单 元 模 块<br />
Leakage alarm unitmodule<br />
电 动 操 作 机 构<br />
Motor operator<br />
手 动 操 作 机 构<br />
Rotary handle operator<br />
( 请 在 内 填 上 数 值 , □ 内 打 √)<br />
Ordering from Pleasefillfigures in ,mark √ in □<br />
订 货 总 数<br />
Order Amount<br />
Users should make sure of their detailed acquaintance of the<br />
products’ technological materials and make order by the ordering notice in<br />
termsoffutureapplicablesituations ofthecircuitbreakers.<br />
The company would configure by “ Factory’ ssetting values of<br />
residual current protection” if users had no requirements of protection<br />
parametersofresidualcurrent whenmakingorder.<br />
Four poles breakers for the share wire of three-phase four-wire<br />
400V/230V or singe phase and three-phase.<br />
The neutral pole type of CM1L<br />
four-pole circuit breaker which used<br />
in equal potential TN-C-S and TN-S system and not installed power supply<br />
changeoverplaceis recommendedtoadopttypeAor type D.<br />
订 货 日 期<br />
Date<br />
板 前 接 线 □ 板 后 接 线 □ 插 入 式 板 前 接 线 □ 插 入 式 板 后 接 线 □ 抽 出 式 板 前 接 线 □ 抽 出 式 板 后 接 线 □<br />
Frontconnected Rear connected Plug-infrontconnected Plug-inrearconnected Draw-out frontconnected Draw-outrear connected<br />
VA 型 ( 非 延 时 、<br />
延 时 可 调 )<br />
Type VA(non-time-delay,<br />
time-delay adjustable)<br />
非 延 时<br />
Non-time-delay<br />
延 时<br />
Time-delay<br />
连 接 排 □<br />
CM1L - / , In= A,<br />
10In (10A≤In≤630A)<br />
5In □(140A≤In≤630A)<br />
CM1L - /<br />
, In= A, 12In(10A≤In≤630A)<br />
0.03A □ 0.1A □ 0.3A □ 0.5A □ ( 对 CM1-100、CM1 L<br />
L-225)<br />
0.1A □ 0.3A □ 0.5A □ ( 对 CM1L-100、CM1L-225、CM1-400)<br />
L<br />
0.3A □ 0.5A □ 1A □ ( 对 CM1L-630)<br />
0.3A □ 1A □ 3A □ 10A □ ( 对 CM1L-100、CM1L-225)<br />
1A □ 3A □ 10A □ 30A □ ( 对 CM1L-400、CM1L-630)<br />
0.1A □ 0.3A □ 0.5A □ ( 对 CM1L-100、CM1L-225、CM1L-400)<br />
0.3A □ 0.5A □ 1A □ ( 对 CM1L-630)<br />
□<br />
2IΔn 时 极 限 不 驱 动 时 间 Δt<br />
Connecting bar<br />
Maximum breaktime of<br />
5IΔn 时 最 大 断 开 时 间<br />
Maximum breaktime of5I Δn<br />
相 对 应 IΔn 时 最 大 断 开 时 间<br />
Maximum breaktime correspondswithIΔn<br />
相 对 应 2IΔn 时 最 大 断 开 时 间<br />
Maximum breaktime correspondswith 2IΔn<br />
AC400V□ AC230V□ DC220V□<br />
C 型 AC230V□ AC400V□<br />
AC230V□<br />
AC230V□ AC110V□ DC220V□ DC110V□ DC24V□<br />
CZL-F□<br />
Δ<br />
t<br />
AC400V□<br />
CZL-A □<br />
0.1s□<br />
0.25s<br />
DC24V□<br />
FWB1 温 度 报 警 模 块 □ 和<br />
热 传 感 器 型 号 Type FRG-7 FRG-9 FRG-13 FRG-11FRG-17<br />
Temperaturealarm module 数 量 Number<br />
V 型 剩 余 电 流 脱 扣 器 为 标 准 型 , 订 货 时 不 必 注 明 。<br />
Type Vresidualrelease isstandardtype,it'sunnecessary to note while ordering.<br />
0.5s<br />
0.35s<br />
0.5s□<br />
0.9s<br />
1.15s<br />
1s<br />
1s□<br />
1.9s<br />
2.15s<br />
零 飞 弧 罩 □ ( 仅 CM1L-100、 225、 400具 有 )<br />
Zerdarcventing cover (only forCM1L-100、225、400)<br />
2s<br />
38
订 货 须 知<br />
ORDERINGNOTICE<br />
剩 余 电 流 保 护 出 厂 整 定 值<br />
Factory'ssettingvaluesofresidualcurrentprotection<br />
型<br />
Type<br />
号<br />
CM1L-100<br />
CM1L-225<br />
CM1L-400<br />
CM1L-630<br />
相 对 应 剩 余 电 流<br />
脱 扣 器 型 式 的 额<br />
定 剩 余 动 作 电 流<br />
IΔn<br />
Thecorrespondingrated<br />
residualoperatingcurrent<br />
ofthe residual current<br />
release pattern<br />
U 型<br />
TypeU<br />
V 型<br />
TypeV<br />
0.03A<br />
0.03A<br />
0.1A 0.1A 0.1A<br />
0.3A<br />
W 型<br />
Type W<br />
0.3A 0.3A<br />
1A 1A<br />
VA 型<br />
Type VA<br />
0.1A 0.1A<br />
0.1A 0.3A<br />
额 定 剩 余 动 作 时 间<br />
Rated residualopeating time<br />
非 延 时<br />
Non-time-delay<br />
延 时 ,5IΔn 时 最 大 断 开 时 间 0.25s<br />
time-delay,maximum break<br />
timeof5IΔn<br />
is0.25s<br />
39
全 国 一 级 经 销 商 明 细 表<br />
北 京<br />
北 京 欣 凯 通 机 电 有 限 公 司 010-66162644<br />
北 京 市 北 方 森 源 电 气 有 限 责 任 公 司 010-87581702<br />
天 津<br />
天 津 市 强 强 电 器 科 技 有 限 公 司 022-83715527<br />
上 海<br />
上 海 企 开 电 器 设 备 有 限 公 司 021-56319844<br />
上 海 森 昊 电 器 有 限 公 司 021-54791857<br />
上 海 泰 耀 机 电 设 备 有 限 公 司 021-57428230<br />
上 海 华 启 电 气 设 备 有 限 公 司 021-56319844<br />
上 海 斐 格 电 气 有 限 公 司 021-24205696<br />
福 建<br />
泉 州 市 恒 源 电 力 设 备 有 限 公 司 0595-22587087<br />
厦 门 亿 合 电 器 有 限 公 司 0592-5223466<br />
浙 江<br />
杭 州 华 森 电 器 有 限 公 司 0571-86969090<br />
杭 州 天 源 机 电 设 备 有 限 公 司 0571-87244850<br />
乐 清 市 新 格 电 气 有 限 公 司 0577-62727313<br />
宁 波 市 江 东 腾 辉 电 器 有 限 公 司 0574-87890910<br />
安 徽<br />
合 肥 恒 祥 电 气 设 备 安 装 有 限 公 司 0551-6393319<br />
江 苏<br />
南 京 扬 力 电 器 有 限 公 司 025-84585297<br />
南 京 苏 能 动 力 工 程 设 计 有 限 公 司 025-85283021<br />
常 州 市 中 环 电 器 有 限 公 司 0519-88867161<br />
镇 江 兆 丰 电 器 有 限 公 司 0511-88320888<br />
苏 州 市 机 电 设 备 有 限 责 任 公 司 0512-67202006<br />
苏 州 苏 新 机 电 设 备 有 限 公 司 0512-67571866<br />
苏 州 市 中 信 机 电 设 备 有 限 公 司 0512-65236366<br />
苏 州 明 大 机 电 有 限 公 司 0512-65833162<br />
无 锡 市 法 德 兰 电 器 成 套 公 司 0510-82736734<br />
盐 城 市 科 宇 电 气 有 限 公 司 0515-89800508<br />
连 云 港 市 希 门 自 动 化 电 器 设 备 有 限 公 司 0518-85013959<br />
徐 州 泛 得 电 子 有 限 公 司 0516-83861527<br />
南 通 正 源 电 气 有 限 公 司 0513-85030391<br />
扬 州 通 润 电 气 设 备 有 限 公 司 0514-87895515<br />
常 熟 市 中 通 电 力 设 备 有 限 责 任 公 司 0512-52853511<br />
常 熟 市 润 源 电 气 设 备 销 售 有 限 公 司 0512-52110269<br />
常 熟 市 创 达 电 气 物 资 有 限 责 任 公 司 0512-52728292<br />
海 安 县 巨 龙 工 贸 有 限 公 司 13328080061<br />
山 东<br />
莱 芜 汇 鑫 实 业 有 限 公 司 13863410777<br />
山 东 亘 源 电 力 工 程 有 限 公 司 0531-86018833<br />
淄 博 新 能 机 电 设 备 有 限 公 司 0533-2186118<br />
济 南 中 机 电 亿 万 电 器 有 限 公 司 0531-85906760<br />
烟 台 信 谊 电 气 技 术 有 限 公 司 0535-6105866<br />
江 苏 华 晟 电 器 设 备 有 限 公 司 山 东 电 气 技 术 中 心 0531-88950385<br />
江 西<br />
江 西 佳 创 实 业 有 限 公 司 0791-8317951<br />
吉 林<br />
长 春 市 金 蟾 经 贸 有 限 公 司 0431-84788961<br />
广 东<br />
广 州 市 友 朋 电 气 设 备 有 限 公 司 020-34527080<br />
佛 山 市 君 鹏 机 电 设 备 有 限 公 司 0757-83811990<br />
佛 山 市 嘉 合 贸 易 有 限 公 司 0757-83397660<br />
东 莞 市 运 通 泰 电 气 科 技 有 限 公 司 0769-22028877<br />
深 圳 市 华 冠 电 器 销 售 有 限 公 司 0755-83928099<br />
众 业 达 电 气 股 份 有 限 公 司 ( 含 子 公 司 ) 0754-88739922<br />
汕 头 市 新 兴 工 业 配 套 材 料 有 限 公 司 0754-88681888<br />
湖 南<br />
长 沙 常 开 电 气 有 限 公 司 0731-84699925<br />
长 沙 市 康 发 电 器 有 限 公 司 0731-84422858<br />
湖 北<br />
武 汉 万 千 新 能 电 气 有 限 公 司 027-87312243<br />
武 汉 圣 天 科 技 有 限 公 司 027-82706552<br />
广 西<br />
南 宁 市 德 控 机 电 设 备 有 限 责 任 公 司 0771-3212829<br />
河 北<br />
河 北 华 尔 电 气 有 限 公 司 0311-87227761<br />
河 南<br />
河 南 中 电 电 器 有 限 公 司 0371-66965984<br />
河 南 航 天 机 电 数 字 有 限 公 司 0371-63329016<br />
四 川<br />
成 都 慧 永 电 器 成 套 设 备 有 限 公 司 028-68003527<br />
陕 西<br />
陕 西 新 力 源 电 气 有 限 公 司 029-88348089<br />
西 安 西 菱 电 器 机 械 设 备 有 限 公 司 029-88320213<br />
云 南<br />
昆 明 惠 尔 电 气 有 限 公 司 0871-3835808<br />
宁 夏<br />
银 川 同 正 电 气 有 限 公 司 0951-6014483<br />
甘 肃<br />
天 水 上 联 电 器 成 套 有 限 公 司 0938-8381068<br />
山 西<br />
山 西 万 里 顺 贸 易 有 限 公 司 0351-6521630<br />
山 西 常 顺 电 器 销 售 服 务 有 限 公 司 0351-7023860<br />
新 疆<br />
新 疆 德 控 电 气 有 限 公 司 0991-5588266<br />
辽 宁<br />
沈 阳 市 新 业 物 资 实 业 公 司 024-22734762<br />
鞍 山 市 耐 特 机 电 系 统 工 程 有 限 公 司 0412-5230221<br />
黑 龙 江<br />
哈 尔 滨 北 低 成 套 设 备 有 限 公 司 0451-88387734<br />
内 蒙 古<br />
包 头 市 杰 德 自 动 化 工 程 有 限 公 司 0472-6973800<br />
内 蒙 古 宇 欣 机 电 科 技 有 限 公 司 0471-6512281<br />
海 南<br />
海 南 华 胜 电 气 设 备 有 限 公 司 0898-66226803
常 熟 开 关<br />
持 续 超 越<br />
国 家 创 新 型 试 点 企 业<br />
国 家 重 点 高 新 技 术 企 业<br />
全 国 企 事 业 知 识 产 权 示 范 单 位<br />
全 国 守 合 同 重 信 用 企 业<br />
国 家 科 学 技 术 进 步 二 等 奖 获 得 者<br />
2011.12<br />
常 熟 开 关 制 造 有 限 公 司 ( 原 常 熟 开 关 厂 )<br />
CHANGSHU SWITCHGEARMFG.CO.,LTD. ( FORMERCHANGSHUSWITCHGEARPLANT)<br />
ADDRESS:NO.8JIANYEROADCHANGSHU,JIANGSU,P.R.CHINA<br />
URL:HTTP://WWW.RIYUE.COM.CN<br />
E-MAIL:cskg0001@cs-kg.com<br />
POSTCODE:215500<br />
因 产 品 技 术 需 不 断 改 进 , 所 有 数 据 应 以 本 公 司 技 术 部 门 最 新 确 认 为 准 。<br />
本 产 品 样 本 的 版 权 和 解 释 权 属 常 熟 开 关 制 造 有 限 公 司 ( 原 常 熟 开 关 厂 )。<br />
All technical dataof productsshould be subject to final confirmation of our technical department.<br />
Publishing of thisproduct catalogue and explaination of all details will be reserved by Changshu Switchgear<br />
Mfg. Co., Ltd. ( former Changshu SwitchgearPlant)<br />
.
