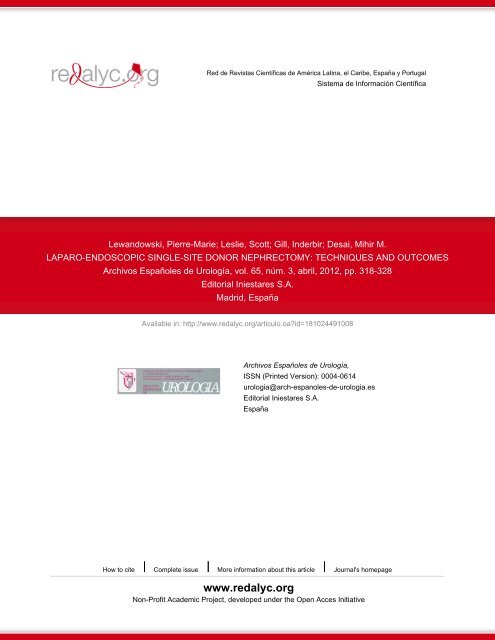

Red de Revistas Científicas de América Latina, el Caribe, España y Portugal<br />
Sistema de Información Científica<br />
Lewandowski, Pierre-Marie; Leslie, Scott; Gill, Inderbir; Desai, Mihir M.<br />
LAPARO-ENDOSCOPIC SINGLE-SITE DONOR NEPHRECTOMY: <strong>TECHNIQUES</strong> <strong>AND</strong> <strong>OUTCOMES</strong><br />
Archivos Españoles de Urología, vol. 65, núm. 3, abril, 2012, pp. 318-328<br />
Editorial Iniestares S.A.<br />
Madrid, España<br />
Available in: http://www.redalyc.org/articulo.oa?id=181024491008<br />
Archivos Españoles de Urología,<br />
ISSN (Printed Version): 0004-0614<br />
urologia@arch-espanoles-de-urologia.es<br />
Editorial Iniestares S.A.<br />
España<br />
How to cite Complete issue More information about this article Journal's homepage<br />
www.redalyc.org<br />
Non-Profit Academic Project, developed under the Open Acces Initiative
MONOGRAPHIC ISSUE ON LESS & NOTES IN UROLOGY<br />
Arch. Esp. Urol. 2012; 65 (3): 318-328<br />
LAPARO-ENDOSCOPIC SINGLE-SITE DONOR NEPHRECTOMY: <strong>TECHNIQUES</strong><br />
<strong>AND</strong> <strong>OUTCOMES</strong><br />
Pierre-Marie Lewandowski, Scott Leslie, Inderbir Gill, and Mihir M. Desai.<br />
Section of Laparoscopic and Robotic Surgery. USC Institute of Urology. University of Southern California. USA.<br />
Summary.- OBJECTIVES: Living donor nephrectomy<br />
is a unique surgical procedure in urological practice<br />
and must optimize the trifecta of: patient safety, minimal<br />
morbidity and successful graft function. The laparoscopic<br />
technique has become the gold standard over the last<br />
decade for harvesting the kidney from a living donor.<br />
Laparo-endoscopic single-site (LESS) surgery is an<br />
attempt to further enhance cosmetic benefits and reduce<br />
the morbidity for potential kidney donors. We have<br />
summarized and reviewed the literature of LESS-DN and<br />
described the techniques and outcomes.<br />
METHODS: Using the National Library of Medicine<br />
database, the English language literature was reviewed<br />
from 2006 to 2011. Keyword searches included LESS,<br />
Donor, Nephrectomy, Living, Single-site, e-NOTES,<br />
Mini-invasive, Laparoscopic, Single-port. Within the<br />
bibliography of selected references, additional sources<br />
were retrieved.<br />
RESULTS: After Gill’s description of the first four patients<br />
to undergo LESS-DN, we found five series published<br />
describing the surgical techniques of LESS-DN as well<br />
as the outcomes. We have outlined in detail the various<br />
techniques of the trans-umbilical LESS-DN and compared<br />
the outcomes with conventional LDN. We also briefly<br />
discuss new innovative techniques of LESS-DN.<br />
CONCLUSIONS: LESS-DN is a safe albeit technically<br />
challenging alternative to LDN. LESS-DN appears<br />
to have comparable results to LDN in terms of graft<br />
function, patient morbidity, and cosmesis. Further long<br />
term results and the development in parallel with other<br />
LESS procedures is required before LESS-DN is to be<br />
considered a standard of care.<br />
Keywords: LESS. Donor. Living. Nephrectomy.<br />
@<br />
CORRESPONDENCE<br />
Mihir Desai, MD<br />
USC Institute of Urology<br />
1441 Eastlake Ave<br />
NOR7416<br />
Los Angeles, CA 90033 (USA)<br />
mihir.desai@usc.edu<br />
Resumen.- OBJETIVO: La nefrectomía del donante<br />
vivo (NDV) es una operación quirúrgica única en la<br />
práctica urológica y debe optimizarse la triada perfecta<br />
de: seguridad del paciente, morbilidad mínima y función<br />
del injerto con éxito. La técnica laparoscópica se<br />
ha convertido durante la última década en el patrón oro<br />
para obtener el riñón de un donante vivo. La cirugía<br />
laparoscópica por puerto único (LESS) es un intento de<br />
mejorar más aún los resultados cosméticos y de reducir<br />
la morbilidad para los potenciales donantes de riñón.<br />
Hemos revisado y resumido la literatura en lengua inglesa<br />
sobre NDV LESS desde 2006 a 2011. La búsqueda<br />
de palabras clave incluía LESS, nefrectomía del<br />
donante, vivo, puerto único, e-NOTES, mínimamente
LAPARO-ENDOSCOPIC SINGLE-SITE DONOR NEPHRECTOMY: <strong>TECHNIQUES</strong> <strong>AND</strong> <strong>OUTCOMES</strong><br />
319<br />
invasiva, laparoscópica, sitio único. Dentro de la bibliografía<br />
de las referencias seleccionadas se consiguieron<br />
fuentes adicionales.<br />
RESULTADOS: Tras la descripción de los primeros cuatro<br />
pacientes sometidos a NDV LESS por Gill, encontramos<br />
cinco series publicadas describiendo las técnicas quirúrgicas<br />
de NDV LESS así cómo los resultados. Hemos<br />
resumido en detalle las diferentes técnicas de NDV LESS<br />
transumbilical y comparado los resultados con la NDV<br />
laparoscópica convencional. También discutimos brevemente<br />
nuevas técnicas innovadoras de NDV LESS.<br />
CONCLUSIONES: La NDV LESS es una alternativa segura<br />
a la NDV laparoscópica aunque técnicamente desafiante.<br />
La NDV LESS parece tener resultados comparables<br />
con la NDV laparoscópica en términos de función<br />
del injerto, morbilidad del paciente y cosmética. Son<br />
necesarios resultados más a largo plazo y el desarrollo<br />
en paralelo con otros procedimientos LESS antes de que<br />
la NDV LESS se considere un procedimiento estándar.<br />
Palabras clave: LESS. Donante vivo. Nefrectomía.<br />
INTRODUCTION<br />
Surgery is in constant progress, and over<br />
the last two decades we have witnessed an everincreasing<br />
adoption of minimally invasive techniques.<br />
This has been particularly true in the field of urology<br />
where laparoscopic procedures have all but replaced<br />
open techniques for many urological operations.<br />
The benefits of minimally invasive surgery; less postoperative<br />
pain, improved cosmesis, shorter hospital<br />
stay, faster return to normal activities, are the reasons<br />
that these techniques have gained widespread<br />
popularity. Laparo-endoscopic single-site (LESS)<br />
surgery is perhaps the next step in the evolution of<br />
minimally invasive techniques, with the potential for<br />
further reduction in morbidity and improvement in<br />
cosmesis compared to conventional laparoscopic<br />
surgery. In this article we discuss the role of LESS<br />
surgery for living donor nephrectomy. We compare<br />
the various techniques described in the literature and<br />
review the outcomes that have been published by<br />
academic centers utilizing this new technology.<br />
The first laparoscopic living donor<br />
nephrectomy (LDN) was performed in 1995 (1). It<br />
has since replaced open donor nephrectomy (ODN)<br />
as the technique of choice for living renal allograft<br />
retrieval in most major transplant centers. Indeed,<br />
many studies have demonstrated not only the expected<br />
benefits of minimally invasive technique (less pain,<br />
shorter hospital stay, rapid convalescence) but also<br />
equivalent outcomes in terms of graft function when<br />
compared to ODN (2-4).<br />
LESS donor nephrectomy (LESS-DN) was<br />
first described by Gill in 2008 (5) and is for many<br />
the next step in donor surgery after conventional<br />
laparoscopy. End stage renal failure patients whom<br />
are dialysis dependent face ever-increasing waiting<br />
times before they receive a kidney due to the small<br />
number of donors available. If LESS-DN can provide<br />
benefits over LDN in terms of minimizing morbidity<br />
to donors, then this may encourage expansion of the<br />
living donor pool.<br />
METHODS<br />
We performed a literature search between<br />
2006 and 2011, using the PubMed Database and the<br />
keywords: LESS, Donor, Nephrectomy, Living, Singlesite,<br />
e-NOTES, Mini-invasive, Laparoscopic, Singleport.<br />
After Gill’s description of the first four patients to<br />
undergo LESS-DN (5), five series have been published<br />
describing the surgical techniques of LESS-DN as well<br />
as the outcomes (6-10).<br />
• Canes & Gill (6) from the Cleveland clinic,<br />
described 17 consecutive patients undergoing LESS-<br />
DN, comparing them to a contemporary matched-pair<br />
cohort of 17 patients undergoing standard LDN.<br />
• Ganpule & Desai et al (7) from Muljibhai Patel<br />
Urological Institute reported their experience with the<br />
first 13 patients undergoing LESS-DN.<br />
• Gimenez & Del Pizzo (8) from Cornell Medical<br />
College presented their initial experience in 40<br />
patients undergoing LESS-DN.<br />
• Kurien & Desai (9) from Muljibhai Patel Urological<br />
Institute reported the first randomized trial comparing<br />
LESS-DN and LDN.<br />
• Lunsford & Vikraman (10) from Duke University<br />
medical center compared 10 patients undergoing<br />
LESS-DN with a matched-pair cohort undergoing<br />
standard LDN.<br />
LESS Donor nephrectomy: Surgical<br />
technique<br />
Donor selection<br />
In all institutions a multi-disciplinary team<br />
screens potential donors to ensure they meet
320<br />
P. M. Lewandowski, S. Leslie, I. S. Gill, and M. M. Desai.<br />
criteria suitable for donation. Donors are generally<br />
young, healthy patients with favorable anatomy for<br />
surgery. Pre-operative imaging includes a computed<br />
tomography scan with vascular reconstructions to<br />
identify renal vessel anomalies, as well as delayed<br />
images to demonstrate the collecting system. The preoperative<br />
workup for LESS-DN is the same as for LDN,<br />
however it is paramount to identify any anatomical<br />
variations (such as two or more renal arteries) as<br />
this may make the challenging dissection already<br />
associated with LESS-DN even more difficult. In the<br />
randomized trial by Kurien (9), patients with multiple<br />
renal arteries, or venous anomalies were excluded<br />
from the study.<br />
Anesthesia and Patient Positioning<br />
As with standard LDN patients receive a<br />
general anesthetic, an indwelling catheter is placed,<br />
and calf compressors are utilized throughout the<br />
procedure and in the early post-operative period.<br />
Positioning of the patient is typically in a modified<br />
45-degree flank position with the operating table<br />
flexed and pressure areas addressed. The patient’s<br />
hydration status is well maintained throughout the<br />
case with generous amounts of intravenous fluids.<br />
Pneumoperitoneum is achieved either with the use<br />
of a 2 mm Veress needle, or using an open Hassan<br />
technique.<br />
Single Site Ports<br />
In the published literature, there are two<br />
types of ports described for use in LESS-DN: R-Port<br />
(Advanced surgical concepts, Dublin, Ireland);<br />
GelPoint (Applied Medical, Rancho Santa Margarita,<br />
California, USA) .<br />
• R-Port: There are two types of R-ports used<br />
for LESS-DN in the literature. Gill (5,6) describes the<br />
use of the Triport (Figure 1) which is a unique single<br />
access port with three inlet channels (1 of 12 mm<br />
and 2 of 5 mm). A 2 cm completely intra-umbilical<br />
vertical skin incision is made followed by a 2 to 3<br />
cm midline fasciotomy to enter the peritoneal cavity.<br />
The port is then inserted and secured in position<br />
by 2 plastic rings (1 within the peritoneum and the<br />
other remaining outside the skin), both connected<br />
by a sliding plastic sleeve. Pulling up on the sleeve<br />
removes its slack, thereby tightly approximating the<br />
2 rings against each other and creating an airtight<br />
seal for pneumoperitoneum. The fasciotomy between<br />
the 2 rings is effectively tented open by the taut waist<br />
of the intervening plastic sleeve. Various standard 5,<br />
10 and 12 mm laparoscopic instruments, as well as<br />
novel curved instruments, can be inserted through this<br />
port.<br />
The Quadport (Figure 2) differs from the<br />
Triport with respect to a wider inner plastic ring (3 vs.<br />
1.5 inches). With an extra inlet channel, thus allowing<br />
the simultaneous use of two 12 mm laparoscopic<br />
instruments if required it became the preferred port<br />
for Gill and Desai for LESS DN on its availability in<br />
the United States (7,9). The technique of inserting the<br />
Quadport is similar to that described for the Triport<br />
above.<br />
• GelPoint: This was the port of choice for Del<br />
Pizzo (8) and Vikraman (10) in their published LESS-<br />
DN series. A 5 cm vertical periumbilical incision is<br />
FIGURE 1. Triport.<br />
FIGURE 2. Quadport.
LAPARO-ENDOSCOPIC SINGLE-SITE DONOR NEPHRECTOMY: <strong>TECHNIQUES</strong> <strong>AND</strong> <strong>OUTCOMES</strong><br />
321<br />
made in the skin (therefore a longer incision than with<br />
the R-port). This is followed by a midline fasciotomy<br />
to enter the abdomen. The GelPoint (Figure 3), with<br />
three trocars already in place, is then inserted into<br />
the abdomen and pneumoperitoneum established.<br />
Initially, two 5 mm and one 15 mm trocar is used in<br />
the GelPoint with the laparoscope introduced through<br />
the 15 mm trocar. However, towards the end of the<br />
dissection, a 12 mm trocar can replace one of the<br />
5 mm trocars to allow for the introduction of larger<br />
devices such as the EndoGIA® vascular stapler or<br />
Hem-o-lock® clip applier.<br />
Laparoscope<br />
Both the teams of Gill and Desai used a<br />
5mm 30° digital laparoscope (EndoEYE, Olympus<br />
Orangeburg, New York) which was introduced<br />
through one of the 5mm channels of the R-port. In a<br />
small number of cases a 5mm Deflectable-Tip EndoEYE<br />
laparoscope was used (Figure 4).<br />
The team of Gimenez preferred a bariatric<br />
10mm laparoscope via the GelPoint. In addition to<br />
its extra length a right angle attachment was used for<br />
the light cord, both of which minimized clashing with<br />
the graspers.<br />
Instruments<br />
In most cases standard rigid laparoscopic<br />
instruments were used for the LESS-DN. However, on<br />
occasion articulating (Figure 5) or curved instruments<br />
specifically designed for LESS surgery were used. The<br />
design of these graspers is aimed at reducing the<br />
clashing between instruments and to allow a greater<br />
freedom of movement. However, given the unfamiliar<br />
ergonomics of the graspers, they were not routinely<br />
utilized by all the surgical teams.<br />
Mobilization of the Kidney and Hilar Dissection<br />
Once the single-site port access has been<br />
inserted and pneumoperitoneum achieved, the LESS-<br />
DN surgical technique duplicates conventional LDN.<br />
In the case of a left sided donor nephrectomy (which<br />
is by far the most common side given the extra length<br />
of renal vein that can be harvested), the descending<br />
colon, spleen, and tail of the pancreas are mobilized<br />
generously, such that they retract medially without the<br />
need for constant retraction. At the level of the lower<br />
pole of the kidney, the ureter and gonadal vein packet<br />
are elevated off the psoas muscle. The gonadal vein<br />
is maintained intact and traced cephalad to the renal<br />
vein.<br />
The renal vein is skeletonized, the adrenal<br />
vein is divided between titanium clips, and the<br />
adrenal gland is released from the upper pole. Akin to<br />
standard LDN, the renal vein is dissected completely<br />
up to the interaortocaval region, and the renal artery<br />
is dissected to its aortic origin, taking care not to<br />
induce arterial spasm.<br />
Kidney Extraction<br />
Once the kidney has been completely<br />
mobilized, the ureter divided at the pelvic brim and<br />
the renal artery and vein adequately skeletonized, the<br />
kidney is ready for extraction. In the case of standard<br />
LDN a separate Pfannenstiel incision is made through<br />
which the kidney is removed after division of the<br />
vessels. However, in the case of LESS-DN, kidney<br />
FIGURE 3. GelPoint.<br />
FIGURE 4. Deflectable-Tip EndoEYE Laparoscope.
322<br />
P. M. Lewandowski, S. Leslie, I. S. Gill, and M. M. Desai.<br />
fasciotomy is partially closed, the R-port reinserted and<br />
pneumoperitoneum re-established. Once hemostasis<br />
has been confirmed, the R-port is removed and the<br />
fascia and skin closed. Since the Quadport has a 15<br />
mm inlet, the Endocatch bag can be inserted after<br />
hilar dissection.<br />
FIGURE 5. Articulating instruments.<br />
extraction is technically more challenging given that<br />
the umbilical opening, through which the kidney will<br />
be removed, is occupied by the single port access<br />
device.<br />
We outline three techniques by which kidney<br />
extraction is achieved in LESS-DN:<br />
Gill5 describes the use of a 15 mm<br />
EndoCatch® bag to assist with kidney extraction. Prior<br />
to dividing the renal vessels, the EndoCatch® bag is<br />
detached from its metal ring and inserted through the<br />
12 mm inlet of the R-port. The kidney is subsequently<br />
entrapped, with the mouth of the bag loosely tightened<br />
around the renal hilum, taking care not to compromise<br />
perfusion. The renal artery is then clipped with two<br />
Hem-O-Lock® clips and one 11 mm metal clip and<br />
divided. A 12 mm vascular EndoGIA® stapler is used<br />
to divide the renal vein at the interaortocaval location.<br />
The R-port is then removed and the pre-entrapped<br />
kidney is extracted trans-umbilically after adequate<br />
extension of the midline fasciotomy incision and skin<br />
incision to allow for atraumatic graft extraction. Once<br />
the graft has been given to the transplant surgeon, the<br />
Desai (7) describes a technique of graft<br />
extraction without the use of an EndoCatch® bag.<br />
Once the renal artery and vein have been divided<br />
and the graft is ready for retrieval, the graft is brought<br />
near the umbilical extraction site with a grasper<br />
inserted through an extra 3 or 5 mm port. Once the<br />
R-port is removed and the incision extended slightly,<br />
two fingers are inserted to grasp the kidney and then<br />
to gently extract it from the abdomen. The graft is then<br />
handed to the transplant surgeon and the R-port is<br />
reinserted to check for hemostasis.<br />
Del Pizzo (8) describe their technique using<br />
the GelPoint device. The advantage of the GelPoint is<br />
that it has a detachable gel cap to allow extraction of<br />
the graft, without having to remove the whole device.<br />
So once the renal artery and vein are divided, the<br />
graft is entrapped with an EndoCatch® bag and<br />
extracted by removing the gel cap. Once the graft<br />
has been passed to the transplant surgeon, the gel<br />
cap is replaced, pneumoperitoneum re-established<br />
and hemostasis checked.<br />
Outcomes<br />
The surgical steps of LESS-DN in each of the<br />
five studies demonstrate that it is a technically feasible<br />
procedure. However, there are three important aspects<br />
FIGURE 6. Curved Instruments.<br />
FIGURE 7. Postoperative photograph of a LESS donor’s<br />
abdomen at 1 week.
LAPARO-ENDOSCOPIC SINGLE-SITE DONOR NEPHRECTOMY: <strong>TECHNIQUES</strong> <strong>AND</strong> <strong>OUTCOMES</strong><br />
323<br />
TABLE I. DEMOGRAPHIC DATA OF THE FIVE PUBLISHED STUDIES.<br />
Canes (6)<br />
Ganpule (7)<br />
Gimenez (8)<br />
Kurien (9)<br />
Lunsford (10)<br />
Number of Patients<br />
17<br />
13<br />
40<br />
25<br />
10<br />
105<br />
Mean Age<br />
38<br />
46.6<br />
43.7<br />
44.4<br />
47<br />
43.6<br />
Male / Female<br />
5/12<br />
5/8<br />
18/22<br />
7/18<br />
5/5<br />
40/65<br />
Mean BMI (kg/m2)<br />
26<br />
22.2<br />
26.1<br />
22.3<br />
24<br />
24.5<br />
Left Kidney<br />
17<br />
12<br />
39<br />
25<br />
10<br />
103<br />
Anatomic complexity†<br />
5<br />
1<br />
8<br />
-<br />
0<br />
14<br />
† Denotes more than one renal artery<br />
of LESS-DN that should be considered and compared<br />
with conventional LDN:<br />
- Donor Safety: Kidney donors are unique in<br />
that they are undergoing major surgery without having<br />
any pathology. Their actions are completely altruistic<br />
and it is of utmost importance that complications are<br />
avoided and the safety of the donor is placed before<br />
all else.<br />
- Graft Outcome: Standard LDN has<br />
demonstrated equivalent graft function (both longterm<br />
and short-term) when compared to ODN (11).<br />
It is important that LESS-DN does not compromise<br />
graft function and demonstrates comparable results to<br />
standard LDN.<br />
- Morbidity: The proponents of LESS surgery<br />
argue that the primary advantages over standard<br />
laparoscopy are decreased post-operative pain,<br />
improved cosmesis (as there is only a single incision,<br />
commonly hidden within the umbilicus) and a shorter<br />
convalescence. There is some evidence in the literature<br />
suggesting superiority of LESS surgery over standard<br />
laparoscopy in these domains (12,13) and we assess<br />
these outcomes in the LESS-DN series.<br />
The demographic data for the five published<br />
series is outlined in Table I.<br />
Donor Safety. There were no documented<br />
deaths among the donors in any of the five series.<br />
Complications ranged from 0% to 16%. In the<br />
series of Gimenez (8) there was one documented<br />
complication of a wound infection which was treated<br />
with antibiotics. In the randomized trial of Kurien<br />
(9) with 25 patients in each group, there were four<br />
complications in the LESS-DN group (16%) and five<br />
complications in the standard LDN group (20%). The<br />
four complications in the LESS-DN group included two<br />
post-op febrile patients managed conservatively and<br />
two wound infections treated with antibiotics. There<br />
was a corneal abrasion in the study by Canes (6)<br />
that appears unrelated to the LESS-DN procedure<br />
itself. There were no documented complications in<br />
the series of Ganpule (7) or Lunsford (10). This data<br />
TABLE II. INTRAOPERATIVE <strong>OUTCOMES</strong>.<br />
Canes (6)<br />
Ganpule (7)<br />
Gimenez (8)<br />
Kurien (9)<br />
Lunsford (10)<br />
(mean)<br />
Operative Time (min)<br />
269<br />
177<br />
167<br />
172<br />
179<br />
187<br />
Estimated Blood Loss (mL)<br />
108<br />
158<br />
107<br />
84<br />
50<br />
102<br />
Warm Ischemia Time (min)<br />
6.1<br />
6.8<br />
3.96<br />
7.2<br />
-<br />
5.6<br />
Incision Length (cm)<br />
4.1<br />
5.2<br />
5.1<br />
5.2<br />
-<br />
4.95
324<br />
P. M. Lewandowski, S. Leslie, I. S. Gill, and M. M. Desai.<br />
TABLE III. WARM ISCHEMIA TIME <strong>AND</strong> GRAFT <strong>OUTCOMES</strong>.<br />
Canes (6) Kurien (9) Lunsford (10)<br />
LESS-DN<br />
LDN<br />
LESS-DN<br />
LDN<br />
LESS-DN<br />
LDN<br />
WIT (min)<br />
6.1<br />
3.0<br />
7.15<br />
5.11<br />
-<br />
-<br />
1 month<br />
Cr† 1.5<br />
Cr 1.3<br />
eGFR‡ 94.6<br />
eGFR 86.5<br />
Cr 1.4<br />
Cr 1.4<br />
3 months<br />
Cr 1.5<br />
Cr 1.3<br />
eGFR 88.9<br />
eGFR 86.1<br />
12 months<br />
eGFR 81.5<br />
eGFR 80.9<br />
† Creatinine (mg/dL)<br />
‡ estimated Glomerular filtration rate (ml/min)<br />
demonstrates safety for the donor undergoing LESS-<br />
DN with only a small number of complications, and<br />
no complication considered Clavien (14) grade III or<br />
higher.<br />
Graft Outcome. The mean warm ischemia<br />
time (WIT) for each of the five series is outlined in<br />
Table II. WIT is defined as the time from when the renal<br />
artery is clipped to when the kidney is re-perfused by<br />
the transplant surgeon on the back table. The average<br />
WIT for the five series is 5.6 minutes (3.96 – 7.2).<br />
Table III looks at the WIT and graft function in the series<br />
which directly compared LESS-DN to standard LDN.<br />
In the series by Canes6 the WIT for LESS-DN is twice<br />
that of standard LDN (6.1 v. 3.0). The reason for the<br />
increased WIT in the LESS-DN procedure is primarily<br />
due to the time taken to remove the R-port, extend the<br />
fasciotomy and skin incision to allow safe extraction<br />
of the kidney. In the case of standard LDN, where<br />
the kidney is removed via a pfannenstiel incision,<br />
this delay is not encountered. However, despite the<br />
longer WIT, this does not seem to impact on graft<br />
function, with the 1 month and 3 month recipient<br />
creatinine levels not significantly different between the<br />
two groups (1.5 mg/dL v 1.3 mg/dL). In the study by<br />
Lunsford10, although the WIT was not reported, the<br />
recipient creatinine level on discharge was equal in<br />
both the LESS-DN and the standard LDN groups (1.4<br />
mg/dL). In the randomized study by Kurien (9), there<br />
is again a significant difference in WIT between the<br />
LESS-DN and the LDN (7.15 v 5.11). But once again,<br />
this did not translate into inferior graft outcomes in the<br />
recipient. Long term follow up of eGFR in the recipient<br />
did not demonstrate any difference between the LESS-<br />
DN group and the standard LDN group. This data<br />
suggests that a slightly increased WIT does not have<br />
any detrimental impact on graft function either in the<br />
short or long term. It is also important to appreciate<br />
that these studies included the very first LESS-DN<br />
procedures, and it would be expected that with time,<br />
refinement of the technique will allow for shorter WIT<br />
in the future.<br />
Morbidity. The average hospital length of stay<br />
(LOS) in the published series is 2.5 days (Table IV).<br />
In the studies comparing LESS-DN and standard LDN<br />
(Table V), there is minimal difference in LOS between<br />
the two groups.<br />
The mean visual analogue pain score (VAS)<br />
on discharge is 1.9 for the five series, and in the<br />
studies of Canes (6) and Lunsford10, there was no<br />
difference in the VAS pain scores between the LESS-<br />
DN group and the LDN. The randomized study of<br />
TABLE IV. POSTOPERATIVE <strong>OUTCOMES</strong>.<br />
Canes (6)<br />
Ganpule (7)<br />
Gimenez (8)<br />
Kurien (9)<br />
Lunsford (10)<br />
(mean)<br />
Length of Stay (days)<br />
3<br />
-<br />
1.8<br />
3.9<br />
1.3<br />
2.5<br />
Visual Analogue Pain Scale<br />
2.7<br />
2.9<br />
1.4<br />
1.2<br />
2.5<br />
1.9
LAPARO-ENDOSCOPIC SINGLE-SITE DONOR NEPHRECTOMY: <strong>TECHNIQUES</strong> <strong>AND</strong> <strong>OUTCOMES</strong><br />
325<br />
Kurien (9) demonstrated that in the first 48 hours<br />
after the procedure there was no difference in pain<br />
between the two groups. However, after 48 hours<br />
there is divergence of VAS scores with significantly<br />
less pain observed in the LESS-DN group. The VAS<br />
pain score on discharge between the LESS-DN group<br />
and the LDN group were 1.2 and 2.1 respectively.<br />
In the study by Canes6, although there was no<br />
difference in the VAS score it did demonstrate that the<br />
number of days patients were using oral analgesia<br />
and the number of days until patients returned to<br />
work were significantly shorter in the LESS-DN group<br />
(Table V).<br />
In terms of the cosmetic satisfaction, Kurien<br />
(9) did not demonstrate any difference in body image<br />
or cosmetic satisfaction between the two groups.<br />
This is in contrast to the study of Canes (6) where the<br />
patients were asked to report their “scar satisfaction”<br />
on a scale of 1 to 10. A significant difference was<br />
noted with the LESS-DN group more satisfied with<br />
their scar compared to the standard LDN group (9.7<br />
v. 7.7) (Figure 7).<br />
In these studies, the morbidity following LESS-<br />
DN in terms of post-operative pain and perceived<br />
cosmetic results are at least equivalent and in some<br />
cases superior to conventional LDN. The extent to<br />
which a psychological bias plays a role in these<br />
outcomes is difficult to determine. Patients in the LESS-<br />
DN group are aware that they have undergone an<br />
innovative, less-invasive procedure, and the better<br />
results may be related to a confirmation bias where<br />
their preconceptions of the procedure may affect how<br />
they rate the outcome.<br />
DISCUSSION<br />
Donor nephrectomy is a unique surgical<br />
procedure as it is the only one performed on a<br />
healthy patient in urological practice. Donor kidneys<br />
are in critical shortage. The renal transplant waiting<br />
list in the United States is increasing annually, and<br />
has more than doubled in the last 15 years from<br />
35,939 patients listed in 1997 to 89,442 in 2011<br />
(15). This is despite an increase of more than 85%<br />
TABLE V. COMPARISON OF LESS-DN TO ST<strong>AND</strong>ARD LDN.<br />
LESS-DN<br />
Standard LDN<br />
Canes (6)<br />
Kurien (9)<br />
Lunsford (10)<br />
Canes (6)<br />
Kurien (9)<br />
Lunsford (10)<br />
Total no<br />
17<br />
25<br />
10<br />
17<br />
25<br />
20<br />
Mean age<br />
38<br />
44.4<br />
47<br />
39<br />
47.2<br />
46.5<br />
Intraoperative Outcomes<br />
OT (minutes)<br />
269<br />
172<br />
179<br />
239<br />
176<br />
187<br />
EBL (mL)<br />
108<br />
84<br />
50<br />
141<br />
92<br />
75<br />
WIT (minutes)<br />
6.1<br />
7.15<br />
-<br />
3<br />
5.11<br />
-<br />
Postoperative Outcomes<br />
Length Stay (days)<br />
3<br />
3.9<br />
1.3<br />
3.5<br />
4.6<br />
1.1<br />
VAS on discharge<br />
2.7<br />
1.2<br />
2.5<br />
1.4<br />
2.1<br />
2<br />
Days back to Work<br />
18<br />
-<br />
-<br />
46<br />
-<br />
-<br />
Days 100% recovery<br />
29<br />
-<br />
-<br />
83<br />
-<br />
-<br />
Days oral pain pills<br />
6<br />
-<br />
-<br />
20<br />
-<br />
-
326<br />
P. M. Lewandowski, S. Leslie, I. S. Gill, and M. M. Desai.<br />
in the number of living donors between 1995 and<br />
2010 largely due to the adoption of LDN (15,16).<br />
It is evident that the supply of donor kidneys still<br />
does not match the demand. The advent of LESS-DN<br />
affords hope that a procedure with less pain, superior<br />
cosmesis and shorter convalescence may further<br />
remove barriers for donation. However, as with<br />
any innovative procedure, it must be judged on its<br />
results and of paramount importance in LESS-DN are<br />
harvesting a quality kidney with excellent long-term<br />
graft outcomes, whilst maintaining donor safety and<br />
minimizing morbidity.<br />
From ODN to LDN to LESS-DN<br />
The initial transition from ODN to LDN<br />
was associated with increased complications and<br />
longer warm ischemia time. However, these issues<br />
have since been overcome, and with the reduced<br />
morbidity, shorter hospital stay and equivalent<br />
graft outcomes (3,17-19) LDN has become the<br />
gold standard in most major transplant centers<br />
(20,21). LESS-DN will have to prove equivalent, if<br />
not superior when compared to standard LDN if<br />
it is to gain wider acceptance amongst transplant<br />
donor surgeons. In the series of LESS-DN that have<br />
been published, WIT was found to be significantly<br />
longer than standard LDN. However there were<br />
no differences seen in terms of graft function or<br />
graft loss between the two groups. Although the<br />
preliminary outcomes for LESS-DN are promising,<br />
this mode of surgery is technically challenging and<br />
requires further prospective studies to determine its<br />
true role in donor surgery.<br />
LESS-DN – Technical Challenges<br />
Surgical techniques have evolved dramatically<br />
over the last two decades and have moved towards<br />
the ideal of scar-less surgery. LESS surgery is at the<br />
forefront of this movement and since the initial reports<br />
in 2007, LESS has been utilized to undertake a wide<br />
breadth of urological procedures (22). However,<br />
as we have moved toward single port surgery, new<br />
challenges have presented themselves. LESS-DN<br />
faces the same technical challenges as with all LESS<br />
procedures and include:<br />
Lack of triangulation – One of the principles<br />
of conventional multi-port laparoscopy is to space<br />
the ports far enough apart to allow for optimal<br />
triangulation. In so doing, clashing of the instruments<br />
is avoided and adequate counter traction can be<br />
provided to the tissues to allow ease of dissection. In<br />
the series of LESS-DN described above, a number of<br />
strategies are employed to overcome the restrictions<br />
of a single port:<br />
- Gimenez (8) makes use of a bariatric<br />
laparoscope with a right angle attachment for the<br />
light cord. This serves to take the laparoscope away<br />
from the surgeon’s graspers to minimize any clashing<br />
that may occur.<br />
- Gill (5) describes the use of curved graspers<br />
(Novare Surgical Systems, Cupertino, California)<br />
or a 2 mm needlescopic grasper inserted in the left<br />
hypochondrium in order to provide counter-traction.<br />
- Desai (7) also describes the use of an extra<br />
3 or 5 mm port placed to assist with retraction in 11<br />
of their first 13 cases.<br />
- For the most part, standard laparoscopic<br />
instruments were used to facilitate dissection. However,<br />
when clashing of the instruments became a problem,<br />
curved or articulating graspers were occasionally used.<br />
- The GelPoint device itself, used in the<br />
series of Gimenez (8) and Lunsford (10), has the<br />
advantage of a larger diameter, allowing the inlet<br />
ports to be spaced further apart thus providing better<br />
triangulation.<br />
- The Quadport, with an extra channel<br />
compared to the Triport, has the obvious advantage<br />
of allowing an additional instrument to provide<br />
retraction during the procedure. Additionally, with<br />
the Quadport, the surgeon can make upto a 5-6 cm<br />
incison which allows greater freedom of movement of<br />
the instruments and easier graft extraction.<br />
Vision – As the laparoscope is placed via<br />
the umbilicus in LESS-DN (lower than in conventional<br />
LDN) this provides an unfamiliar view of the anatomy.<br />
In particular, visualization of the upper pole and<br />
posterior aspect of the renal pedicle may be<br />
suboptimal even with the use of a 30-degree camera.<br />
Desai (7) describes the use of a 5 mm Deflectable-Tip<br />
EndoEYE laparoscope to facilitate a better view of<br />
these structures.<br />
Learning Curve – As LESS-DN is a challenging<br />
procedure, adoption of the technique should ideally<br />
be guided by a mentor and undertaken in major<br />
transplant units. In addition, the surgeon should master<br />
other LESS procedures (such as simple or radical<br />
nephrectomy) before moving to LESS-DN where there<br />
are time-critical factors and a higher scrutiny of patient<br />
outcomes.<br />
Novel Techniques of LESS-DN<br />
In the literature the most common approach<br />
to LESS-DN has been via a trans-umbilical port as
LAPARO-ENDOSCOPIC SINGLE-SITE DONOR NEPHRECTOMY: <strong>TECHNIQUES</strong> <strong>AND</strong> <strong>OUTCOMES</strong><br />
327<br />
described above. However there have been recent<br />
reports of alternative sites of access, which may have<br />
benefits in terms of cosmetic outcomes.<br />
Kavoussi (23) describes the use of a<br />
Pfannenstiel incision to perform LESS-DN in six<br />
patients. After making a 5cm Pfannenstiel skin<br />
incision, three ports are positioned in a triangular<br />
manner underneath the skin flaps. This differs<br />
from the previously described techniques in that a<br />
dedicated single-access device is not used to perform<br />
the procedure. The median operating time was 142<br />
minutes and the median WIT was 5 minutes. They<br />
argue that a scar which can be concealed with<br />
undergarments offers a superior cosmetic result when<br />
compared to trans-umbilical LESS-DN.<br />
Van der Merwe (24) describes the use of<br />
a GelPoint placed in a 6 cm groin incision (below<br />
the “bikini line”) to perform a retroperitoneal LESS-<br />
DN. There were only 2 patients in this initial series<br />
and apart from a long operating time (median 270<br />
minutes) the outcomes in terms of WIT (3.8 minutes)<br />
and post-operative pain were promising. Once again,<br />
the authors argue that an incision that can be hidden<br />
by undergarments offers a better cosmetic result.<br />
In both theses studies, the number of patients<br />
is small, and further prospective trials are required<br />
to determine if these techniques offer equivalent or<br />
superior results to trans-umbilical LESS-DN.<br />
A recent study from Dubey (25) described a<br />
trans-umbilical LESS-DN without the use of a single port<br />
access device. Instead three standard laparoscopic<br />
ports were placed under the skin flaps of a single<br />
trans-umbilical incision Although the cohort was small<br />
(six patients) the results were encouraging with a mean<br />
WIT of three minutes, a mean operating time of 153<br />
minutes and an average length of stay of three days.<br />
This study showed the feasibility of a trans-umbilical<br />
LESS-DN technique, without the need of a single port<br />
access device.<br />
Right LESS-DN<br />
The left side is the predominant side for<br />
donor nephrectomy given that a longer length of<br />
renal vein and artery can be harvested facilitating an<br />
easier anastomosis in the recipient. However in a few<br />
situations, such as a smaller right kidney (measured<br />
by scintigraphy) or multiple left renal arteries or<br />
veins, the right kidney may be the preferred side for<br />
donation. However, many proponents of LESS-DN<br />
have avoided the right side on the basis that it is a<br />
more difficult procedure than the left.<br />
This has been challenged by Afaneh (26) who<br />
reported six cases of right sided LESS-DN compared<br />
to a matched cohort of left sided LESS-DN. Although<br />
more technically challenging, they found that the graft<br />
outcomes were equivalent between the two groups.<br />
They concluded that right side LESS-DN is safe and<br />
feasible, and can be an alternative when the right<br />
kidney is the preferred side for donation.<br />
CONCLUSIONS<br />
Transplant donor surgery continues to<br />
evolve. Over the last 15 years conventional LDN has<br />
decreased disincentives for individuals to undergo<br />
kidney donation. Although this has resulted in an<br />
increase in the kidney donor pool there is still an<br />
ever-widening gap between available kidneys and<br />
the patients that need them. Initial data suggest that<br />
LESS-DN may offer further improvements over LDN<br />
in terms of quicker recovery and superior cosmetic<br />
results. These are important considerations in young,<br />
healthy, and physically active people who may be<br />
considering donation.<br />
The published literature on LESS-DN has<br />
demonstrated that it is safe, has good graft outcomes<br />
and improved patient morbidity. However, these<br />
preliminary results need further support from larger<br />
prospective studies to assess if the incremental<br />
benefits in patient morbidity outweigh the added<br />
intraoperative technical challenge of the procedure.<br />
REFERENCES <strong>AND</strong> RECOMMENDED READINGS<br />
(*of special interest, **of outstanding interest)<br />
1.<br />
2.<br />
3.<br />
4.<br />
Ratner LE, Ciseck LJ, Moore RG, Cigarroa FG,<br />
Kaufman HS, Kavoussi LR. Laparoscopic live donor<br />
nephrectomy. Transplantation 1995;60:1047-<br />
9.<br />
Philosophe B, Kuo PC, Schweitzer EJ, et al. Laparoscopic<br />
versus open donor nephrectomy: comparing<br />
ureteral complications in the recipients and<br />
improving the laparoscopic technique. Transplantation<br />
1999;68:497-502.<br />
Troppmann C, Perez RV, McBride M. Similar<br />
long-term outcomes for laparoscopic versus open<br />
live-donor nephrectomy kidney grafts: an OPTN<br />
database analysis of 5532 adult recipients. Transplantation<br />
2008;85:916-9.<br />
Derweesh IH, Goldfarb DA, Abreu SC, et al.<br />
Laparoscopic live donor nephrectomy has equivalent<br />
early and late renal function outcomes<br />
compared with open donor nephrectomy. Urology<br />
2005;65:862-6.
328<br />
*5.<br />
*6.<br />
*7.<br />
*8.<br />
*9.<br />
*10.<br />
11.<br />
12.<br />
**13.<br />
14.<br />
15.<br />
16.<br />
Gill IS, Canes D, Aron M, et al. Single port transumbilical<br />
(E-NOTES) donor nephrectomy. J<br />
Urol 2008;180:637-41; discussion 41.<br />
Canes D, Berger A, Aron M, et al. Laparo-endoscopic<br />
single site (LESS) versus standard laparoscopic<br />
left donor nephrectomy: matched-pair comparison.<br />
Eur Urol 2010;57:95-101.<br />
Ganpule AP, Dhawan DR, Kurien A, et al. Laparoendoscopic<br />
single-site donor nephrectomy: a single-center<br />
experience. Urology 2009;74:1238-40.<br />
Gimenez E, Leeser DB, Wysock JS, Charlton M,<br />
Kapur S, Del Pizzo JJ. Laparoendoscopic single<br />
site live donor nephrectomy: initial experience. J<br />
Urol 2010;184:2049-53.<br />
Kurien A, Rajapurkar S, Sinha L, et al. First prize:<br />
Standard laparoscopic donor nephrectomy versus<br />
laparoendoscopic single-site donor nephrectomy:<br />
a randomized comparative study. J Endourol<br />
2011;25:365-70.<br />
Lunsford KE, Harris MT, Nicoll KN, et al. Singlesite<br />
laparoscopic living donor nephrectomy offers<br />
comparable perioperative outcomes to conventional<br />
laparoscopic living donor nephrectomy at a<br />
higher cost. Transplantation 2011;91:e16-7.<br />
Eng M. The role of laparoscopic donor nephrectomy<br />
in renal transplantation. Am Surg<br />
2010;76:349-53.<br />
White WM, Haber GP, Goel RK, Crouzet S, Stein<br />
RJ, Kaouk JH. Single-port urological surgery:<br />
single-center experience with the first 100 cases.<br />
Urology 2009;74:801-4.<br />
Desai MM, Berger AK, Brandina R, et al. Laparoendoscopic<br />
single-site surgery: initial hundred<br />
patients. Urology 2009;74:805-12.<br />
Clavien PA, Barkun J, de Oliveira ML, et al.<br />
The Clavien-Dindo classification of surgical<br />
complications: five-year experience. Ann Surg<br />
2009;250:187-96.<br />
The Organ Procurement and Transplantation Network<br />
(OPTN). (Accessed at http://optn.transplant.<br />
hrsa.gov/data/.)<br />
Schweitzer EJ, Wilson J, Jacobs S, et al. Increased<br />
rates of donation with laparoscopic donor nephrectomy.<br />
Ann Surg 2000;232:392-400.<br />
17.<br />
18.<br />
19.<br />
*20.<br />
21.<br />
22.<br />
23.<br />
24.<br />
25.<br />
26.<br />
Altinel M, Akinci S, Gunes ZE, Olcucuoglu E,<br />
Gonenc F, Yazicioglu AH. Open versus laparoscopic<br />
donor nephrectomy: perioperative parameters<br />
and graft functions. Transplant Proc 2011;43:781-<br />
6.<br />
Percegona LS, Bignelli AT, Adamy A, Jr., et al.<br />
Early graft function in kidney transplantation:<br />
comparison between laparoscopic donor nephrectomy<br />
and open donor nephrectomy. Transplant<br />
Proc 2008;40:685-6.<br />
Kok NF, Alwayn IP, Tran KT, Hop WC, Weimar<br />
W, Ijzermans JN. Psychosocial and physical impairment<br />
after mini-incision open and laparoscopic<br />
donor nephrectomy: A prospective study.<br />
Transplantation 2006;82:1291-7.<br />
Tooher RL, Rao MM, Scott DF, et al. A systematic<br />
review of laparoscopic live-donor nephrectomy.<br />
Transplantation 2004;78:404-14.<br />
Merlin TL, Scott DF, Rao MM, et al. The safety<br />
and efficacy of laparoscopic live donor nephrectomy:<br />
a systematic review. Transplantation<br />
2000;70:1659-66.<br />
Kaouk JH, Autorino R, Kim FJ, et al. Laparoendoscopic<br />
Single-site Surgery in Urology: Worldwide<br />
Multi-institutional Analysis of 1076 Cases.<br />
Eur Urol 2011.<br />
Andonian S, Rais-Bahrami S, Atalla MA, Herati<br />
AS, Richstone L, Kavoussi LR. Laparoendoscopic<br />
single-site Pfannenstiel versus standard<br />
laparoscopic donor nephrectomy. J Endourol<br />
2010;24:429-32.<br />
van der Merwe A, Bachmann A, Heyns CF. Retroperitoneal<br />
LESS donor nephrectomy. Int Braz<br />
J Urol 2010;36:602-8.<br />
Dubey D, Shrinivas RP, Srikanth G. Transumbilical<br />
laparoendoscopic single-site donor nephrectomy:<br />
Without the use of a single port access device.<br />
Indian J Urol 2011;27:180-4.<br />
Afaneh C, Ramasamy R, Leeser DB, Kapur S,<br />
Del Pizzo JJ. Is right-sided laparoendoscopic<br />
single-site donor nephrectomy feasible? Urology<br />
2011;77:1365-9.
