Passivity as a Design Tool for Group Coordination

Murat Arcak, Senior Member, IEEE

Abstract—We pursue a group coordination problem where the

objective is to steer the differences between output variables of the

group members to a prescribed compact set. To stabilize this set

we study a class of feedback rules that are implementable with

local information available to each member. When the information

flow between neighboring members is bidirectional, we show that

the closed-loop system exhibits a special interconnection structure

which inherits the passivity properties of its components. By exploiting

this structure we develop a passivity-based design framework,

which results in a broad class of feedback rules that encompass

as special cases some of the existing formation stabilization

and group agreement designs in the literature. The passivity approach

offers additional design flexibility compared to these special

cases, and systematically constructs a Lurie-type Lyapunov function

for the closed-loop system. We further study the robustness of

these feedback laws in the presence of a time-varying communication

topology, and present a persistency of excitation condition

which allows the interconnection graph to lose connectivity pointwise

in time as long as it is established in an integral sense.

Index Terms—Cooperative systems, distributed control, Lyapunov

methods, passivity.

I. INTRODUCTION

THE increasing number of feedback applications in sensor

networks, cooperative robotics, and vehicle formations

have brought group coordination problems to the forefront of

control theory. The main challenge in these applications is to

achieve a prescribed group behavior with local feedback rules,

rather than with centralized controllers. A major focus of research

in group coordination is formation stability, where such

local rules have been proposed in the form of artificial attraction

and repulsion forces with neighboring vehicles [1]–[3]. A

related topic of wide interest is the agreement problem, where

the objective is to steer variables of interest (position, heading,

phase of oscillations, etc.) to a common value across the network

[4]–[8]. The application areas for the agreement problem

range from the study of flocking and schooling behaviors in

groups of natural organisms [9], to distributed computing [10],

and to forest fire surveillance [11].

Manuscript received September 26, 2005; revised July 11, 2006. Recommended

by Associate Editor D. Nesic. This work was supported in part by the

Air Force Office of Scientific Research under award No. FA9550–07–1–0308,

and by the Center for Automation Technologies and Systems (CATS) under a

block grant from the New York State Office of Science, Technology, and Academic

Research (NYSTAR).

The author is with the Department of Electrical, Computer, and Systems Engineering,

Rensselaer Polytechnic Institute, Troy, NY 12180 USA (e-mail: arcakm@rpi.edu).

Color versions of one or more of the figures in this paper are available online

at http://ieeexplore.ieee.org.

Digital Object Identifier 10.1109/TAC.2007.902733

In this paper, we formulate a coordination problem that is applicable

to formation stabilization and group agreement as special

cases, and present a class of feedback laws that solve this

problem with local information. These feedback laws assume

that, if a communication link exists between two members of

the group, then both members gain access to each other’s information.

A key observation in the paper is that such bidirectional

communication gives rise to a special interconnection structure

which guarantees that the resulting feedback loop will inherit

the passivity properties of its components. By exploiting this

structure, we develop a design method which results in a broad

class of feedback laws that achieve passivity and, thus, stability

of the interconnected system. The passivity approach also leads

to a systematic construction of a Lyapunov function in the form

of a sum of storage functions for the subsystems. As detailed

in the paper, several existing feedback rules for formation stability

and group agreement become special cases in our passivity

framework.

The coordination task studied in this paper is to steer the differences

between the output variables of group members to a

prescribed compact set. This compact set is a sphere when the

outputs are positions of vehicles that must maintain a given distance

in a formation, or the origin if the outputs are variables

that must reach an agreement across the group. We thus formulate

this task as a set stability problem [12], [13] as defined in

Section I-A, and use passivity as a tool for constructing a stabilizing

feedback law and a Lyapunov function with respect to

this set. We prove global asymptotic stability with additional

assumptions that guarantee appropriate detectability properties

for trajectories away from the set.

The subsequent sections are organized as follows: Section I-A

introduces the notation and definitions used in the paper, and

Section I-B presents the problem formulation. Section II develops

a passivity-based design procedure by exploiting the

structure of the interconnected system. It then gives the main

stability result (Theorem I) and illustrates it with examples

from formation control and from synchronous operation in

power systems. Section III focuses on the agreement problem

as a special case of Theorem I. It first presents a corollary to

Theorem I that yields a class of continuous-time agreement

protocols, and next develops a discrete-time analogue of this

result (Theorem 2). It finally addresses time-varying communication

topologies and employs the persistency of excitation

concept from adaptive control to prove that group agreement is

achievable when graph connectivity is established over a period

of time (Theorem 3). This result is significant because it does

not require pointwise connectivity of the graph, and is applicable

to a class of nonlinear agreement protocols. The proofs

of the theorems are presented in Section IV. The conclusion is

given in Section V.

0018-9286/$25.00 © 2007 IEEE

Authorized licensed use limited to: UNIVERSITA MODENA. Downloaded on September 14, 2009 at 04:53 from IEEE Xplore. Restrictions apply.

ARCAK: PASSIVITY AS A DESIGN TOOL 1381

A. Notation and Definitions

• A function is said to be , if its partial derivatives exist

and are continuous up to order .

• Given a function we denote by its

gradient vector, and by its Hessian matrix.

• For a closed set , denotes the distance from the point

to ,defined as

• A closed invariant set is uniformly asymptotically stable

with region of attraction if for each there exists

such that

and, if for each and , there exists

such that for every initial condition the resulting

trajectory satisfies

Several results on set stability and, in particular, converse

Lyapunov theorems are presented in [12] and [13].

• Following [13], we use the notation to indicate

a sequence of points in converging to a point on the

boundary of ,orif is unbounded, having the property

.

• The dynamic system

is said to be passive if there exists a

such that

(1)

(2)

(3)

(4)

storage function

for some positive semidefinite function . We say that

(4) is strictly passive if is positive definite. A static

nonlinearity is passive if, for all ,

and strictly passive if (6) holds with strict inequality

.

• The Kronecker product of matrices

and

is defined as

.

(5)

(6)

. .. . . (7)

where

and

is an identity matrix of arbitrary dimension , and

are assumed to be compatible for multiplication.

B. Problem Statement

We consider a group where each member

is

represented by a vector that consists of variables to

be coordinated with the rest of the group. The topology of information

exchange between these members is described by a

graph. We say that the th and th members are “neighbors” if

they have access to the relative information , in which

case we let the th and th nodes of the graph be connected by a

link. To simplify our derivations we assign an orientation to the

graph by considering one of the nodes to be the positive end of

the link. The choice of orientation does not change the results

because in this paper the information flow between neighbors is

assumed to be bidirectional. Denoting by the total number

of links, we recall that the incidence matrix of the

graph is defined as [14]

if th node is the positive end of the th link

if th node is the negative end of the th link

otherwise.

(10)

Because the sum of its rows is zero, the rank of is at most

. Indeed, the rank is when the graph is connected,

that is when a path exists between every two distinct nodes,

and less than otherwise. The columns of are linearly

independent when no cycles exist in the graph.

Our objective is to develop coordination laws that are implementable

with local information (the th member can use the

information if the th member is a neighbor) and that

guarantee the following two group behaviors:

B1) Each member achieves in the limit a common velocity

vector

prescribed for the group; that is

, .

B2) If th and th members are neighbors connected by link

, then the difference variable

if

if

is the positive end

is the positive end

(11)

converges to a prescribed compact set ,

.

Examples of such target sets include the origin if s are

variables that must reach an agreement within the group, or a

sphere in if s are positions of vehicles that must maintain

a prescribed distance. The formulation B1-B2 can thus be employed

to design and stabilize a formation of vehicles, or to synchronize

variables in a distributed network of computers, satellites,

power generators, etc.

Note that if the columns of are linearly dependent, that is

if the graph contains cycles, then s are mutually dependent.

Indeed, from (11), the concatenated vectors

and satisfies the properties

(8)

(9)

satisfy

(12)

(13)



Fig. 1 The task of the internal feedback design is to render the plant passive

from the external feedback signal u to the velocity error y . The resulting passive

block is denoted by H .

where is the identity matrix and “ ” represents the

Kronecker product, which means that is constrained to lie in

the range space

. Thus, for B2 above to be feasible,

the target sets must be consistent in the sense that

II. THE PASSIVITY APPROACH

(14)

A. Design Procedure

We now present our passivity-based design to achieve objectives

B1-B2 above. We assume that an internal feedback loop

has been designed for each node

to render its

dynamics passive from an external feedback signal to the velocity

error

(15)

A complete characterization of the class of systems which can

be rendered passive from to is beyond the scope of this

paper. However, this class is broad, and encompasses mechanical

systems modeled by Euler-Lagrange equations [15, Section

4.1]. Upon application of this internal feedback the node dynamics

take the form of Fig. 1, where the properties that must

be satisfied by the passive block are further specified below.

We design an external feedback law of the form

(16)

where s are the relative distance variables as in (11), and the

multivariable nonlinearities

are to be designed

to render the target sets invariant and asymptotically stable.

The external feedback law (16) is indeed implementable with

available signals because only for links that are connected

to node .

To specify the properties s in Fig. 1 and s in (16) must

satisfy we note that their interconnection is as in Fig. 2, where

denotes the -vector of ones

and (16) is rewritten in the compact form

(17)

(18)

Fig. 2 exhibits a “symmetric” interconnection structure in which

the coupling of the block-diagonal feedforward and feedback

subsystems is due to multiplication by the matrices and

. Because post-multiplication by a matrix and pre-multiplication

by its transpose preserve passivity and, thus, stability

properties, this structure allows us to proceed with a passivitybased

design of , , and , .

If is a static block, we restrict it to be of the form

where

(19)

is a locally Lipschitz function satisfying

(20)

The only exception to (20) is when one of the members, say the

first one, is the “leader” of the group in the sense that does

not contain feedback terms from other members. We encompass

this situation by letting

If

is a dynamic block of the form

(21)

(22)

we assume and are locally Lipschitz functions

such that

, and

(23)

Our main restriction on (22) is that it be strictly passive with

a , positive definite, radially unbounded storage function

satisfying

for some positive definite function .

Likewise, we restrict the feedforward nonlinearities

to be of the form

where is a nonnegative function

(24)

(25)

(26)

defined on an open set in which is allowed to

evolve. To steer s to their target sets while keeping

them within , we design the function to grow unbounded

as approaches (see Section I-A for this notation),

and let and its gradient vanish on the set

:

(27)

(28)

(29)

When , (27) means that is radially unbounded.

As shown in [13, Remark 2], a continuous function satisfying

(27) and (28) exists for any given open set and compact



Fig. 2. A block diagram representation for the interconnection of the subsystems in Fig. 1 via the external feedback (18). The vectors x,y,z,u and are as defined

in (12) and (17), I is the p 2 p identity matrix, 1 is the N -dimensional column vector with all entries equal to 1, and “” represents the Kronecker product.

subset . In this paper we assume that the sets and

are chosen such that smoothness of and (29) are

also achievable.

B. Stability Analysis

In Theorem I below, we prove passivity for the feedforward

and feedback subsystems of Fig. 2 by using the storage functions

(30)

i) The feedforward path in Fig. 2 is passive from to ,

and from to .

ii) The feedback path is passive from input to output .

iii) If Assumption 1 holds then the set

(32)

is uniformly asymptotically stable with region of attraction

respectively, where denotes the subset of indices

which correspond to dynamic blocks . We then prove asymptotic

stability of the set of points where and by

taking as a Lyapunov function the sum of the two storage functions

in (30). This construction results in a Lurie-type Lyapunov

function because its key ingredient is the integral of the

feedback nonlinearity .

When the columns of are linearly dependent, that is when

the graph contains cycles, the constraint (13) implies that s are

mutually dependent, because the vector lies in the range space

. In this case in (30), restricted to the subspace

, may acquire new critical points outside the sets

, thus giving rise to undesired equilibria. Indeed, from Fig. 2,

the set of equilibria is

(31)

which means that the following assumption must hold true to

ensure that no equilibria arises outside the sets .

Assumption 1:

and

imply .

When the columns of are linearly independent Assumption

I holds because, then, the null space of is trivial and, thus,

implies , and follows from

(29). When the columns of are linearly dependent, whether

Assumption 1 holds or not depends on the sets . It holds in

agreement problems where is the origin (see Section III),

and fails in Example 1 below where s are spheres.

Theorem 1: Consider the block diagram in Fig. 2 where

is bounded and piecewise continuous, and , and

, are designed as in (19)–(24) and (25)–(29)

for given open sets and compact subsets ,

and assume the sets are consistent as in (14). Then:

(33)

If Assumption 1 fails, all trajectories

starting in

converge to the set of equilibria in (31).

The proof is given in Section IV. When Assumption 1 fails

Theorem 1 proves that the trajectories convergence to the set

of equilibria in (31). In this case one can conclude “generic

convergence” to from almost all initial conditions by showing

that the equilibria outside are unstable (see Example 1 below).

Convergence to means that the trajectories converge to

the set of points where the difference variables belong to their

target sets . It also implies that and, thus, in (15) tend to

zero, which means that objectives B1 and B2 in Section I-B are

indeed achieved.

C. Examples

Example 1(Formation Control): When applied to the

problem of formation stabilization, Theorem 1 recovers the stability

results of [1] and [2], and gives a passivity interpretation.

These references study the coordination of vehicles, modeled

as fully actuated point masses

(34)

where is the position of each mass and

is the force input. They then design as a sum of artificial

interaction forces with the neighboring vehicles. To show that

our formulation encompasses this application, we note that the

internal feedback

(35)



Fig. 3. (a) Desired formation where jz j =1, k =1; 2;3. (b) An undesired

equilibrium where the masses are aligned and the repulsion forces due to jz j <

1 and jz j < 1 counterbalance the attraction force due to jz j > 1.

and the change of variables

form

bring (34) into the

(36)

(37)

where the -subsystem with input and output plays

the role of in Fig. 1. This subsystem is indeed passive with

the storage function

and satisfies (23). The

design of s in [1], [2] is as in (16), with s representing

artificial interaction forces between neighboring vehicles.

To stabilize the formation in Fig. 3(a) while avoiding collisions

we let be the unit circle, , and let the

potential functions be of the form

(38)

where is a , strictly increasing function such

that

and such that, as , in (38). Then,

satisfies (27)-(29), and the interaction forces

(39)

(40)

guarantee local asymptotic stability of the desired formation

in Fig. 3(a) from Theorem 1. In particular plays the

role of a “spring force” which creates an attraction force when

and a repulsion force when . Assumption 1

fails in this example because additional equilibria arise when the

point masses are aligned as in Fig. 3(b), and the attraction force

between the two distant masses counterbalances the repulsion

force due to the intermediate mass (cf. [16, Fig. 3.1(c)]). Such

equilibria cannot be eliminated with the choice of the function

because

(41)

(42)

have a unique solution since are increasing

and onto and, thus, the set of points where ,

and

constitute new equilibria as

in Fig. 3(b). Because these equilibria are unstable, however,

we conclude generic convergence to the desired formation in

Fig. 3(a) from all initial conditions except for those that lie on

the stable manifolds of the unstable equilibria.

Example 2 (Synchronous Operation in Power Networks): In

Example 1 interaction forces were designed to coordinate the

motion of decoupled subsystems. In several other applications

such interactions arise due to existing physical coupling, and

exhibit the passive feedback structure studied in this paper. An

excellent example is a multi-machine power system where the

th generator is governed by (see [17]):

(43)

(44)

in which is the angle of the rotor shaft, is the synchronous

speed for the network, is the deviation of the rotor speed from

, and and are the inertia and damping constants, respectively.

and are the internal voltages of the th and th

machines, and is the transfer susceptance between them.

The equilibrium point for is , which is determined

by solving equations that match the mechanical input power to

the electrical output. From two solutions for in ,we

study the one that satisfies

because the

other one results in an unstable equilibrium.

To show that this example fits into our framework, we note

that the model (43) and (44) is as in Fig. 1 where

(45)

and the -subsystem with input and output is passive

with storage function

. Furthermore (45) is

of the form (16) where

is the gradient of the potential function

(46)

(47)

which satisfies (28) and (29) locally around

.Itis

also positive definite because its Hessian at is positive due to

the assumption

. The Lyapunov function

of Theorem 1 thus proves local asymptotic stability for the equilibrium

comprising of s. Our Lurie-type construction consists

of the components in (30), and coincides with the Lyapunov

function derived in [18].

III. PASSIVE PROTOCOLS FOR GROUP AGREEMENT

A. The Agreement Problem as a Special Case of Theorem 1

In several cooperative control applications, it is of interest to

achieve agreement of group variables such as position, heading,

phase of oscillations, etc. To apply Theorem 1 to this problem



we let denote a vector of variables to be synchronized

with those of other members, and select the target sets for the

difference variables in (11) to be . With this choice

of s, (14) is satisfied. Likewise, (26)–(29) and Assumption

1 hold if s are selected to be positive definite, radially

unbounded functions on such that

(48)

In particular, Assumption 1 holds because

and imply that and are orthogonal

to each other which, in view of (48), is possible only when

. Thus, from Theorem 1, the feedback law (49) with

achieves global asymptotic stability for the

equilibrium , which guarantees that the difference

variables converge to zero.

Corollary 1: Consider members

, interconnected

as described by the graph representation (10), and let

, denote the differences between the variables

of neighboring members as in (11). Let be positive

definite, radially unbounded functions satisfying (48), and let

. Then the agreement protocol

(49)

where denotes the output at time of a static or dynamic

block satisfying (19)–(23), guarantees

B. Extension to Discrete-Time Protocols

We now study discrete-time agreement protocols of the form

(52)

where is the time index, and is a discrete-time

dynamic block or a static nonlinearity. The block diagram representation

of this discrete-time model is as in Fig. 2, with integral

blocks replaced by summation blocks, and and replaced by,

respectively

(53)

Unlike the continuous-time design in Section II, passivity of

the feedforward path cannot be achieved in discrete-time because

the phase lag of the summation block exceeds 90 .To

overcome this obstacle, we trade the shortage of passivity in the

feedforward path with the excess of passivity in the feedback

path. To guarantee such excess in the feedback path, we restrict

static blocks by

(54)

where is a positive definite function and the constant

quantifies the excess of passivity. Likewise, if is a dynamic

block of the form

(50)

for every pair of nodes which are connected by a path.

If the graph is connected then Corollary 1 implies that all variables

are synchronized in the limit. When , that

is when s and s are scalars, (48) means that

is a sector nonlinearity which lies in the first and

third quadrants. Corollary 1 thus encompasses the result of [19],

which proposed agreement protocols of the form

(51)

where is the set of neighbors for the th member, and

plays the role of our . However, both

[19] and a related result in [20] assume that the nonlinearities

satisfy an incremental sector assumption which is more

restrictive than the sector condition (48) of Corollary 1. An

independent study in [21] takes a similar approach to synchronization

as [20]; however, it further restricts the coupling

terms to be linear. Our feedback law (49) in Corollary

1 generalizes (51) by applying to its right-hand side (RHS)

the additional operation , which may either represent a

passive filter or another sector nonlinearity as specified in

Section II. Because in (49) can be dynamic, Corollary 1 is

applicable, unlike other agreement results surveyed in [22], to

plants with higher-order dynamics than an integrator.

(55)

we assume that (23) holds and that there exists a positive definite

and radially unbounded storage function satisfying

(56)

for some positive definite function .

For the feedforward subsystem we design the nonlinearity

to be the gradient of a , positive definite, radially unbounded

function that satisfies (48). We further restrict

the Hessian of this function to be upper bounded by

(57)

where the constant is to be specified. With this condition

we show in Theorem 2 below that the storage function in

(30) satisfies

(58)

where quantifies the shortage of passivity from input to

output . We then prove that this shortage is compensated for

by the excess of passivity in (54) and (56) if

(59)



where denotes the largest eigenvalue of the graph Laplacian

matrix .

Theorem 2: Consider members

, interconnected

as described by the graph representation (10), and let ,

denote the differences between the variables of

neighboring members as in (11). Suppose that s are either dynamic

blocks (55) satisfying (56), or static blocks

satisfying (54), or possibly a combination of such static and

dynamic blocks. Under these conditions, if we design

to be , positive definite, radially unbounded functions satisfying

(48), (57), and (59), then the feedback law (52) with

achieves global asymptotic stability of the

origin . In particular, if a path exists between the th

and th nodes in the graph representation (10), then

(60)

Denoting by the set of neighbors of the th member, and

by the number of elements in this set, the author of [23]

showed that an upper bound on is

rewritten in vector form (12) and (17) as

where the multivariable nonlinearity

has the property

(64)

(65)

(66)

is piecewise continuous because its entries exhibit step

changes when a change occurs in the communication topology.

The minimum eigenvalue for the graph Laplacian matrix

is

(67)

with eigenvector , the -vector of ones. A standard result in

algebraic graph theory states that the graph is connected if and

only if the second smallest eigenvalue of its Laplacian is strictly

positive (see e.g. [14, Item 4e and Corollary 6.5]). If the graph

remains connected for all , that is, if

(68)

A more conservative bound for

topology of the graph is

(61)

that does not depend on the

(62)

An important conclusion from (59) is that less communication

between members allows a broader class of s and s for the

protocol (52) because, a smaller value for in (59) translates

to larger in (57) and smaller in (54) and (56).

When s are scalars, condition (57) of Theorem 2 means

that the slope of the nonlinearity

is to be

bounded above by . Although this condition was not used

in the continuous-time result of Theorem 1, it plays a crucial role

in the proof of Theorem 2 (see Section IV) for establishing the

discrete-time property (58). The assumption of an upper bound

on the slope of the nonlinearity was introduced independently

in [24]–[26], to extend the continuous-time Popov Criterion to

discrete-time systems. Indeed, the Popov Criterion makes use of

a Lurie-type Lyapunov function that incorporates the integral of

the system nonlinearity, which is similar to the use of s

in our Lyapunov construction.

C. Time-Varying Communication Topology

Thus far we have assumed that the communication topology

between the members does not change with time. To study convergence

properties for a time-varying incidence matrix ,

we restrict our attention to the class of agreement protocols

(63)

for some constant that does not depend on time, then it

is not difficult to show that s in (64), (65) reach an agreement

despite the time-varying . We now prove agreement under

a less restrictive persistency of excitation condition which stipulates

that graph connectivity be established over a period of

time, rather than pointwise in time:

Theorem 3: Consider the system (64), (65) where

comprises of the components , concatenated

as in (12), is a locally Lipschitz nonlinearity satisfying

(66), and is piecewise continuous incidence matrix.

Let be an matrix with orthonormal rows that

are each orthogonal to ; that is

(69)

If there exist constants and such that, for all ,

(70)

then the protocol (64) and (65) achieves (50) for all

.

The “persistency of excitation” condition (70) means that

is nonsingular when integrated over a period

of time, and not necessarily pointwise in time. Since, by construction

of in (69), inherits all eigenvalues

of

except the one at zero, its smallest eigenvalue is

(71)

which means that nonsingularity of the matrix

is equivalent to connectivity of the graph. Because Theorem 3

does not require nonsingularity of

pointwise

in time, it allows the graph to lose pointwise connectivity as



long as it is established in the integral sense of (70). The pointwise

connectivity situation (68) is a special case of Theorem 3

because, then, (70) readily holds with .

A discrete-time extension of Theorem 3 is possible, but is

omitted due to space limitations. In [5, Theorem 9] the authors

study linear agreement protocols with time-varying topology

and prove convergence when the graph is connected pointwise

in time. The authors of [4] consider a class of linear discretetime

protocols, and show that it is sufficient to assume joint connectivity,

that is, connectivity for a union of the graphs collected

over an interval of time [4, Proposition 1]. Our persistency of

excitation condition in Theorem 3 is similar to this joint connectivity

assumption, and is further applicable to nonlinear protocols

of the form (63).

A. Proof of Theorem 1

IV. PROOFS

i) To prove passivity from to we use in (30) as

a storage function, and obtain from (25), (13), (18) and

:

(72)

To show passivity from to we substitute

in (72) and use the property

which follows because the sum of the rows of

is zero, thus obtaining

(73)

ii) To establish passivity of the feedback path, we let denote

the subset of indices for which is

a dynamic block as in (22), and employ the storage function

in (30), which yields

(74)

(27). From (73), (74), and (75), this Lyapunov function

yields the negative semidefinite derivative

(78)

which implies that the trajectories

are

bounded on , for any within the maximal

interval of definition for the differential equations

(49) and (22). Because this bound does not depend on

, and because is bounded, from (49) we can find a

bound on that grows linearly in . This proves that

there is no finite escape time because, if were finite,

by letting we would conclude that exists,

which is a contradiction.

Having proven the existence of solutions for all ,we

conclude from (78) stability of the set . However, because the

RHS of (78) vanishes on a superset of , to prove attractivity

of we appeal to the Invariance Principle. 1 To investigate the

largest invariant set where

we note from (23) that

if holds identically then . Likewise, the static

blocks satisfy (20) or (21), which means that the RHS of (78)

vanishes when , . Indeed, if the first member

satisfies (20), then follows directly. If it satisfies

(21) instead of (20), still holds because the sum of the

rows of being zero implies, from (18), that

(79)

We thus conclude that , which means from (18) that

lies in the null space

. Using the Invariance Principle

[27, Lemma 4.1] which states that all bounded solutions

approach their positive limit set, which is invariant, we conclude

that the trajectories converge to the set in (31). When

Assumption 1 holds, coincides with , which proves asymptotic

stability of with region of attraction , while uniformity

of asymptotic stability follows from the time-invariance of the

-dynamics.

Adding to the RHS of (74)

(75)

B. Proof of Theorem 2

We first study passivity properties of the feedforward and

feedback subsystems using the storage functions in (30). For

the feedforward subsystem we note that

which is nonnegative because the static blocks satisfy

(20) or (21), we get

(76)

and, thus, conclude passivity with input and output .

iii) To prove asymptotic stability of the set we use the Lyapunov

function

(77)

which is zero on the set due to property (28), and grows

unbounded as approaches due to property

(80)

and obtain from Taylor’s Theorem (see, e.g., [28, Sec. A.6])

(81)

where is as defined in (53), and

for some . Substitution of (25), (57), and (81) into (80)

1 The Invariance Principle is indeed applicable because the dynamics of (z; )

are autonomous: Although v(t) appears in the block diagram in Fig. 2, it is

canceled in the _z equation because (D I )(1 v(t)) = 0.



yields (58) which, when combined with

(16), results in

and

We then denote

(90)

(82)

Because the spectral radius of is , and because

has the same eigenvalues as

(with the multiplicity of each multiplied by ), we conclude

(83)

Likewise, for the feedback subsystem, we obtain from (54) and

(56)

and conclude global uniform asymptotic stability for (87) from

Lemma 1 below.

Lemma 1: Consider the time-varying system

(91)

where , is an piecewise continuous matrix

of , and

is a locally Lipschitz nonlinearity

satisfying (66). If satisfies and

(92)

for some constants , and that do not depend on , then the

origin is globally uniformly asymptotically stable.

Proof of Lemma 1: We let

(84)

Stability of the origin follows because, from (83),

(84) and (59), the Lyapunov function (77) satisfies

(85)

and note that the Lyapunov function

satisfies

(93)

(94)

(95)

To conclude asymptotic stability we note that the summation of

the RHS of (85) from to converges, which means

that as , if and if . Moreover,

because of assumption (23), implies and, hence,

. It then follows from the arguments in part (iv) of the

proof of Theorem 1 that, because of assumption (48),

implies

, which proves

that and concludes the proof of asymptotic stability.

C. Proof of Theorem 3

We define the new variable

(86)

where is as in (69) and, thus, (50) is equivalent to .To

prove asymptotic stability of , we note from (64) and (65)

that

where we obtained the second equation by substituting

(87)

(88)

and by using (86). To see that (88) holds, note that

is an orthogonal projection matrix onto the span of , and that

is in the null space of for all which, together,

imply

(89)

from which we conclude global uniform stability. To prove

global uniform asymptotic stability we employ the Nested

Matrosov Theorem [29, Theorem 1]. To this end we introduce

the auxiliary function

where

from

, and

from (92). Furthermore,

we obtain

Next, substituting (97), (98) and

(91), we get

(96)

(97)

(98)

, from which

(99)

obtained from

(100)

When in (95), it follows from (66) that and,

thus,

. Furthermore,

and together imply , which means that all



conditions of [29, Theorem 1] are satisfied and, hence,

globally uniformly asymptotically stable.

V. CONCLUSION

The notion of passivity evolved from a network theory concept

to a versatile feedback design tool. It has been instrumental

in the development of absolute stability criteria in the 1960’s,

in adaptive control and large-scale system studies in the 1970’s

and 1980’s, as well as in the nonlinear control design procedures

developed in the 1990’s [30]. In this paper we showed that passivity

is a suitable design approach for a class of group coordination

problems in which the communication structure is bidirectional.

In particular, we exploited the symmetry (post-multiplication

by and pre-multiplication by its transpose

) in the interconnection structure of Fig. 2, which is due

to such bidirectional communication. For unidirectional communication

topologies significant results have been obtained

using a number of different approaches, such as the use of Laplacian

properties for directed graphs in [5] and [31], input-to-state

stability in [32], eigenvalue structure of circulant matrices in

[33], and set-valued Lyapunov theory in [6]. Although unidirectional

interconnection topologies do not preserve passivity

properties in general, the design methodology of this paper can

be extended to assign strict forms of passivity to compensate for

the loss of passivity in the interconnection. Such an extension is

currently being pursued by the author.

The continuous-time feedback laws obtained within the passivity

framework are “scalable” in the sense that their design parameters

do not depend on the number of members in the group.

In the discrete-time extension, however, the number of members

restricted the growth of nonlinear terms [see (59)–(62)] due to

the shortage of passivity resulting from the sampling process.

In addition to stabilizing feedback rules, our passivity approach

constructed a Lurie-type Lyapunov function which can be used

as a starting point for several robust redesigns. Indeed, robustness

against measurement and quantization noise, and against

time-delays that occur in the communication links are important

problems that will be addressed in future work. Another

promising research direction is to relax the assumption that the

group reference velocity is available to each member. We

are presently developing an adaptive design where is available

only to a leader, while other members estimate this information

from their relative distance measurements.

REFERENCES

[1] P. Ögren, E. Fiorelli, and N. Leonard, “Cooperative control of mobile

sensor networks: Adaptive gradient climbing in a distributed network,”

IEEE Trans. Autom. Control, vol. 49, no. 8, pp. 1292–1302, 2004.

[2] H. Tanner, A. Jadbabaie, and G. Pappas, “Stable flocking of mobile

agents, Part I: Fixed topology,” in Proc. 42nd Conf. Decision Control,

Maui, HI, 2003, pp. 2010–2015.

[3] V. Gazi and K. Passino, “Stability analysis of social foraging swarms,”

IEEE Trans. Syst., Man, Cybern.—Part B: Cybern., vol. 34, no. 1, pp.

539–557, 2004.

[4] A. Jadbabaie, J. Lin, and A. Morse, “Coordination of groups of mobile

autonomous agents using nearest neighbor rules,” IEEE Trans. Autom.

Control, vol. 48, pp. 988–1001, 2003.

[5] R. Olfati-Saber and R. Murray, “Consensus problems in networks of

agents with switching topology and time-delays,” IEEE Trans. Autom.

Control, vol. 49, no. 9, pp. 1520–1533, 2004.

is

[6] L. Moreau, “Stability of multiagent systems with time-dependent communication

links,” IEEE Trans. Autom. Control, vol. 50, pp. 169–182,

2005.

[7] S. Roy, A. Saberi, and K. Herlugson, “A control-theoretic perspective

on the design of distributed agreement protocols,” in Proc. Amer. Control

Conf., Portland, OR, 2005, pp. 1672–1679.

[8] Z. Lin, B. Francis, and M. Maggiore, “On the state agreement problem

for multiple nonlinear dynamical systems,” in Preprints 16th IFAC

World Congress, Prague, Czech Republic, 2005.

[9] C. Reynolds, “Flocks, herds, and schools: A distributed behavioral

model,” Comput. Graph., vol. 21, pp. 25–34, 1987.

[10] L. Xiao and S. Boyd, “Fast linear iterations for distributed averaging,”

Syst. Control Lett., vol. 53, pp. 65–78, 2004.

[11] D. Casbeer, D. Kingston, R. Beard, T. McLain, S.-M. Li, and R. Mehra,

“Cooperative forest fire surveillance using a team of small unmanned

air vehicles,” Int. J. Syst. Sci., to appear in.

[12] Y. Lin, E. Sontag, and Y. Wang, “A smooth converse Lyapunov theorem

for robust stability,” SIAM J. Contr. Optim., vol. 34, pp. 124–160,

1996.

[13] A. Teel and L. Praly, “A smooth Lyapunov function from a class-KL

estimate involving two positive semidefinite functions,” ESAIM: Control,

Optim. Calculus of Variations, vol. 5, pp. 313–367, Jun. 2000.

[14] N. Biggs, Algebraic Graph Theory, 2nd ed. Cambridge, U.K.: Cambridge

Univ. Press, 1993.

[15] A. J. van der Schaft, L -gain and Passivity Techniques in Nonlinear

Control, 2nd ed. New York: Springer-Verlag, 2000.

[16] N. Leonard and E. Fiorelli, “Virtual leaders, artificial potentials and coordinated

control of groups,” in Proc. 40th IEEE Conf. Decision Control,

Orlando, FL, 2001, pp. 2968–2973.

[17] M. Pai, Energy Function Analysis for Power System Stability. Boston,

MA: Kluwer Academic, 1989.

[18] J. Willems, “Direct methods for transient stability studies in power

system analysis,” IEEE Trans. Autom. Control, vol. 16, no. 4, pp.

332–341, 1971.

[19] R. Olfati-Saber and R. Murray, “Consensus protocols for networks of

dynamic agents,” in Proc. Amer. Control Conf., Denver, CO, 2003, pp.

951–956.

[20] J.-J. E. Slotine and W. Wang, “A study of synchronization and group

coordination using partial contraction theory,” in Cooperative Control,

V. Kumar, N. Leonard, and A. Morse, Eds. New York: Springer-

Verlag, 2005, vol. 309, pp. 207–228.

[21] C. Wu, “Synchronization in arrays of coupled nonlinear systems: Passivity,

circle criterion, and observer design,” IEEE Trans. Circuits Syst.

I, Fundam. Theory Applicat., vol. 48, no. 10, pp. 1257–1261, 2001.

[22] W. Ren, R. Beard, and E. Atkins, “A survey of consensus problems in

multi-agent coordination,” in Proc. Amer. Contr. Conf., Portland, OR,

2005, pp. 1859–1864.

[23] K. Das, “An improved upper bound for Laplacian graph eigenvalues,”

Linear Algebra Its Applicat., vol. 368, pp. 269–278, 2003.

[24] G. Szegö, “On the absolute stability of sampled-data control systems,”

Proc. Nat. Acad. Sci. USA , vol. 49, pp. 558–560, 1963.

[25] Y. Z. Tsypkin, “Absolute stability of a class of nonlinear automatic

sampled data systems,” Automat. Remote Contr., vol. 25, pp. 918–923,

1965, translated from Avtomatika i Telemekhanika, 25:1030-1036,

1964.

[26] E. Jury and B. Lee, “On the stability of a certain class of nonlinear

sampled-data systems,” IEEE Trans. Autom. Control, vol. 9, pp. 51–61,

1964.

[27] H. Khalil, Nonlinear Systems, 3rd ed. Upper Saddle River, NJ: Prentice-Hall,

2002.

[28] D. Luenberger, Linear and Nonlinear Programming, 2nd ed.

Reading, MA: Addison-Wesley, 1984.

[29] A. Loría, E. Panteley, D. Popović, and A. Teel, “A nested Matrosov

theorem and persistency of excitation for uniform convergence in stable

nonautonomous systems,” IEEE Trans. Autom. Control, vol. 50, no. 2,

pp. 183–198, 2005.

[30] P. Kokotović and M. Arcak, “Constructive nonlinear control: A historical

perspective,” Automatica, vol. 37, no. 5, pp. 637–662, 2001.

[31] J. Fax and R. Murray, “Information flow and cooperative control of

vehicle formations,” IEEE Trans. Autom. Control, vol. 49, no. 9, pp.

1465–1476, 2004.

[32] H. Tanner, G. Pappas, and V. Kumar, “Leader-to-formation stability,”

IEEE Trans. Robot. Autom., vol. 20, no. 3, pp. 443–455, 2004.

[33] J. Marshall, M. Broucke, and B. Francis, “Formation of vehicles

in cyclic pursuit,” IEEE Trans. Autom. Control, vol. 49, no. 11, pp.

1963–1974, 2004.



Murat Arcak (S’97–M’00–SM’05) received the

B.S. degree in electrical and electronics engineering

from the Bogazici University, Istanbul, Turkey, in

1996, and the M.S. and Ph.D. degrees in electrical

and computer engineering from the University of

California, Santa Barbara, in 1997 and 2000, under

the direction of P. Kokotović.

He is an Associate Professor of electrical, computer

and systems engineering with the Rensselaer

Polytechnic Institute, Troy, NY. He joined the faculty

at Rensselaer in 2001. He has also held visiting

faculty positions at the University of Melbourne, Australia, and with the Massachusetts

Institute of Technology, Cambridge. His research is in nonlinear control

theory and its applications, with particular interest in robust and observer-based

feedback designs, and in distributed control of networks of dynamic systems. In

these areas, he has published more than 90 journal and conference papers and

organized several technical workshops.

Dr. Arcak is a member of SIAM and an Associate Editor for the IFAC Journal

Automatica. He received a CAREER Award from the National Science Foundation

in 2003, the Donald P. Eckman Award from the American Automatic

Control Council in 2006, and the SIAM Control and System Theory Prize in

2007.

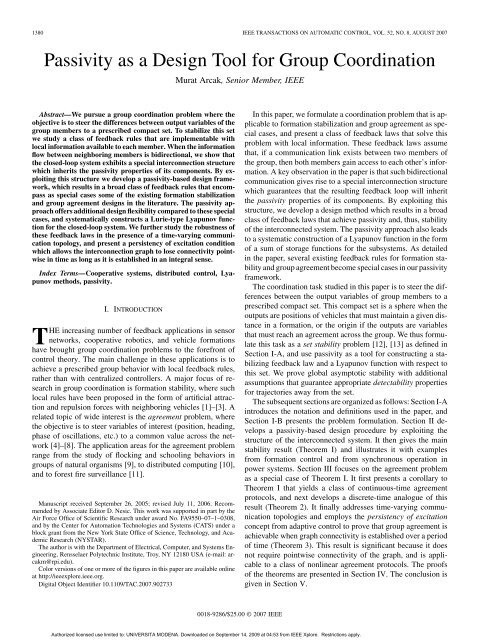

Passivity as a Design Tool for Group Coordination - uni-stuttgart

You also want an ePaper? Increase the reach of your titles

Delete template?

Save as template?
