40 Yu.A. Kuznetsov The matrix M 0 in (67) is obtained by the assembling of matrices M 0,(k) H defined in (36) if the coefficient c is a positive function in E k or in (58) if c ≡ 0 in E k , k = 1,n. Respectively, the components ˆp k of the vector ¯p H in (67) are defined either in (9) if the coefficient c is a positive function in E k or in (65) if c ≡ 0inE k , k = 1,n. The elimination of ū H (condensation of the system (67)) results in the algebraic system in terms of vector ¯p H and the interface and boundary Lagrange multiplier vector ¯λ: ] A =¯q. (68) [¯pH¯λ Here, where A k = [ ] ck |E k | 0 + 0 0 A = n∑ N k A k Nk T , (69) k=1 [ B 0,(k) H C k ] [ M 0,(k) H ] −1 [ ( B 0,(k) H ) T C T k ] (70) are symmetric and positive definite matrices, and N k are the underlying assembling matrices, k = 1,n. The formula for the vector ¯q in (68) can be easily derived. Remark 1. If the function f is constant in E ≡ E k then the vector F in (23) is defined by the formula F = −f E Dē, (71) where f E is the value of f in E, and belongs to the null space of the matrix S + in (51). To this end, instead of (54) we have ū h = R 1 ū H , (72) and ḡ in (57) is the zero vector. Simple analysis shows that the resulting discretization (66) is equivalent to the “div-const” discretization proposed in [KR03] (see also [KLS04, KR05]). Remark 2. The previous remark is concerned the case when c ≡ 0inE ≡ E k , 1 ≤ k ≤ n. Consider the case when c is a positive function in E, the diffusion equation is discretized by the method (16)–(18) and the value n k for this cell is equal to one. Under the assumptions made, the equation (index k is omitted) B H ū H + B h ū h − ˜Σ ¯p = F 1 , (73) where the matrix ˜Σ and the vector F 1 are defined in (20) and (21), respectively, is the underlying counterpart of the third equation in (23). Similar to (50), we can consider the following formula for the solution subvector ¯p: ¯p = S + [ h ˜BH ū H − ˜Σ ] ¯p − F 1 + αē (74)
with some coefficient α ∈ R where Mixed FE Methods on Polyhedral Meshes 41 S h = B h M −1 h BT h (75) and S + h is defined in (51). The vectors ˜Σ ¯p and F 1 belong to ker S + h . Therefore, instead of (74) we get ¯p = S + ˜B h H ū H + αē. (76) It proves that for the discretization method (16)–(18) the formula (72) is still valid, and the final discretization (66) is equivalent to the “div-const” discretization in [KR03]. Acknowledgement. This research was supported by Los Alamos Computational Sciences Institute (LACSI) and by ExxonMobil Upstream Research Company. The author is grateful to S. Maliassov and M. Shashkov for fruitful discussions, as well as to O. Boyarkin, V. Gvozdev, and D. Svyatskiy for numerical implementation and applications of the proposed method. References [BF91] F. Brezzi and M. Fortin. Mixed and hybrid finite element methods. Springer- Verlag, Berlin 1991 [Kuz05] Yu. Kuznetsov. Mixed finite element method in domains of complex geometry. In Abstract Book – 1st International Seminar of SCOMA, number A4/2005 in Reports of the Department of Mathematical Information Technology, Series A, Collections, University of Jyväskylä, Jyväskylä, 2005. [Kuz06] Yu. Kuznetsov. Mixed finite element method for diffusion equations on polygonal meshes with mixed cells. J. Numer. Math., 14(4):305–315, 2006 [KLS04] Yu. Kuznetsov, K. Lipnikov, and M. Shashkov. The mimetic finite difference method on polygonal meshes for diffusion-type equations. Comput. Geosci., 8:301–324, 2004 [KR03] Yu. Kuznetsov and S. Repin. New mixed finite element method on polygonal and polyhedral meshes. Russian J. Numer. Anal. Math. Modelling, 18(3):261–278, 2003 [KR05] Yu. Kuznetsov and S. Repin. Convergence analysis and error estimates for mixed finite element method on distorted meshes. J. Numer. Math., 13(1):33–51, 2005 [RT91] J. E. Roberts and J.-M. Thomas. Mixed and hybrid methods. In P.- G. Ciarlet and J.-L. Lions, editors, Handbook of Numerical Analysis, Vol. II, pages 523–639. North-Holland, Amsterdam, 1991.
- Page 1 and 2: Partial Differential Equations
- Page 3 and 4: Partial Differential Equations Mode
- Page 5 and 6: Dedicated to Olivier Pironneau
- Page 7 and 8: VIII Preface computers has been at
- Page 9 and 10: Contents List of Contributors .....
- Page 11 and 12: List of Contributors Yves Achdou UF
- Page 13 and 14: List of Contributors XV Claude Le B
- Page 15 and 16: Discontinuous Galerkin Methods Vive
- Page 17 and 18: Discontinuous Galerkin Methods 5 2
- Page 19 and 20: Discontinuous Galerkin Methods 7 g
- Page 21 and 22: Discontinuous Galerkin Methods 9 (
- Page 23 and 24: Discontinuous Galerkin Methods 11 3
- Page 25 and 26: Discontinuous Galerkin Methods 13 3
- Page 27 and 28: Discontinuous Galerkin Methods 15 W
- Page 29 and 30: Let a h and b h denote the bilinear
- Page 31 and 32: Discontinuous Galerkin Methods 19 t
- Page 33 and 34: Discontinuous Galerkin Methods 21 l
- Page 35 and 36: Table 1. Primal DG for transport Di
- Page 37 and 38: Discontinuous Galerkin Methods 25 [
- Page 39 and 40: Mixed Finite Element Methods on Pol
- Page 41 and 42: Mixed FE Methods on Polyhedral Mesh
- Page 43 and 44: Mixed FE Methods on Polyhedral Mesh
- Page 45 and 46: Mixed FE Methods on Polyhedral Mesh
- Page 47 and 48: 4 Hybridization and Condensation Mi
- Page 49 and 50: Mixed FE Methods on Polyhedral Mesh
- Page 51: is symmetric and positive definite,
- Page 55 and 56: 44 E.J. Dean and R. Glowinski so fa
- Page 57 and 58: 46 E.J. Dean and R. Glowinski 2 A L
- Page 59 and 60: 48 E.J. Dean and R. Glowinski S:T=
- Page 61 and 62: 50 E.J. Dean and R. Glowinski minim
- Page 63 and 64: 52 E.J. Dean and R. Glowinski 6 On
- Page 65 and 66: 54 E.J. Dean and R. Glowinski Fig.
- Page 67 and 68: 56 E.J. Dean and R. Glowinski and
- Page 69 and 70: 58 E.J. Dean and R. Glowinski 7 Num
- Page 71 and 72: 60 E.J. Dean and R. Glowinski Fig.
- Page 73 and 74: 62 E.J. Dean and R. Glowinski Assum
- Page 75 and 76: Higher Order Time Stepping for Seco
- Page 77 and 78: u n+1 h Optimal Higher Order Time D
- Page 79 and 80: Optimal Higher Order Time Discretiz
- Page 81 and 82: Optimal Higher Order Time Discretiz
- Page 83 and 84: Optimal Higher Order Time Discretiz
- Page 85 and 86: Optimal Higher Order Time Discretiz
- Page 87 and 88: Optimal Higher Order Time Discretiz
- Page 89 and 90: Optimal Higher Order Time Discretiz
- Page 91 and 92: Optimal Higher Order Time Discretiz
- Page 93 and 94: Optimal Higher Order Time Discretiz
- Page 95 and 96: Optimal Higher Order Time Discretiz
- Page 97 and 98: Optimal Higher Order Time Discretiz
- Page 99 and 100: Optimal Higher Order Time Discretiz
- Page 101 and 102: Optimal Higher Order Time Discretiz

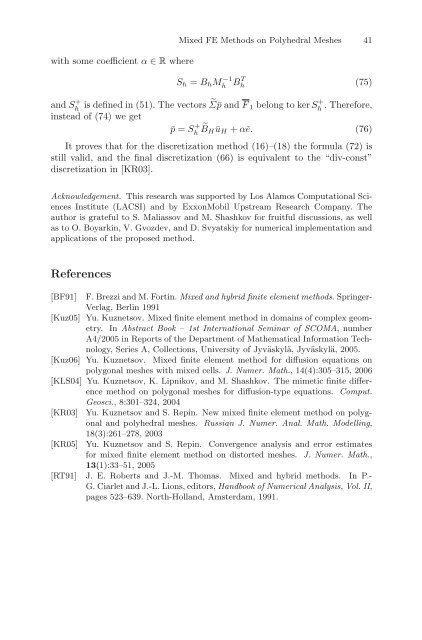

with some coefficient α ∈ R where<br />
Mixed FE Methods on Polyhedral Meshes 41<br />
S h = B h M −1<br />
h BT h (75)<br />
<strong>and</strong> S + h is defined in (51). The vectors ˜Σ ¯p <strong>and</strong> F 1 belong to ker S + h . Therefore,<br />
instead of (74) we get<br />
¯p = S + ˜B h H ū H + αē. (76)<br />
It proves that for the discretization method (16)–(18) the formula (72) is<br />
still valid, <strong>and</strong> the final discretization (66) is equivalent to the “div-const”<br />
discretization in [KR03].<br />
Acknowledgement. This research was supported by Los Alamos Computational Sciences<br />
Institute (LACSI) <strong>and</strong> by ExxonMobil Upstream Research Company. The<br />
author is grateful to S. Maliassov <strong>and</strong> M. Shashkov for fruitful discussions, as well<br />
as to O. Boyarkin, V. Gvozdev, <strong>and</strong> D. Svyatskiy for numerical implementation <strong>and</strong><br />
applications of the proposed method.<br />
References<br />
[BF91] F. Brezzi <strong>and</strong> M. Fortin. Mixed <strong>and</strong> hybrid finite element methods. Springer-<br />
Verlag, Berlin 1991<br />
[Kuz05] Yu. Kuznetsov. Mixed finite element method in domains of complex geometry.<br />
In Abstract Book – 1st International Seminar of SCOMA, number<br />
A4/2005 in Reports of the Department of Mathematical Information Technology,<br />
Series A, Collections, University of Jyväskylä, Jyväskylä, 2005.<br />
[Kuz06] Yu. Kuznetsov. Mixed finite element method for diffusion equations on<br />
polygonal meshes with mixed cells. J. Numer. Math., 14(4):305–315, 2006<br />
[KLS04] Yu. Kuznetsov, K. Lipnikov, <strong>and</strong> M. Shashkov. The mimetic finite difference<br />
method on polygonal meshes for diffusion-type equations. Comput.<br />
Geosci., 8:301–324, 2004<br />
[KR03]<br />
Yu. Kuznetsov <strong>and</strong> S. Repin. New mixed finite element method on polygonal<br />
<strong>and</strong> polyhedral meshes. Russian J. Numer. Anal. Math. <strong>Modelling</strong>,<br />
18(3):261–278, 2003<br />
[KR05] Yu. Kuznetsov <strong>and</strong> S. Repin. Convergence analysis <strong>and</strong> error estimates<br />
for mixed finite element method on distorted meshes. J. Numer. Math.,<br />
13(1):33–51, 2005<br />
[RT91] J. E. Roberts <strong>and</strong> J.-M. Thomas. Mixed <strong>and</strong> hybrid methods. In P.-<br />
G. Ciarlet <strong>and</strong> J.-L. Lions, editors, H<strong>and</strong>book of Numerical Analysis, Vol. II,<br />
pages 523–639. North-Holl<strong>and</strong>, Amsterdam, 1991.
